Compute Shaders
Using the GPU for applications other than graphics!
GPU Architecture
- Stupid small instruction set
- Trades off for many, many cores
- Lots of parallelism, lots of math, lots of floating-point operations
http://www.nvidia.com/object/what-is-gpu-computing.html
GPU Architecture
- Intended to churn out lots of triangles and pixels
- Pipeline:
- Vertex Shader computes 3D geometry for a frame
- Clipping/Projection squashes 3D objects into 2D space and determines regions of screen to draw to
- Pixel/Fragment shader takes regions of screen and fills in color, with color or images or textures
https://www.opengl.org/wiki/Rendering_Pipeline_Overview
Emergent Behavior
- Eventually, people figured out ways to use this architecture for more than just triangles and pixels (kind of)
- Before any kind of proper "Compute Shader" API existed, people used the graphics pipeline to fake it
- Initial applications:
-

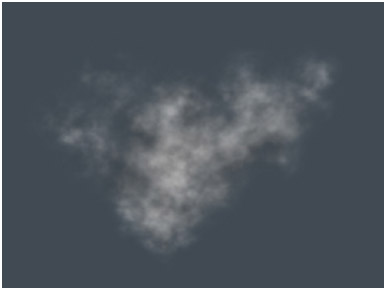

Particle rendering systems physics calculations
- e.g. smoke, fire, liquid, cloth
- Ray-tracing (a typically expensive kind of lighting calculation)
- Other ad-hoc big data transformations in the fields of chemistry/biology/other hard sciences (though I'm not sure on specifics and haven't actually been able to find anything)
-
Particle rendering systems physics calculations
- Initial applications:
Just for a sense of scale...
Credit for images:
http://theotherguy103.deviantart.com/art/Fire-particle-system-157655165
http://www.darwin3d.com/gdm1999.htm
https://www.youtube.com/watch?v=HurJ3b7n_8w
https://software.intel.com/en-us/articles/dynamics-and-particle-effects-part-1
http://gamma.cs.unc.edu/CSTREAMS/cloth/
The "Old-Fashioned" Way:
- A "texture" is just an image
- A 2D array of structs which look like this:
//Exact specifics differ on hardware capabilities
//and/or user-defined output color definitions
//e.g. R8G8B8A8 uses bytes instead of floats
//This is a theoretical R32G32B32A32 example
struct Pixel
{
float red;
float green;
float blue;
float alpha; //transparency/opacity, usually
}
The "Old-Fashioned" Way
- Let's break that assumption:
- What we really have is analogous to a vector
//Represents a point in 3D space
//Acceleration, Velocity, Position
struct Vec4
{
float x;
float y;
float z;
float w; //"are we in clip space yet?" indicator
}
The "Old-Fashioned" Way
Let's make a particle system!
- Assumption: Global forces, like wind or gravity
- "Texture" 1: Velocity
- "Texture" 2: Position
- Texture 3: Final screen output
"Texture" in quotes really means, "think of this as an array of structs"
Real Compute Shaders
- Let's be honest, this way kind of sucks!
- It assumes you're working in a graphics application
- It involves using terminology in ways that don't reflect how you're actually using them
- The "texture" is really an "array"
- The "color" is really a "velocity" or "position"
- Basically a huge morass of coupling problems
Things have changed since then!
Real Compute Shaders
-
OpenGL as of 4.3 now has Compute Shaders as a specific kind of shader program
- No more need to repurpose vertex/fragment shader stages
- Same with OpenGL ES as of 3.1
-
OpenCL exists as standalone and doesn't require graphical context
- Requires different drivers and libraries entirely than OpenGL
- WebGL doesn't have any support, has to do it the vertex/fragment way
- WebCL exists and is in-progress, but isn't in browsers by default yet
- DirectX has DirectCompute (not as familiar with this, sorry!)
-
Vulkan requires you to set up your own pipeline
- Avoids OpenGL/OpenCL "requires graphics"/"requires different libs" issue, configure per-app as needed
No one "right" method, depends on application
The Ecosystem as it stands:
Real Compute Shaders
- The specifics vary, but in general:
- More generic terms
- "Shader Storage Buffer Object" instead of "Texture"
- User-defined buffers of structs
- Not constrained to the RGB <=> XYZ architecture inherent to the graphics pipeline
- Work divided into "Work Groups" and "Work Items" instead of "Regions" and "Fragments"
OpenGL 4.3 details and presentation slides:
https://www.khronos.org/assets/uploads/developers/library/2014-siggraph-bof/KITE-BOF_Aug14.pdf
