Postprocessing
Or basically, "Photoshop filters but in games"
Postprocessing
- Edits to render of frame in 2D space

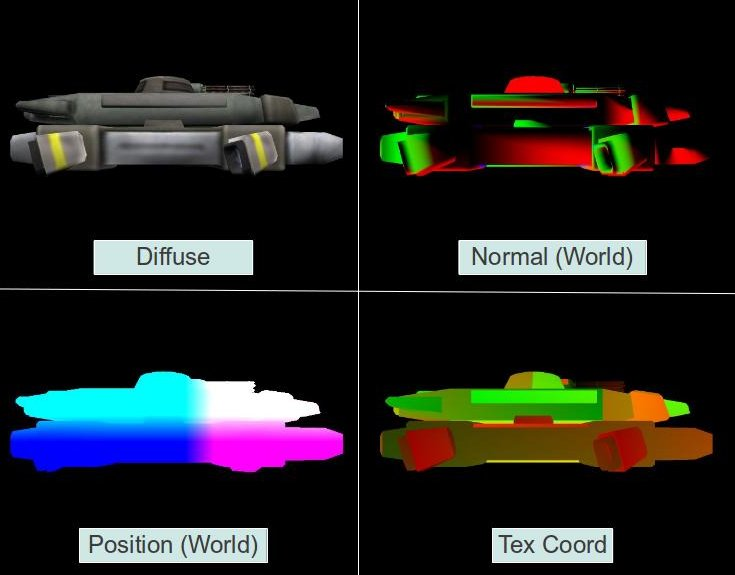

- Effectively: render 3D world to create one or more 2D textures
- Color
- Depth
- Velocity
- other information
Recombined again and again, using these textures to draw just a single screen-space quad
Basically,
- Just extending the 'vanilla' pipeline a little
- After drawing to clip space, don't immediately output to screen
- Draw to a texture, bind this texture to a quad
- Render quad (no need for clip space anymore, already there)
- Lets us use fragment shader in creative ways
- Repeat as necessary
- Render final output to screen

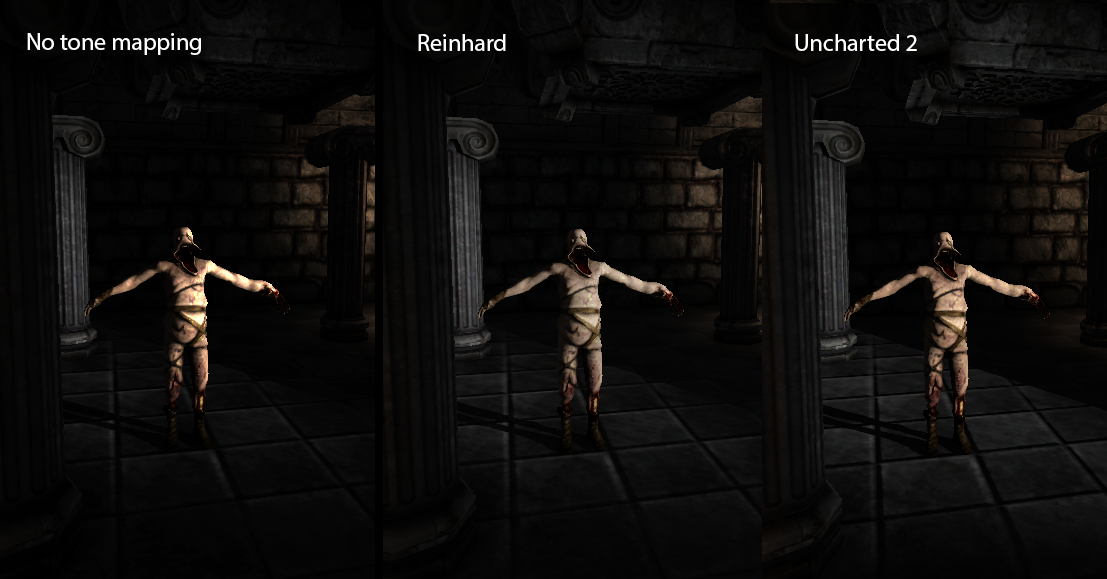

HDR Tonemapping and Adaptive Luminance
- Render actual floats, not bytes
- That is, render ranges outside of 0.0 to 1.0
- Then scale back down afterwards
- Change your render target format for this, API-dependent
- That is, render ranges outside of 0.0 to 1.0
- Find brightest pixel (Continual subsampling /2), scale that as 1.0
- LERP it over several frames
Scaling brightness:
- Brightness of a pixel =
- 0.2126 * R + 0.7152 * G + 0.0722 * B
- Or roughly around that, depending on spec
- Find brightest (faster to subsample from screen resolution to half of that resolution to half of THAT etc. instead of a linear search)
- Scale result
- New pixel = old pixel RGBA * (old pixel luminance / max pixel luminance)
Why do this?
- Give artists/designers more freedom
- Not 'capped' at 1.0 brightness
- Image will scale dynamically, on its own
- Not 'capped' at 1.0 brightness
- If you linearly interpolate the 'target' max brightness, you can fake an effect our eyes do naturally: adjusting to brightly or darkly lit areas

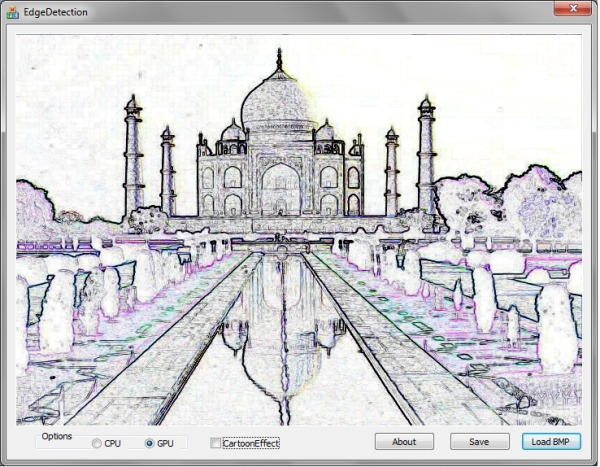

Edge Operators
- Sobel probably most known
- Operate on several possible parameters:
- Color (see: those embossing filters)

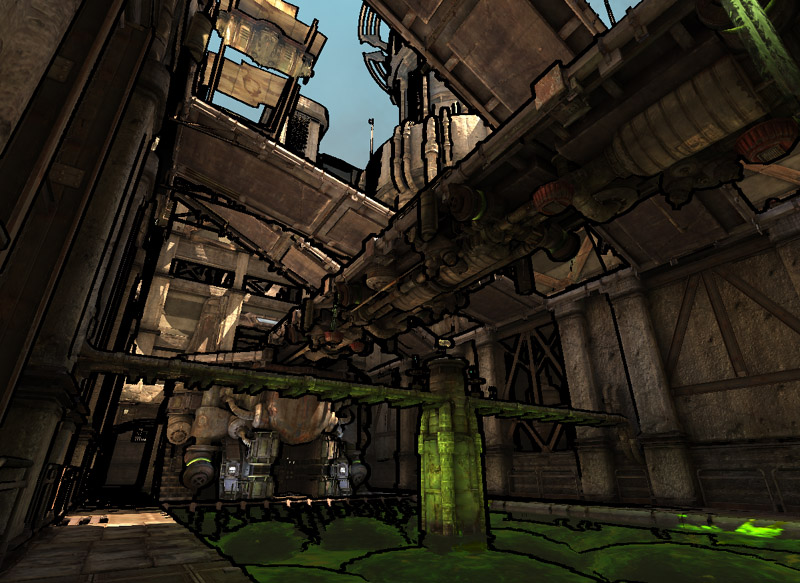

- Depth (that 'Borderlands' look)
In Games

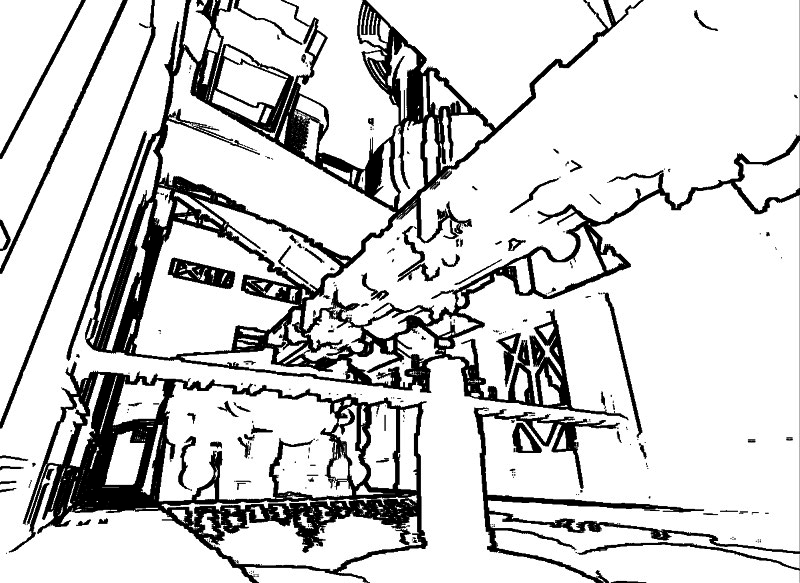

- Usually use Depth instead of Color as thing to measure for edges

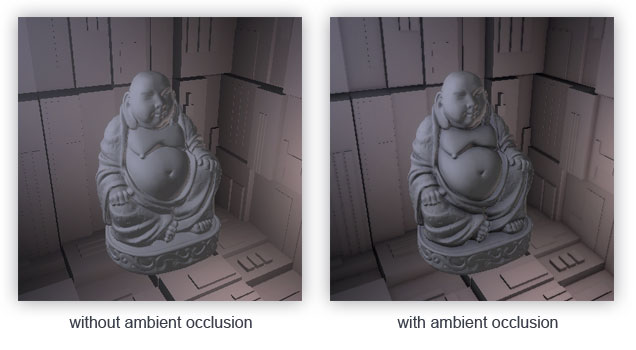

Ambient Occlusion
Usually screen-space for real-time instead of 'true' AO
Shadowing around depth discontinuities

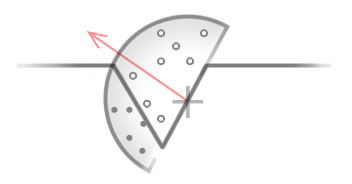

Random sampling of kernel around target pixel of depth texture
Output occlusion factor based on how many pass/fail
Multiply color texture by occlusion factor
Previous sobel operator similar, except just multiply by 0 instead of factor!

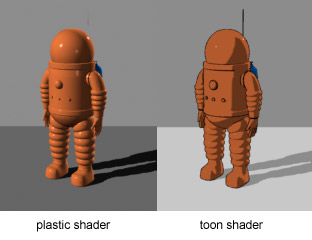

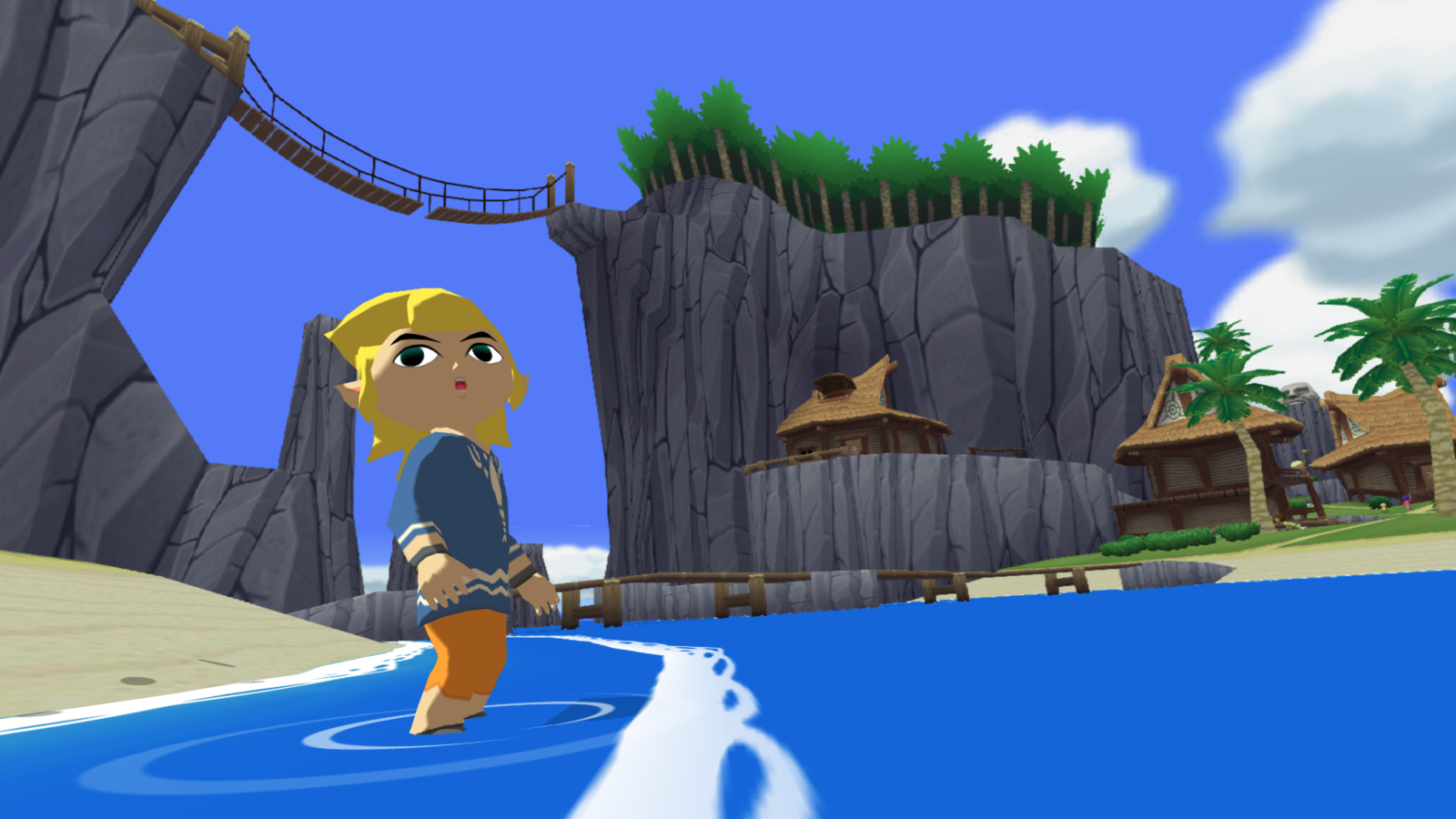

Cel-shading
AKA "Toon" shading
Clamp color to levels of saturation
Sometimes conflated with edge detection
Probably the simplest
Have bands of saturation
Clamp pixels to whichever band they fit in
