Responsive Layouts



with



@angular/flex-layout

Presented by:

Thomas Burleson

Ekaterina Orlova

Thomas Burleson

@ThomasBurleson

http://linkedin.com/in/ThomasBurleson

ThomasBurleson@gmail.com

Developer

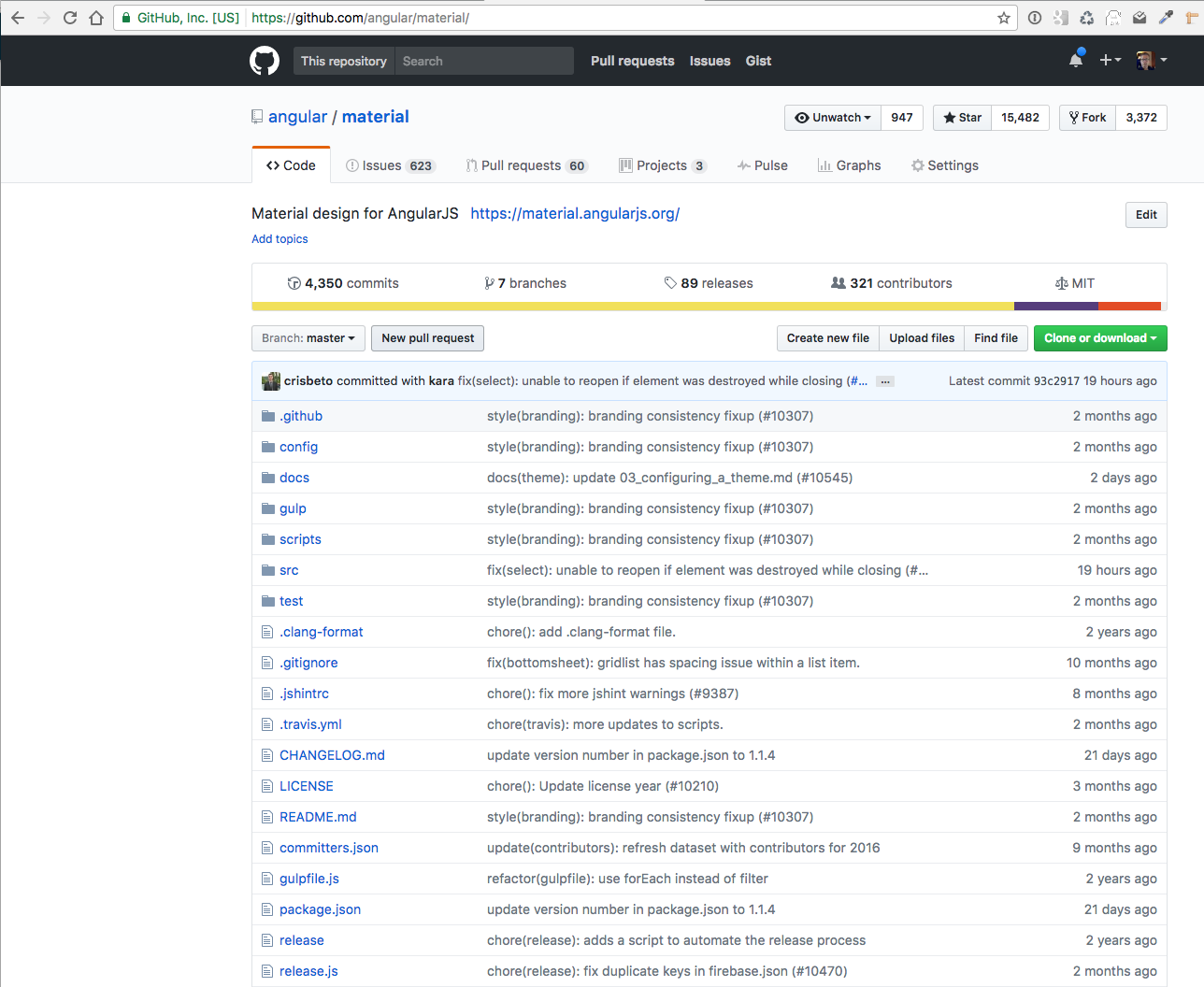

AngularJS Material

~3400 Forks

~15.5K Stars

~1K Watches

Thanks to Brad Green, Naomi Black, and Google.

Angular-Master-Class Trainer  +  Angular Consultant

40+ articles on blog.thoughtram.io

Ekaterina Orlova

@cheerypick

katrineorlova@gmail.com

Frontend developer,

Accenture Norway

Pay attention and win a hoodie!




We'll play!

(or download an app)

Angular

Flex-Layout

v2.0.0-beta.10

~1,7K Stars

Angular Flex-Layout ?

Before What...

Let's first talk Why...

HTML Layout ?

  • Position elements in a HTML page
  • Adjust element position & size
    • relative to parent container
    • relative to sibling elements





HTML Layout ?

sample layout

Layout Techniques

  • Table
  • Float, Position, Clear
  • CSS Grids
  • FlexBox CSS



Why FlexBox CSS

Box model optimized for user interfaces

Why FlexBox CSS

  • Grids are for 2-D Layouts

  • FlexBox is for 1-D Flows



Think about container FLOW



How to Think about FlexBox ?

Think about child SIZE



  • Flows = horizontal or vertical

  • Sizes = fixed or ratios

Why FlexBox CSS

FlexBox === Containers + Children

  • Containers define flow direction
  • Child define size, offsets, order
  • Containers can be nested

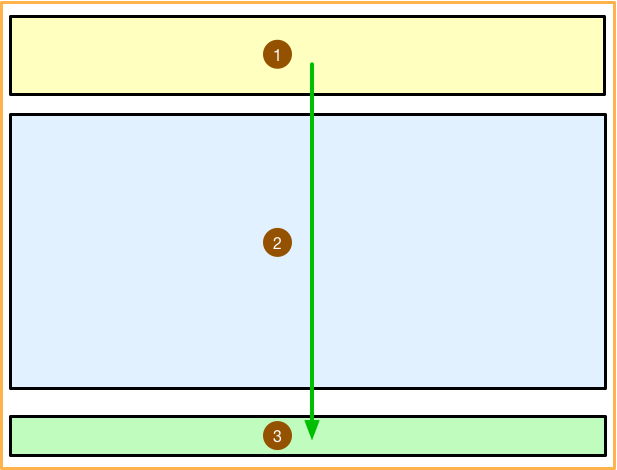

FlexBox Layout Flows ?

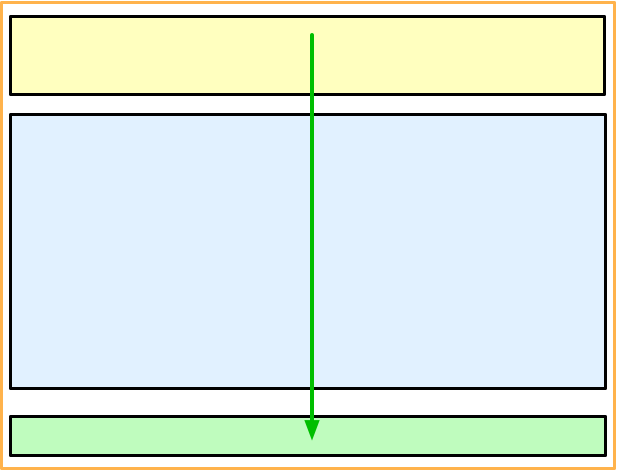

FlexBox Layout Flows !

... start outside containers to inside.

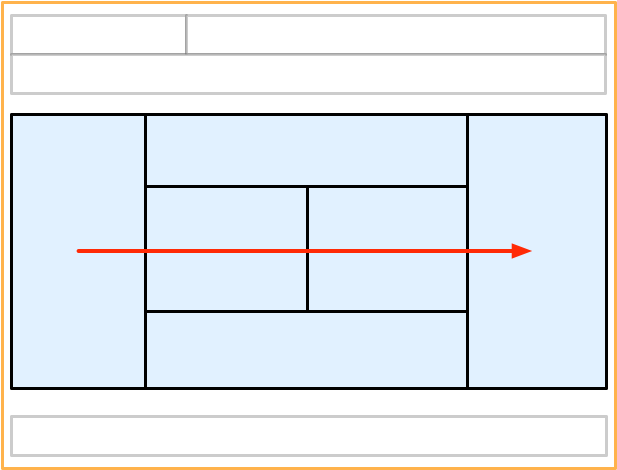

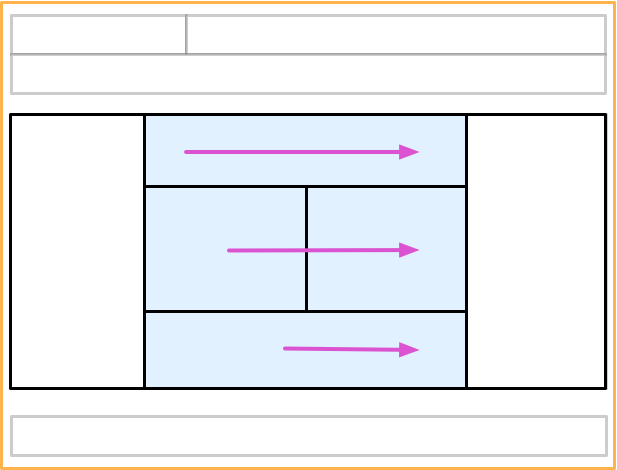

FlexBox Layout Flows !

FlexBox Layout Flows !

FlexBox Layout Flows !

FlexBox Layout Flows !

... consider flows as outside - in

FlexBox Child Sizes

Layout Techniques

  • <table>

  • FlexBox CSS

  • Layout API



retrospective

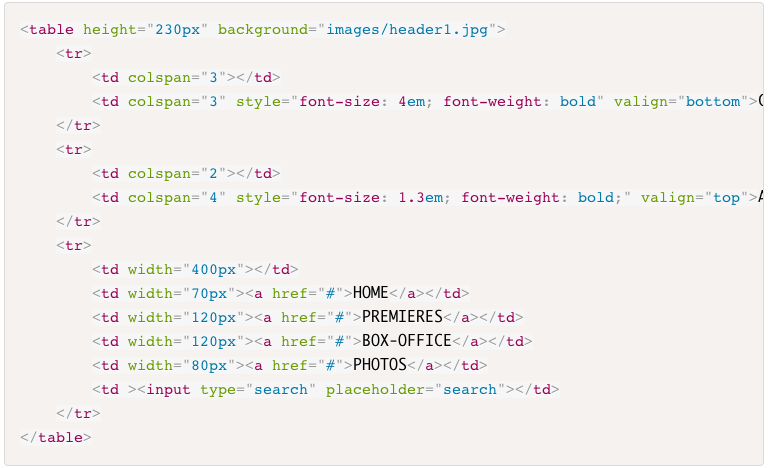

Using HTML Tables

  • Verbose markup
  • Nesting is complicated
  • Maintenance nightmare

Using FlexBox CSS

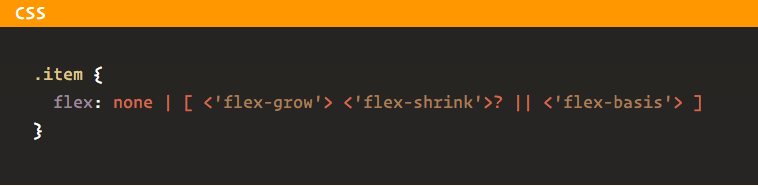

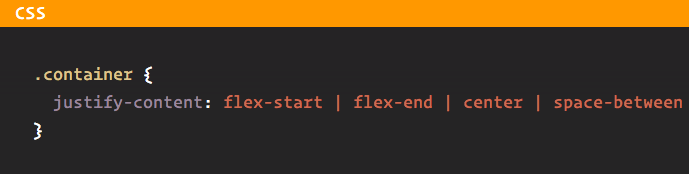

Using FlexBox CSS

  • Manually define CSS
  • Requires In-Depth Knowledge
  • Requires Experience with Browser Bugs
  • Requires Prefixing
  • Not Angular-Native

Using AngularJS Material

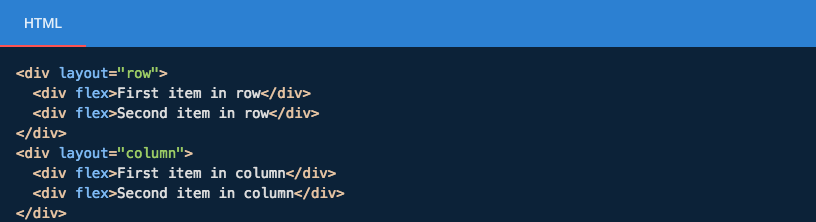

Layout CSS

  • Embedded FlexBox CSS
  • Directive assign classnames
  • CSS > 250K
  • CSS Specificity Issue
  • Slightly Fragile

Using AngularJS Material

Layout CSS

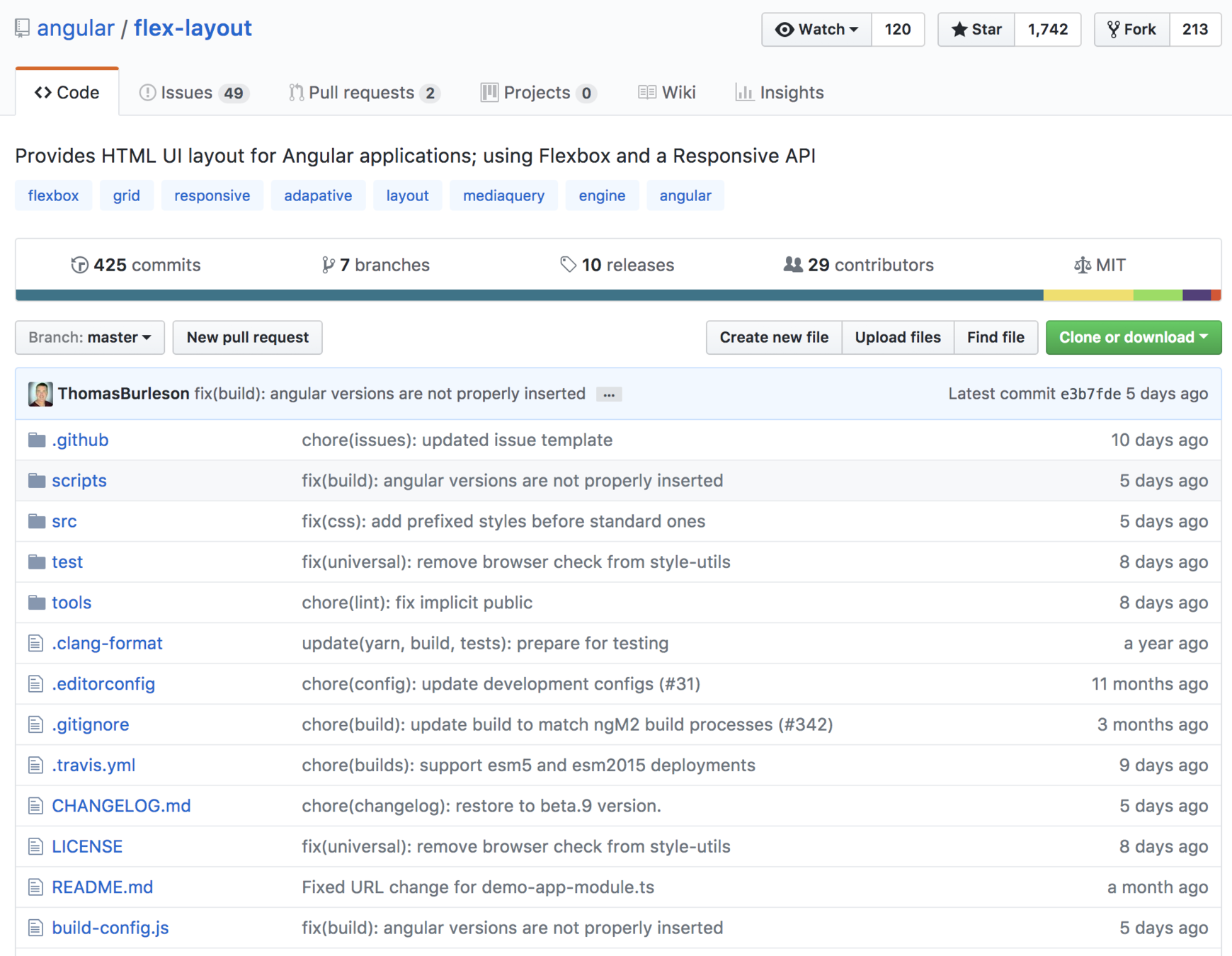

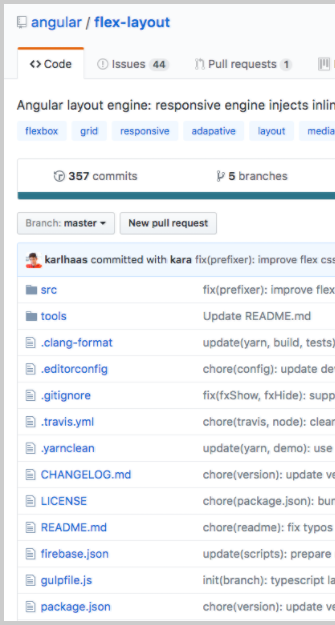

www.github.com/angular/flex-layout

  • Stand-alone Library
  • No CSS Stylesheet
  • Typescript Implementation
  • Inline CSS, Dynamically Injected
  • Static API
  • Responsive API
  • Independent of Angular Material
  • Angular CLI Integration

Using

@angular/flex-layout

Browser Support

http://caniuse.com/#feat=flexbox

npm install --save @angular/flex-layout
import { FlexLayoutModule }
    from '@angular/flex-layout';
...
@NgModule({
  imports: [FlexLayoutModule],
  ...
})
export class AppModule { }

Import Angular Flex-Layout NgModule

Install Angular Flex-Layout components

v2.0.0-beta.10

  • Directives used in HTML
  • Declarative
  • Supports Data-Binding
  • Builds CSS - Dynamic Injected Inline
  • Supports Change Detection
  • Includes fxHide and  fxShow  features
  • Performant

@angular/flex-layout

Static API

fxLayout

fxLayoutWrap

fxLayoutGap

fxLayoutAlign


<div fxLayout="row"
    fxLayout.xs="column"> </div>

<div fxLayoutWrap> </div>

<div fxLayoutGap="10px"> </div>

<div fxLayoutAlign="start stretch">
</div>

@angular/flex-layout

Static API

API for DOM Containers

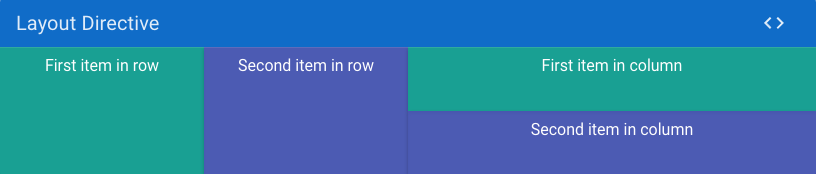

fxLayout API

<div fxLayout="row">
  <div>One</div>
  <div>Two</div>
  <div>Three</div>
  <div>Four</div>
</div>
<div fxLayout="column">
  <div>One</div>
  <div>Two</div>
  <div>Three</div>
  <div>Four</div>
</div>

fxLayout options

Value Equivalent CSS
default {flex-direction: row}
row {flex-direction: row}
row-reverse {flex-direction: row-reverse}
column {flex-direction: column}
column-reverse {flex-direction: column-reverse}
<div fxLayout="row-reverse">
...
</div>

@angular/flex-layout

Static API

API for container children

fxFlex

fxFlexOrder

fxFlexOffset

fxFlexAlign

fxFlexFill


<div fxFlex="1 2
calc(15em + 20px)"></div>


<div fxFlexOrder="2"></div>

<div fxFlexOffset="20px"></div>


<div fxFlexAlign="center"></div>


<div fxFlexFill></div>

fxFlex API

fxFlex="<flex-grow> <flex-shrink> <flex-basis>"
fxFlex="<flex-basis>"

flex-grow

Defines how much a flexbox item should grow  ( proportional to the others) if there's space available.

flex-shrink

defines how much a flexbox item should shrink  if there is not enough  space available.

flex-basis

controls the default size of the element

fxFlex

<div fxLayout="row" fxLayoutAlign="center">
  <div fxFlex="1 1 auto">One</div>
  <div fxFlex="5 1 auto">Two</div>
  <div fxFlex="1 1 auto">Three</div>
  <div fxFlex="1 1 auto">Four</div>
</div>

fxFlex options

  • fxFlex
  • fxFlex="2 2 calc(10em + 10px)"
  • fxFlex="102px"
  • fxFlex="auto"

The flex-basis values can be pixels, percentages, calcs, em, vw, vh, or known aliases.

    alias Equivalent CSS
    grow {flex: 1 1 100%}
    initial {flex: 0 1 auto}
    auto {flex: <grow> <shrink> 100%}
    none {flex: 0 0 auto}
    nogrow {flex: 0 1 auto}
    noshrink {flex: 1 0 auto}

    Demo

    +

    Source

    Text

    Join at kahoot.it


    This is nice ...

    @angular/flex-layout

    Static API

    But is it reaally that special !?

    Responsive UX

    What do modern web apps need?

    Responsive UX

    Containers & elements adjust sizes & positions based on changes in window sizes

    Containers & elements adapt sizes & positions based on device display sizes

    UX adapts to device viewports.

    Assertions for

    Responsive UX

    Desktop Layout

    Mobile Layout

    Sample

    "You don't just make an Adaptive UX!

    You will need..."

    Flexbox CSS + MediaQuery

    FlexBox + MediaQueries

    Sample

    " Please tell me there is a better way! "

    Responsive API

    We can easily build Adaptive Applications!

    @angular/flex-layout

    • using Flexbox CSS under-the-hood
    • using responsive resizing and repositioning
    • using markup in the HTML layer
    • without worrying about MediaQueries

    Responsive API

    @angular/flex-layout

    • Uses Material Design: BreakPoint specifications
    • Use MediaQuery range definitions

    Material Design

    Published industry specs for ranges of viewport sizes.
    The transition between ranges is known as BreakPoints.

    Media Queries + Aliases

    Breakpoint Alias mediaQuery
    xs 'screen and (max-width: 599px)'
    sm 'screen and (min-width: 600px) and (max-width: 959px)'
    md 'screen and (min-width: 960px) and (max-width: 1279px)'
    lg 'screen and (min-width: 1280px) and (max-width: 1919px)'
    xl 'screen and (min-width: 1920px) and (max-width: 5000px)'

    Media Queries + Aliases

    Breakpoint Alias mediaQuery
    lt-sm 'screen and (max-width: 599px)'
    lt-md 'screen and (max-width: 959px)'
    lt-lg 'screen and (max-width: 1279px)'
    lt-xl 'screen and (max-width: 1919px)'
    xs 'screen and (max-width: 599px)'
    sm 'screen and (min-width: 600px) and (max-width: 959px)'
    md 'screen and (min-width: 960px) and (max-width: 1279px)'
    lg 'screen and (min-width: 1280px) and (max-width: 1919px)'
    xl 'screen and (min-width: 1920px) and (max-width: 5000px)'

    Media Queries + Aliases

    Breakpoint Alias mediaQuery
    lt-sm 'screen and (max-width: 599px)'
    lt-md 'screen and (max-width: 959px)'
    lt-lg 'screen and (max-width: 1279px)'
    lt-xl 'screen and (max-width: 1919px)'
    gt-xs 'screen and (min-width: 600px)'
    gt-sm 'screen and (min-width: 960px)'
    gt-md 'screen and (min-width: 1280px)'
    gt-lg 'screen and (min-width: 1920px)'
    xs 'screen and (max-width: 599px)'
    sm 'screen and (min-width: 600px) and (max-width: 959px)'
    md 'screen and (min-width: 960px) and (max-width: 1279px)'
    lg 'screen and (min-width: 1280px) and (max-width: 1919px)'
    xl 'screen and (min-width: 1920px) and (max-width: 5000px)'

    Responsive UX

    Using MediaQuery + Alias, we can easily create Adaptive UX Layout ....

    @angular/flex-layout

    Responsive HTML  API

    with the

    Responsive HTML API

    @angular/flex-layout

    Simply append the mediaQuery alias to the API:

    fxLayout.sm           = "..."

    fxLayoutAlign.md  = "..."

    fxHide.gt-sm           = "..."

    Called a Declarative API since this is used in the HTML

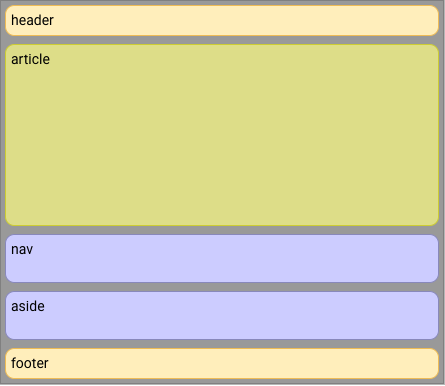

    To build this desktop Adaptive Layout:

    1

    <div>
      <header>header</header>
      <div>

        <nav>nav</nav>

        <article>article</article>

        <aside>aside</aside>

      </div>
      <footer>footer</footer>
    </div>

    We start with boring HTML:

    2


    <div fxLayout="column" >

      <header>header</header>

      <div fxLayout="row" fxFlex >

        <nav fxFlex="1 6 20%" >nav</nav>

        <article fxFlex="3 1 60%" >article</article>

        <aside fxFlex="1 6 20%" >aside</aside>

      </div>
      <footer>footer</footer>
    </div>


    Spice it up with

    Flex-Layout, Declarative Static  API

    3

    To get this mobile adaptive layout:

    4

    <div fxLayout="column">
      <header>header</header>
      <div fxLayout="row" fxLayout.xs="column" fxFlex>

        <nav fxFlex="1 6 20%" fxFlexOrder
            fxFlexOrder.xs="2" >nav</nav>

        <article fxFlex="3 1 60%" fxFlexOrder
            fxFlexOrder.xs="1" >article</article>

        <aside fxFlex="1 6 20%" fxFlexOrder
            fxFlexOrder.xs="3" >aside</aside>

      </div>
      <footer>footer</footer>
    </div>

    Make it sizzle with Flex-Layout Responsive  API

    5

    Responsive HTML API

    @angular/flex-layout

    @angular/flex-layout

    Responsive HTML API

    • Declarative, intuitive HTML API
    • No fussing with MediaQueries
    • No fussing with Breakpoints
    • No programmatic work

    Responsive HTML API

    @angular/flex-layout

    Demo

    +

    Source

    bit.ly/angular-flex-layout

    ... more Declarative API


    <div fxShow fxHide.xs="false" fxHide.lg="true"></div>

    • xl, then fallback to the default fxShow; so the div is shown
    • lg, then the div is hidden (since the value === 'true')
    • md, then fallback to the default fxShow; so the div is shown
    • sm, then fallback to the default fxShow; so the div is shown
    • xs, then the div is shown (since the value === 'false')

    Visibility example


    <div fxFlex="50%" fxFlex.gt-sm="100%"></div>

    • xl, then fallback to 'gt-sm' so the div sizing is 100%
    • lg, then fallback to 'gt-sm' so the div sizing is 100%
    • md, then fallback to 'gt-sm' so the div sizing is 100%
    • sm, then fallback to the default fxFlex="50%"; so the div is 50%
    • xs, then fallback to the default fxFlex="50%"; so the div is 50%

    Special Responsive Features

    fxShow

    fxHide

    ngClass

    ngStyle


    <div fxShow
        [fxShow.xs]="isVisibleOnMobile()"></div>


    <div fxHide
        [fxHide.gt-sm]="isVisibleOnDesktop()"></div>



    <div
        [ngClass.sm]="{'fxClass-sm': hasStyle}"></div>


    <div
        [ngStyle.xs]="{color: 'blue'}"></div>




    Javascript Imperative API

    ObservableMedia

    BREAKPOINTS

    BaseFxDirectiveAdapter


    constructor(public
        media:ObservableMedia ) {}


    providers: [{provide: BREAKPOINTS,
        useValue: MY_CUSTOM_BREAKPOINTS }]



    export class ClassDirective
        extends NgClass {}


    Subscribe to mediaQuery Activations


    import {Subscription} from "rxjs/Subscription";
    import {MediaChange, ObservableMedia} from "@angular/flex-layout";

    constructor(media: ObservableMedia) {
      this.watcher = media.subscribe( (change: MediaChange) => {

        if ( change.mqAlias == 'xs') {
          this.loadMobileContent();
        }

      });
    }

    Text

    Join at kahoot.it


    Resources

    Angular Flex-Layout

    github.com/angular/flex-layout

    Visual guide to Flex

    http://cssreference.io/flexbox/

    bit.ly/demo-flex-layout-responsive

    AC2017 - Flex-Layout

    By Thomas Burleson

    AC2017 - Flex-Layout

    Use @angular/flex-layout to easily create responsive, adaptive Angular applications... without having to be a Flexbox CSS expert.

    • 1,675

    More from Thomas Burleson
