The Fluid

Architecture

Your Host Tonight

Image source: my 6 yo daughter

Senior Developer @ MediaSmart Mobile

@pinchito

What We will cover

How to Flow

Flow with Requirements

Flow with Operational Constraints

Some Migration Strategies

Don't Stop Flowing

How to Flow

Turbulent Flow is Irreversible

Laminar Flow is Reversible

And we like when things flow smoothly!

Migrations are hard?

Thermo to the rescue!

Reversible processes are optimal:

• no turbulence,
• minimal entropy,
• less complexity,
• reduced headaches!


Change without pain

Go from A to B in a reversible way

(mostly)

Find your cruise velocity

Prepare a reversal strategy

Flow with Requirements

Circumstances Change

And you should adapt to them

Modern Architecture

Slightly More modern architecture

Spot the seven differences

Fashion in ARchitecture

80s: minicomputers & terminals

90s: client-server

00s: three tiers

10s: NoSQL

The Perfect Architecture

Does not exist

Flow With Constraints

MediaSmart Mobile

Serve mobile ads

Performance and branding campaigns

15 MM bid offers / day

15M+ impressions / day

60+ servers

30+ countries

1MM+ profiles

Guilty!

We help pay for your entertainment

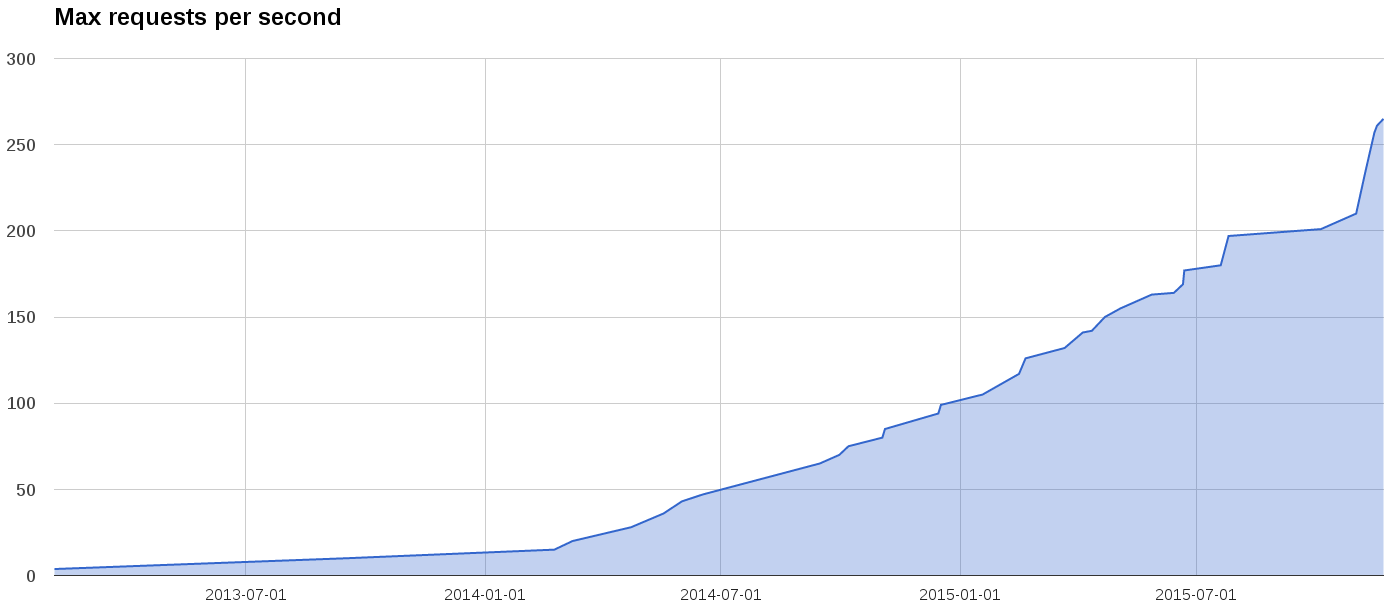

Flow with capacity planning

Flow for Operational Stability

From 38 to 112 krps in one day

Flow to Lower Costs

How Fast Can You Migrate…

… to a new cloud provider?

… to a new hosting company?

… to your own datacenter?

It matters because costs escalate quickly

Database migrations

are painful efforts

but shouldn't be!

How to Migrate Your Database

Build a compatibility layer

Avoid downtime if at all possible

Treat access and data separately

Have a reverse migration strategy…

… but try not to use it

Compatibility Layer

Adapter pattern (remember those?)

Reduced feature set

Don't use new features

Fake missing features

Migrate and migrate again

• Couchbase
• Memcached
• Redis
• DynamoDB
• PostgreSQL
• RedShift

Different systems have different trade-offs

and show different failure modes

Migration Strategies

Strategies or Patterns?

Battle tested strategies

Not an exhaustive collection

Just some ideas for migrations

Several options for the same requirements

Different reversibility behavior

Case Studies

Surprisingly hard to find

Warning: may not apply to your situation

Server: Stop and Migrate

• Stop the system

• Make a cold copy
• Point clients to new database

• Start again

Server: Stop and Migrate

settings.js:

module.exports = {
    reidsAddress: 'redis.mydomain.com',
};

db.js:

var settings = require('./settings.js');
exports.db = {
    current: new RedisAdapter(settings.redisAddress);
};

user:

var db = require('./db.js');
db.current.get(key, function(error, result) {
    ...
});

Server: Stop and Migrate

Most basic migration

Requires downtime

Reversal:

• Just point your settings to the old address

• Stop again and migrate back


Case Study: MediaSmart VPC

Migration to Amazon virtual private cloud

Tried on 2015-03-03

Reversed on 2015-03-05

Due to an unrelated failure (!)

Tried again on 2015-03-11

Migrated EU on Friday the 13th

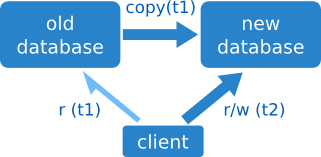

Server: Read-only Version

• Switch to read-only
• Make a hot copy
• Change to new database
• Switch back to read and write


Server: Read-only Version

Read-only is not always admissible

A hot copy takes longer than a cold one

Reverse migration: switch to read-only again, migrate

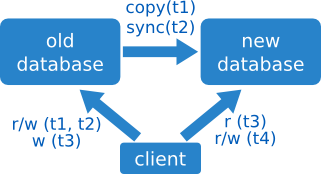

Server: synchronize

• Make a hot copy
• Synchronize all writes
• Switch to new copy when ready


Server: synchronize

Depends on server mechanism

No downtime: cool!

Reversal strategy: synchronize back

Full synchronization is hard!

Case Study: MediaSmart Daystats

Migration from Redis to Amazon's Redshift

Set up daily migration of customer stats

Server: Double Copy

• Make a hot copy
• Switch to new database
• Make another hot copy


Server: Double Copy

Some data loss is admissible

A timestamp is very valuable

Some data loss is inevitable

Reversal: prepare a reverse copy

Case Study: MediaSmart Profiles

Migration of ~120M profiles on 2015-02-16

Moved data from Redis to Amazon's DynamoDB

Lower cost, reasonable memory footprint

Some data loss is admissible

Client: Decorator

Pass all queries through an intermediary

Use any condition to select backend

Can be used to balance load

Adapter

Redis to Memcached driver:

var redis = require('redis');

exports.RedisAdapter = function(port, host) {
    // self-reference
    var self = this;

    // attributes
    var client = redis.createClient(port, host);

    self.get = function(key, callback) {
        client.get(key, function(error, result) {
            if (error) return callback('Could not get '+ key + ':' + error);
            return callback(null, JSON.parse(result));
    });

    self.set = function(key, value, callback) {
        return client.set(key, JSON.stringify(value), callback);
    });
};

Client: Decorator

var Memcached = require('memcached');
var RedisAdapter = require('./redis.js').RedisAdapter;

exports.CleverAdapter = function(name, address) {
    // self-reference
    var self = this;

    // attributes
    var oldAdapter = new Memcached(address + ':11211');
    var newAdapter = new RedisAdapter(address);

    self.get = function(key, callback) {
        if (badWeather()) {
            return oldAdapter.get(key, callback);
        }
        return newAdapter.get(key, callback);
    }
};

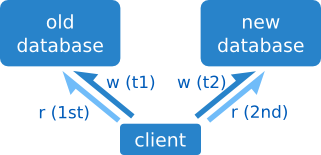

Client: Dual Lookup

• Read from one database
• If not present, try to read from second database

Client: Dual Lookup

db.js:

exports.db = {
    v1: new RedisAdapter(settings.oldRedis),
    v2: new RedisAdapter(settings.newRedis),
};

function get(key, callback) {
    db.v1.get(key, function(error, result) {
        if (error || result) callback(error, result);
        db.v2.get(key, callback);
    });
}

Client: Dual Lookup

Migrate your servers at your leisure

Reversible by design

Now you're talking!

Bad latency issues

from old + new databases

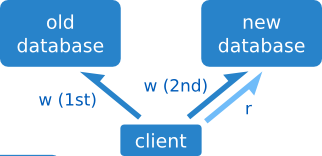

Client: Dual Write

Similar to dual lookup

Latency may not be important

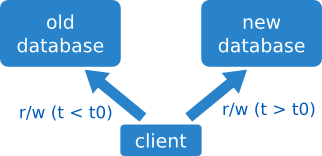

Client: Timed Rollover

• Date < cutoff: go to the old database
• Date > cutoff: go to the new database
• May need some kind of copy


Client: Timed Rollover

client:

var CUTOFF_DATE = '2015-05-13';

function get(key, callback) {
    if (key.substringFrom('#') > CUTOFF_DATE) {
        db.v1.get(key, function(error, result) {
    } else {
        db.v2.get(key, callback);
    });
}

function set(key, value, expiration, callback) {
    if (new Date.toISOString() > CUTOFF_DATE) {
        db.v1.set(key, value, expiration, function(error, result) {
    } else {
        db.v2.set(key, value, expiration, callback);
    });
}

Client: Timed Rollover

Useful for sequential data

E.g. statistics, counters

No manual intervention is required

Reversal strategy:

• change time limit,
• possibly migrate data,
• redeploy

Case Study: MediaSmart Mobile

Adding aggregates to daily stats

Improved common queries ~20x

Client: In-Place Conversion

• Read value
• If in old format, convert and write

Client: In-Place Conversion

Degenerate case: old database == new database

Can change driver, structure, format

Not concurrent

Reversal strategy:

• Read value
• If in new format, convert and write

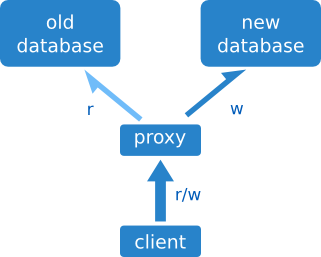

Broker: Proxied Access

• Read from or write to a proxy
• Proxy decides where to access each time


Broker: Proxied Access

Can be used with other migration strategies

Typical case: access a Restful API

Another piece to maintain

Increased latency

Use with care

Broker: Queued Write

• Read from first database
• Write to queue
• Write to both databases

Broker: Queued Write

Can be used with other migration strategies

Again, typically a Restful API

Avoids high write latencies

Helps ease migrations

Don't Stop Flowing

Strategies work for other things

Case Study: Instagram

Migrated from AWS to Facebook datacenters

Year-long effort, from 2013-03 to ~2014-03

Had to go through AWS VPC first

Neti — a dynamic iptables manipulation daemon in Python

Three weeks into VPC, two weeks to FB

Bare minimum approach (!)

How to Migrate Anything

Build one or more compatibility layers

Downtime is just bad engineering

Have a reverse migration strategy…

There Will Be Mistakes

Unstable Equilibrium

The only way to fly supersonic fighters

Living with Unstabilities

Use safe defaults

Fail safely

Use a canary

Canary Example

Move Fast, Break Things

Or stay put and never break anything

Or anything in between

Thanks!

http://www.todojs.com/tras-la-arquitectura-perfecta-la-arquitectura-fluida/

@pinchito
