• Level Set:  What is the cloud?
• Getting Hands-on:  Build Infrastructure to Host your Website.
• Powerful Tools to Research Next
• Passing the Interview

Briana.Crabb

@capitalone.com

Renee.Seaman

@capitalone.com

Aaron.Suarez

@capitalone.com

What is Cloud Computing?

• Network of Remote Servers
• Platform to help build scalable applications
• Fast access to low cost resources over the internet

What are the benefits?

• Cost!  Pay for infrastructure as needed

• Scale up to balance load

• Low risk- great for experiments (hello start-up)

• Deploy applications in multiple regions

Which is why so many companies run on AWS!

So Let's Deploy Our Website on AWS too

Non-Functional Requirements?

Resources Could Use:

 https://d0.awsstatic.com/whitepapers/aws-overview.pdf

Architecture Diagram

https://aws.amazon.com/console/

https://458143874686.signin.aws.amazon.com/console

Security!

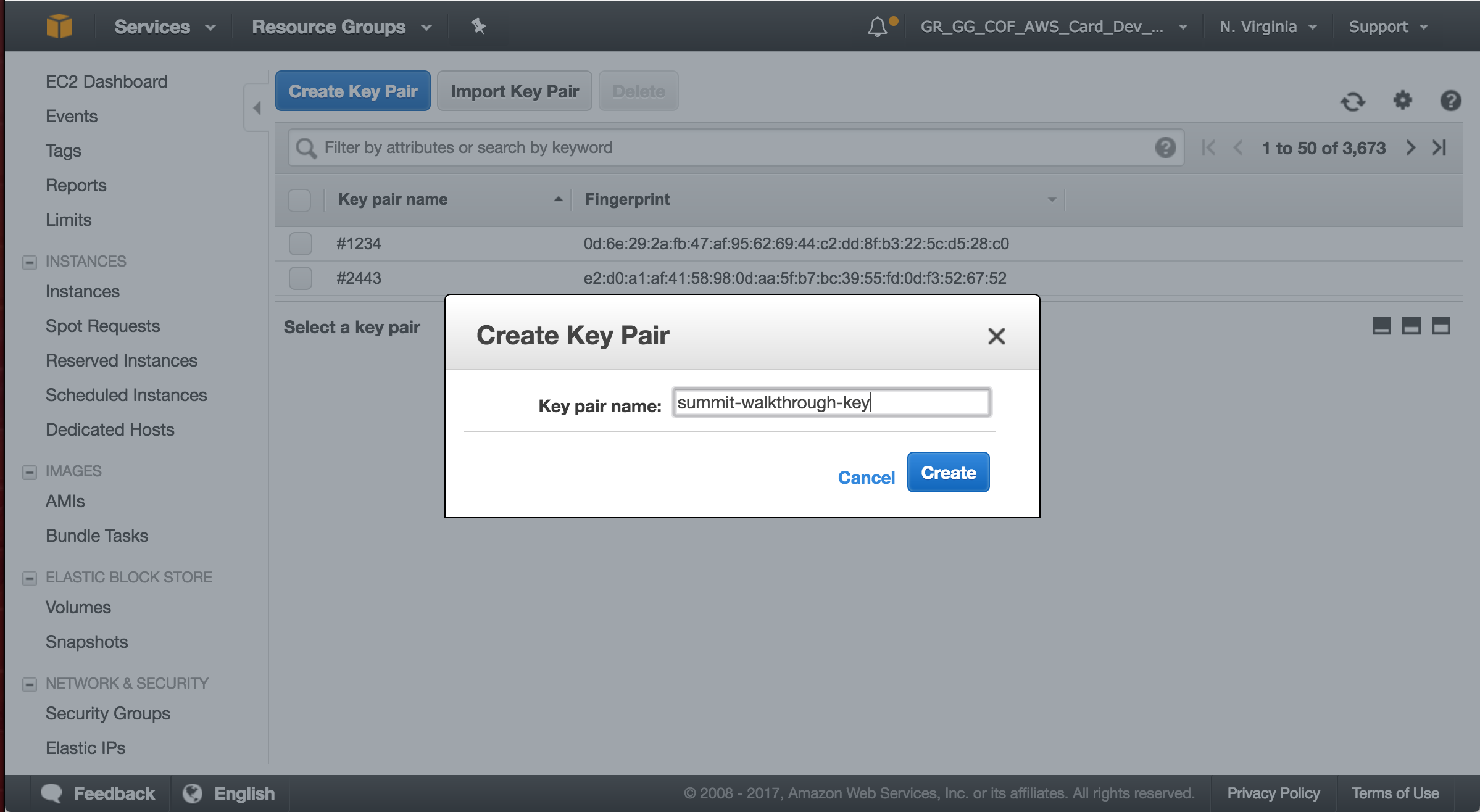

Make a Key Pair

Kind of like password to log into the EC2.

Create Security Group

Firewall controlling traffic around the application.

Create Security Group #2

This controlls traffic around the database.

Elastic Compute Cloud (EC2)

Start the Webserver

sudo yum update -y
sudo yum install -y httpd php mysql
sudo service httpd start
sudo chkconfig httpd on

Add these lines to your User Data section.

Amazon Machine Image

AMIs give the baseline set-up for EC2 instances.

You can customize AMIs to include encryption, resource configurations, and software updates.

Check-in:  All Good?

Configure the Database

RDS Instance:  Relational Database Service

Create RDS Instance

Automagically makes replica in another availability zone.

• Relational Database
• Resizable capacity
• MySQL, PostgreSQL, etc.

• Object Storage
• Pay for storage use
• Glacier for long-term archive
• Good for big data analytics, backup, and other applications

S3

RDS

Auto Scaling Group

Launch or terminate EC2 instances based off of policy.

• Maintain application performance by adding and removing EC2s based on CPU, requests, time of day
• Decrease cost by "turning off the lights"
• Cross region availability

Launch Configuration

Template for the auto scaling group.

1. Choose My AMIs:  summit
2. Follow Configure Details
3. Select our app Security Group

#!bin/bash
yum update -y
service httpd start
chkconfig httpd on

Auto Scaling Group

Make sure to select our Security Group!

Set TCP for Health Check

Recap of What we Built

• EC2
• Security Groups
• Key Pairs
• AMI

• RDS
• SNS
• Launch Config
• Autoscaling Group

Other Cloud Technology

• Microsoft Azure
• Google Cloud Platform
• IBM Cloud
• Rackspace

More Cool Stuff to Check Out

• Cloud formation templates
• Chef
• Ansible
• Docker
• Jenkins
• Terraform

Pass the Interview!

Can anyone think of use cases for resources we didnt use?

What are the layers of cloud computing?

What are the layers of cloud computing?

Platform as a Service

PaaS is the set of tools and services designed to make coding and deploying applications quick and efficient.


What are the layers of cloud computing?

Software as a Service

 SaaS applications are designed for end-users, delivered over the web via third party vendors.

Describe the difference between

Scalability & Elasticity.

• The ability to fit the resoures with needs of your system to cope with the demand dynamically.
• ie -The ability to scale up and down appropriately

• Ability of your system to add more resources to accommodate larger work loads

Learn More and Get Certified

• AWS qwiklabs
• Cloud Academy

AWS offers several different certification you can take to show companies how awesome you are in the cloud!

Thanks!
