DestinE
Pilot: Energy in Catalonia
October 14, 2024
Authors: Míriam Méndez, Gerard Mor
DestinE - Pilot: Energy in Catalonia
Introduction
Challenges in Electricity Supply and Demand in the Catalan region
- Complexity in Balancing Supply and Demand
- Shift from large, controllable power plants to decentralized renewables
- Integration of variable and less predictable energy sources
- Understand which are the exogenous drivers of electricity supply
- EU’s Strategic Moves
- Reducing dependency on Russian gas and fossil fuels
- Meeting strict decarbonization targets
Motivation
/ Introduction
DestinE - Pilot: Energy in Catalonia
Challenges on software implementation over DestinE infrastructure
- Use climate Digital Twin datasets
- Use analytical services already implemented in DestinE
- High Performance Computing (private instances, Dask cluster...)
- Access to DestinE data lake
- Interdisciplinary research: engage with a network of experts
Motivation
/ Introduction
DestinE - Pilot: Energy in Catalonia
- Gather data about electricity consumption and related datasets over the Catalan region.
- Build a data-driven model for predicting the consumption based on exogenous variables (calendar, weather, cadaster, socioeconomic...)
- Provide a user interface to play around with the data and the consumption model.
- Explore and utilise as many of DestinE infrastructure services and datasets as possible.
Objectives
/ Introduction
DestinE - Pilot: Energy in Catalonia
Software Architecture
DestinE - Pilot: Energy in Catalonia

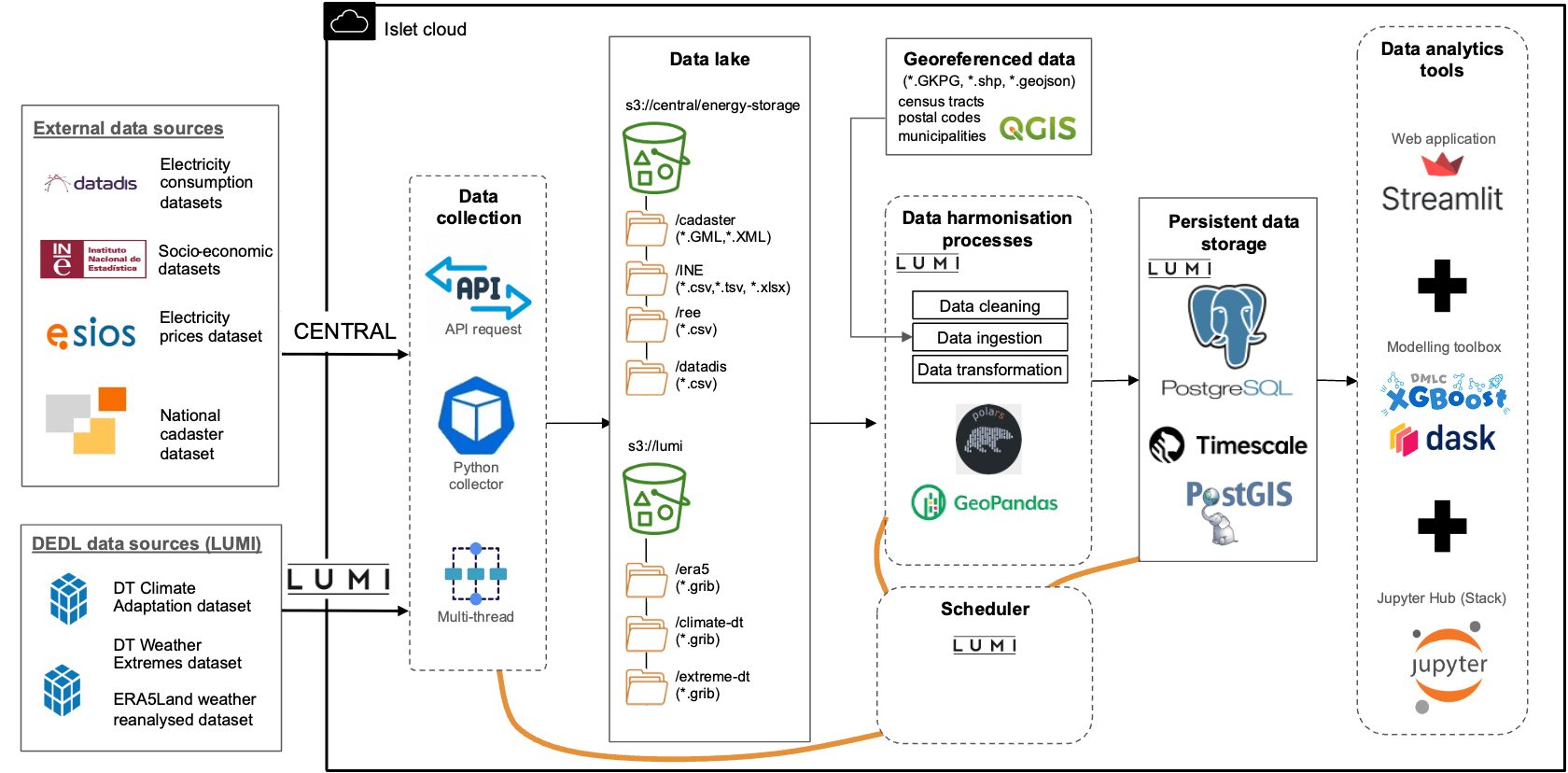

General Diagram
/ Software Architecture
DestinE - Pilot: Energy in Catalonia
Data gathering and harmonisation
DestinE - Pilot: Energy in Catalonia

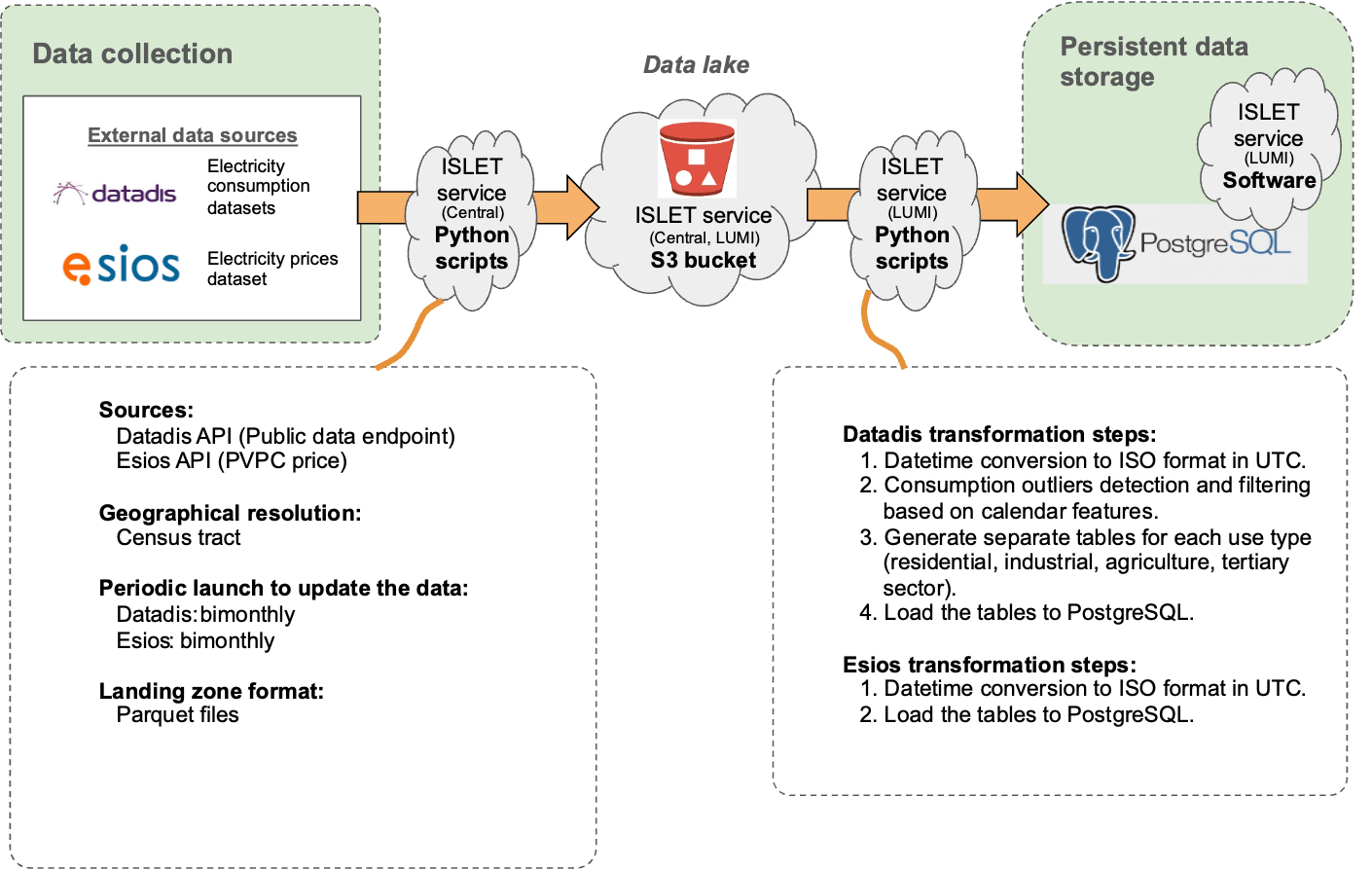

Electricity consumption data
/ Data gathering and harmonisation
DestinE - Pilot: Energy in Catalonia
Weather data
/ Data gathering and harmonisation
DestinE - Pilot: Energy in Catalonia

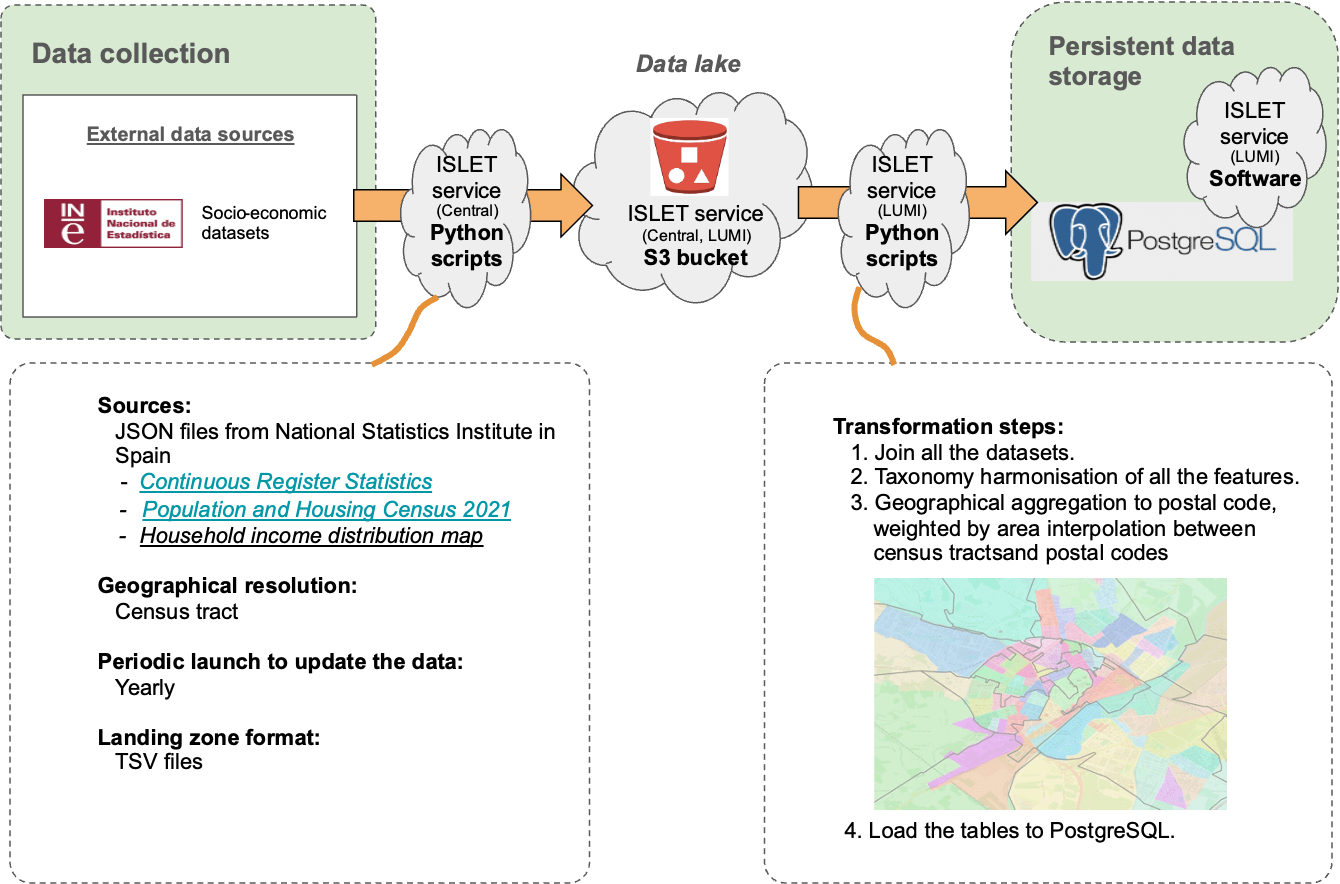

Socioeconomic data
/ Data gathering and harmonisation
DestinE - Pilot: Energy in Catalonia

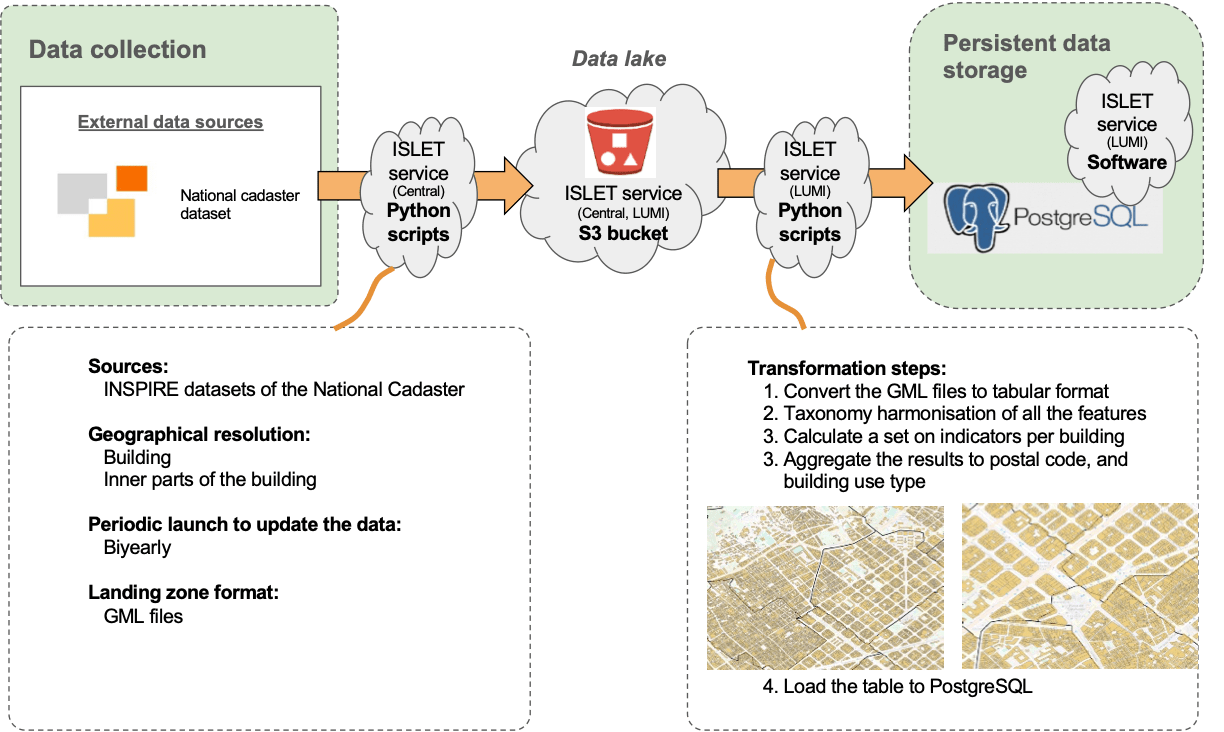

Cadastral data
/ Data gathering and harmonisation
DestinE - Pilot: Energy in Catalonia
Modelling framework
DestinE - Pilot: Energy in Catalonia

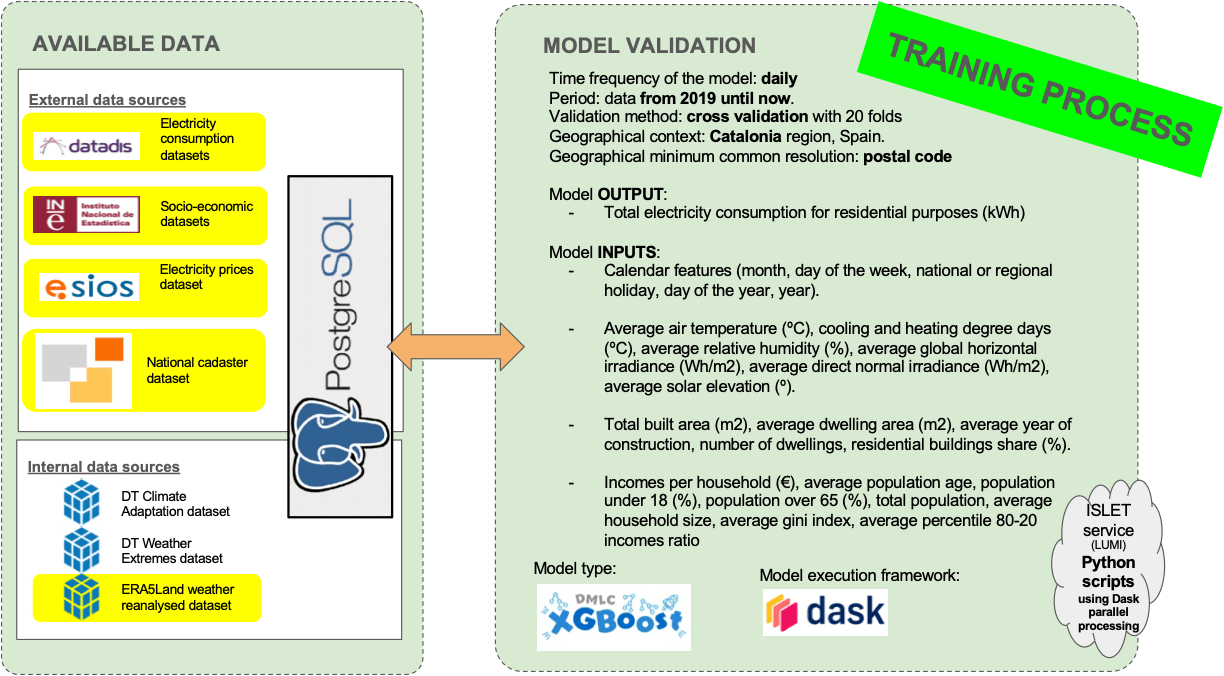

Training of the model
/ Modelling framework
DestinE - Pilot: Energy in Catalonia

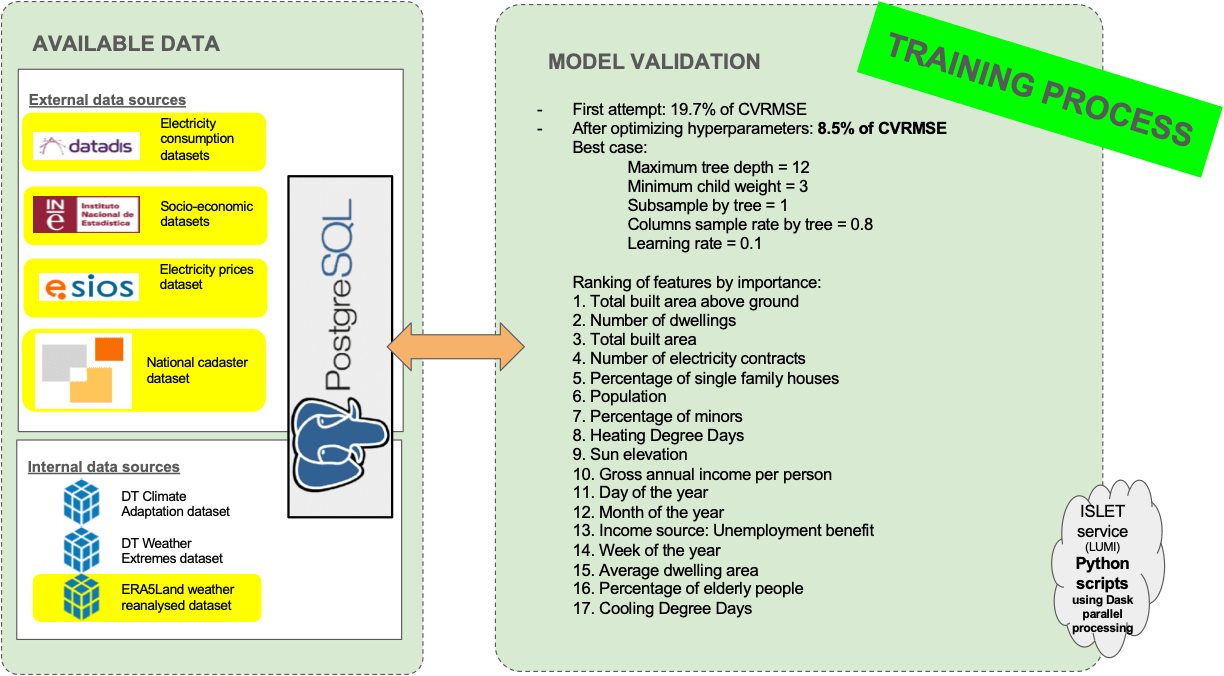

Training of the model
/ Modelling framework
DestinE - Pilot: Energy in Catalonia

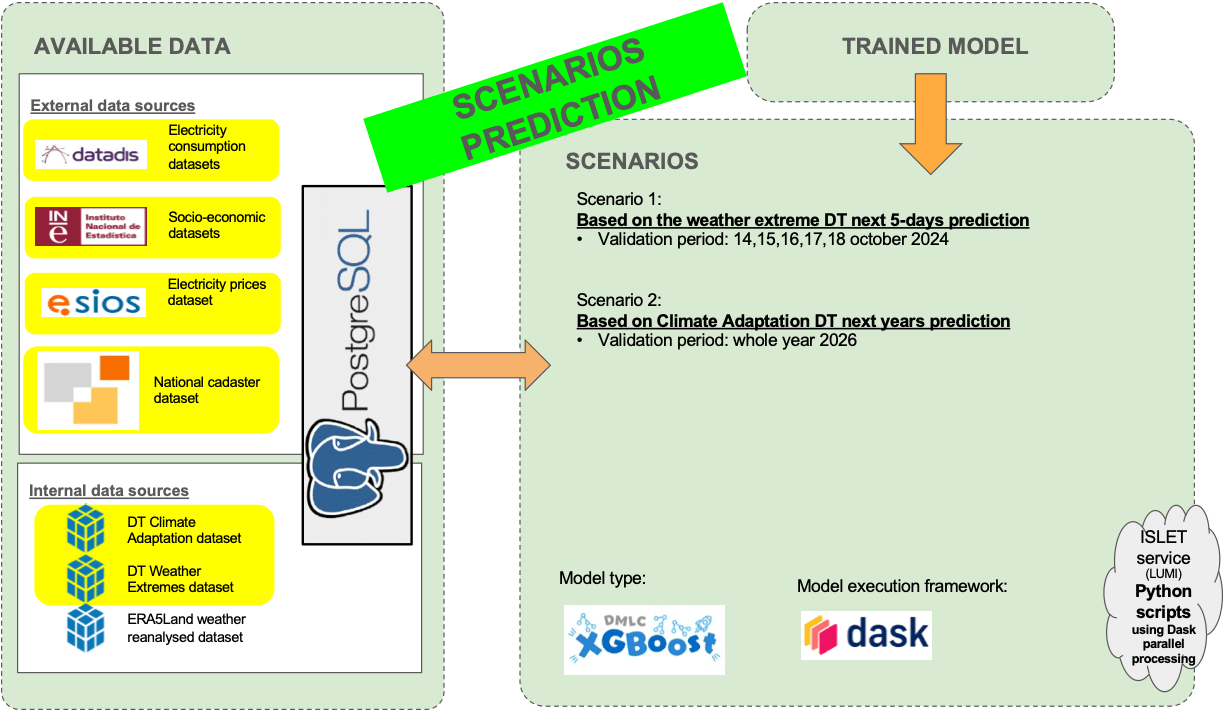

Scenarios prediction
/ Modelling framework
DestinE - Pilot: Energy in Catalonia
Demo
/ Modelling framework
DestinE - Pilot: Energy in Catalonia
Data visualization
DestinE - Pilot: Energy in Catalonia

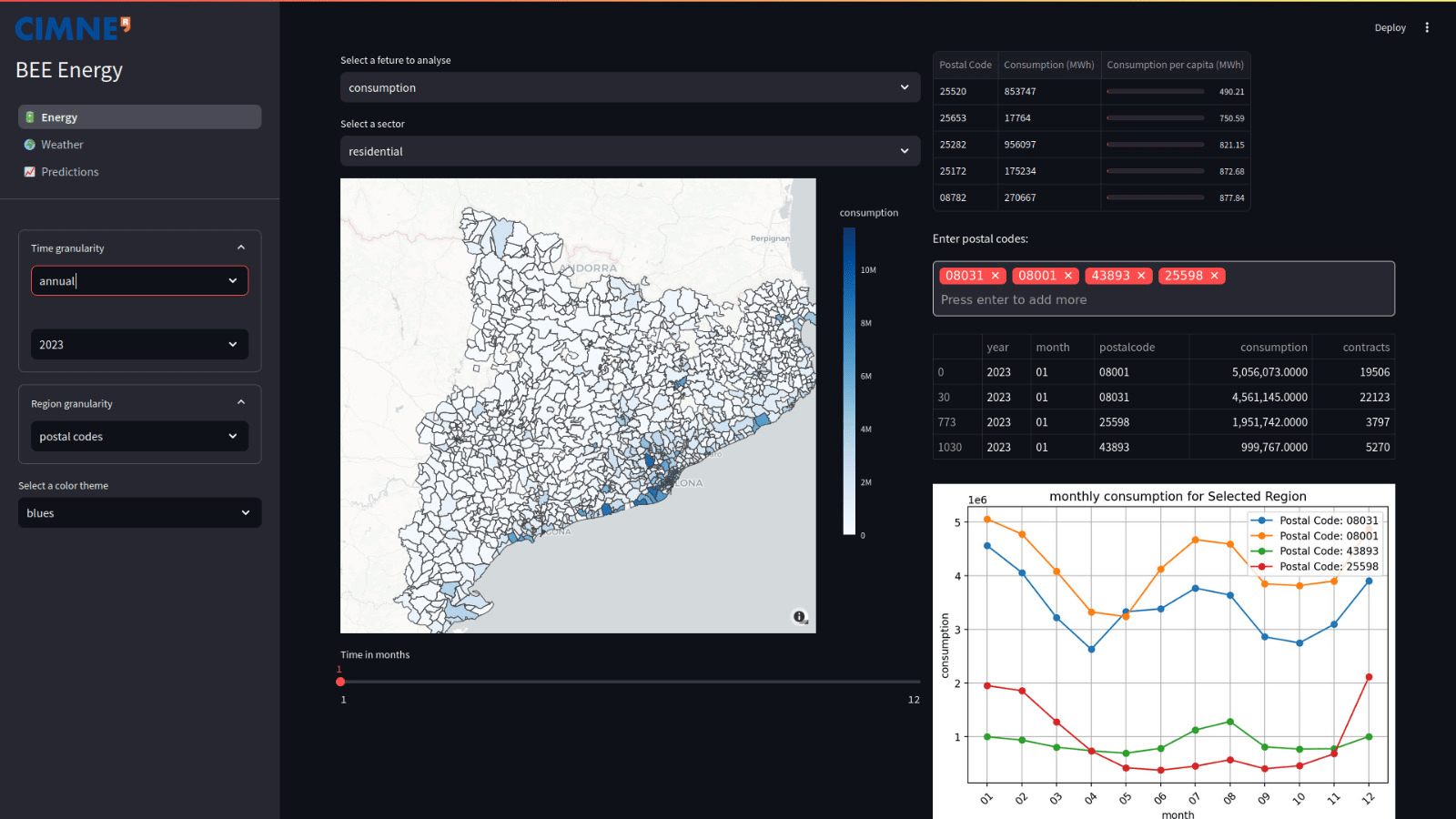

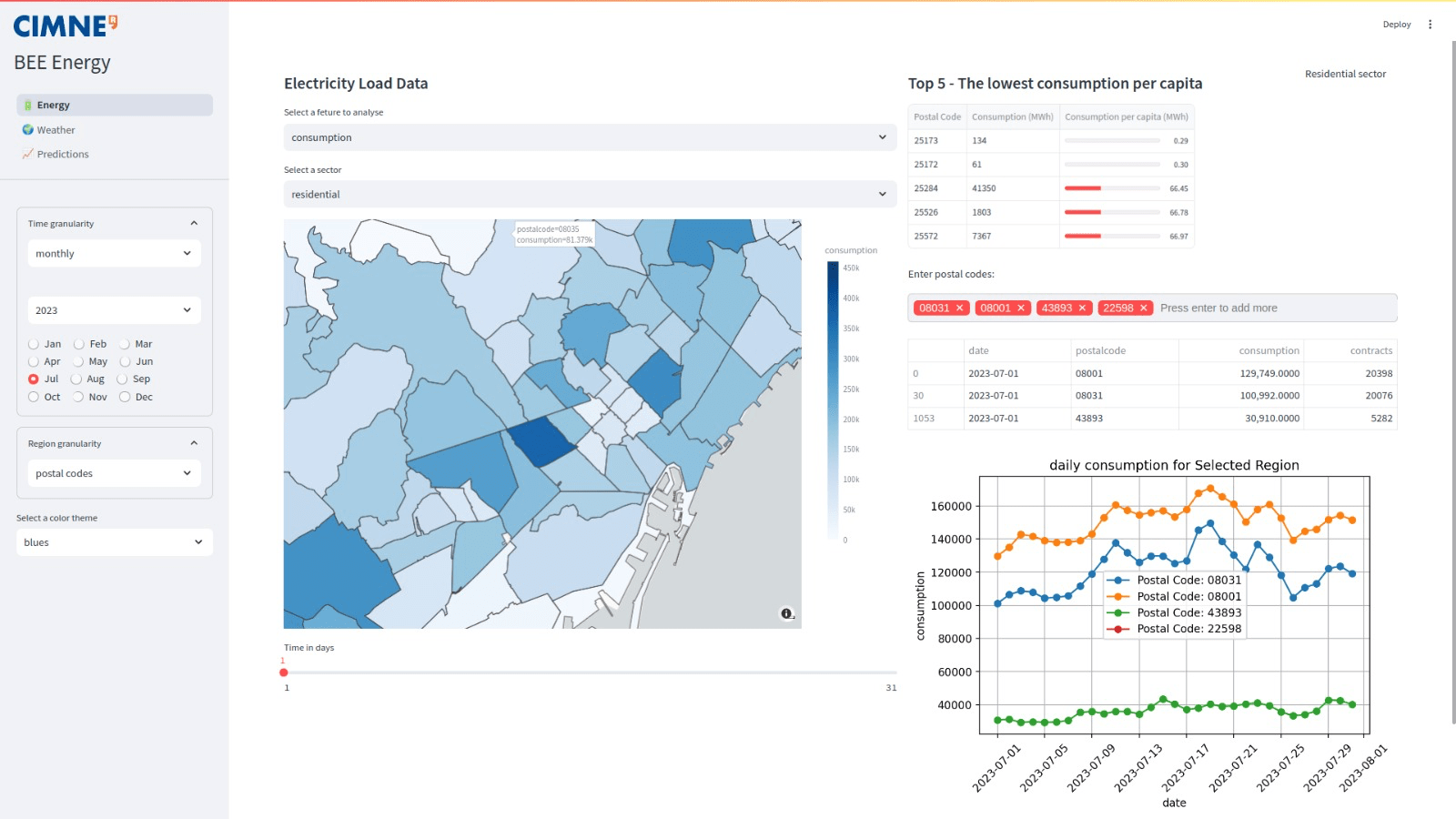

Streamlit UI
/ Data visualisation
DestinE - Pilot: Energy in Catalonia
Demo
/ Data visualisation
DestinE - Pilot: Energy in Catalonia
Conclusions
DestinE - Pilot: Energy in Catalonia
Pilot implementation in DestinE infrastructure
/ Conclusions
DestinE - Pilot: Energy in Catalonia
- Advantages:
- Access to exclusive long-term and short-term weather forecast at high
resolution for the entire world.
- Freedom to implement all kind of architectures thanks to ISLET service
- DestinE out-of-the-box services to access data and perform analysis.
Pilot implementation in DestinE infrastructure
/ Conclusions
DestinE - Pilot: Energy in Catalonia
- Future work:
- Implementation of a script scheduler in the JupyterHub of STACK
- Provide more examples and updated documentation.
- Improve reliability of actual services.
- Allow boundary-boxes in DT datasets queries.
- Create predefined services related to databases for real-time and batch
data analysis and a UI for results visualisation.
Future work
/ Conclusions
DestinE - Pilot: Energy in Catalonia
- Include energy transition datasets at low geographical granularity:
- Monthly heat pumps installations per municipality: estimation from EPCs open datasets
- Monthly sales of electric cars/bikes per municipality: vehicle registrations from DGT open data
- Include people mobility dataset + actual road infrastructure
- Include touristic establishments dataset.
- Include other energy sources (gas) and emissions factors
- Deploy and evaluate actual service during next months.
- Increase modelling frequency to hourly.
- Extend the analysis to industrial, agriculture and tertiary sectors.
- Extend the analysis to all regions in Spain.
Thanks for your attention
Míriam Méndez and Gerard Mor
contact: gmor@cimne.upc.edu
