  'ppid': 100,
  'pid': 250,
  'action': 'started',
  'time': '2019-02-24 18:21:25'
  },
  {
  'ppid': 250,
  'pid': 350,
  'action': 'started',
  'time': '2019-02-24 18:22:31'
  }
]

[
  {
  'pid': 350,
  'action': 'connected_to',
  'domain': 'evil.com',
  'time': '2019-02-24 18:24:27'
  },
  {
  'pid': 350,
  'action': 'created_file',
  'path': 'downloads/evil.exe',
  'time': '2019-02-24 18:28:31'
  }
]

Process {
    node_key: string ,
    asset_id: string ,
    process_id: int ,
    process_guid: string ,
    created_timestamp: int ,
    terminated_timestamp: int ,
    last_seen_timestamp: int ,
    process_name: string ,
    process_command_line: string ,
    process_integrity_level: string ,
    operating_system: string ,
    process_path: File ,
    children: [Process] ,
    created_files: [File] ,
    deleted_files: [File] ,
    read_files: [File] ,
    wrote_files: [File] ,
}

File {
    node_key: string ,
    asset_id: string ,
    created_timestamp: int ,
    deleted_timestamp: int ,
    last_seen_timestamp: int ,
    file_name: string ,
    file_path: string ,
    file_extension: string ,
    file_mime_type: string ,
    file_size: int ,
    file_version: string ,
    file_description: string ,
    file_product: string ,
    file_company: string ,
    file_directory: string ,
    file_inode: int ,
    file_hard_links: int ,
    md5_hash: string ,
    sha1_hash: string ,
    sha256_hash: string ,
}

OutboundConnection {
    port: int,
    created: int,
    ended: int,
    external_connections: ExternalIp
}

ExternalIp {
    port: int,
    address: str,
}

{
  'pid': 100,
  'type': 'process_start',
  'timestamp': 1551753726,
  'image': '/usr/bin/program',
}

{
  'pid': 100,
  'type': 'file_read',
  'path': '/home/.cache/file',
  'timestamp': 1551754726
}

{
  'pid': 100,
  'type': 'process_terminate',
  'timestamp': 1551755726,
  'image': '/usr/bin/program',
}

{
  'pid': 250,
  'created_at': 30
}

{
  'pid': 250,
  'created_at': 50
}

{
  'pid': 250,
  'seen_at': 30
}

{
  'type': 'Process Create',
  'image': 'C:\Program Files\Microsoft Office\winword.exe',
  'pid': 1200,
  'ppid': 1080
}

{
  'type': 'Process Create',
  'image': 'C:\Windows\WindowsPowershell\v1.0\powershell.exe',
  'pid': 2590,
  'ppid': 1200,
}

from grapl_analyzerlib.execution import ExecutionHit
from pydgraph import DgraphClient
from grapl_analyzerlib.entities import ProcessQuery, SubgraphView, NodeView


def analyzer(client: DgraphClient, node: NodeView, sender: Any):
    process = node.as_process_view()
    if not process: return

    p = (
        ProcessQuery()
        .with_process_name(eq="winword.exe")
        .with_children(ProcessQuery())
        .query_first(client, contains_node_key=process.node_key)
    )

    if p:
        sender.send(
            ExecutionHit(
                analyzer_name="Suspicious Word Child Process",
                node_view=p,
                risk_score=90,
            )
        )

def analyzer(client: DgraphClient, node: NodeView, sender: Any):
    counter = ParentChildCounter(client)

    process = node.as_process_view()
    if not process: return

    p = (
        ProcessQuery().with_parent(ProcessQuery()
        .query_first(client, contains_node_key=process.node_key)
    )  # type: Optional[ProcessView]

    if not p: return

    parent = p.get_parent()

    count = counter.get_count_for(
        parent_process=parent,
        child_process=p,
    )

    if count < 2:
        sender.send(
            ExecutionHit(
                analyzer_name="Rare Parent Child Process",
                node_view=p,
                risk_score=35,
            )
        )

def analyzer(client: DgraphClient, node: NodeView, sender: Any):
    unpackers = ["7zip.exe", "winrar.exe", "zip.exe"]

    process = node.as_process_view()
    if not process: return

    # Look for exec'd processes with binary files that were created by unpackers
    p = (
        ProcessQuery().with_bin_file(
            FileQuery().with_creator(
                ProcessQuery().with_process_name(eq=unpackers)
            )
        )
        .query_first(client, contains_node_key=process.node_key)
    )

    if p:
        sender.send(
            ExecutionHit(
                analyzer_name="Process Executing From Unpacked File",
                node_view=p,
                risk_score=15,
            )
        )

from analyzers.suspicious_svchost.main import analyzer


class TestSuspiciousSvchost(unittest.TestCase):

    def setUp(self) -> None:
        self.local_mg = init_local_dgraph()
        self.node_view = populate_signature('hardcoded-node-key')

    def test_suspicious_svchost_hit(self):
        result = exec_sync(analyzer, self.local_mg, self.node_view)
        assert isinstance(result, ExecutionHit)

    def test_suspicious_svchost_miss(self):
        benign_view = deepcopy(self.node_view)
        benign_view.node_key = "some-other-key"

        result = exec_sync(analyzer, self.local_mg, benign_view)

        assert result is None


if __name__ == "__main__":
    unittest.main()

{
    'pid': 250,
    'ppid': 150,
    'created_at': 1551565127,
    'hash': 'acbd18db4cc2f85cedef654fccc4a4d8',
    'image_name': '/home/user/downloads/evil.sh'
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

{
  ~~: ~~
  ~~: ~~
}

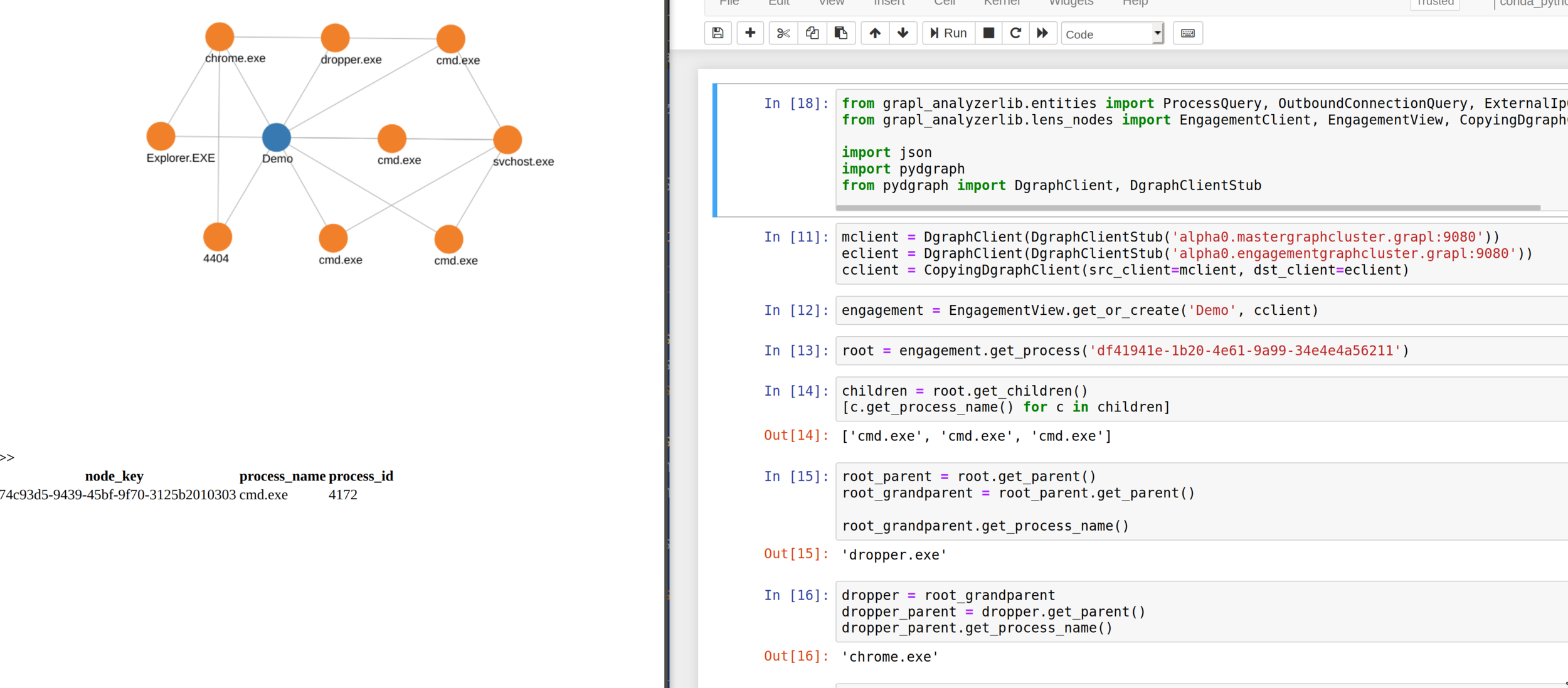

engagement = EngagementView.get_or_create('Demo', cclient)
root = engagement.get_process('df41941e-1b20-4e61-9a99-34e4e4a56211')

#[derive(DynamicNode, GraplStaticId)]
pub struct AwsEc2Instance {
    #[grapl(static_id)]
    arn: String,
    launch_time: u64,
}

impl IAwsEc2InstanceNode for AwsEc2InstanceNode {
    fn get_mut_dynamic_node(&mut self) -> &mut DynamicNode {
        &mut self.dynamic_node
    }
}

fn main()
    grapl_generator_plugin(move |raw_guard_duty_alert| {
        let log: InstanceDetails = serde_json::from_slice(raw_guard_duty_alert).unwrap();

        let mut ec2 = AwsEc2InstanceNode::new(
            AwsEc2InstanceNode::static_strategy(),
            log.launch_time
        );
        ec2.with_arn(log.arn).with_launch_time(log.launch_time);

        let mut graph = GraphDescription::new(log.launch_time);
        graph.add_node(ec2);
        graph
    })

}

class Ec2InstanceQuery(DynamicNodeQuery):
    def __init__(self) -> None:
        super(Ec2InstanceQuery, self).__init__("AwsEc2Instance", Ec2InstanceView)

    def with_launch_time(
        self,
        eq=IntCmp,
        gt=IntCmp,
        lt=IntCmp
    ) -> 'Ec2InstanceQuery':
        self.with_property_int_filter("launch_time", eq, gt, lt)
        return self

    def with_instance_id(
        self,
        eq=StrCmp,
        contains=StrCmp,
        ends_with=StrCmp
    ) -> 'Ec2InstanceQuery':
        self.with_property_str_filter("instance_id", eq, contains, ends_with)
        return self

class Ec2InstanceView(Viewable):
    def __init__(
            self,
            dgraph_client: DgraphClient,
            node_key: str,
            uid: str,
            arn: Optional[str] = None,
            instance_id: Optional[str] = None,
            launch_time: Optional[int] = None,
            guard_duty_findings: List[GuardDutyAlertView] = None,
            **kwargs,
    ):
        super(Ec2InstanceView, self).__init__(dgraph_client, node_key, uid)
        self.arn = arn
        self.instance_id = instance_id
        self.launch_time = launch_time

        self.guard_duty_findings = guard_duty_findings

    @staticmethod
    def get_property_types -> List[Tuple[str, Callable[[Any], Union[str, int]]]]:
        return [("launch_time", int), ("arn", str), ("instance_id", str)]

    @staticmethod
    def get_edge_types() -> List[Tuple[str, Union[List[Type[V]], Type[V]]]]:
        return [("~finding_resource", [GuardDutyAlertView], "guard_duty_findings")]

    def get_arn(self) -> Optional[str]:
        self.arn = self.get_property('arn', str)
        return self.arn

    def get_instance_id(self) -> Optional[str]:
        self.instance_id = self.get_property('instance_id', str)
        return self.instance_id

class GuardDutySubgraphGenerator extends cdk.Stack {
    constructor(parent: cdk.App, id: string) {
        super(parent, id + '-stack');
        const environment = {"BUCKET_PREFIX": process.env.BUCKET_PREFIX};

        const guard_duty_log_events = new EventEmitter(this,"guardduty-raw-logs");

        const service = new Service(this, id, environment, guard_duty_log_events);

        const bucket = getUnidSubgraphGeneratedBucket(process.env.BUCKET_PREFIX);
        service.publishesToBucket(bucket);
    }
}

class GraplPlugin extends cdk.App {
    constructor() {
        super();
        env(__dirname + '/.env');

        new GuardDutySubgraphGenerator(
          this,
          'guardduty-subgraph-generator',
        );
    }
}

new GraplPlugin().synth();

$ git clone git@github.com:insanitybit/grapl.git
$ cd ./grapl/grapl-cdk/
$ npm install -g
$ <your editor> ./.env

BUCKET_PREFIX="<unique identifier>"

$ ./deploy_all.sh

cd /path/to/grapl/
python ./gen-raw-logs.py <bucket prefix>
