Form Semantics

The foundations of Form Semantics

Hvorfor skal vi bekymre os om webformularer?

Det, der driver web'et
Interaktioner mellem bruger og websted
Interaktion mellem mennesker
The "money-maker"
- E-handel
- Lead-generatoion (nyhedsbrev)
osv.

En deal-breaker
Noget, der er i vejen
- UX bliver meget vigtigt

Hvad er webformularer?

Sikre sig, at de rigtige data er angivet

Standardiseret

Vi stiller ingen spørgsmål, vi udfylder bare formularen

Fysisk modpart

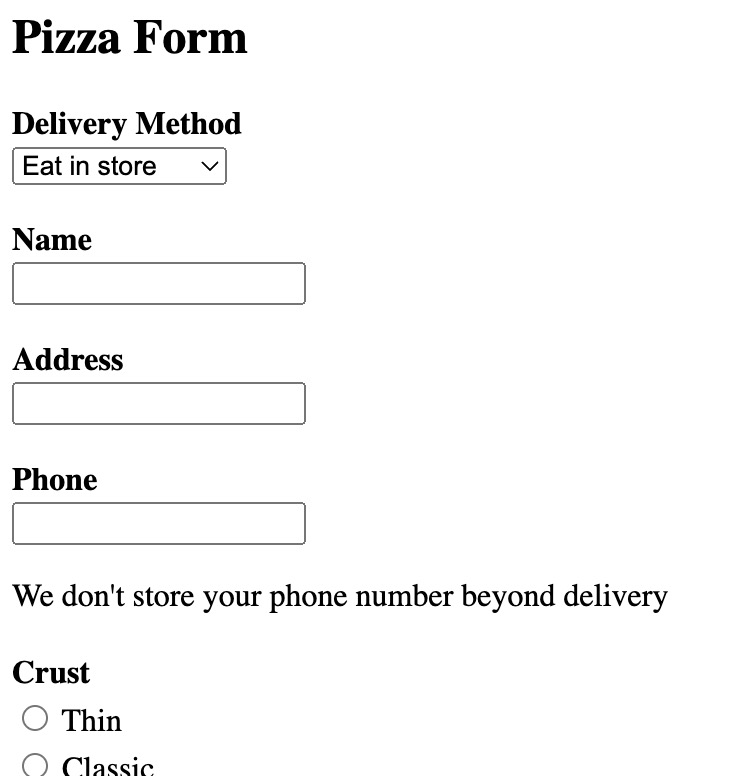

Eksempler

Facebook post

Form tags

<form>

</form>

Form tags

<form>

  <label>Label</label>

</form>

Form tags

<form>

  <label>Label</label>
  <input>

</form>

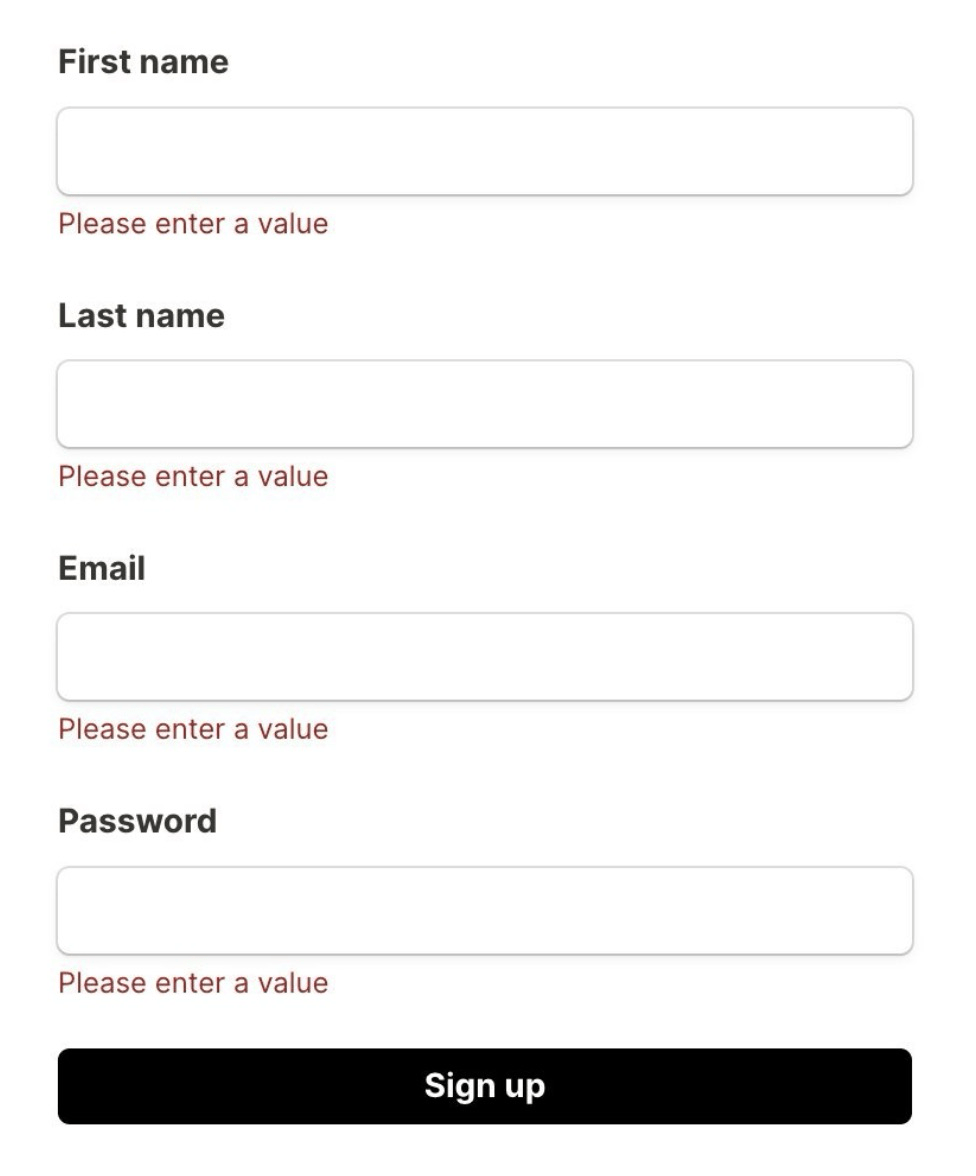

Form tags

<form>

  <label>Label</label>
  <input>

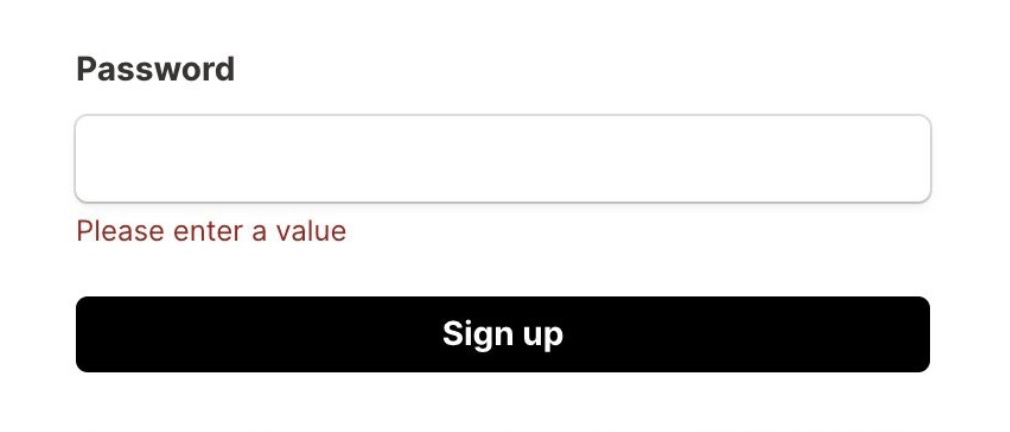

  <p>Error message</p>

</form>

Form tags

<form>

  <label>Label</label>
  <input>
  <p>Error message</p>

  <button>Submit button</button>

</form>

Form tags

<form>

  <label>Label</label>
  <input>
  <p>Error message</p>

  <button>Submit button</button>

</form>

Form tags

https://drewdevault.com/2021/10/17/Reliability.html

It’s hard to overstate just how much software developers have given the finger to reliability in the past 10 years or so. It’s for the simplest, silliest reasons, too, like those web forms.

My web browser has been perfectly competent at submitting HTML forms for the past 28 years, but for some stupid reason some ~~asshole~~ developer decided to reimplement all of the form semantics in JavaScript,

and now I can’t pay my electricity bill without opening up the dev tools. Imagine what it’s like to not know how to do that. Imagine if you were blind.

https://drewdevault.com/2021/10/17/Reliability.html

It’s hard to overstate just how much software developers have given the finger to reliability in the past 10 years or so. It’s for the simplest, silliest reasons, too, like those web forms.

and now I can’t pay my electricity bill without opening up the dev tools. Imagine what it’s like to not know how to do that. Imagine if you were blind.

https://drewdevault.com/2021/10/17/Reliability.html

and now I can’t pay my electricity bill without opening up the dev tools. Imagine what it’s like to not know how to do that. Imagine if you were blind.

😬

https://webaim.org/projects/million/#labels

https://webaim.org/projects/million/

Tilgængelighed

Grupper

States (:hover, :focus, fejlmeddelelser osv.)

Tilgængelighed

Webtilgængelighed

Gå ind på dsb.dk. Herefter må du kun bruge tastaturet.

Bestil en enkelt billet fra København til Aarhus i morgen

HTML tags gør det klart for browseren, hvad betydningen af en side og dens indhold er

og skærmlæsere

Alle tags er teknisk set semantiske*, men det handler om at bruge de rigtige tags de rigtige steder

* Man henviser dog ofte til tags, der bærer en mere specifik betydning angående indholdets type eller funktion, som kan hjælpe skærmlæsere, søgemaskiner og browsere med at forstå og formidle indholdet mere præcist.

Semantik

HTML

<header>
<search>
<nav>
<main>
<article>
<aside>
<footer>

Ikke-semantisk

Semantisk

vs.

<div class="list">
  <div>Item 1</div>
  <div>Item 2</div>
  <div>Item 3</div>
</div>

<ul class="list">
  <li>Item 1</li>
  <li>Item 2</li>
  <li>Item 3</li>
</ul>

Ikke-semantisk

Semantisk

vs.

<div class="article">
  <div>Artikel Titel</div>
  <div>Skrevet af Forfatter</div>
  <div>Artikel indhold her...</div>
</div>

<article>
  <h1>Artikel Titel</h1>
  <p>Skrevet af Forfatter</p>
  <section>Artikel indhold her...</section>
</article>

Ikke-semantisk

Semantisk

vs.

<div class="nav">
  <a href="/">Home</a>
  <a href="/about">about</a>
  <a href="/contact">Contact</a>
</div>

<nav>
  <ul>
    <li><a href="/">Home</a></li>
    <li><a href="/about">About</a></li>
    <li><a href="/contact">Contact</a></li>
  </ul>
</nav>

Det rigtige tag og de rigtige attributter sikrer en funktionsdygtig og tilgængelig formular

<a href="#0" class="button">
  I am a fake unsemantic button
</a>

<div class="button">
  I am even worse
</div>

<button type="button">
  I am a real semantic button
</button>

<button>
  <a href="#0" class="button">
    WTF?!
  </a>
</button>

💩

🚫

<div
    class="btn"
    role="button"
    aria-pressed="false"
    tabindex="0">
</div>

wrapper.addEventListener("keydown", e => {
    if (e.key === " " || e.key === "Enter" || e.key === "Spacebar") {
        toggleBtn(e.target);
    }
});

https://benfrain.com/converting-divs-into-accessible-pseudo-buttons/

Divitis

<div>Denne tekst er vigtig, alvorlig eller akut</div>

?

Lider du af

Hvad er det rigtige tag?

Divitis

<strong>Denne tekst er vigtig, alvorlig eller akut</strong>

?

<strong>

Lider du af

Divitis

<div>Jeg er et selvstændigt indholdselement</div>

?

Lider du af

Divitis

<article>Jeg er et selvstændigt indholdselement</article>

?

<article>

Lider du af

Divitis

<div>Websitets hovedindhold</div>

?

Lider du af

Divitis

<main>Websitets hovedindhold</main>

?

<main>

Lider du af

Divitis

<div>Indtast dit navn</div>
<input type="text">

?

Lider du af

Divitis

?

<label>

Lider du af

<label>Indtast dit navn</label>
<input type="text">

Anatomien

<label>

<label>

form lingo

Anatomien

Form tags

<form>

  <label for="full-name">Full name</label>
  <input
         id="full-name"
         name="fname"
         type="text">

  <label for="email">Email</label>
  <input
         id="email"
         name="email"
         type="email">

  <button>Submit</button>

</form>

<form action="[URL]" method="GET">

  <label for="full-name">Full name</label>
  <input
         id="full-name"
         name="fname"
         type="text">

  <label for="email">Email</label>
  <input
         id="email"
         name="email"
         type="email">

  <button type="submit">Submit</button>

</form>

Form tags

Submitting

<input type="submit" value="Send data">

<!-- or -->

<button type="submit">Send data</button>

<!-- or just -->

<button>Send data</button> <!-- default is submit -->

Hvis formularen ikke skal submitte...

<button>Send data</button> <!-- default is submit -->

<button type="button">Send data</button> <!-- override the default -->

Label/input association

<input type="checkbox" id="my-id">
<label for="my-id">Whole row</label>

Labels er forbundet med deres respektive input via for attributten og inputtets id attribut.

Hver <input> skal helsthave tilknyttet en <label>. Dette gør feltet tilgængeligt for skærmlæsere og giver brugeren et større mål, da man kan klikke på <label> for at fokusere input-feltet.

Label/input association

<input type="checkbox" id="my-id">
<label for="my-id">Whole row</label>

Labels er forbundet med deres respektive input via for attributten og inputtets id attribut.

Label/input association

<input type="checkbox" id="my-id">
<label for="my-id">Whole row</label>

Label/input association

<label>
  <input type="checkbox">
  Whole row
</label>

Label/input association

<label for="my-id">
  <input id="my-id" type="checkbox">
  Whole row
</label>

Label/input association

<label for="my-id">
  <input id="my-id" type="checkbox">
  Whole row
</label>

https://css-tricks.com/html-inputs-and-labels-a-love-story/

Hvad med søgefelter?

https://developer.mozilla.org/en-US/docs/Web/HTML/Element/input/search

Search landmark

https://www.scottohara.me/blog/2023/03/24/search-element.html

<search>
  <label for=s>Site</label>
  <input type=search id=s>
  <button>Go!</button>
</search>

Skjul elementer

<label for="search" class="visually-hidden">Search</label>

Tilgængelighed

.visually-hidden {
  clip: rect(0 0 0 0);
  clip-path: inset(50%);
  width: 1px;
  height: 1px;
  overflow: hidden;
  position: absolute;
  white-space: nowrap;
}

En del af reset.css fra Frontend design-temaet

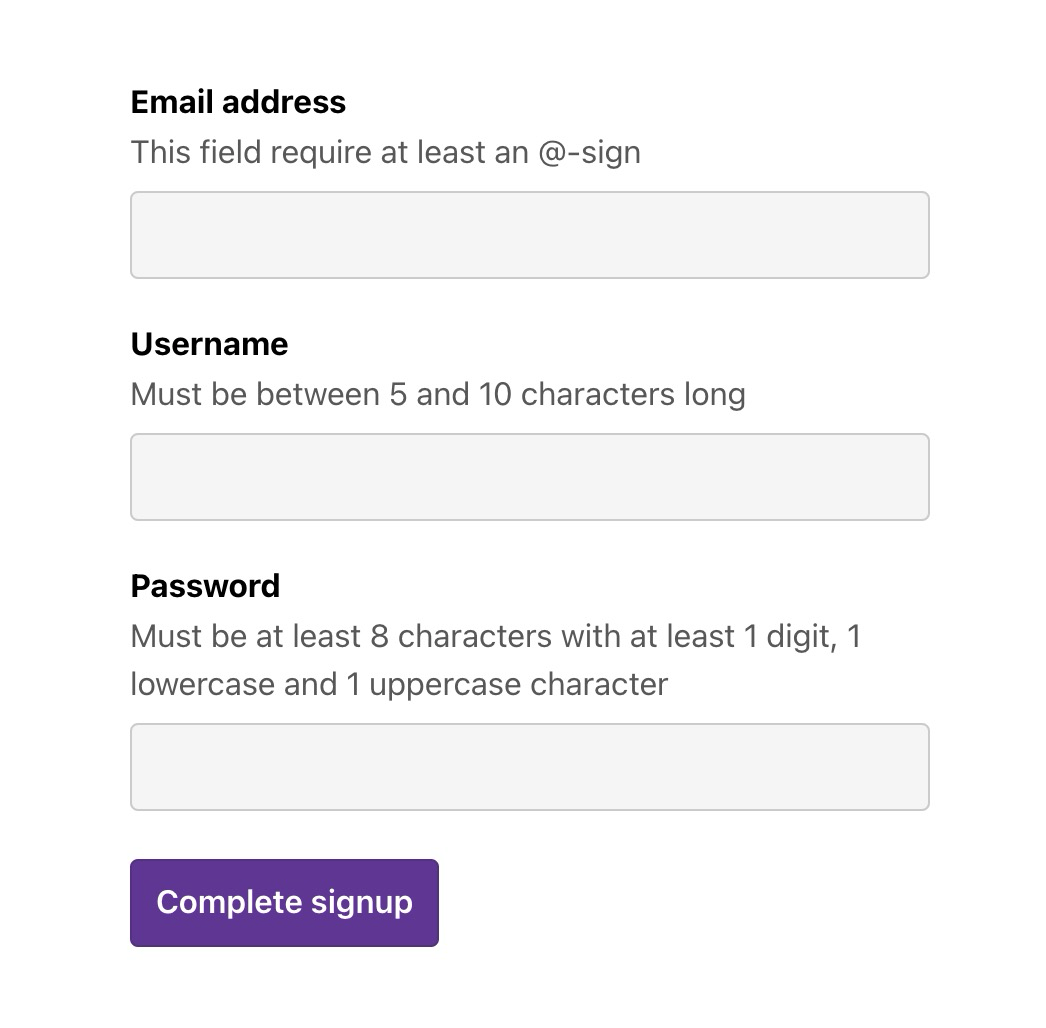

Instructions/input association

<label for="password">
	Password (Required)
	<span>Your password should be at least 6 characters long</span>
  <input type="password" id="password">
</label>

Instructions/input association

<label for="my-id">Label</label>
<input id="my-id" type="text" aria-describedby="instruction">

<p id="instruction">Instruction</p>

Type attributes

<input type="        ">

text

number

radio

checkbox

tel

date

<input type="        ">

text

number

radio

checkbox

tel

date

Single line text field

Type attributes

<input type="        ">

text

number

radio

checkbox

tel

date

Numbers

Type attributes

<input type="        ">

text

number

radio

checkbox

tel

date

Type attributes

<input type="        ">

text

number

radio

checkbox

tel

date

Radio button

Type attributes

<input type="        ">

text

number

radio

checkbox

tel

date

Checkbox

Type attributes

<input type="        ">

text

number

radio

checkbox

tel

date

Phone number

Type attributes

<input type="        ">

text

number

radio

checkbox

tel

date

Date

Type attributes

<input list="list">
<datalist id="list">
  <option value="Gryffindor">
</datalist>

<select>
  <optgroup label="Theropods">
    <option>Tyrannosaurus</option>
...

<textarea>
  It was a dark and stormy night...
</textarea>

<select>
  <optgroup label="Theropods">
    <option>Tyrannosaurus</option>
...

<textarea>
  It was a dark and stormy night...
</textarea>

<input list="list">
<datalist id="list">
  <option value="Gryffindor">
</datalist>

<select>
  <optgroup label="Theropods">
    <option>Tyrannosaurus</option>
...

<textarea>
  It was a dark and stormy night...
</textarea>

<input list="list">
<datalist id="list">
  <option value="Gryffindor">
</datalist>

Type attributes

Radios & checkboxes

Radios & checkboxes

radio buttons

checkboxes

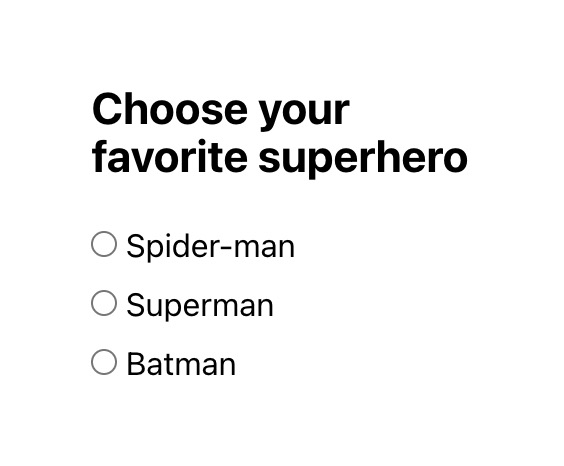

Radio eller checkbox?

Choose your favorite

Spider-man
Superman
Batman

radio buttons

Choose toppings

Cheese
Tomatoes
Ham

checkboxes

Radio eller checkbox?

Radio/checkbox attributter

<form>
    <h3>Choose your interests</h3>

    <div class="form-control">
      <input type="checkbox" id="coding" name="interest" checked>
      <label for="coding">Coding</label>
    </div>

    <div class="form-control">
      <input type="checkbox" id="music" name="interest">
      <label for="music">Music</label>
    </div>
</form>

🤷‍♂️

label?

Radio/checkbox attributter

<form>
  <fieldset>
    <legend>Choose your interests</legend>
    <div class="form-control">
      <input type="checkbox" id="coding" name="interest" value="coding" checked>
      <label for="coding">Coding</label>
    </div>
    <div class="form-control">
      <input type="checkbox" id="music" name="interest" value="music">
      <label for="music">Music</label>
    </div>
  </fieldset>
</form>

Radio/checkbox attributter

<label>
  <input type="checkbox">
  Whole row
</label>

øvelse

Fieldset/Legend

Tilføj nedenstående HTML-attributter og -tags til den eksisterende form

- fieldset/legend

- name="superhero"

- value

<input type="tel">

https://better-mobile-inputs.netlify.app/

Hvilke andre attributter?

<form>
  <label>Enter your email</label>
  <input
    type="email"
    >
</form>

<form>
  <label>Enter your email</label>
  <input
    type="email"
    name="email"
    >
</form>

Hvilke andre attributter?

<form>
  <label>Enter your email</label>
  <input
    type="email"
    name="email"
    placeholder="e.g. john@doe.com"
    >
</form>

Hvilke andre attributter?

<form>
  <label>Enter your email</label>
  <input
    type="email"
    name="email"
    placeholder="e.g. john@doe.com"
    value="Prefilled"
    >
</form>

Hvilke andre attributter?

What other attributes?

<form>
  <label>Enter your email</label>
  <input
    type="email"
    name="email"
    placeholder="e.g. john@doe.com"
    value="Prefilled"
    class="email-field"
    >
</form>

<form>
  <label>Enter your email</label>
  <input
    type="email"
    name="email"
    placeholder="e.g. john@doe.com"
    value="Prefilled"
    class="email-field"
    required
    >
</form>

Hvilke andre attributter?

<form>
  <label>Enter your email</label>
  <input
    type="email"
    name="email"
    placeholder="e.g. john@doe.com"
    value="Prefilled"
    class="email-field"
    required
    readonly
    >
</form>

Hvilke andre attributter?

<form>
  <label>Enter your email</label>
  <input
    type="email"
    name="email"
    placeholder="e.g. john@doe.com"
    value="Prefilled"
    class="email-field"
    required
    readonly
    disabled>
</form>

name

Hvilke andre attributter?

<form>
  <label>Enter your email</label>
  <input
    type="email"
    name="email"
    placeholder="e.g. john@doe.com"
    value="Prefilled"
    class="email-field"
    required
    readonly
    disabled>
</form>

name

Hvilke andre attributter?

Vigtig attribut

is used by the server to identify the fields in form submits

name

Some of the inputs also share the same name which is important to note because it allows the same data property to have multiple values.

øvelse

Forbedr formularen

Overvej markup og forbedr, hvor det er relevant i overensstemmelse med “best practice”-semantik.

https://github.dev/daviatkea/improve-the-form

Validering

<form>

    <h2>Sign up to our service</h2>

    <div class="form-group">
      <label for="email">Email address</label>

      <input
             id="email"
             name="email"
             type="email"
             required>
    </div>

    <div class="form-group">
      <label for="username">Username</label>
      <span>Must be between 5 and 10 characters long</span>
      <input
             id="username"
             name="username"
             type="text"
             minlength="5"
             maxlength="10"
             required>
    </div>

    <div class="form-group">
      <label for="password">Password</label>
      <span>Must be at least 8 characters with at least 1 digit, 1 lowercase and 1 uppercase character</span>
      <input
             id="password"
             name="password"
             type="password"
             pattern="(?=.*\d)(?=.*[a-z])(?=.*[A-Z]).{8,}"
             required>
    </div>

  <button>Sign up</button>
</form>

<form>
  <label for="pass">Enter a password</label>
  <input
  pattern="(?=.*\d)(?=.*[a-z])(?=.*[A-Z]).{8,}"
  type="password"
  id="pass"
  required>

  <button type="submit">Set password</button>
</form>

Reg

Ex

ular pression

Reg

Ex

<form>
  <label for="pass">Enter a password</label>
  <input
  pattern="(?=.*\d)(?=.*[a-z])(?=.*[A-Z]).{8,}"
  type="password"
  id="pass"
  required>

  <button type="submit">Set password</button>
</form>

ular pression

At least 8 characters

<input
  pattern="(?=.*\d)(?=.*[a-z])(?=.*[A-Z]).{8,}"
  type="password"
  required
>

Regular expression from html5pattern.com

At least 1 uppercase character

At least 1 lowercase character

At least 1 number

https://github.com/ziishaned/learn-regex

Learn RegEx

min(length)/max(length)

is used to specify the maximum length of the value that can be entered

Used alongside the range attribute to determine what the min/max values should be. You can use step to determine the interval of your range input.

maxlength/minlength:

max/min:

øvelse

Form validering

Tilføj de relevante attributter, så formularen bliver udfyldt korrekt

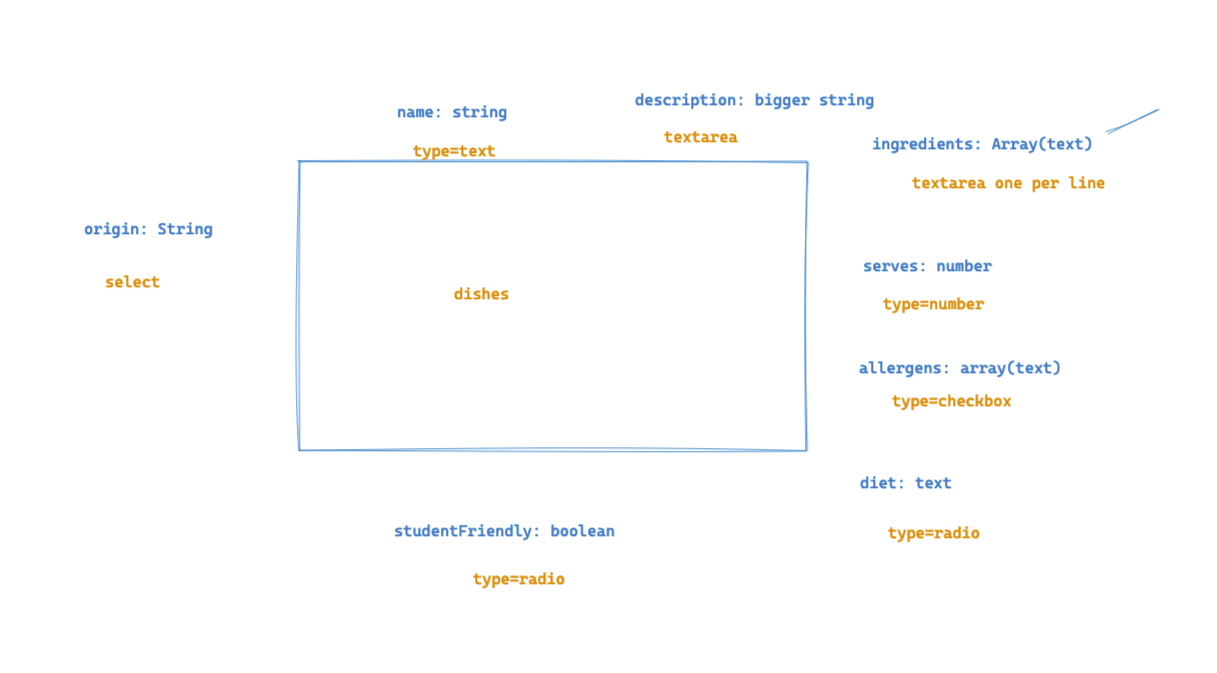

Validering af jeres formular?

name
desc
ingredients
serves
allergens
diet
studentFriendly
origin

Form Semantics

By Dannie Vinther

Form Semantics

HTML Forms: semantics & accessibility

Dannie Vinther PRO

dannievinther
