Infinitely Better UIs
with

David Khourshid - Microsoft

@davidkpiano

Finite Automata

Developing user interfaces

is not easy

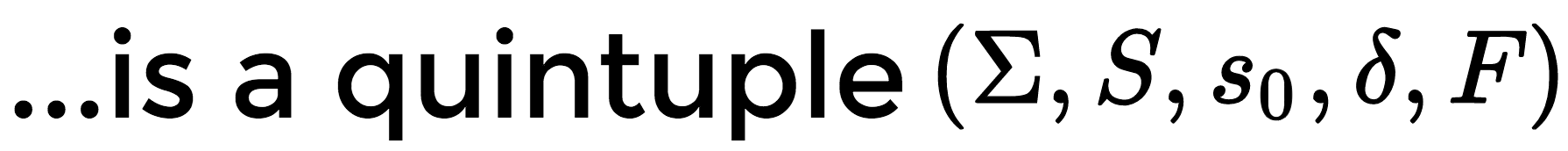

Deterministic Finite Automata

(Finite State Machines)

  • Combinatorial logic

  • Finite state machines

  • Pushdown automata

  • Turing machines

  • Configuring Webpack

Automata theory

React makes us

rethink

class GoatButton extends Component {
  state = {
    goat: undefined
  };

  fetchGoat = () => {
    fetch('url/to/goat')
      .then(goat => this.setState({ goat }));
  }

  render() {
    const { goat } = this.state;

    return (
      <div>
        {goat ? <img src={goat} /> : null}
        <button onClick={this.fetchGoat}>
          Fetch Goat
        </button>
      </div>
    );
  }
}
  • Goat search fails?
  • Button clicked repeatedly?
  • Disable button
  • Loading message
  • Error message

Set goat in state

Handle fetching the goat

Render goat button and image


  state = {
    goat: undefined,
    goatError: false,
    goatSearching: false
  };

Add boolean flags


  fetchGoat = () => {
    if (this.state.goatSearching) return;

    this.setState({
      goatSearching: true,
      goatError: false
    });

    fetch('url/to/goat')
      .then(goat => this.setState({
        goat,
        goatSearching: false
      }))
      .catch(err => this.setState({ goatError: true });
  }

Don't search if already searching

Indicate an error


  render() {
    const { goat, goatError, goatSearching } = this.state;

    return (
      <div>
        {goat && <img src={goat} />}
        {goatError && <span>Error: goat not found</span>}
        <button onClick={this.fetchGoat} disabled={goatSearching}>
          {goatSearching
            ? 'Searching...'
            : goatError
              ? 'Goat fail, retry?'
              : 'Fetch goat'
          }
        </button>
      </div>
    );
  }

Disable button if loading

Custom button text

class GoatButton extends Component {
  state = {
    goat: undefined
  };

  fetchGoat = () => {
    fetch('url/to/goat')
      .then(goat => this.setState({ goat }));
  }

  render() {
    const { goat } = this.state;

    return (
      <div>
        {goat ? <img src={goat} /> : null}
        <button onClick={this.fetchGoat}>
          Fetch Goat
        </button>
      </div>
    );
  }
}
class GoatButton extends Component {
  state = {
    goat: undefined,
    goatError: false,
    goatSearching: false
  };

  fetchGoat = () => {
    if (this.state.goatSearching) return;

    this.setState({
      goat: undefined,
      goatSearching: true,
      goatError: false
    });

    fetch('url/to/goat')
      .then(goat => this.setState({ goat, goatSearching: false }))
      .catch(err => this.setState({ goatError: true });
  }

  render() {
    const { goat, goatError, goatSearching } = this.state;

    return (
      <div>
        {goat && <img src={goat} />}
        {goatError && <span>Error: goat not found</span>}
        <button onClick={this.fetchGoat} disabled={goatSearching}>
          {goatSearching
            ? 'Searching...'
            : goatError
              ? 'Goat fail, retry?'
              : 'Fetch goat'
            }
        </button>
      </div>
    );
  }
}

Before

Aw 💩

Bottom-up

🍑🆙

approach

Event

Action C

Action A

Action E

Action B

Action D

Business logic

🍑🆙
Code

Difficult to understand

Difficult to test

Will contain bugs

Difficult to enhance

Features make it worse

Source: Ian Horrocks, "Constructing the User Interface with Statecharts", ch. 3 pg. 17

  • props

  • setState()

  • props

  • setState()

  • callback props

  • context

  • Flux

  • Redux

  • MobX

  • RxJS

  • monads?

User interfaces are

(Trees are graphs, too)

graphs

Deterministic

Finite

Automata

Deterministic

Finite

Automata

Number of possible states

Deterministic

Finite

Automata

Predetermined sequence

Deterministic

Finite

Automata

State + action = next state, always

Deterministic

Finite

Automata

State Machines

Designing

state machines

It's time for some

game

graph theory

PILL

TIMER

EAT

REVIVE

An initial state

A finite number of states

Transitions between states

Actions that cause transitions

idle

loading

goat

error

CLICK

RESOLVE

REJECT

CLICK

CLICK

State Transition Diagram

STD just call it this 👆

Source: https://dribbble.com/shots/1871910-User-Flow-Part-1

State machines provide a

common language

for designers & developers.

Developing

state machines

  • idle -> loading
  • loading -> goat -> error
  • error -> loading
  • goat -> loading

Adjacency list


const machine = {
  idle: {
    CLICK: 'loading'
  },
  loading: {
    RESOLVE: 'goat',
    REJECT: 'error',
  },
  goat: {
    CLICK: 'loading'
  },
  error: {
    CLICK: 'loading'
  }
};

const initialState = 'idle';

const machine = {
  // ...
};

const initialState = 'idle';



function transition(state, action) {
  return machine[state][action];
}
const t=(m,s,a)=>m[s][a]

state = {
  goatState: initialState, // 'idle'
  goat: undefined
};
commands = {
  loading: this.fetchGoat
}

Finite state

Data

Commands (side effects)


transition = (action) => {
  const { goatState } = this.state;


  const nextState = machine[goatState][action];


  const command = this.commands[nextState];


  this.setState({
    goatState: nextState
  }, command);
}

Ryan

state

Transition function!

Next command

Set state, then exec command


fetchGoat = () => {
  fetch('url/to/goat')
    .then(goat => this.setState({ goat },
      () => this.transition('RESOLVE')
    ))
    .catch(_ => this.transition('REJECT'));
}

render() {
  const { goat, goatState } = this.state;
  const buttonText = {
    idle: 'Fetch goat'
    loading: 'Loading...',
    error: 'Goat fail, retry?',
    goat: 'Fetch another goat'
  }[goatState];

  return (
    <div>
      {goat && <img src={goat} />}
      {goatState === 'error' && <span>Error: goat not found</span>}
      <button
        onClick={() => this.transition('CLICK')}
        disabled={goatState === 'loading'}>
        {buttonText}
      </button>
    </div>
  );
}

Declarative rendering

Testing & Visualizing

state machines

oh god conference wifi

with FSMs

Trade-offs

💥 State explosion 💥

Statecharts

Hierarchical finite state machines

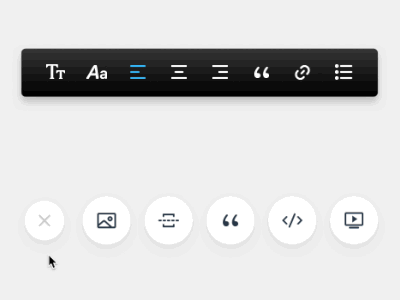

Hierarchical states

Source: https://dribbble.com/shots/3144701-Editor-Format-Bar

Concurrent states

History states

XState

Announcing

npm install xstate



import { Machine } from xstate;

const machine = Machine({ ... });

const nextState = machine
  .transition(currentState, action);

states:

green

on:

yellow

red

states:

TIMER

yellow

on:

TIMER

red

walk ...

wait ...

stop ...

on:

TIMER

green

XState

Announcing

npm install xstate



lightMachine
  .transition('red.stop', 'TIMER')
  .toString();

// 'green'


lightMachine
  .transition('yellow', 'TIMER')
  .value;

// { red: 'walk' }

Hierarchical states

XState

Announcing

npm install xstate



textMachine
  .transition('bold.off', 'TOGGLE_BOLD')
  .value;

// {
//   bold: 'on',
//   italics: 'off',
//   underline: 'off',
//   list: 'bullets'
// }

Concurrent states

  • Precise semantics
  • Rich, expressive notation
  • Easily understandable
  • Fast to create
  • Easy to achieve complete UI specs

Resources

Advantages

Thank you,

React Rally!

David Khourshid

@davidkpiano

Infinitely Better UIs with Finite Automata

By David Khourshid
