Amazon Elastic File System Hands-On

Demo

In this demo, we will:

  1. Create a VPC with public subnets
  2. Launch EC2 instances in different Availability Zones
  3. Create and configure an Amazon EFS file system
  4. Mount the EFS file system on EC2 instances
  5. Test file sharing between instances
  6. Clean up resources

Agenda

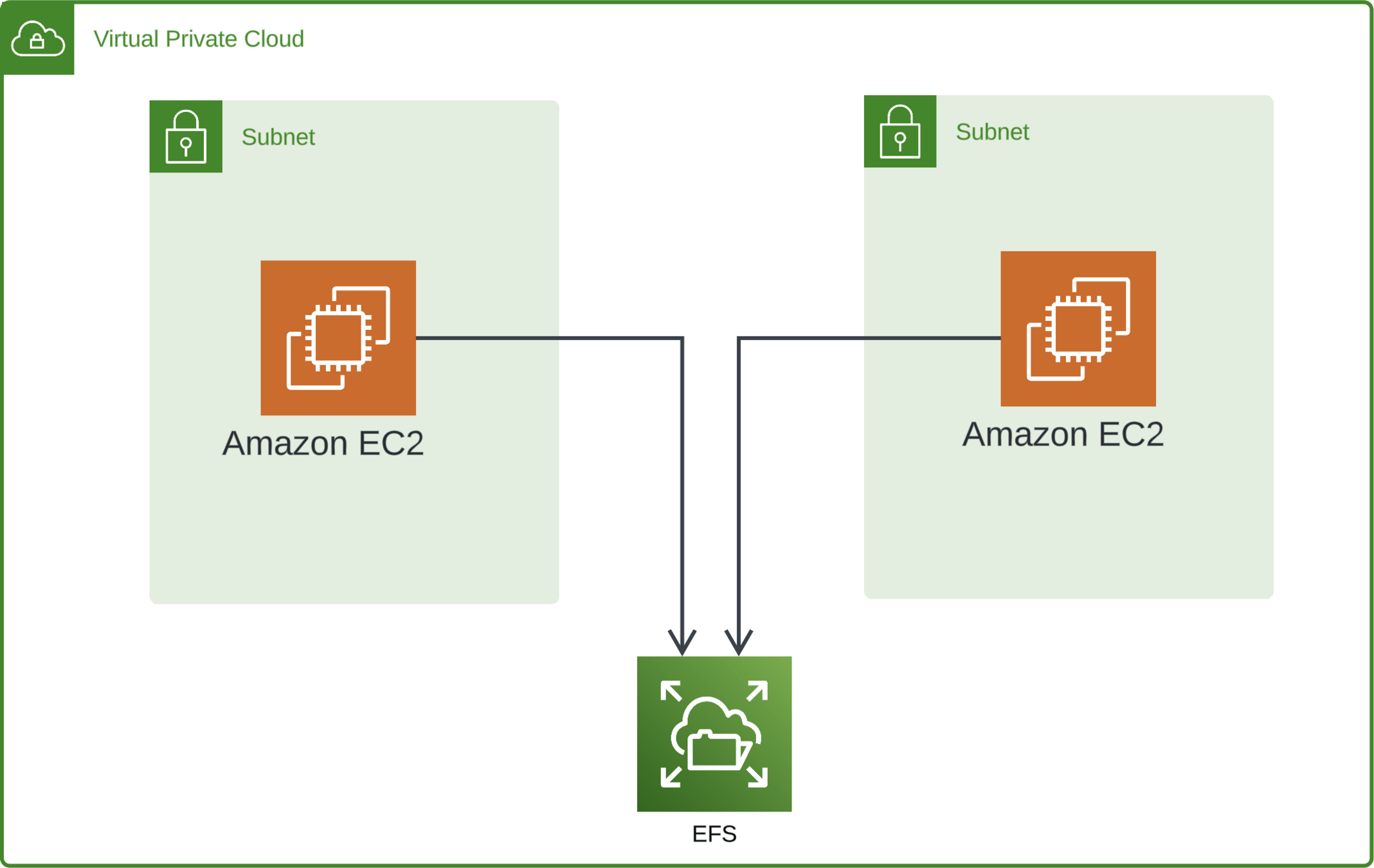

Demo Overview

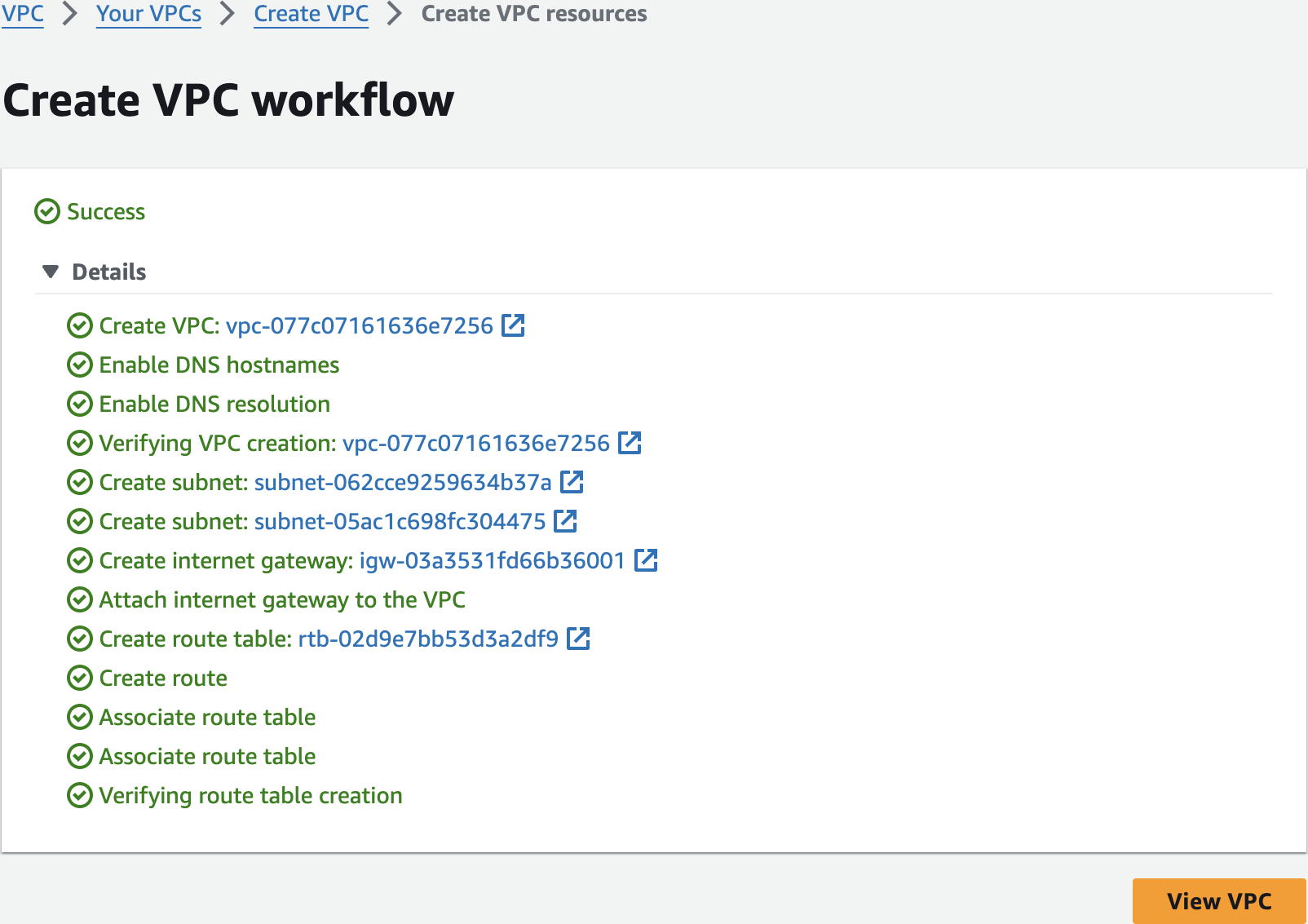

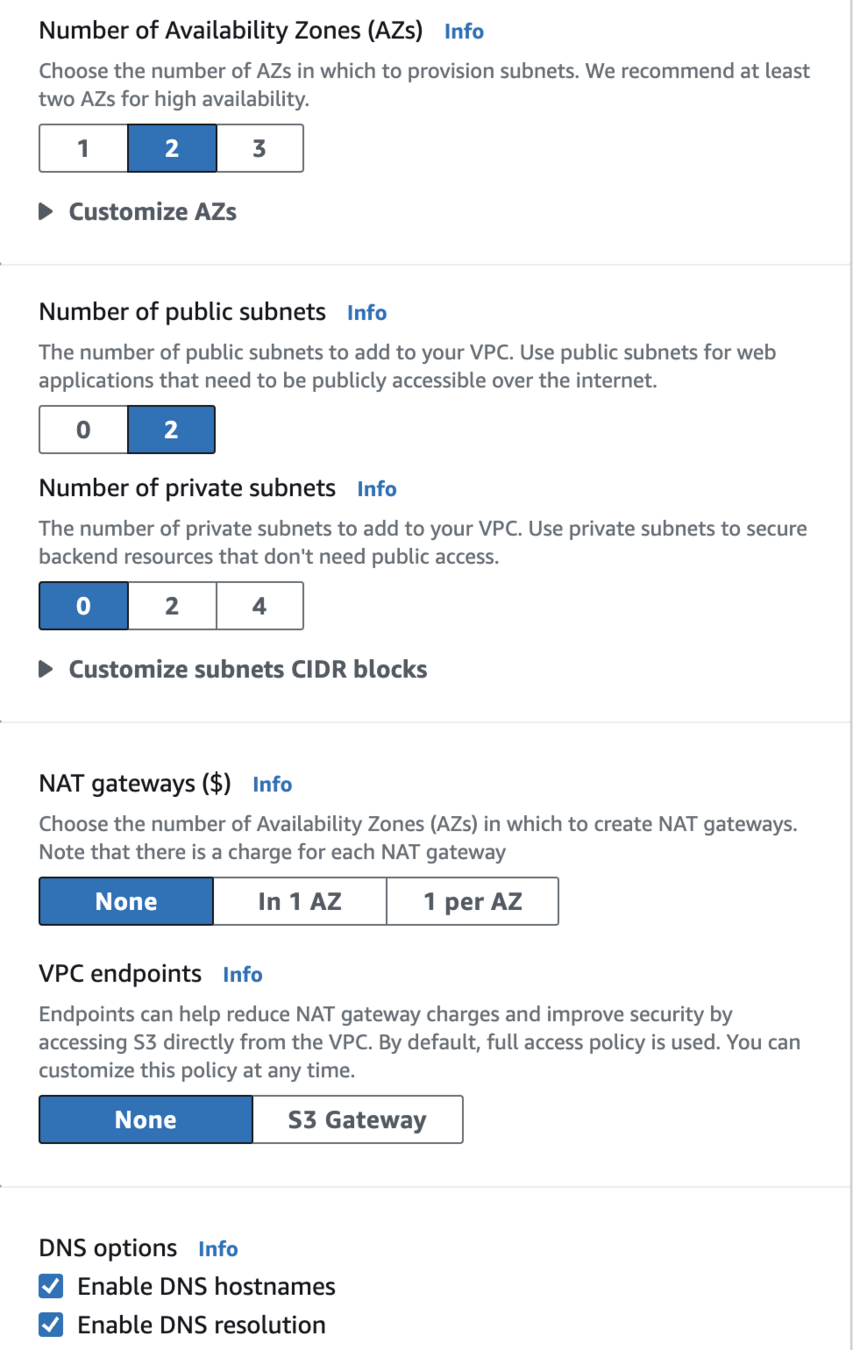

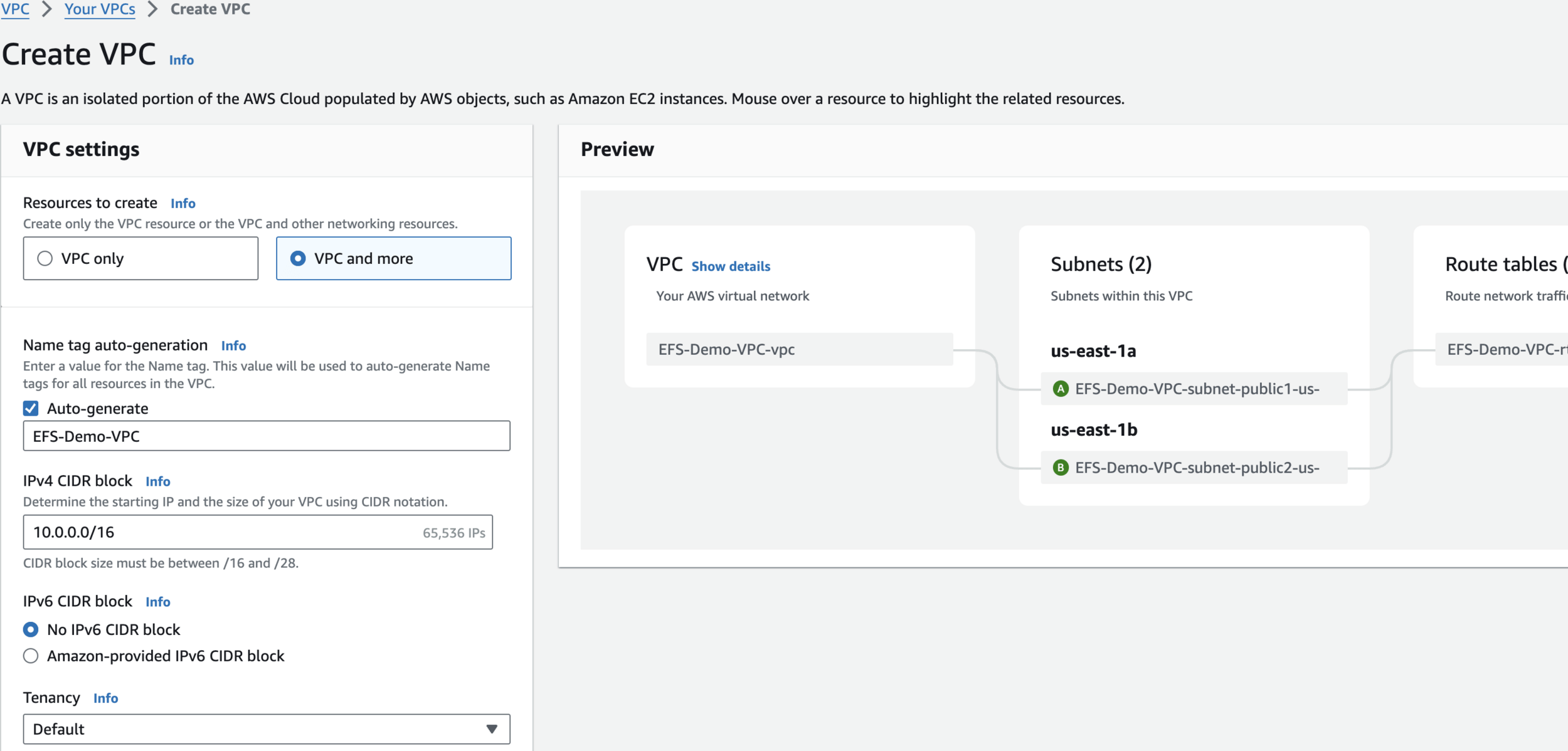

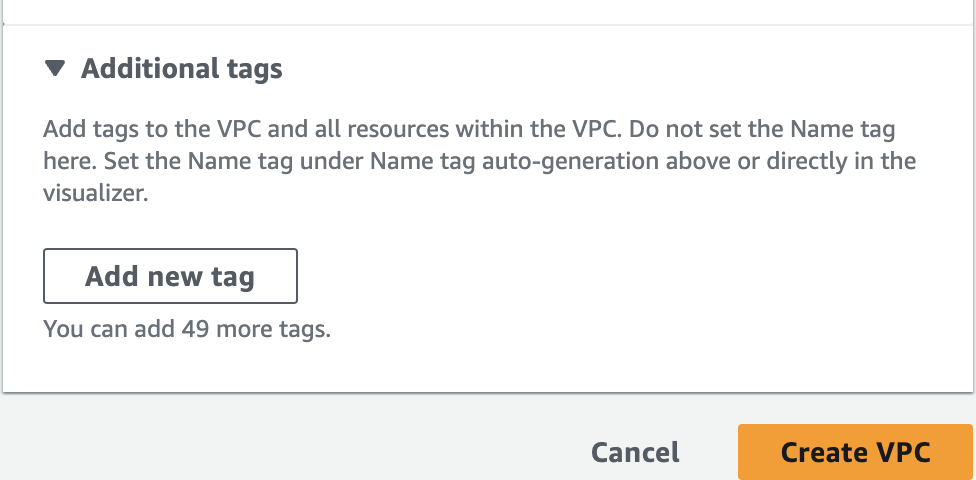

Create VPC

EFS-Demo-VPC

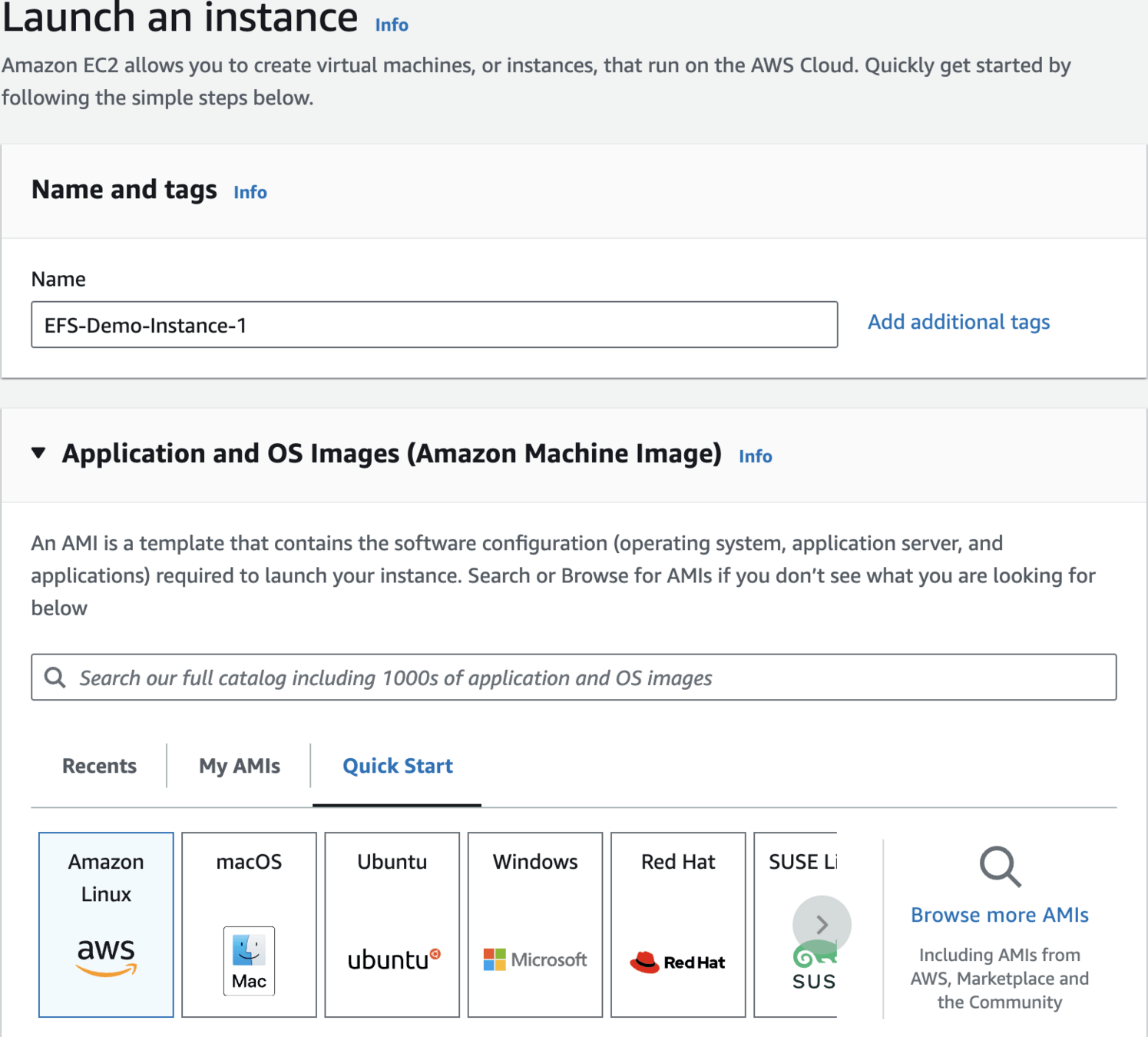

EFS-Demo-Instance-1

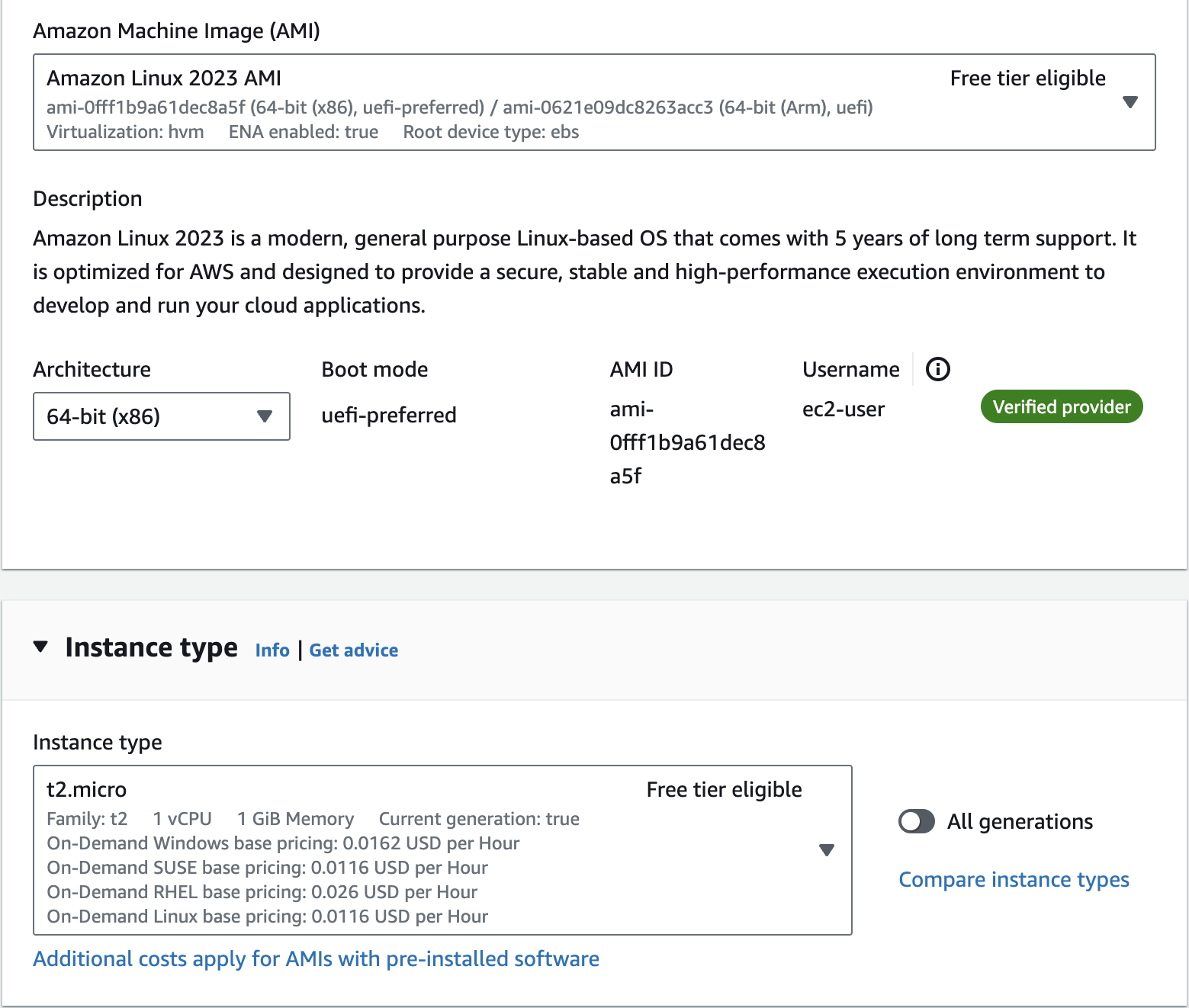

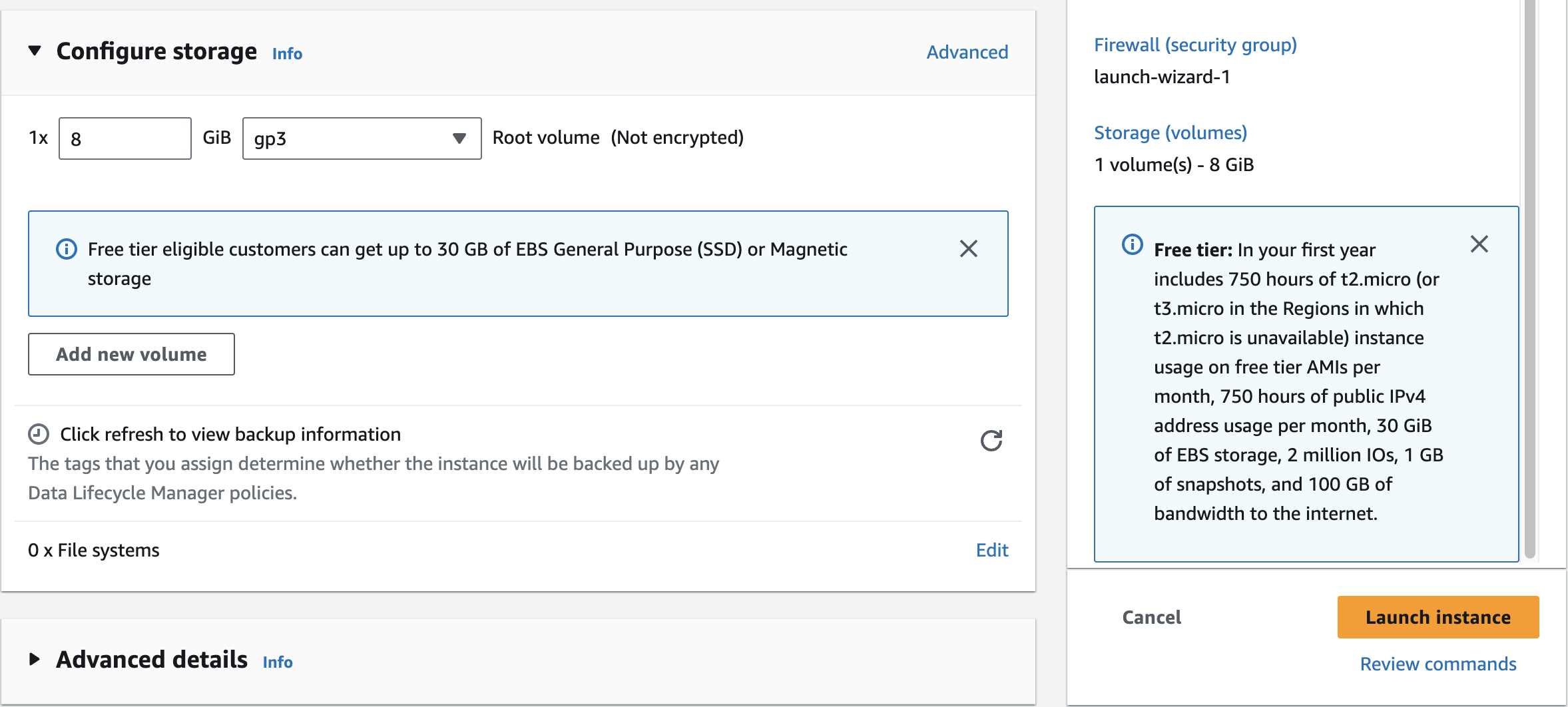

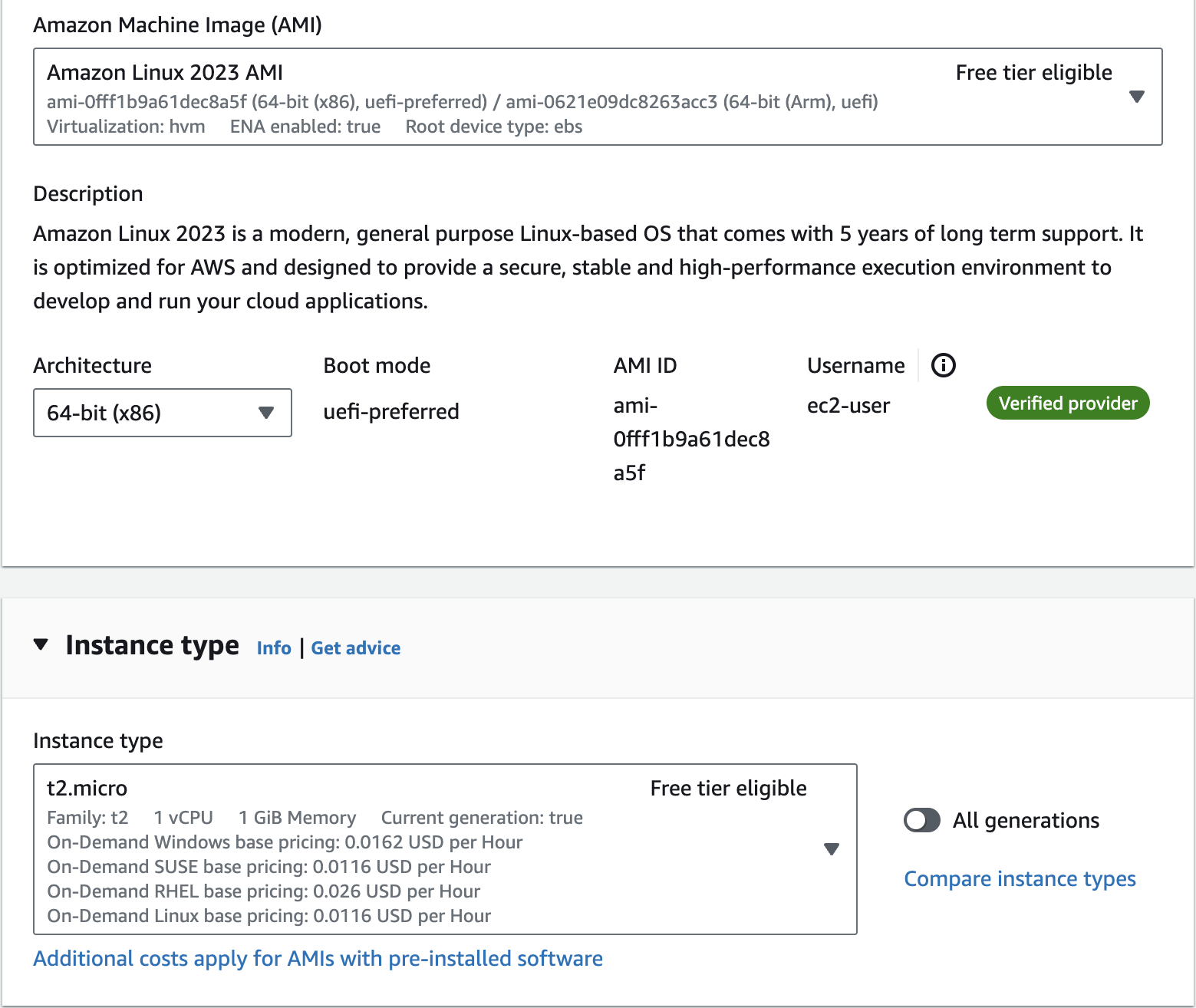

Launch 1st instance

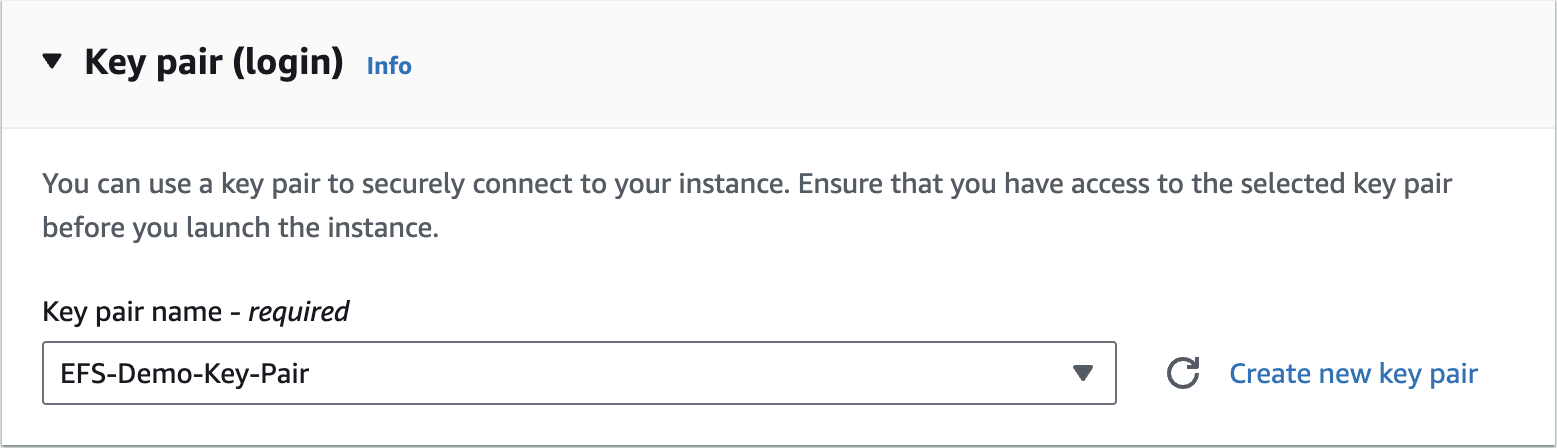

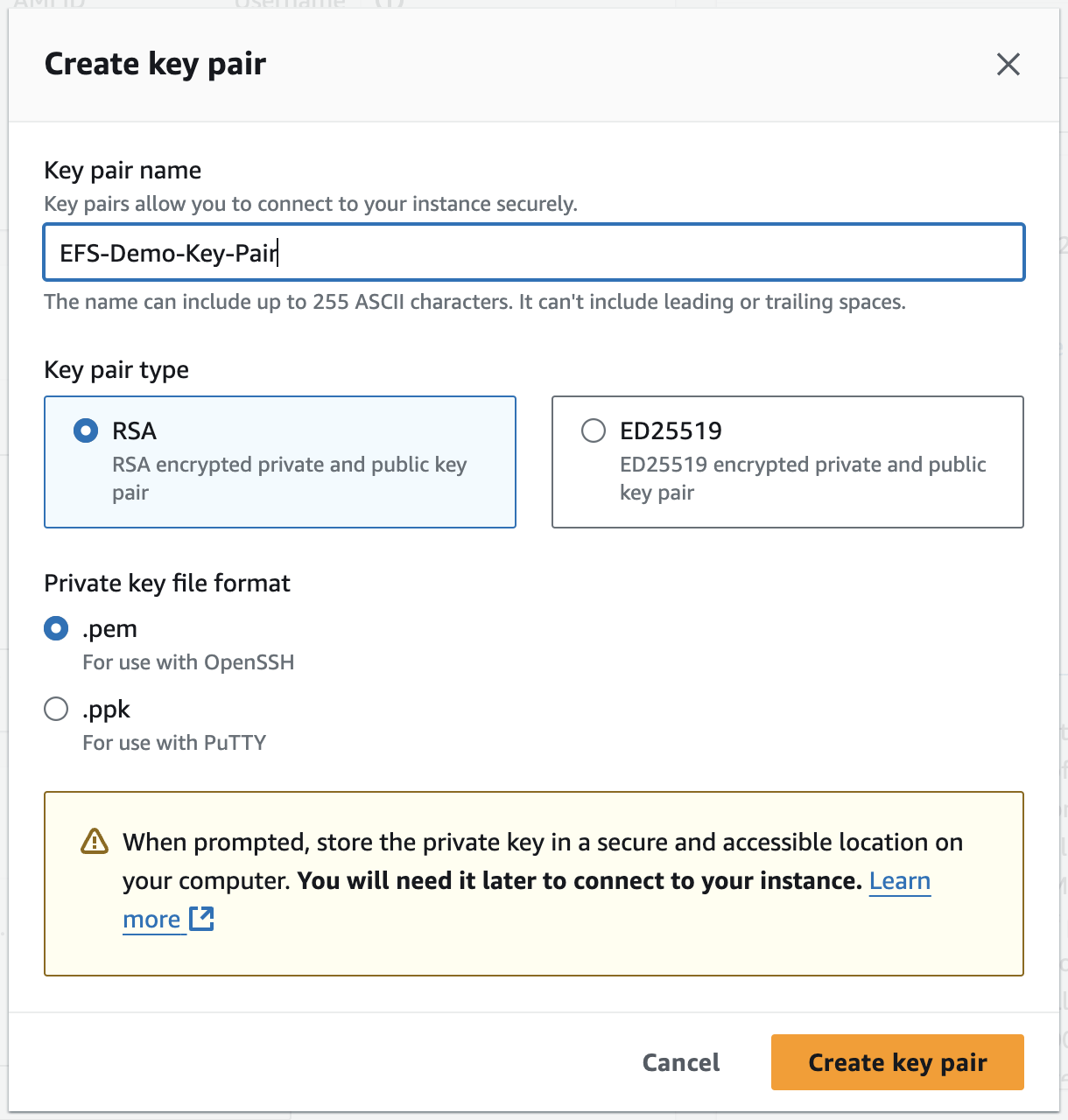

EFS-Demo-Key-Pair

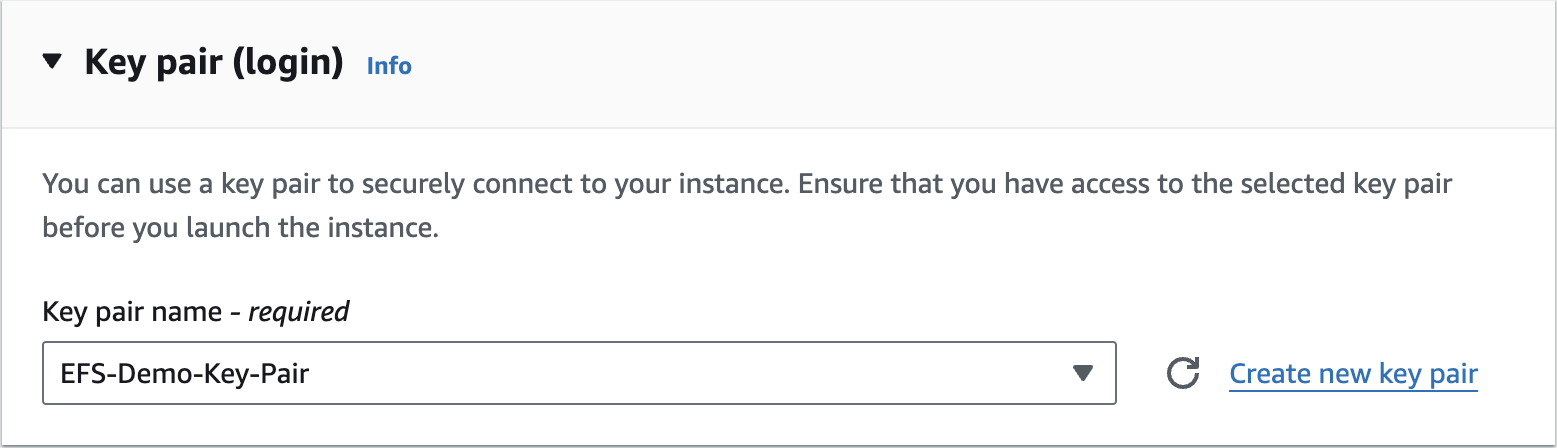

Key pair (login)

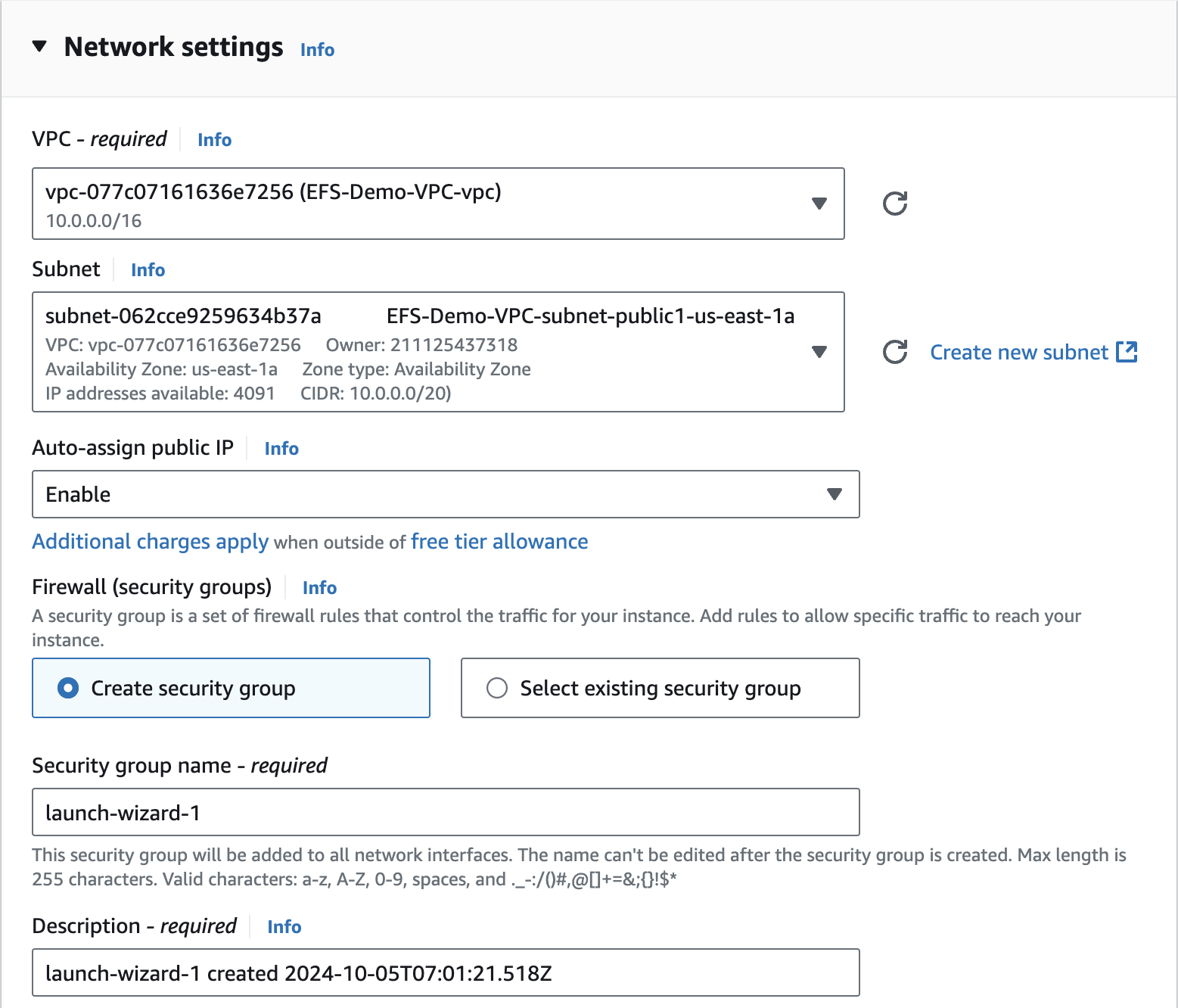

Network settings

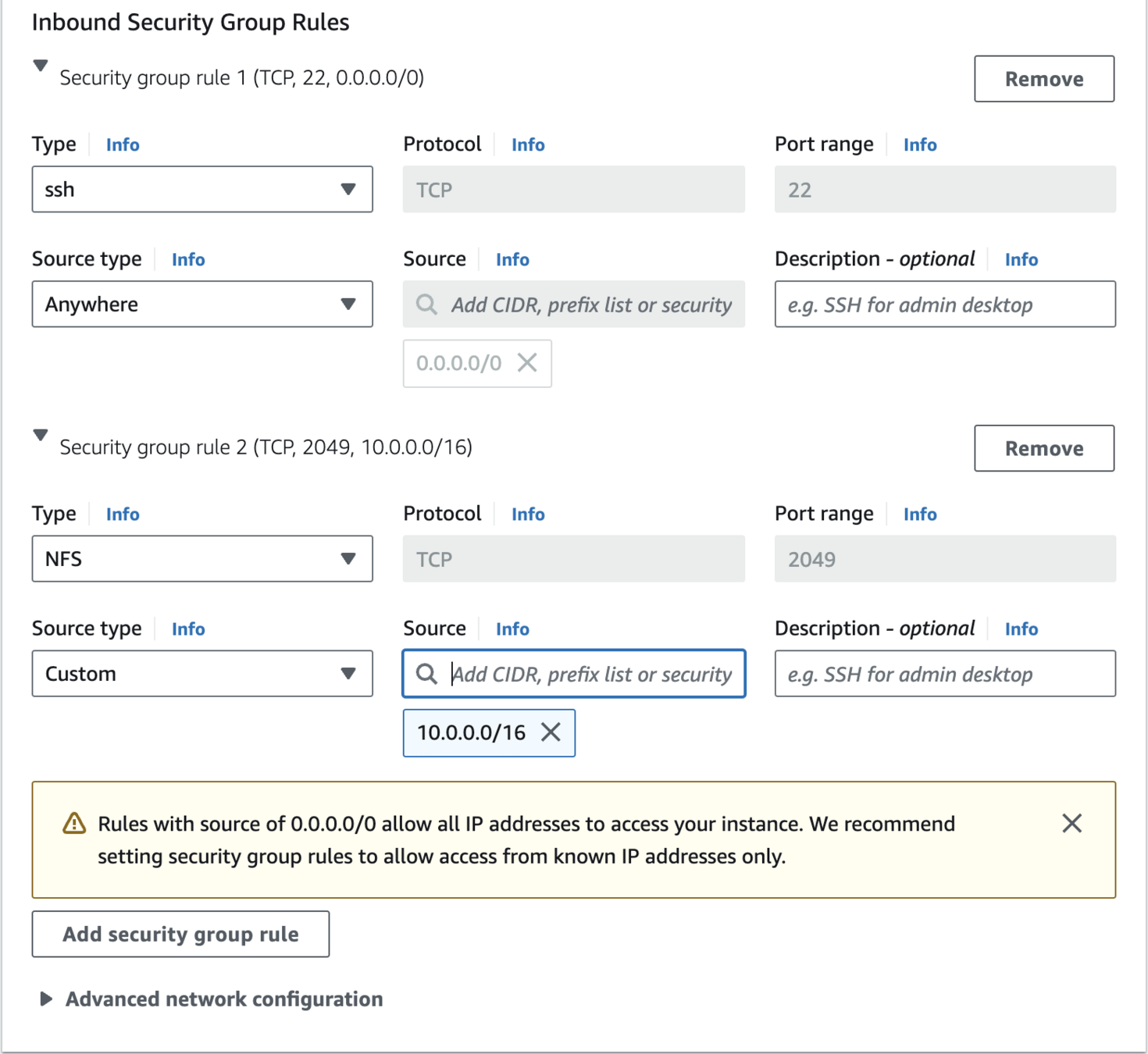

Inbound Security Group Rules

Launch 2nd instance

EFS-Demo-Instance-2

Key pair (login)

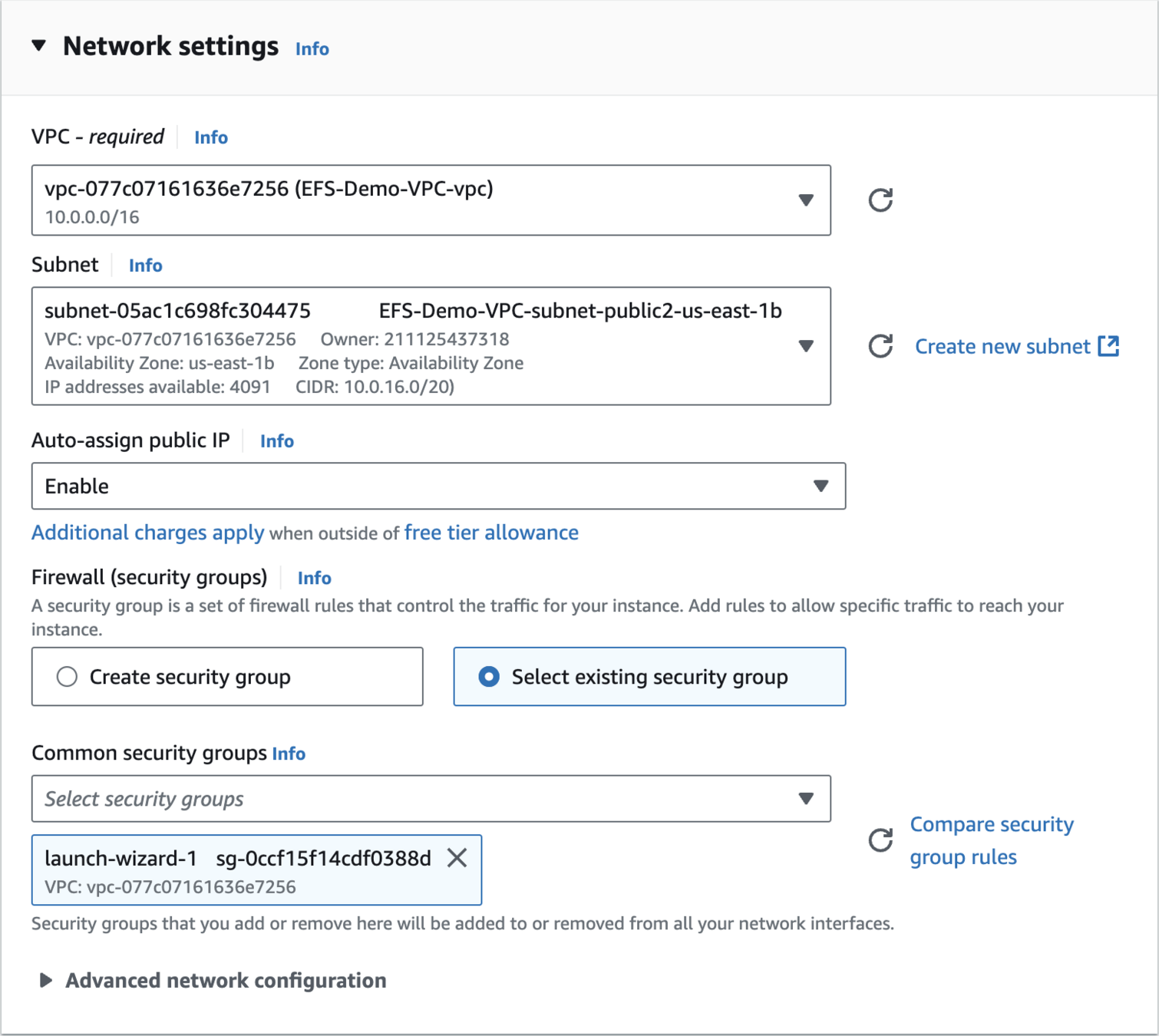

Network settings

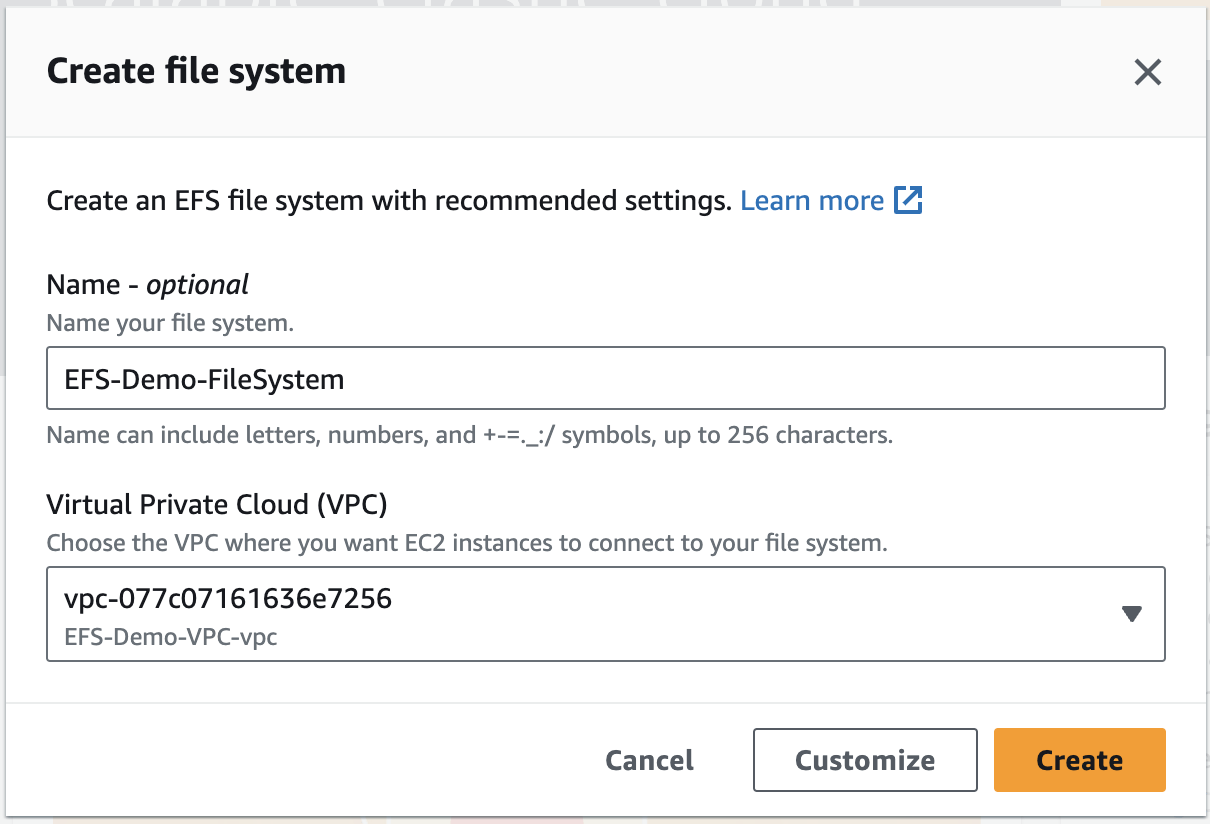

EFS - Create file system

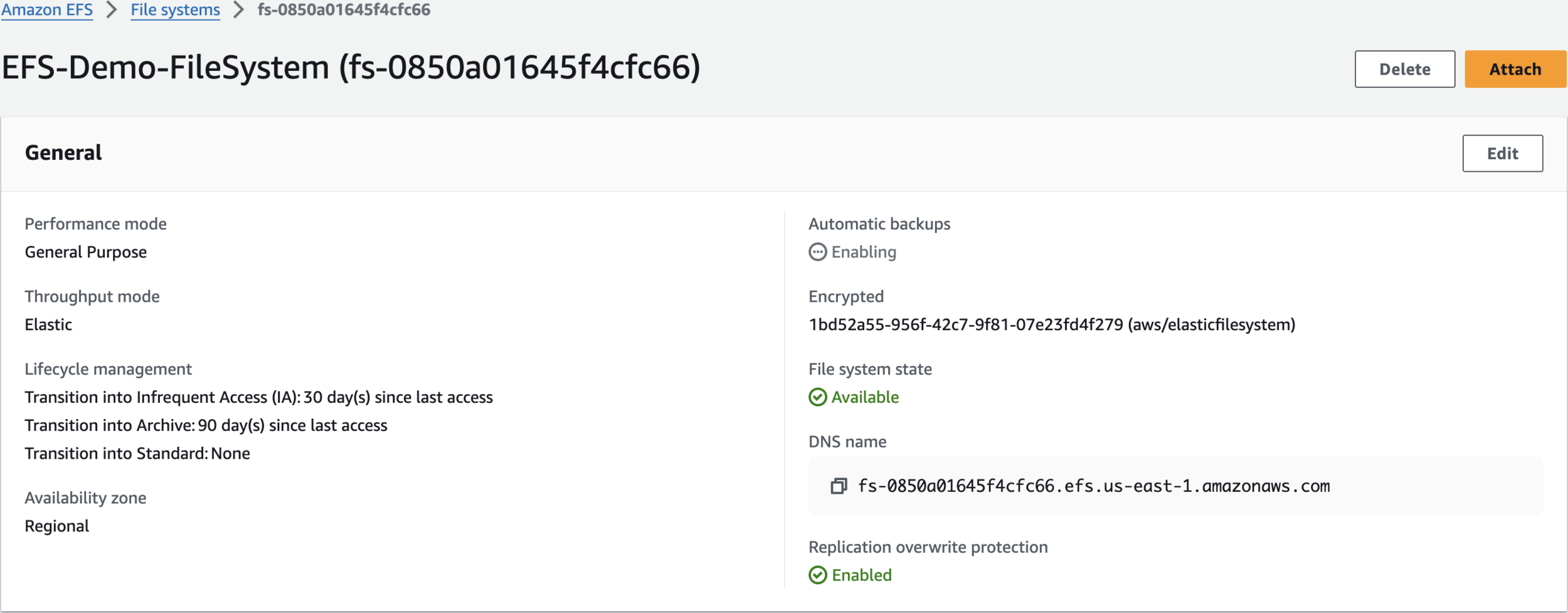

EFS-Demo-FileSystem

EFS-Demo-FileSystem

Uncheck

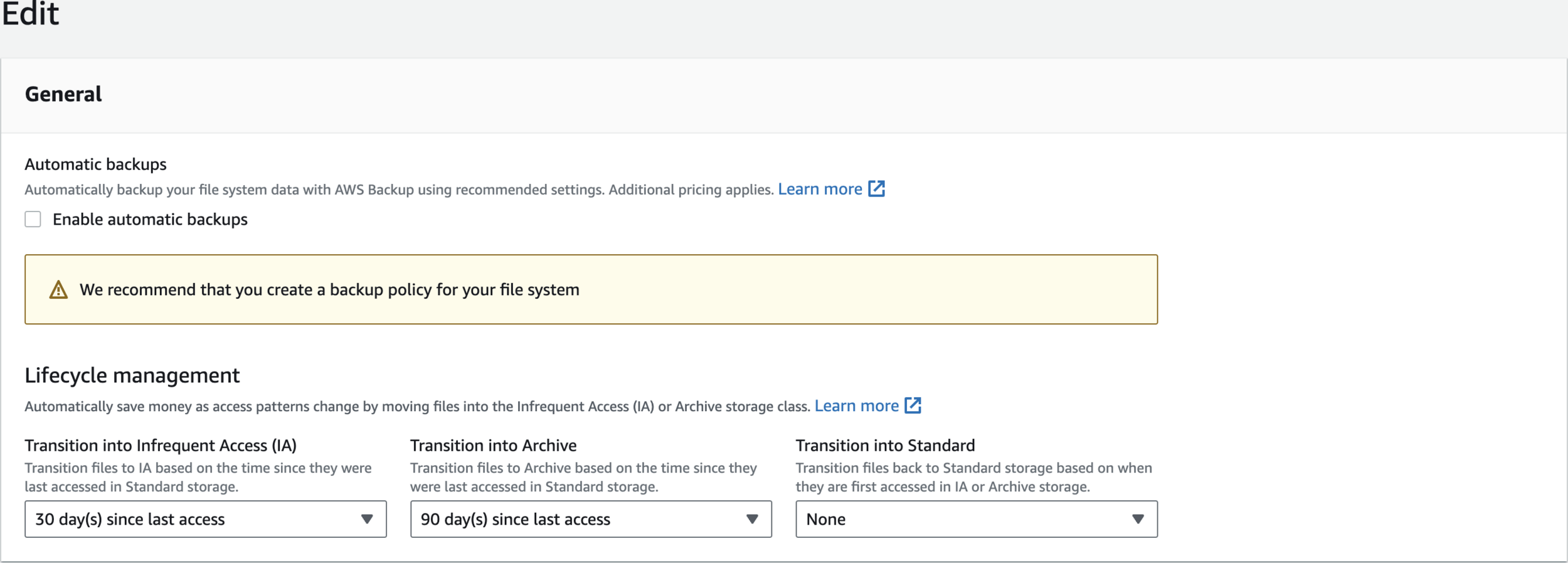

Edit EFS Settings

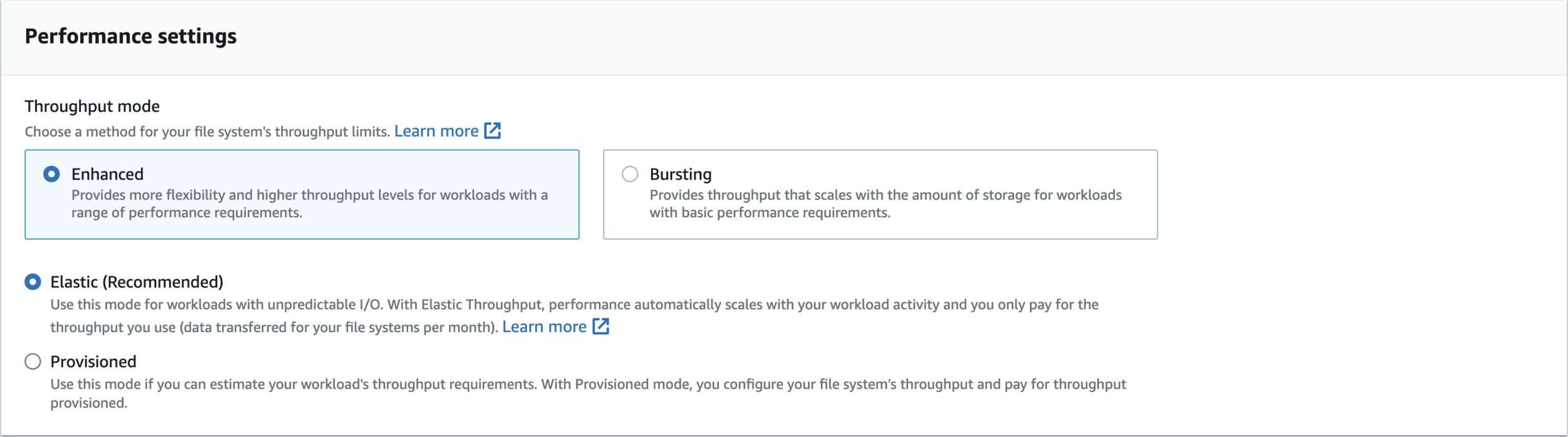

Performance settings

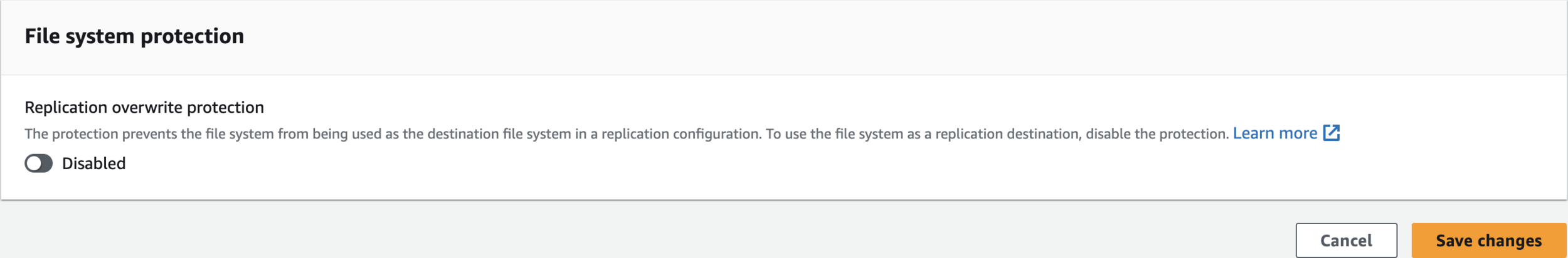

File system protection

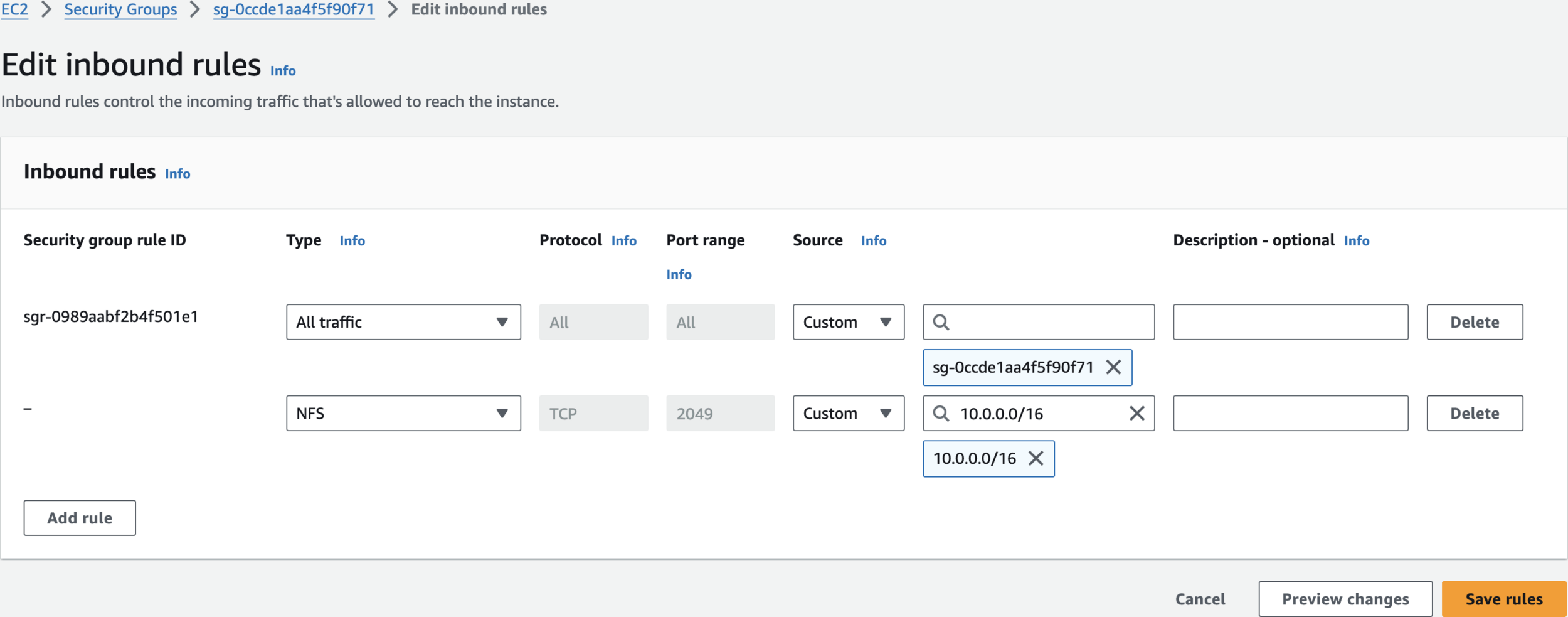

Edit inbound rules of Default Security Group

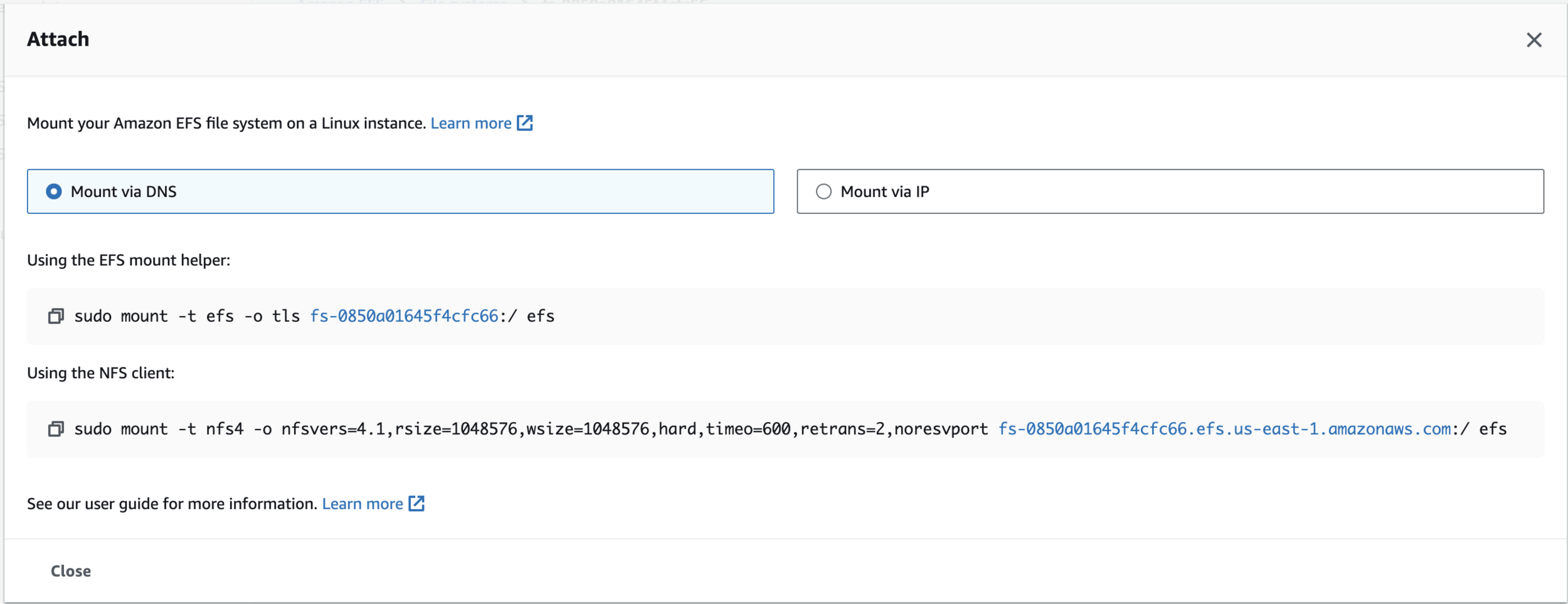

Attach Commands

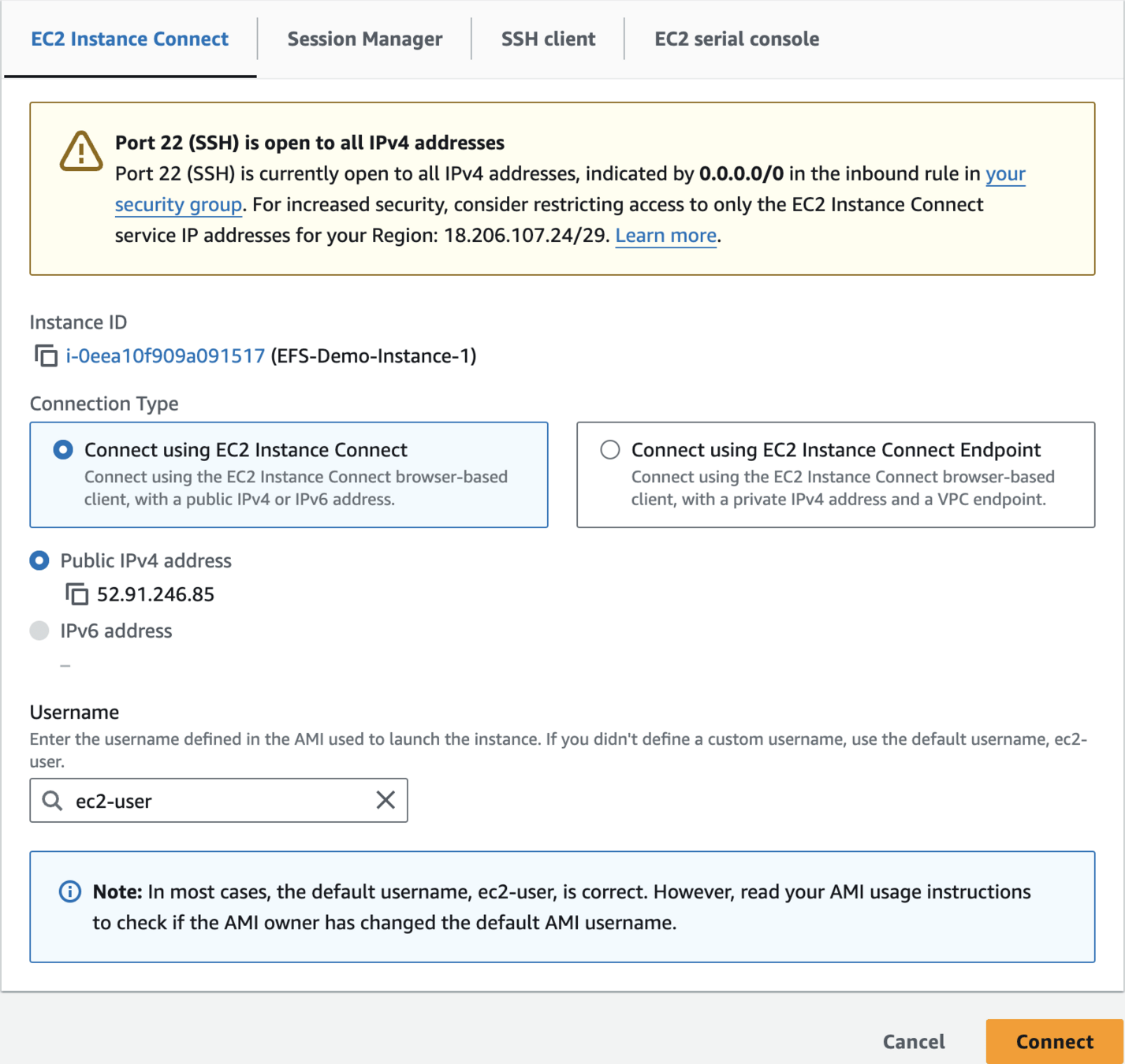

Connect to 1st EC2 Instance

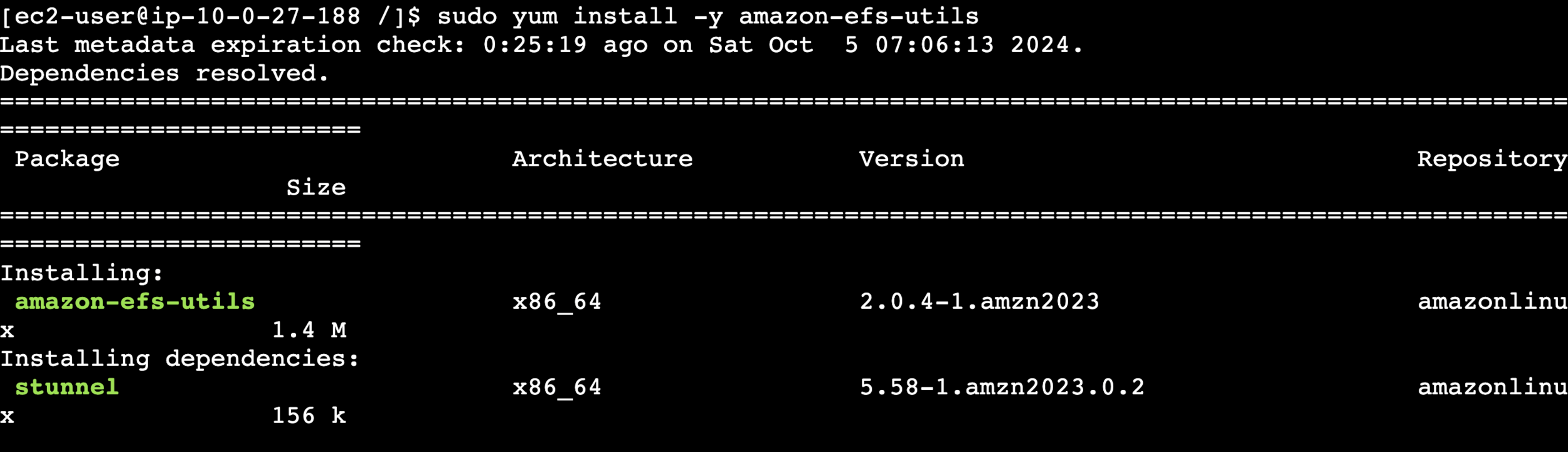

sudo yum install -y amazon-efs-utils
sudo mkdir /efs
sudo mount -t efs tls fs-0850a01645f4cfc66:/ /efs

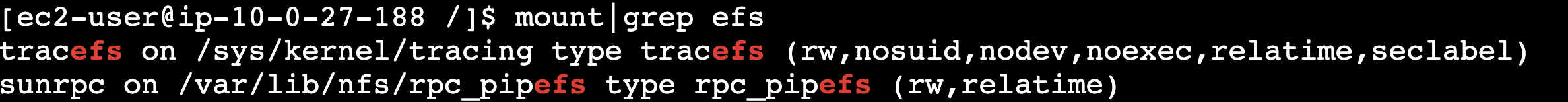

mount|grep efs

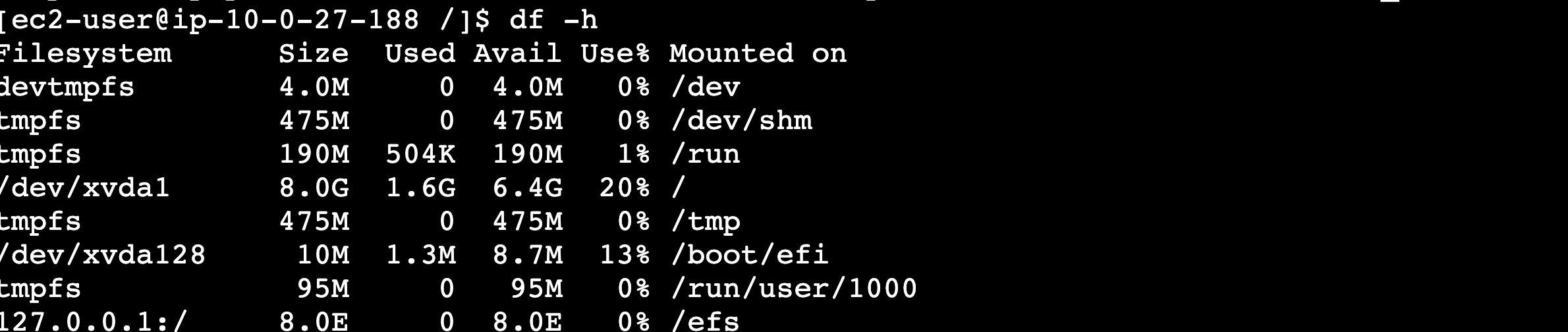

df -h

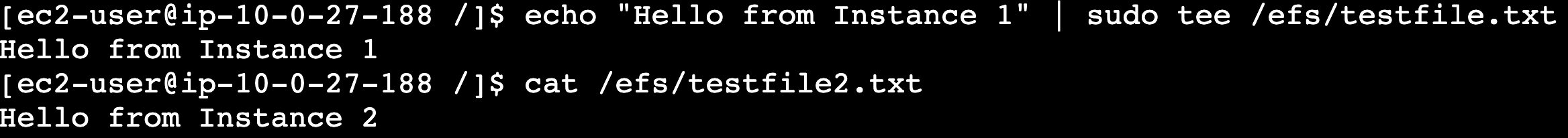

echo "Hello from Instance 1" | sudo tee /efs/testfile.txt
cat /efs/testfile2.txt

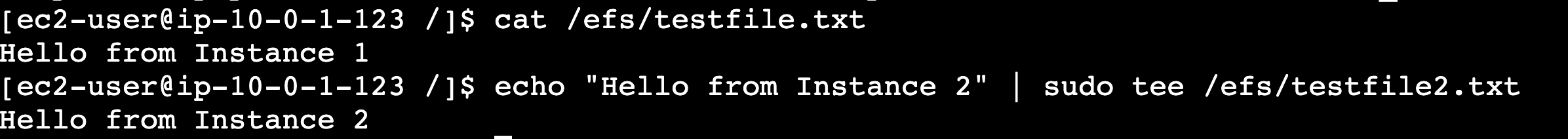

cat /efs/testfile.txt
echo "Hello from Instance 2" | sudo tee /efs/testfile2.txt

Clean Up

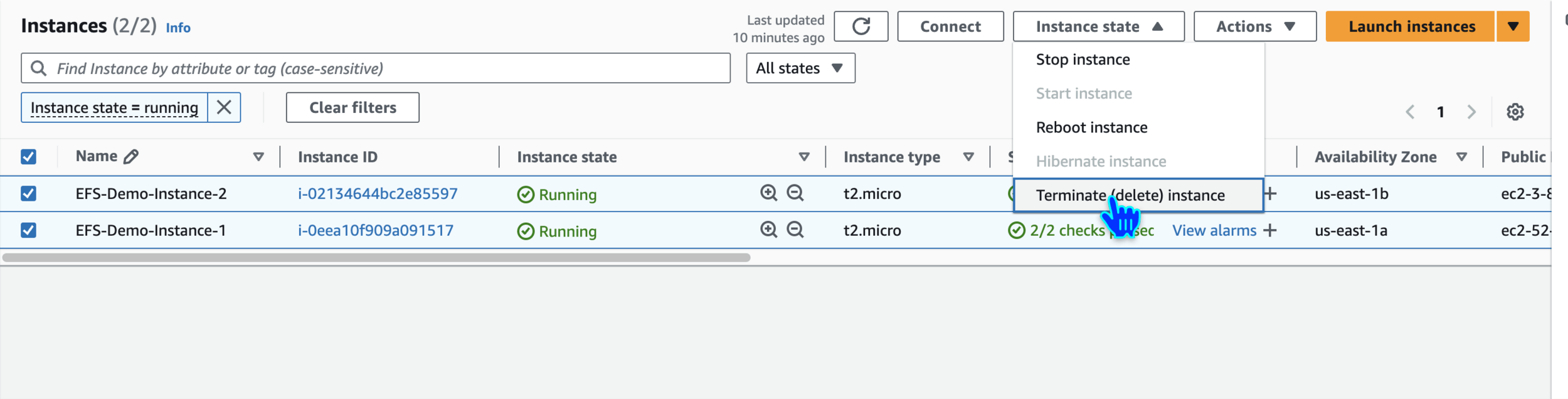

Terminate EC2 Instances

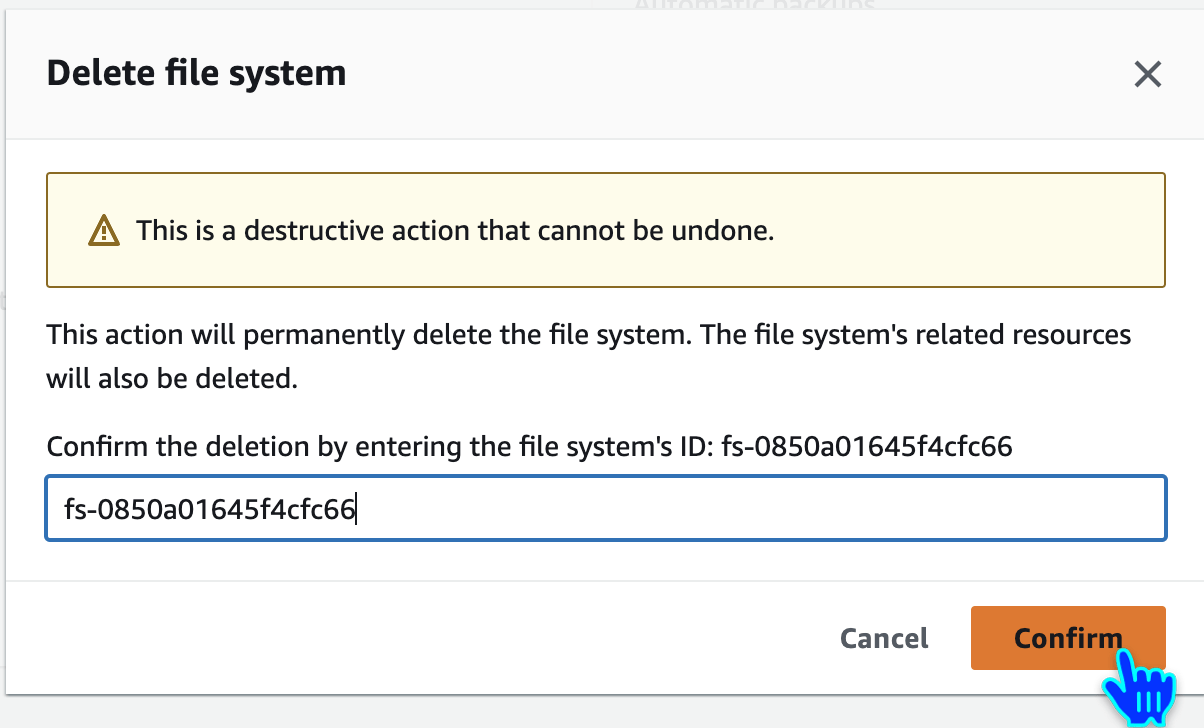

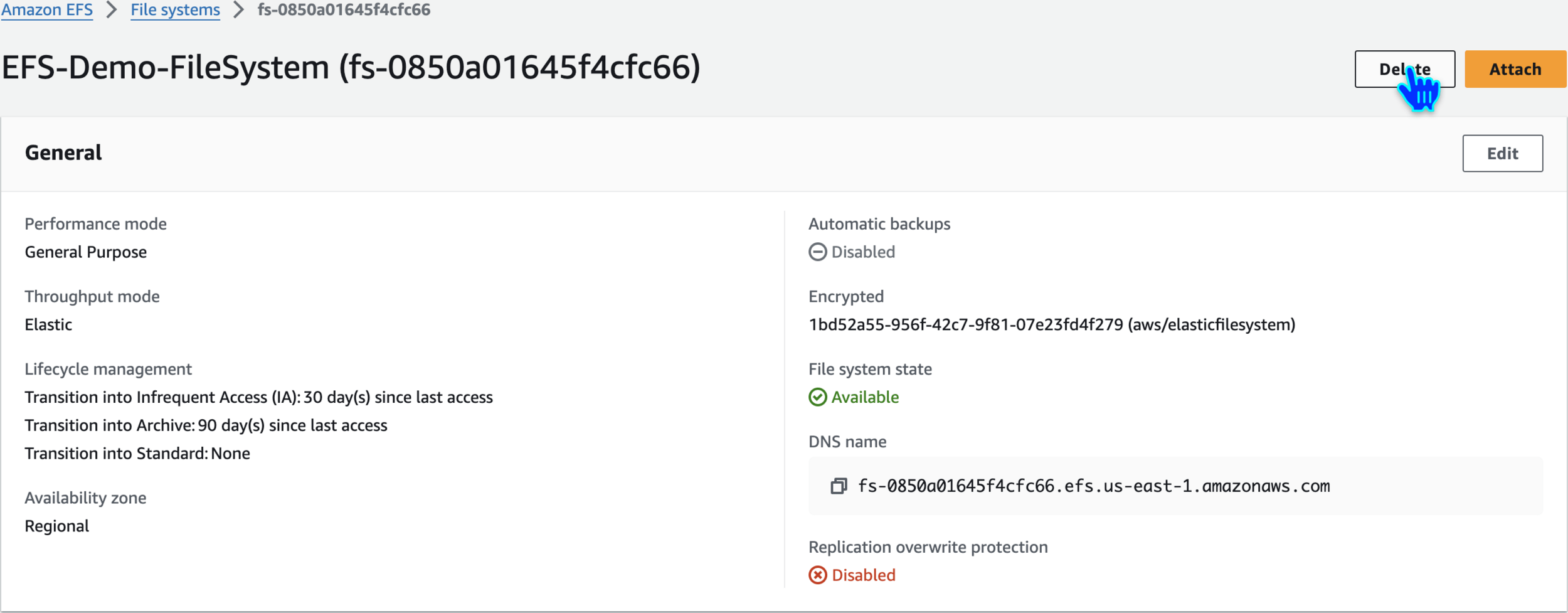

Delete EFS File System

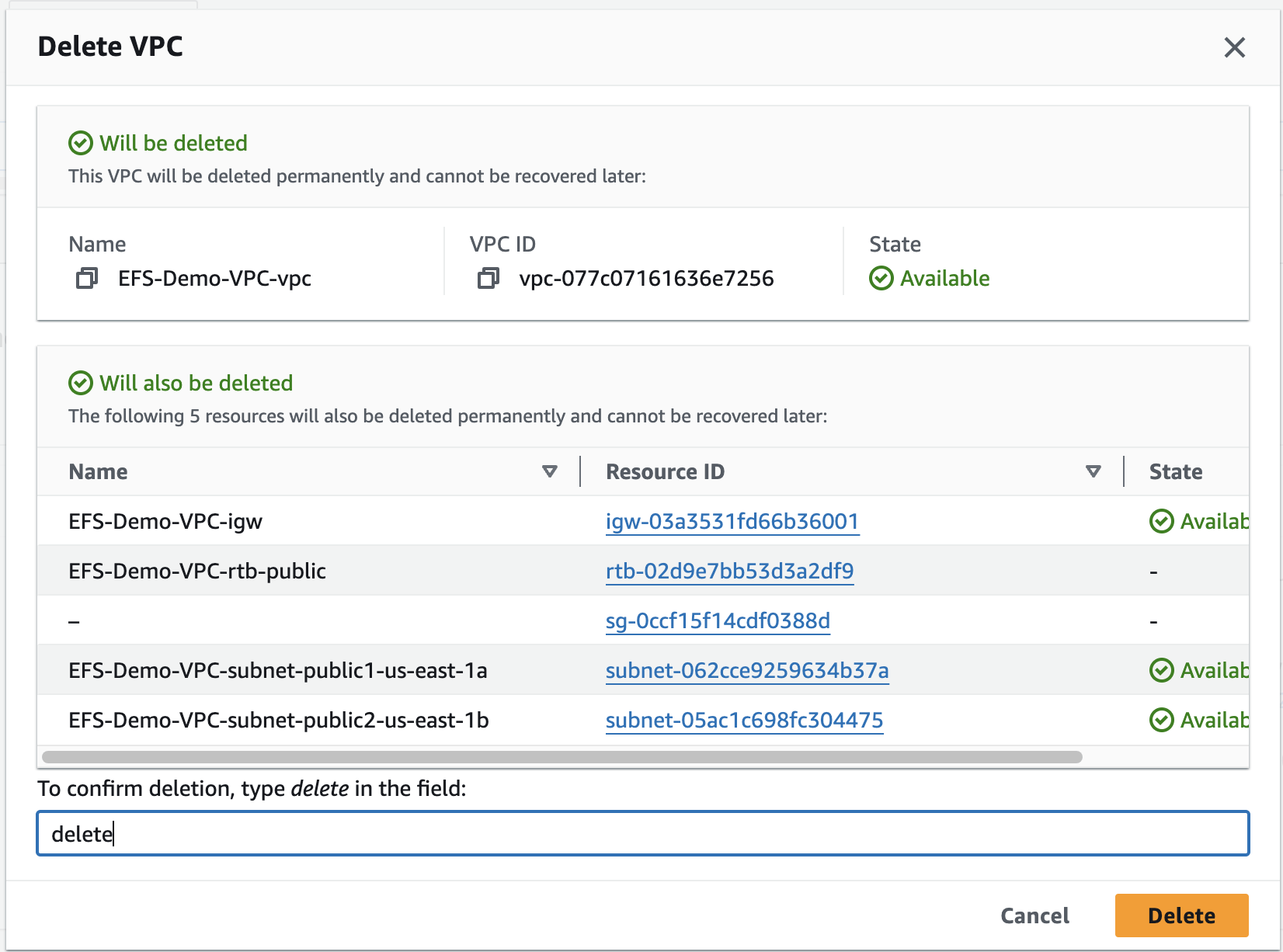

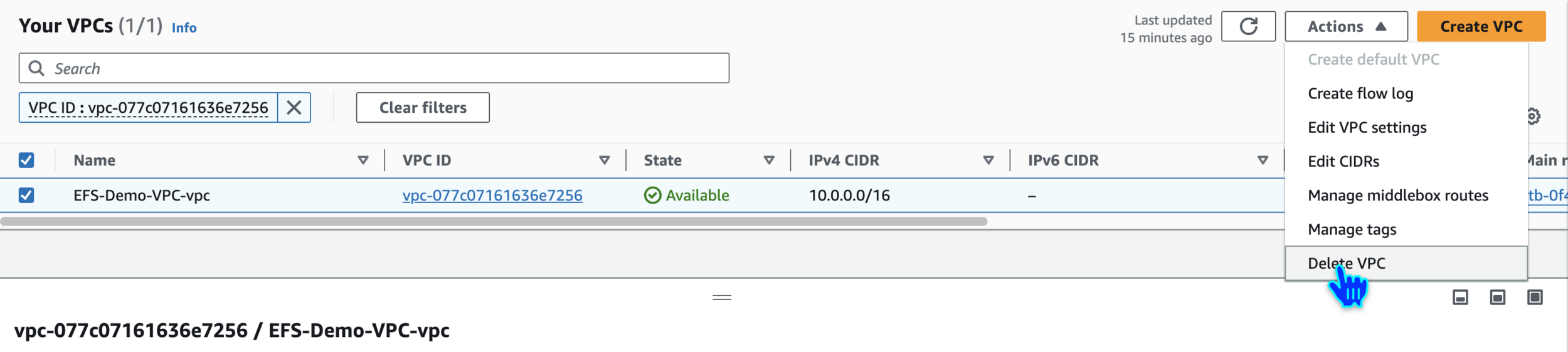

Delete VPC

🙏

Thanks

for

Watching

Amazon Elastic File System - Hands-On Demo

By Deepak Dubey

Amazon Elastic File System - Hands-On Demo

Amazon Elastic File System - Hands-On Demo
