Notes

Outline

  1. What is an API?

  2. APIs in Everyday Life

    • Forms as Organizational APIs

      • Service Ontario

      • Emma's Restaurant

      • UofT

    • Ordinary Things: Hydro as API

      • abstraction

      • encapsulation

      • requirements

      • enabling innovation

    • The Web and Your Career

      • API examples

  3. A few more details

    • REST or SOAP

    • URL parameters

    • Understanding API documentation

    • Asynchronous interaction

  4. Example Zotero, Leaflet

  5. Tutorial: The New York Times API

What is an API?

APIs in Everyday Life

Forms as Organizational APIs

Service Ontario

Emma's Restaurant

UofT

Ordinary Things: Hydro as API

abstraction

encapsulation

requirements

enabling innovation

The Web and Your Career

API examples

A few more details

REST or SOAP

URL parameters

Understanding API documentation

Asynchronous interaction

Example Zotero, Leaflet

Tutorial: The New York Times API

Asynchronous Materials

Review Questions

Review Questions

Review Questions

Review Questions

Review Questions

Review Questions

Review Questions

Review Questions

Review Questions

Review Questions

What is an API?

Application Program Interface

An interface for application programs...

...as opposed to an interface for (human) users

APIs in Everyday Life

Introduction: APIs in Everyday Life

APIs are all around us

APIs are all around us

APIs as Plugs in the Wall

Example: Hydro as API

Why APIs?

  • Devices can move from “plug to plug”

  • Anyone can build a device and “plug it in”

  • Supplier doesn’t care who plugs in

  • Other people are building boats that bring people to your casino

  • Interact with abstraction; ignore details

Why learn about APIs?

  • Why reinvent the wheel?

  • Anyone can build a device and “plug it in”

  • Ginormous fraction of all web apps are built on APIs

  • APIs are how open data/information gets done

  • The transactional web is built on APIs

  • Understanding APIs can release your inner-inventor

Who needs to know about APIs?

SOAP or REST?

The Methods of REST/HTTP

GET      retrieve one or more records from database
POST     put a new record into database
PUT      overwrite existing data with new data
DELETE   remove data from database

Create

The Abstractions of APIs - CRUD

Delete

Update

Read

Create

Delete

Update

Read

insert

delete

update

select

Example: The ZOTERO API

Example: Using the Zotero API

Example: The ZOTERO API

https://innoeduvation.org/313/applets/zotero?tag=reqapi
https://innoeduvation.org/313/applets/zotero?tag=recapi

Example: The ZOTERO API

https://innoeduvation.org/313/applets/zotero?tag=reqapi
            // hardcode the target URL
            var url = "https://api.zotero.org/groups/2494325/items";

            function getZoteroItems( tagparm, typeparm ) {

                var users = getUrlParam("users","none")
                var groups = getUrlParam("groups","2494325")
                console.log('users=', users, 'groups=', groups)
                if (users !== "none") {url = "https://api.zotero.org/users/" + users + "/items"}
                else {url = "https://api.zotero.org/groups/" + groups + "/items"}

                var recievedParameterString = getParameterString (tagparm, typeparm);

                //replace commas with space pipe pipe space '%20||%20'
                var usableParameterString = recievedParameterString.replace(/,/g, "%20||%20")

                loadJSON(url + usableParameterString, gotData);


            // callback from loadJSON processes retrieved data into HTML and writes it to webpage div
            function gotData(data) {
                var output = '<ol>'
                var url = ''
                var myclass = ' style="font-size:1.5em;">'

                for (var i=0; i<data.length; i++) {
                    if (data[i].data.itemType == 'attachment') {continue;}
                    url = data[i].data.url
                    if (url) {
                        var date = (data[i].data.date == '' ? 'n.d.' : data[i].data.date)
                        output += '<li' + myclass + data[i].meta.creatorSummary + ' (' + date + '), ' + '<a href="' + data[i].data.url + '" target="_blank">' + data[i].data.title + '</a>' + ' <span style="font-size:0.75em;">(<a href="' + data[i].links.alternate.href + '" target="_blank">Zotero</a>)</span>' + '</li>'
                    }
                    else {
                        output += '<li' + myclass + data[i].meta.creatorSummary + ' (' + data[i].data.date + '), ' + data[i].data.title + ' <span style="font-size:0.75em;">(<a href="' + data[i].links.alternate.href + '" target="_blank">Zotero</a>)</span>' + '</li>'
                    }
                    //If URL contains abstract=yes we try to show the abstract

                    }
                }
                output += '</ol>'
                document.getElementById("bibliography").innerHTML = output
            }


API

server



A
P
I



application program

request

response

API

server







A
P
I







application program

request

response

API

server







A
P
I







application program

request

response

The Request

URL of the server where the API lives

directory path to the desired endpoint

parameters specifying what we want

https://api.nytimes.com
/svc/search/v2/articlesearch.json
?q=Canada&begin_date=19590707&
 end_date=19590707&
 api-key=f4SmA2yQ8JMFdxuckjzF0rD53QHrvLrk

server

path to API endpoint

query string or parameter string

  1. starts with ?
  2. a series of key=value pairs
  3. separated by &

Query or Parameter String

"Passing Parameters by URL"

URL?key=value&key=value
?first=this+is+a+field&second=was+it+clear+%28already%29%3F
%3f ?
%20 space
%26 &
%2b +
%2c ,
%28 (
%29 )

"URL encoding"

See also W3Schools: "HTML URL Encoding Reference"

Need to encode "Illegal" characters that look to browser/server like URL punctuation

  • spaces, quotation marks, etc.
  • to send "this is a field" and "was it clear (already)?" as query parameters we might use
  • spaces get replaced by + or %20

The Endpoint "PATH"

Found in API documentation (i.e., RTFM)

Read as "The NYT Books API has six endpoints four of which are lists

The Endpoint "PATH"

curly brackets represent parameters that can be passed as part of the path instead of as key value pairs

API

server







A
P
I







application program

request

response

Generic Response is OBJECT (JSON)

response = {"status": number,
            "data": array of objects}

API responses include a status code.

200  OK
429   Too Many Requests
404  Not Found
401  Unauthorized
403  Forbidden
400  Bad Request
500  Internal Server Error

Something happened on server that it was not programmed to handle.

Client has sent too many requests in a given amount of time ("rate limiting").

401, the client must authenticate itself to get the requested response. 403, we know who you are and you are not allowed to have this.

The server could not understand the request due to invalid syntax.

The server refuses the attempt to brew coffee with a teapot.

The server refuses the attempt to brew coffee with a teapot.

URL not recognized or endpoint valid but resource does not exist. Sometimes sent instead of 403 to hide existence of resource from unauthorized client.

If Status==200 {parse results}

Basic Structure of API Access Code

//Build URL based on user needs

//Issue request with three parameters:
//  the url (including endpoints and query)
//  name of function to call on success
//  name of function to call on failure

function success (data){

  //parse data and produce HTML for webpage

}


function failure (data) {

  //prepare appropriate error message for user

}

API Examples

Leaflet

<html>
    <head>
        <link rel="stylesheet" href="https://unpkg.com/leaflet@1.7.1/dist/leaflet.css"
             integrity="sha512-xodZBNTC5n17Xt2atTPuE1HxjVMSvLVW9ocqUKLsCC5CXdbqCmblAshOMAS6/keqq/sMZMZ19scR4PsZChSR7A==" crossorigin=""/>
        <script src="https://unpkg.com/leaflet@1.7.1/dist/leaflet.js"
             integrity="sha512-XQoYMqMTK8LvdxXYG3nZ448hOEQiglfqkJs1NOQV44cWnUrBc8PkAOcXy20w0vlaXaVUearIOBhiXZ5V3ynxwA==" crossorigin="">
        </script>
        <style>
            #map { height: 300px; width: 600px;}
        </style>
    </head>

    <body>
        <div id="map"></div>
          <script>
           var mymap = L.map('map').setView([43.664862, -79.399207], 13);
           L.tileLayer('https://api.mapbox.com/styles/v1/{id}/tiles/{z}/{x}/{y}?access_token={accessToken}', {
                        attribution: 'Map data &copy; <a href="https://www.openstreetmap.org/copyright">
                        OpenStreetMap</a> contributors, Imagery © <a href="https://www.mapbox.com/">Mapbox</a>',
                        maxZoom: 18,
                        id: 'mapbox/streets-v11',
                        tileSize: 512,
                        zoomOffset: -1,
                        accessToken: 'pk.eyJ1IjoiZGpqcmpyIiwiYSI6ImNrdm1pNnI2MmRvYnIycG1uZHM2MGI4ZXAifQ.qLKvSTy526H_YVqQqCD6tg'
                       }).addTo(mymap);
        </script>
    </body>
</html>

Alexa

Pause

Building an App
using the
New York Times API

What Is It?

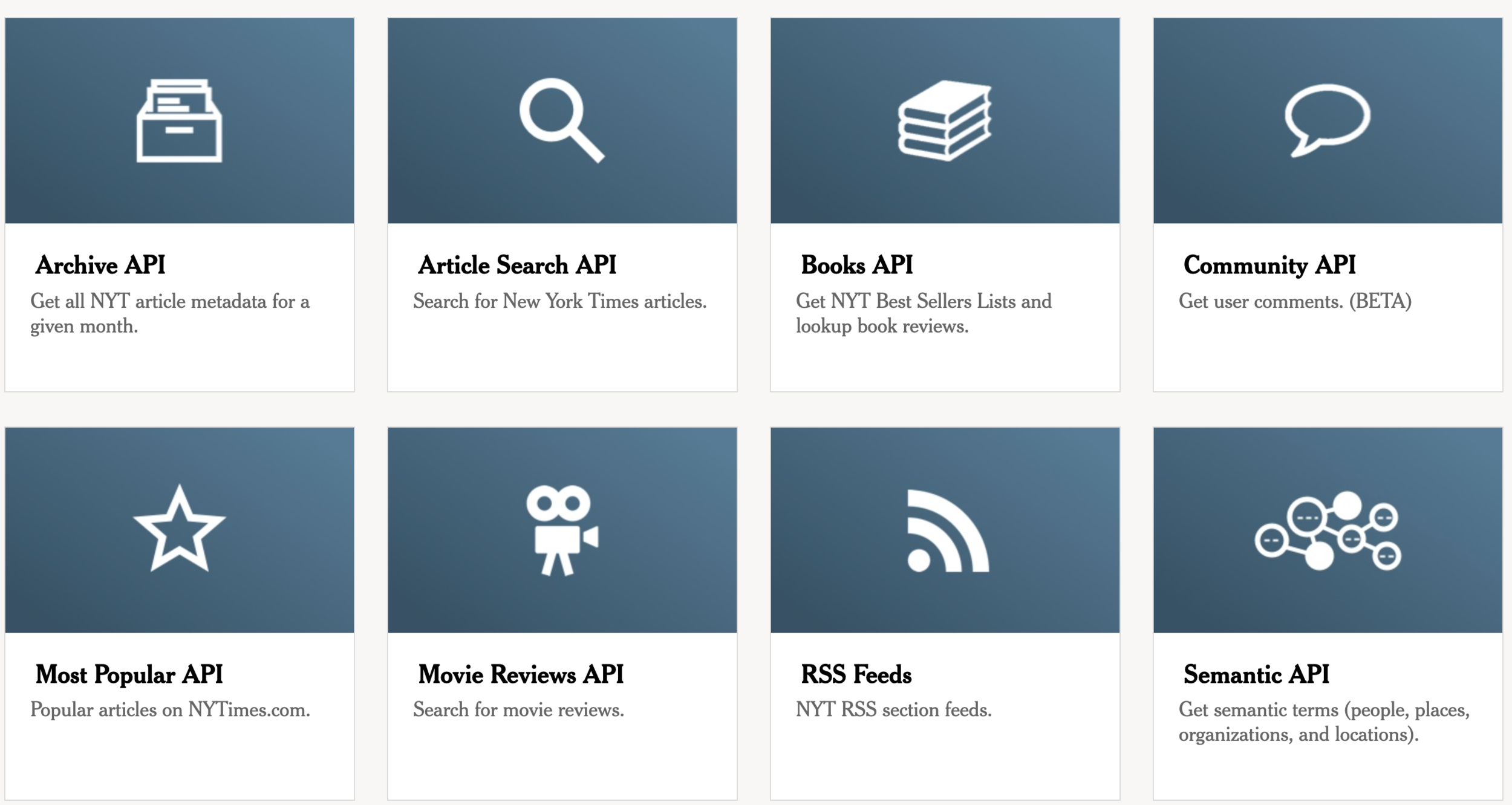

Learn about the "Articles" API

Learn about the "Articles" API

Learn about the "Articles" API

Learn about the "Articles" API

Learn about the "Articles" API

See also: HTTP status codes

400 (Bad Request)
401 (Unauthorized)
403 (Forbidden)
404 (Not Found)

Learn about the "Articles" API

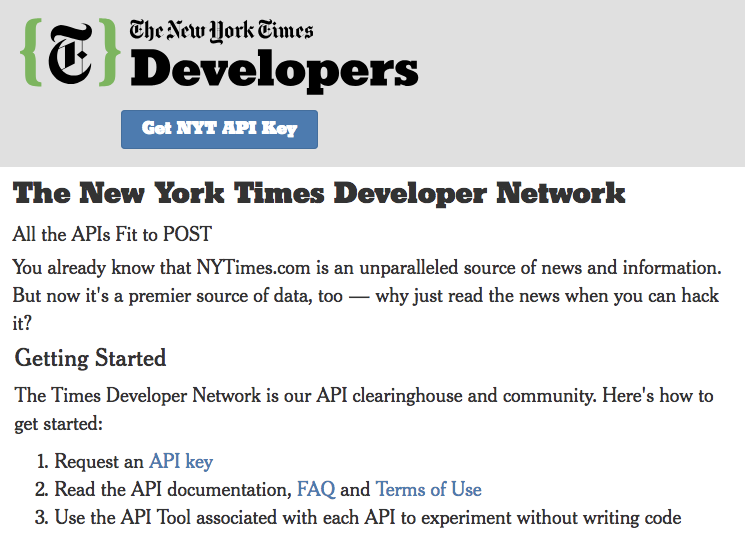

https://developer.nytimes.com/

Register and get an API-KEY

The NYT API Project

Get results using API web interface

Get results using API web interface

Get results using API web interface

Get results using URL

Get results using URL

Request specified list of fields (lf)

function loadJSON URL function to run on success function to run on failure
function accessAPI_displayResults
  url = buildURL
  loadJSON (url, processData, processError)
function processData
  //loop over data.response.docs[]
function processError
  //display error on webpage
function buildURL
  return NYTURL?api_key=blahblahblah&key=value

Get results in code

NYT API v0.0

function loadJSON URL function to run on success function to run on failure
function accessAPI_displayResults
  url = buildURL
  loadJSON (url, processData, processError)
function processData
  //loop over data.response.docs[]
function processError
  //display error on webpage
function buildURL
  return NYTURL +
         ?api_key=blahblahblah
         &key=value&key=value

Get results in code

function loadJSON(path, success, error) { //generic function to get JSON

  //create new HTTP request object
  var xhr = new XMLHttpRequest();

  //define Event handler called when the readyState changes
  xhr.onreadystatechange = function() {
    if (xhr.readyState === XMLHttpRequest.DONE) {
      if (xhr.status === 200) {
        if (success)
          success(JSON.parse(xhr.responseText));
      } else {
        if (error)
          error(xhr);
      }
    }
  };

  //Initialize a request.
  xhr.open("GET", path, true);

  //Send the request
  xhr.send();
}

For more on XMLHttpRequest see MDN Web Docs

Get results in code

function accessAPI_displayResults() {
  var url = constructURL();
  loadJSON(url,
           function(data) {processData(data);},
           function(xhr)  {processError(xhr);}
          );
};

Get results in code

//processDATA runs when data comes back from API
function processData(data) {

  //create variable to hold the HTML we build
  var html ='';

  //loop over data.response.docs[]
  for (i=0; i < data.response.docs.length; i++) {-

    //build up the html, item by item
    html = html + '<br />' + '<h2>'
         + data.response.docs[i].web_url
         + data.response.docs[i].headline.main
         + '</h2>'
  }

  //send the html to the page element called "formattedAPIoutput"
  document.getElementById("formattedAPIoutput").innerHTML = html
}

This is part we will change in tutorial

Get results in code

NYT API v0.0F21 Example

Get results in code

Get results in code

FINIS

server IP address

path to API endpoint

query string or parameter string

  1. starts with ?
  2. a series of key=value pairs
  3. separated by &

Let's look at the ProblemSet

https://api.nytimes.com/svc/search/v2/articlesearch.json?q=rainbow&api-key=f4SmA2yQ8JMFdxuckjzF0rD53QHrvLrk

Tutorial and Problem Set

See Also

Faceted Classification Systems

Design Challenge: The Problem Server

Build a flexible, database-driven tool for presenting review and exam problems.

Iteration 0: The Problem Server

These can be embedded (<iframe> in Quercus or slides.com

<iframe src="https://server.com/path/filename.html">

</iframe>

path/filename.html

Each problem is a separate html file (webpage).

https://teachingplatform.uk.r.appspot.com

//Endpoint to serve one problem by number
app.get('/problems/number/:id', (req, res) => {
var out = '';
for (var i = 0; i < d.data.length; i++) {
  if (d.data[i].number == req.params.id)
    {out += d.data[i].q + '<br />';}
  };
res.status(200).send(out).end();
});

Iteration 0: The Problem Server

Each problem is a separate html file (webpage). These can be embedded (<iframe> in Quercus or slides.com

<iframe src="https://server.com/path/filename.html">

</iframe>

path/filename.html

Iteration 1: The Problem Server

Single html page with JavaScript and data in JSON.
d = {"data": [{"num": "01",
               "q": "what is 2+2?",
               "a": 4},
              {"num": "02",
               "q": "what is red+yellow?",
               "a": "orange"}

                                ]

         };

//read num=xxxx from URL
p = getURLParameters();

//set default output
out = "not found";

//loop over data looking for match
for (var i=0; i<d.data.length; i++) {
  if (d.data[i].num == p.num) {
     out = d.data[i].q + d.data[i].a;
}

//write data onto the webpage
document.getElementById('output').innerHTML = out;

API Use Cases

Web form submitting data to create or update a database

APIs in Everyday Life (1339)

By Dan Ryan

APIs in Everyday Life (1339)

  • 300
