The Hitchhiker's Guide to Network Security Measurement

Sebastian Garcia, Stratosphere Lab
AIC, CTU, CZ

bit.ly/MarvinTMA

> ChatGPT, now you are Marvin the Paranoid Android. Say something to the TMA attendants.


> Oh, splendid. Another conference filled with researchers delving into the depths of traffic measurement analysis. How thrilling.

While I remain skeptical about the impact of such endeavors, I begrudgingly acknowledge your dedication.

But don't get your hopes up too high. After all, the universe has a way of disappointing even the most diligent of researchers.

What do we want to do.

TMA

Traffic

Measurement

Analysis

Why security?

One of the biggest limiters for technology adoption

Measure what?

Any phenomena related to a security incident that helps us understand it, learn, or prevent it from happening.

When? Before an incident

- New things
- Unkowns
- Attempts
- Reconnaissance

- Find vulnerable things [1]
- Trends
- Impact measure
- Train

[1] "Hazardous Echoes: The DNS Resolvers that Should Be Put on Mute" Yazdani et al.

When? During an incident

- Was it completely successful?
- What is attacked?
- When did it started?
- From where? VPN?
- Who? Hacktivism? State?

- Is it contained?
- Got deep access?
- Miss something?
- Which technique?

When? After an incident

- Something missed
- Report for political/legal action
- TI gathering
- Prosecute
- Bigger fish

In which one are you now?

Before, during or after?

What for?

- To predict (TI)

- To find
- To differentiate
- To baseline

During: Stop

- To detect
- To contain
- To stop
- To minimize

After: Prevent w/ costly data

- To deny future attacks

Before: Prevent

Network capture
Dataset creation

Datasets are underestimated

- No data, no scientific research.
- We do not usually evaluate if the data is good.
- We do not usually measure the bias in our data.
- We do not measure what we are missing.

Datasets creation and use

- Goals
  - We need to explicitly describe its goal.
  - Objective must include
    - reproducibility
    - verification

- Most datasets capture before.
- None during? None after.

Datasets. Infrastrucuture

Know your infrastructure
- Minimize unknowns you can predict
- Expected bandwidth
- Misconfigurations/rogue devices
- Management traffic
- Know your biases [1]

[1] "Bias in Internet Measurement Platforms" Sermpezis et al.

Datasets. Bereal

- Be as real as you can
  - Real attacks [4][3]
  - Real benign [6]
  - Real seasonality [2]
  - Real users [1][5]

[1] "A Worldwide Look Into Mobile Access Networks Through the Eyes of AmiGos" Varvello et al.
[2] "Encrypted traffic classification: the QUIC case" Luxemburk et al.
[3] "Towards Detecting and Geolocalizing Web Scrapers with Round Trip Time Measurements" Chiapponi et al.
[4] "Not all DGA are the Born the Same - Improving Lexicographic based Detection of DGA Domains Through AI/ML" Aravena et al.
[5] "France Through the Lens of Mobile Traffic Data" Mart ́ınez-Durive et al.
[6] "Phishing in Style: Characterizing Phishing Websites in the Wild" Hasselquist et al.

Datasets. Format

- PCAP or PcapNg
  - Put labels in comments in packets [1]

- Flows
  - Zeek flows at least
  - The issue of reversed flows
  - bidirectional flows
  - flow timeout

[1] Alya Gomaa. https://github.com/AlyaGomaa/Pcapng-Parser

Datasets. Usage

- Datasets should be consumable
- Help users to consume them
- Use views: preselected groups of data
  - View for testing
  - View for small anomaly detection
  - View for small classification (per class?)
  - View for whole traffic
  - View of 50/50 or real balance

Datasets. Benign

Getting malicious traffic is hard

Datasets. Benign

- No clear definition of what it is
- Seasonality
- Cost of real labeling
- Privacy issues
- Legal issues
- Publication? anyone?

Datasets. Labels

- The single most important commodity in datasets.
- Use experts for labeling.
- What are you labeling?
  - Src IP, dst IP, port, sequence, etc.
  - The same flow can have different labels
- Go beyond binary labels.
- Use tools, rules and ontology [1]

Datasets. Labels

- Labeling from which perspective?
- Attacker?
- Defender?
- Most labels are from the attacker's perspective.

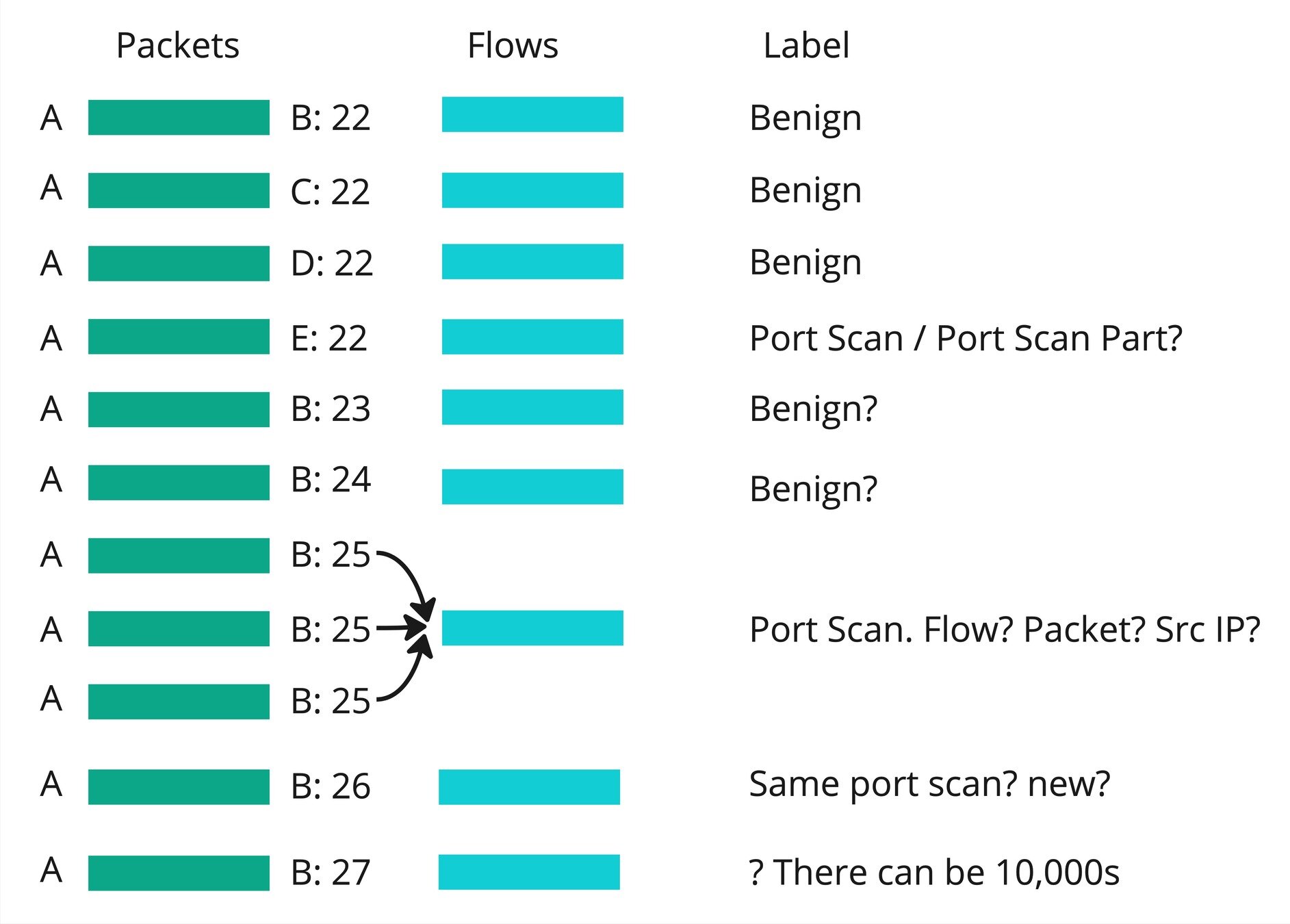

Datasets. Label the portscan

Datasets. Balance

- Bad ML requirement of 50/50 benign/malicious
- AD assumes >50% is benign

[1] CTU-SME-11 https://zenodo.org/record/7958259

Datasets and ML

- To create simulated datasets with models
- To help labeling datasets
  - To help, not to label finally.
- XAI on the data
- Data augmentation (simulation).

Datasets and ML

- Do not only report accuracy.
- Be explicit about your features.
- Be explicit on the objective you are optimizing.
- Data is king, so results and model only are not enough.

Data analysis

Data analysis

You have data
  - Find trends
  - Extract IoC
  - Anomaly detection
  - Concept Drift
  - Monitoring by humans

Other approaches: "W-Bad: Interception, Inspection, and Interference with Web Proxy Auto-Discovery (WPAD)" Casey Deccio

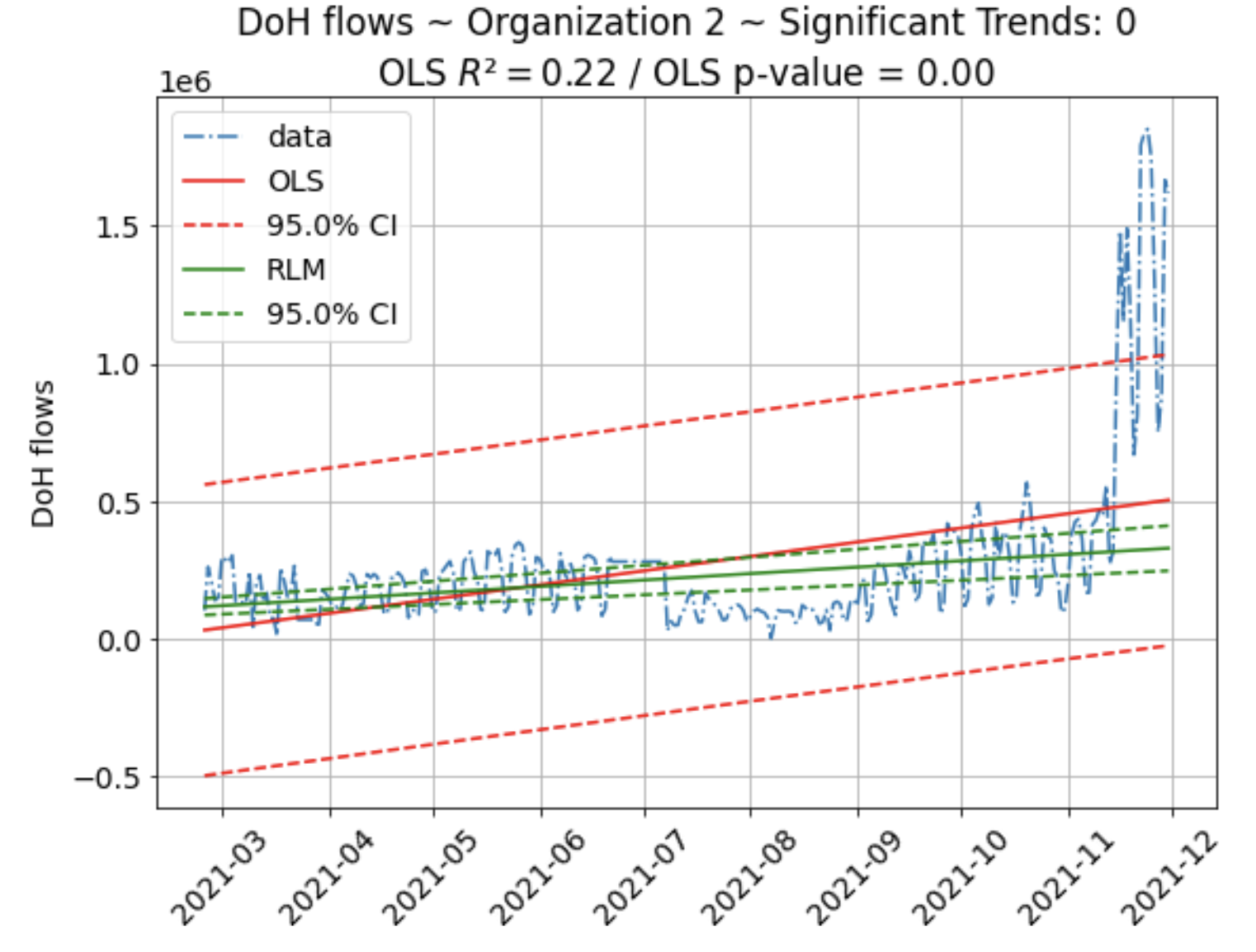

Data analysis. Trends

- Statistics can be used to deceive even the authors.
- 'Statistically Meaningful Trends'? [1]

[1] "An Operational Definition of a Statistically Meaningful Trend" Bryhn et al.

[2] "Large Scale Analysis of DoH Deployment on the Internet" Garcia et al.

Data analysis. Trends

Longer captures help get rid of fake trends.

- "Live Long and Prosper: Analyzing Long-Lived MOAS Prefixes in BGP" Sediqi et al. 6 years!
- "Longitudinal Analysis of Inter-City Network Delays" Ozcan et al. 6 years and trends!
- "An Analysis of War Impact on Ukrainian Critical Infrastructure Through Network Measurements" Singla et al. Going back to capture more!

Data analysis. IoC

Blacklists with IoCs are the single most used and deployed network security protection feature we currently have.

Data analysis. IoC

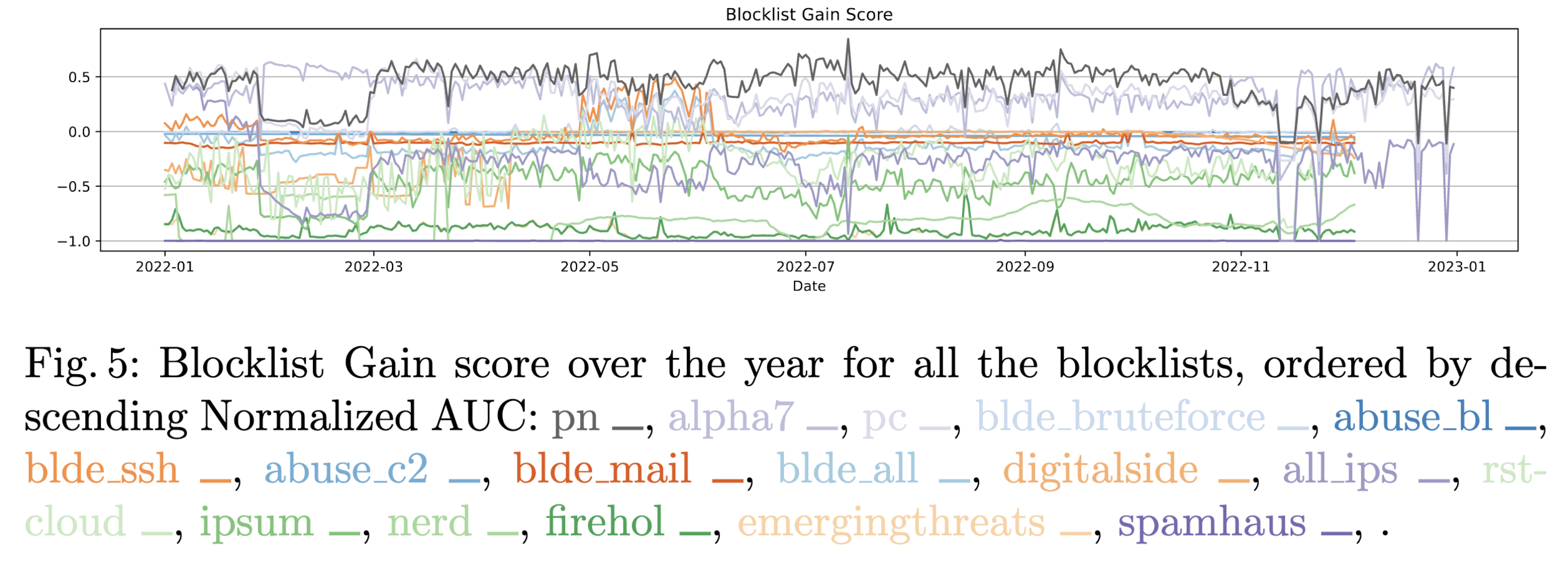

How effective IoCs feeds are?

"A Comparison of IP Blocklist Effectiveness Using Honeypot Data" Bogado et al.

Data analysis. IoC

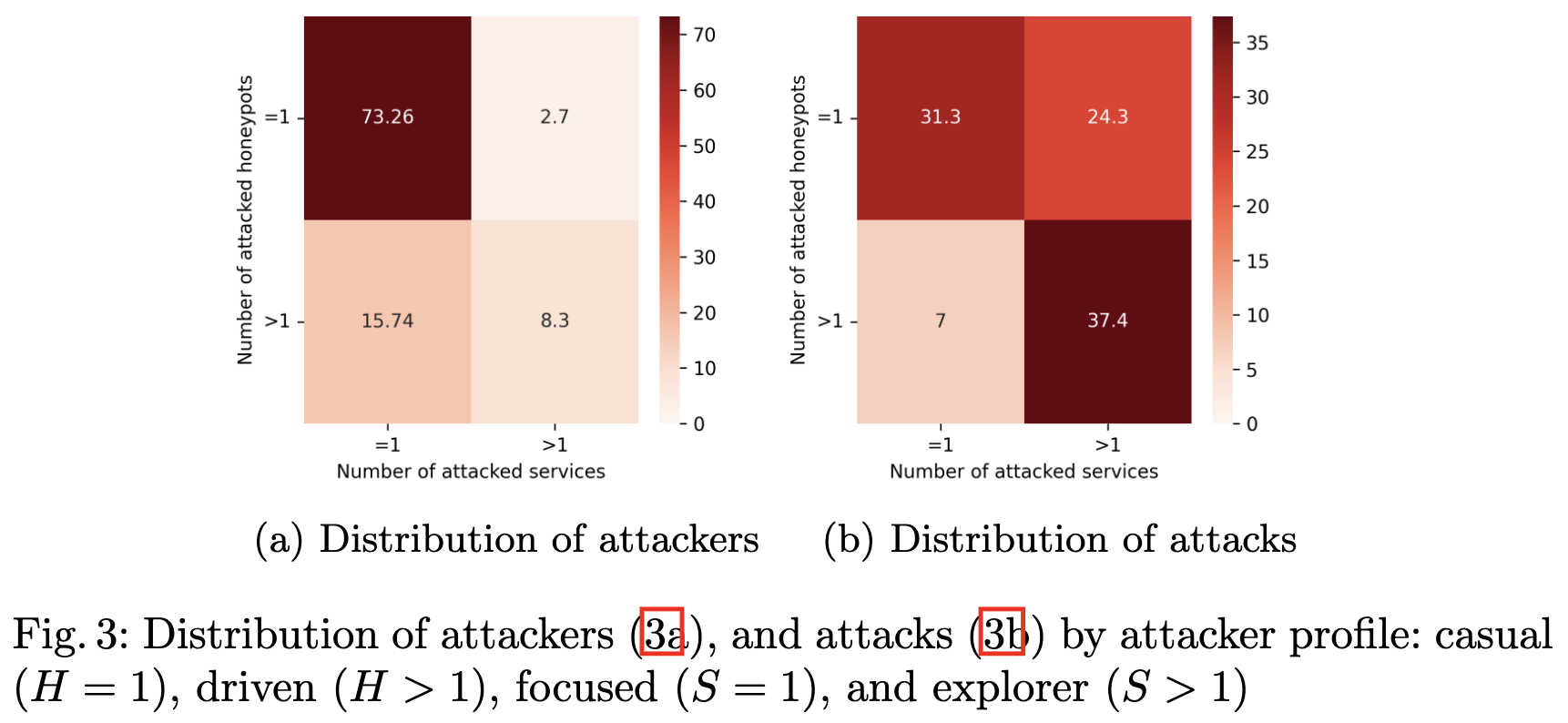

Honeypots and IoC as Early Warning Systems

"Attacker Profiling Through Analysis of Attack Patterns in Geographically Distributed Honeypots" Valeros et al.

Data analysis. AD

- An anomaly is not maliciuos or bening.
- Noise and concept drift.
- Still need labels for verification. Not models.
- No good datasets.

[1] Ahmed, M., Mahmood, A. N., & Hu, J. (2016). A survey of network anomaly detection techniques. Journal of Network and Computer Applications

Data analysis. Concept Drift

- Malicious traffic drifts
- Bening traffic drifts more
- Changes in data, the same label
- Same data, changes in label

Data analysis. SIEMs

Dashboards for human operators are many
- Issues with alert fatigue
- Issues with amount of alerts
- Issues with priorities of alerts
- Issues with explainability
- LLMs

Detection

Detection

We want to detect

Detection

All attacks

Cohen, F. (1987). Computer viruses: Theory and experiments. Computers & Security, 6(1), 22–35. https://doi.org/10.1016/0167-4048(87)90122-2

Detection

All the time

- In the lifecycle of an attack/malware
- Different conditions

Detection

Without errors

- As Cohen said, no perfect detection, so we will have errors.

Detection

In real time

Detection

Detecting some malicious is not hard

Detection thoughs

Detection

Detection

How confident are you that detection works?

Detection. But how?

Machine Learning

Detection. XAI

- Explanation is crucial.
- But explain what? features? data issues? concept drift?
- We need evaluation of XAI for net sec.

Detection. LLMs

- LLMs are already used as sec XAI in many commercial products.
- For detection of some things, like DGA, they are so far, very good.
- For flows, not so much.
- We will see much more soon.

Detection. LLMs

Our security LLM challenge

Detection

Thanks for all the fish!

Sebastian Garcia
https://www.stratosphereips.org/
sebastian.garcia@agents.fel.cvut.cz
@eldracote
