Mobile Security

Godfrey Nolan

How did we get here

  • Virtual Machines
  • Static information
  • Dynamic information

Decompilation 101

Decompilation 101

Decompilation 101

$ adb shell pm path com.united.mobile.android
package:/data/app/com.united.mobile.android-1/base.apk

$ adb pull /data/app/com.united.mobile.android-1/base.apk
4349 KB/s (51855610 bytes in 11.642s)

$ jadx-gui base.apk

$ adb backup com.united.mobile.android
Now unlock your device and confirm the backup operation.

$ java -jar abe.jar unpack backup.ab backup.tar

$ tar -xvf backup.tar

$ sqlite3 apps/com.united.mobile.android/db/united.db

Decompilation 101

Decompilation 101

Audit Reports

OWASP Top 10

  • Weak Server Side Controls
  • Insecure Data Storage
  • Insufficient Transport Layer Protection
  • Unintended Data Leakage
  • Poor Authorization and Authentication
  • Broken Cryptography
  • Client Side Injection
  • Security Decision via Untrusted Input
  • Improper Session Handling
  • Lack of Binary Protections

OWASP Top 10

  • Identify Problem
  • Show real world example
  • Fix it!

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

GET http://herdfinancial.com/api/v1/balances/1234567899/
{"success":"true","checkingBalance":"0.0","savingsBalance":"0.0"}

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

GET http://herdfinancial.com/api/v1/balances/1234567890/
{"success":"true","checkingBalance":"947.3","savingsBalance":"0.0"}

Example

"actor": {“first_name": "Rita","last_name": "D.","title": "Rita D.","gender": "F",
          "is_mvp": false,
          "preferred_brand": 32,
          "_links": {"self": [{"href": "\/v7.0\/user\/3273986\/","id": "3273986"}]},
          "type": "user",
          "friendship": null,
           "id": 3273986
},"id": "1-3273986-9-1440092847",

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • Use GUID that maps to ID
  • REST verbs are easy to guess
  • OWASP Web/Cloud top 10
  • Don’t trust the client, verify

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

<?xml version='1.0' encoding='utf-8' standalone='yes' ?>
<map>
<boolean name="remember" value="true" />
<string name="password">goatdroid</string>
<string name="username">goatdroid</string>
</map>

Example

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • No caching of passwords, SSNs etc.
  • Multi-factor authentication
  • Client / Server side access control
  • "Sensitive data should be encrypted and very sensitive data should be stored on server" - Zapata

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Example

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Example

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

More Problems

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Fix

  private static String PUB_KEY = "30820122300d06092a864886f70d0101" +
    "0105000382010f003082010a0282010100b35ea8adaf4cb6db86068a836f3c85" +
    "5a545b1f0cc8afb19e38213bac4d55c3f2f19df6dee82ead67f70a990131b6bc" +
    "ac1a9116acc883862f00593199df19ce027c8eaaae8e3121f7f329219464e657" +
    "2cbf66e8e229eac2992dd795c4f23df0fe72b6ceef457eba0b9029619e0395b8" +
    "609851849dd6214589a2ceba4f7a7dcceb7ab2a6b60c27c69317bd7ab2135f50" +
    "c6317e5dbfb9d1e55936e4109b7b911450c746fe0d5d07165b6b23ada7700b00" +
    "33238c858ad179a82459c4718019c111b4ef7be53e5972e06ca68a112406da38" +
    "cf60d2f4fda4d1cd52f1da9fd6104d91a34455cd7b328b02525320a35253147b" +
    "e0b7a5bc860966dc84f10d723ce7eed5430203010001";

 // Pin it!
 final boolean expected = PUB_KEY.equalsIgnoreCase(encoded);
 if (!expected) {
      throw new CertificateException("checkServerTrusted: Expected public key: "
             + PUB_KEY + ", got public key:" + encoded);
    }
 }

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • Error out on SSLHandshakeException
  • Assume SSL is broken, root level CA's

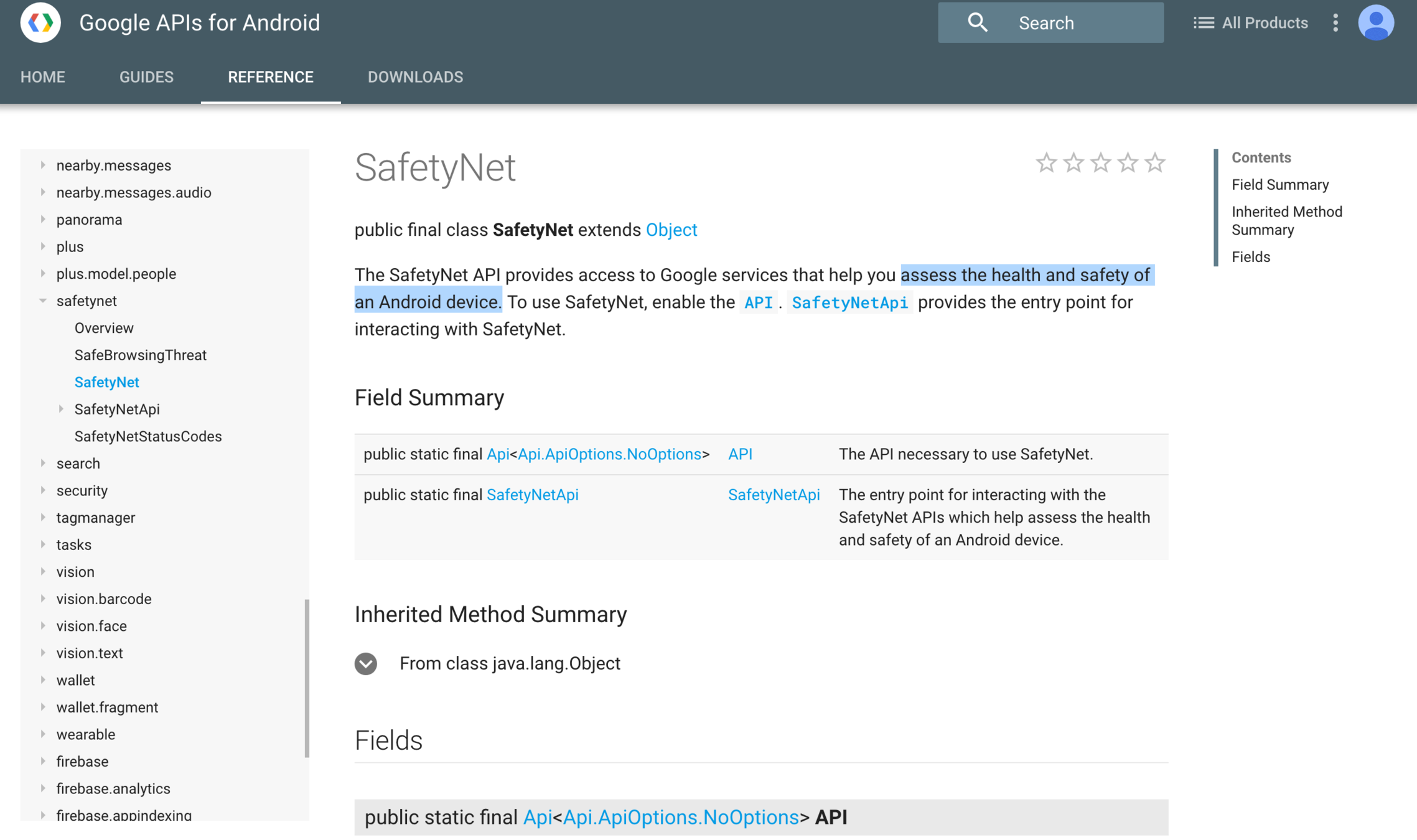

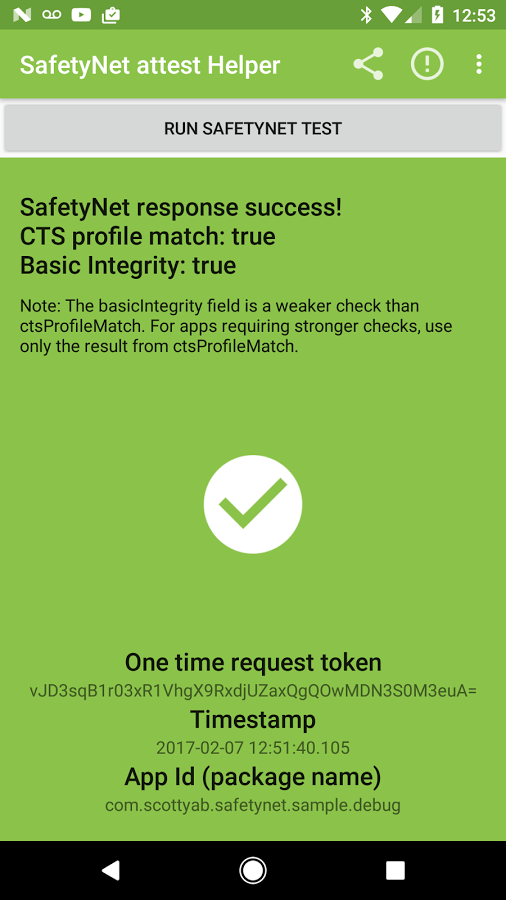

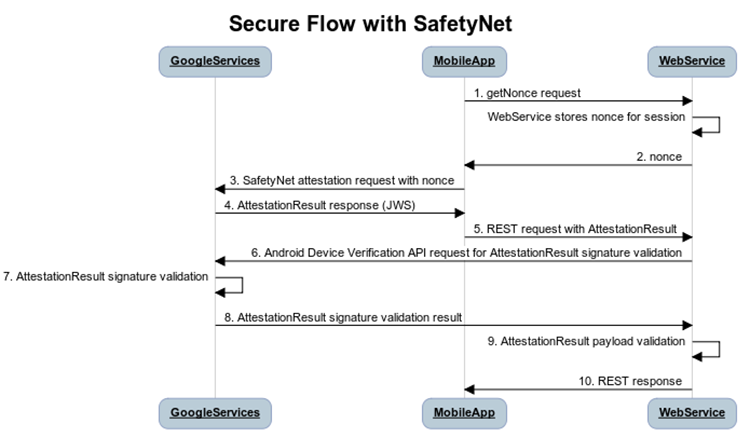

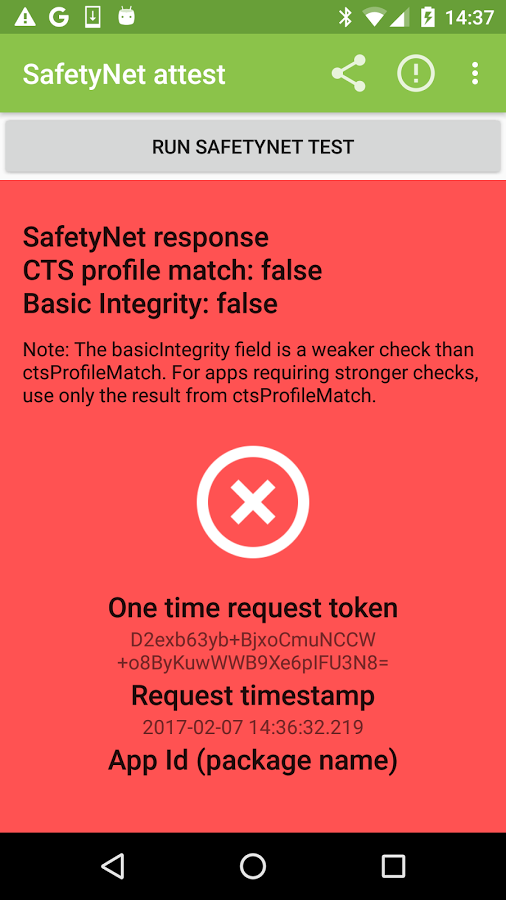

  • SSL pinning but use SafetyNet API
  • Do more on the server
  • Scan server with nogotofail

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Example

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Example

public ActivityLaunchAppLoad() {
    this.WAY_WAY_TOO_LOW = 49;
    this.A_LITTLE_LESS_WAY_TOO_LOW = 50;
    this.LESSER_WAY_TOO_LOW = 51;
    this.BIT_TOO_LOW = 52;
    this.TOO_LOW = 53;
    this.MORE = 54;
    this.A_LITTLE_MORE = 55;
    this.WAY_TOO_MORE = 97;
    this.BIG_DADDY = 102;
    this.orderOfTheThronesTrois = new int[]{this.BIG_DADDY, this.MORE, this.WAY_TOO_MORE, this.MORE};
    this.orderOfTheThronesQuatre = new int[]{this.LESSER_WAY_TOO_LOW, this.MORE, this.LESSER_WAY_TOO_LOW, this.TOO_LOW};
    this.orderOfTheThronesUn = new int[]{this.BIT_TOO_LOW, this.BIT_TOO_LOW, this.WAY_WAY_TOO_LOW, this.BIT_TOO_LOW};
    this.orderOfTheThronesDeux = new int[]{this.MORE, this.A_LITTLE_MORE, this.A_LITTLE_LESS_WAY_TOO_LOW, this.BIT_TOO_LOW};
}

String createTheHalfBloodPrince() {
    String strTemp = StringUtils.EMPTY;
    int x = 0;
    while (x < 4) {
        int[] xyz = null;
        if (x == 0) {
            xyz = this.orderOfTheThronesTrois;
        } else if (x == 1) {
            xyz = this.orderOfTheThronesQuatre;
        } else if (x == 2) {
            xyz = this.orderOfTheThronesUn;
        } else if (x == 3) {
            xyz = this.orderOfTheThronesDeux;
        }
        int y = 3;
        while (y >= 0) {
            strTemp = new StringBuilder(String.valueOf(strTemp)).append(Character.toString((char) xyz[y])).toString();
            y--;
        }
        x++;
    }
    return strTemp;
}

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • Strip out unneccesary logging code
  • Obfuscate method names
  • Check any third party libraries
  • Double check your webview caches
  • Download and unzip your APK

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Example

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

<?xml version='1.0' encoding='utf-8' standalone='yes' ?>
<map>
<string name="TM_MEMBER_EMAIL">godfrey@riis.com</string>
<int name="TM_MEMBER_MARKET_ID" value="7" />
<string name="TM_MEMBER_TAP_ID">77ef62159ad9c32913dfdbee0e58aea3</string>
<string name="TM_MEMBER_LNAME"></string>
<string name="TM_MEMBER_LANGUAGE">en-us</string>
<int name="TM_BILLING_COUNTRY_CODE" value="-1" />
<string name="TM_MEMBER_POSTCODE">48070</string>
<string name="TM_LAST_BILLING_ID"></string>
<int name="TM_MEMBER_COUNTRY" value="840" />
<string name="TM_MEMBER_PASSWORD">2secret4me</string>
<string name="TM_MEMBER_FNAME">Godfrey</string>
</map>

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • No password caching
  • Multi Factor Authentication
  • Encryption

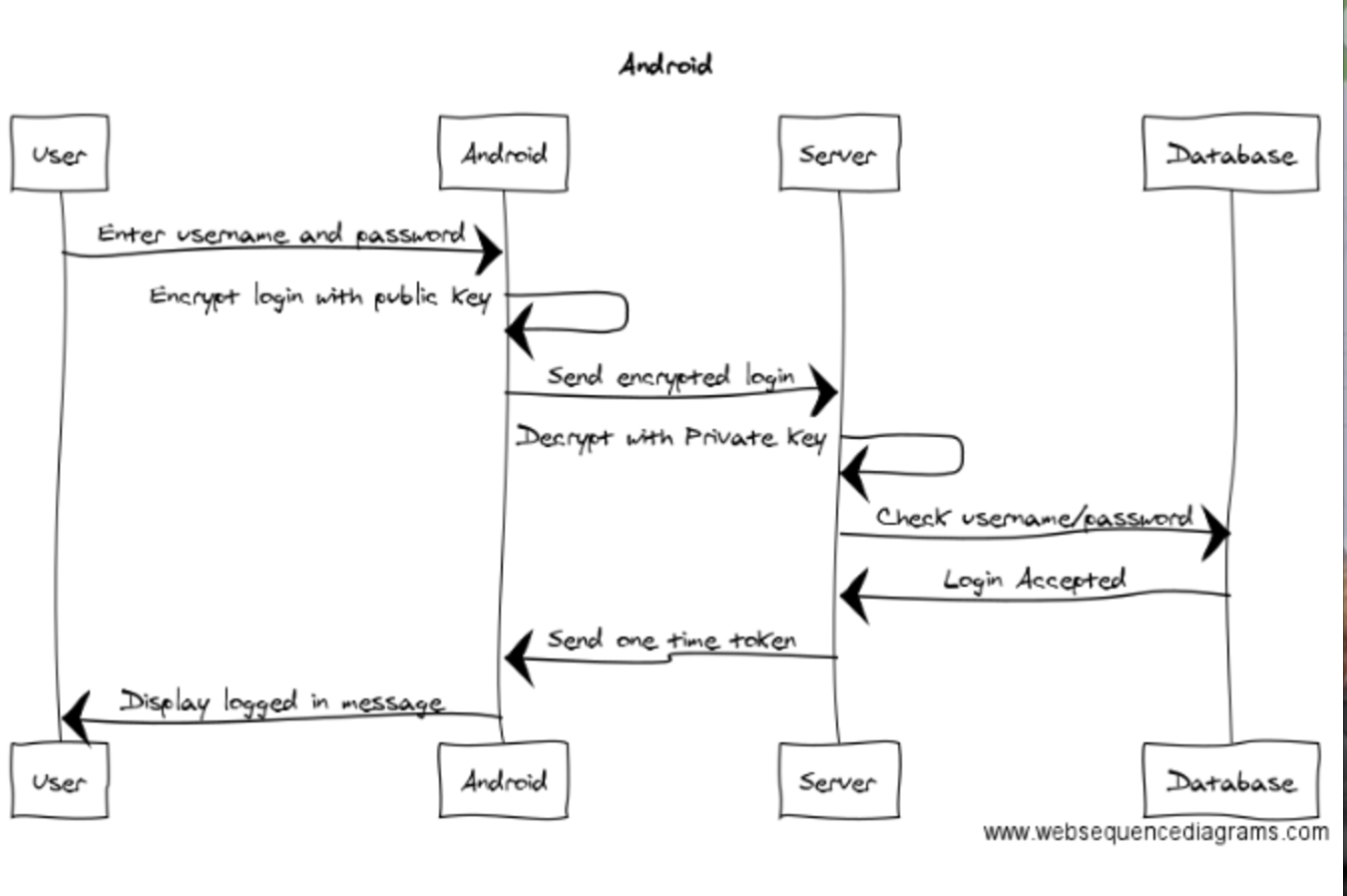

    • Public-Private Key exchange
  • Tokens, tokens, tokens
    • OAuth
    • Use Server side nonce’s

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Example

  public static String decrypt(String paramString)
    throws Exception
  {
    if (paramString != null)
      return new String(decrypt(getRawKey("3lIoM_d0idrn4|4TleD".getBytes()), toByte(paramString)));
    return null;
  }

  private static byte[] decrypt(byte[] paramArrayOfByte1, byte[] paramArrayOfByte2)
    throws Exception
  {
    SecretKeySpec localSecretKeySpec = new SecretKeySpec(paramArrayOfByte1, "AES");
    Cipher localCipher = Cipher.getInstance("AES");
    localCipher.init(2, localSecretKeySpec);
    return localCipher.doFinal(paramArrayOfByte2);
  }

Example

// NDK code - still see the code in disassembler

jstring Java_com_riis_decompilingandroid_getPassword(JNIEnv* env, jobject thiz)
{
    return  (*env)->NewStringUTF(env, "xeHnwfiy4uzefrabruebeb");
}

Example

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • Use asymmetric encryption
  • Encrypt databases
  • Security Jetpack w/Titan chip

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Problem

public boolean checkLogin(String param1, String param2)
{
    boolean bool = false;

    Cursor cursor = db.rawQuery("select * from login where USERNAME = '" +
                        param1 + "' and PASSWORD = '" + param2 + "';", null);

    if (cursor != null) {
        if (cursor.moveToFirst())
            bool = true;
            cursor.close();
    }
    return bool;
}
select * from login where USERNAME = '' OR 1=1 --' and PASSWORD = 'test'

Fix

public boolean checkLogin(String param1, String param2)
{
    boolean bool = false;

    Cursor cursor = db.rawQuery("select * from login where " +
                    "USERNAME = ? and PASSWORD = ?", new String[]{param1, param2});

    if (cursor != null) {
        if (cursor.moveToFirst())
            bool = true;
            cursor.close();
    }
    return bool;
}

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

WebView myWebView = (WebView) findViewById(R.id.webview);
WebSettings webSettings = myWebView.getSettings();
webSettings.setJavaScriptEnabled(true);
<script>alert("xss");</script>

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • Use parameterized queries
  • setJavaScriptEnabled(false)

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Problem

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.riis.login"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.riis.login.LoginActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity
            android:name="com.riis.login.IntentReceiverActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="com.riis.login.IntentReceiverActivity" />
                <category android:name="android.intent.category.DEFAULT" />
            </intent-filter>
        </activity>
    </application>

</manifest>

Problem

       <activity
            android:name="com.riis.login.IntentReceiverActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="com.riis.login.IntentReceiverActivity" />
                <category android:name="android.intent.category.DEFAULT" />
            </intent-filter>
        </activity>

Problem

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.riis.hellointent"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="18" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.riis.hellointent.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
            <intent-filter>
                <action android:name="com.riis.login.IntentReceiverActivity" />
                <category android:name="android.intent.category.DEFAULT" />
            </intent-filter>
        </activity>
    </application>
</manifest>

Fix


// implicit
Intent intent = new Intent();

// explicit
Intent intent = new Intent(this, IntentReceiverActivity.class);

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • Use explicit intents
  • Scan using Intent Sniffer / Drozer

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

if (dao.isDevicePermanentlyAuthorized(deviceID)) {

	String newAuthToken = Utils.generateAutToken();
	doa.updateAuthrizedDeviceAuth(deviceID, newAuthToken);
	login.setAuthToken(newAuthToken);
	login.setUserName(dao.getUserName(newAuthToken));
	login.setAccountNumber(dao.getAccountNumber(newAuthToken));
	login.setSuccess(true);

}

Example

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Example

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • Expire sessions
  • Try backup to another phone
  • Careful using OAuth logins to FB etc.

Problem

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

/**
* Logs you into your SIP provider, registering this device as the location to
* send SIP calls to for your SIP address.
*/
public void initializeLocalProfile() {
   if (manager == null) {
        return;
   }

   if (me != null) {
        closeLocalProfile();
   }

   SharedPreferences prefs = PreferenceManager.getDefaultSharedPreferences(getBaseContext());
   String username = prefs.getString("namePref", "");
   String domain = prefs.getString("domainPref", "");
   String password = prefs.getString("passPref", "");

Example

Fix

Weak Server Side Controls

Insecure Data Storage

Insufficient Transport Layer Protection

Unintended Data Leakage

Poor Authorization and Authentication

Broken Cryptography

Client Side Injection

Security Decision via Untrusted Input

Improper Session Handling

Lack of Binary Protections

  • Obfuscation helps remove useful info
    • Set minifyEnabled = true
  • Not a silver bullet
    • Anti ProGuard apps out there
    • Hackers just move to Smali
  • Code in C++ using NDK
    • Much harder to read
    • Can still disassemble C++

The Leftovers

  • android:debuggable(true)
    • some Smali required
  • SSL Pinning
  • Bug Bounties
  • SafetyNet API
  • Frida

The Leftovers

The Leftovers

  • Disassemble using apktool



  • Find main class in AndroidManifest.xml



  • Add debug wait to onCreate method

​





  • Recompile using apktool



  • Sign and install
java -jar apktool.jar d -d test.apk -o out
<activity android:label="@string/app_name" android:name="com.riis.helloworld.MainActivity">

a=0;// # virtual methods
a=0;// .method protected onCreate(Landroid/os/Bundle;)V
a=0;//     invoke-static {}, Landroid/os/Debug;->waitForDebugger()V
a=0;//
a=0;//     .locals 1
a=0;//     .param p1, "savedInstanceState"    # Landroid/os/Bundle;

java -jar apktool.jar b -d out -o debug.apk

The Leftovers

  • Security is too difficult to keep up with??
    • Crowdsource it with Bug Bounties
    • United Airlines offering substantial airmiles
  • Lessons Learned
    • Requires effort to keep up with submissions
    • Update your app often to keep interest alive
    • Not a tool for shutting down researchers

The Leftovers

The Leftovers

The Leftovers

byte[] nonce = getRequestNonce(); // Should be at least 16 bytes in length.
SafetyNet.SafetyNetApi.attest(mGoogleApiClient, nonce)
        .setResultCallback(new ResultCallback<SafetyNetApi.AttestationResult>() {

    @Override
    public void onResult(SafetyNetApi.AttestationResult result) {
        Status status = result.getStatus();
        if (status.isSuccess()) {
            // Indicates communication with the service was successful.
            // Use result.getJwsResult() to get the result data.
        } else {
            // An error occurred while communicating with the service.
        }
    }
});
{
  "nonce": "R2Rra24fVm5xa2Mg",
  "timestampMs": 9860437986543,
  "apkPackageName": "com.package.name.of.requesting.app",
  "apkCertificateDigestSha256": ["base64 encoded, SHA-256 hash of the
                                  certificate used to sign requesting app"],
  "apkDigestSha256": "base64 encoded, SHA-256 hash of the app's APK",
  "ctsProfileMatch": true, // Compatibility Testing Suite
  "basicIntegrity": true,
}

The Leftovers

The Leftovers

MASVS / MSTG

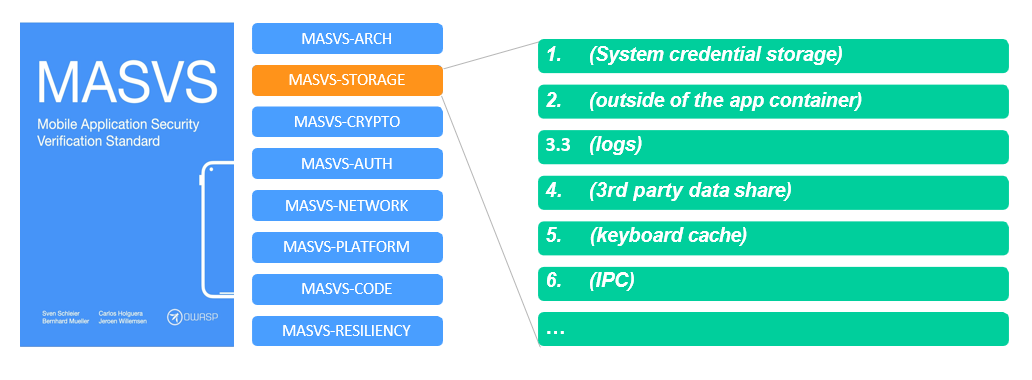

  • OWASP MASVS

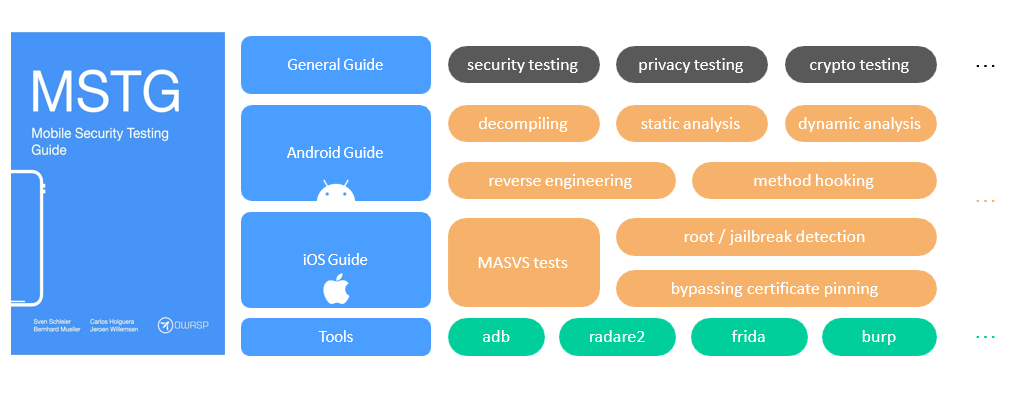

  • OWASP MSTG

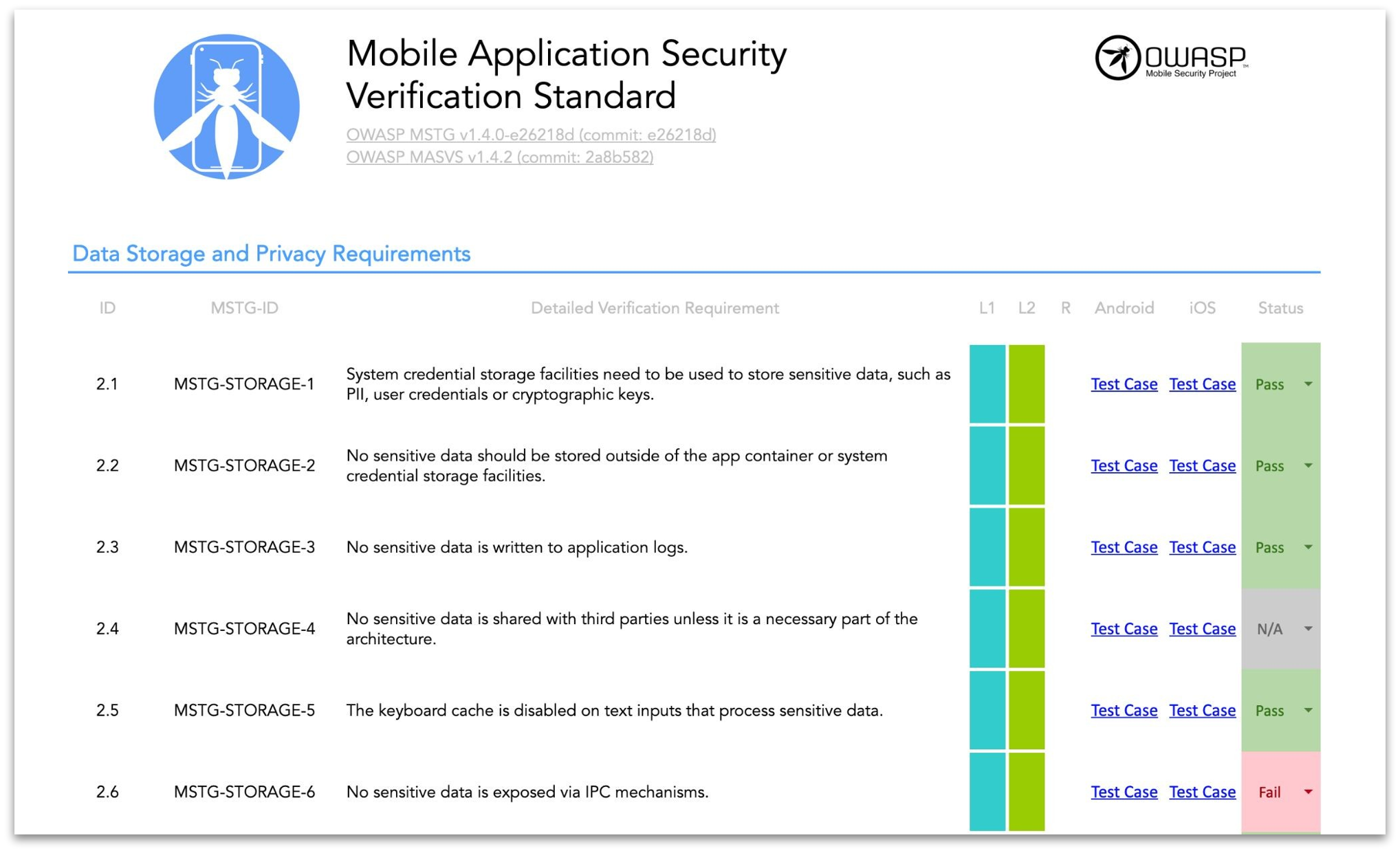

  • OWASP Mobile Security Checklists

MASVS / MSTG

MASVS / MSTG

MASVS / MSTG

MASVS / MSTG

MASVS / MSTG

Reasons to Ignore Security

  • Security is too difficult to keep up with
  • Requires physical access
    • Avast report - 80k old phones on eBay
  • allowBackup=false
  • Proguard / DexGuard is too hard to use
  • The code is already obfuscated
  • You need to talk to the API team
  • Fragmentation

  • We don't have time

Recommendations

  • Understand debuggable=true, allowbackup=true
  • Don’t trust, verify
  • Rewrite SSL code, use asymmetric encryption
  • Provide an email or security page for white hats
  • Attacks are going to get more complex
  • Start a Bug Bounty
  • Store nothing important on the device
  • Don't ignore Smali attacks
  • Secure your server
  • Use SafetyNet API

Resources

http://www.decompilingandroid.com
http://www.owasp.org
https://github.com/nelenkov/android-backup-extractor
http://www.charlesproxy.com
http://www.programering.com/a/MjM5UTMwATg.html
http://www.cs.ru.nl/~joeri/papers/spsm14.pdf
https://www.mwrinfosecurity.com/products/drozer
https://github.com/skylot/jadx
http://keyczar.org
https://www.nccgroup.trust/us/about-us/resources/intent-sniffer/
http://www.guardsquare.com
http://sqlitebrowser.org
http://bit.ly/1JlPoiY - How to hide your android API key
http://bit.ly/1hIeNNi - Where to store your password
https://github.com/google/nogotofail
https://github.com/godfreynolan/bulletproof
http://riis.com/blog/android-obfuscation
http://riis.com/blog/android-safetynet
http://frida.re

Gist List of Old* Hacks



Delta: https://gist.github.com/cbeyer-riis/32e3d028c0deebca4057
Groupon: https://gist.github.com/cbeyer-riis/151a3eeed66a0516d50f
Walgreens: https://gist.github.com/cbeyer-riis/4f3758f9a58f554d40a4
Target: https://gist.github.com/cbeyer-riis/a55d90e38554c7122c89
Match: https://gist.github.com/cbeyer-riis/73318ee997132024b17d
Walgreens: https://gist.github.com/cbeyer-riis/372212c1fb5128841dcf
eHarmony: https://gist.github.com/cbeyer-riis/9e21e9b9996ea536cc5c
Hilton Honors: https://gist.github.com/cbeyer-riis/0834606d33c581b2a045
Hyatt: https://gist.github.com/cbeyer-riis/bfcab3d7673fba868624
Holiday Inn: https://gist.github.com/godfreynolan/e01f6ae1fab31ab66c39



*Find older apk's on apkpure.com

Contact Details

godfrey@riis.com

@godfreynolan

slides.com/godfreynolan/bulletproofandroidmeetup

Mobile Security

By godfreynolan

Mobile Security

  • 1,322

More from godfreynolan
