Design Lesson 2

http://www.zhitongguigu.com

Object-Oriented Design

Given a technical/real-world problem
Simplify to basic parts
Sketch out the classes and methods
Think like a designer for a game

http://www.zhitongguigu.com

4 Steps

Clarify the question
Start with main objects
Try link them up
Action with examples

http://www.zhitongguigu.com

Clarify the Question

Interviewer is hiding the detail
Ask like a co-worker
who, where, when, why, how, what
1. Internal/External/International user
2. FE/BE
3. Rush hour? Flat? Normal distributed?
4. Current solution not good enough
5. How would you like to implement
6. What's the specific requirement

http://www.zhitongguigu.com

Start with Main Objects

Consider the main parts
"Design a Parking Lot"
- Parking Lot
  - Controller
  - ParkingSpace
    - RegularParkingSpace
    - HandicappedParkingSpace
    - CompactParkingSpace
    - EV, RV, ExpectedMother, Truck
  - Car, Sign, Floor, Parker, PayStation, Valet

http://www.zhitongguigu.com

Try Link Them Up

Relationship between objects
Member of.
Inherit & Implement

ParkingLot should have an array of Floors
Floor should have an array of ParkingSpace
RegularPS, CompactPS, HandicappedPS... inherit from ParkingSpace
Sign should be Enum: Full, Empty, Invalid

http://www.zhitongguigu.com

Action with Examples

Already have the basic outline of your design
Take a example and walk through
Consider the key actions
Update the design if forgot any object

http://www.zhitongguigu.com

SpaceController
- assignSpace
- getCar
Floor
- getVacantSpace#
- isFull

Space
- sign
- type
Car
- Plate#
- type

http://www.zhitongguigu.com

Design Blackjack (21 点)

http://www.zhitongguigu.com

Design Blackjack

Clarify the question
Start with main objects
Try link them up
Action with examples

http://www.zhitongguigu.com

BlackJack: A + FaceCard

21: All cards add up to 21

No Joker

Clarify the Question

http://www.zhitongguigu.com

Deck
Card -> BJCard
Suit
Player(Hand) -> BJHand
Dealer (Automator)
MainMethodClass

(Heat, Spade, Club, Diamond)

Start with Main Objects

http://www.zhitongguigu.com

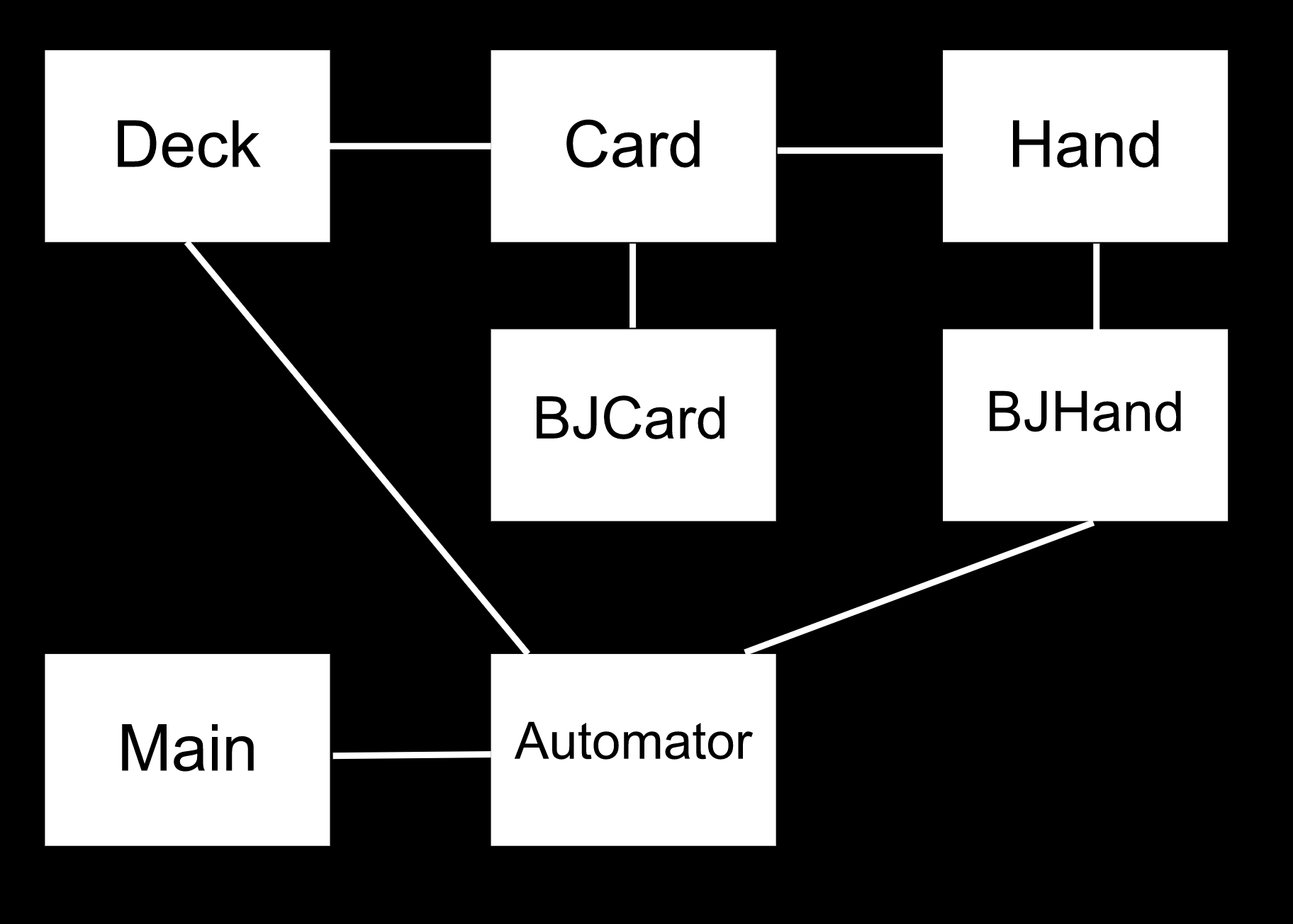

Try Link Them Up

http://www.zhitongguigu.com

Deck
1. Shuffle
2. DealCards
Card -> BJCard
1. Value (Min/Max)
2. Suit
3. isFaceCard
Player(Hand) -> BJHand
1. addCard
2. getScore
3. isBusted
4. isBlackJack

Action with Examples

Dealer (Automator)
1. init (Deck/Hand)
2. getBlackJack
3. playHand
4. getWinner
MainMethodClass
1. init
2. if (hasBJ)
3. else (playHand)
4. getWinner

http://www.zhitongguigu.com

import java.util.ArrayList;

public class Main {

    public static void main(String[] args) {
        int numHands = 8;

        BlackJackGameAutomator automator = new BlackJackGameAutomator(numHands);
        automator.initializeDeck();
        boolean success = automator.dealInitial();
            if (!success) {
                System.out.println("Error. Out of cards.");
            } else {
            System.out.println("-- Initial --");
            automator.printHandsAndScore();
            ArrayList<Integer> blackjacks = automator.getBlackJacks();
            if (blackjacks.size() > 0) {
                System.out.print("Blackjack at ");
                for (int i : blackjacks) {
                    System.out.print(i + ", ");
                }
                System.out.println("");
            } else {
                success = automator.playAllHands();
                if (!success) {
                    System.out.println("Error. Out of cards.");
                } else {
                    System.out.println("\n-- Completed Game --");
                    automator.printHandsAndScore();
                    ArrayList<Integer> winners = automator.getWinners();
                    if (winners.size() > 0) {
                        System.out.print("Winners: ");
                        for (int i : winners) {
                            System.out.print(i + ", ");
                        }
                        System.out.println("");
                    } else {
                        System.out.println("Draw. All players have busted.");
                    }
                }
            }
        }
    }

}

http://www.zhitongguigu.com

import java.util.ArrayList;

public class BlackJackGameAutomator {
    private Deck<BlackJackCard> deck;
    private BlackJackHand[] hands;
    private static final int HIT_UNTIL = 16;

    public BlackJackGameAutomator(int numPlayers) {
        hands = new BlackJackHand[numPlayers];
        for (int i = 0; i < numPlayers; i++) {
            hands[i] = new BlackJackHand();
        }
    }

    public void initializeDeck() {
        ArrayList<BlackJackCard> cards = new ArrayList<BlackJackCard>();
        for (int i = 1; i <= 13; i++) {
            for (int j = 0; j <= 3; j++) {
                Suit suit = Suit.getSuitFromValue(j);
                BlackJackCard card = new BlackJackCard(i, suit);
                cards.add(card);
            }
        }
        deck = new Deck<BlackJackCard>();
        deck.setDeckOfCards(cards);
        deck.shuffle();
    }

    public boolean dealInitial() {
        for (BlackJackHand hand : hands) {
            BlackJackCard card1 = deck.dealCard();
            BlackJackCard card2 = deck.dealCard();
            if (card1 == null || card2 == null) {
                return false;
            }
            hand.addCard(card1);
            hand.addCard(card2);
        }
        return true;
    }

    public ArrayList<Integer> getBlackJacks() {
        ArrayList<Integer> winners = new ArrayList<Integer>();
        for (int i = 0; i < hands.length; i++) {
            if (hands[i].isBlackJack()) {
                winners.add(i);
            }
        }
        return winners;
    }

    public boolean playAllHands() {
        for (BlackJackHand hand : hands) {
            if (!playHand(hand)) {
                return false;
            }
        }
        return true;
    }

    public boolean playHand(BlackJackHand hand) {
        while (hand.score() <= HIT_UNTIL) {
            BlackJackCard card = deck.dealCard();
            if (card == null) {
                return false;
            }
            hand.addCard(card);
        }
        return true;
    }

    public ArrayList<Integer> getWinners() {
        ArrayList<Integer> winners = new ArrayList<Integer>();
        int winningScore = 0;
        for (int i = 0; i < hands.length; i++) {
            BlackJackHand hand = hands[i];
            if (!hand.busted()) {
                if (hand.score() > winningScore) {
                    winningScore = hand.score();
                    winners.clear();
                    winners.add(i);
                } else if (hand.score() == winningScore) {
                    winners.add(i);
                }
            }
        }
        return winners;
    }

    public void printHandsAndScore() {
        for (int i = 0; i < hands.length; i++) {
            System.out.print("Hand " + i + " (" + hands[i].score() + "): ");
            hands[i].print();
            System.out.println("");
        }
    }
}

http://www.zhitongguigu.com

public abstract class Card {
    private boolean available = true;

    protected int faceValue;
    protected Suit suit;

    public Card(int c, Suit s) {
        faceValue = c;
        suit = s;
    }

    public abstract int value();

    public Suit suit() {
        return suit;
    }

    public boolean isAvailable() {
        return available;
    }

    public void markUnavailable() {
        available = false;
    }

    public void markAvailable() {
        available = true;
    }

    public void print() {
        switch (suit) {
        case Club:
            System.out.print("♣");
            break;
        case Heart:
            System.out.print("♥");
            break;
        case Diamond:
            System.out.print("♦");
            break;
        case Spade:
            System.out.print("♠");
            break;
        }
        String[] faceValues = {"A", "2", "3", "4", "5", "6", "7", "8", "9", "10", "J", "Q", "K"};
        System.out.print(faceValues[faceValue - 1]);
        System.out.print(" ");
    }
}

http://www.zhitongguigu.com

public enum Suit {
    Club (0),
    Diamond (1),
    Heart (2),
    Spade (3);

    private int value;
    private Suit(int v) {
        value = v;
    }

    public int getValue() {
        return value;
    }

    public static Suit getSuitFromValue(int value) {
        switch (value) {
        case 0:
            return Suit.Club;
        case 1:
            return Suit.Diamond;
        case 2:
            return Suit.Heart;
        case 3:
            return Suit.Spade;
        default:
                return null;
        }
    }
}

http://www.zhitongguigu.com

public class BlackJackCard extends Card {
    public BlackJackCard(int c, Suit s) {
        super(c, s);
    }

    public int value() {
        if (faceValue >= 11 && faceValue <= 13) { // Face card
            return 10;
        } else { // Number card
            return faceValue;
        }
    }

    public int minValue() {
        return isAce() ? 1 : value();
    }

    public int maxValue() {
        return isAce() ? 11 : value();
    }

    public boolean isAce() {
        return faceValue == 1;
    }

    public boolean isFaceCard() {
        return faceValue >= 11 && faceValue <= 13;
    }
}

http://www.zhitongguigu.com

import java.util.ArrayList;

public class Deck <T extends Card> {
    private ArrayList<T> cards;
    private int dealtIndex = 0; // marks first undealt card

    public void setDeckOfCards(ArrayList<T> deckOfCards) {
        cards = deckOfCards;
    }

    public void shuffle() {
        for (int i = 0; i < cards.size(); i++) {
            int j = randomIntInRange(i, cards.size() - i - 1);
            T card1 = cards.get(i);
            T card2 = cards.get(j);
            cards.set(i, card2);
            cards.set(j, card1);
        }
    }

    public T dealCard() {
        if (remainingCards() == 0) {
            return null;
        }
        T card = cards.get(dealtIndex);
        card.markUnavailable();
        dealtIndex++;
        return card;
    }

    public void print() {
        for (T card : cards) {
            card.print();
        }
    }

    private int randomIntInRange(int min, int max) {
        int diff = max - min + 1;
        return (int) (Math.random() * diff) + min;
    }

    private int remainingCards() {
        return cards.size() - dealtIndex;
    }
}

http://www.zhitongguigu.com

import java.util.ArrayList;

public class Hand <T extends Card> {
    protected ArrayList<T> cards = new ArrayList<T>();

    public int score() {
        int score = 0;
        for (T card : cards) {
            score += card.value();
        }
        return score;
    }

    public void addCard(T card) {
        cards.add(card);
    }

    public void print() {
        for (Card card : cards) {
            card.print();
        }
    }
}

http://www.zhitongguigu.com

import java.util.ArrayList;

public class BlackJackHand extends Hand<BlackJackCard> {

    public int score() {
        ArrayList<Integer> scores = possibleScores();
        int maxUnder = Integer.MIN_VALUE;
        int minOver = Integer.MAX_VALUE;
        for (int score : scores) {
            if (score > 21 && score < minOver) {
                minOver = score;
            } else if (score <= 21 && score > maxUnder) {
                maxUnder = score;
            }
        }
        return maxUnder == Integer.MIN_VALUE ? minOver : maxUnder;
    }

    private ArrayList<Integer> possibleScores() {
        ArrayList<Integer> scores = new ArrayList<Integer>();
        if (cards.size() == 0) {
            return scores;
        }
        for (BlackJackCard card : cards) {
            addCardToScoreList(card, scores);
        }
        return scores;
    }

    private void addCardToScoreList(BlackJackCard card, ArrayList<Integer> scores) {
        if (scores.size() == 0) {
            scores.add(0);
        }
        int length = scores.size();
        for (int i = 0; i < length; i++) {
            int score = scores.get(i);
            scores.set(i, score + card.minValue());
            if (card.minValue() != card.maxValue()) {
                scores.add(score + card.maxValue());
            }
        }
    }

    public boolean busted() {
        return score() > 21;
    }

    public boolean is21() {
        return score() == 21;
    }

    public boolean isBlackJack() {
        if (cards.size() != 2) {
            return false;
        }
        BlackJackCard first = cards.get(0);
        BlackJackCard second = cards.get(1);
        return first.isAce() && second.isFaceCard() || second.isAce() && first.isFaceCard();
    }
}
