Dr. Rudolph Pienaar
3/21 11:00a
Remote Guest Lecture
Hands-on Day! (C++ Functions and Classes)
Optional but counts as 15% for final grade!
Due Wednesday Night!
High Quality Work!
Self-Motivation!
Despite the chaos:
2/7
2/21
2/28
3/25
5/20
Team Selection
Client Presentations
Project Proposal
Revised Project Proposal
Final Project Documentation
No class
No class
No class
Project Presentations
5/02
No class
Implementation / Testing / Deployment
61 Days
Talk to the TAs!
Standup or Staff Meeting!
Wednesday or Friday
using namespace std;
#include <iostream>
int main()
{
string name;
cout << "What is your name? ";
cin >> name;
cout << "Hello, " << name << "!\n";
int howmany;
cout << "How many numbers do you want to see?" << "\n";
cin >> howmany;
for (int i=0; i<howmany; i++) {
cout << i << "\n";
}
}
using namespace std;
#include <iostream>
int main()
{
// cout << sizeof(theanswer);
//float, double, char, bool, short, int
short i;
cout << "Short " << sizeof(i) << "\n";
float j;
cout << "Float " << sizeof(j)<< "\n";
char c;
cout << "Char " << sizeof(c)<< "\n";
char d;
cout << "Press a character!" << "\n";
cin >> d;
if (d == 68) {
cout << "D was pressed!";
}
}
using namespace std;
#include <iostream>
int main()
{
int whichN;
cout << "n! Factorial, please enter N! ";
cin >> whichN;
// 5!
// 5 * 4 * 3 * 2 * 1
int theanswer = 1;
// cout << sizeof(theanswer);
//float, double, char, bool, short, int
for (whichN; whichN>0; --whichN) {
theanswer *= whichN;
}
cout << theanswer;
}
using namespace std;
#include <iostream>
// usually in a converter.h
class Converter {
public:
float fromFtoC( float );
};
// usually in a converter.cc
float Converter::fromFtoC( float temperatureInF ) {
return ( temperatureInF - 32 ) * 5/9;
};
int main()
{
float temp;
cout << "Temp in F? \n";
cin >> temp;
Converter *converter = new Converter();
cout << converter->fromFtoC( temp );
return 0;
}
class Converter {
public:
float fromFtoC(float);
};
float Converter::fromFtoC(float temp) {
return ((temp-32)/1.8);
};
//... in main
Converter c;
float convertedTemp = c.fromFtC(temp);
//...
//... in main
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
Pointer to the instance!
//... in main
Converter *c;
float convertedTemp = c->fromFtoC(temp);
//...
Wild pointer!
std::unique_ptr<Converter> c(new Converter());
c->fromFtoC(temp);
One way to avoid wild pointers...
Templates.. (next week)
class Converter {
public:
float fromFtoC(float);
};
float Converter::fromFtoC(float temp) {
return ((temp-32)/1.8);
};
//... in main
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
//... somewhere else in the code
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
//... somewhere else again
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
3 instances!
//... Everywhere!
SingletonConverter *c = SingletonConverter::getInstance()
float convertedTemp = c->fromFtC(temp);
//...
//... in main
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
//... somewhere else in the code
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
//... somewhere else again
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
Always use the same instance!
//... in main
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
//... somewhere else in the code
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
//... somewhere else again
Converter *c = new Converter;
float convertedTemp = c->fromFtoC(temp);
//...
3x Converter
//... in main
SingletonConverter *c = SingletonConverter::getInstance()
float convertedTemp = c->fromFtC(temp);
//...
//... somewhere else in the code
SingletonConverter *c = SingletonConverter::getInstance()
float convertedTemp = c->fromFtC(temp);
//...
//... somewhere else again
SingletonConverter *c = SingletonConverter::getInstance()
float convertedTemp = c->fromFtC(temp);
//...
1x Converter
class SingletonConverter
{
public:
static SingletonConverter* getInstance( ) {
return instance;
};
~SingletonConverter( );
float fromFtoC(float temp) {
return ((temp-32)/1.8);
};
private:
SingletonConverter( );
static SingletonConverter* instance;
};
//... in main
SingletonConverter *c = SingletonConverter::getInstance()
float convertedTemp = c->fromFtC(temp);
//...
class SingletonConverter
{
public:
static SingletonConverter* getInstance( ) {
static SingletonConverter* instance;
return instance;
};
~SingletonConverter( );
float fromFtoC(float temp) {
return ((temp-32)/1.8);
};
private:
SingletonConverter( );
};
//... in main
SingletonConverter *c = SingletonConverter::getInstance()
float convertedTemp = c->fromFtC(temp);
//...
Lazy Loading!
Functions, Classes
Arrays, Vectors
Templates
Cython
Run our C++ code in Python using Cython
and compare timing against NumPy
Analyze a bunch of numbers and calculate min, max, mean, stddev.
Arrays and
Vectors
Variable
Array
int carton[10];
int carton[10] = { };
int carton[10] = { 1, 3, 3, 7 };
Array is full..
Larger Array...
It will be full eventually...
What about a dynamic container?
Vector
Let's try it!
#include <iostream>
class SingletonConverter
{
public:
static SingletonConverter* getInstance( ) {
return instance;
};
~SingletonConverter( );
float fromFtoC(float temp) {
return ((temp-32)/1.8);
};
private:
SingletonConverter( );
static SingletonConverter* instance;
};
int main()
{
std::string temp;
std::cout << "Please enter a temperature. ";
std::cin >> temp;
std::cout << "Converted to Celsius, this temperature is " << SingletonConverter::getInstance()->fromFtoC(std::stof(temp)) << "!\n";
}
Q & A
lecture related
project related
CS related
class Circle:
instance = None
@staticmethod
def getInstance():
if Circle.instance == None:
Circle.instance = Circle()
return Circle.instance
public final class Circle {
private static final Circle INSTANCE =
new Circle();
public static Circle getInstance() {
return INSTANCE;
}
}
public final class Circle {
private static final Circle INSTANCE = null;
public static Circle getInstance() {
if (!INSTANCE) {
INSTANCE = new Circle();
}
return INSTANCE;
}
}
runs at Application Start
runs on demand
Circle.getInstance();
Lazy Loading!
class Singleton
{
public:
static Singleton* getInstance( ) {
return instance;
};
~Singleton( );
private:
Singleton( );
static Singleton* instance;
};
No Lazy Loading

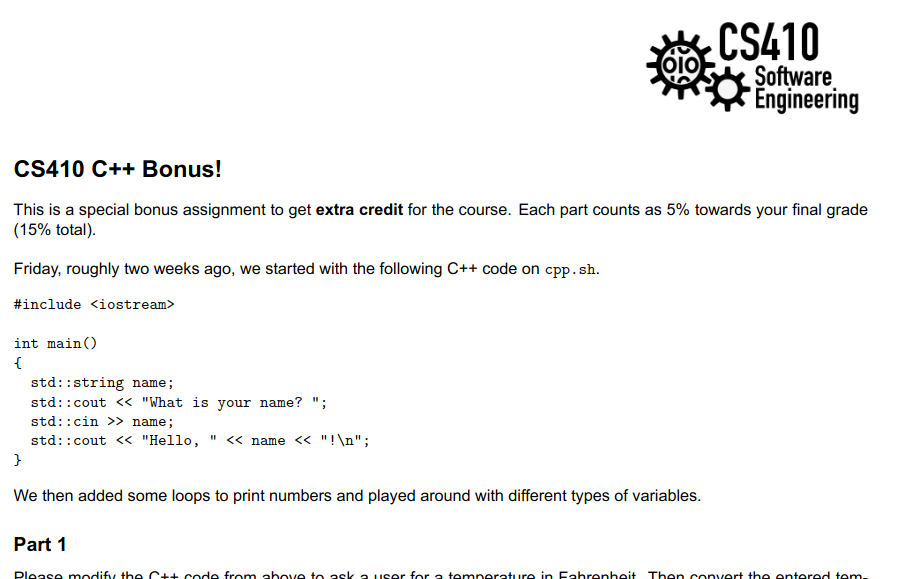

C++ Bonus
class Singleton
{
public:
static Singleton* getInstance( ) {
static Singleton* instance;
return instance;
};
~Singleton( );
private:
Singleton( );
};
Lazy Loading!
