CS460 Computer Graphics - University of Massachusetts Boston

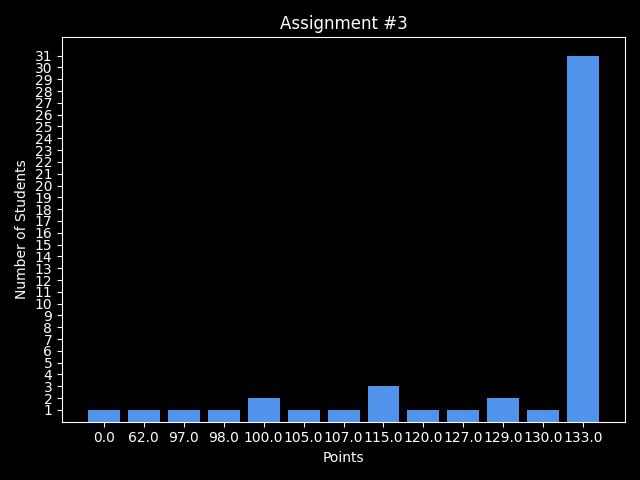

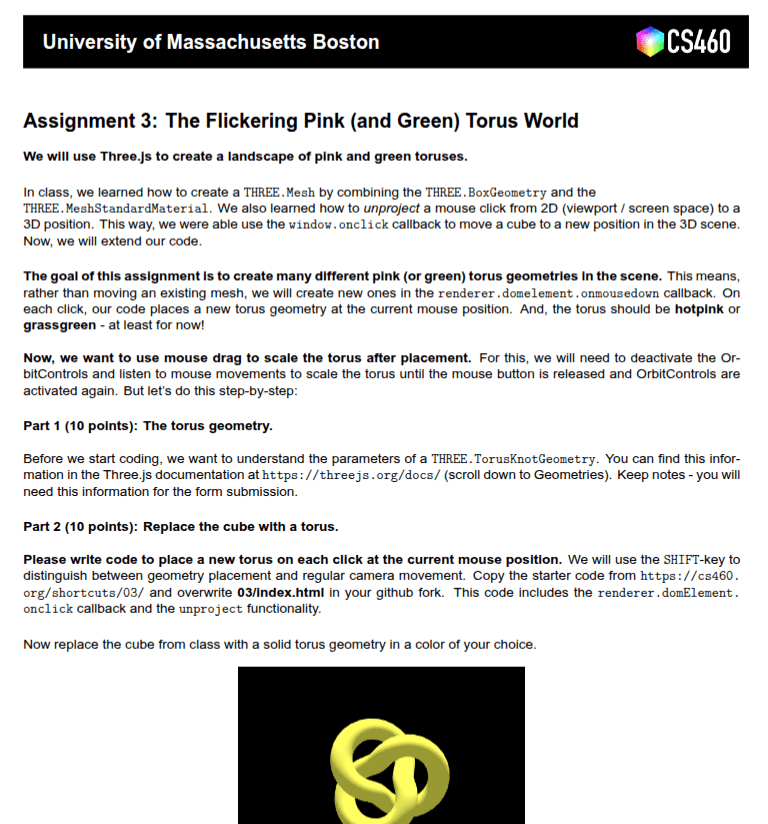

Assignment 3

A

Assignment 3

My quick'n'dirty solution: https://cs460.org/shortcuts/15/

FREE

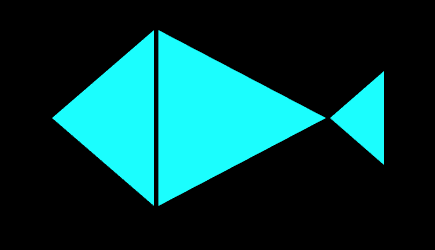

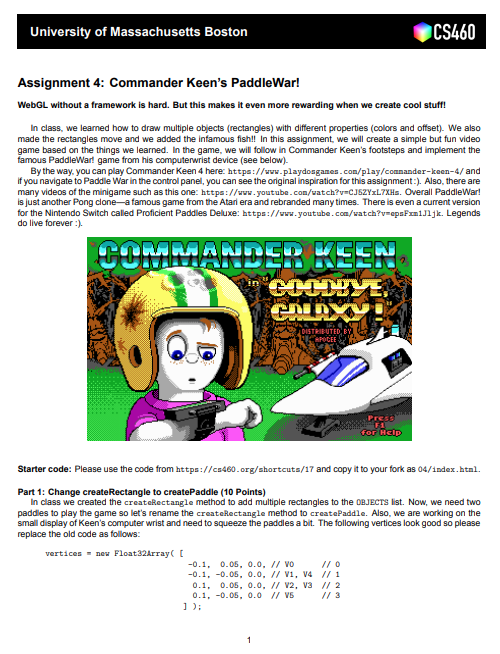

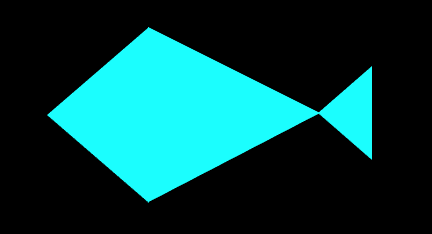

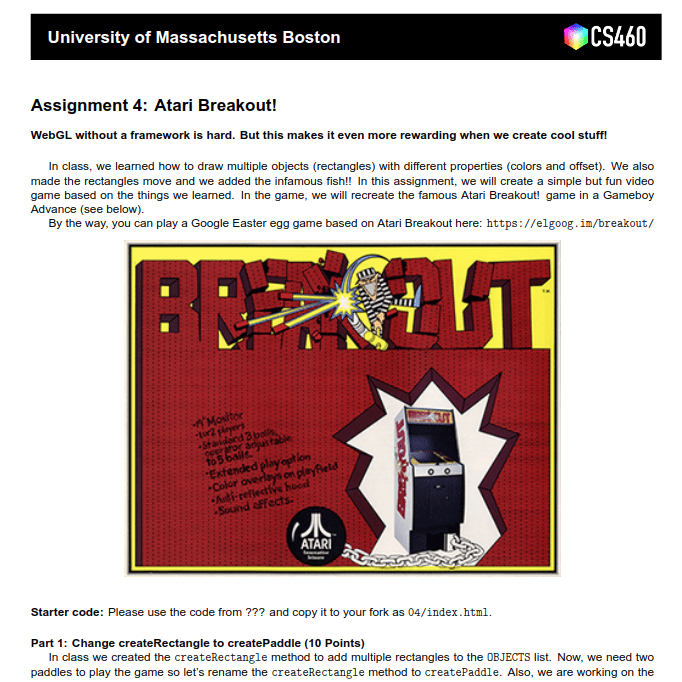

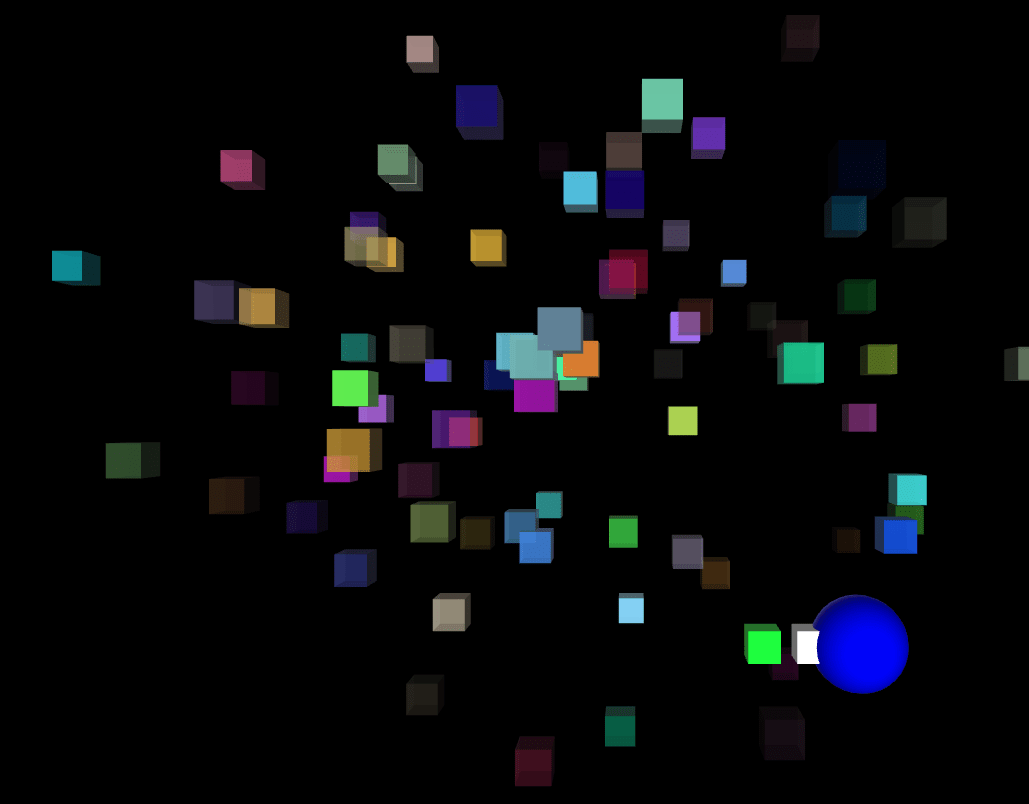

Assignment 4

10/02/2019!

Quiz 4 Due Today!!

<html>
  <head>
    <meta content="text/html;charset=utf-8" http-equiv="Content-Type">
    <meta content="utf-8" http-equiv="encoding">
    <title>Vanilla WebGL!</title>
    <style>
      html, body {
        background-color:#000;
        margin: 0;
        padding: 0;
        height: 100%;
        overflow: hidden !important;
        background-image: url(https://cs460.org/gfx/bg.gif);
        background-repeat: no-repeat;
        background-size: 100% 100%;
      }

      #c {
        width: 100%;
        height: 100%;
      }

      #scoreboard {
        position: absolute;
        top: 10px;
        right: 10px;
      };
    </style>
  </head>
  <script type="text/javascript" src="https://cs460.org/js/glmatrix.js"></script>

  <script id="vertexshader" type="glsl">
    attribute vec3 a_position;

    uniform vec3 u_offset;

    void main(void) {

      vec3 final_position = a_position;
      final_position.x += u_offset.x;
      final_position.y += u_offset.y;
      final_position.z += u_offset.z;

      gl_Position = vec4( final_position, 1.);

    }
  </script>

  <script id="fragmentshader" type="glsl">
    precision mediump float;

    uniform vec4 u_color;

    void main(void) {

      gl_FragColor = u_color;

    }
  </script>

  <script>

    var c, gl;
    var v_shader, f_shader, shaderprogram;
    var vertices, indices, v_buffer, i_buffer;

    var step_x = 0.0;
    var step_y = 0.0;
    var obstacle_factor = 3; // Hint for the bonus!
    var direction_y = 0;
    var direction_x = 0;


    window.onload = function() {

      //************************************************************//
      //
      // INITIALIZE WEBGL
      //
      c = document.getElementById( 'c' ); // setup canvas
      c.width = window.innerWidth;
      c.height = window.innerHeight;

      gl = c.getContext( 'webgl' ); // setup GL context
      gl.viewport(0, 0, c.width, c.height );


      //************************************************************//
      //
      // SHADERS
      //
      v_shader = gl.createShader( gl.VERTEX_SHADER );
      f_shader = gl.createShader( gl.FRAGMENT_SHADER );

      // compile vertex shader
      gl.shaderSource( v_shader, document.getElementById( 'vertexshader' ).innerText );
      gl.compileShader( v_shader );

      if (!gl.getShaderParameter( v_shader, gl.COMPILE_STATUS)) {
        console.log(gl.getShaderInfoLog( v_shader ));
      }

      // compile fragment shader
      gl.shaderSource( f_shader, document.getElementById( 'fragmentshader' ).innerText );
      gl.compileShader( f_shader );

      if (!gl.getShaderParameter( f_shader, gl.COMPILE_STATUS)) {
        console.log(gl.getShaderInfoLog( f_shader ));
      }

      // attach and link the shaders
      shaderprogram = gl.createProgram();
      gl.attachShader( shaderprogram, v_shader );
      gl.attachShader( shaderprogram, f_shader );

      gl.linkProgram( shaderprogram );

      gl.useProgram( shaderprogram );


      // create multiple objects
      objects = [];
      objects.push( createAirplane());
      objects.push( createObstacle());
      objects.push( createObstacle());
      objects.push( createObstacle());
      objects.push( createObstacle());
      objects.push( createObstacle());
      objects.push( createObstacle());
      objects.push( createObstacle());
      objects.push( createObstacle());
      objects.push( createObstacle());

      animate();

    };



    function createAirplane() {

      //
      // Part 1 Starts
      //
      var vertices;



      var v_buffer;




      //
      // Part 1 Ends
      //

      var offset = [0.,0.,0.];
      var color = [0.,0.,0.,1.];

      //
      // Bonus Part 3!
      //
      return ['airplane', v_buffer, vertices, offset, color, gl.TRIANGLES];

    }



    function createObstacle() {

      var vertices = new Float32Array( [ 0.0, 0.0, 0.0 ]);

      var v_buffer = gl.createBuffer(); // create
      gl.bindBuffer( gl.ARRAY_BUFFER, v_buffer ); // bind
      gl.bufferData( gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW ); // put data in
      gl.bindBuffer( gl.ARRAY_BUFFER, null ); // unbind

      //
      // Part 2 Starts
      //
      var offset = [0., 0., 0.];





      //
      // Part 2 Ends
      //

      var color = [Math.random(),Math.random(),Math.random(),1.];

      return ['obstacle', v_buffer, vertices, offset, color, gl.POINTS];

    }



    //
    // Part 3 Starts (no coding required, just explanations in PDF)
    //
    function calculateBoundingBox(vertices, offset) {

      var minx = 1000;
      var maxx = -1000;
      var miny = 1000;
      var maxy = -1000;
      var minz = 1000;
      var maxz = -1000;

      for (var v=0; v<vertices.length; v+=3) {

        var currentx = vertices[v] + offset[0];
        var currenty = vertices[v+1] + offset[1];
        var currentz = vertices[v+2] + offset[2];

        minx = Math.min( minx, currentx );
        miny = Math.min( miny, currenty );
        minz = Math.min( minz, currentz );

        maxx = Math.max( maxx, currentx );
        maxy = Math.max( maxy, currenty );
        maxz = Math.max( maxz, currentz );

      }

      return [minx, maxx, miny, maxy, minz, maxz];

    }

    function detectCollision(bbox, point) {

      var collision = false;

      if (point[0] >= bbox[0] && point[0] <= bbox[1]) {
        if (point[1] >= bbox[2] && point[1] <= bbox[3]) {
          if (point[2] >= bbox[4] && point[2] <= bbox[5]) {

            collision = true;

          }
        }
      }

      return collision;

    }
    //
    // Part 3 Ends
    //



    //
    // Part 4 Starts
    //
    window.onkeyup = function(e) {

      if ( e.keyCode == 38 ) {
        // player pressed up



      } else if (e.keyCode == 40 ) {
        // player pressed down



      } else if (e.keyCode == 37 ) {
        // player pressed left



      } else if (e.keyCode == 39 ) {
        // player pressed right



      }

    };
    //
    // Part 4 Ends
    //




    var framecounter = 0;

    function animate() {

      framecounter += 1;

      if (framecounter > 150) {

        // roughly every five seconds with 30 FPS

        // update score
        document.getElementById('scoreboard').innerHTML = parseInt(document.getElementById('scoreboard').innerHTML) + 100;

        //
        // Bonus Part 2!
        //


        framecounter = 0;

      }

      gl.clearColor( 0., 0., 0., 0.)
      gl.clear( gl.COLOR_BUFFER_BIT );



      for( var o = 0; o < objects.length; o++ ) {

        var current_objecttype = objects[o][0];
        var current_v_buffer = objects[o][1];
        var current_vertices = objects[o][2];
        var current_offset = objects[o][3];
        var current_color = objects[o][4];
        var current_drawtype = objects[o][5];

        var current_v_count = current_vertices.length;

        if (current_objecttype == 'airplane') {

          // update offsets
          if ( current_offset[0] <= -1. ) {
            // bumped into left end of screen
            direction_x = 1;
          } else if ( current_offset[0] >= 1. ) {
            // bumped into right end of screen
            direction_x = -1;
          }
          current_offset[0] += direction_x*step_x;

          if ( current_offset[1] <= -1. ) {
            // bumped into left end of screen
            direction_y = 1;
          } else if ( current_offset[1] >= 1. ) {
            // bumped into right end of screen
            direction_y = -1;
          }
          current_offset[1] += direction_y*step_y;


          // get the bounding box of this airplane
          var bbox_plane = calculateBoundingBox( current_vertices, current_offset);


        } else if (current_objecttype == 'obstacle') {


          //
          // Bonus Part 1!
          //


          // collision detection using the bounding box of this airplane
          if (detectCollision(bbox_plane, current_offset)) {

            document.getElementById('scoreboard').innerHTML += ' AND...GAME OVER!'

            return;

          }


        }


        //************************************************************//
        //
        // CONNECT SHADER WITH GEOMETRY
        //

        gl.bindBuffer( gl.ARRAY_BUFFER, current_v_buffer );

        // gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, current_i_buffer );

        // find the attribute in the shader source
        var a_position = gl.getAttribLocation( shaderprogram, 'a_position' );

        gl.vertexAttribPointer( a_position, 3, gl.FLOAT, false, 0, 0 );

        gl.enableVertexAttribArray ( a_position );

        // find the uniform in the shader source
        var u_offset = gl.getUniformLocation( shaderprogram, 'u_offset' );

        gl.uniform3fv( u_offset, current_offset)

        var u_color = gl.getUniformLocation( shaderprogram, 'u_color' );

        gl.uniform4fv( u_color, new Float32Array(current_color) );

        //************************************************************//
        //
        // DRAW!
        //

        //
        // Bonus Part 3!
        //
        gl.drawArrays( current_drawtype, 0, current_v_count/3, 0 );

      }


      requestAnimationFrame(animate);

    };

  </script>
  <body>
    <canvas id="c"></canvas>
    <div id="scoreboard">0</div>
  </body>
</html>
c = document.getElementById( 'c' ); // setup canvas
c.width = window.innerWidth;
c.height = window.innerHeight;

gl = c.getContext( 'webgl' ); // setup GL context
gl.viewport(0, 0, c.width, c.height );

GPU

Vertex Shader

Fragment Shader

Viewport

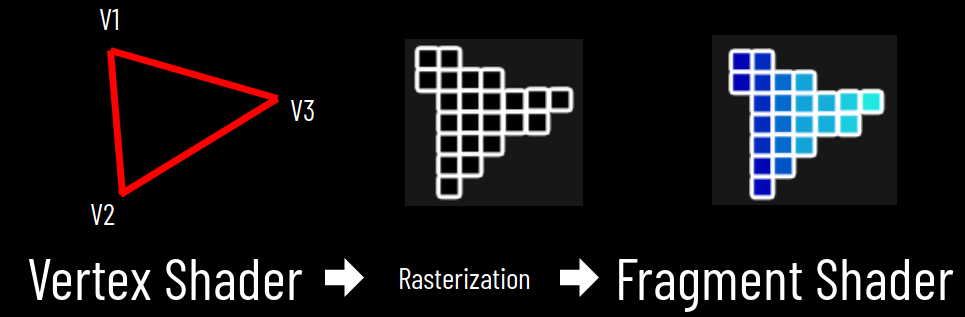

The Rendering Pipeline

Rasterization

Fragment Shader

Vertex Shader

gl_Position

gl_FragColor

for every vertex

for every pixel

gl_PointSize

XTK

X.renderer3D

X.cube

Three.js

THREE.WebGLRenderer

THREE.Scene

THREE.TrackballControls

THREE.PerspectiveCamera

THREE.AmbientLight

THREE.DirectionalLight

WebGL

gl.viewport

gl.createShader

gl.shaderSource

gl.compileShader

gl.getShaderInfoLog

gl.createProgram

gl.attachShader

gl.linkProgram

gl.useProgram

gl.createBuffer

gl.bindBuffer

gl.BufferData

gl.getAttribLocation

gl.vertexAttribPointer

gl.enableVertexAttribArray

gl.clearColor

gl.clear

gl.drawArrays



THREE.Geometry

THREE.Material

THREE.Mesh

1. Initialize WebGL

2. Shaders

3. Create Geometry

4. Connect Shader with Geometry

5. Draw!

setup Canvas

setup GL Context

compile vertex shader

compile fragment shader

attach and link shaders

create vertices

create and bind buffer

put data in

unbind buffer

bind buffer

find vertex attribute in shader source

configure vertex attribute

enable vertex attribute array

clear viewport

clear color buffer

draw vertex arrays

V0

V1

V2

V3

V4

V5

      vertices = new Float32Array( [
                                     -0.5,  0.5, 0.0, // V0
                                     -0.5, -0.5, 0.0, // V1
                                      0.5,  0.5, 0.0, // V2

                                      0.5,  0.5, 0.0, // V3
                                     -0.5, -0.5, 0.0, // V4
                                      0.5, -0.5, 0.0  // V5
                                    ] );

gl.TRIANGLES

V0

V1

V2

V3

V4

V5

      vertices = new Float32Array( [
                                     -0.5,  0.5, 0.0, // V0

                                     -0.5, -0.5, 0.0, // V1

                                      0.5,  0.5, 0.0, // V2

                                      0.5,  0.5, 0.0, // V3

                                     -0.5, -0.5, 0.0, // V4

                                      0.5, -0.5, 0.0  // V5
                                    ] );

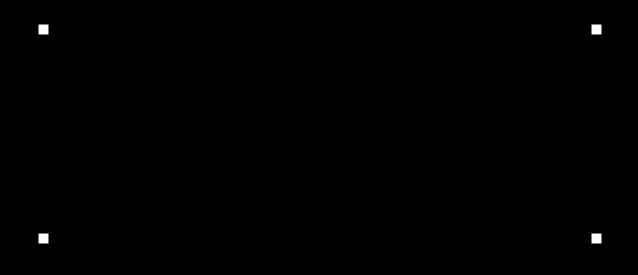

gl.POINTS

gl_PointSize = 10.;

V0

V1

V2

V3

V4

V5

      vertices = new Float32Array( [
                                     -0.5,  0.5, 0.0, // V0
                                     -0.5, -0.5, 0.0, // V1

                                      0.5,  0.5, 0.0, // V2
                                      0.5,  0.5, 0.0, // V3

                                     -0.5, -0.5, 0.0, // V4
                                      0.5, -0.5, 0.0  // V5
                                    ] );

gl.LINES

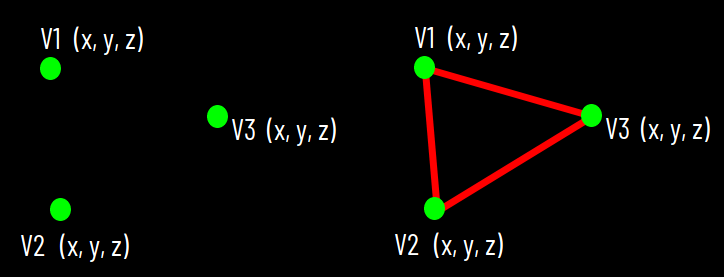

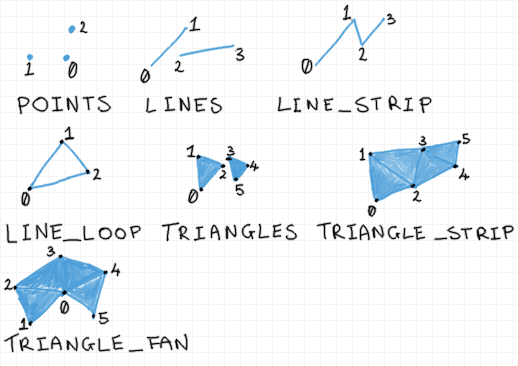

Rendering Primitives

V0

V1

V2

V3

V4

V5

      vertices = new Float32Array( [
                                     -0.5,  0.5, 0.0, // V0
                                     -0.5, -0.5, 0.0, // V1
                                      0.5,  0.5, 0.0, // V2

                                      0.5,  0.5, 0.0, // V3
                                     -0.5, -0.5, 0.0, // V4
                                      0.5, -0.5, 0.0  // V5
                                    ] );

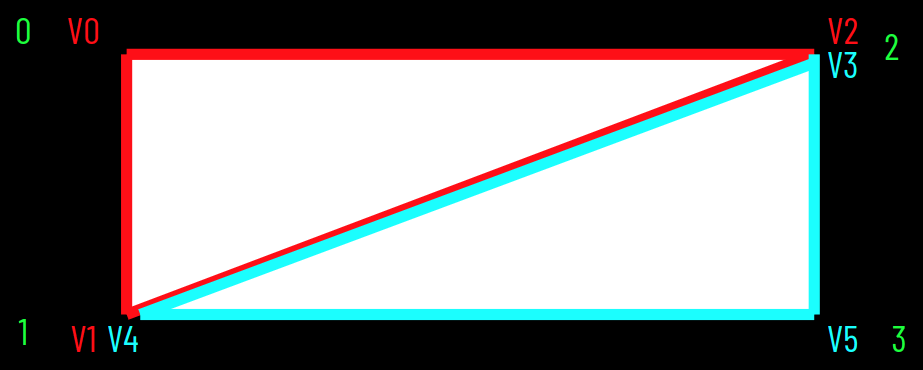

      vertices = new Float32Array( [
                                     -0.5,  0.5, 0.0, // V0
                                     -0.5, -0.5, 0.0, // V1, V4
                                      0.5,  0.5, 0.0, // V2, V3
                                      0.5, -0.5, 0.0  // V5
                                    ] );

V0

V1

V2

V3

V4

V5

      vertices = new Float32Array( [
                                     -0.5,  0.5, 0.0, // V0      // 0
                                     -0.5, -0.5, 0.0, // V1, V4  // 1
                                      0.5,  0.5, 0.0, // V2, V3  // 2
                                      0.5, -0.5, 0.0  // V5      // 3
                                    ] );
var indices = new Uint8Array( [ 0, 1, 2,     // Triangle 1
                                2, 1, 3 ] ); // Triangle 2

0

1

2

3

Indexed Geometry

Uniforms

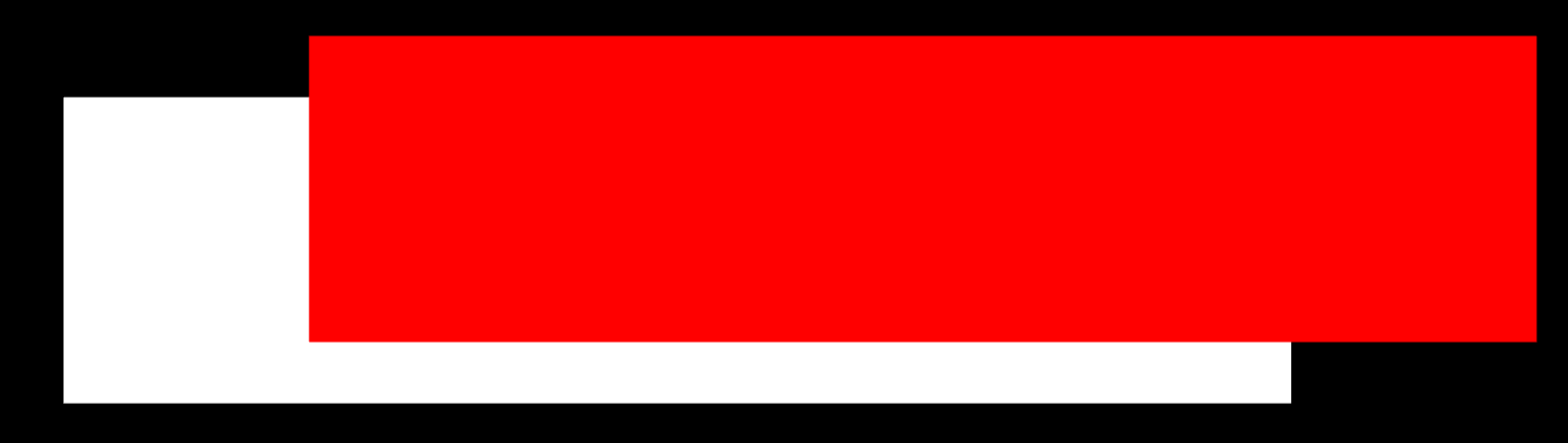

createRectangle()

Rendering Loop

And, they move!

Fragment Shader

Vertex Shader

attribute vec3 position;

different data for each vertex

uniform vec3 offset;

different data for each gl.drawArray or gl.drawElements call

uniform vec4 color;

Shaderprogram

1. Initialize WebGL

2. Shaders

3. Create Geometry

4. Connect Shader with Geometry

5. Draw!

1 Frame

multiple Frames

animate()

1. Initialize WebGL

2. Shaders

3. Create Geometry

4. Connect Shader with Geometry

5. Draw!

1 Frame

multiple Frames

animate()

1 Rectangle

multiple Rectangles

createRectangle()

createRectangle()

And, they move!

1. Initialize WebGL

2. Shaders

3. Create Geometry

4. Connect Shader with Geometry

5. Draw!

1 Frame

multiple Frames

animate()

1 Rectangle

multiple Rectangles

createRectangle()

createRectangle()

change Offsets!

<html>
  <head>
    <meta content="text/html;charset=utf-8" http-equiv="Content-Type">
    <meta content="utf-8" http-equiv="encoding">
    <title>Vanilla WebGL!</title>
    <style>
      html, body {
        background-color:#000;
        margin: 0;
        padding: 0;
        height: 100%;
        overflow: hidden !important;
      }

      #c {
        width: 100%;
        height: 100%;
      }
    </style>
  </head>
  <script type="text/javascript" src="https://cs460.org/js/glmatrix.js"></script>

  <script id="vertexshader" type="glsl">
    attribute vec3 position;

    uniform vec3 offset;

    void main(void) {

      vec3 final_position = position;
      final_position.x += offset.x;
      final_position.y += offset.y;
      final_position.z += offset.z;

      gl_Position = vec4( final_position, 1.);
      gl_PointSize = 10.;

    }
  </script>

  <script id="fragmentshader" type="glsl">
    precision mediump float;

    uniform vec4 color;

    void main(void) {

      gl_FragColor = color; //vec4(1., 1., 1., 1.);

    }
  </script>

  <script>

    // VARIABLE DECLARATIONS
    var c, gl;
    var v_shader, f_shader, shaderprogram;
    var vertices, v_buffer, indices, i_buffer;

    window.onload = function() {


      //************************************************************//
      //
      // INITIALIZE WEBGL
      //
      c = document.getElementById( 'c' );
      c.width = window.innerWidth;
      c.height = window.innerHeight;

      gl = c.getContext( 'webgl' );
      gl.viewport(0, 0, c.width, c.height);


      //************************************************************//
      //
      // SHADERS
      //
      v_shader = gl.createShader( gl.VERTEX_SHADER );

      f_shader = gl.createShader( gl.FRAGMENT_SHADER );

      // compile vertex shader
      gl.shaderSource( v_shader, document.getElementById( 'vertexshader' ).innerText );
      gl.compileShader( v_shader );

      if (!gl.getShaderParameter( v_shader, gl.COMPILE_STATUS )) {
        console.log(gl.getShaderInfoLog( v_shader ));
      }

      // compile fragment shader
      gl.shaderSource( f_shader, document.getElementById( 'fragmentshader' ).innerText );
      gl.compileShader( f_shader );

      if (!gl.getShaderParameter( f_shader, gl.COMPILE_STATUS )) {
        console.log(gl.getShaderInfoLog( f_shader ));
      }

      // attach and link the shaders
      shaderprogram = gl.createProgram();
      gl.attachShader( shaderprogram, v_shader );
      gl.attachShader( shaderprogram, f_shader );

      gl.linkProgram( shaderprogram );

      gl.useProgram( shaderprogram );






      //************************************************************//
      //
      // CREATE GEOMETRY
      //
      vertices = new Float32Array( [
                                     -0.5,  0.5, 0.0, // V0.     // 0
                                     -0.5, -0.5, 0.0, // V1, V4. // 1
                                      0.5,  0.5, 0.0, // V2, V3. // 2
                                      0.5, -0.5, 0.0  // V5.     // 3
                                    ] );

      indices = new Uint8Array( [
                                0, 1, 2, 2, 1, 3
                                ] );

      v_buffer = gl.createBuffer(); // create
      gl.bindBuffer( gl.ARRAY_BUFFER, v_buffer ); // bind
      gl.bufferData( gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW ); // put data in
      gl.bindBuffer( gl.ARRAY_BUFFER, null ); // unbind

      i_buffer = gl.createBuffer(); // create
      gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, i_buffer ); // bind
      gl.bufferData( gl.ELEMENT_ARRAY_BUFFER, indices, gl.STATIC_DRAW ); // put data in
      gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, null ); // unbind



      //************************************************************//
      //
      // CONNECT SHADER WITH GEOMETRY
      //

      gl.bindBuffer( gl.ARRAY_BUFFER, v_buffer );

      gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, i_buffer );

      var a_position = gl.getAttribLocation( shaderprogram, 'position' );

      gl.vertexAttribPointer( a_position, 3, gl.FLOAT, false, 0, 0 );

      gl.enableVertexAttribArray( a_position );


      var u_color = gl.getUniformLocation( shaderprogram, 'color' );

      gl.uniform4fv( u_color, new Float32Array( [1., 1., 0., 1.] ) );

      var u_offset = gl.getUniformLocation( shaderprogram, 'offset' );

      gl.uniform3fv( u_offset, new Float32Array( [-.2, -.2, 0 ] ) );

      //************************************************************//
      //
      // DRAW!
      //

      gl.clearColor( 0., 0., 0., 0. );
      gl.clear( gl.COLOR_BUFFER_BIT );

      // gl.drawArrays( gl.LINE_LOOP, 0, 6);
      gl.drawElements( gl.TRIANGLES, 6, gl.UNSIGNED_BYTE, 0);


    };

  </script>
  <body>
    <canvas id="c"></canvas>
  </body>
</html>

Lecture 11

By Daniel Haehn

Lecture 11

Slides for CS460 Computer Graphics at UMass Boston. See https://cs460.org!

  • 158

More from Daniel Haehn
