CS460 Computer Graphics - University of Massachusetts Boston

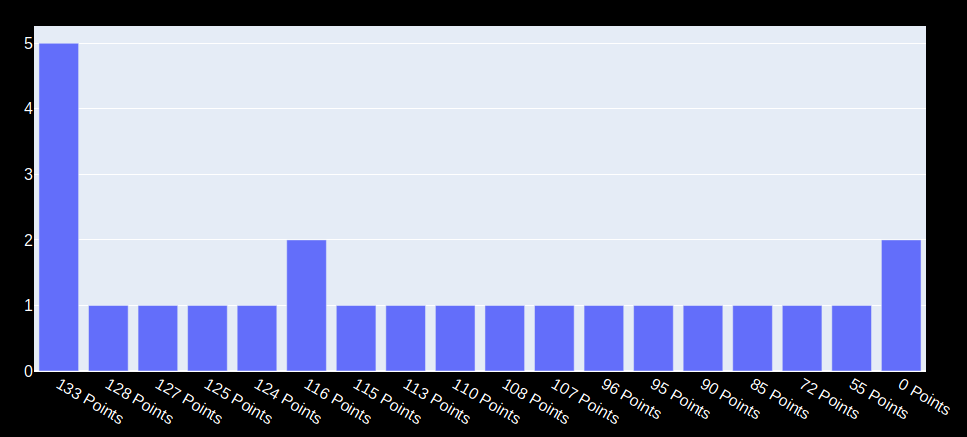

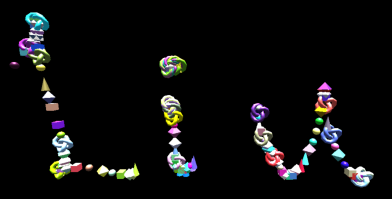

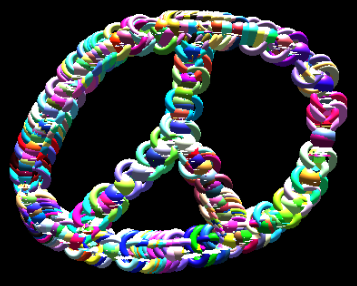

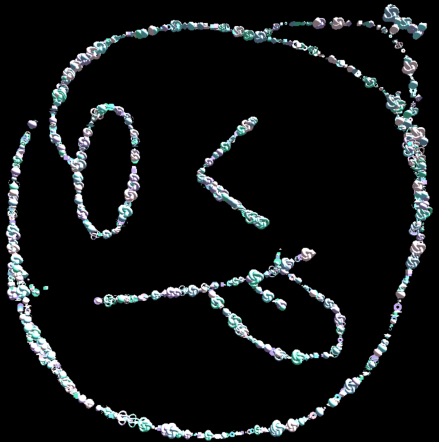

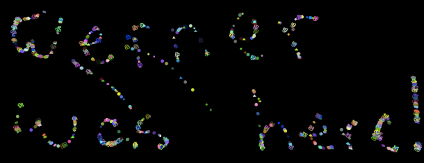

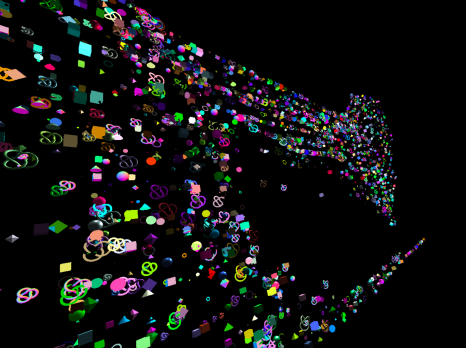

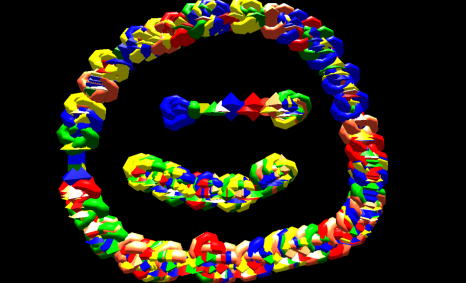

Assignment 3

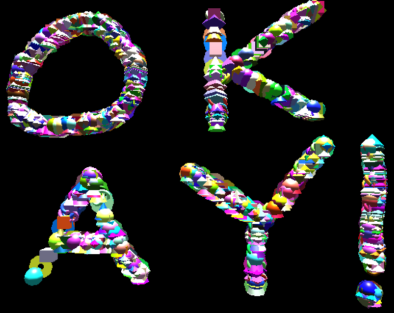

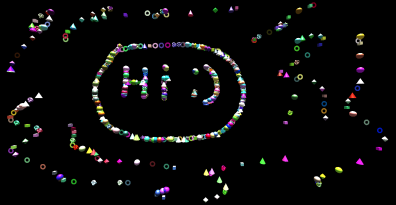

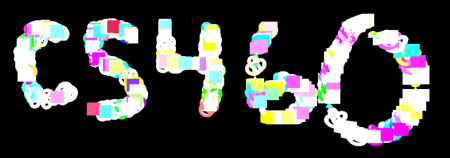

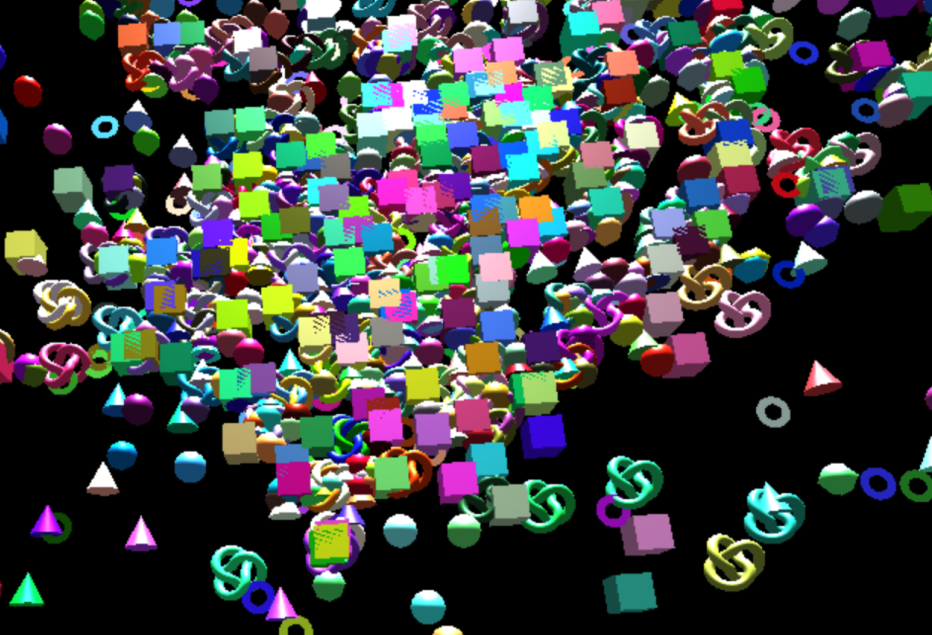

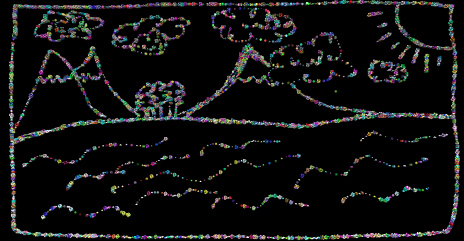

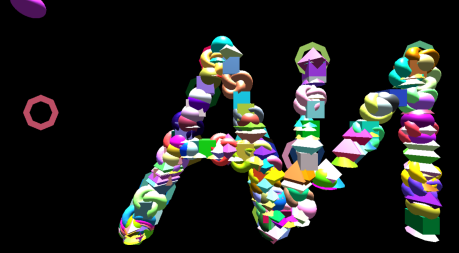

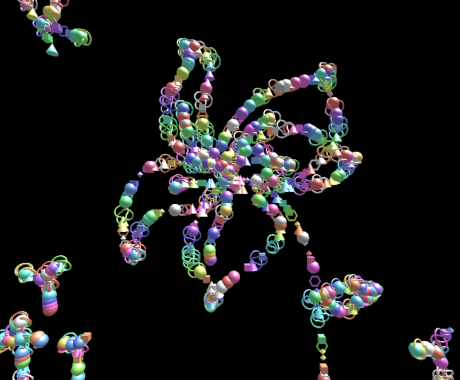

A

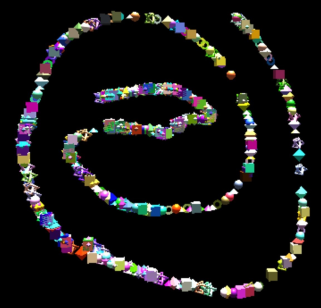

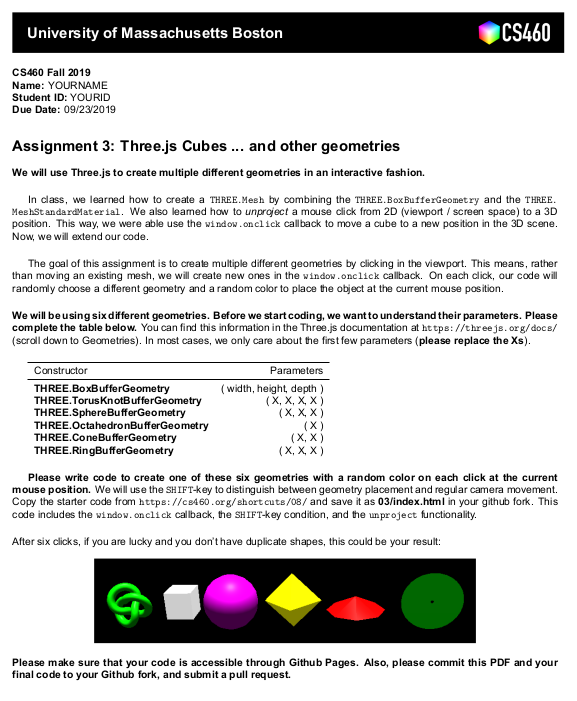

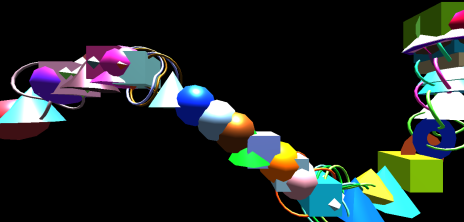

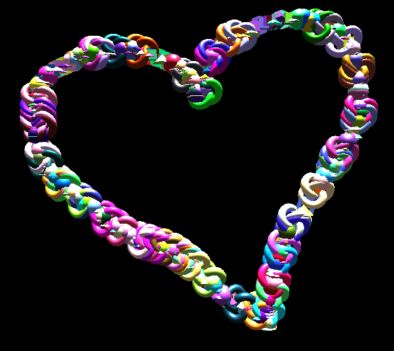

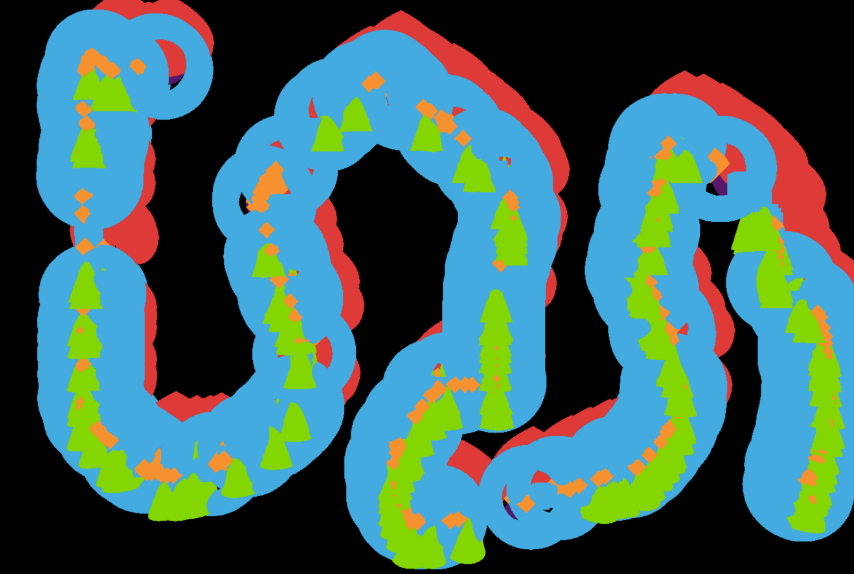

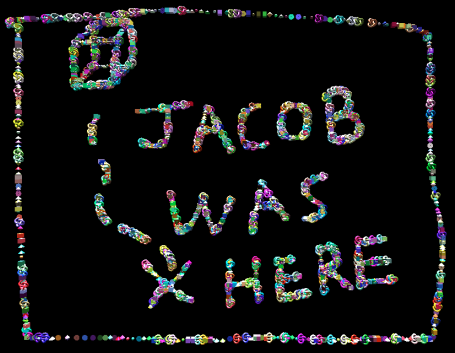

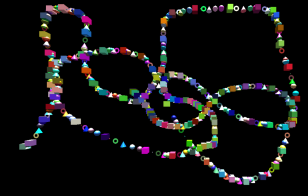

Assignment 3

My quick'n'dirty solution: https://cs460.org/shortcuts/15/

FREE

Assignment 4

10/02/2019!

Quiz 4 Due Today!!

``````<html>
<meta content="text/html;charset=utf-8" http-equiv="Content-Type">
<meta content="utf-8" http-equiv="encoding">
<title>Vanilla WebGL!</title>
<style>
html, body {
background-color:#000;
margin: 0;
height: 100%;
overflow: hidden !important;
background-image: url(https://cs460.org/gfx/bg.gif);
background-repeat: no-repeat;
background-size: 100% 100%;
}

#c {
width: 100%;
height: 100%;
}

#scoreboard {
position: absolute;
top: 10px;
right: 10px;
};
</style>
<script type="text/javascript" src="https://cs460.org/js/glmatrix.js"></script>

attribute vec3 a_position;

uniform vec3 u_offset;

void main(void) {

vec3 final_position = a_position;
final_position.x += u_offset.x;
final_position.y += u_offset.y;
final_position.z += u_offset.z;

gl_Position = vec4( final_position, 1.);

}
</script>

precision mediump float;

uniform vec4 u_color;

void main(void) {

gl_FragColor = u_color;

}
</script>

<script>

var c, gl;
var vertices, indices, v_buffer, i_buffer;

var step_x = 0.0;
var step_y = 0.0;
var obstacle_factor = 3; // Hint for the bonus!
var direction_y = 0;
var direction_x = 0;

//************************************************************//
//
// INITIALIZE WEBGL
//
c = document.getElementById( 'c' ); // setup canvas
c.width = window.innerWidth;
c.height = window.innerHeight;

gl = c.getContext( 'webgl' ); // setup GL context
gl.viewport(0, 0, c.width, c.height );

//************************************************************//
//
//

}

}

// create multiple objects
objects = [];
objects.push( createAirplane());
objects.push( createObstacle());
objects.push( createObstacle());
objects.push( createObstacle());
objects.push( createObstacle());
objects.push( createObstacle());
objects.push( createObstacle());
objects.push( createObstacle());
objects.push( createObstacle());
objects.push( createObstacle());

animate();

};

function createAirplane() {

//
// Part 1 Starts
//
var vertices;

var v_buffer;

//
// Part 1 Ends
//

var offset = [0.,0.,0.];
var color = [0.,0.,0.,1.];

//
// Bonus Part 3!
//
return ['airplane', v_buffer, vertices, offset, color, gl.TRIANGLES];

}

function createObstacle() {

var vertices = new Float32Array( [ 0.0, 0.0, 0.0 ]);

var v_buffer = gl.createBuffer(); // create
gl.bindBuffer( gl.ARRAY_BUFFER, v_buffer ); // bind
gl.bufferData( gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW ); // put data in
gl.bindBuffer( gl.ARRAY_BUFFER, null ); // unbind

//
// Part 2 Starts
//
var offset = [0., 0., 0.];

//
// Part 2 Ends
//

var color = [Math.random(),Math.random(),Math.random(),1.];

return ['obstacle', v_buffer, vertices, offset, color, gl.POINTS];

}

//
// Part 3 Starts (no coding required, just explanations in PDF)
//
function calculateBoundingBox(vertices, offset) {

var minx = 1000;
var maxx = -1000;
var miny = 1000;
var maxy = -1000;
var minz = 1000;
var maxz = -1000;

for (var v=0; v<vertices.length; v+=3) {

var currentx = vertices[v] + offset[0];
var currenty = vertices[v+1] + offset[1];
var currentz = vertices[v+2] + offset[2];

minx = Math.min( minx, currentx );
miny = Math.min( miny, currenty );
minz = Math.min( minz, currentz );

maxx = Math.max( maxx, currentx );
maxy = Math.max( maxy, currenty );
maxz = Math.max( maxz, currentz );

}

return [minx, maxx, miny, maxy, minz, maxz];

}

function detectCollision(bbox, point) {

var collision = false;

if (point[0] >= bbox[0] && point[0] <= bbox[1]) {
if (point[1] >= bbox[2] && point[1] <= bbox[3]) {
if (point[2] >= bbox[4] && point[2] <= bbox[5]) {

collision = true;

}
}
}

return collision;

}
//
// Part 3 Ends
//

//
// Part 4 Starts
//
window.onkeyup = function(e) {

if ( e.keyCode == 38 ) {
// player pressed up

} else if (e.keyCode == 40 ) {
// player pressed down

} else if (e.keyCode == 37 ) {
// player pressed left

} else if (e.keyCode == 39 ) {
// player pressed right

}

};
//
// Part 4 Ends
//

var framecounter = 0;

function animate() {

framecounter += 1;

if (framecounter > 150) {

// roughly every five seconds with 30 FPS

// update score
document.getElementById('scoreboard').innerHTML = parseInt(document.getElementById('scoreboard').innerHTML) + 100;

//
// Bonus Part 2!
//

framecounter = 0;

}

gl.clearColor( 0., 0., 0., 0.)
gl.clear( gl.COLOR_BUFFER_BIT );

for( var o = 0; o < objects.length; o++ ) {

var current_objecttype = objects[o][0];
var current_v_buffer = objects[o][1];
var current_vertices = objects[o][2];
var current_offset = objects[o][3];
var current_color = objects[o][4];
var current_drawtype = objects[o][5];

var current_v_count = current_vertices.length;

if (current_objecttype == 'airplane') {

// update offsets
if ( current_offset[0] <= -1. ) {
// bumped into left end of screen
direction_x = 1;
} else if ( current_offset[0] >= 1. ) {
// bumped into right end of screen
direction_x = -1;
}
current_offset[0] += direction_x*step_x;

if ( current_offset[1] <= -1. ) {
// bumped into left end of screen
direction_y = 1;
} else if ( current_offset[1] >= 1. ) {
// bumped into right end of screen
direction_y = -1;
}
current_offset[1] += direction_y*step_y;

// get the bounding box of this airplane
var bbox_plane = calculateBoundingBox( current_vertices, current_offset);

} else if (current_objecttype == 'obstacle') {

//
// Bonus Part 1!
//

// collision detection using the bounding box of this airplane
if (detectCollision(bbox_plane, current_offset)) {

document.getElementById('scoreboard').innerHTML += ' AND...GAME OVER!'

return;

}

}

//************************************************************//
//
//

gl.bindBuffer( gl.ARRAY_BUFFER, current_v_buffer );

// gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, current_i_buffer );

// find the attribute in the shader source
var a_position = gl.getAttribLocation( shaderprogram, 'a_position' );

gl.vertexAttribPointer( a_position, 3, gl.FLOAT, false, 0, 0 );

gl.enableVertexAttribArray ( a_position );

// find the uniform in the shader source
var u_offset = gl.getUniformLocation( shaderprogram, 'u_offset' );

gl.uniform3fv( u_offset, current_offset)

var u_color = gl.getUniformLocation( shaderprogram, 'u_color' );

gl.uniform4fv( u_color, new Float32Array(current_color) );

//************************************************************//
//
// DRAW!
//

//
// Bonus Part 3!
//
gl.drawArrays( current_drawtype, 0, current_v_count/3, 0 );

}

requestAnimationFrame(animate);

};

</script>
<body>
<canvas id="c"></canvas>
<div id="scoreboard">0</div>
</body>
</html>
``````
``````c = document.getElementById( 'c' ); // setup canvas
c.width = window.innerWidth;
c.height = window.innerHeight;

gl = c.getContext( 'webgl' ); // setup GL context
gl.viewport(0, 0, c.width, c.height );``````

GPU

Viewport

The Rendering Pipeline

Rasterization

gl_Position

gl_FragColor

for every vertex

for every pixel

gl_PointSize

XTK

X.renderer3D

X.cube

Three.js

THREE.WebGLRenderer

THREE.Scene

THREE.TrackballControls

THREE.PerspectiveCamera

THREE.AmbientLight

THREE.DirectionalLight

WebGL

gl.viewport

gl.createProgram

gl.useProgram

gl.createBuffer

gl.bindBuffer

gl.BufferData

gl.getAttribLocation

gl.vertexAttribPointer

gl.enableVertexAttribArray

gl.clearColor

gl.clear

gl.drawArrays

THREE.Geometry

THREE.Material

THREE.Mesh

1. Initialize WebGL

3. Create Geometry

5. Draw!

setup Canvas

setup GL Context

create vertices

create and bind buffer

put data in

unbind buffer

bind buffer

find vertex attribute in shader source

configure vertex attribute

enable vertex attribute array

clear viewport

clear color buffer

draw vertex arrays

V0

V1

V2

V3

V4

V5

``````      vertices = new Float32Array( [
-0.5,  0.5, 0.0, // V0
-0.5, -0.5, 0.0, // V1
0.5,  0.5, 0.0, // V2

0.5,  0.5, 0.0, // V3
-0.5, -0.5, 0.0, // V4
0.5, -0.5, 0.0  // V5
] );``````

gl.TRIANGLES

V0

V1

V2

V3

V4

V5

``````      vertices = new Float32Array( [
-0.5,  0.5, 0.0, // V0

-0.5, -0.5, 0.0, // V1

0.5,  0.5, 0.0, // V2

0.5,  0.5, 0.0, // V3

-0.5, -0.5, 0.0, // V4

0.5, -0.5, 0.0  // V5
] );``````

gl.POINTS

gl_PointSize = 10.;

V0

V1

V2

V3

V4

V5

``````      vertices = new Float32Array( [
-0.5,  0.5, 0.0, // V0
-0.5, -0.5, 0.0, // V1

0.5,  0.5, 0.0, // V2
0.5,  0.5, 0.0, // V3

-0.5, -0.5, 0.0, // V4
0.5, -0.5, 0.0  // V5
] );``````

gl.LINES

Rendering Primitives

V0

V1

V2

V3

V4

V5

``````      vertices = new Float32Array( [
-0.5,  0.5, 0.0, // V0
-0.5, -0.5, 0.0, // V1
0.5,  0.5, 0.0, // V2

0.5,  0.5, 0.0, // V3
-0.5, -0.5, 0.0, // V4
0.5, -0.5, 0.0  // V5
] );``````
``````      vertices = new Float32Array( [
-0.5,  0.5, 0.0, // V0
-0.5, -0.5, 0.0, // V1, V4
0.5,  0.5, 0.0, // V2, V3
0.5, -0.5, 0.0  // V5
] );``````

V0

V1

V2

V3

V4

V5

``````      vertices = new Float32Array( [
-0.5,  0.5, 0.0, // V0      // 0
-0.5, -0.5, 0.0, // V1, V4  // 1
0.5,  0.5, 0.0, // V2, V3  // 2
0.5, -0.5, 0.0  // V5      // 3
] );``````
``````var indices = new Uint8Array( [ 0, 1, 2,     // Triangle 1
2, 1, 3 ] ); // Triangle 2``````

0

1

2

3

Indexed Geometry

Uniforms

createRectangle()

Rendering Loop

And, they move!

attribute vec3 position;

different data for each vertex

uniform vec3 offset;

different data for each gl.drawArray or gl.drawElements call

uniform vec4 color;

1. Initialize WebGL

3. Create Geometry

5. Draw!

1 Frame

multiple Frames

animate()

1. Initialize WebGL

3. Create Geometry

5. Draw!

1 Frame

multiple Frames

animate()

1 Rectangle

multiple Rectangles

createRectangle()

createRectangle()

And, they move!

1. Initialize WebGL

3. Create Geometry

5. Draw!

1 Frame

multiple Frames

animate()

1 Rectangle

multiple Rectangles

createRectangle()

createRectangle()

change Offsets!

``````<html>
<meta content="text/html;charset=utf-8" http-equiv="Content-Type">
<meta content="utf-8" http-equiv="encoding">
<title>Vanilla WebGL!</title>
<style>
html, body {
background-color:#000;
margin: 0;
height: 100%;
overflow: hidden !important;
}

#c {
width: 100%;
height: 100%;
}
</style>
<script type="text/javascript" src="https://cs460.org/js/glmatrix.js"></script>

attribute vec3 position;

uniform vec3 offset;

void main(void) {

vec3 final_position = position;
final_position.x += offset.x;
final_position.y += offset.y;
final_position.z += offset.z;

gl_Position = vec4( final_position, 1.);
gl_PointSize = 10.;

}
</script>

precision mediump float;

uniform vec4 color;

void main(void) {

gl_FragColor = color; //vec4(1., 1., 1., 1.);

}
</script>

<script>

// VARIABLE DECLARATIONS
var c, gl;
var vertices, v_buffer, indices, i_buffer;

//************************************************************//
//
// INITIALIZE WEBGL
//
c = document.getElementById( 'c' );
c.width = window.innerWidth;
c.height = window.innerHeight;

gl = c.getContext( 'webgl' );
gl.viewport(0, 0, c.width, c.height);

//************************************************************//
//
//

}

}

//************************************************************//
//
// CREATE GEOMETRY
//
vertices = new Float32Array( [
-0.5,  0.5, 0.0, // V0.     // 0
-0.5, -0.5, 0.0, // V1, V4. // 1
0.5,  0.5, 0.0, // V2, V3. // 2
0.5, -0.5, 0.0  // V5.     // 3
] );

indices = new Uint8Array( [
0, 1, 2, 2, 1, 3
] );

v_buffer = gl.createBuffer(); // create
gl.bindBuffer( gl.ARRAY_BUFFER, v_buffer ); // bind
gl.bufferData( gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW ); // put data in
gl.bindBuffer( gl.ARRAY_BUFFER, null ); // unbind

i_buffer = gl.createBuffer(); // create
gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, i_buffer ); // bind
gl.bufferData( gl.ELEMENT_ARRAY_BUFFER, indices, gl.STATIC_DRAW ); // put data in
gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, null ); // unbind

//************************************************************//
//
//

gl.bindBuffer( gl.ARRAY_BUFFER, v_buffer );

gl.bindBuffer( gl.ELEMENT_ARRAY_BUFFER, i_buffer );

var a_position = gl.getAttribLocation( shaderprogram, 'position' );

gl.vertexAttribPointer( a_position, 3, gl.FLOAT, false, 0, 0 );

gl.enableVertexAttribArray( a_position );

var u_color = gl.getUniformLocation( shaderprogram, 'color' );

gl.uniform4fv( u_color, new Float32Array( [1., 1., 0., 1.] ) );

var u_offset = gl.getUniformLocation( shaderprogram, 'offset' );

gl.uniform3fv( u_offset, new Float32Array( [-.2, -.2, 0 ] ) );

//************************************************************//
//
// DRAW!
//

gl.clearColor( 0., 0., 0., 0. );
gl.clear( gl.COLOR_BUFFER_BIT );

// gl.drawArrays( gl.LINE_LOOP, 0, 6);
gl.drawElements( gl.TRIANGLES, 6, gl.UNSIGNED_BYTE, 0);

};

</script>
<body>
<canvas id="c"></canvas>
</body>
</html>
``````

By Daniel Haehn

Lecture 11

Slides for CS460 Computer Graphics at UMass Boston. See https://cs460.org!

• 528
