Transformations

Translate

Rotate

Scale

Matrix

r   r   r   t_x

r   r   r   t_y

r   r   r   t_z

 0   0   0     1

x, y, z

x, y, z

new

var m = new Float32Array( [
  r, r, r, 0,
  r, r, r, 0,
  r, r, r, 0,
  t_x, t_y, t_z, 1
]);

column-major ordering!

theta = Math.PI / 4;

current_transform = new Float32Array([
  Math.cos(theta), -Math.sin(theta), 0, 0,
  Math.sin(theta), Math.cos(theta), 0, 0,
  0, 0, 1, 0,
  current_offset[0], current_offset[1], 0., 1.
]);

gl.uniformMatrix4fv(u_transform, false, current_transform);
<script id="vertexshader" type="glsl">
    attribute vec3 a_position;

    uniform mat4 u_transform;


    void main(void) {

      vec4 final_position = u_transform * vec4( a_position, 1. );

      gl_Position = final_position;

    }
</script>

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

2, 2, 2

?

with T = Pi/2

 = 90°

X

Y

Z

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

2, 2, 2

with T = Pi/2

 = 90°

-2, 2, 2

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

2, 2, 2

?

with T = Pi

 = 180°

X

Y

Z

90°

2,2,2

-2,2,2

-2,-2,2

180°

270°

2,-2,2

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

2, 2, 2

with T = Pi

 = 180°

-2, -2, 2

X

Y

Z

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

2, 2, 2

with T = Pi/2

 = 90°

-2, 2, 2

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

2, 2, 2

with T = Pi/2

0

0

1

2 Pi

Pi

Pi/2

1.5 Pi

90°

1

1

-2

2

2

-1

Frame of Reference

X

Y

Z

World Frame

Frame of Reference

X

Y

Z

Object Frame

Frame of Reference

X

Y

Z

Object Frame

Frame of Reference

X

Y

Z

Eye Frame

Camera

(Eye)

https://threejs.org/examples/misc_controls_transform.html

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

rotation around Z

Matrix

with angle T

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

rotation around Z

cos(T/2)

sin(T/2) * 0

sin(T/2) * 0

sin(T/2) * 1

Matrix

Quaternion

w

x

y

z

with angle T

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

rotation around Z

cos(T/2)

sin(T/2) * 0

sin(T/2) * 0

sin(T/2) * 1

Matrix

Quaternion

var m = new Float32Array( [
  Math.cos(T), Math.sin(T), 0, 0,
  -Math.sin(T), Math.cos(T), 0, 0,
  0, 0, 1, 0,
  0, 0, 0, 1
]);

var q = new Float32Array( [
  Math.cos(T/2),
  Math.sin(T/2)*0,
  Math.sin(T/2)*0,
  Math.sin(T/2)*1
]);

var q = new Float32Array( [
  Math.sin(T/2)*0,
  Math.sin(T/2)*0,
  Math.sin(T/2)*1,
  Math.cos(T/2)
]);

w

x

y

z

with angle T

    1          0        0          0

     0   cos(T)   -sin(T)   0

    0    sin(T)   cos(T)     0

    0          0       0           1

rotation around X

cos(T/2)

sin(T/2) * 1

sin(T/2) * 0

sin(T/2) * 0

Matrix

Quaternion

cos(T)         0       sin(T)    0

    0           1              0     0

-sin(T)    0       cos(T)     0

    0           0              0     1

rotation around Y

cos(T/2)

sin(T/2) * 0

sin(T/2) * 1

sin(T/2) * 0

Matrix

Quaternion

1   0   0   0

0   1   0   0

0   0   1   0

0   0   0   1

Identity

1

0

0

0

Matrix

Quaternion

w

x

y

z

-1

0

0

0

Quaternion

var q = new THREE.Quaternion( x, y, z, w );

https://threejs.org/docs/index.html#api/en/math/Quaternion

sin(T/2) * 0

sin(T/2) * 1

sin(T/2) * 0

cos(T/2)

rotate 180 degrees around Y:

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

2, 2, 2

with T = Pi/2

0

0

1

2 Pi

Pi

Pi/2

1.5 Pi

-1

-2, 2, 2

cos(T/2)

sin(T/2) * 0

sin(T/2) * 0

sin(T/2) * 1

Quaternion

w

x

y

z

~0.7

~0.7

0

0

Pi/2 / 2

~0.7

0

0

~0.7

0

2

2

2

w

x

y

z

*

Quaternion

?

~0.7

0

0

~0.7

0

2

2

2

*

~0.7

- 0

- 0

- ~0.7

Inverse

page 64, Gortler: 3D Computer Graphics

~0.7

0

0

~0.7

0

2

2

2

w

x

y

z

*

Quaternion

~0.7

0

0

~0.7

0

2

2

2

*

~0.7

- 0

- 0

- ~0.7

Inverse

page 64, Gortler: 3D Computer Graphics

  0

- 2

  2

  2

implement this in python and show that 0,-2,2,2 is the output!

cos(T)   -sin(T)   0   0

sin(T)   cos(T)   0    0

    0          0        1    0

    0          0       0     1

2, 2, 2

with T = Pi/2

0

0

1

2 Pi

Pi

Pi/2

1.5 Pi

-1

-2, 2, 2

cos(T/2)

sin(T/2) * 0

sin(T/2) * 0

sin(T/2) * 1

Quaternion

w

x

y

z

~0.7

~0.7

0

0

Rigid Body Transformation

Quaternion

Translation Vector

w

x

y

z

x

y

z

0

Rigid Body Transformation

Quaternion

Translation Vector

w

x

y

z

x

y

z

0

var q = new THREE.Quaternion( x, y, z, w );

https://threejs.org/docs/index.html#api/en/math/Quaternion

SLERP!

https://threejs.org/docs/index.html#api/en/math/Quaternion

 spherical linear interpolation

<html>
  <head>
    <style>
      html, body {
        background-color:#000;
        margin: 0;
        padding: 0;
        height: 100%;
        overflow: hidden !important;
      }
    </style>

    <script async src="https://unpkg.com/es-module-shims@1.6.3/dist/es-module-shims.js"></script>

    <script type="importmap">
    {
      "imports": {
        "three": "https://unpkg.com/three@latest/build/three.module.js",
        "three/addons/": "https://unpkg.com/three@latest/examples/jsm/"
      }
    }
    </script>

    <script type="module">

      import * as THREE from 'three';
      import { OrbitControls } from 'three/addons/controls/OrbitControls.js';

      var renderer, controls, scene, camera;

      window.ALL_TORUSES = [];

      window.onload = function() {

        window.THREE = THREE;

        // Three.js code goes here
        scene = new THREE.Scene();

        // setup the camera
        var fov = 75;
        var ratio = window.innerWidth / window.innerHeight;
        var zNear = 1;
        var zFar = 10000;
        camera = new THREE.PerspectiveCamera( fov, ratio, zNear, zFar );
        camera.position.set(0, 0, 100);

        // create renderer and setup the canvas
        renderer = new THREE.WebGLRenderer({ antialias: true });
        renderer.setSize( window.innerWidth, window.innerHeight );
        document.body.appendChild( renderer.domElement );

        var SCALEMODE = false;

        var LASTOBJECT = null;

        renderer.domElement.onmousedown = function(e) {

          if (e.shiftKey) {

            // turn off orbit controls
            controls.enabled = false;



            var pixel_coords = new THREE.Vector2(e.clientX, e.clientY);


            console.log('Pixel coords', pixel_coords);


            var vp_coords = new THREE.Vector2(

              ( pixel_coords.x / window.innerWidth ) * 2 - 1, // X

              -(pixel_coords.y / window.innerHeight) * 2 + 1 // Y


              );

            console.log('Viewport coords', vp_coords);

            var vp_coords_near = new THREE.Vector3( vp_coords.x, vp_coords.y, 0);

            console.log('Viewport coords zNear', vp_coords_near);


            //
            // RAYCASTER
            //

            var raycaster = new THREE.Raycaster();
            raycaster.setFromCamera( vp_coords_near, camera);

            // calculate intersection with objects
            var intersects = raycaster.intersectObject( invisible_plane );

            console.log('Ray to invisible plane', intersects[0].point);

            var p = intersects[0].point;


            var hotpink = 0xFF69B4;
            var babyblue = 0x89CFF0;

            var geometry_t = new THREE.TorusKnotGeometry( 10, 3, 100, 16 );
            var material_t = new THREE.MeshStandardMaterial( { color: 0xFF69B4 } );
            var torusKnot = new THREE.Mesh( geometry_t, material_t );
            torusKnot.position.set(p.x, p.y, p.z);
            scene.add( torusKnot );

            ALL_TORUSES.push(torusKnot);

            LASTOBJECT = torusKnot;

            SCALEMODE = true;

          }


        }

        renderer.domElement.onmouseup = function(e) {

          // turn orbit controls back on
          controls.enabled = true;

          SCALEMODE = false;

        }


        renderer.domElement.onmousemove = function(e) {


          if (SCALEMODE) {

            LASTOBJECT.scale.set(LASTOBJECT.scale.x + e.movementY,
                                 LASTOBJECT.scale.y + e.movementY,
                                 LASTOBJECT.scale.z + e.movementY )


          }

        }


        // setup lights
        var ambientLight = new THREE.AmbientLight();
        scene.add( ambientLight );

        var light = new THREE.DirectionalLight( 0xffffff, 5.0 );
        light.position.set( 10, 100, 10 );
        scene.add( light );

        // configure cube
        // var geometry = new THREE.BoxGeometry( 20, 20, 20 );
        // var material = new THREE.MeshStandardMaterial({ color: 0xffffff, wireframe: true });

        // var cube = new THREE.Mesh( geometry, material );

        // scene.add( cube );


        // invisible plane
        var geometry_ip = new THREE.PlaneGeometry( 10000, 10000 );
        var material_ip = new THREE.MeshBasicMaterial( {
          visible: false
        });

        var invisible_plane = new THREE.Mesh( geometry_ip, material_ip );

        scene.add( invisible_plane );
        // end invisible plane

        var geometry_t = new THREE.TorusKnotGeometry( 10, 3, 100, 16 );
        var material_t = new THREE.MeshStandardMaterial( { color: 0xffff00 } );
        var torusKnot = new THREE.Mesh( geometry_t, material_t );
        scene.add( torusKnot );


        // interaction
        controls = new OrbitControls( camera, renderer.domElement );

        // call animation/rendering loop
        animate();

      };

      function animate() {

        requestAnimationFrame( animate );

        // and here..
        controls.update();
        renderer.render( scene, camera );

      };

      window.onkeypress = function(e) {

        if (e.key == 'w') {

          for (var t in window.ALL_TORUSES) {

            t = ALL_TORUSES[t];
            t.material.wireframe = !t.material.wireframe;

          }

        }

      }
    </script>
  </head>
  <body></body>
</html>

https://cs460.org/shortcuts/04e/

we want to rotate 180 degrees around Y!

<html>
  <head>
    <style>
      html, body {
        background-color:#000;
        margin: 0;
        padding: 0;
        height: 100%;
        overflow: hidden !important;
      }
    </style>

    <script async src="https://unpkg.com/es-module-shims@1.6.3/dist/es-module-shims.js"></script>

    <script type="importmap">
    {
      "imports": {
        "three": "https://unpkg.com/three@latest/build/three.module.js",
        "three/addons/": "https://unpkg.com/three@latest/examples/jsm/"
      }
    }
    </script>

    <script type="module">

      import * as THREE from 'three';
      import { OrbitControls } from 'three/addons/controls/OrbitControls.js';

      var renderer, controls, scene, camera;

      window.ALL_TORUSES = [];

      window.onload = function() {

        window.THREE = THREE;

        // Three.js code goes here
        scene = new THREE.Scene();

        // setup the camera
        var fov = 75;
        var ratio = window.innerWidth / window.innerHeight;
        var zNear = 1;
        var zFar = 10000;
        camera = new THREE.PerspectiveCamera( fov, ratio, zNear, zFar );
        camera.position.set(0, 0, 100);

        // create renderer and setup the canvas
        renderer = new THREE.WebGLRenderer({ antialias: true });
        renderer.setSize( window.innerWidth, window.innerHeight );
        document.body.appendChild( renderer.domElement );

        var SCALEMODE = false;

        var LASTOBJECT = null;

        renderer.domElement.onmousedown = function(e) {

          if (e.shiftKey) {

            // turn off orbit controls
            controls.enabled = false;



            var pixel_coords = new THREE.Vector2(e.clientX, e.clientY);


            console.log('Pixel coords', pixel_coords);


            var vp_coords = new THREE.Vector2(

              ( pixel_coords.x / window.innerWidth ) * 2 - 1, // X

              -(pixel_coords.y / window.innerHeight) * 2 + 1 // Y


              );

            console.log('Viewport coords', vp_coords);

            var vp_coords_near = new THREE.Vector3( vp_coords.x, vp_coords.y, 0);

            console.log('Viewport coords zNear', vp_coords_near);


            //
            // RAYCASTER
            //

            var raycaster = new THREE.Raycaster();
            raycaster.setFromCamera( vp_coords_near, camera);

            // calculate intersection with objects
            var intersects = raycaster.intersectObject( invisible_plane );

            console.log('Ray to invisible plane', intersects[0].point);

            var p = intersects[0].point;


            var hotpink = 0xFF69B4;
            var babyblue = 0x89CFF0;

            var geometry_t = new THREE.TorusKnotGeometry( 10, 3, 100, 16 );
            var material_t = new THREE.MeshStandardMaterial( { color: 0xFF69B4 } );
            var torusKnot = new THREE.Mesh( geometry_t, material_t );
            torusKnot.position.set(p.x, p.y, p.z);
            scene.add( torusKnot );

            ALL_TORUSES.push(torusKnot);

            LASTOBJECT = torusKnot;

            SCALEMODE = true;

          }


        }

        renderer.domElement.onmouseup = function(e) {

          // turn orbit controls back on
          controls.enabled = true;

          SCALEMODE = false;

        }


        renderer.domElement.onmousemove = function(e) {


          if (SCALEMODE) {

            LASTOBJECT.scale.set(LASTOBJECT.scale.x + e.movementY,
                                 LASTOBJECT.scale.y + e.movementY,
                                 LASTOBJECT.scale.z + e.movementY )


          }

        }


        // setup lights
        var ambientLight = new THREE.AmbientLight();
        scene.add( ambientLight );

        var light = new THREE.DirectionalLight( 0xffffff, 5.0 );
        light.position.set( 10, 100, 10 );
        scene.add( light );

        // configure cube
        // var geometry = new THREE.BoxGeometry( 20, 20, 20 );
        // var material = new THREE.MeshStandardMaterial({ color: 0xffffff, wireframe: true });

        // var cube = new THREE.Mesh( geometry, material );

        // scene.add( cube );


        // invisible plane
        var geometry_ip = new THREE.PlaneGeometry( 10000, 10000 );
        var material_ip = new THREE.MeshBasicMaterial( {
          visible: false
        });

        var invisible_plane = new THREE.Mesh( geometry_ip, material_ip );

        scene.add( invisible_plane );
        // end invisible plane

        var geometry_t = new THREE.TorusKnotGeometry( 10, 3, 100, 16 );
        var material_t = new THREE.MeshStandardMaterial( { color: 0xffff00 } );
        var torusKnot = new THREE.Mesh( geometry_t, material_t );
        scene.add( torusKnot );


        // interaction
        controls = new OrbitControls( camera, renderer.domElement );

        // call animation/rendering loop
        animate();

      };

      function animate() {

        requestAnimationFrame( animate );

        for (var t in window.ALL_TORUSES) {

          t = ALL_TORUSES[t];

          var T = Math.PI;
          var q = new THREE.Quaternion( 0, Math.sin( T / 2),0, Math.cos( T / 2) );

          t.quaternion.slerp( q, 0.01 );

        }

        // and here..
        controls.update();
        renderer.render( scene, camera );

      };

      window.onkeypress = function(e) {

        if (e.key == 'w') {

          for (var t in window.ALL_TORUSES) {

            t = ALL_TORUSES[t];
            t.material.wireframe = !t.material.wireframe;

          }

        }

      }
    </script>
  </head>
  <body></body>
</html>

https://cs460.org/shortcuts/04f/

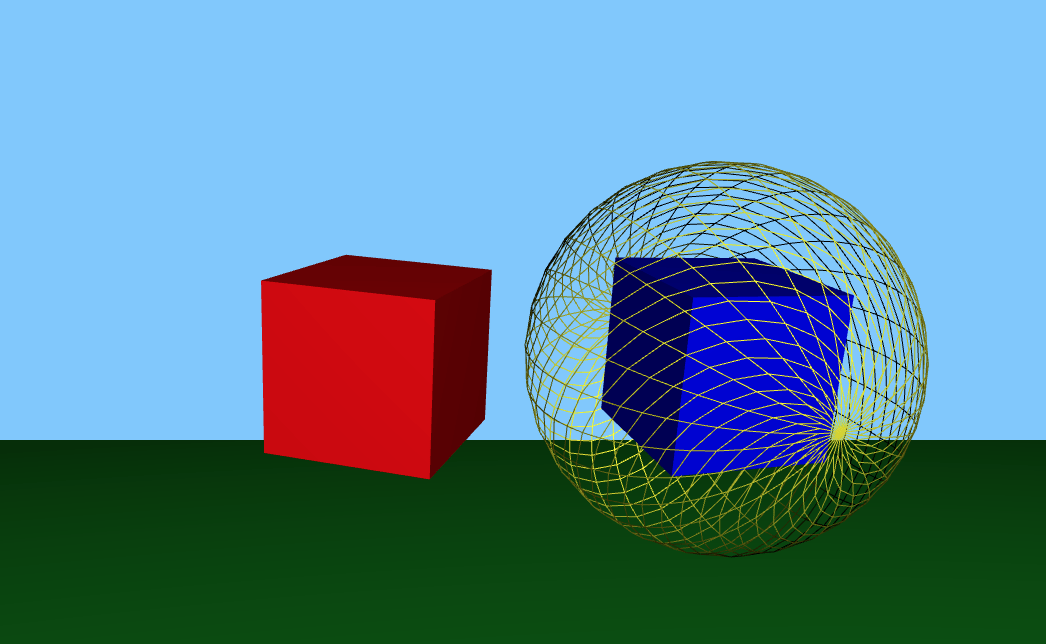

Arcball

Trackball

Controls

OrbitControls

http://3dvision.princeton.edu/courses/COS598/2014sp/slides/lecture15_webgl/WebGLPresentation.pdf

Natural Feeling

Spins twice as fast

Completely path independent

Arcball

Trackball

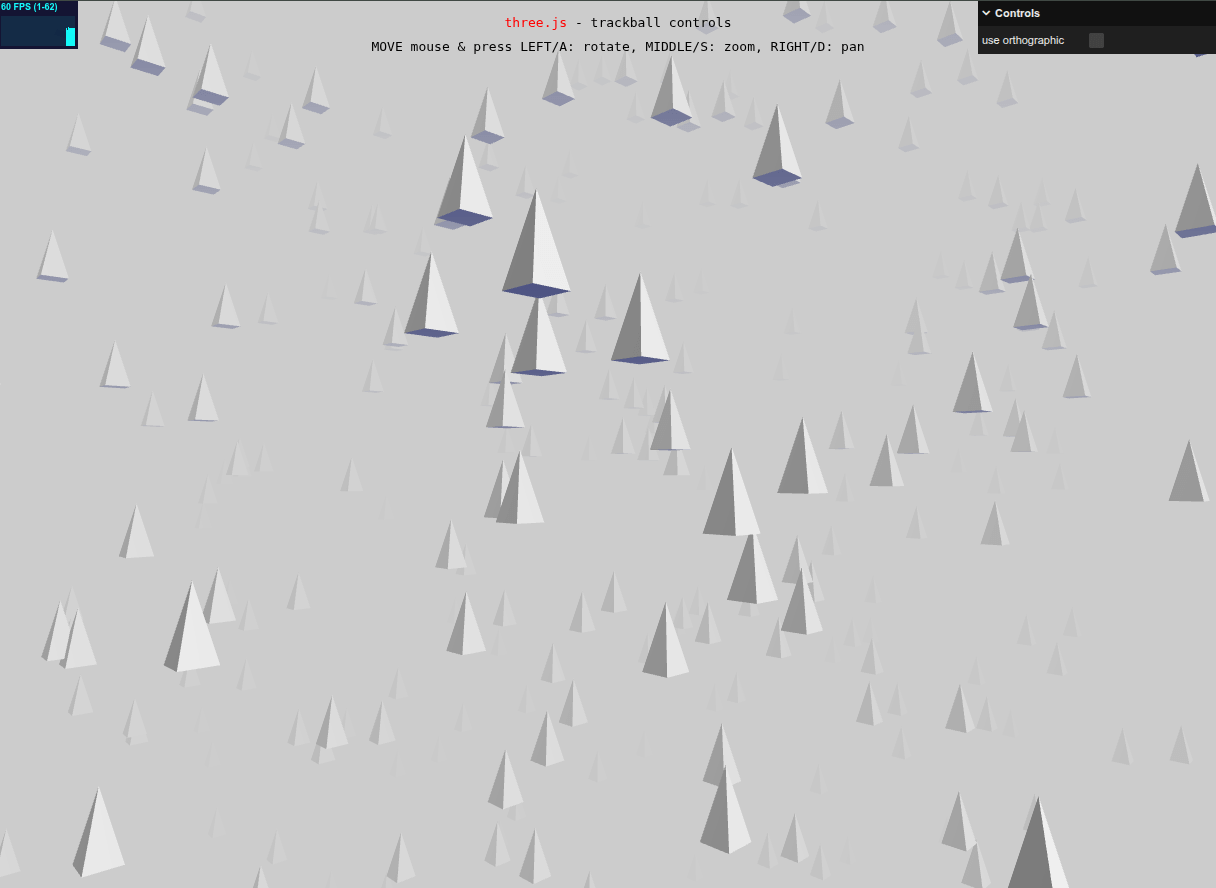

https://threejs.org/examples/misc_controls_trackball.html

https://haehn.github.io/CS175/asst3_webgl/

Natural Feeling

Spins twice as fast

Completely path independent

Arcball

Trackball

http://projects.defmech.com/ThreeJSObjectRotationWithQuaternion/

submit your music

cs460.org/music/

Quiz 7 due today!

Lecture 14

By Daniel Haehn

Lecture 14

Slides for CS460 Computer Graphics at UMass Boston. See https://cs460.orghttps://cs460.org

  • 2,088

More from Daniel Haehn
