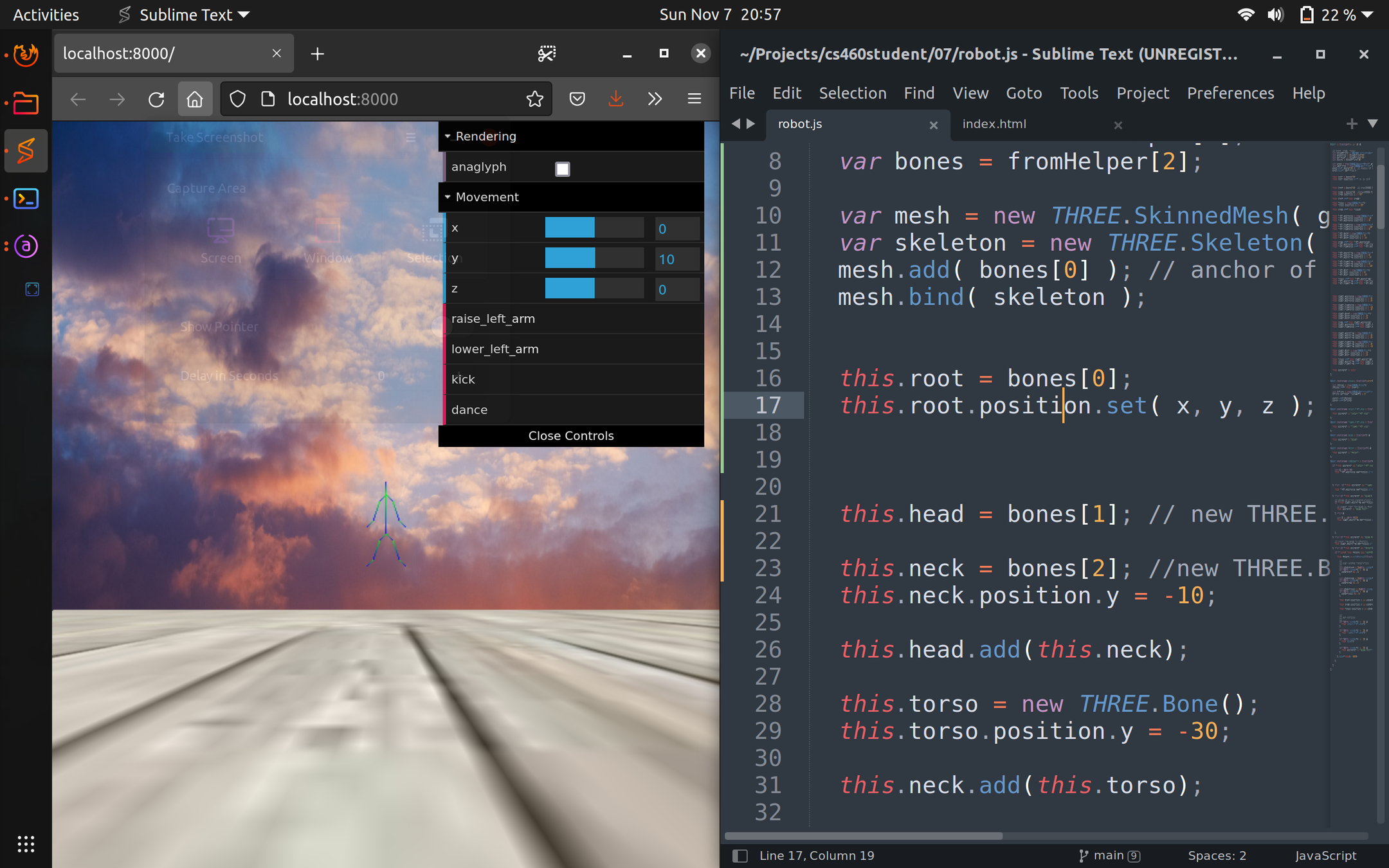

Assignment 7

https://cs460.org/assignments/07

Due 11/10

usually between 0 and 1 for x,y,z

usually point away from the outside of a surface

Normals

used for Material

used for Lighting

used for Shading

Normals

(x, y, z)

Vertex

/ Vertices

Face

N1 (x, y, z)

N2 (x, y, z)

Face

Normals

(x, y, z)

Vertex

/ Vertices

Face

N1 (x, y, z)

N2 (x, y, z)

Vertex

N3 (x, y, z)

N6 (x, y, z)

N5 (x, y, z)

N4 (x, y, z)

No Shading

Normals

used for Material

used for Lighting

No Normals

Face Normals

Vertex Normals

Bump Map

Normals

Pixel

https://threejs.org/examples/webgl_materials_normalmap.html

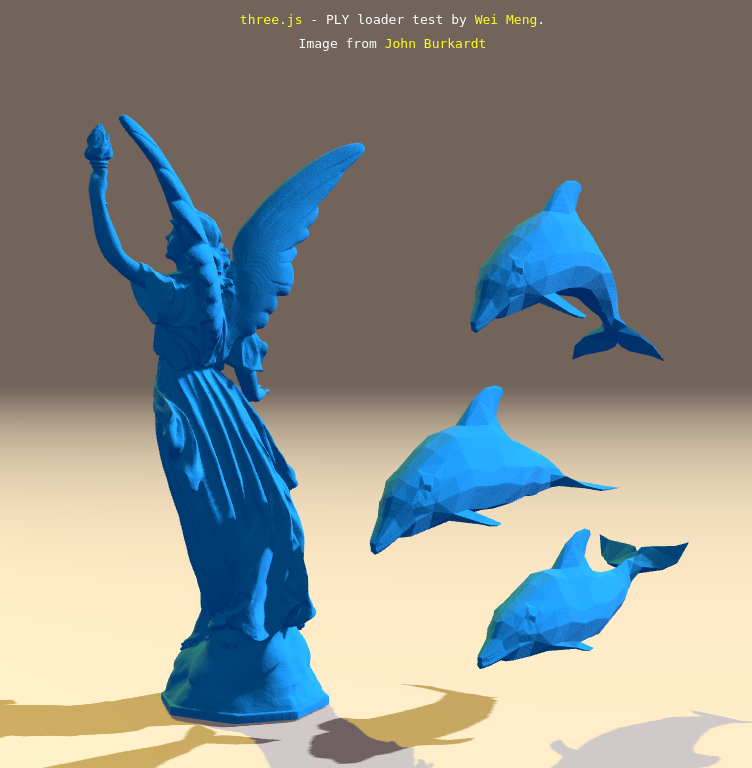

https://cs460.org/ply.html

  var geometry = new THREE.BoxBufferGeometry( 20, 20, 20);
  var material = new THREE.MeshStandardMaterial({ color: 0xffffff });
  var mesh = new THREE.Mesh( geometry, material);

https://stemkoski.github.io/Three.js/Shapes.html

https://threejs.org/examples/webgl_geometry_shapes.html

Mesh File Formats

GLTF

.gltf

.glb

STL

OBJ

PLY

Collada

.dae

.stl

.ply

.obj

https://www.theobjects.com/dragonfly/dfhelp/30/Content/17_File%20Formats/Mesh%20File%20Formats.htm

And more:

https://www.khronos.org/gltf/

Stereo Lithography (STL)

solid SOMENAME
   facet normal 1 0 0
      outer loop
         vertex 0 0 1
         vertex 1 0 0
         vertex 0 1 0
      endloop
   endfacet
   facet normal 1 0 0
      outer loop
         vertex 0 0 1
         vertex 1 1 0
         vertex 1 1 1
      endloop
   endfacet
   ...
endsolid

Face 1

Face 2

Stanford Polygon File (PLY)

ply
format ascii 1.0
comment i love cs460
element vertex 4
property float x
property float y
property float z
element face 3
property list uchar int vertex_index
end_header
0 0 0
0 0 1
0 1 1
0 1 0
3 0 1 2
3 1 2 3
3 1 2 4

Vertices

Faces

Header

http://graphics.stanford.edu/data/3Dscanrep/

Wavefront Object (OBJ)

Vertices

Faces

v -0.5 -0.5 0.5
v 0.5 -0.5 0.5
v -0.5 0.5 0.5
v 0.5 0.5 0.5
v -0.5 0.5 -0.5
v 0.5 0.5 -0.5
v -0.5 -0.5 -0.5
v 0.5 -0.5 -0.5
f 1 2 4
f 1 4 3
f 3 4 6
f 3 6 5
f 5 6 8
f 5 8 7
f 7 8 2
f 7 2 1
f 2 8 6
f 2 6 4
f 7 1 3
f 7 3 8
f 7 3 5
