Building Apps with Webix Jet

Configuring app and views

Links

https://webix.gitbook.io/webix-jet/

https://webix.com/demos/

https://github.com/webix-hub/jet-start

https://github.com/webix-hub/jet-demos

Docs

Big demos

Starter

Samples

Prerequisites

nodeJS
- used for toolchain
- https://nodejs.org/en/
yarn
- same as npm but a bit better
- https://yarnpkg.com/en/docs/install

First Start

clone the demo app

git clone https://github.com/webix-hub/jet-start

install toolchain and start the app

cd jet-start
yarn install
yarn start

open app in the browser

http://localhost:8080

cd jet-start
npm install
npm start

Tools

check code quality

yarn lint

get files for deploy

yarn build

Webpack's Magic

Automatic app updates
Check console for build errors

npm run lint

npm run build

The App!

Codebase

/sources/myapp.js

/ sources/views

/sources/models

/sources/locales

/sources/styles

- app's config

- UI chunks

- data and data related logic

- localization

- css, images, etc.

App Configuration

import {JetApp, EmptyRouter, HashRouter } from "webix-jet";

export default class MyApp extends JetApp{
    constructor(config){
        const defaults = {
	    id 	: APPNAME,
	    version : VERSION,
	    router : BUILD_AS_MODULE ? EmptyRouter : HashRouter,
	    debug : !PRODUCTION,
	    start : "/top/start"
	};

	super({ ...defaults, ...config });
    }
}

if (!BUILD_AS_MODULE){
	webix.ready(() => new MyApp().render() );
}

JetApp instance
start point
.render()

Views

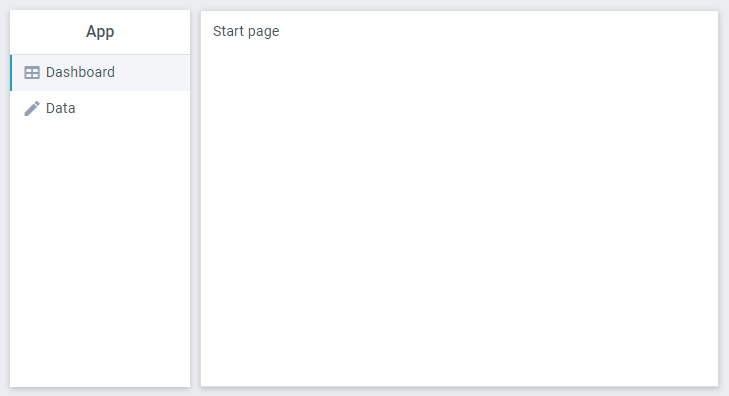

some.com#!/top/start

Views

some.com/#!/top/start

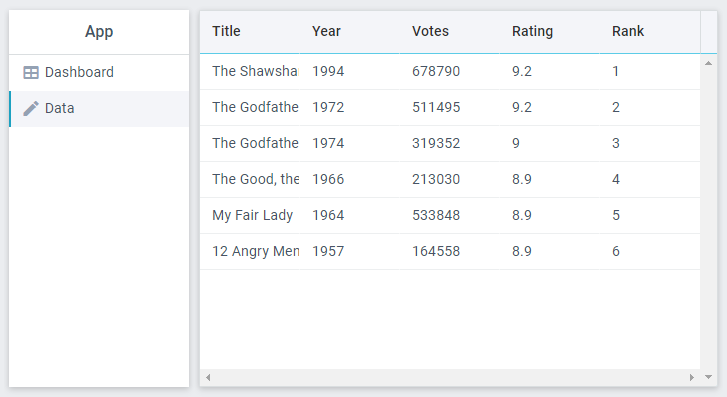

some.com/#!/top/data

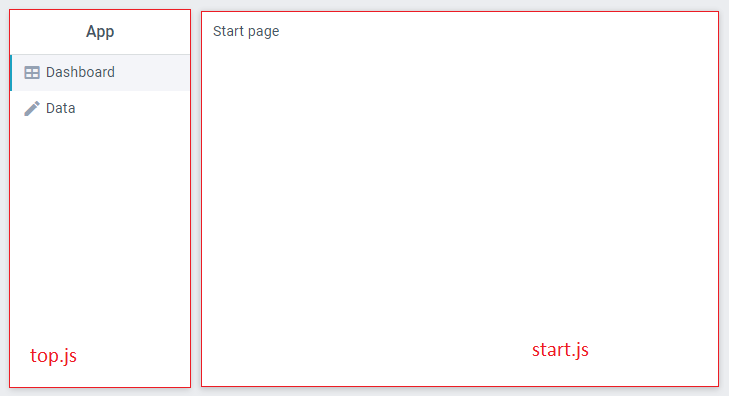

views

top.js
start.js
data.js

details
- form.js
- template.js

some.com/#!/top/details.form

some.com/#!/details.template

File structure

App URLs

models

Defining Views

    export default {
        template:"Start page"
    };

    import {JetView} from "webix-jet";

    export default class TopView extends JetView {
        config(){
            return {
                cols:[
                    { view:"menu" },
                    { template:"Something here"}
        	]
    	    };
        }
    }

/views/start.js

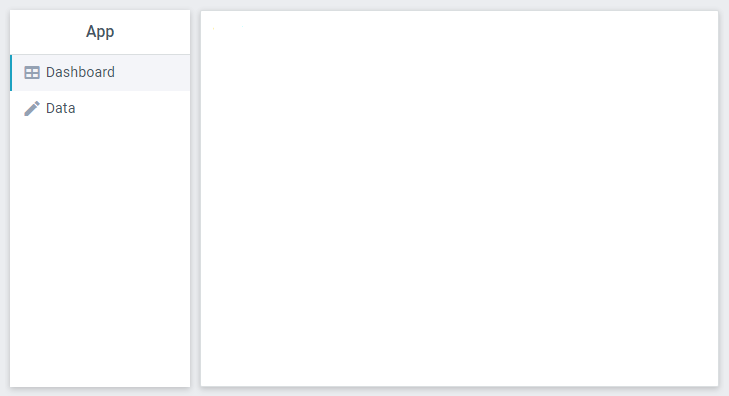

/views/top.js

Objects

Classes

Defining Views

    import {JetView} from "webix-jet";
    import {data} from "models/records";

    export default class DataView extends JetView {
        config(){
            return { rows:[
                { view:"toolbar" },
                { view:"datatable", autoConfig:true }
            ]};
        }
        init(view){
            view.queryView("datatable").parse(data);
        }
    }

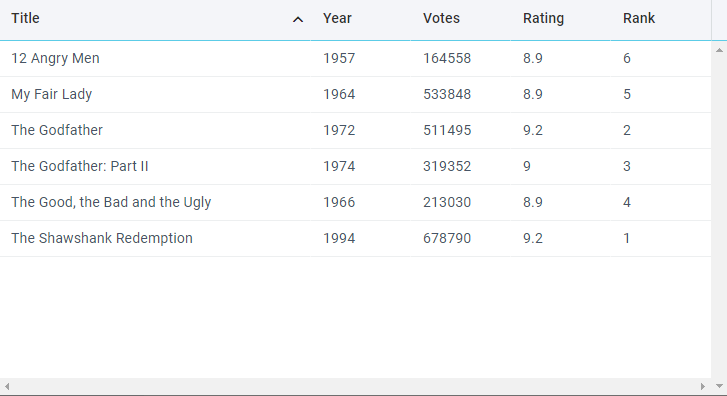

/views/data.js

Import modules

Why views are necessary

Composable blocks

Error resistant

Code reusage

Classes

Objects

VS

Simple

Lifetime handlers

Custom methods

Local variables

Extending

Brief

Classes: Providing Handlers

    import {JetView} from "webix-jet";
    import {data} from "models/menu";

    export default class TopView extends JetView {
        config(){
            return {
                cols:[
                    { view:"menu" },
                    { template:"Something here"}
        	]
    	    };
        }
        init(view){
            view.queryView("menu").parse(data);
        }
    }

/views/top.js

config
init
urlChange
ready
destroy

Classes: Extending

    import Toolbar from "views/toolbar";

    export default class Bottombar extends Toolbar {
         init(view){
            view.queryView("label").hide();
        }
    }

    import {JetView} from "webix-jet";

    export default class Toolbar extends JetView {
	config(){
            return {
                view:"toolbar", height:50, elements:[
                    { view:"label", label:"My First App!"},
                    { },
                    { view:"button", autowidth:true, value:"Click me"}
	        ]
            };
	}
    }

/views/toolbar.js

/views/bottombar.js

Classes: Methods and Properties

import {JetView} from "webix-jet";

export default class Toolbar extends JetView {
    config(){
        return {
            view:"toolbar", height:50, elements:[
		{ view:"button", autowidth:true, value:"Click me",
		    click:() => this.doClick("Clicked")
		}
	    ]
	};
    }
    init(){
        //custom properties
	this._counter = 0;
    }
    //custom methods
    doClick(message){
	this._counter++;
	webix.message(message+" "+this._counter);
    }
}

* this points to Toolbar class here

Classes: Access to App

import {JetView} from "webix-jet";

export default class Toolbar extends JetView {
    config(){
        return {
            view:"toolbar", height:50, elements:[
                { view:"button", autowidth:true, value:"Show some",
		    click:() => this.app.show("/top/data");
		}
	    ]
	};
    }
}

this points to Toolbar class
this.app points to app instance
this.app.show renders UI according to the URL

Views - Composition

    import {JetView} from "webix-jet";

    export default class Toolbar extends JetView {
	config(){
            return { view:"toolbar", elements:[ ... ]};
	}
    }

    import Toolbar from "views/toolbar";

    export default class TopView extends JetView {
        config(){
            return { rows:[
                Toolbar,
                { cols:[
                    { view:"menu" }, {}
                ]}
            ]};
        }
    }

/views/toolbar.js

/views/top.js

Static subviews:Class or Object

Views - Composition

/views/toolbar.js

/views/top.js

Static subviews: Extra properties

    import {JetView} from "webix-jet";
    export default class Toolbar extends JetView {
	config(){
            return { view:"toolbar", elements:[ ... ]};
	}
    }

    import Toolbar from "views/toolbar";

    export default class TopView extends JetView {
        config(){
            return { rows:[
                { $subview: Toolbar}, // id, name, etc.
                { cols:[
                    { view:"menu" }, {}
                ]}
            ]};
        }
    }

Views - Composition

/views/toolbar.js

/views/top.js

Static subviews: Extra Properties

    import {JetView} from "webix-jet";
    export default class Toolbar extends JetView {
	config(){
            return { view:"toolbar", elements:[ ... ]};
	}
    }

    export default class TopView extends JetView {
        config(){
            return { rows:[
                { $subview: "toolbar"}, // "views/toolbar" will be loaded
                { cols:[
                    { view:"menu" }, {}
                ]}
            ]};
        }
    }

Views - Composition

    export default {
    	template:"Start page"
    };

/views/start.js

/views/top.js

Dynamic subviews

/views/data.js

    export default {
    	template:"Data page"
    };

    import Toolbar from "views/toolbar";

    export default class TopView extends JetView {
        config(){
            return { rows:[
                Toolbar,
                { cols:[
                    { view:"menu" },
                    { $subview:true}
                ]}
            ]};
        }
    }

Views - Routing

    export default {
    	template:"Start page"
    };

/views/start.js

/views/top.js

some.com/#!/top/start

some.com/#!/top/data

    export default {
    	template:"Data page"
    };

/views/data.js

import Toolbar from "views/toolbar";

export default class TopView extends JetView {
    config(){
        return { rows:[
            Toolbar,
            { cols:[
                { view:"menu" },
                { $subview:true}
            ]}
        ]};
    }
}

Views - Routing

some.com/#!/top/data

some.com/#!/top/top/data

some.com/#!/data

some.com/#!/top

Windows and Popups

    import {JetView} from "webix-jet";

    export default class WindowsView extends JetView {
        config(){
            return {
                view:"button", width:200, value:"Popup",
    		click:() => this._webixPopup.show()
            }};
        }
        init(){
    	    this._webixPopup = webix.ui({
    	        view:"window"
    	    });
        }
        destroy(){
    	    this._webixPopup.close();
        }
    }

Create with webix.ui()

you need to destroy it!

Not recommended way

    import {JetView} from "webix-jet";
    import PopupView from "views/windows/popup";

    export default class WindowsView extends JetView {
        config(){
            return {
                view:"button", width:200, value:"Popup",
		click:() => this._jetPopup.showWindow()
            };
        }
        init(){
            this._jetPopup = this.ui(PopupView);
	}
    }

Windows and Popups

Create with JetView.ui()

Recommended way

Windows and Popups

    import {JetView} from "webix-jet";

    export default class PopupView extends JetView {
	config(){
            return { view:"window" };
	}
	showWindow() {
            this.getRoot().show();
	}
    }

/views/windows/popup.js

/views/toolbar.js

    import {JetView} from "webix-jet";
    import PopupView from "views/windows/popup";

    export default class ToolbarView extends JetView {
        config(){
            return {
                view:"button", width:200, value:"Show popup",
		click:() => this._jetPopup.showWindow()
            };
        }
        init(){
            this._jetPopup = this.ui(PopupView);
	}
    }

*JetView.getRoot() - access to a top Webix view within the module

JetView Constructor

/views/griddata.js

    import {JetView} from "webix-jet";
    import GridView from "views/gridview";
    import data1 from "models/data1";
    import data2 from "models/data2";


    export default class GridData extends JetView {
        config(){
            return {
                rows:[
                    //embed directly
                    new GridView(this.app,"", data1),
                    //or wrap in { $subview: }
                    { $subview: new GridView(this.app,"", data2) }

                ]
            }
        }
    }

Re-use modules with

similar configuration
specific parameters

JetView Constructor

    import {JetView} from "webix-jet";

    export default class GridView extends JetView {
        constructor(app, name, data){
	    super(app, name); //call parent constructor
	    this._gridData = data; //define specific parameters
	}
        config(){
            //reuse config
            return {
                rows:[ toolbar, datatable ]
            };
        }
	init(view) {
            //parse specific data
            view.queryView("datatable").parse(this._gridData);
	}
    }

/views/gridview.js

Re-use modules with

similar configuration
specific parameters

Referencing Jet Views

    export default class Toolbar extends JetView {
	config(){
            return {
                view:"button", value:"Click me",
		click:() => this.doClick("Clicked")
	    };
	}
	doClick(message){
            webix.message(message);
	}
    }

    export default class Toolbar extends JetView {
	config(){
            return {
                view:"button", value:"Click me", click:function(){
		    this.$scope.doClick("Clicked");
		}
	    };
	}
	doClick(message){
	    webix.message(message);
	}
    }

this

this.$scope

Referencing Jet Views

    //views/toolbar.js
    export default class Toolbar extends JetView {
        config(){
	    return { view:"toolbar" };
	}
	init(){
	    console.log(this.getParentView());
	}
    }

    //views/top.js
    import Toolbar from "views/toolbar";

    export default class TopView extends JetView {
	config(){
            return { rows:[
		{ $subview:Toolbar, name:"top-toolbar"}
	    ]};
	}
	ready(view){
            console.log(this.getSubView("top-toolbar"));
	}
}

.getParentView()

.getSubView()

Don't overuse these methods: module logic should be encapsulated!

Referencing Webix views

    import Toolbar from "views/toolbar";
    import Bottombar from "views/bottombar";
    import {data} from "models/menu";

    export default class TopView extends JetView {
    	config(){
            return { rows:[
                Toolbar,
                { cols:[
                    { view:"menu", localId:"top:menu"} //or id:"top:menu"
                ]},
                Bottombar
            ]};
    	}
        init(view){
            //searching for views
            view.queryView("menu").parse(data);

            view.queryView("button", "all").forEach((obj) => {
                obj.hide();
            });

            //accessing particular view
            this.$$("top:menu").parse(data);
        }
        doClick(){
            // access to top Webix view within the module
            this.getRoot()
        }
    }

Configuring the App

import "./styles/app.less";                                    //! stylesheets
import "webix/appbutton";                                      //! custom widgets
import {JetApp, plugins, HashRouter } from "webix-jet";

export default class MyApp extends JetApp{
    constructor(config){
        const defaults = {
            id : APPNAME, version : VERSION,
            router : HashRouter,
	    debug : !PRODUCTION,
	    start : "/top/start"
        };
	super({ ...defaults, ...config });
    }
}

webix.ready(() => {
    if (webix.CustomScroll && !webix.env.touch)             //! App-level Webix logic
	    webix.CustomScroll.init();

    const app = new MyApp();

    app.use(plugins.Locale);                                //! App-level Jet plugins
    app.render();

stylesheets
custom widgets

Include:

Use:

App-level Webix logic
App-level Jet plugins

Error Handling



    export default class MyApp extends JetApp{
        constructor(config){
            const defaults = {
                id: APPNAME, version: VERSION,
                start: "/top/start"
                debug: true // console.log and debugger on error
            };
	    super({ ...defaults, ...config });
        }
    }

    const app = new MyApp();
    app.render();

    app.attachEvent("app:error:resolve", function(err, url) {
        webix.delay(() => app.show("/top/start"));
    });

app:error
app:error:resolve
app:error:render
app:error:initview

Events:

Dev Guidelines

include webix.js
include debug:true to app config
handle “app:error:resolve” event
npm run lint before each commit

reuse similar views
don’t address views from other modules by ids
ensure that data is loaded before working with it

Safe developing

Wise developing

3-1. Webix Jet. Intro

Preparing the environment and configuring the app. Providing and composing UI chunks.

ihelga

webix.com

Building Apps with Webix Jet

Configuring app and views

Links

Prerequisites

First Start

Tools

The App!

Codebase

App Configuration

Views

Views

File structure

App URLs

Defining Views

Defining Views

Why views are necessary

Classes

Objects

VS

Classes: Providing Handlers

Classes: Extending

Classes: Methods and Properties

Classes: Access to App

Views - Composition

Views - Composition

Views - Composition

Views - Composition

Views - Routing

Views - Routing

Windows and Popups

Windows and Popups

Windows and Popups

JetView Constructor

JetView Constructor

Referencing Jet Views

Referencing Jet Views

Referencing Webix views

Configuring the App

Error Handling

Dev Guidelines

Links

3-1. Webix Jet. Intro

More from ihelga
