Large Science Models:
Foundation Models for
Generalizable Insights Into Complex Systems
Ishanu Chattopadhyay, PhD
Assistant Professor of Biomedical Informatics & Computer Science
University of Kentucky
Proposed Concept
- Develop Foundation models of complex systems with
- hundreds to thousands of evolving variables with apriori unknown cross-talk
- no governing equations are know a priori
- reflexivity: system changes if observed
- Learn intrinsic system geometry from data
- Derive equations of motion with variational principles (stationary action on Lagrangian).
- Inference under data sparsity
- Detect data (in)sufficiency, adapt to model drift
- Support forward simulation and perturbation analysis
- Digital twins of individuals & groups of entities

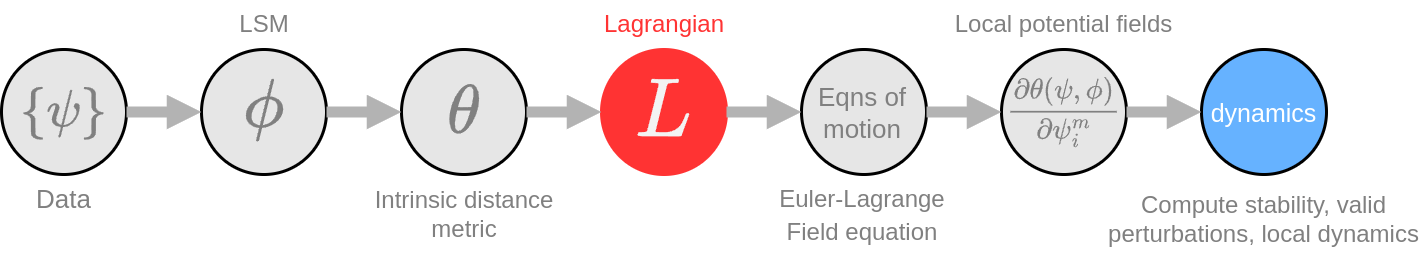

Large Science Models
Full Example of Hyperlinked Trees
Large Science Models: Mathematical Framework
\begin{aligned}
\text{Observables:} \quad & \color{yellow}X = \{x^1, \ldots, x^N\}, \overbrace{x^i \in \Sigma^i}^{\text{finite alphabet}} \\
{\color{gray}\text{Notation:} }\quad & \color{gray} x^{-i} = \{x^j : j \ne i\}\\
\text{Crosstalk:} \quad & \forall i \ P(x^i) = \color{red} f_i(x^{-i}) \\
\text{System state:} \quad & \color{Cyan} \psi = \bigotimes_{i=1}^N \psi^i, \quad \psi^i \in \mathscr{D}(\Sigma^i) \cup \varnothing \\
%\textbf{Degenerate case:} \quad & \psi^i \text{ is a delta distribution (fully observed)} \\
{\color{gray}\text{Notation:} }\quad & \color{gray}\psi^{-i} = \bigotimes_{j \ne i} \psi^j
\end{aligned}
| reliten | gunlaw | abany | --- | grass | |
|---|---|---|---|---|---|
| Person 1 | |||||
| Person 2 | |||||
| --- | |||||
| Person m |
observables
samples
Distributions over alphabet \(\Sigma^i\)
\phi = \bigotimes_{i=1}^N \phi^i, \quad \phi^i(\psi^{-i}) \in \mathscr{D}(\Sigma^i) \\
Individual Predictor (CIT)
cross-talk
\phi(\psi) \vert \vert \psi
Tension between predicted and observed distribution drives change
Example
GSS topic: There should be more gun-control
\(\psi^i\)
| strongly agree | agree | neutral | disagree | strongly disagree |
\Sigma^i
Digital Twin
\phi^i(\psi^{-i}) \sim \widetilde{\psi}^i
\(\phi\) estimates \(\psi\)
Examples: GSS, ANES, WVS, ESS, Eurobarometer, Afrobarometer, Asian Barometer etc
group
individual
estimate is always a non-empty non-degenerate distribution
missing observation
Large Science Models: Properties
LSM-Distance Metric*
\theta(\psi,\psi') \triangleq \frac{1}{N}\sum_{i=1}^{N} \sqrt{D_{JS}\Bigl(\phi^i(\psi^{-i}) \vert \vert \phi^i(\psi'^{-i})\Bigr)}
where \(D_{JS}(P\vert \vert Q)\) is the Jensen-Shannon divergence.
g_{ij}(\psi) \;=\; \frac{1}{2}\,\frac{\partial^2}{\partial \psi^i\,\partial \psi^j}\,\theta^2(\psi,\psi')\Biggr|_{\psi'=\psi}
\left \lvert \ln \frac{\Pr(\psi\to \psi')}{\Pr(\psi' \rightarrow \psi')}\right \rvert \le \beta\,\theta(\psi,\psi')
Large Deviation Bound*
Induced Riemannian metric tensor
This bound connects ``closeness'' of samples to the odds of perturbing from one to the other, bridging geometry to dynamics
Ergodic Projection
\psi_\star \triangleq \bigotimes_{i=1}^N\phi^i\left (\prod_{1}^{N-1}\varnothing\right )
(Sanov's Theorem, Pinkser's Inequality)
\(\psi\)
\(\psi'\)
\(\theta\)
"spatial average": average of all plausible worldviews or states
* Sizemore, Nicholas, Kaitlyn Oliphant, Ruolin Zheng, Camilia R. Martin, Erika C. Claud, and Ishanu Chattopadhyay. "A digital twin of the infant microbiome to predict neurodevelopmental deficits." Science Advances 10, no. 15 (2024): eadj0400. https://www.science.org/doi/full/10.1126/sciadv.adj0400
persistence probability
Ergodic dispersion
\Psi_\star = \theta(\psi,\psi_\star)
Central to Model Drift Quantification
Start with opinion vector with all entries missing
This is a standard Physics construct, quantifying curvature of the underlying latent geometry
Pr(\psi \rightarrow \psi')
Easily computable in LSM framework!
Apply \(\phi^i\)
Random variable quantifying dispersion around the spatial average of worlviews
const. scaling as \(N^2\)
Digital Twin & Fidelity of Simulation
\mathcal{N}_\epsilon(\psi) \triangleq \big\{ \psi': {\color{red}\forall i \ \psi'_i \sim \phi^i\left ( \psi^{-i}\right )}
\wedge {\color{yellow} \theta(\psi,\psi') \leqq \epsilon }\big \}
Sample predicted distributions
perturbed state within \(\epsilon\) of \(\psi\)
| Variable | Masked | Reconstructed |
|---|---|---|
| spkcom | allowed | allowed |
| colcom | not fired | not fired |
| spkmil | allowed | allowed |
| colmil | allowed | not allowed |
| libmil | not remove | not remove |
| libhomo | not remove | not remove |
| reliten | strong | no religion |
| pray | once a day | once a day |
| bible | inspired word | word of god |
| abhlth | yes | yes |
| abpoor | no | no |
| pillok | agree | agree |
| intmil | very interested | very interested |
| abpoorw | always wrong | not wrong at all |
| godchnge | believe now, always have | believe now, always have |
| prayfreq | several times a week | several times a week |
| religcon | strong disagree | disagree |
| religint | disagree | disagree |
| Variable | Masked | Reconstructed |
|---|---|---|
| spkcom | allowed | allowed |
| colcom | not fired | not fired |
| libmil | not remove | not remove |
| libhomo | not remove | not remove |
| gunlaw | favor | favor |
| reliten | no religion | no religion |
| prayer | approve | approve |
| bible | book of fables | inspired word |
| abnomore | yes | yes |
| abhlth | yes | yes |
| abpoor | yes | yes |
| abany | yes | yes |
| owngun | no | no |
| intmil | moderately interested | moderately interested |
| abpoorw | not wrong at all | not wrong at all |
| godchnge | believe now, didn't used to | believe now, always have |
| prayfreq | several times a week | several times a week |
2018 GSS individual samples
Digital Twin
-Neighborhood of state \(\psi\)
\epsilon
Definition
Sample neighborhood to impute missing data
\psi
\epsilon
}

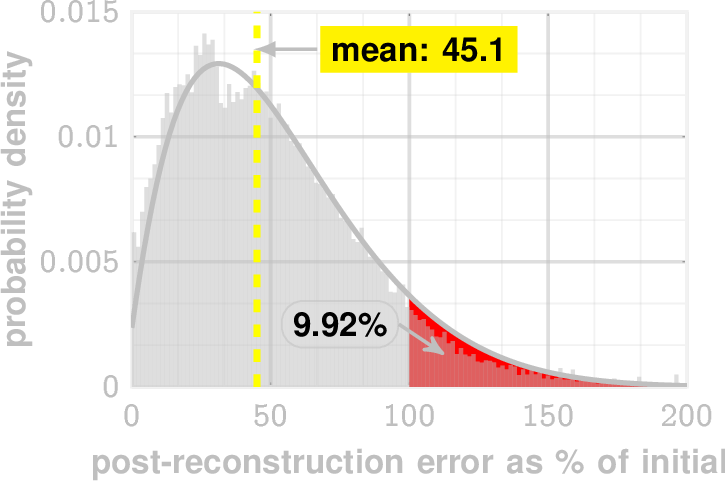

2018 GSS out-of-sample reconstruction
post-reconstruction error ratio (%)
LSM sampling: sampling the \(\epsilon\)-neighborhood of a state or worldview allows reconstruction of censored opinions
examples
Predictive ability of LSM quantified as ability to reconstruct censored out-of-sample opinions**
{\color{Tomato}\psi_\star }\rightarrow \psi \rightarrow \cdots \rightarrow \psi'
Null state (all missing observations)
Valid perturbations/ simulations
LSM sampling allows simulating opinion perturbations
Both Individuals and groups maybe modeled as digital twins\(\dag\)
Global Emergent Structure via Clusters & Poles
2018 GSS
\theta_t(\psi_+,\psi_-)

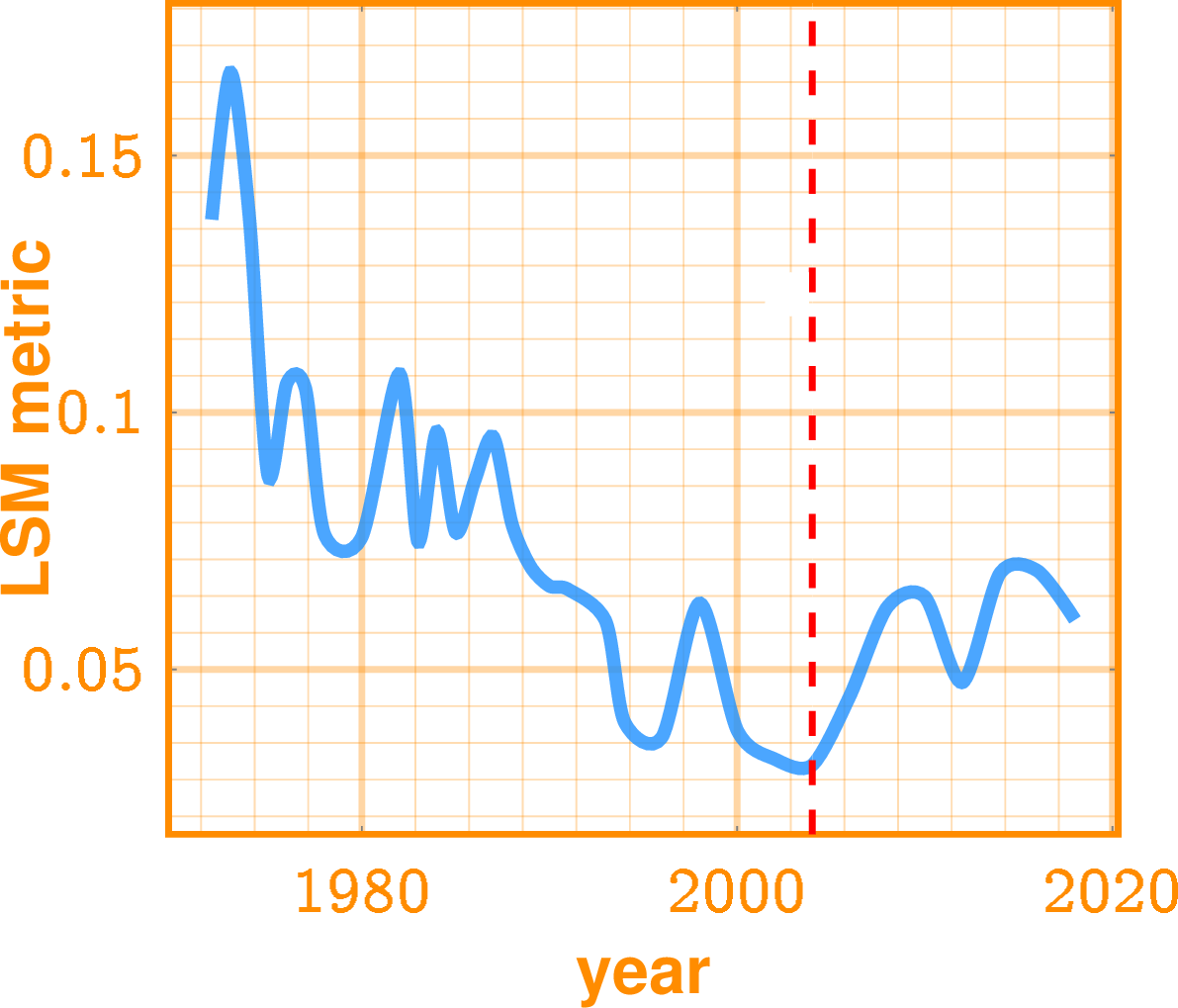

Polar separation over time
2016 Presidential Election Vote Prediction
2004
| abany | no | yes |
| abdefctw | always wrong | not wrong at all |
| abdefect | no | yes |
| abhlth | no | yes |
| abnomore | no | yes |
| abpoor | no | yes |
| abpoorw | always wrong | not wrong at all |
| abrape | no | yes |
| absingle | no | yes |
| bible | inspired word | book of fables |
| colcom | fired | not fired |
| colmil | not fired | not allowed |
| comfort | strongly agree | strongly disagree |
| conlabor | hardly any | a great deal |
| godchnge | believe now, always have | don't believe now, never have |
| grass | not legal | legal |
| gunlaw | oppose | favor |
| intmil | very interested | not at all interested |
| libcom | remove | not remove |
| libmil | not remove | remove |
| maboygrl | true | false |
| owngun | yes | no |
| pillok | agree | strongly agree |
| pilloky | strongly disagree | strongly agree |
| polabuse | no | yes |
| pray | several times a day | never |
| prayer | disapprove | approve |
| prayfreq | several times a day | never |
| religcon | strongly disagree | strongly agree |
| religint | strongly disagree | strongly agree |
| reliten | strong | no religion |
| rowngun | yes | no |
| shotgun | yes | no |
| spkcom | not allowed | allowed |
| spkmil | allowed | not allowed |
| taxrich | about right | much too low |
conservative pole
\psi_+
liberal pole
\psi_-

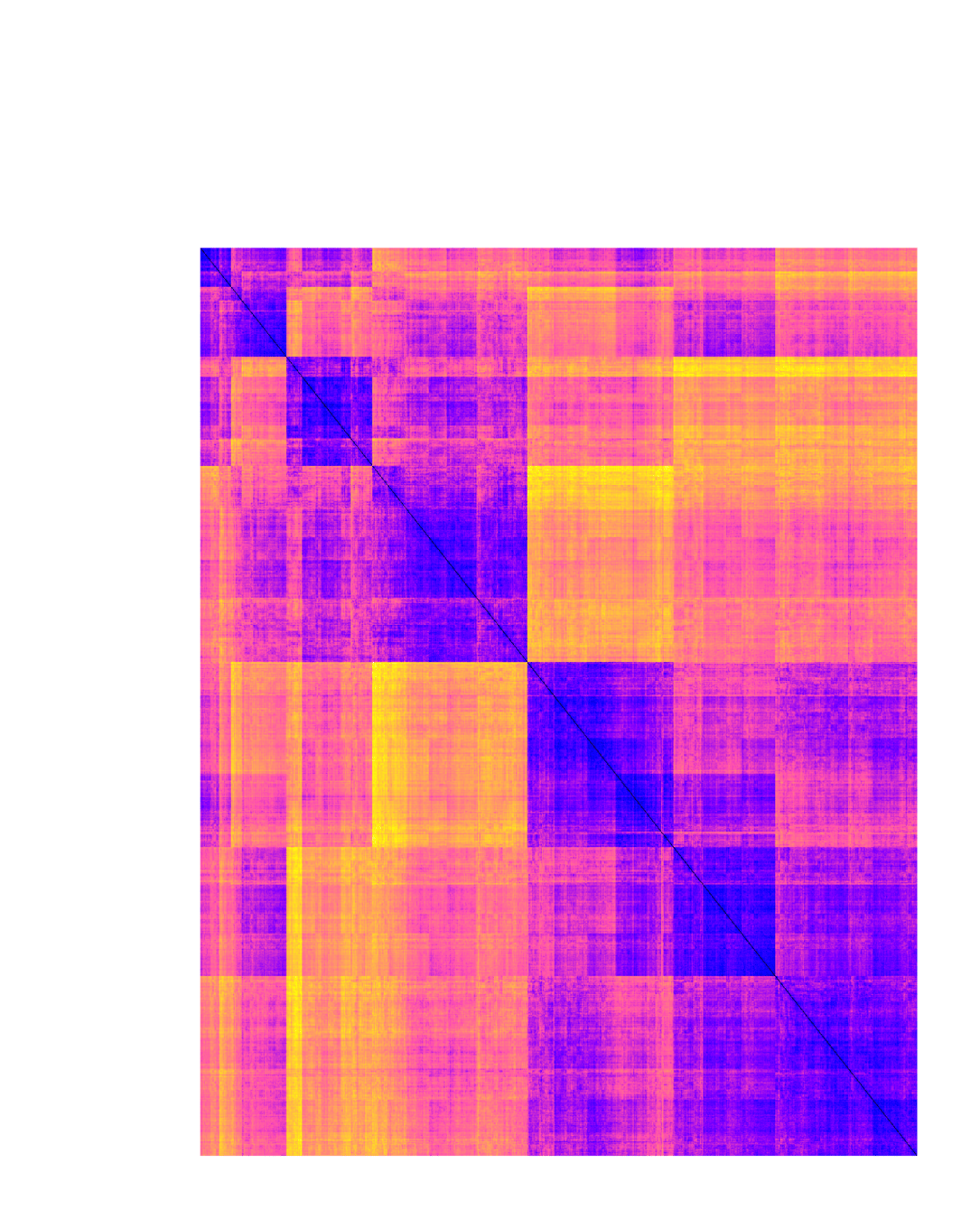

Clustering LSM distance \(\theta(x,y)\) between out-of-sample individuals
conservative
liberal
poles:
partial states aligning with extreme opposing worldviews
- Compare across time and different GSS surveys
- Derived features for individuals (ideology index)
I(x) = \frac{\theta(x,\psi_+) - \theta(x,\psi_-)}{\theta(\psi_+,\psi_-)}

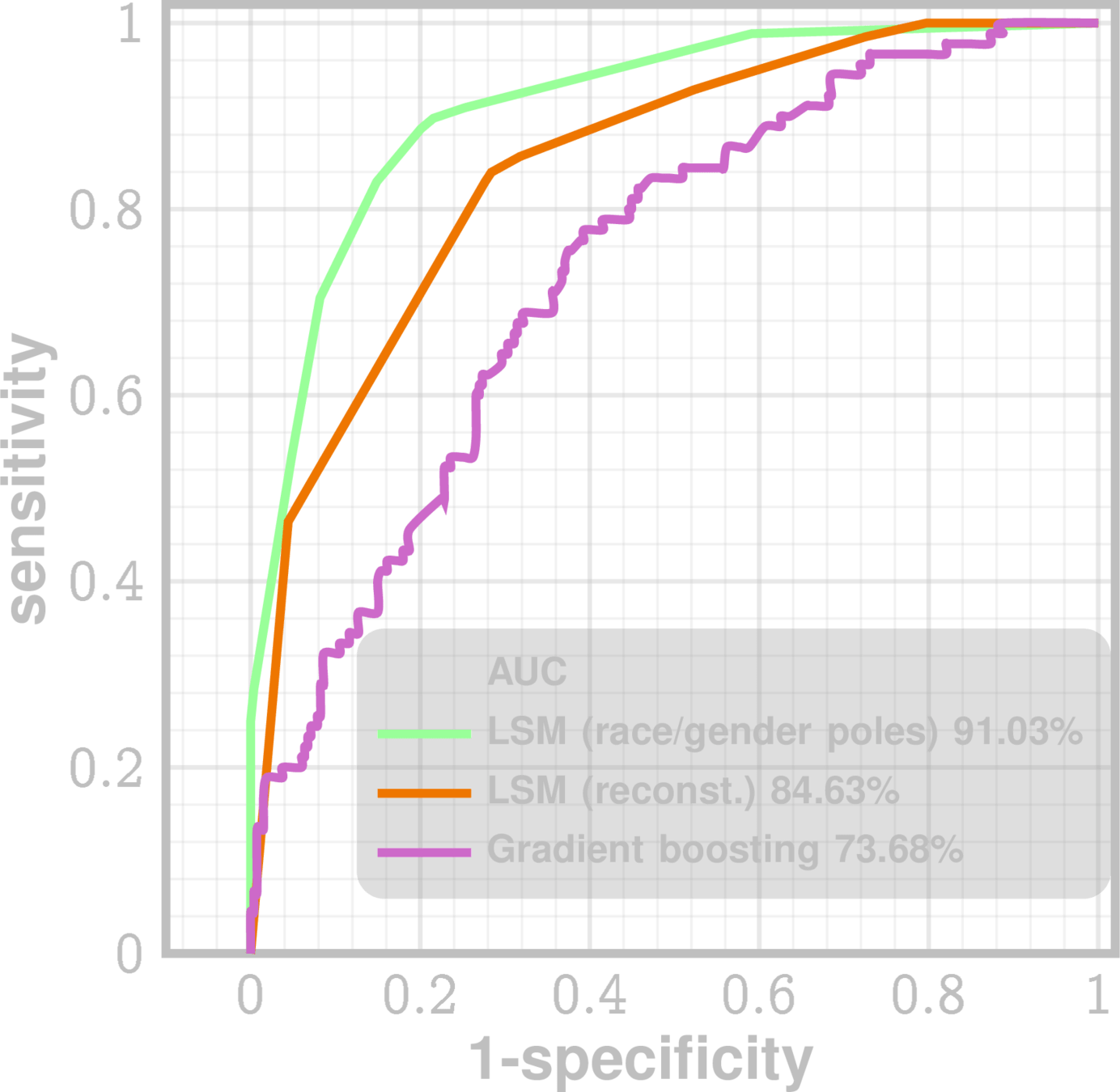

Predict 2016 votes using ideology index
Emergent global structure

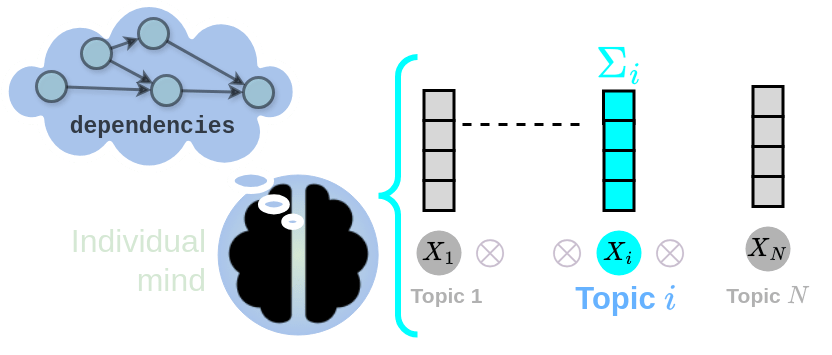

Reflexivity and State Collapse on Observation
Emergent Equations of Motion
L \triangleq \frac{1}{2} \sum_i g_{kl} P^k_p \dot{\psi}^p_i P^l_n \dot{\psi}^n_i - \theta(\psi, \phi)
Define Lagrangian*
\frac{d}{dt} \left( \frac{\partial L}{\partial \dot{\psi}^m_i} \right) - \frac{\partial L}{\partial \psi^m_i} = 0
Via the Euler-Lagrange Equations\(^\dag\):
\ddot{\psi}^m_i = -g^{km} P^k_m \frac{1}{2N} \sum_j \frac{1}{\sqrt{D_{JS}(\psi^m_j \| \phi^m_j)}} \left[ \ln\left( \frac{2e\psi^m_j}{\psi^m_j + \phi^m_j} \right) - \frac{1}{2(\psi^m_j + \phi^m_j)} \right]
Over-damped Gradient flow Equation*
where \(-g^{km}\) is the inverse metric tensor
kinetic energy
state collapse
strongly agree
agree
neutral
disagree
strongly disagree
strongly agree
agree
neutral
disagree
strongly disagree
Query/
Observation
\(X_i\)
Non-local Influence propagation on measurement/observation (QM-like)
\phi^i(\psi^{-i})
potential energy
* Einstein notation used
Goldstein, Herbert, et al. Classical Mechanics. 3rd ed., Pearson, 2002.
\(^\dag\)
Principle of stationary action
Dynamics
Local potential field eqn

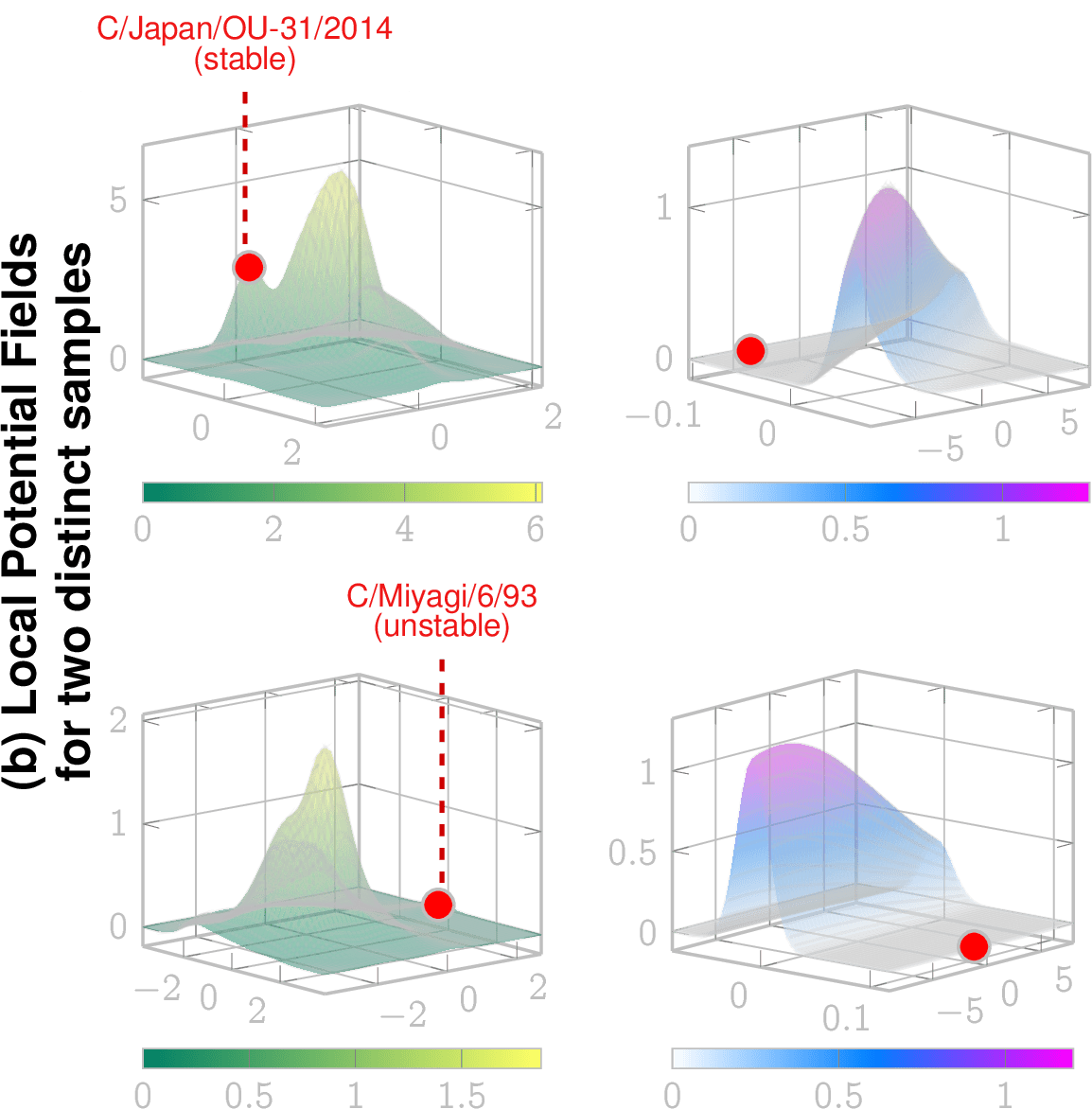

Local Potential Fields
Stable
(captured by local extrema)
Free to move locally towards extrema
Why propaganda works so well
* “Exposure to opposing views on social media can increase political polarization”
by Christopher A. Bail et al., published in PNAS in September 2018 (Vol. 115, No. 37, pp. 9216–9221; DOI: 10.1073/pnas.1804840115)
GSS 2018 individuals and neighborhoods
Influenza C : strains and their neighborhoods
Even random perturbations will tend to move individuals towards local extrema increasing polarization
*
- Polarization is "easy", can occur via random perturbations (falling into the local well)
Hypotheses
Observation: This lineage (Mississippi lineage) is now extinct since 2022/23
stable lineage
Implications on Social Theory
The LSM tells the latent opinion "space-time" how to curve, the curved "space-time" tells opinions how to change.
Local potential fields can be computed given the LSM and dynamical considerations, which reveal future evolution
- De-polarization is "hard", needs specific communication (climbing up from the well)
Data Sufficiency via Conservation of Complexity
%K(x) = K(S) + K(x \vert S_\star) + O(1) = K(S') + K(x \vert S'_\star) +O(1)
K(x \vert S_\star) = O(1) = K(S \vert x_\star)
The No-cheating Thorem: Generative models cannot cheat on complexity
Kolmogorov Complexity
Optimal Generative Model
compressed data representation
compressed model representation
Theorem
K(\textrm{data}) = K(\textrm{LSM}) +O(1)
Conservation Law arising from the continuous symmetry of typicality*
\mu_0(X) \triangleq \frac{\delta(\vert \langle S(X) \rangle \vert)}{\delta(\vert \langle X \rangle \vert)} \leq 1
Saturation relation:
Data Sufficiency Statistic \(\mu_0\)
We need LSM-sampling to calculate this
*Noether's Theorem
For every continuous symmetry of a physical system, there exists a corresponding conserved quantity
\vert \langle X' \rangle \vert \approx \max\{1,\mu_0(X)\} \vert \langle X \rangle \vert
How much more data do we need?
Data saturation
Data deficient
Needed
Current
Empirical Validation
