Progressive Web Apps
with Angular
Jeado Ko
Angular GDE
Jeado Ko
haibane84@gmail.com
www.facebook.com/jeado.ko
-
Google Developer Expert in Angular
-

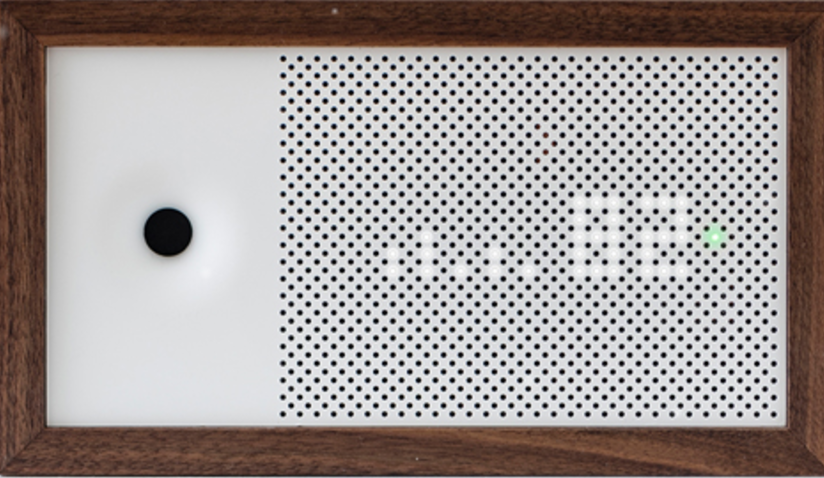

Software Engineer at Awair
NG-Conf 2017
10 Progressive Web App 특징
- Progressive
- Discoverable
- Linkable
- App-like
- Responsive
- Connectivity-independent
- Re-engageable
- Installable
- Fresh
- Safe
App Shell architecture
Service Worker API
Push API and Notifications API
관련된 APIs
-
Service Worker API
-
Cache API
-
Fetch API
-
Notifications API
-
Push API
-
IndexedDB API
-
Promises
Mobile Toolkit
Angular CLI를 사용할 때 --mobile 왜 안되요?
답변
더 이상의
플래그는 없습니다.
--mobile
2 NPM 패키지
@angular/service-worker
v1.0.0-beta.8 - Experimental service worker by the Angular Mobile team
@angular/app-shell
v0.1.0 - App Shell runtime library for Angular Progressive Web Apps
Service Worker
Angular Service Worker
NGSW
@angular/service-worker/bundles
@angular/service-worker/build
@angular/service-worker/companion
@angular/service-worker/worker
@angular/service-worker/plugins
4 앵귤러 서비스워커 주요 파트
@angular/service-worker/bundles
@angular/service-worker/build
@angular/service-worker/companion
@angular/service-worker/worker
@angular/service-worker/plugins
4 앵귤러 서비스워커 주요 파트
NGSW 설치
# 첫째, Angular Service Worker를 설치합니다.
$ npm install --save @angular/service-worker
# SW 등록과 app shell를 Angular CLI에서 활성화합니다.
$ ng set apps.0.serviceWorker=true
"apps": [
{
"serviceWorker": true
}
]
.angular-cli.json
App 빌드
# NGSW works only in --prod mode
$ ng build --prod
<script src="sw-register.{HASH}.bundle.js"></script>
-
sw-register.{HASH}.bundle.js
-
worker-basic.min.js
-
ngsw-manifest.json
index.html
정적 콘텐츠 캐슁
{
"static": {
"urls": {
"/index.html": "ae543...",
"/main.bundle.js": "9ff18...",
"/styles.bundle.css": "d6f44...",
"/assets/images/logo.png": "0e33a...",
...
}
}
}
ngsw-manifest.json
라우트 리다이렉션
{
"routing": {
"index": "/index.html",
"routes": {
"/": {
"prefix": false
},
"/some/routes-group-prefix": {
"prefix": true
}
}
}
}
ngsw-manifest.json
NGSW manifest 확장
{
"static" : {
...autogenerated
}
}
{
"routing" : {...}
...
}
ngsw-manifest.json
간단히 데모를 볼까요?
Angular PWA
Static Content
Cache
외부 콘텐츠 캐슁
{
"external": {
"urls": [
{
"url": "https://fonts.gstatic.com/Roboto.ttf"
}
]
}
}
ngsw-manifest.json
Angular PWA
Static Content
Cache
External Content Cache
동적 콘텐츠 캐슁
{
"dynamic": {
"groups": [
{
"name": "api",
"urls": {...},
"cache": {...}
}
]
}
}
ngsw-manifest.json
동적 콘텐츠 캐슁
cache: {
"optimizeFor": "freshness", // or 'performance'
"networkTimeoutMs": 200,
"maxAgeMs": 1000,
"maxEntries": 2,
"strategy": "fifo" // or 'lru', 'lfu'
}
urls: {
"/api/breakingnews": {
"match": "prefix"
}
},
ngsw-manifest.json
Coming soon
Angular PWA
Static Content
Cache
External Content Cache
Dynamic Content
Cache
Companion
import {NgServiceWorker} from '@angular/service-worker';
constructor(public sw: NgServiceWorker) {}
app.component.ts
import {ServiceWorkerModule} from '@angular/service-worker'
imports: [
...
ServiceWorkerModule
]
app.module.ts
유저에게 앱 업데이트를 물어본다!
sw.updates.subscribe(event => {
if (event.type === 'pending') {
// Ask user if they want to update?
if (agreeToUpdate) {
sw.activateUpdate(event.version);
}
} else {
// event.type === 'activation'
// NGSW is now serving a new version
location.reload();
}
});
app.component.ts
Web Push Notification
Web Push Notification with NGSW
Backend
Notification
Push Service
NGSW
Backend
Push Service
App
Subscription
Sending a notification
NGSW
App
Push settings
{
"push": {
"showNotifications": true,
"backgroundOnly": false
}
}
ngsw-manifest.json
Push subscription
constructor(public sw: NgServiceWorker) {}
sw.registerForPush().subscribe(subscriptionObject => {
// Send subscription data to the server
});
import {NgServiceWorker} from '@angular/service-worker';
push.component.ts
sw.push.subscribe(notificationPayload => {
// Process notification data
});

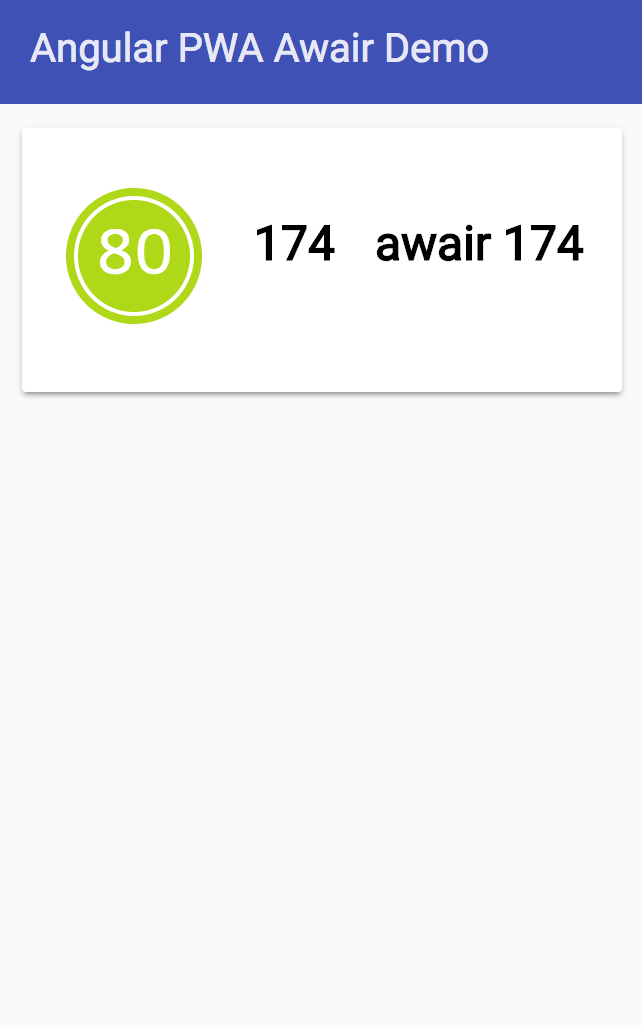

간단히 데모를 볼까요?
Mqtt Broker
GCM
Send Subscription
Send Push Message
Mqtt Connection
Send Notification
Angular PWA
Static Content
Cache
External Content Cache
Push
Dynamic Content
Cache
Basic Service Worker
import {bootstrapServiceWorker} from '@angular/service-worker/worker';
import {StaticContentCache} from '@angular/service-worker/plugins/static';
...
bootstrapServiceWorker({
manifestUrl: '/ngsw-manifest.json',
plugins: [
StaticContentCache(),
...
]
});
worker/builds/basic.ts
Extending functionality
import {bootstrapServiceWorker} from '@angular/service-worker/worker';
import {StaticContentCache} from '@angular/service-worker/plugins/static';
...
import {MyCustomPlugin} from './plugins/my-custom-plugin';
bootstrapServiceWorker({
manifestUrl: '/ngsw-manifest.json',
plugins: [
StaticContentCache(),
...
MyCustomPlugin()
]
});
worker-custom.js
직접.. 빌드해야 합니다..
Automatic PWA
{
"static": {...},
"routing": {...},
"external": {...},
"dynamic": {...},
"push": {...}
}
ngsw-manifest.json
Angular PWA
Static Content
Cache
External Content Cache
Push
Dynamic Content
Cache
Automatically
배운점
아직 프러덕션에선 쓰지말자...
배운점
그래도 Push Notification은 쓸만했다...
Thank you!
www.facebook.com/jeado.ko
Jeado Ko
PWA with Angular
By Jeado Ko
PWA with Angular
Progressive Web App with Angular. this slide originally made by Maxim Salnikov.
