Rust-Bio: Bioinformatics with Rust

Johannes Köster

July 2016

Bioinformatics

Bioinformatics

combines computer science, statistics, mathematics to interpret biological data

Involves:

Mathematical or statistical modelling, machine learning, ...



Almost always:

deal with biological sequences

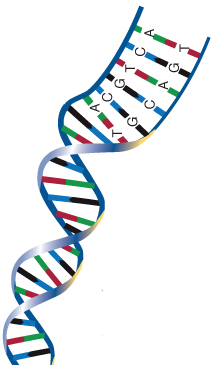

DNA

encodes the genome, the "blueprint" of any organism

  • DNA: chain of nucleotides
  • Nucleotide: molecule made of phosphate, sugar and base (ACGT)
  • sequence of bases is blueprint of proteins

Text over the alphabet ACGT

Proteins

building blocks of cells

  • Protein: chain of amino acids
  • Amino acid: molecule made of carbon, hydrogen, oxygen, nitrogen (about 500 known, 20 used in organisms)

Text over the alphabet ARNDCEQGHILKMFPSTWYV

Algorithms on sequences

Examples:

  • find mutations
  • investigate homologies
  • identify species



Techniques:

  • pattern/string matching
  • succinct data structures
  • indexes

Big data:

  • size of human genome: >3 billion bases
  • single sample: 5 to 300GB of data

Rust-Bio

Bioinformatics Software

Wanted:

  • fast implementations (big data)
  • bug-free* implementations (personalized medicine)



Reality:

  • implementors are people with fixed-term contracts (PhD students, postdocs)
  • limited time: scripting languages
  • bugs and unmaintained projects all around

Rust for Bioinformatics

Idea:

  • Let the Rust compiler do the work.
  • Shift development time from debugging to compiling.
  • Rely on lints and ownership model to solve code-quality and bug-issues.

Rust-Bio

common Bioinformatics algorithms and data structures as a library

Features:

  • pattern matching algorithms
  • alphabets
  • pairwise alignments
  • suffix arrays and fulltext indices
  • a q-gram index
  • a rank/select data structure,
  • readers and writers for common file formats
  • log probabilities

Rust-Bio by Example

Sequence alignment

ACGGATGCGATCGGAGCTGAGCTGCGATCGATGCGATCG
       |||   ||| ||||||||
       CGA---GAGTTGAGCTGC

Given:

sequence A and B



Find:

combination of substitutions, deletions and insertions with maximal score / minimal cost that transforms B into A

Sequence alignment

  • alignment graph
  • edges represent operations
  • find path from top-left to bottom-right with minimal cost

Sequence alignment

Variants:

  • edge costs: unit costs, affine gap costs, biologically motivated substitution costs
  • semi-global alignment (top to bottom path)
  • local alignment (no constraint)

Sequence alignment

Implementation:

  • dynamic programming
  • store only two columns
  • traceback with bit-encoding

Usage

// two texts
let x = b"ACCGTGGAT";
let y = b"AAAAACCGTTGAT";

// scoring
let score = |a: u8, b: u8| if a == b {1i32} else {-1i32};
let gap_open = -5;
let gap_extend = -1;

// init aligner
let mut aligner = Aligner::with_capacity(x.len(), y.len(), gap_open, gap_extend, &score);

// perform alignment
let alignment = aligner.semiglobal(x, y);

// results
alignment.pretty()
// output:
// AAAAACCGTTGAT
//     ||||| |||
// ----ACCGTGGAT
alignment.operations
// output:
// [Match, Match, Match, Match, Match, Subst, Match, Match, Match]
alignment.cigar()
// output:
// 5=1X3=

Memory management

pub struct Aligner<'a, F>
    where F: 'a + Fn(u8, u8) -> i32
{
    // dynamic programming matrix columns
    S: [Vec<i32>; 2],
    I: [Vec<i32>; 2],
    D: [Vec<i32>; 2],
    // traceback matrix (as bitvectors)
    S_traceback: Traceback,
    I_traceback: Traceback,
    D_traceback: Traceback,
    // scoring
    gap_open: i32,
    gap_extend: i32,
    // function for custom substitution costs
    score: &'a F,
}

Avoid reallocation:

aligner can be reused multiple times

Alignment macro

macro_rules! align {
    (
        $aligner:ident, $x:ident, $y:ident, $state:ident,
        $init:block, $inner:block, $outer:block, $ret:block
    ) => (
        {
            let mut $state = AlignmentState { ... };
            // iterate over columns
            while $state.i <= $state.n {
                // init block
                $init

                // read next y symbol
                let b = $y[$state.i - 1];
                $state.j = 1;
                // iterate over rows
                while $state.j <= $state.m {
                    // read next x symbol
                    let a = $x[$state.j - 1];

                    // calculate scores for substitution, insertion and deletion
                    ...

                    // inner block
                    $inner

                    // update dynamic programming matrix with best score
                    $aligner.S[$state.col][$state.j] = $state.score;
                    $state.j += 1;
                }

                // outer block
                $outer

                $state.i += 1;
            }

            // return code
            $ret
        }
    );
}

Global alignment

align!(
    self,
    x,
    y,
    state,
    {
       // init block (before each column)
       self.S[state.col][0] = i32::MIN - self.gap_open;
       self.I[state.col][0] = i32::MIN - self.gap_open;
       self.D[state.col][0] = self.gap_open + (state.i as i32 - 1) * self.gap_extend;

       self.S_traceback.del(state.i, 0);
       self.D_traceback.del(state.i, 0);
       self.I_traceback.del(state.i, 0);
    },
    {
        // inner block (after each row)
    },
    {
        // outer block (after each column)
    },
    {
       self.alignment(state.n, state.m, x, y, state.score)
    }
)

Semi-global alignment

align!(
    self,
    x,
    y,
    state,
    {
       // init block (before each column)
       self.S[state.col][0] = 0;
    },
    {
        // inner block (after each row)
    },
    {
        // outer block (after each column)
        if state.score > state.best || state.best_j != state.m {
            state.best = state.score;
            state.best_i = state.i;
            state.best_j = state.m;
        }
    },
    {
       self.alignment(state.best_i, state.best_j, x, y, state.best)
    }
)

Local alignment

align!(
    self,
    x,
    y,
    state,
    {
       // init block (before each column)
       self.S[state.col][0] = 0;
    },
    {
        // inner block (after each row)
        if state.score < 0 {
           self.S_traceback.start(state.i, state.j);
           state.score = 0;
        } else if state.score > state.best {
           state.best = state.score;
           state.best_i = state.i;
           state.best_j = state.j;
        }
    },
    {
        // outer block (after each column)
    },
    {
       self.alignment(state.best_i, state.best_j, x, y, state.best)
    }
)

Example general purpose data structures

Bit encoding

use bio::data_structures::bitenc::BitEnc;

// two bit encoding
let mut bitenc = BitEnc::new(2);

// push values
bitenc.push(0);
bitenc.push(2);
bitenc.push(1);

// random access
bitenc.get(1)
// output:
// Some(2u8)

// iterate
bitenc.iter().collect();
// output:
// [0u8, 2u8, 1u8]

Mostly small integers

use bio::data_structures::smallints::SmallInts;

// init
let mut smallints: SmallInts<u8, u64> = SmallInts::new();

// add values
smallints.push(3);
smallints.push(4);
smallints.push(255);
smallints.push(305093);

// random access
smallints.get(0)
// output:
// Some(3u64)

// iteration
smallints.iter().collect()
// output:
// [3u64, 4u64, 255u64, 305093u64]

Mostly small integers

pub struct SmallInts<S: Integer + Bounded + NumCast + Copy, B: Integer + NumCast + Copy> {
    smallints: Vec<S>,
    bigints: BTreeMap<usize, B>,
}

impl<...> SmallInts<S, B> {
    fn real_value(&self, i: usize, v: S) -> Option<B> {
        if v < S::max_value() {
            cast(v)
        } else {
            self.bigints.get(&i).cloned()
        }
    }
}

Rank/select

extern crate bit_vec;
use bio::data_structures::rank_select::RankSelect;
use bit_vec::BitVec;

// init
let mut bits = BitVec::from_elem(64, false);
bits.set(5, true);
bits.set(32, true);
let rs = RankSelect::new(bits, 1);

// query rank of bit
rs.rank(5)
// output:
// Some(1)

// select first bit with given rank
rs.select(2)
// output:
// Some(32)
0000100000000000000000000000000100
0000111111111111111111111111111222

bits:

ranks:

Outlook

Types:

  • now: use type aliases to std where possible (e.g. texts are &[u8] or corresponding iterators)
  • future: use newtypes where distinction makes sense (e.g. suffix array, logprob)

Parallelization:

  • now: no internal parallelization but implementing Send and Sync
  • future: maybe use rayon where possible, let the user decide by modifying a global switch

Acknowledgements

Contributors:

Christopher Schröder

Peer Aramillo Irizar

Fedor Gusev

Vadim Nazarov

Brad Chapman

Florian Gilcher

Erik Clarke

Rizky Luthfianto

Adam Perry

Taylor Cramer

Andre Bogus

Martin Larralde

Philipp Angerer

Pierre Marijon

Franklin Delehelle

Crates:

itertools

csv

nalgebra

approx

serde
