Hello

5min

Talk to us

on Slack

Tools

15min

VSCode

VSCode existdb

exist-db on the command line

xst

elevator pitch

Routing

5min

• controller.xq

• restxq

• roaster

OAD + QR code

Lucene

20min

• developed by Apache Lucene working group
  • https://lucene.apache.org
  • current version: 9.10.0 (2024-02-20)
  • version in eXist-db: 4.10.4
• for indexing (phase 1) and searching (phase 2) in documents
• 1 document =
  • 1 xml file (root element and its descendants)
  • 1 element (not necessary the root) and its descendants
• eXist-db documentation
  https://www.exist-db.org/exist/apps/doc/lucene https://www.exist-db.org/exist/apps/doc/newrangeindex

Lucene

• defined in the collection.xconf file
  • can be in specific (sub)collection
  • stored in the /db/system/config/db/apps subcollection
  • synchronization in VS Code doesn't work (doesn't store file in the /db/system/config/db/apps collection)

  • xst upload --include "*.xconf" --verbose --apply-xconf ./data/dictionaries/ /db/apps/exist-db-lucene/data/dictionaries --config .existdb.json

Indexes

• XPath
  • @expression="tei:form[@type=('lemma', 'variant')]/tei:pron"
• XQuery
  • @expression="nav:get-metadata(., 'pronunciation')"
    • /index.xql
      • ​module namespace idx="http://teipublisher.com/index";
    • /data/dictionaries/collexction.xconf
      • <module uri="http://teipublisher.com/index" prefix="nav" at="../../index.xql"/>

Indexes (GettinG value)

• automatically while
  • uploading/inserting, removing data
  • updating data (update insert | delete | replace | delete | rename)
  • doesn't work if the <text> element contains XPath with pradicate, like //tei:list[@type='index']
• programmatically
  • xmldb:reindex('/db/apps/app/data/')
  • only the user with admin rights

Indexing

• manually
  • xst execute "xmldb:reindex('/db/apps/exist-db-lucene/data/dictionaries')" --config admin.xstrc
    • (doesn't always work)
  • from eXide (always works)
    • be logged in as an admin
    • save collection.xconf file (with/out modification)
    • click on OK button in dialog

Indexing

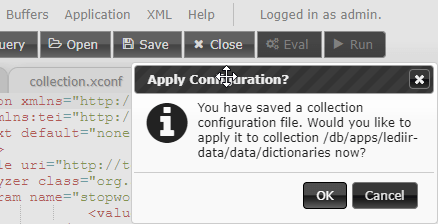

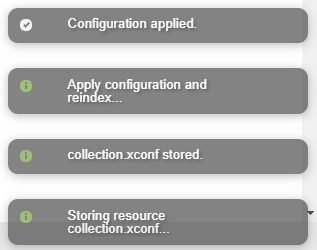

Indexing (eXide)

<field name="domain" expression="nav:get-metadata(., 'domain')" />

• used for full-text searching
• like properties of the parent node
• not only text, but all atomic types (xs:date, xs:dateTime, xs:time, xs:integer, xs:decimal...)
• can be computed
  • taken from different document
  • taken from different part of the document

ft:field($item, "domain")

Fields

<field name="sortKey" expression="nav:get-metadata(., 'sortKey')" binary="yes" />

• used for sorting or filtering
• content can be retrieved, but not queried

ft:binary-field($entry, "sortKey", "xs:string")

Binary Fields

<facet dimension="domain" expression="nav:get-metadata(., 'domain')" />

• used for filtering (existing values in the search result)
• field and facet can use the same expression (and thus the values)
• can be hierachical
• available only if ft:query function is used

Facets

<ref xml:lang="en" type="reversal">many times</ref>

• whole text is indexed, but separate words are searched
  • //tei:entry[ft:query(., " reversal: many ")]
• search for combination of words using double quotes ""
  • //tei:entry[ft:query(., ' reversal: "many times" ')]
• search with regular expression using slashes //
  • //tei:entry[ft:query(., " reversal: /[Bb]iologic.*/ ")]
• search parts of words using wildcards (* and ?)
  • //tei:entry[ft:query(., ' reversal: "time*" ')]

Searching

• return fields (for futher processing)
  • //db:entry[ft:query(., (), map { "fields": ("sortKey") })]

declare namespace tei = "http://www.tei-c.org/ns/1.0";

let $collection := "/db/apps/exist-db-lucene/data/dictionaries"
let $hits := collection($collection)//tei:entry[
  ft:query(., "reversal:although", map { "fields" : "sortKey" } )
  ]
for $hit in $hits
   order by ft:field($hit, "sortKey")
   return $hit

Using fields

Highlighting

<gram type="pos" expand="Adjective">adj</gram>

• can be used only on the result of full-text search (ft:query())

let $options := map {
    "facets": map {
        "partOfSpeech": ("subst", "v")
    }
}

//tei:entry[ft:query(., (), $options)]

Filtering (Facets)

• edit collection.xconf or index.xql
• if collection.xconf is modified
  • use xst upload --include "*.xconf" --verbose --apply-xconf ./data/dictionaries/ /db/apps/exist-db-lucene/data/dictionaries --config .existdb.json
  • close and open collection.xconf in eXide
• save collection.xconf in eXide and apply indexation
• watch eXist-db log for errors
• look in the Monex/report for the content of the field/facet

Debugging

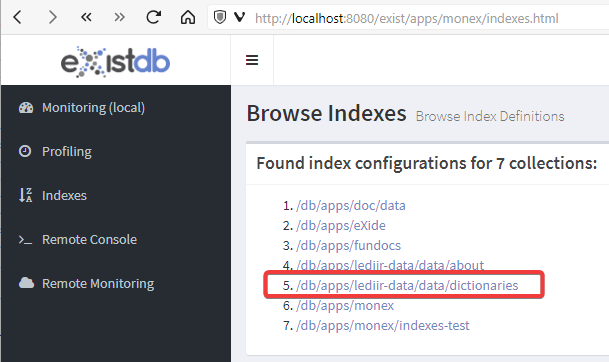

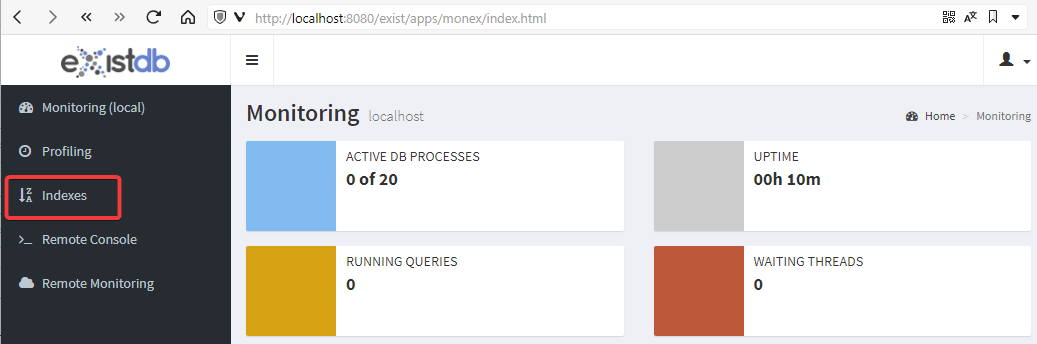

indexes in Monex

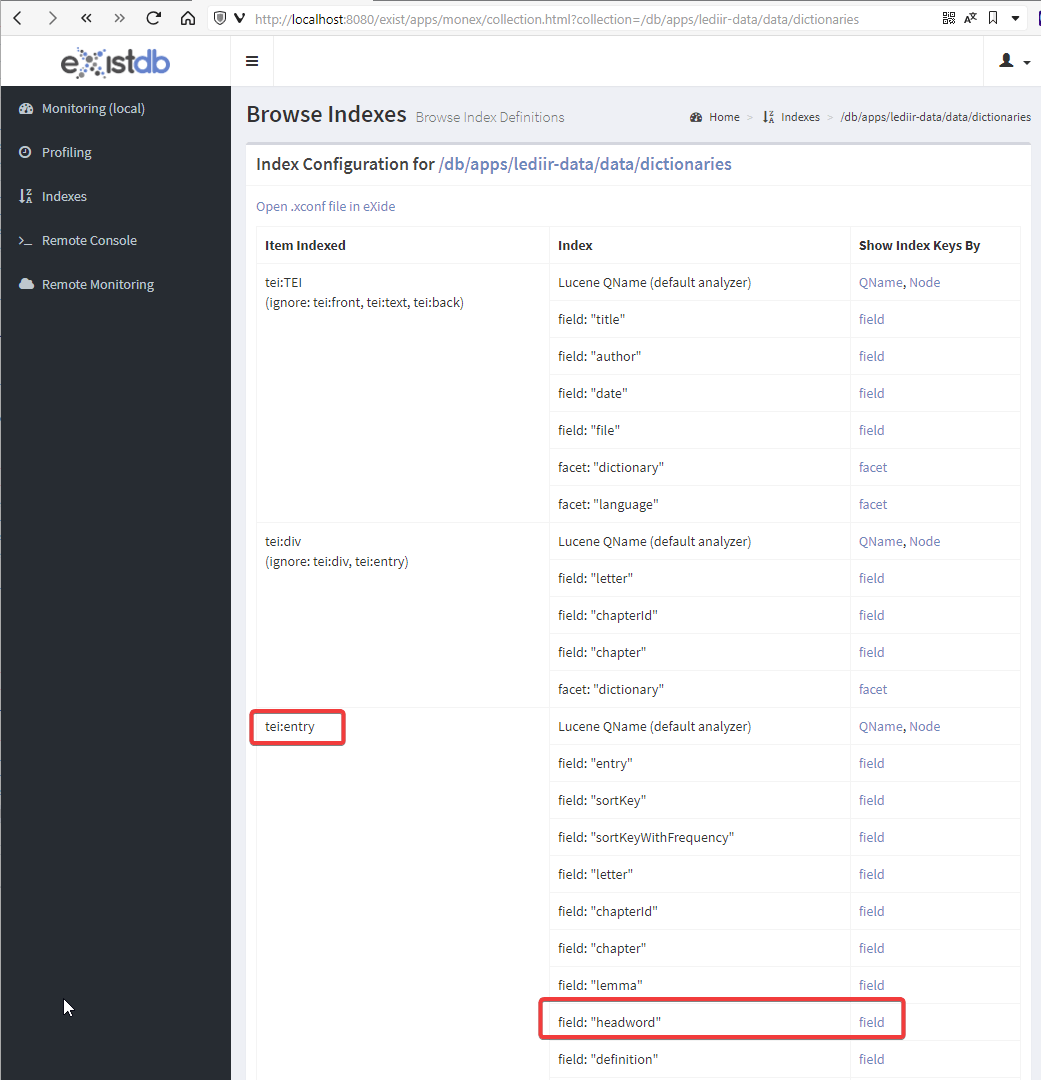

indexes in Monex

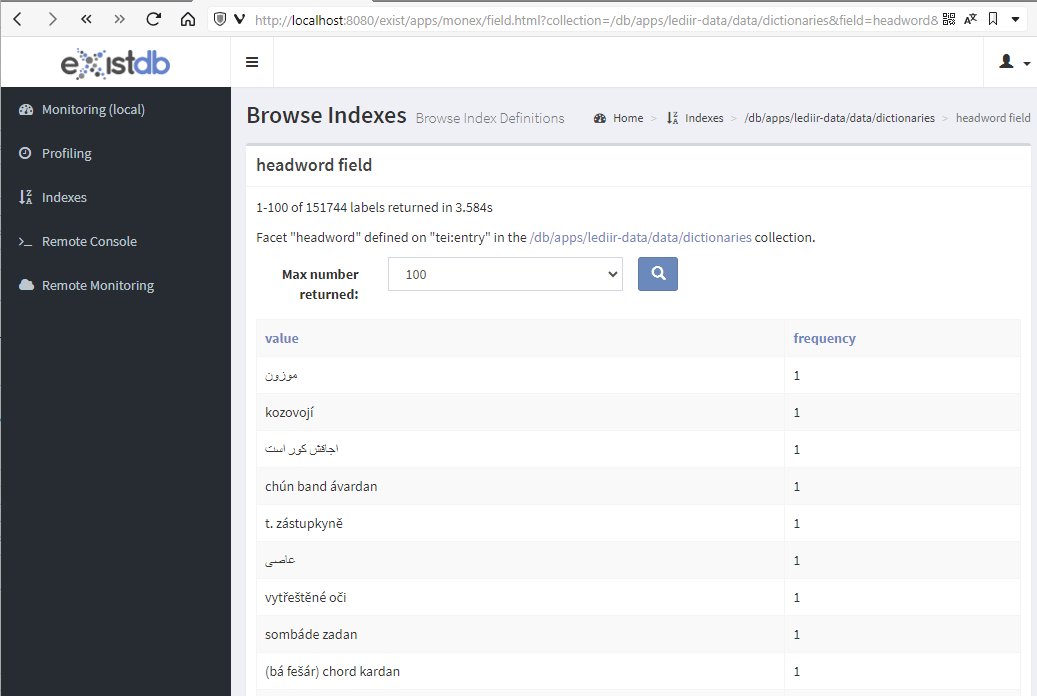

indexes in Monex

indexes in Monex

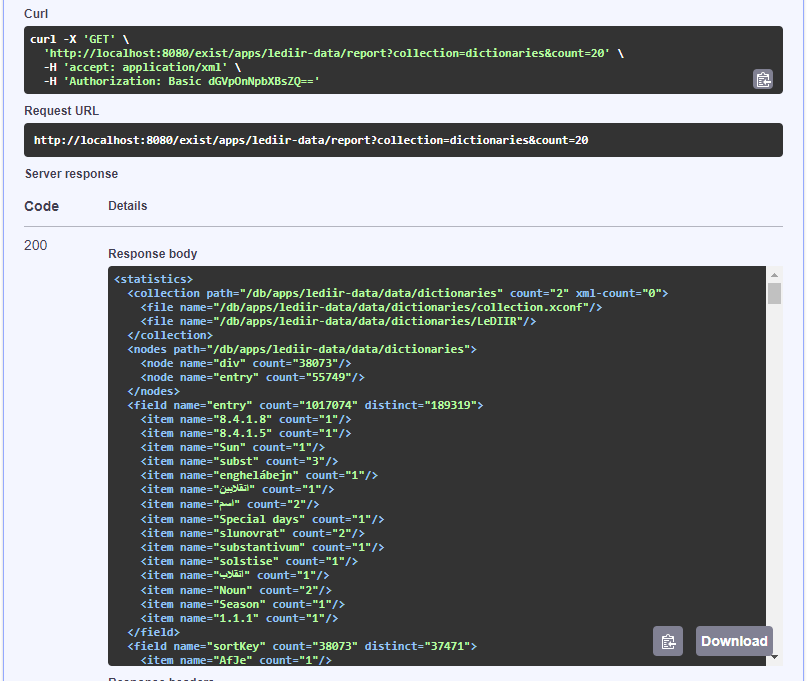

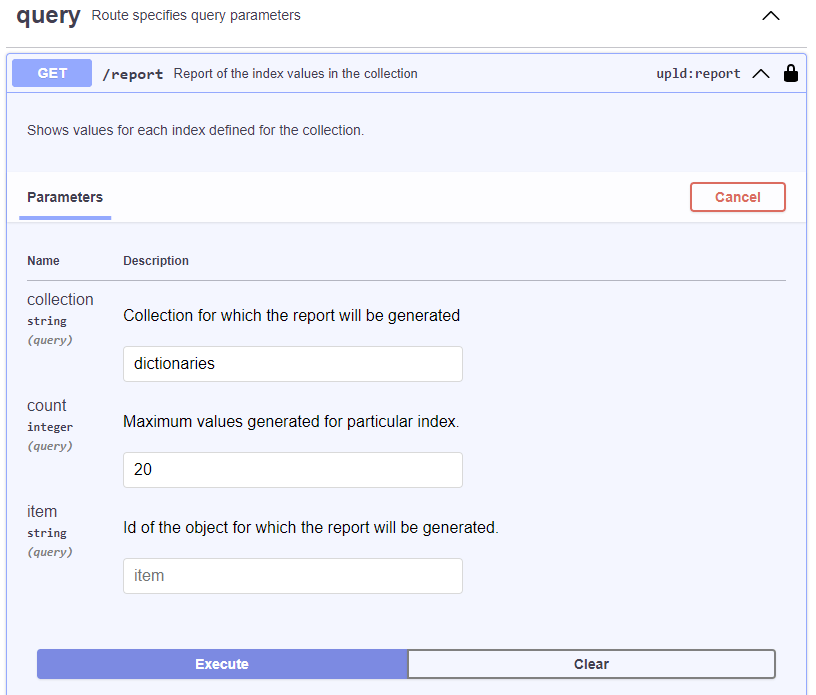

indexes (report module)

indexes (report module)

xARs

20min

build tools

ant

maven

gulp-exist

testing

xqsuite

junit

end-to-end

Ant setup

https://github.com/daliboris/eXist-db-Lucene

gulp-exist example

Java

20min

FN:invisible-xml

https://qt4cg.org/specifications/xpath-functions-40/Overview.html#func-invisible-xml

fn:invisible-xml(
    $grammar     as item()?     := (),
    $options     as map(*)?     := {}
) as    fn(xs:string) as item()

• Use Markup Blitz parser
• The invisible-xml() function for eXist
• Demo!
• Bonus:
  - Remote debugging
• To do

https://github.com/nverwer/exist/tree/ixml/exist-core

nverwer/exist-ixml-xar

exist 7

5min

Java 17

eXist-db 4.x.x, 5.x.x, and 6.x.x require JDK 8

Features

• [5188] Add in-memory cache for RPC query results
• [5115]  Postfix Expressions for Named Function References

• [5077] Add  XQuery Pragma exist:time

• [4802] Add mail:get-mail-session#2 with authentication

IMprovements

• [5084] Optimize Path Expressions for BasicExpressionVisitor
• [4793]  Optimisations to the Lucene Index Worker
• [4708]  Ensure that XSLT stylesheets are only compiled once when used from an xsl-pi in the REST Server

BugFixes (1)

• [5067] XMLRPC: non ".xml" files always stored as binary
• [5046] Fix a bug in Node Path equality
• [5018]  EXPath package:  Fix XQuery transient imports issue
• [4996] Fixes regarding circular imports
• [3207] Fix Lucene Index optimisations and Matches (facets)
• [4980] Correct function signatures that return empty sequences
• [4973] Fix cardinality issue cast to function: () => xs:string()

BugFixes (2)

• [4901] Make EXpath (java) packages portable between filesystems
• [4900] Fix castable as for untyped atomic values
• [4609] Allow fn:transform load stylesheet from database
• [4864] Spec compliant: fn:replace, fn:tokenize, fn:analyze-string
• [4850] Tails of subsequences are off by one
• [2102] NPE in match highlight with Lucene & NGram
• [4741] Fixes for CDATA: doc('has-cdata.html')//script/node()/name()
• [4703] Fix fn:serialize issues

Worth mentioning

• Docker images available for develop and develop-6.x.x
• [5215] XSD conf.xml: Add documentation
• [5113]  XSD: Add XSD for EXPath Packaging System and extensions
• [4941]  Migrate from java.xml to jakarta.xml (JAXB et al)
• [4854] Allow Saxon licensed editions (EE and PE)

• Fix for memory leak triggers/restore
• Fix for defragmentation issue XUpdate + XQuery Update
• Function type checks
• The KWIC module is rewritten
• The SPARQL extension will be revived (yes, there is one)

OUTLOOK
