Group Theory, Irreducible Representations, and Tensor Products

and How to Use them in e3nn to Build Euclidean Neural Networks

Mario Geiger

MRS Fall Meeting Tutorial

This talk is about

  1. The math of rotations and parity

  2. Creating and manipulating equivariant functions (polynomials)
    Which is useful for
    1. Compute spherical harmonics
    2. Create invariant polynomials (Thomas and Martin talk)
    3. Create the linear part of equivariant neural networks

  3. Non linearities (non-polynomial)
    Which is useful for
    1. For the activation functions of the neural networks

intro

polynomials

examples & code

nonlinearities

Polynomial part

  1. Define properly what is an equivariant polynomial
  2. Give the tools to create them



Examples and Code

  1. Spherical Harmonics
  2. Tensor Product with weights (cornerstone of e3nn)
  3. Decomposition of Cartesian Tensors



Nonlinearities

  1. Gates

intro

polynomials

examples & code

nonlinearities

intro

polynomials

examples & code

nonlinearities

Group and Representations

intro

polynomials

examples & code

nonlinearities

Group and Representations

"what are the operations"

"how they compose"

intro

polynomials

examples & code

nonlinearities

Group and Representations

"what are the operations"

"how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group and Representations

"what are the operations"

"how they compose"

"vector spaces on which the action of the group is defined"

rotations, parity, (translations)

scalars, vectors, pseudovectors, ...

intro

polynomials

examples & code

nonlinearities

Group and Representations

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Representation \(D(g, x)\)

  • \(g\in G\), \(x \in V\)
  • Linear \(D(g, x+y) = D(g,x) + D(g,y) \)
  • Follow the structure of the group
    \(D(gh,x) = D(g, D(h,x))\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Representation \(D(g, x)\)

  • \(g\in G\), \(x \in V\)
  • Linear \(D(g, x+y) = D(g,x) + D(g,y) \)
  • Follow the structure of the group
    \(D(gh,x) = D(g, D(h,x))\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Representation \(D(g, x)\)

  • \(g\in G\), \(x \in V\)
  • Linear \(D(g, x+y) = D(g,x) + D(g,y) \)
  • Follow the structure of the group
    \(D(gh,x) = D(g, D(h,x))\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Representation \(D(g, x)\)

  • \(g\in G\), \(x \in V\)
  • Linear \(D(g, x+y) = D(g,x) + D(g,y) \)
  • Follow the structure of the group
    \(D(gh,x) = D(g, D(h,x))\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Representation \(D(g, x)\)

  • \(g\in G\), \(x \in V\)
  • Linear \(D(g, x+y) = D(g,x) + D(g,y) \)
  • Follow the structure of the group
    \(D(gh,x) = D(g, D(h,x))\)

Equivalent notation \(D(g) x\)

  • \(D(g) : V\to V\)
  • \(D(g) \in \mathbb{R}^{d\times d}\)
  • \(D(gh) = D(g) D(h)\)

⚠️ We use this notation in the code

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Representation \(D(g, x)\)

  • \(g\in G\), \(x \in V\)
  • Linear \(D(g, x+y) = D(g,x) + D(g,y) \)
  • Follow the structure of the group
    \(D(gh,x) = D(g, D(h,x))\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

Equivalent notation \(D(g) x\)

  • \(D(g) : V\to V\)
  • \(D(g) \in \mathbb{R}^{d\times d}\)
  • \(D(gh) = D(g) D(h)\)

⚠️ We use this notation in the code

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Representation \(D(g, x)\)

  • \(g\in G\), \(x \in V\)
  • Linear \(D(g, x+y) = D(g,x) + D(g,y) \)
  • Follow the structure of the group
    \(D(gh,x) = D(g, D(h,x))\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

Equivalent notation \(D(g) x\)

  • \(D(g) : V\to V\)
  • \(D(g) \in \mathbb{R}^{d\times d}\)
  • \(D(gh) = D(g) D(h)\)

⚠️ We use this notation in the code

intro

polynomials

examples & code

nonlinearities

Group \(G\)

  • \(\text{identity} \in G\)
  • stability \(g h \in G\)
  • inverse \(g^{-1} \in G\)

Representation \(D(g, x)\)

  • \(g\in G\), \(x \in V\)
  • Linear \(D(g, x+y) = D(g,x) + D(g,y) \)
  • Follow the structure of the group
    \(D(gh,x) = D(g, D(h,x))\)

Group and Representations

"what are the operations" "how they compose"

"vector spaces on which the action of the group is defined"

Equivalent notation \(D(g) x\)

  • \(D(g) : V\to V\)
  • \(D(g) \in \mathbb{R}^{d\times d}\)
  • \(D(gh) = D(g) D(h)\)

⚠️ We use this notation in the code

intro

polynomials

examples & code

nonlinearities

Examples of representations

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

Representations are like data types

It tells you how to interpret the data...

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

Knowing that \(a_1, a_2, a_3\) are scalars tells you that they are not affected by a rotation of your system

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

If the system is rotated, the 3 components of the vector change together!

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

The two vectors transforms indepentently

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

system rotated by \(g\)

\(D(g)\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

system rotated by \(g\)

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

system rotated by \(g\)

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

system rotated by \(g\)

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

Representations are like data types

It tells you how to interpret the data with respect to the \(G\)!

system rotated by \(g\)

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

system rotated by \(g\)

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

e3nn notation:

irreps = "3x0e + 2x1o"

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

system rotated by \(g\)

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

e3nn notation:

from e3nn import o3

irreps = o3.Irreps("3x0e + 2x1o")

intro

polynomials

examples & code

nonlinearities

Examples of representations

3 scalars

a vector

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\in \mathbb{R}^9\)

a vector

system rotated by \(g\)

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

from e3nn import o3

irreps = o3.Irreps("3x0e + 2x1o")

import torch

alpha, beta, gamma = torch.randn(3)
irreps.D_from_angles(alpha, beta, gamma)

intro

polynomials

examples & code

nonlinearities

Examples of representations

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

system rotated by \(g\)

\(\begin{bmatrix} a^1\\a^2\\a^3\\a^4\\a^5\\a^6\\a^7\\a^8\\a^9\end{bmatrix}\)

array([[ 1.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ],
       [ 0.  ,  1.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ],
       [ 0.  ,  0.  ,  1.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ],
       [ 0.  ,  0.  ,  0.  ,  0.77,  0.22, -0.6 ,  0.  ,  0.  ,  0.  ],
       [ 0.  ,  0.  ,  0.  , -0.1 ,  0.97,  0.23,  0.  ,  0.  ,  0.  ],
       [ 0.  ,  0.  ,  0.  ,  0.63, -0.12,  0.76,  0.  ,  0.  ,  0.  ],
       [ 0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.77,  0.22, -0.6 ],
       [ 0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  , -0.1 ,  0.97,  0.23],
       [ 0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.  ,  0.63, -0.12,  0.76]],
      dtype=float32)
from e3nn import o3

irreps = o3.Irreps("3x0e + 2x1o")

import torch

alpha, beta, gamma = torch.randn(3)
irreps.D_from_angles(alpha, beta, gamma)

intro

polynomials

examples & code

nonlinearities

Equivariance

\(V\)

\(V'\)

intro

polynomials

examples & code

nonlinearities

Equivariance

\(V\)

\(V'\)

\(D(g)\)

\(D'(g)\)

\(V\)

\(V'\)

intro

polynomials

examples & code

nonlinearities

Equivariance

\(V\)

\(V'\)

\(D(g)\)

\(D'(g)\)

\(V\)

\(V'\)

\(f\)

intro

polynomials

examples & code

nonlinearities

Equivariance

\(V\)

\(V'\)

\(D(g)\)

\(D'(g)\)

\(V\)

\(V'\)

\(f\)

\(f\)

intro

polynomials

examples & code

nonlinearities

Equivariance

\(V\)

\(V'\)

\(D(g)\)

\(D'(g)\)

\(V\)

\(V'\)

\(f\)

\(f\)

\(f(D(g) x)\)

intro

polynomials

examples & code

nonlinearities

Equivariance

\(V\)

\(V'\)

\(D(g)\)

\(D'(g)\)

\(V\)

\(V'\)

\(f\)

\(f\)

\(f(D(g) x)\)

\(D'(g) f(x)\)

intro

polynomials

examples & code

nonlinearities

Equivariance

\(V\)

\(V'\)

\(D(g)\)

\(D'(g)\)

\(V\)

\(V'\)

\(f\)

\(f\)

\(f(D(g) x)\)

\(D'(g) f(x)\)

\(=\)

intro

polynomials

examples & code

nonlinearities

Polynomials

Most simple yet powerful functions

intro

polynomials

examples & code

nonlinearities

Polynomials

Most simple yet powerful functions

Be able to create polynomials compatible with rotations is a powerful tool

intro

polynomials

examples & code

nonlinearities

Polynomials

\(x \mapsto x^2 + 2(x-4)\)

intro

polynomials

examples & code

nonlinearities

Polynomials

\(x \mapsto x^2 + 2(x-4)\)

\(\begin{bmatrix} x\\ y\\ z \end{bmatrix} \mapsto x^2 + 2(y-z)x\)

intro

polynomials

examples & code

nonlinearities

Polynomials

\(x \mapsto x^2 + 2(x-4)\)

\(\begin{bmatrix} x\\ y\\ z \end{bmatrix} \mapsto x^2 + 2(y-z)x\)

\(\begin{bmatrix} x\\ y\\ z \end{bmatrix} \mapsto \begin{bmatrix} x^2 + 2(y-z) \\ z^4 + 100 x y z\end{bmatrix}\)

intro

polynomials

examples & code

nonlinearities

Equivariant Polynomials

\(P(D(g) x) = D'(g) P(x)\)

\(\begin{bmatrix} x\\ y\\ z \end{bmatrix} \mapsto \begin{bmatrix} x^2 + 2(y-z) \\ z^4 + 100 x y z\end{bmatrix}\)

😟

Not equivariant

\(\begin{bmatrix} x\\ y\\ z \end{bmatrix} \mapsto \begin{bmatrix} x^2 + y^2 + z^2 \end{bmatrix}\)

😌

Equivariant

intro

polynomials

examples & code

nonlinearities

3 Tools to Make Polynomials

  • 🔨Composition \(\circ\)
  • 🔧Addition \(+\)
  • 🔩Multiplication \(\otimes\)

equivariant 😊

intro

polynomials

examples & code

nonlinearities

🔨Composition

two equivariant functions

\(f: V_1 \rightarrow V_2\)

\(h: V_2 \rightarrow V_3\)

\(h\circ f\) is equivariant!! 😊

\( h(f(D_1(g) x)) = h(D_2(g) f(x)) = D_3(g) h(f(x)) \)

intro

polynomials

examples & code

nonlinearities

🔧Addition

two equivariant functions

\(f: V_1 \rightarrow V_3\)

\(h: V_2 \rightarrow V_3\)

\(h + f\) is equivariant!! 😊

\( f(D_1(g) x) + h(D_2(g)x) = D_3(g) (f(x) + h(x)) \)

intro

polynomials

examples & code

nonlinearities

🔩Multiplication

\(\begin{bmatrix} {\color{red} x_1}\\{\color{red} x_2}\\{\color{red} x_3}\end{bmatrix}\)

\(\begin{bmatrix} {\color{blue} y_1}\\{\color{blue} y_2}\\{\color{blue} y_3}\\{\color{blue} y_4}\\{\color{blue} y_5} \end{bmatrix}\)

transforming with \(D(g)\)

transforming with \(D'(g)\)

\(= \begin{bmatrix} x_1y_1 & x_1y_2 & x_1y_3 & x_1y_4 & x_1y_5 \\ x_2y_1 & x_2y_2 & x_2y_3 & x_2y_4 & x_2y_5 \\ x_3y_1 & x_3y_2 & x_3y_3 & x_3y_4 & x_3y_5 \end{bmatrix}\)

intro

polynomials

examples & code

nonlinearities

🔩Multiplication

\(\otimes\)

\(= \begin{bmatrix}{\color{red} x_1} {\color{blue} y_1}&{\color{red} x_1} {\color{blue} y_2}&{\color{red} x_1} {\color{blue} y_3}&{\color{red} x_1} {\color{blue} y_4}&{\color{red} x_1} {\color{blue} y_5}\\{\color{red} x_2} {\color{blue} y_1}&{\color{red} x_2} {\color{blue} y_2}&{\color{red} x_2} {\color{blue} y_3}&{\color{red} x_2} {\color{blue} y_4}&{\color{red} x_2} {\color{blue} y_5}\\{\color{red} x_3} {\color{blue} y_1}&{\color{red} x_3} {\color{blue} y_2}&{\color{red} x_3} {\color{blue} y_3}&{\color{red} x_3} {\color{blue} y_4}&{\color{red} x_3} {\color{blue} y_5}\end{bmatrix}\)

Tensor Product

transforms with \(D(g) \otimes D'(g)\) 😊

\(\dim( D \otimes D' ) = \dim( D ) \dim( D' )\)

\(\begin{bmatrix} {\color{red} x_1}\\{\color{red} x_2}\\{\color{red} x_3}\end{bmatrix}\)

\(\begin{bmatrix} {\color{blue} y_1}\\{\color{blue} y_2}\\{\color{blue} y_3}\\{\color{blue} y_4}\\{\color{blue} y_5} \end{bmatrix}\)

intro

polynomials

examples & code

nonlinearities

\(\text{vector} \otimes \text{vector} \otimes \text{vector} \otimes \dots\)



tensors of shape \(3\times3\times3\times\dots\)

Cartesian Tensors

The grow in dimension is problematic

Luckily the tensor product is reducible

Reducible representations

intro

polynomials

examples & code

nonlinearities

\(D\) defined on \(V\)

is reducible if

\(\exists W \subset V\)

such that

\(D|_W\) is a representation

intro

polynomials

examples & code

 conclusion

intro

polynomials

examples & code

nonlinearities

Reducible representations

Famous Example

\(\begin{bmatrix}{\color{red} x_1} {\color{blue} x_2}&{\color{red} x_1} {\color{blue} y_2}&{\color{red} x_1} {\color{blue} z_2}\\{\color{red} y_1} {\color{blue} x_2}&{\color{red} y_1} {\color{blue} y_2}&{\color{red} y_1} {\color{blue} z_2}\\{\color{red} z_1} {\color{blue} x_2}&{\color{red} z_1} {\color{blue} y_2}&{\color{red} z_1} {\color{blue} z_2}\end{bmatrix}\)

\(D\) defined on \(V\)

is reducible if

\(\exists W \subset V\)

such that

\(D|_W\) is a representation

\(\begin{bmatrix} {\color{red} x_1}\\{\color{red} y_1}\\{\color{red} z_1}\end{bmatrix}\otimes\begin{bmatrix} {\color{blue} x_2}\\{\color{blue} y_2}\\{\color{blue} z_2}\end{bmatrix} = \)

intro

polynomials

examples & code

nonlinearities

Reducible representations

\({\color{red}x_1}{\color{blue}x_2} + {\color{red}y_1}{\color{blue}y_2} + {\color{red}z_1} {\color{blue}z_2}\)

\(\begin{bmatrix}c ( {\color{red}x_1} {\color{blue}z_2} + {\color{red}z_1} {\color{blue}x_2} ) \\ c ( {\color{red}x_1} {\color{blue}y_2} + {\color{red}y_1} {\color{blue}x_2} ) \\ 2 {\color{red}y_1} {\color{blue}y_2} - {\color{red}x_1} {\color{blue}x_2} - {\color{red}z_1} {\color{blue}z_2} \\ c ( {\color{red}y_1} {\color{blue}z_2} + {\color{red}z_1} {\color{blue}y_2} ) \\ c ( {\color{red}z_1} {\color{blue}z_2} - {\color{red}x_1} {\color{blue}x_2} ) \\\end{bmatrix}\)

\(\begin{bmatrix}{\color{red}y_1}{\color{blue}z_2}-{\color{red}z_1} {\color{blue}y_2}\\ {\color{red}z_1}{\color{blue}x_2}-{\color{red}x_1}{\color{blue}z_2}\\ {\color{red}x_1}{\color{blue}y_2}-{\color{red}y_1}{\color{blue}x_2}\end{bmatrix}\)

\(\begin{bmatrix}{\color{red} x_1} {\color{blue} x_2}&{\color{red} x_1} {\color{blue} y_2}&{\color{red} x_1} {\color{blue} z_2}\\{\color{red} y_1} {\color{blue} x_2}&{\color{red} y_1} {\color{blue} y_2}&{\color{red} y_1} {\color{blue} z_2}\\{\color{red} z_1} {\color{blue} x_2}&{\color{red} z_1} {\color{blue} y_2}&{\color{red} z_1} {\color{blue} z_2}\end{bmatrix}\)

\(3\times3=1+3+5\)

These can be seen as polynomials!

\(D\) is reducible if

\(\exists W \subset V\)

such that

\(D|_W\) is a representation

intro

polynomials

examples & code

nonlinearities

Irreducible representations

For the group of rotations (\(SO(3)\))

They are index by \(L=0, 1, 2, \dots\)

Of dimension \(2L+1\)

L=0 d=1 scalar
L=1 d=3 vector
L=2 d=5 no name?

intro

polynomials

examples & code

nonlinearities

Irreducible representations

For the group of rotations + parity (\(O(3)\))

They are index by \(L=0, 1, 2, \dots\)

Of dimension \(2L+1\)

L=0 d=1 scalar
L=1 d=3 peudo
vector
L=2 d=5 no name?
L=0 d=1 pseudo
scalar
L=1 d=3 vector
L=2 d=5 no name?

Even

Odd

🔩Multiplication

intro

polynomials

examples & code

nonlinearities

\(L_1 \otimes L_2 = |L_1-L_2| \oplus \dots \oplus (L_1+L_2)\)

generalization of \(3\times3=1+3+5\)

  • \( 2 \otimes 1 = 1 \oplus 2 \oplus 3 \)
  • \( 2 \otimes 2 = 0\oplus 1 \oplus 2 \oplus 3 \oplus 4 \)

intro

polynomials

examples & code

nonlinearities

🔨Composition

🔧Addition

🔩Multiplication

Composition of equivariant polynomials ✅

Addition of equivariant polynomials ✅

Tensor Product of equivariant polynomials ✅

 \(L_1 \otimes L_2 = |L_1-L_2| \oplus \dots \oplus (L_1+L_2)\)

p2(p1(x, y), z)
p1(x, y) + p2(w, z)
from e3nn import o3

p = o3.FullTensorProduct("1o", "1o")

p(x, y)

intro

polynomials

examples & code

nonlinearities

🔨Composition

🔧Addition

🔩Multiplication

Composition of equivariant polynomials ✅

Addition of equivariant polynomials ✅

Tensor Product of equivariant polynomials ✅

 \(L_1 \otimes L_2 = |L_1-L_2| \oplus \dots \oplus (L_1+L_2)\)

p2(p1(x, y), z)
p1(x, y) + p2(w, z)
from e3nn import o3

p = o3.FullTensorProduct("1o", "1o")

p(x, y)

intro

polynomials

examples & code

nonlinearities

Spherical Harmonics

Representation of highest order (\(l\)) in \(\vec x \otimes \vec x \otimes \dots\)

https://e3nn.org/mrs

intro

polynomials

examples & code

nonlinearities

Tensor Product with weights

\(3\times3=1+3+5\)

\(\begin{bmatrix}{\color{red} x_1} {\color{blue} x_2}&{\color{red} x_1} {\color{blue} y_2}&{\color{red} x_1} {\color{blue} z_2}\\{\color{red} y_1} {\color{blue} x_2}&{\color{red} y_1} {\color{blue} y_2}&{\color{red} y_1} {\color{blue} z_2}\\{\color{red} z_1} {\color{blue} x_2}&{\color{red} z_1} {\color{blue} y_2}&{\color{red} z_1} {\color{blue} z_2}\end{bmatrix}\)

\({\color{red}x_1}{\color{blue}x_2} + {\color{red}y_1}{\color{blue}y_2} + {\color{red}z_1} {\color{blue}z_2}\)

\(\begin{bmatrix}{\color{red}y_1}{\color{blue}z_2}-{\color{red}z_1} {\color{blue}y_2}\\ {\color{red}z_1}{\color{blue}x_2}-{\color{red}x_1}{\color{blue}z_2}\\ {\color{red}x_1}{\color{blue}y_2}-{\color{red}y_1}{\color{blue}x_2}\end{bmatrix}\)

\(\begin{bmatrix}c ( {\color{red}x_1} {\color{blue}z_2} + {\color{red}z_1} {\color{blue}x_2} ) \\ c ( {\color{red}x_1} {\color{blue}y_2} + {\color{red}y_1} {\color{blue}x_2} ) \\ 2 {\color{red}y_1} {\color{blue}y_2} - {\color{red}x_1} {\color{blue}x_2} - {\color{red}z_1} {\color{blue}z_2} \\ c ( {\color{red}y_1} {\color{blue}z_2} + {\color{red}z_1} {\color{blue}y_2} ) \\ c ( {\color{red}z_1} {\color{blue}z_2} - {\color{red}x_1} {\color{blue}x_2} ) \\\end{bmatrix}\)

\(\begin{bmatrix} {\color{red} x_1}\\{\color{red} y_1}\\{\color{red} z_1}\end{bmatrix}\otimes\begin{bmatrix} {\color{blue} x_2}\\{\color{blue} y_2}\\{\color{blue} z_2}\end{bmatrix} = \)

"1o" time "1o"
"1o"
"1o"
"0e"
"1e"
"2e"

https://e3nn.org/mrs

intro

polynomials

examples & code

nonlinearities

Tensor Product with weights

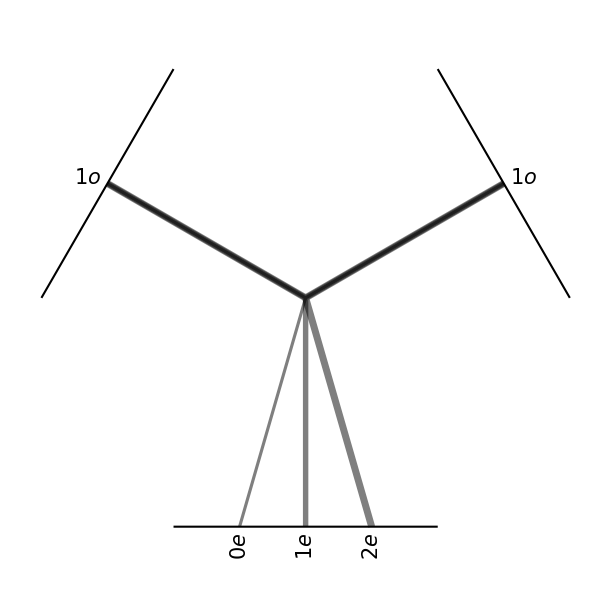

first argument

second argument

output

\(3\times3=1+3+5\)

https://e3nn.org/mrs

intro

polynomials

examples & code

nonlinearities

Tensor Product with weights

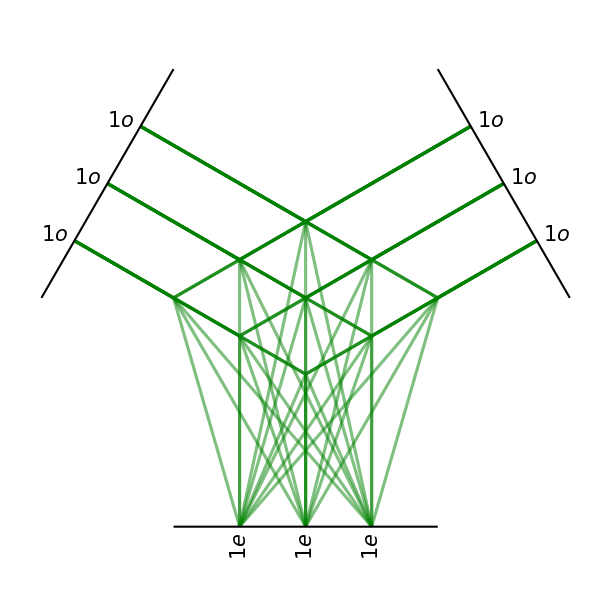

3 vectors times 3 vectors given 3 pseudovectors

each output is the weight sum of 9 pseudovectors

This operation contains 27 parameters

https://e3nn.org/mrs

intro

polynomials

examples & code

nonlinearities

Reduce Tensor Product

Consider for instance the inertia tensor



\(\displaystyle I_{ij} = \int dx \; \rho(x) \; (\|x\|^2 \delta_{ij} - x_i x_j)\)

It is a \(\text{vector} \otimes \text{vector}\) symmetric tensor (\(I_{ij} = I_{ji}\))

It can be decomposed into a scalar and a \(l=2\) irrep

https://e3nn.org/mrs

intro

polynomials

examples & code

nonlinearities

Nonlinearities

intro

polynomials

examples & code

nonlinearities

Nonlinearities

Gate

\( \phi(P(x)) Q(x) \)

invariant polynomial

equivariant polynomial

sigmoid like function

Conclusion

  • Group and representations
  • 😊 Equivariance \(f({\color{purple}D(g)} x) = {\color{darkgreen}D'(g)} f(x)\)
    • 🔨Composition
    • 🔧Addition
  • Polynomials
    •  🔩 Tensor Product  \(L_1 \otimes L_2 = |L_1-L_2| \oplus \dots \oplus (L_1+L_2)\)
    • Polynomials with weights
  • ​Nonlinearities
    • ​Gate

https://e3nn.org/mrs

Thank you for listening!

https://e3nn.org/mrs

e3nn math

By Mario Geiger

e3nn math

  • 2,855
