Photogrammetry

Workshop: Tuesday



Educators in VR - Photogrammetry

Have you downloaded?

Also:

                                     discord.me/PhotoG



channel: ????????

producing realistic 3D models by processing large number of photos of a real-life object

Educators in VR - Photogrammetry

Notice: Many angle photos



What is wrong with

the pictured

approach?

Photogrammetry is



producing realistic 3D models by processing large number of photos of a real-life object

Educators in VR - Photogrammetry

Take Lots of Photos



Normal digital camera



Consistent focus



Photos overlap

Multiple Angles

In Rings



Actually 50 limit, 3DFree



Educators in VR - Photogrammetry

Avoid

Shiny Surfaces

Plain Surfaces

Small Holes



Choose

Textured or

patterned

surfaces

0.5m --> 10m

Educators in VR - Photogrammetry

Educators in VR - Photogrammetry

Educators in VR - Photogrammetry

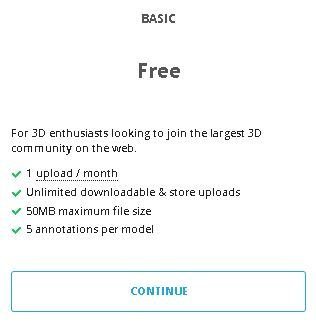

Sketchfab

https://sketchfab.com/plans/individuals

• Multiple uploads possible

                          (if making public)

• Aim for 10MB in Sketchfab

                     (smaller in Altspace)





Educators in VR - Photogrammetry

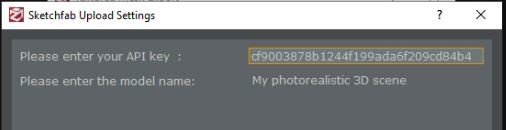

3DF Zephyr

--> Sketchfab

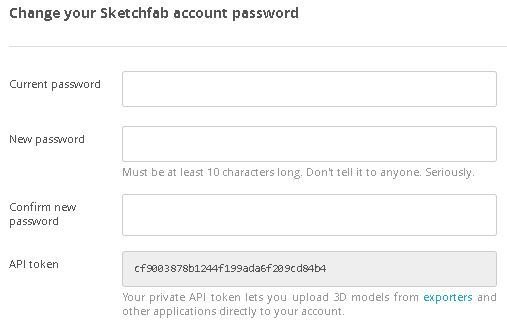

API token, Sketchfab change password



Will be used in final Export from 3DF







Educators in VR - Photogrammetry

Assignment







Educators in VR - Photogrammetry



Choose subject: (10 minutes)

Fill camera frame; with some texture



Take photos: (30 minutes)

30-60 photos; at least 3 rings. Throw any duffs away. 3DF takes 50.



Stretch assignment (10 minutes):

Join Sketchfab. Basic - Free.









 Q&A





discord.me/PhotoG



channel: tuesday-resources
