Photogrammetry

with

Phones

Meetup 4

Lets look at some Models

(Large / Polycam)

Week 4

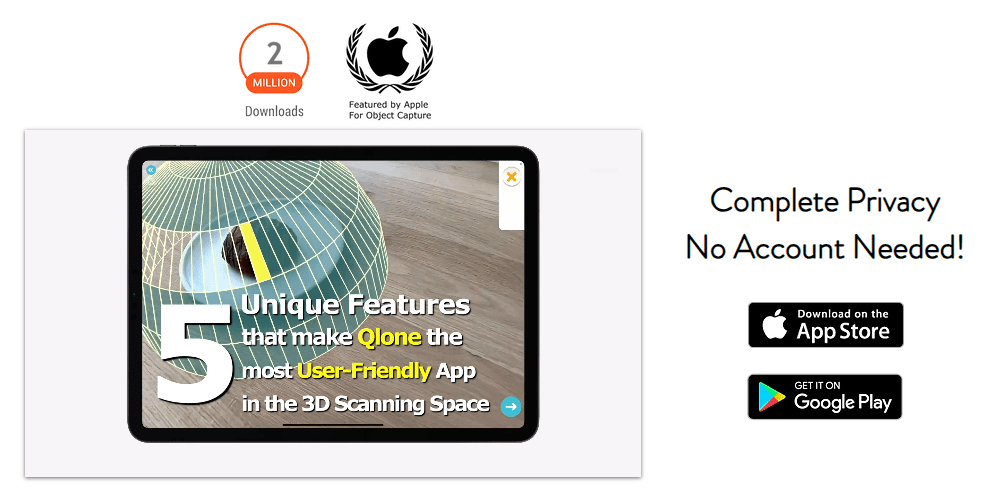

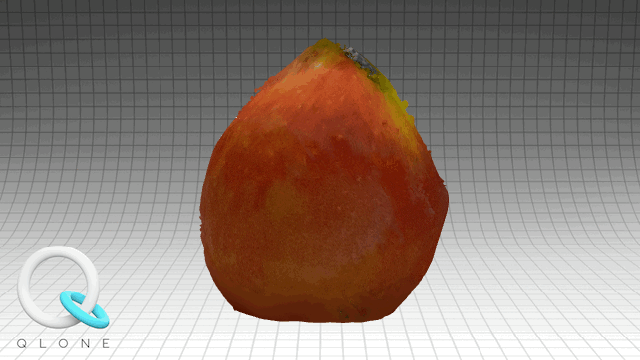

Qlone

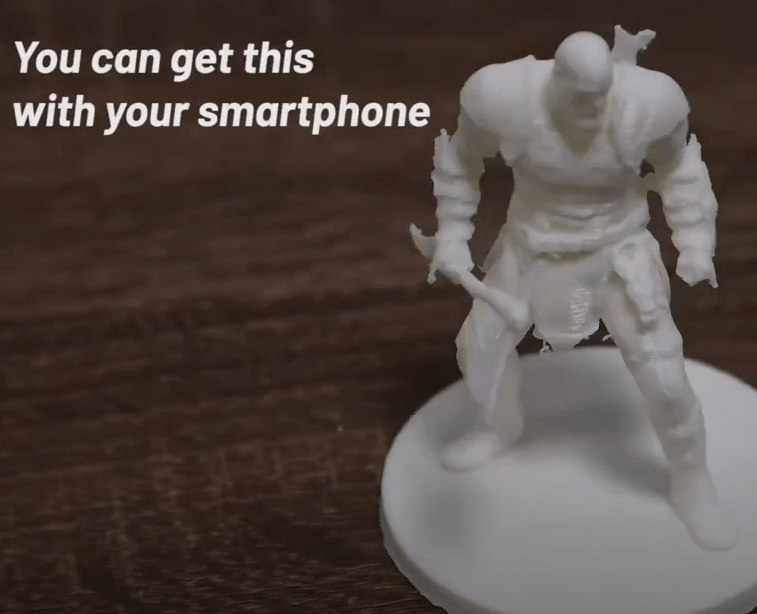

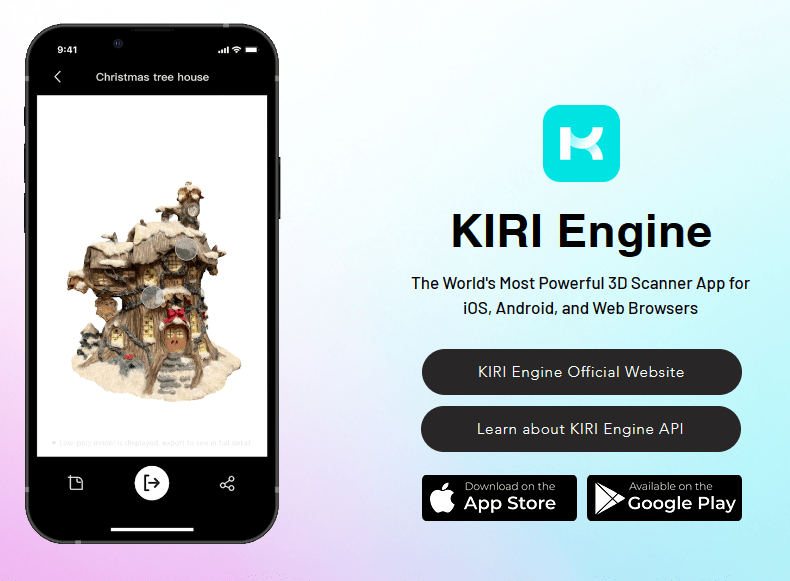

Kiri Engine

Angles (different methods)

Small Objects

Focus

Lighting

Tool Tips

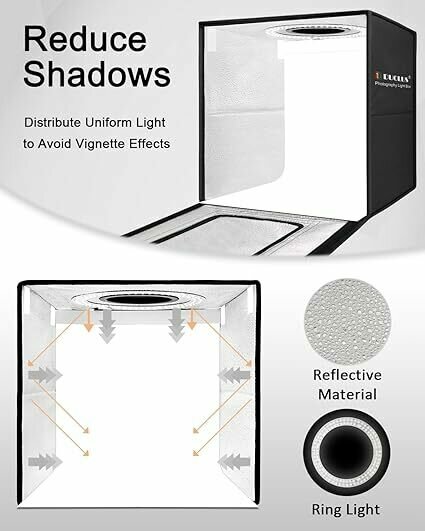

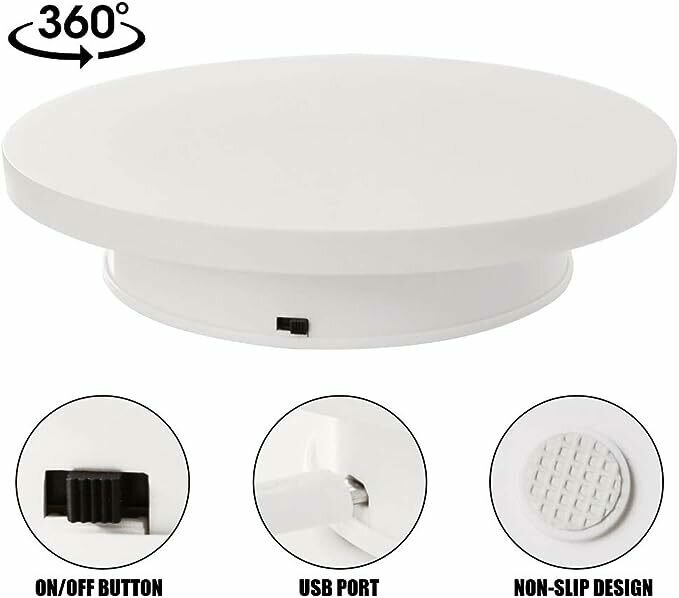

Light boxes/Turntables

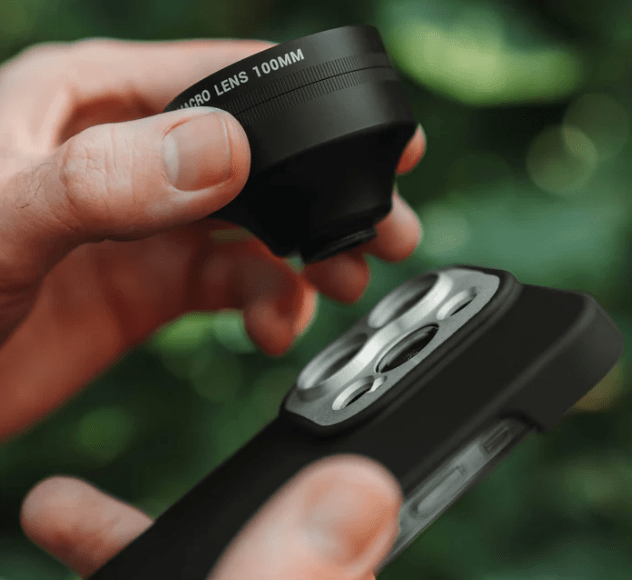

Tripods/Macro Lens

Next Assignment: Small Objects

                   with Qlone or Kiri

​

MJ: Older

Mat

Processing on Phone

Good 'dome' method

Video: Qlone Tips and Best Practise

Problems with

Qlone

                                                                            Pyramids?

                                 (try using a back mat)

       Free iOS only allows .gif exports

       £18.49 on Android

       No recent updates

MJ: Small team

Active development

Good 'object masking'

Video: 3-axis Scanning

Did you capture everything?

Scaniverse                                 Colour directs to scan more detail

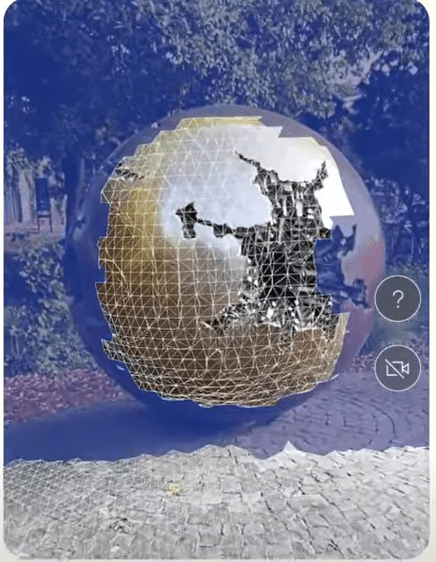

Polycam

Did you capture everything?

Luma AI                                                                  Guided capture

Qlone

Did you capture everything?

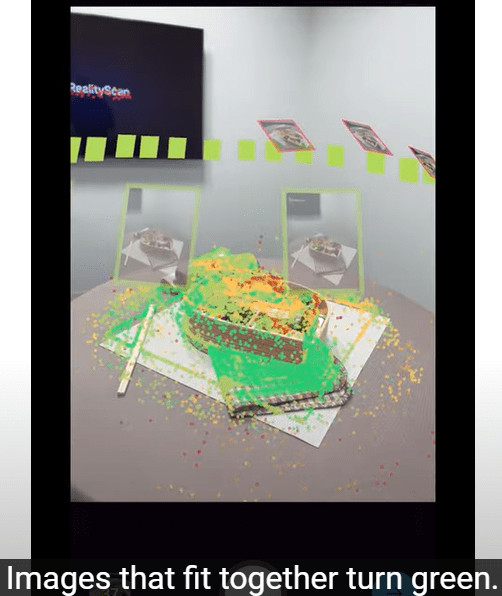

RealityScan - Colours indicate quality

Kiri Engine -  nothing

Q&A

Questions so far?

Tool Tips

        See Model Boards

and

Video : Setup

Revised approach

Lots of Light

Object further

from light

source

Manual Camera

Issues

        See Model Boards

and

Video : Capture

   Assignment

Make at least one small model using:

Qlone

or

Kiri Engine

Upload to Sketchfab

 Turn-in link via Discord

See Model: Tortoise

Process

Video : Process

DO

Pick a quite small object

(<15 cm, > 5cm)

Plan your circling & heights

Turntable if possible

Change object pose at least once

DON'Ts

Get disheartened by failures

See Model: Metal Detectorist FInds

Next meeting is NerF & Gaussian Splats
