Observation of competing, correlated ground states in the flat band of rhombohedral graphite
Zoltán Tajkov
Nanostructures Department, Centre for Energy Research,
Department of Biological Physics, Eötvös Loránd University
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
Electrons in solids - Band theory
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
\left[ -\frac{\hbar^2}{2m}\nabla^2 + U\left( \mathbf{r} \right) \right] \psi\left( \mathbf{r} \right) = \varepsilon \psi\left( \mathbf{r} \right)
averaged potential
Electrons in solids - Band theory
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
\left[ -\frac{\hbar^2}{2m}\nabla^2 + U\left( \mathbf{r} \right) \right] \psi\left( \mathbf{r} \right) = \varepsilon \psi\left( \mathbf{r} \right)
Why do we use it?
- electrical resistivity
- optical absorption
- foundation of solid-state electronics
It explains...
Electrons in solids - Beyond band theory
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
Why do we use it?
Because we can.
An example: methane
1 carbon atom + 4 hydrogen atoms = 10 electrons
30 independent coordinates
100 points per coordinate
\( 100^{30}=10^{60} \) complex number
1 complex number in every atom
We can store the wave function in \( 10^{30} m^3 \)
Strongly correlated electron systems
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
- Colossal magnetoresistance
- High-temperature superconductivity
- VO\( _2 \)
Elbio Dagotto, Science 309, 257 (2005)
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.

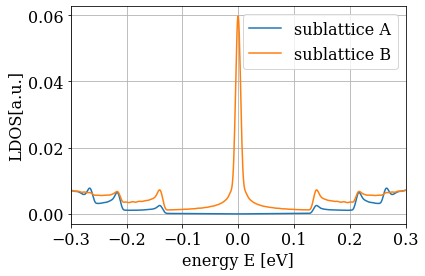

E(\mathbf{q}) \propto |\mathbf{q}|^N
SSH chain
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
What does the experiment say? STM results
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.

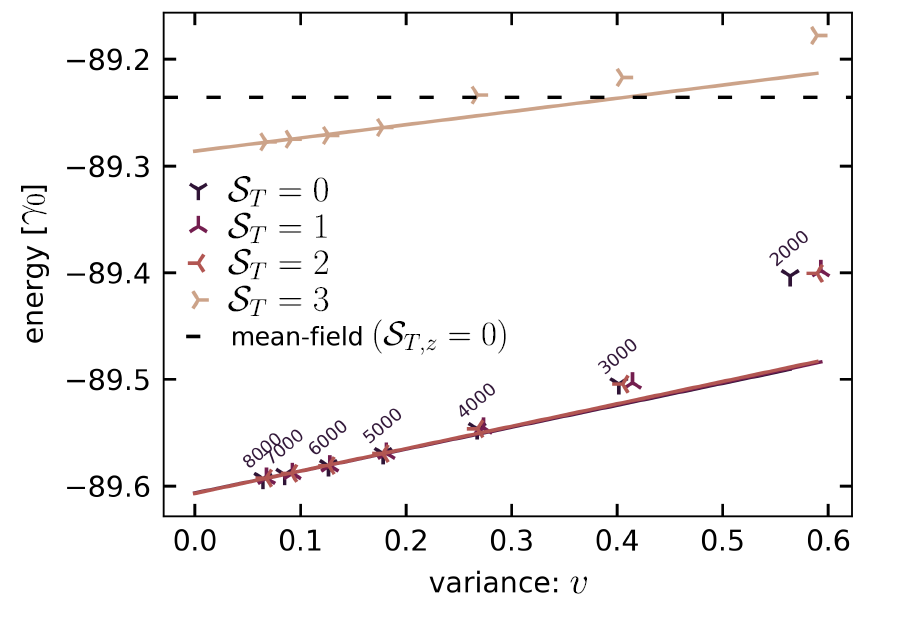

DMRG - Beyond meanfield
Theory
Degenerate ground state!
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
Experiments
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
The team
Oroszlányi László
Koltai János
Hagymási Imre
Nemes-Incze Péter
Péter Vancsó
András Pálinkás
Levente Tapasztó
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.

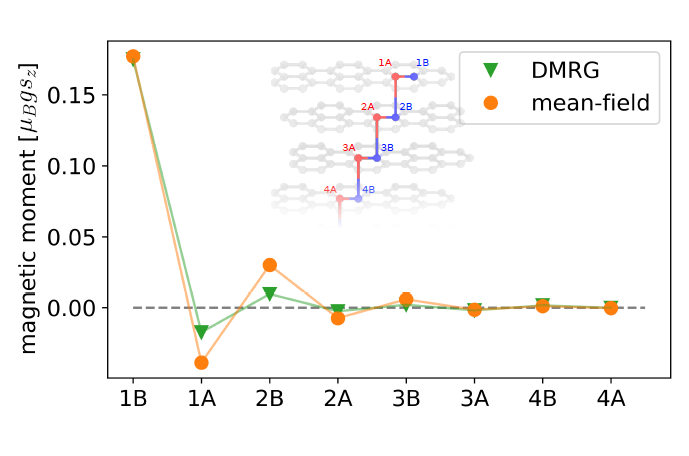

\( \mu_1 \approx 10^{-2} \mu_\mathrm{Bohr} \)

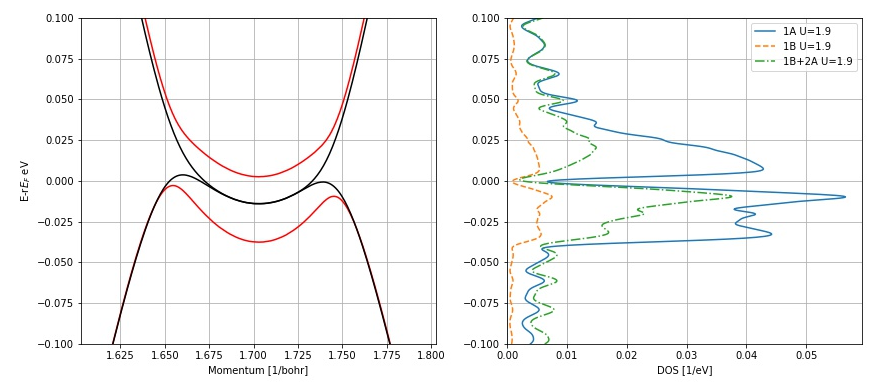

LDA+U vs LDA, meanfield
Possible explanations I.
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.

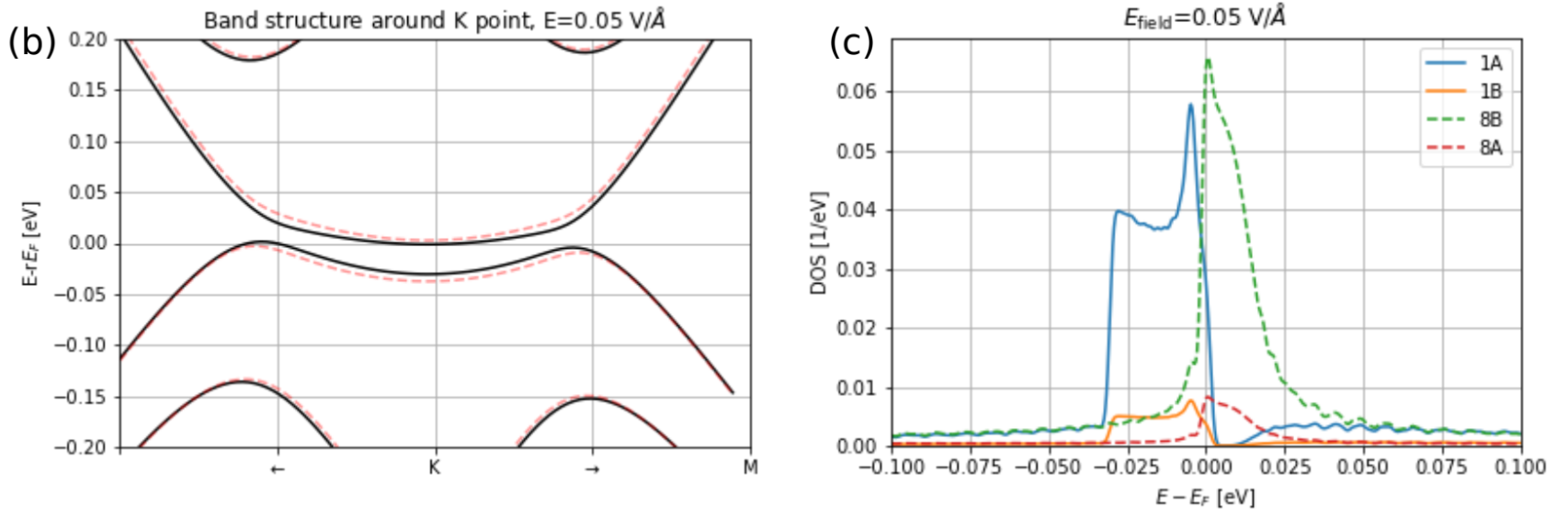

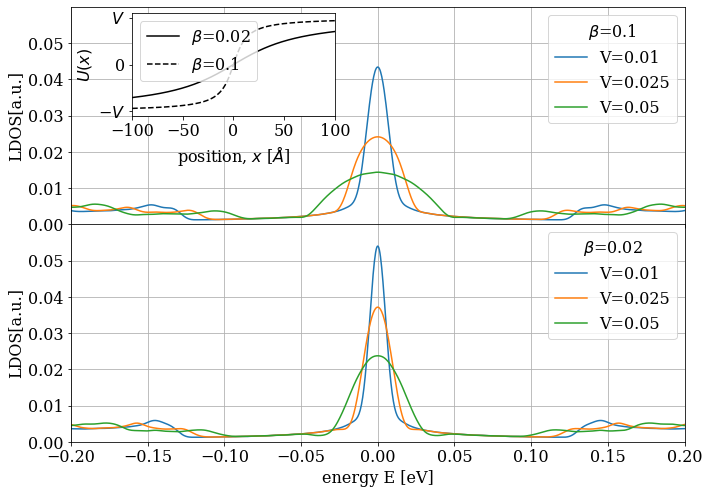

External electric field
Possible explanations II.
E-field strength 0.05 V/Å
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.

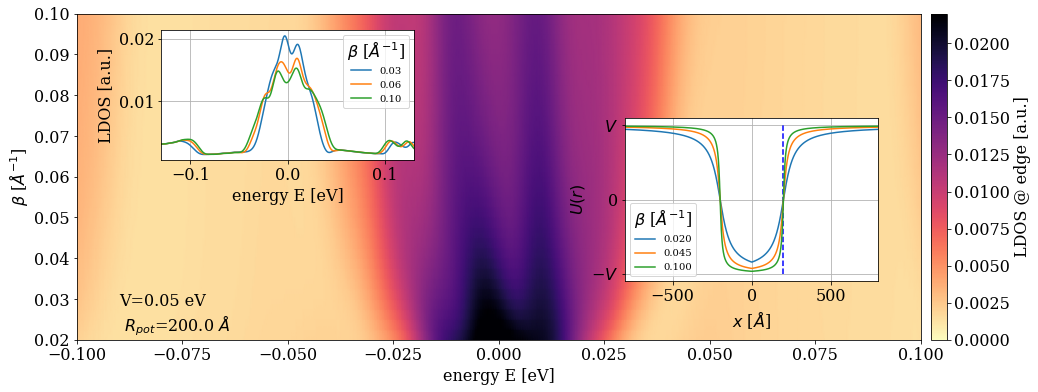

Quantum confinement
Possible explanations III.
Rhombohedral Graphite
\( (d \circ f) \varphi \) - Balatonisclear - 2021. 09. 17.
Experiments - one more thing
Symmetry breaking
DOFFI 2021
