Agenda
Unit 3

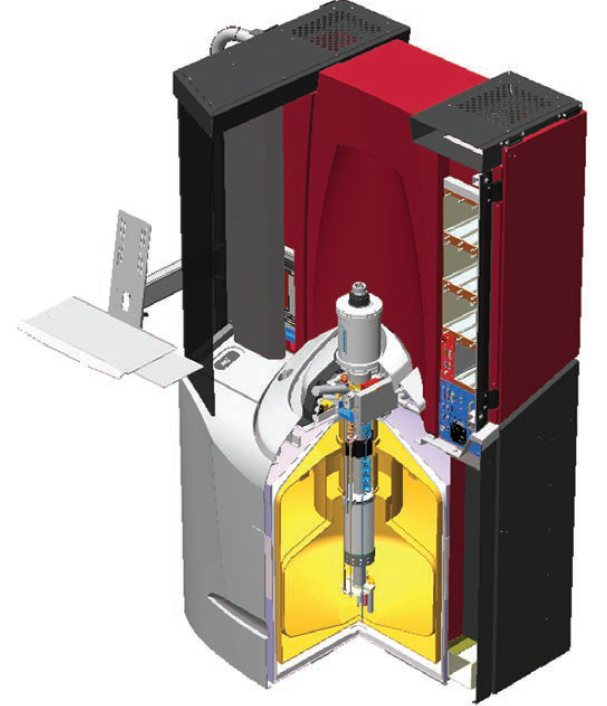

Section Views
oscarrosete.com
After studying the material in this chapter, you should be able to:
- Understand sections and cutting-plane lines.
- Apply correct section-lining practices.
- Demonstrate the proper techniques for sectioning ribs, webs, and spokes.
- Interpret drawings that include section views.
Review Video
oscarrosete.com
General Instructions:
Frame of 1 cm
Include the title block in the bottom right corner
Title block (ISO):
-
Name: CETYS, Title: Draft #20 Created by: your initials, Approved by: OARB, Drawing Number: 20
-
Include the date in which it was drawn.
Units expressed in inches.
Specific Instructions:
Select a front view and draw a full section of the front view and draw the top view.
Try to horizontally and vertically center your drafts on the remaining blank space.
Include the annotations
Portfolio draft (20)
oscarrosete.com

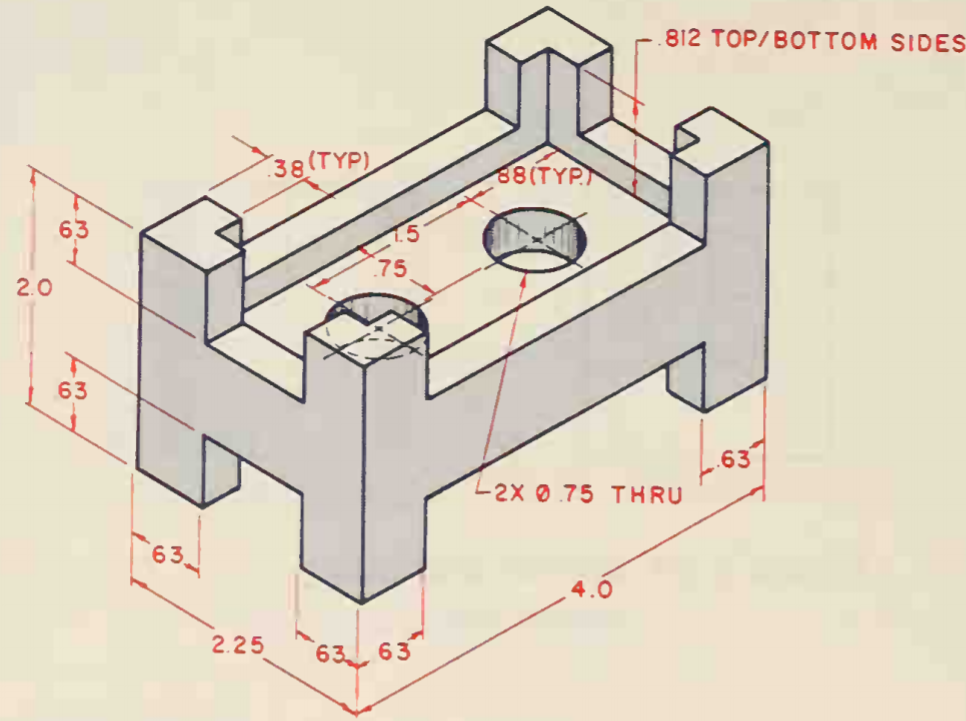

Pictorial View
Front view
Refer to the corresponding 3D drawing shade of the object to construct which belongs to the chosen front view full section. This is chosen due to limited hidden lines and the best view of the overall shape.
Draw the full section of the front view.
Portfolio draft (20)
oscarrosete.com

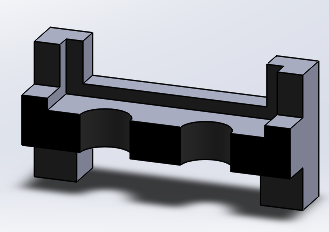

Full section of the front view

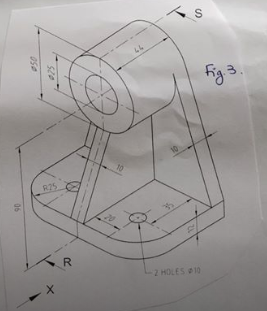

Follow the steps as depicted on the presented tutorial to achieve the multiview drawing with the sectional view.
For this excercise there are no requirements in term of title block or frame, but your name should be on your layout.
Portfolio draft (21)
oscarrosete.com
Portfolio draft (21)
oscarrosete.com
