CSS para programadores
de PL/SQL

Jorge Rimblas

Jorge Rimblas

Senior APEX Consultant

  • Oracle DB since 1995
  • APEX since it was HTMLDB in 2004
  • Always involved in web technologies
  • jrimblas in OTN Forums
  • Contributor to
    "Expert Oracle Application Express, 2nd Edition"
    with "Themes & Templates" chapter

Age: 14 years!
Staff: 80+ employees
60 consultants/developers
APEX Solutions: 12 Years!
Largest APEX practice in North America
Oracle Center of Excellence





Que tan capaz eres con
el PL/SQL de Oracle?

Y que tal con JavaScript?

y con CSS?

Todo es una caja

Especificidad CSS

En CSS

el reto mas importante

JavaScript

  • runs the web
  • interpreted
  • all browser support

Just heard this one from someone at @AmsterdamPHP: "Java is to Javascript like what ham is to hamster" 😂👍

— Claudio Dekker (@ClaudioDekker) February 16, 2017

Java is to JavaScript

as

Ham is to Hamster

Operator JavaScript PL/SQL
assignment = :=
equality == =
if (i = 1) {
...
}
if (1) {
...

if (i = 1) then
...

PL/SQL

JS

=== !==

JavaScript equality operators

the evil twins

==  !=
'' == '0'           // false
0 == ''             // true
0 == '0'            // true

false == 'false'    // false
false == '0'        // true

false == undefined  // false
false == null       // false
null == undefined   // true

' \t\r\n ' == 0     // true
Operator JavaScript PL/SQL
assignment = :=
strict equality === =
strict inequality !== !=
<>
Operator JavaScript PL/SQL
or || or
concatenation + ||
Addition + +
0 + 0       // 0
"0" + 0     // "00"
"0" + "0"   // "00"
0 + "0"     // "00"
Operator JavaScript PL/SQL
++ v++
++v
v := v+1;

-- v--
--v
v := v-1;
var i = 5;

++i + 4     // = 10, i = 6
i++ + 4     // =  9, i = 6
function foo(n) {
  i = n;
}
function foo(n number)
  return number
is
  i number;
begin
  i := n;
end foo;

JS

PL/SQL

function foo(n number)
  return number
is
  i number;
begin
  i := n;
  return i;
end foo;
  • May return nothing
  • No "procedures"
ORA-06503: PL/SQL: Function returned without value
function foo(x, y) {
  return x * y;
}
foo(1,2);
// 2

Definition

JS has flexible parameters

foo(1,2,7,8);
// 2
foo(5);
// NaN
function foo(x, y) {
  return x * y;
}

Definition

Functions and Variable Functions

var foo = function (x, y) {
  return x * y;
}

also a function

typeof foo;
// function
eval

It's always a no-no. Big security risk

$

jQuery

jQuery is a fast, small, and feature-rich JavaScript library.

It makes things like HTML document traversal and manipulation, event handling, animation, and Ajax much simpler with an

easy-to-use API that works across a multitude of browsers.



With a combination of versatility and extensibility, jQuery has changed the way that millions of people write JavaScript.



Source: jquery.com

$ === apex.jQuery


$("div");

apex.jQuery("div");


CSS

Todo es una caja

Especificidad CSS

En CSS

el reto mas importante

Box Model

Inspector



Content



Padding

Border

Margin

<div>Content</div>
div {
    width: 320px;  height: 50px;
    padding: 10px;


}
div {
    width: 320px;  height: 50px;



}
div {
    width: 320px;  height: 50px;
    padding: 10px;
    border: 5px solid gray;

}
div {
    width: 320px;  height: 50px;
    padding: 10px;
    border: 5px solid gray;
    margin: 7px;
}
div {
    width: 320px;
    padding: 10px;
    border: 5px solid gray;
    margin: 0;
}
320px (width)
+ 20px (left + right padding)
+ 10px (left + right border)
+ 0px (left + right margin)
= 350px

Cual es el ancho total?

Anatomia

de las reglas de CSS

div {
    width: 320px;
    padding: 10px;
    border: 5px solid gray;
    margin: 0;
}

selector

propiedad

valor

propiedades

valor

jQuery selector

div {
    padding: 10px;
}
div {
    padding: 10px 10px 10px 10px;
}

top/arriba

bottom/abajo

right
derecha

left
izquierda

abreviatura

div {
    padding: 5px 10px;
}
div {
    padding: 5px 10px 5px 10px;
}

top

bottom

right

left

top

right

bottom

left

div {
    padding: 5px 10px 5px 10px;
}

top

right

bottom

left

div {
    padding-top: 5px;
    padding-right: 10px;
    padding-bottom: 5px;
    padding-left: 10px;
}

Selectores

select *
from emp
where deptno = 20

SQL "Selector"

Que estamos buscando?

select element
from {HTML de hoja}

SQL

* {
 ...
}

CSS

Consigue Todo

select element
from {HTML de Hoja}
where id = 'PK'

SQL

#PK {
 ...
}

CSS

Obtener via #ID

<div id="emps" class="t-Region">
  ...
</div>

HTML

#emps {
 color: red;
}

CSS

Obtener via #ID

select element
from {HTML de Hoja}
where job = 'SALES'

SQL

.sales {
 ...
}

CSS

Obtener via .clase

<div id="emps" class="t-Region">
  ...
</div>

HTML

.t-Region {
 color: red;
}

CSS

Obtener via .clase

<td class="t-Report-cell" headers="EMPNO">
  ...
</td>

HTML

td[headers="EMPNO"] {
 color: red;
}

CSS

Obtener via attributo []

~=
|=
^=
$=
select element
from {HTML de hoja}
where deptno = 20

SQL

div {
 ...
}

CSS

Obtener via elemento

<div id="emps" class="t-Region">
  ...
</div>

HTML

div {
 color: red;
}

CSS

Obtener via elemento

<div id="emps" class="t-Region t-Region--removeHeader">
  ...
</div>
.t-Region {
 background-color: white;
}
#emps {
 background-color: gray;
}
div {
 background-color: blue;
}
<div id="emps" class="t-Region t-Region--removeHeader">
  ...
</div>
.t-Region {
 background-color: white;
 border: 1px solid black;
}
.t-Region {
 background-color: gray;
}
<div id="emps" class="t-Region t-Region--accent5"
     style="background-color: green;">
  ...
</div>
.t-Region {
 background-color: white;
}
.t-Region.t-Region--accent5 {
 background-color: gray;
}
#emps {
 background-color: blue;
}
.t-Region {...}
$(".t-Region");
.t-Region.t-Region--accent5 {...}
$(".t-Region.t-Region--accent5");

CSS

jQuery

CSS

jQuery

#emps {...}
$("#emps");

CSS

jQuery

$(".t-Region").hide();
$(".t-Region").remove();
$(".t-LinksList-item").toggleClass("is-current");
$("#emp").find("li").removeClass("is-current");

Especificidad CSS

(CSS Specificity)

Attributos "style" Más especifico
ID
Class, Attribute
Elements Menos específico

* https://css-tricks.com/specifics-on-css-specificity/

<div id="emps" class="t-Region t-Region--accent5"
     style="background-color: green;">
  ...
</div>
.t-Region {
 background-color: white!important;
}
.t-Region.t-Region--accent5 {
 background-color: gray;
}
#emps {
 background-color: blue;
}

!Important

La Victoria automática

Donde va
el CSS
en APEX

Página CSS: Archivo o En linea

Util para

  • CSS específico de página
    • Elementos
    • Botones
    • Sobre escribir CSS
    • Columnas de Informes

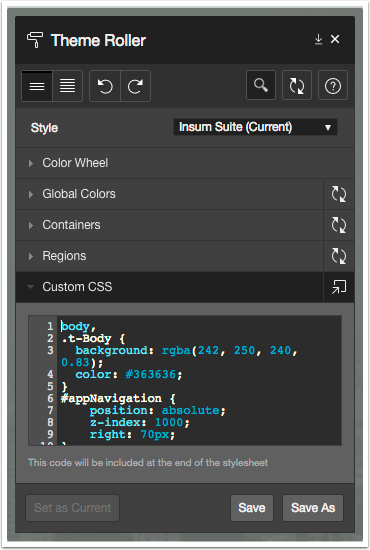

Acumulador de Temas:

CSS Personalizado

Ventajas

  • Disponible en todas las páginas
  • Minimizado
  • Rápido y fácil de actualizar

Contras

  • Se pierde cuando cambias estilos
    • Es recomendable tenerlo en archivo

Global: Interfaz del Usuario

Archivo de Interfaz de Usuario

La mejor alternativa!





Q&A

JavaScript and CSS
for PL/SQL Developers

Jorge Rimblas

Twitter: @rimblas

CSS para desarrolladores de Oracle PL/SQL

By Jorge Rimblas

CSS para desarrolladores de Oracle PL/SQL

Si ha estado trabajando con bases de datos Oracle por un tiempo, pero aún se siente perdido al trabajar con JavaScript y CSS en sus aplicaciones APEX, entonces esta presentación es para usted. Trabajar con HTML, JavaScript y CSS no tiene que ser difícil. Aprenda sobre los selectores CSS, qué es el DOM y cómo trabajar con él, e incluso un poco de jQuery. Esta sesión le proporcionará algunas herramientas para trabajar mejor con las tecnologías web.
