Merge queue , Nx and Sonar

— by Santosh

Our Studio Application

What is Nx

A build tool with mono-repo support

  • Provides build cache for tasks like build, test
  • Framework and technology agnostic
  • Plugin based so you can bring your own tool
  • Support major frameworks like Angular, React and Vue out of the box
  • Support for micro-frontend
  • Support for backend technologies like spring and .net core

Our Codebase

We have a mono-repo with Angular and Nx, which contains Angular Apps, NextJs App, Libraries, Unit Test, and e2e. We use Trunk based development approach.

2M LOC

200 Projects

40+ Apps

40+ Teams

Shell App

App1

App2

App3

App4

With module federation with Nx

Single repository

Tasks

Build

Build all the projects including apps and libraries and bundle them together.

1.

Unit Test

We use jest and cypress component test to write unit tests and run them before merging our code.

2.

e2e

For end to end we run all User Journey test suites before going to development.

3.

npx nx generate @nx/angular:host
--name=shell
--remotes=home,about,blogs
nx add @nx/plugin

nx g @nx/plugin:plugin
nx-plugin
--directory infra/nx-plugin
@nx/angular:remote
--name=llm-agent
--no-interactive

Nx Generator

export default async function (tree: Tree, schema: ApplicationGeneratorSchema) {

  // call built-in generator from Nx
  await generateAngularProject(tree, {
    standalone: false,
    name: schema.name,
    style: "scss",
    skipPackageJson: true,
    port: schema.port,
    e2eTestRunner: E2eTestRunner.None,
    tags: tags,
    prefix: "org-name",
  });

  // Add cypress component test when apps are created
  await generateComponentTests(tree, {
    project: schema.name,
    port: schema.componentTestPort,
    generateTests: false,
    buildTarget: `${schema.name}:build-component-test`,
  });
}
export default async function (tree: Tree, schema: ApplicationGeneratorSchema) {

// add files to new project if needed
generateFiles(tree, join(__dirname, 'files'), `${projectConfig.root}`, {
      name: options.name, // Pass options which can be used inside file
    });

}

// index.html.template
<h1>
<<%= name %>>
</<%= name %>>
</h1>

// Ths above file will be created with name passed as parameter on line no:5

Maintaining Large Codebase

Once all is removed that can be removed, that is how designs are truly in their simplest form.

  1. Refactoring Code
  2. Deprecations
  3. Migrating code
  4. Adding linters and tools

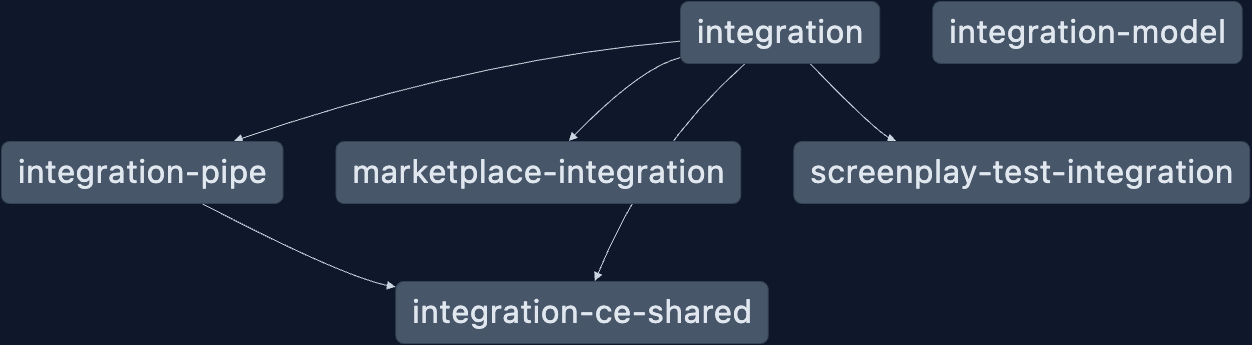

nx graph

Tools

It's always a challenge to introduce tools into a project.

  • Introducing a tool into a codebase is time-consuming.
  • Sometimes adding a tool is easy, but maintaining it is expensive.
  • Nx makes it easy to introduce and maintain a tool.
nx add @nx/cypress


nx add @nx/playwright

Add e2e framework

nx add @nx/jest


nx add @nx/vite:test

Add Unit Test Tool

nx migrate latest

Keep your monorepo and tooling updated

CI/CD

We need to build 2M lines of code, and we get 100+ Pull Requests every day, we need to run Build, Unit Test, e2e.

No Merge Queue

  • Base Branch
  • Keep Updating Branch
  • Run Checks
  • Stuck Waiting
  • Outdated Pull Requests
  • Incompatible Changes

With Merge Queue

  • Base Branch
  • Run Checks
  • Merge

PR 1

PR 2

PR 3

PR 4

PR = Pull Request

P

I

P

E

L

I

N

E

PR 1

PR 2

PR 3

PR 4

PR = Pull Request

Pr-1 added to merge Queue

Failed CI

Sent to Merge Queue

PR = Pull Request

create a new branch merge-queue/pr1

base branch is main

changes from PR 1 are merged into

merge-queue/pr1

PR 1

PR = Pull Request

create a new branch merge-queue/pr1-pr2

base branch is merge-queue/pr1

changes from PR 2 are merged into

merge-queue/pr1-pr2

PR 2

PR = Pull Request

create a new branch merge-queue/pr1-pr2-pr3

base branch is merge-queue/pr1-pr2

changes from PR 3 are merged into

merge-queue/pr1-pr2-pr3

PR 3

PR = Pull Request

 merge-queue/pr1-pr2-pr3



PR 3

Run All CI/CD check and User Journey Tests

Best Practices for Using Merge Queue

Small & Focused

#1

Fast Checks

#2

Use Squash

#3

Avoid Late Changes

#5

Monitor & Review

#6

Document the Process

#4

Don't enqueue failed PRs

#7

GitHub Actions + Nx =

Superpower

  • Use Large Runners on GitHub Actions
  • Use Merge Queue to run end-to-end tests
  • Cache builds for faster build and tests

Running Affected Tasks on GitHub

App1

App2

App3

App4

App5

Lib1

Lib2

function newFeature() {
	return true;
}

Changes in your Pull Request

App1

App2

App3

App4

App5

Lib1

Lib2

nx affected
--targets=build,lint,test

Run affected tasks

S3 bucket

Push Nx Cache

Get Nx Cache

PR 1

PR 2

PR 3

PR 4

PR = Pull Request

P

I

P

E

L

I

N

E

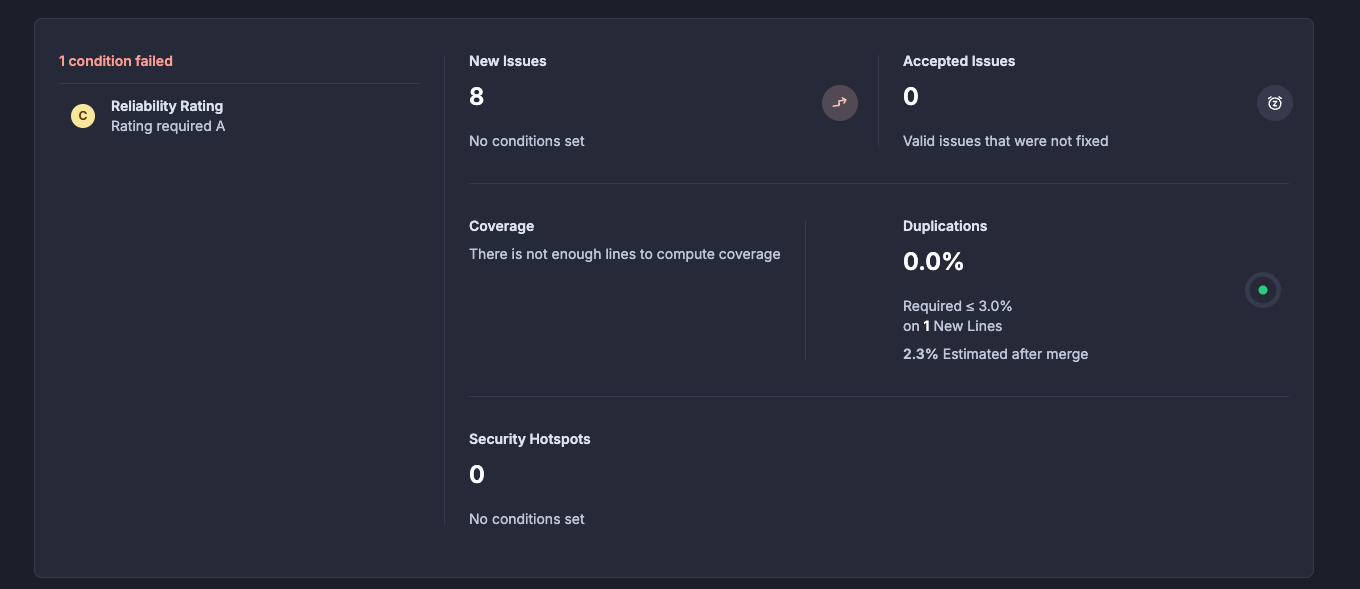

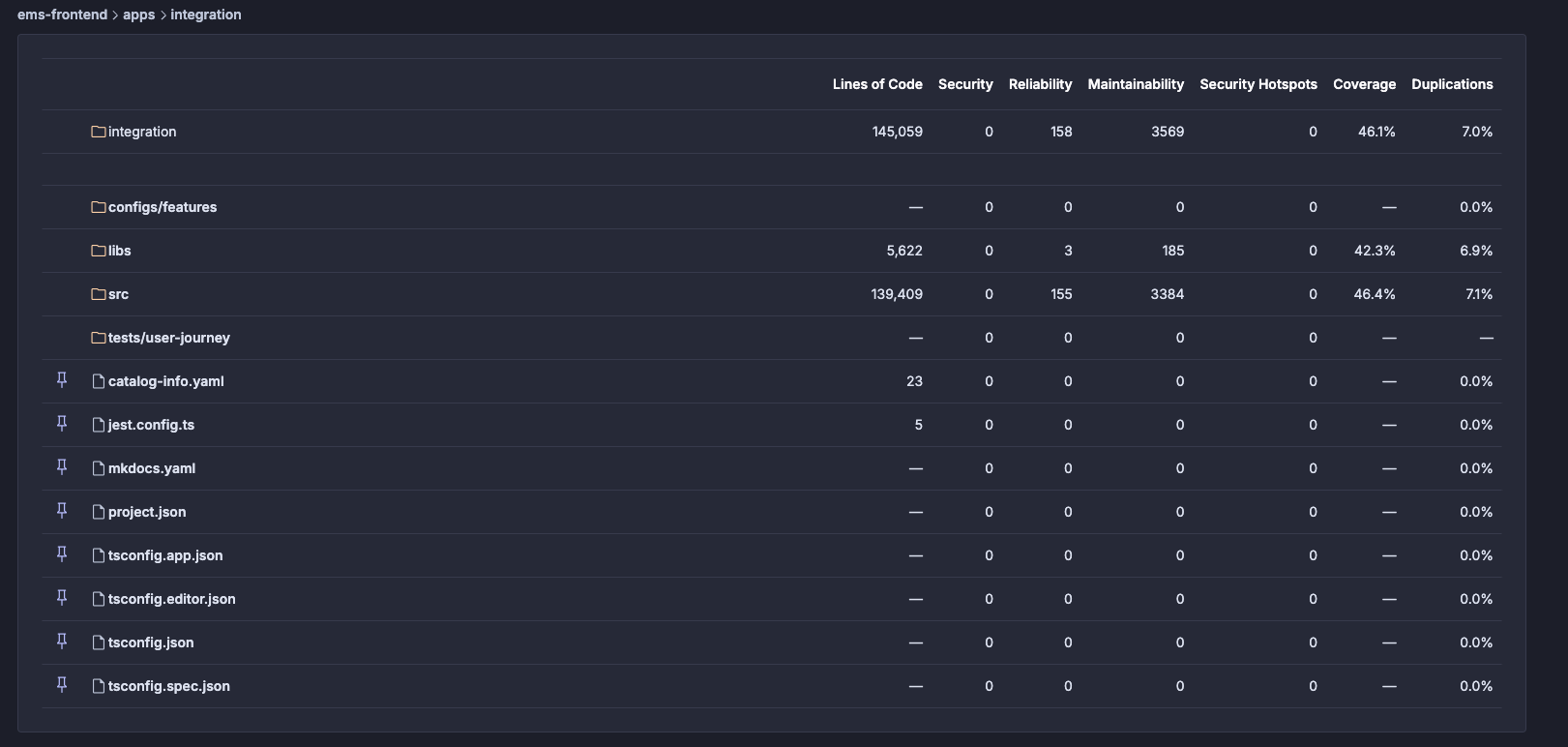

Sonar

How to handle sonar issues

  • Working with low coverage in your PR (blocker)

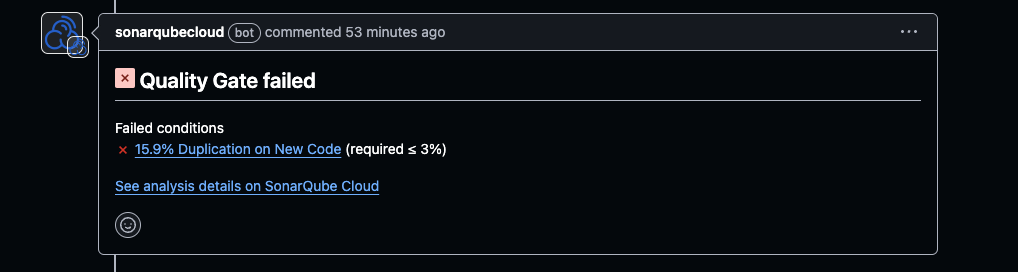

  • Working with duplicate code (blocker)
  • Working with Sonar issue related to axe-linter, maintainability (non-blocking)

Workign with sonar issues

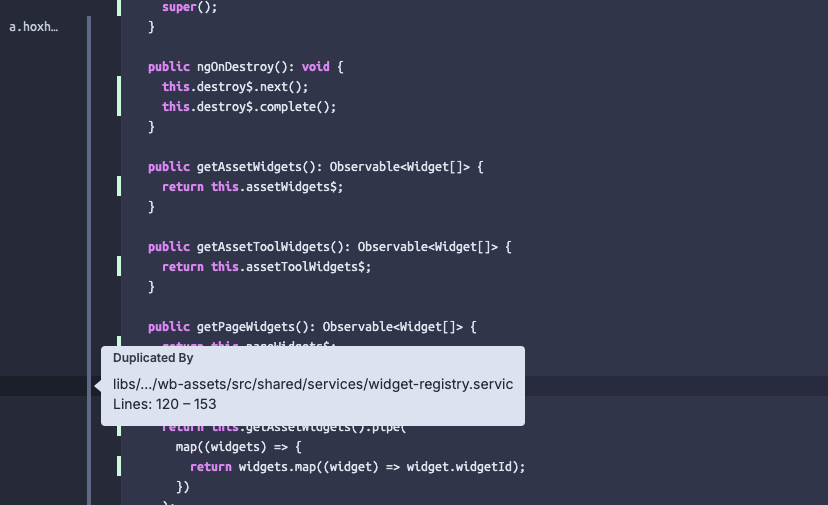

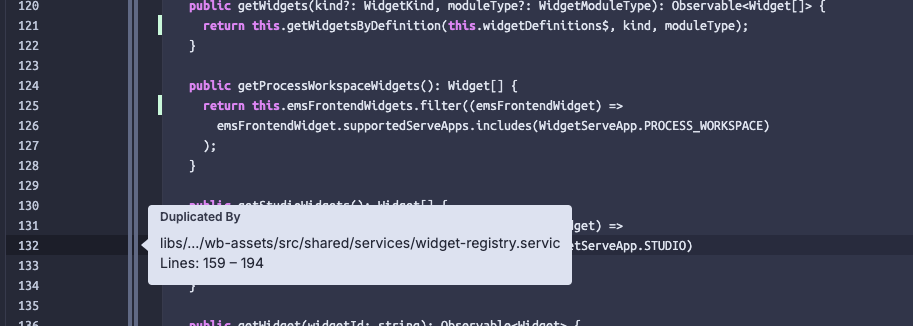

  • You may have duplicate code, for example, while using feature flags.
  • You can add the file not to be checked for duplicates in sonar config
  • add your file in `sonar.cpd.exclusions` sonar-project.properties file

Feature Flags

Feature Flag is tricky but becomes very essential when we are shipping features frequently and want to make sure we dont break existing functionality.

Shipping code without feature flag

  • Ability to ship code based on
    • User / Team
    • Cluster
    • % of users
    • specific build
    • combination of all the above
  • Isolate bugs
  • Ability to rollback feature flags
  • Ship features with more confidence

Thank You

@santoshyadavdev

@celonis

@SantoshYadavDev

one frontend Nx, Merge Queue and Sonar

By Santosh Yadav

one frontend Nx, Merge Queue and Sonar
