Project Management & Communication
Sebastian Hörl
14 January 2021
H2020 Projet LEAD
This part of the course
 Today: Lecture
 Basic concepts in transport planing
 Fourstep models vs. activitybased models
 Coming sessions: Project work
 21 January, 14:00  16:00
 11 February, 14:00  17:00
 25 February, 14:00  16:00
 Assessment
 Final presentation (25 February)
 Short report (until 15 March)
Today
 Introduction to transport planning
 Fourstep models
 Activitybase models
 Agentbased models
 Details on the course project
 Four different groups
 Interaction and assessment criteria
 Time plan and definition of groups
Transport planning: Overview
 Goals
 Costbenefit analysis
 Assessment of alternatives
 Prediction

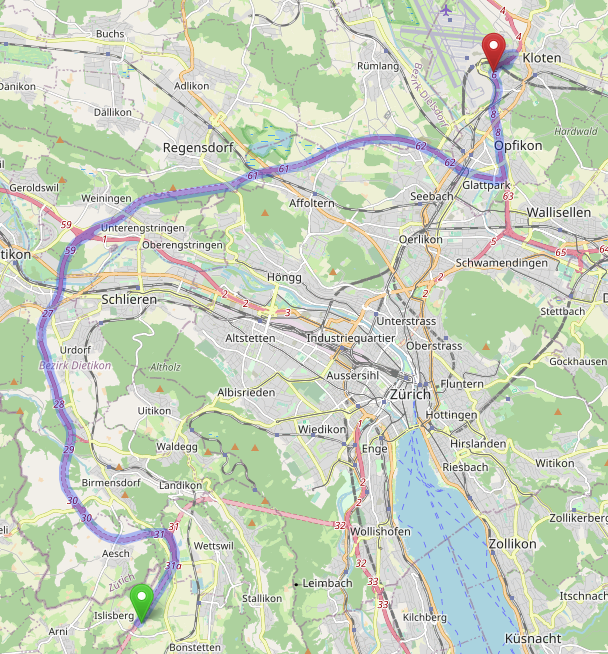

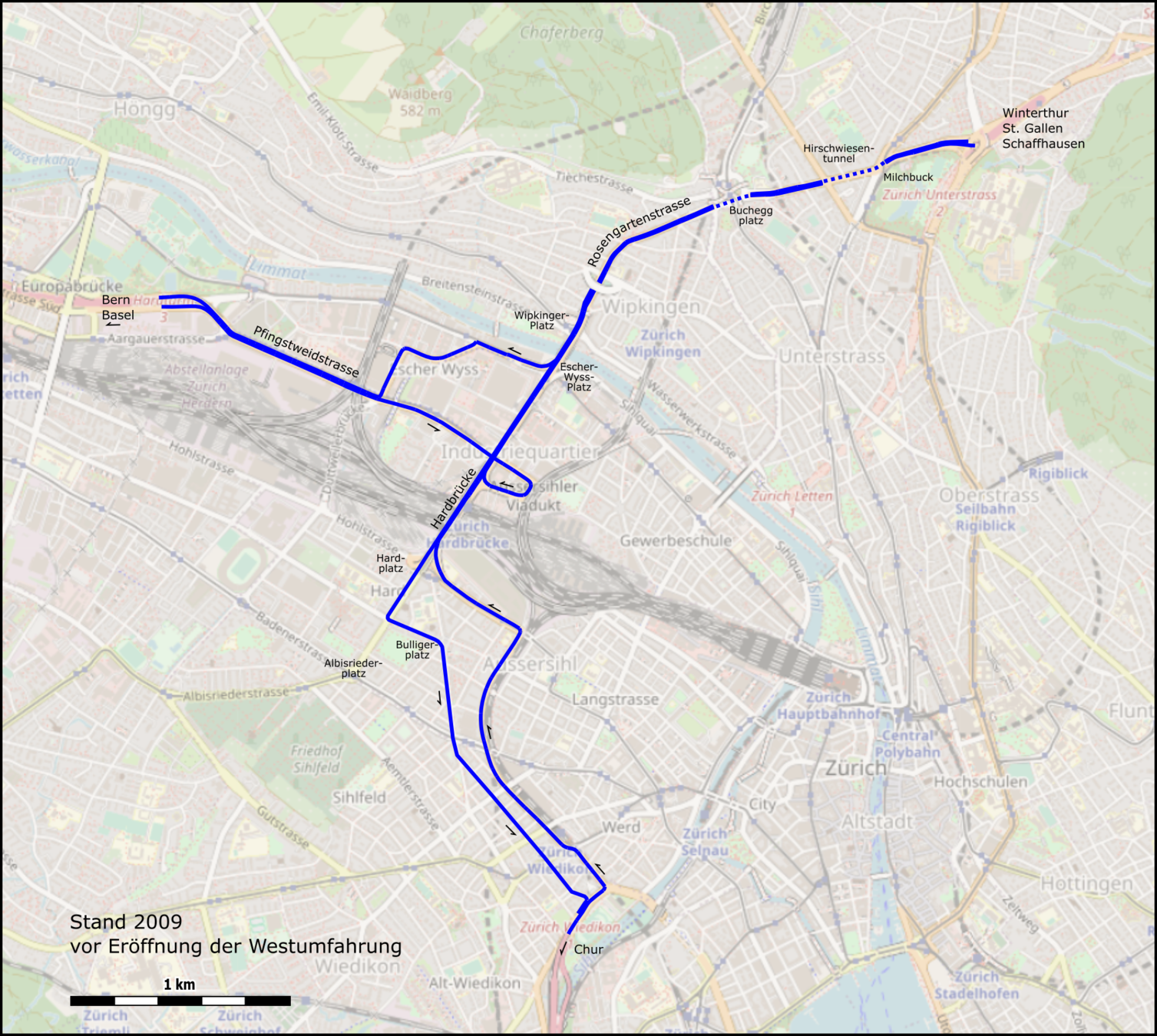

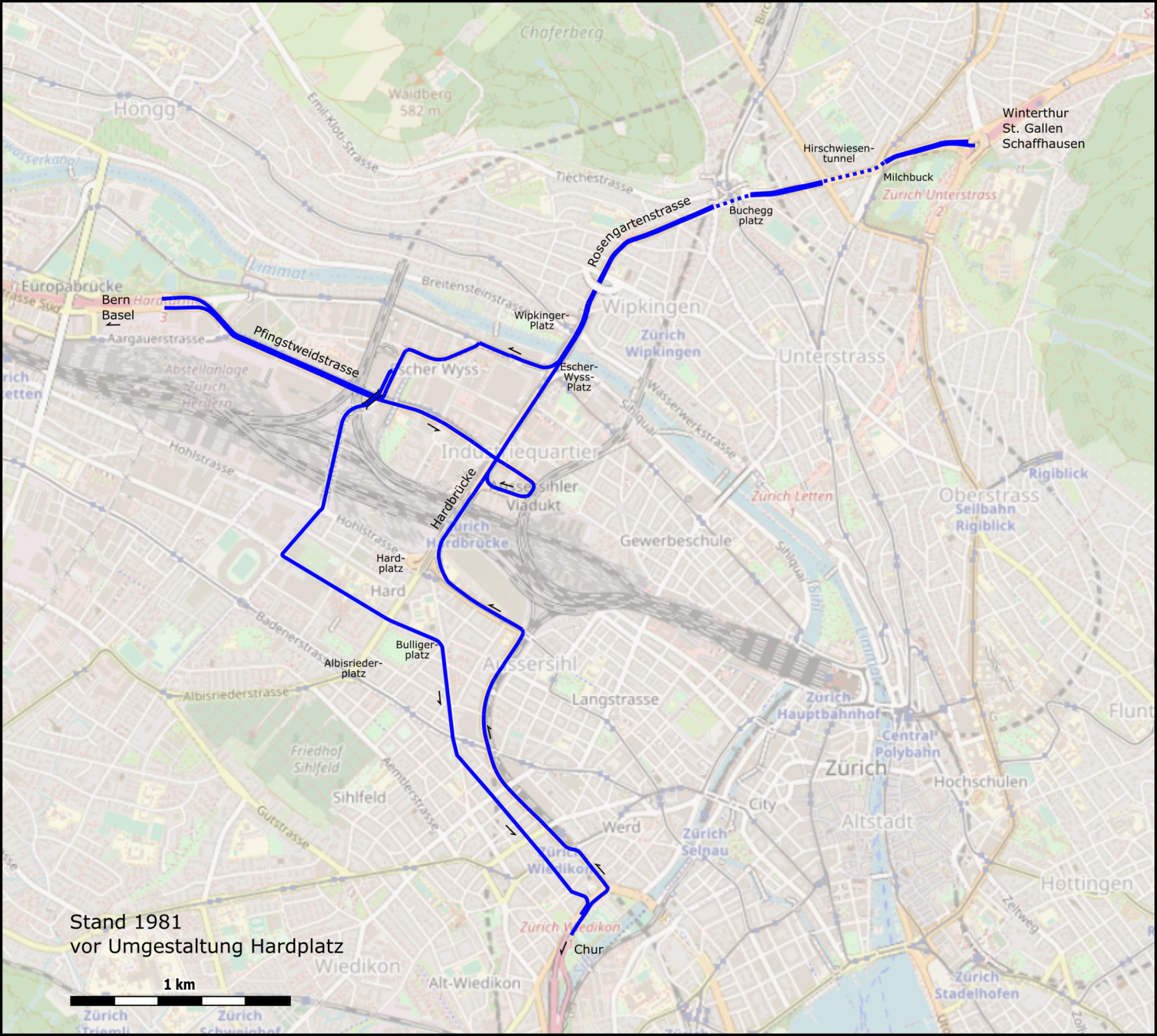

Sources: https://de.wikipedia.org/wiki/Westtangente_Z%C3%BCrich, openstreetmap.org
Transport planning: Overview
 Goals
 Costbenefit analysis
 Assessment of alternatives
 Prediction
 Use cases

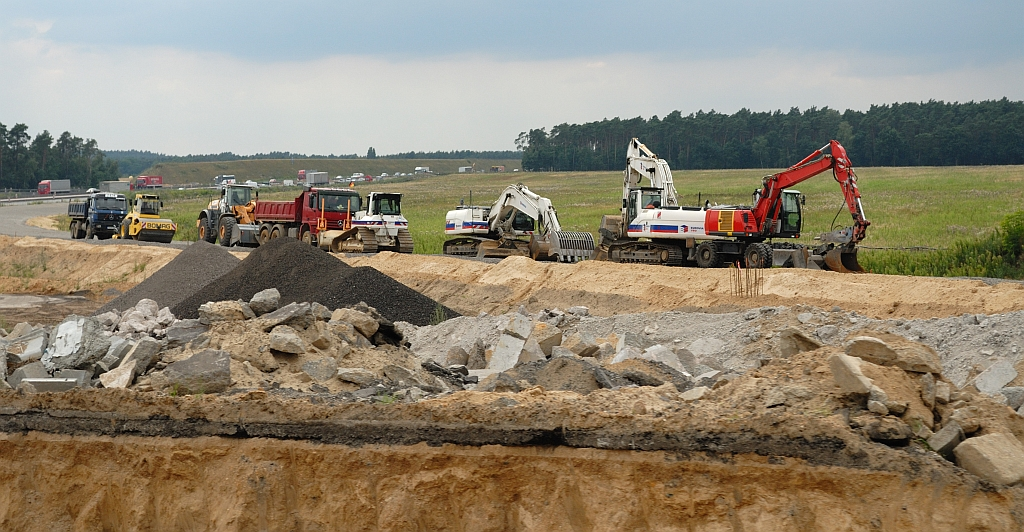

 Traditionally: Infrastructure

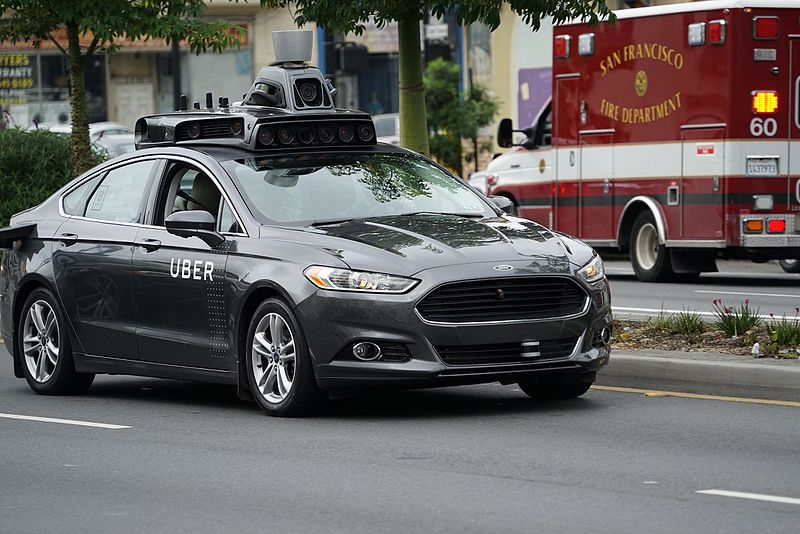

 Today: Increasingly digital technology
Sources:
https://en.wikipedia.org/wiki/File:Highway_8_widening.png
https://commons.wikimedia.org/wiki/File:Self_driving_Uber_prototype_in_San_Francisco.jpg
Transport planning: Overview
 Traditional approaches
 High aggregation
 Movements are flows
 Locations are zones
 Specific times of the day
 Today's approaches
 Individual entities
 Movements are detailed in time and space
 Whole daily analysis possible
Fourstep models
Activitybased models
Fourstep model: Overview
Generation
Distribution
Mode choice
Assignment
 Four steps making use of different data sources
 From static to more dynamic mobility decisions
 Multiple possible feedback loops (most common example here)
Fourstep model: Overview
Generation
Distribution
Mode choice
Assignment
 Where do trips appear?
 What is the destination of the trips?
 What transport mode is used?
 What congestion is caused?
Fourstep model: Overview
Generation
Distribution
Mode choice
Assignment
Travel demand
Travel supply
 Characterizes the need for mobility in the population for economic activity, leisure, ...
 Means that allow for mobility
 Road infrastructure, rail network, ...
Fourstep model: Overview
Generation
Distribution
Mode choice
Assignment
Travel demand
Travel supply
 Characterizes the need for mobility in the population for economic activity, leisure, ...
 Means that allow for mobility
 Road infrastructure, rail network, ...
Equilibrium
 Given limited capacity,
how is the system used?
Fourstep model: Trip generation

Goal: Define statistically where trips starts, i.e. where they are "generated" or produced
 Focus on peak hours in 4S, e.g. morning peak and focus on commuting activity
 Either making use of direct data (e.g. from surveys) or based on population data, land use information, ...
Number of inabitants in ÎledeFrance
Fourstep model: Trip generation
 May be per homogeneous user group, e.g.
 Singleperson households
 Multipersons households
without children  Multiperson households
with children
Households with retired persons
 Possible to use statistical models
Generated trips
in zone s in group g
Trip generation model
Model inputs
Fourstep model: Trip generation
 Example: Linear model based on socioprofessional category (CS):
 Employee
 Worker
 Retired

...
 Do we have reference number of trips for some of the zones? Then we can create a model from this formula! Example: Ordinary Least Squares (OLS)
Model parameters (linear factors)
Census data (inhabitants)
Reference data
Fourstep model: Trip distribution
 Goal: Given the produced trips with their origin zone, define where they end = distribute the trips over a set of potential destination
Number of daily commutes arriving from 13th arrondissement
Fourstep model: Trip distribution
 Based on trip generation, we want to predict the number of trips going from zone s to zone t
 Various ways to model flows between zones
 Gravity model
 Discrete choice model

Maximum entropy
 Can be formulated per group g.
Flow between s and t
Model
O1  ...  ...  On

D1
...  Fst
...
Dn
Fourstep model: Trip distribution
 Growth factor approach
 Useful if information on existing flows is available for many relations and we want to obtain an explicative model
 Useful if information on existing flows is available for many relations and we want to obtain an explicative model
 Constrained approach
 We have little flow information, but know about the total in each zone (e.g. population and workplaces)
Trip generation
Growth factor modeled through zone attributes
Fourstep model: Trip distribution
 Common approach: Gravity model
Production model, e.g. P = Population or Population Density
Attraction model, e.g. A = Workplaces or Workplace Density
Resistance model, e.g. based on travel time or distance (also called impedance)
Fourstep model: Trip distribution
 Common approach: Gravity model

If we know F, we can calibrate all models, e.g. using OLS ...
 ... but we may better know required origins, i.e.
Fourstep model: Trip distribution
 Common approach: Gravity model

If we know F, we can calibrate all models, e.g. using OLS ...
 ... but we may better know required origins, i.e.
Fourstep model: Trip distribution
 Common approach: Gravity model

If we know F, we can calibrate all models, e.g. using OLS ...

... but we may better know required origins, i.e.
Fourstep model: Trip distribution

... which can be inserted into the model ...

... leading to
with
 If R is given or estimated independently (usually the case), the flows F are determined!
Fourstep model: Trip distribution

Including both origin and destination constraints gives
with
 By construction, the origin and destination counts are replicated when iteratively solving
Fourstep model: Mode choice

Goal: Given the infrastructure and the generated OD trips, which mode of transport should be used for them.
 Expressed as mode share: How many percent of the trips on a OD relation are performed with mode m?
Utility maximization

Utility maximization is important concept in transport planning: Given a set of choices (modes, destinations, ...) we can assign a utility v to each alternative k.
 We assume rational decision makers that always want to choose the alternative with the highest utility.
 Homo oeconomicus
Utility maximization
 Example: Choice between two public transport connections
Connection A
Connection B
0.6
1.0
0.6 * 20  1.0 * 1 = 13
0.6 * 30  1.0 * 0 = 19
Connection A is better alternative.
Utility maximization
 Example: Mode choice model
Random Utility Models
 How to estimate such models?
 Assume K alternatives and N observed choices y described by index i.
 We want to find the set of parameters such that all choices i are replicated correctly:
Find such that
Random Utility Models
 Not easily possible: We cannot model reality sufficiently well, people have own tastes.
 Hence, we introduce an error term.
 This leads to a random utility maximization (RUM) model
Random Utility Models
 Not easily possible: We cannot model reality sufficiently well, people have own tastes.
 Hence, we introduce an error term.
 This leads to a random utility maximization (RUM) model
Random Utility Models
 McFadden has shown in the seventies that if error follows Extreme Value distribution ...
 ... there is a closed form expression for the choice probability:
 Two alternatives k:
Binomial logit model
 Multiple alternatives k:
Multinomial logit model
Random Utility Models
 Coming back to estimation:
 Under multinomial logit assumption, we can write a (log)likelihood function ...
 ... which is proven convex and can be maximized using any optimization method!
Random Utility Models
 Multinomial logit is commonly used and part of larger class of discrete choice models.
 Can also be used in distribution step.
 Last step of 4S model
 What are resulting flows on the roads?
 What are the resulting travel times?
Fourstep model: Assignment
 Again, based on rational decision maker
 Game theoretic perspective: Travellers compete about using the roads, each maximizing the utility they gain
 Many ways of solving assignment problem
Fourstep model: Assignment
 Example: Two routes
 Travellers on Route A:
 Travellers on Route B:
 Total travellers from S to E:
 Travel time route A (normal road):
 Travel time route B (highway):
 Wardrop principle: Travellers tend to minimize their travel time.
Fourstep model: Assignment
S
E
Route A
Route B
How many people use each road? What are the travel times?
 Example: Two routes
 If travel time on A is shorter than B, people would switch to B, and vice versa. Hence, travel times, must be in equilibirum!
 This gives
 If travel time on A is shorter than B, people would switch to B, and vice versa. Hence, travel times, must be in equilibirum!
Fourstep model: Assignment
S
E
Route A
Route B
(*)
from (**)
(**)
N = 1000
 What about many different routes between two points?
 What about many different start/end points in a network?
 Wardrop defined general formulation, leading to a gametheoretic Nash equilibrium
Fourstep model: Assignment
Fourstep model: Assignment
 So far, Static Traffic Assignment (STA): Departure time of vehicles does not matter (we look at peak our time slice).

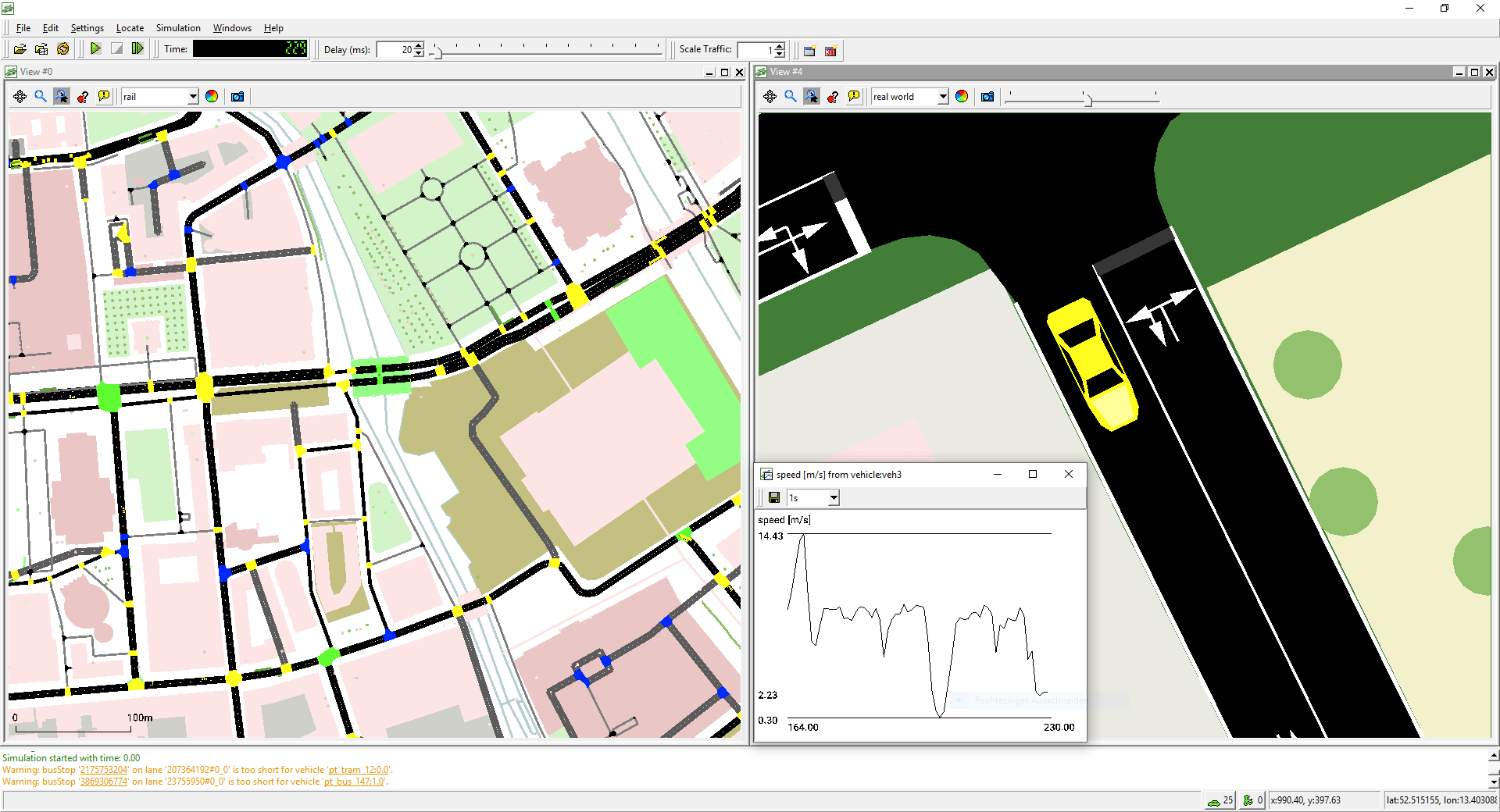

 Methods for Dynamic Traffic Assignment (DTA) exist, which consider detailed movements of vehicles, traffic lights, ...
Fourstep model: Feedback
Generation
Distribution
Mode choice
Assignment
 Now travel times in the network are known. They can be fed back to the distribution stage (which travel times did we assume back then)?
 4S model can be run iteratively to bring stages in equilibrium.
 Many caveats in terms of consistency and convergence (beyond the scope in this lecture).
Activitybased models
 Nonequilibrium models
 Sequential decisions during simulation for each agent
 Dynamic reaction to environment
Activitybased models
Activity 1
Activity 2
Activity 3
Decision
Decision
Analysis
Person 1
Activity 1
Activity 2
Person 1
Decision
 Nonequilibrium models
 Sequential decisions during simulation for each agent
 Dynamic reaction to environment
 Equilibrium models
 Decision made for a whole day
 All decisions of persons go into equilibrium after multiple iterations
Activitybased models
Activity 1
Activity 2
Activity 3
Person 1
Activity 1
Activity 2
Person 1
Analysis
Decision making
Iterations
 Nonequilibrium models
 Sequential decisions during simulation for each agent
 Dynamic reaction to environment
 Equilibrium models
 Decision made for a whole day
 All decisions of persons go into equilibrium after multiple iterations
 Hybrid models
Activitybased models
 Generally, detailed input data is needed to reach at detailed output
 Data processing similar to 4S models, but much more complex and some components are dynamically treated in the simulation
Activitybased models

Population synthesis
The task is to create a synthetic representation of the population with sociodemographical households and person attributes
 Multitude of approaches
 Iterative Proportional Fitting (IPF)
 Iterative Proportional Updating (IPU)
 Gibbs Sampling
Activitybased models

Population synthesis
The task is to create a synthetic representation of the population with sociodemographical households and person attributes
 Multitude of approaches
 Iterative Proportional Fitting (IPF)
 Iterative Proportional Updating (IPU)
 Gibbs Sampling

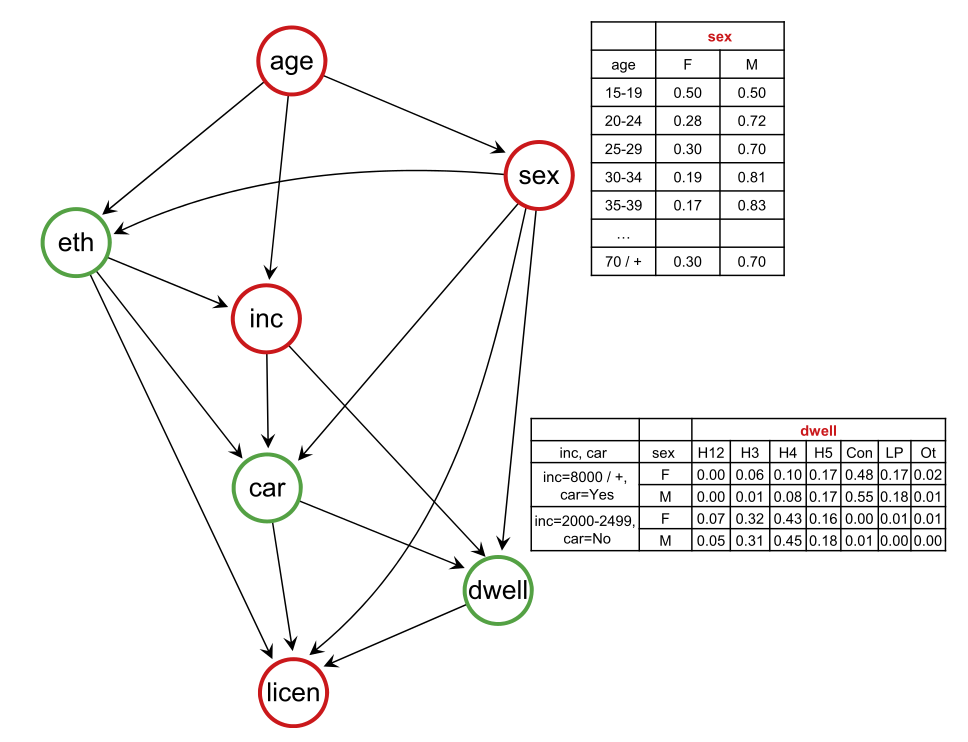

 Bayesian Networks
Activitybased models

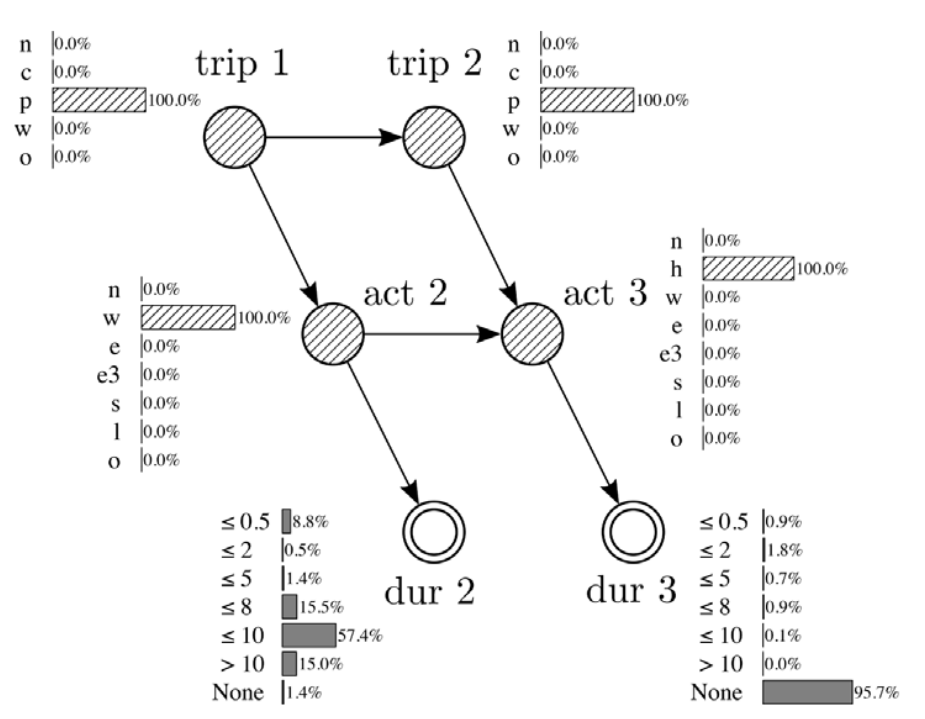

Sun, L., Erath, A., 2015. A Bayesian network approach for population synthesis. Transportation Research Part C: Emerging Technologies 61, 49–62. https://doi.org/10.1016/j.trc.2015.10.010

Population synthesis
The task is to create a synthetic representation of the population with sociodemographical households and person attributes
 Multitude of approaches
 Iterative Proportional Fitting (IPF)
 Iterative Proportional Updating (IPU)
 Gibbs Sampling
 Bayesian Networks

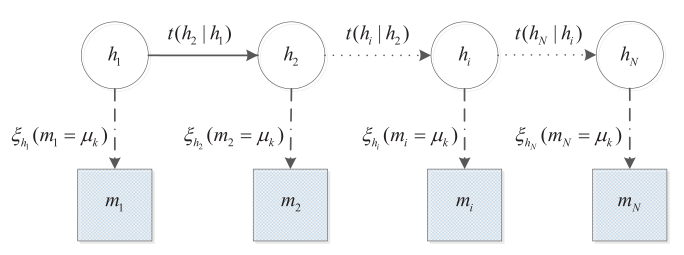

 Hidden Markov Models
Activitybased models
Saadi, I., Mustafa, A., Teller, J., Farooq, B., Cools, M., 2016. Hidden Markov Modelbased population synthesis. Transportation Research Part B: Methodological 90, 1–21. https://doi.org/10.1016/j.trb.2016.04.007

Population synthesis
The task is to create a synthetic representation of the population with sociodemographical households and person attributes
 Multitude of approaches
 Iterative Proportional Fitting (IPF)
 Iterative Proportional Updating (IPU)
 Gibbs Sampling
 Bayesian Networks
 Hidden Markov Models

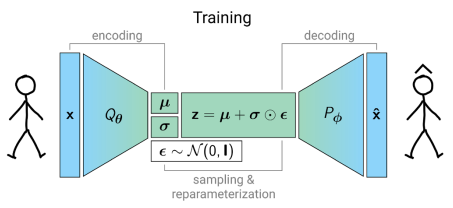

 Deep Generative Modeling
Variational Auto Encoders
Activitybased models
Borysov, S.S., Rich, J., Pereira, F.C., 2019. How to generate microagents? A deep generative modeling approach to population synthesis. Transportation Research Part C: Emerging Technologies 106, 73–97. https://doi.org/10.1016/j.trc.2019.07.006

Synthesis of activity chains
Given sociodemographic attributes, generate daily activity chains for the agents.
 Today increasingly use of GPS / GSM trace data sets to train models
 Some examples
 Statistical Matching Approaches
 Skeletonbased approaches
 Sequential choice models (classic approach)
 Sequential Alignment Methods (SAM)
 Bayesian Networks
 ...
Activitybased models
Joubert, J.W., de Waal, A., 2020. Activitybased travel demand generation using Bayesian networks. Transportation Research Part C: Emerging Technologies 120, 102804. https://doi.org/10.1016/j.trc.2020.102804

Further aspects:
 Departure times from activities
 Locations of activities

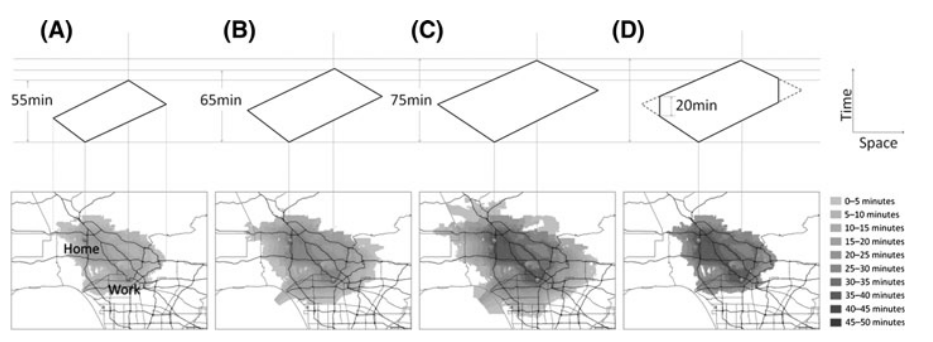

 Potential Path Areas (PPA)
 Spacetime prisms
 ...
Activitybased models
Yoon, S.Y., Deutsch, K., Chen, Y., Goulias, K.G., 2012. Feasibility of using time–space prism to represent available opportunities and choice sets for destination choice models in the context of dynamic urban environments. Transportation 39, 807–823. https://doi.org/10.1007/s1111601294078
 As is demand generation, mobility simulation is often also more complex
 Usually agentbased
 Microscopic simulation
 VISSIM, SUMO, ...
 VISSIM, SUMO, ...
 Mesoscopic simulation
 MATSim, SimMobility,
POLARIS, ...
 MATSim, SimMobility,
Activitybased models
 Convergence
 Usually based on utility maximization principle
 Detection of Nash equilibria
 Output metric convergence
 Calibration
 Complex simulator (no closed form expression)
 Noisy output (needs stochastic optimization)
 Large runtimes
Activitybased models: Challenges
 Last semester
 Example with eqasim (for demand synthesis)
 and MATSim (traffic simulation)
Activitybased models: Example
Grand Paris Express
 One of largest infrastructure projects in Europe
 Affecting mobility behaviour of large share of population in ÎledeFrance
Course project
 Learn more about Grand Paris Express
 Simple demand estimate for Grand Paris Express and its impact on existing public transport
 Four groups:
 Demand
 Routing
 GTFS
 Mode choice
Course project
Demand
GTFS
Routing
Mode choice
 Estimate commuting
demand based on census  Look into weighting and downscaling
 Visualize commuting
demand
 Understand GTFS format
 Integrate Grand Paris Express in digital transit schedule
 Visualize network
 Use routing software to calculate commuting trip characteristics today and with Grand Paris Express
 Understand delays in car traffic
 Visualize highlevel routing metrics
 Use multinomial logit model to analyze mode choice for commuting trips
 Visualize difference from reference data and mode use on a map
 Coordination within each group
 Coordination across groups
Course project
Demand
GTFS
Routing
Mode choice
 Estimate commuting
demand based on census  Look into weighting and downscaling
 Visualize commuting
demand
 Understand GTFS format
 Integrate Grand Paris Express in digital transit schedule
 Visualize network
 Use routing software to calculate commuting trip characteristics today and with Grand Paris Express
 Understand delays in car traffic
 Visualize highlevel routing metrics
 Use multinomial logit model to analyze mode choice for commuting trips
 Visualize difference from reference data and mode use on a map
 Demand analysis: Where does GPE have the highest impact (in travel time improvements and in actual modechoicebased use)?
 Supply analysis: Which existing lines loose how many users? How many users do the new lines have compared to existing lines?
Course project (Information flow)
Demand
GTFS
Routing
Mode choice
[ ID,
Origin XY,
Destination XY,
Reference Mode ]
[ GTFS ]
[ ID,
Car travel time,
PT travel time,
PT line switches,
[ IDs of used PT lines ]
]
[ ID,
Chosen transport mode
]
For instance, count how many commutes make use of RER A before and after including the Grand Paris Express.
Group: Demand

Technical task: Produce a commuting data set for ÎledeFrance as a list of trips with origin coordinate, destination coordinate, and usual mode of transport. It should be possible to scale down the data set to make it easier to use for the other groups.

Analysis task:
 Visualize the number of trips in each municipality on a map
 Visualize the number of people using car vs. public transport in those municipalities. Which patterns do you observe in IledeFrance?
Group: Demand

Recommendations
 Investigate the French census commuting data set
https://www.insee.fr/fr/statistiques/4507890?sommaire=4508161&q=Mobilit%C3%A9s+professionnelles+des+individus
 This gives you examples of commuting trips. To make them representative of the whole population, INSEE has weighted them (field IPONDI), i.e. one trip represents X trips in reality. Also, the data set gives you the usual mode of transport of one commuting trip.
 Investigate the French census commuting data set
Group: Demand

Recommendations
 Origin and destination in the data set are given in terms of municipality identifiers (INSEE number). They are formatted as
[2x Department code][3x Municipality code]. You can use the field "REG" or this code to filter for all the trips starting and ending in IledeFrance.
 You can sample trips at random from the data set, based on the weight of each trip. This way, you can assume a number N of trips that you want to sample and this way you can provide data sets to the other group that have a size they can handle.
 Origin and destination in the data set are given in terms of municipality identifiers (INSEE number). They are formatted as
Group: Demand

Recommendations
 To add coordinates to your data set, you can make use of the geographical reference file for all IRIS in France. IRIS are one level of aggregation lower than a municipality. You can use this data set, for instance, to find the centroid of each municipality, and then you can use the centroids as start and end coordinates of your trips.
https://www.data.gouv.fr/fr/datasets/decoupageadministratifcommunalfrancaisissudopenstreetmap/
 Bonus: You can also sample for each trip coordinates at random from the municipality. Even further, you can use aggregate statistics provided by INSEE on the number of inhabitants in each IRIS to perform a weighted sampling of IRIS and thus make your trips resemble better the population density of each municipality.
 To add coordinates to your data set, you can make use of the geographical reference file for all IRIS in France. IRIS are one level of aggregation lower than a municipality. You can use this data set, for instance, to find the centroid of each municipality, and then you can use the centroids as start and end coordinates of your trips.
Group: Routing

Technical task: Set up a system that allows you to route trips in IledeFrance with a start coordinate and an end coordinate such that you obtain the travel time by car, travel time by public transport and potentially other attributes that are of interest. Take into account that during the morning peak hour, roads are congested!

Analysis task:
 Given a set of trips (provided by "demand" group), show the distribution travel times by car and public transport in IledeFrance. Where are regions where travelling by car is generally quicker or slower?
Group: Routing

Recommendations
 Usually, we would use API services like HERE, Bing or Google. There, we can send (start, end) coordinates and receive travel times, number of transfers, etc. for all modes of transport
 Here, we also want to look into the future transport system.
 You can use OpenTripPlanner (or other routing software such as R5 to set up a routing service locally).
 Usually, we would use API services like HERE, Bing or Google. There, we can send (start, end) coordinates and receive travel times, number of transfers, etc. for all modes of transport
Group: Routing

Recommendations
 For OpenTripPlanner, you need OpenStreetMap input data and a valid GTFS schedule: http://docs.opentripplanner.org/en/dev2.x/#quickstart
 You can find OpenStreetMap data for ÎledeFrance on http://www.geofabrik.de
 You can find a valid GTFS schedule from IledeFrance mobilités
https://data.iledefrancemobilites.fr/explore/dataset/offrehorairestcgtfsidf/information/
Group: Routing

Recommendations
 For OpenTripPlanner, you need OpenStreetMap input data and a valid GTFS schedule: http://docs.opentripplanner.org/en/dev2.x/#quickstart
 You can find OpenStreetMap data for ÎledeFrance on http://www.geofabrik.de
 You can find a valid GTFS schedule from IledeFrance mobilités
https://data.iledefrancemobilites.fr/explore/dataset/offrehorairestcgtfsidf/information/
Group: Routing

Recommendations

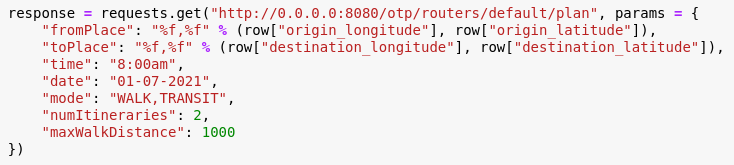

 You can then send requests to your OpenTripPlanner server via its web API, for instance:
 This allows you to obtain travel times by car and public transport
 You can then send requests to your OpenTripPlanner server via its web API, for instance:
Group: Routing

Recommendations
 Note that OpenTripPlanner has no information about congestion in the morning. How can you solve this problem?
 One option maybe to look into Uber Movements data for Paris and get a rough idea by how much travel times are reduced on average in the morning compared to other times of the day with low congestion (night). You may then obtain a global factor that you can apply to all the produced travel times.
 Note that OpenTripPlanner has no information about congestion in the morning. How can you solve this problem?
Group: GTFS

Technical task: Get familiar with the structure of a digital transit schedule in GTFS format. Group "Routing" will be able to use this data to find routes of passengers with this data. Integrate the new Metro lines of the Grand Paris Express into the GTFS file of IledeFrance.

Analysis task:
 Visualize the Metro network (lines and stations) of Paris before and after including the Grand Paris Express on a map.
Group: GTFS

Recommendations
 You can find a valid GTFS schedule from IledeFrance mobilités
https://data.iledefrancemobilites.fr/explore/dataset/offrehorairestcgtfsidf/information/
 Detailed information on GTFS is available from the GTFS specification
https://developers.google.com/transit/gtfs/
 Open data from the Grand Paris Express is available here
https://www.data.gouv.fr/fr/organizations/societedugrandparis/#datasets
 You can find a valid GTFS schedule from IledeFrance mobilités
Group: GTFS

Recommendations
 Attention! Is there any data missing? Are there any errors in the provided data sets? Inconsistencies? Do not stick to long to those problems, but try to find an easy and pragmatic solution. It is fine to report your findings in the presentations, no need to fix everything in detail!
Group: Mode choice

Technical task: Apply a discrete mode choice model on commuting data for IledeFrance. Propose a model that makes it possible to perform a prediction based on car travel time and public transport connection characteristics.

Analysis task:
 Visualize the use of car and public transport as the commuting mode in IledeFrance on a map or as aggregate statistics.
 Visualize the differences you see with different modelling assumptions.
Group: Mode choice

Recommendations
 You can find information on existing mode choice models for IledeFrance here https://www.sciencedirect.com/science/article/pii/S2352146515001180?via%3Dihub
 Or here (but there are also others) https://drive.google.com/file/d/11MqJpfZ6Y07rlqCvMIFuKnHkJk8_xx4/view?usp=sharing
 Group "Routing" will be able to provide you a data set with (origin, destination, mode) and additional attributes for the mode choice, but you need to define what information they should provide to you and in which format. The trips provided by Group "Demand" will have reference information on which trip is usually chosen for a certian connection.
 You can find information on existing mode choice models for IledeFrance here https://www.sciencedirect.com/science/article/pii/S2352146515001180?via%3Dihub
Group: Mode choice

Recommendations
 Your task is merely to decide for a model and check how well it replicates the reference data. Bonus: Try to improve the model or come up with one that increase the fit of the calculated mode choice and the mode share from the data.
 To start quickly, you may be able to create a couple of trips at random from Google Maps / Bing / HERE (remember we are looking at morning commute trips!), or you may use the data of the national household travel survey (K_deploc)
At the bottom (Table de données)
https://www.statistiques.developpementdurable.gouv.fr/enquetenationaletransportsetdeplacementsentd2008
 Your task is merely to decide for a model and check how well it replicates the reference data. Bonus: Try to improve the model or come up with one that increase the fit of the calculated mode choice and the mode share from the data.
Final analysis
 Group "Routing" performs a routing of the trips provided by Group "Demand" given the original IledeFrance transit schedule, and the updated transit schedule provided by group "GTFS". After, group "Mode choice" performs a mode choice experiment for the provided trips, obtaining share before and after including the Grand Paris Express.

Anaysis task:
 Without any mode choice effects, which OD relations decrease most in travel time when the Grand Paris Express is implemented? How to visualize this?
 Considering mode choice effects, which regions in IledeFrance show the strongest changes in mode usage?
 In both cases: Assess and visualize the daily number of users of the new and existing Metro lines, RER lines and Transilien in a beforeafter comparison.

Final presentation including all groups. During the presentation, each group presents their results. At the end, the final demand analysis combining all partial results is presented. The presentation date is 25 February.
 Grading:
 Results: It is not expected to achieve perfect results. Focus should be put on which components worked well, and where you have encountered difficulties. Grading is based on the quality of presenting those reflections.
 Visual consistency: Make sure to coordinate on the visual appearance of the whole presentation. Grading will be based on how well the groups manage to stick to an overall scheme.
 Each group receives one grade for their presentation.
 Results: It is not expected to achieve perfect results. Focus should be put on which components worked well, and where you have encountered difficulties. Grading is based on the quality of presenting those reflections.
Deliverables & Grading

Individual report of 23 pages written individually by each student. To be submitted until 15 March.
 Grading:
 Focus is on reflection.
 (1) On teamwork: Write about how you were working together within your group and across the groups. Reflect on what went well, what went not ideally. What did you learn in terms of working together in a project? How did you organize your work given the circumstances with Covid?
 (2) On your group task: Which elements were difficult? Where can the analysis be improved and how? What data did you exchange with other groups, how did you define the formats? Describe the methodology you have used. What approaches did you assess? Why did you choose a specific one? What were your selection criteria?
 Focus is on reflection.
Deliverables & Grading
Timeline

Today: Defining groups

21 January:
 Intermediate presentation of initial analyses (no need to prepare slides)
 Q&A, exchange among the groups

11 February:
 Presentation of developments in each group (no slides needed)
 Coordination across groups for final project

25 February
 Final presentation
Please register for the groups:
Grand Paris Express Project
By Sebastian Hörl
