Topological Polymers and Random Embeddings of Graphs
Collaborators
Jason Cantarella
U. of Georgia
Tetsuo Deguchi
Ochanomizu U.
Erica Uehara
Kyoto U.
Funding: Simons Foundation (#524120, #709150), National Science Foundation (DMS–2107700), Japan Science and Technology Agency (CREST JPMJCR19T4, Deguchi Lab), Japan Society for the Promotion of Science (KAKENHI JP17H06463)
Topological Polymers
A topological polymer joins monomers in any graph type.
Embed into \(\mathbb{R}^3\) with probability proportional to
\(\displaystyle \exp\left( -\frac{1}{2\sigma^2}\sum_{\stackrel{\bullet\!-\!-\!\bullet}{v_i \,\, v_j}}\|x_i-x_j\|^2\right)\)
Theorem [Estrada–Hatano, James–Guth]
\(\langle R_g^2(\mathcal{G})\rangle = \frac{3\sigma^2}{\mathbf{v}} \operatorname{tr}L(\mathcal{G})^+\).
Graph Laplacian
Pseudoinverse
Motivating Questions
Question
How much of this can be generalized beyond Gaussian distributions?
Question
What if the graph has special structure? E.g., subdivision graphs.
Chain Groups
Let \(\mathcal{G}\) be a (directed) graph with \(\mathbf{e}\) edges and \(\mathbf{v}\) vertices.
Definition
The vector space \(C_0\) of vertex chains is the vector space of (formal) linear combinations of vertices:
\(x = x_1 v_1 + \dots + x_{\mathbf{v}}v_{\mathbf{v}}\).
Definition
The vector space \(C_1\) of edge chains is the vector space of (formal) linear combinations of edges:
\(w = w_1 e_1 + \dots + w_{\mathbf{e}}e_{\mathbf{e}}\).
Boundaries
Definition
The boundary map \(\partial : C_1 \to C_0\) is defined by
\(\partial(e_i) = \operatorname{head}(e_i) - \operatorname{tail}(e_i)\).
\partial(e_4)=v_4-v_2
\partial(e_4-e_3)=v_4-v_3
Boundaries
Definition
The boundary map \(\partial : C_1 \to C_0\) is defined by
\(\partial(e_i) = \operatorname{head}(e_i) - \operatorname{tail}(e_i)\).
Definition
\(\operatorname{ker} \partial \subset C_1\) is the loop space of \(\mathcal{G}\).
Boundaries
Definition
Every \(w \in \ker \partial \subset C_1\) is a linear combination of closed loops. \(\dim\ker \partial\) is the cycle rank \(\chi(\mathcal{G}) = \mathbf{e} - \mathbf{v}+1\).
\(-\)
\(=\)
Embedding Spaces
The chain spaces encode the topology of the graph. The embedding into \(\mathbb{R}^3\) is determined by:
Definition
The space of vertex positions \(C^0 := \operatorname{Lin}(C_0,\mathbb{R}^3) \simeq \operatorname{Mat}_{3 \times \mathbf{v}}\).
Definition
The space of edge displacements \(C^1 := \operatorname{Lin}(C_1,\mathbb{R}^3) \simeq \operatorname{Mat}_{3 \times \mathbf{e}}\).
Definition
The displacement map \(\operatorname{disp}: C^0 \to C^1\) is given by
\(\operatorname{disp}(X)(e_i) = X(\operatorname{head}(e_i)) - X(\operatorname{tail}(e_i)) = X(\partial(e_i))\).
Some Linear Algebra
Proposition

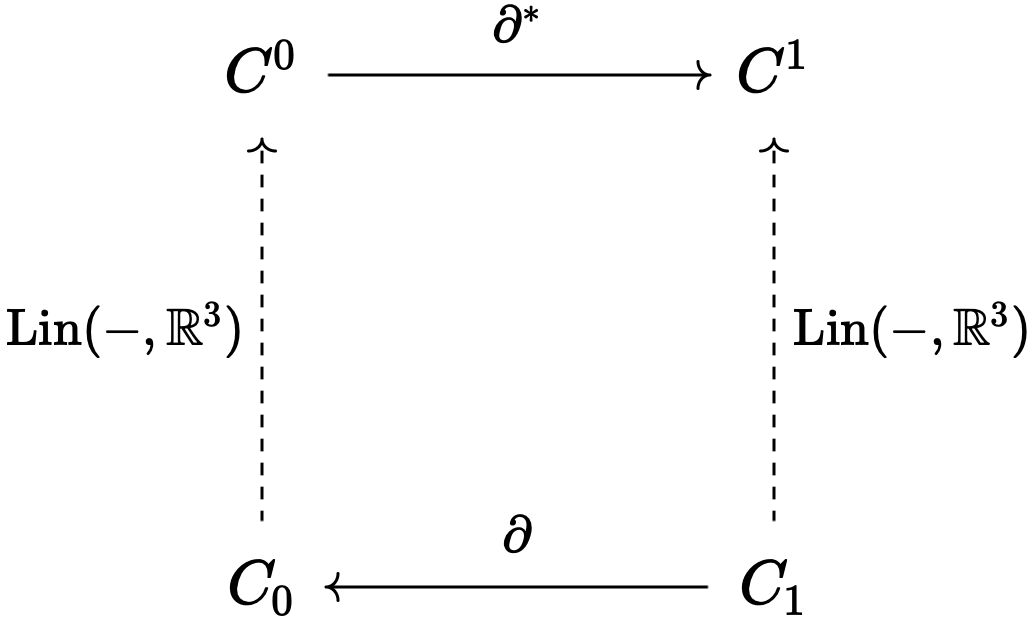

The map \(\operatorname{disp}:C^0 \to C^1\) is equal to the map \(\partial^\ast\) induced by \(\operatorname{Lin}(-,\mathbb{R}^3)\).
Proposition
If \(W = \partial^* X = X \partial \), then
\(\operatorname{vec}W = (\partial^T \otimes I_3) \operatorname{vec} X\).
The vec Trick
A = \underbrace{\begin{bmatrix} a_{11} & \cdots & a_{1n} \\ \vdots & \ddots & \vdots \\ a_{p1} & \cdots & a_{pn} \end{bmatrix}}_{p \times n}
\operatorname{vec} A = \underbrace{\begin{bmatrix} a_{11} \\ \vdots \\ a_{1n} \\ \vdots \\ a_{p1} \\ \vdots \\ a_{pn} \end{bmatrix}}_{ pn \times 1}
The Kronecker Product
A = \underbrace{\begin{bmatrix} a_{11} & \cdots & a_{1n} \\ \vdots & \ddots & \vdots \\ a_{p1} & \cdots & a_{pn} \end{bmatrix}}_{p \times n}
B = \underbrace{\begin{bmatrix} b_{11} & \cdots & b_{1m} \\ \vdots & \ddots & \vdots \\ b_{q1} & \cdots & b_{qm} \end{bmatrix}}_{q \times m}
A \otimes B = \underbrace{\begin{bmatrix} a_{11} B & \cdots & a_{1n} B \\ \vdots & \ddots & \vdots \\ a_{p1} B & \cdots & a_{pn} B \end{bmatrix}}_{pq \times mn}
I_p \otimes B = \underbrace{\begin{bmatrix} B & \cdots & 0 \\ \vdots & \ddots & \vdots \\ 0 & \cdots & B \end{bmatrix}}_{pq \times pm}
Random Graph Embeddings
Theorem
The space of assignments of edge displacements compatible with the graph type \(\mathcal{G}\) is the linear subspace
\(\operatorname{im}\operatorname{disp} = \operatorname{im}\partial^\ast = \operatorname{im}(\partial^T \otimes I_3)\subset C^1\).
\(C^1 \simeq \mathbb{R}^{3\mathbf{e}}\)
\(C^0 \simeq \mathbb{R}^{3\mathbf{v}}\)
\(\partial^\ast\)
\(\operatorname{im}\partial^\ast\)
?
\(\partial^{\ast +}\)
\((\operatorname{ker}\partial^\ast)^\bot\)
Sampling
- Compute pseudoinverse \(\partial^{\ast +}: C^1 \to C^0\).
- Sample \(W\) from conditional distribution on \(\operatorname{im}\partial^\ast \subset C^1\).
- Construct vertex positions \(X = \partial^{\ast +} W\); i.e.,
\(\operatorname{vec}X = (\partial^T \otimes I_3)^+ \operatorname{vec}W\).
Proposition
If \(\operatorname{vec}W\) is sampled from a Gaussian with variance \(\sigma^2\), then \(\operatorname{vec}X = (\partial^T \otimes I_3)^+ \operatorname{vec}W\) is Gaussian with covariance
\(\sigma^2[(\partial \partial^T)^+ \otimes I_3] = \sigma^2 (L^+ \otimes I_3)\).
Subdivided Graphs
Definition
For a multigraph \(\mathcal{G}\), let \(\mathcal{G}_n\) be the graph created by subdividing each edge of \(\mathcal{G}\) into \(n\) edges.
\(\langle R_g^2(\mathcal{G}_n)\rangle = \frac{3\sigma^2}{\mathbf{v(\mathcal{G}_n)}} \operatorname{tr}L(\mathcal{G}_n)^+\)

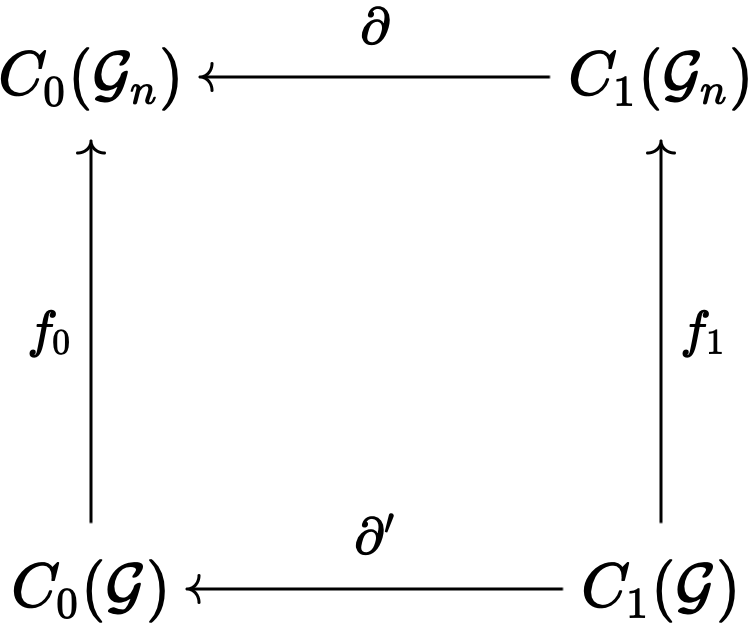

Chain Maps and Structure Graphs
Idea
The junction positions in a random embedding of a subdivided graph ought to be some random embedding of the structure graph.

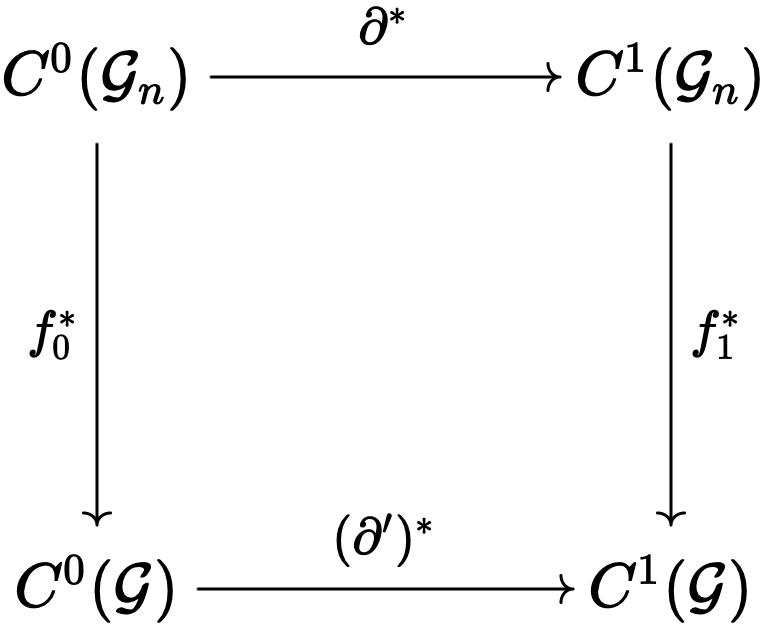

Chain Maps and Structure Graphs
Idea
The junction positions in a random embedding of a subdivided graph ought to be some random embedding of the structure graph.
Idea
The radius of gyration of the subdivided graph should be some weighted radius of gyration of the structure graph.
Radius of Gyration
Idea
The radius of gyration of the subdivided graph should be some weighted radius of gyration of the structure graph.
Theorem [with Cantarella, Deguchi, Uehara (2022)]
\(\lim_{n \to \infty}\frac{1}{n}\langle R_g^2(\mathcal{G}_n)\rangle = \frac{3\sigma^2}{2\mathbf{e}(\mathcal{G})}\left(\operatorname{tr}\mathcal{L}^+(\mathcal{G})+\frac{1}{3}\operatorname{Loops}(\mathcal{G})-\frac{1}{6}\right)\).
Theorem [with Cantarella, Deguchi, Uehara (2025)]
\(\langle R_g^2(\mathcal{G}_n)\rangle = 3\sigma^2\frac{n^2-1}{\mathbf{v}(\mathcal{G_n})}\left(\frac{n}{n+1}\operatorname{tr}\mathcal{L}_{\operatorname{deg}(n)}^+(\mathcal{G})+\frac{1}{3}\left(1-\frac{1}{2\mathbf{v}(\mathcal{G_n})}\right)\operatorname{Loops}(\mathcal{G_n})\right.\)
\( \left. \qquad \qquad \qquad \qquad \qquad -\frac{1}{6}\left(1-\frac{1}{\mathbf{v}(\mathcal{G_n})}\right)\right)\).
Note: \(\mathbf{v}(\mathcal{G}_n) = (n-1)\mathbf{e}(\mathcal{G})+\mathbf{v}(\mathcal{G})\)
Thank you!
References
Factoring the Laplacian to understand topological polymers
J. Cantarella, T. Deguchi, C. Shonkwiler, E. Uehara
Europhysics Letters 152 (2025), no. 1, 12001
Radius of gyration, contraction factors, and subdivisions of topological polymers
J. Cantarella, T. Deguchi, C. Shonkwiler, E. Uehara
J. Phys. A 55 (2022), no. 47, 475202
An exact formula for the contraction factor of a subdivided Gaussian topological polymer
J. Cantarella, T. Deguchi, C. Shonkwiler, E. Uehara
J. Phys. A 58 (2025), no. 35, 355201
