Prepare for the Future:



    Passkeys

in



by Stepan Suvorov

Stepan Suvorov

@stevermeister

#standWithUkraine 🇺🇦

Christiaan Brand

Security & Identity, Google

@christiaanbrand

Thanks to

Maud Nalpas

Web security & privacy, Google

@maudnals

Agenda

  • The Evolution of Authentication

  • Passkeys

  • Implementation details

  • Passkeys in Angular

Auth Evolution

Something you know

Something you have

Something you are

Somewhere you are

Passwords

Why passwords are bad?

  • High risk of Identity theft and phishing
  • Easily revealed to 3rd Party (accidentally or not)
  • Easily hacked using hash matching tables
  • Sharing as plain text
  • The strength of the password is not always verified automatically

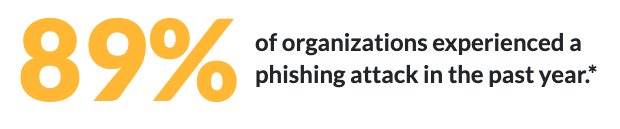

*HYPR, 2023 State of Passwordless Security Report – Download the Report here.

Password managers?

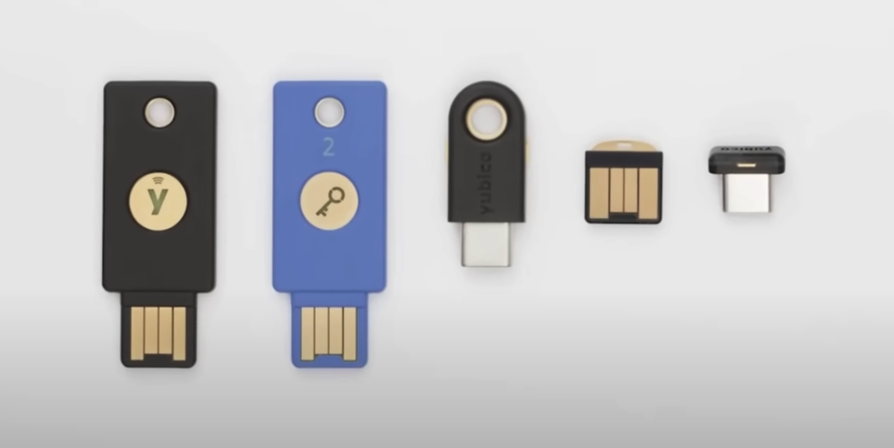

Hardware Keys?

Passkeys

History

  • 2012: The FIDO (Fast IDentity Online) Alliance was founded.

  • 2016: The FIDO Alliance releases the FIDO U2F (Universal 2nd Factor) standard. This standard allows users to utilize their smartphones or other devices as a second factor for authentication on websites.

  • 2017: Building on the previous standard, the FIDO Alliance introduces FIDO2. This standard includes the WebAuthn (Web Authentication) specification and is designed to support a broader array of authentication methods, including what would eventually be known as passkeys.

  • 2022: Apple announces support for passkeys in iOS 16 and macOS Ventura. Similarly, Google revealed that it will support passkeys in Android 13 and Chrome.

  • 2023: Microsoft joins the movement, announcing passkey support in Windows 11. Google extends its commitment by incorporating passkeys into its login services.

  • 2025: passkeys will become the dominant method of authentication on the web

How Passkeys Work?

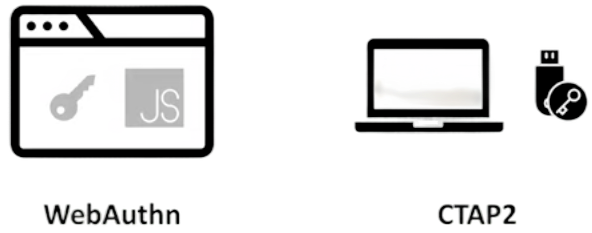

FIDO2 Components

How Passkeys Work?

Sign-up

Public 🔑

 Private 🔑

CTAP

WebAuthn

How Passkeys Work?

Sign in

Public 🔑

 Private 🔑

Public 🔑

challenge

signed package with challenge

Also good to know

Syncing

Passkeys are not stored on a single device

Cross-device

Passkeys on one device can be used on a different device

Discoverable

Passkeys contain metadata that allows your system to present passkey to you

Passkeys

for personal use

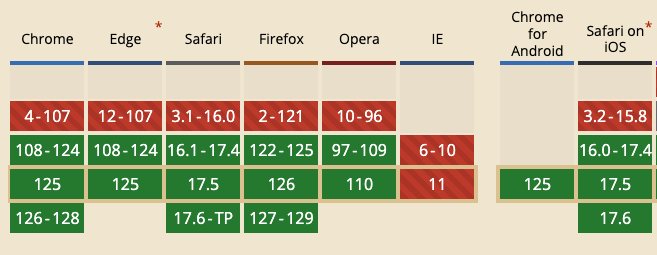

https://caniuse.com/passkeys

Can I Use it?

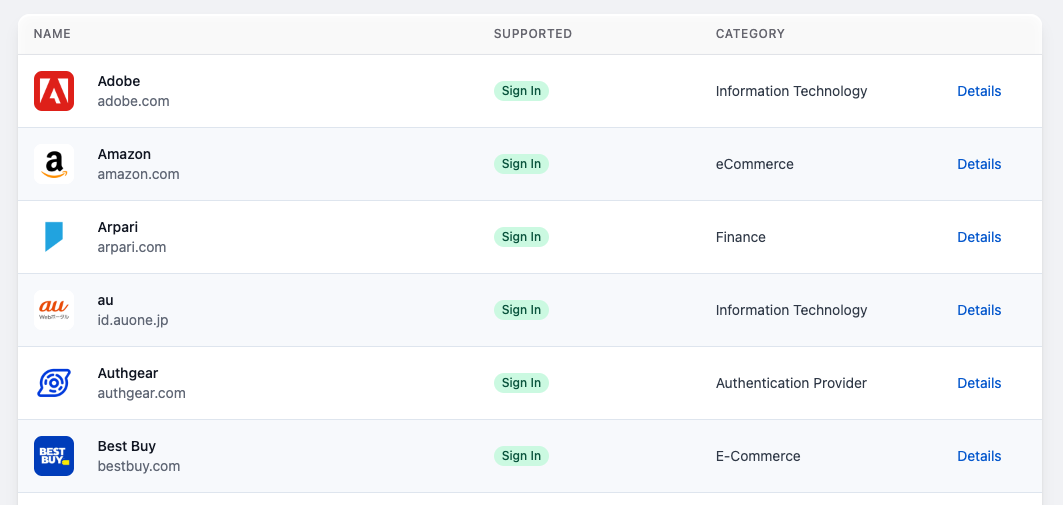

https://passkeys.directory/

keep secrets at Google/Apple?

Privacy considerations

  • biometric material never leaves the user's device
  • Passkey protocols are carefully designed so that no information shared with sites can be used as a tracking vector.
  • Passkey managers protect passkeys from unauthorized access and use.

More about implementation

Passkey Creation

navigator.credentials.create({
	publicKey: options
});

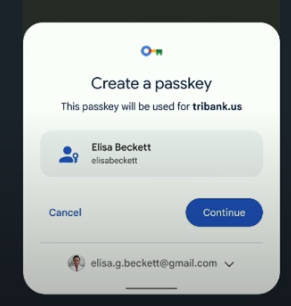

Passkey Creation

const publicKeyCredentialCreationOptions = {
  challenge: new ArrayBuffer([219]),
  rp: {
    name: "Slides",
    id: "slides.com",
  },
  user: {
    id: new ArrayBuffer([137]),
    name: "elisabeckett",
    displayName: "Elisa Beckett",
  },
  pubKeyCredParams: [{alg: -7, type: "public-key"}],
  authenticatorSelection: {
    authenticatorAttachment: "platform",
    requireResidentKey: true,
  },
  timeout: 30000
};

const credential = await navigator.credentials.create({
  publicKey: publicKeyCredentialCreationOptions
});

Use a Passkey

navigator.credentials.get({
  publicKey: requestOptions,
  mediation: 'conditional'
});

Use a Passkey

// Availability of 'window.PublicKeyCredential' means WebAuthn is usable.
if (window.PublicKeyCredential &&
    PublicKeyCredential.isConditionalMediationAvailable) {
  // Check if conditional mediation is available.
  const isCMA = await PublicKeyCredential.isConditionalMediationAvailable();
  if (isCMA) {
    // Call WebAuthn authentication
  }
}

const publicKeyCredentialRequestOptions = {
  // Server generated challenge
  challenge: new ArrayBuffer([219]),
  // The same RP ID as used during registration
  rpId: 'slides.com',
};

const credential = await navigator.credentials.get({
  publicKey: publicKeyCredentialRequestOptions,
  // Specify 'conditional' to activate conditional UI
  mediation: 'conditional'
});

in Angular

let's prepare our Server

npm install @simplewebauthn/server

Endpoints

  • /generate-registration-options
  • /verify-registration
  • /generate-authentication-options
  • /verify-authentication

now goes Angular

npm install @simplewebauthn/browser

auth.service.ts

Registration

async register(username: string) {
  // generate registration options
  let response = await fetch(
    `http://localhost:8000/generate-registration-options?username=${username}`
  );
  const creationOptions = await response.json();

  let attestationResponse = await startRegistration(creationOptions);
  //...
  // verify registration
  response = await fetch(`http://localhost:8000/verify-registration`, {
    method: "POST", headers: { "Content-Type": "application/json" },
    body: JSON.stringify({
      id: creationOptions.user.id,
      attestationResponse,
    }),
  });
  const verification = await response.json();

  if (verification.verified) {
    // Registration successful!
  } else {
    // Registration failed!
  }
 }
import { startRegistration } from "@simplewebauthn/browser";

Login

async login(username: string) {
  let response = await fetch(
    `http://localhost:8000/generate-authentication-options?username=${username}`
  );
  const authOptions = await response.json();

  let assertionResponse = await startAuthentication(authOptions);

  //...
  response = await fetch(`http://localhost:8000/verify-authentication`, {
    method: 'POST', headers: { 'Content-Type': 'application/json'},
    body: JSON.stringify({
      username,
      assertionResponse
    }),
  });

  const data = await response.json();

  if (data.verified) {
    //`Authentication successful! Welcome back ${data.user.username}!`);
  } else {
    // Authentication failed
  }
}
import { startAuthentication } from '@simplewebauthn/browser';

Conclusion

  • Passkeys are here

  • Implementation is easy!

    • @simplewebauthn/server

      • 2 endpoints for registration

      • 2 endpoints for auth

    • @simplewebauthn/browser

  • The Evolution of Authentication
  • Passkeys
  • Implementation details



Thank you for your attention.

Questions?

@stevermeister
