Einstieg in die Architektur reaktiver Softwaresysteme

Speaker

Alexander Troppmann

Software Craftsman & Architect



  • software architecture
  • full-stack development
  • DevOps / k8s & cloud
  • training for dev teams
  • agile transformation

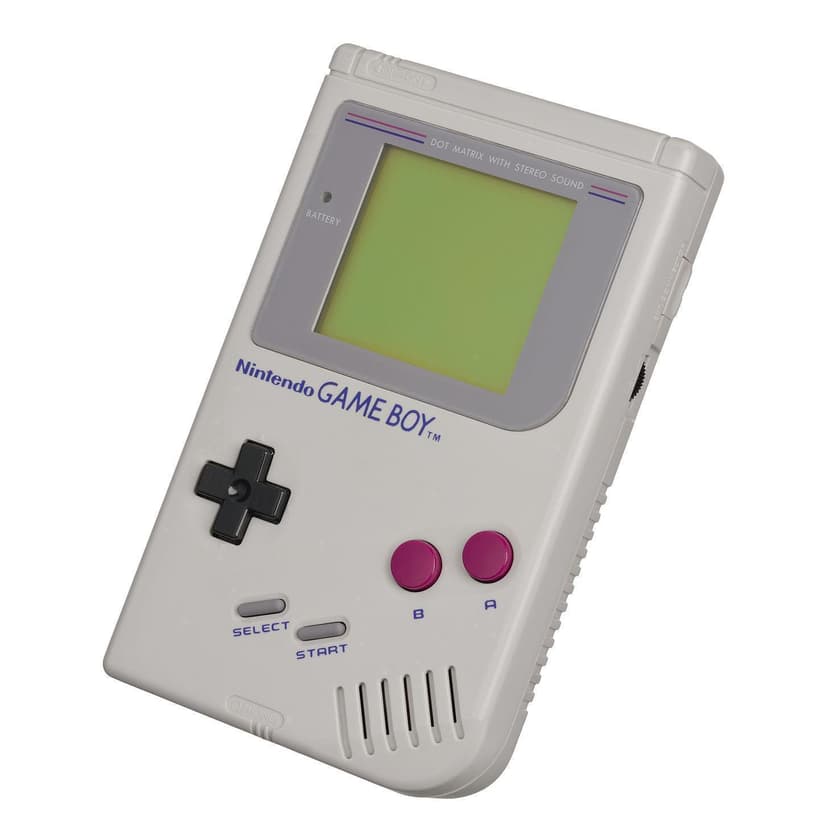

a slightly opinionated time travel ;)

Monolithic Software Architecture

Monolithic Software Architecture

Benefits

  • simple to model
  • simple to develop
  • simple to build
  • simple to test
  • simple to deploy
  • simple to scale
  • simple to fail ;-)

Monolithic Software Architecture

Drawbacks

  • large growing code base
  • entropy increases over time (valid not only for the universe but also for software projects :)
  • implementation speed slows down
  • time-to-market increases
  • continuous deployment is difficult
  • long startup times of the application
  • eats memory & cpu time

Monolithic Software Architecture

More Drawbacks

  • overloaded APIs
  • onboarding new developers is fun :)
  • scales in one dimension
  • scaling of dev teams may be difficult
  • often lack of reusability of application components
  • long-term technology stack
  • mostly synchronized function calls

Monolithic Software Architecture

Misunderstanding

Monolithic Software Architecture

meanwhile in a secret room ...

Microservices Architecture

Benefits

  • Continuous Delivery
    • better testability
    • ​improved maintainability
    • independent deployment of services
  • ​Bounded Context
    • ​smaller code base
    • faster implementation of new features
    • faster application startup
  • enables multiple, autonomous development teams

Microservices Architecture

More Benefits

  • fault isolation
    • ​fail-safe
    • resiliency
    • reliability
    • (high) availability
  • improved scalability
  • ​no long-term technology stack
  • enables polyglott services
  • replaceable
  • enabler for migration strategies

Microservices Architecture

Drawbacks

  • complexity of a Distributed System
    • inter-service communication
    • need of dealing with partial failures
    • distributed transactions
    • integration testing
    • coordination between teams
  • experienced developers needed
  • complex infrastructure setups needed

Microservices Architecture

Microservices Architecture

Principles I

  • Boundary Context
  • testability
  • polyglott development landscape
  • containerization

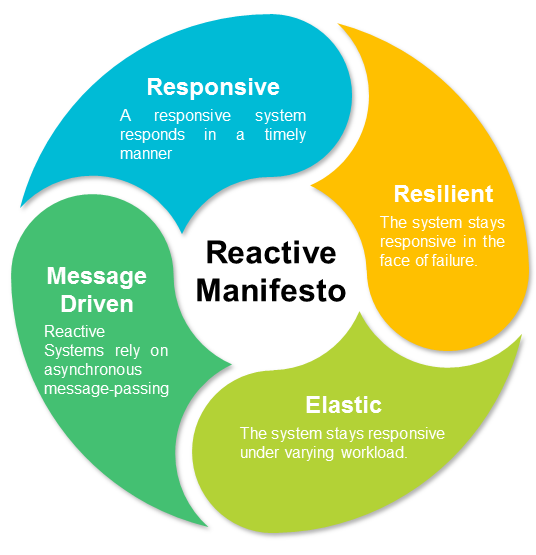

Reactive Microservices Architecture

Principles II

  • redundancy
  • resilience
  • elasticity

Reactive Microservices Architecture

Principles III

  • loose-coupling and strong bonding
  • often provides asynchronous API
    • communication enforced via Event Bus
      • shared event schema
      • implementation-agnostic protocol
  • API-driven design
    • internal RESTful API
    • callback strategies

Reactive Microservices Architecture

Principles IV

  • Microservices don't have to be micro ;)
    • Miniservices / CNCF
    • Self Contained Systems
  • use the well-known patterns, e.g.
    • 12-Factor
    • Init-container
    • Side-car
    • Ambassador
    • Adapter / Proxy / Facade
    • Service Discovery / Mesh

Reactive Microservices Architecture

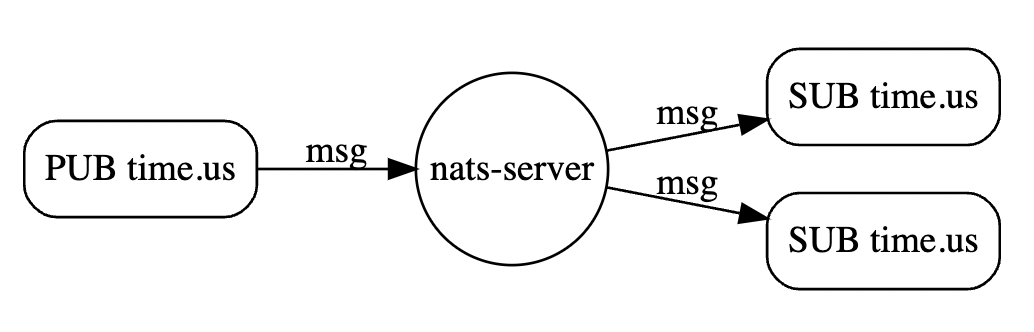

Message Bus

Subject-Based Messaging

  • naming conventions for subjects
    • use descriptive, natural language names
    • do not remove the verbs
    • use past tense sentences for events
  • build subject hierarchies

Message Bus

Message Bus

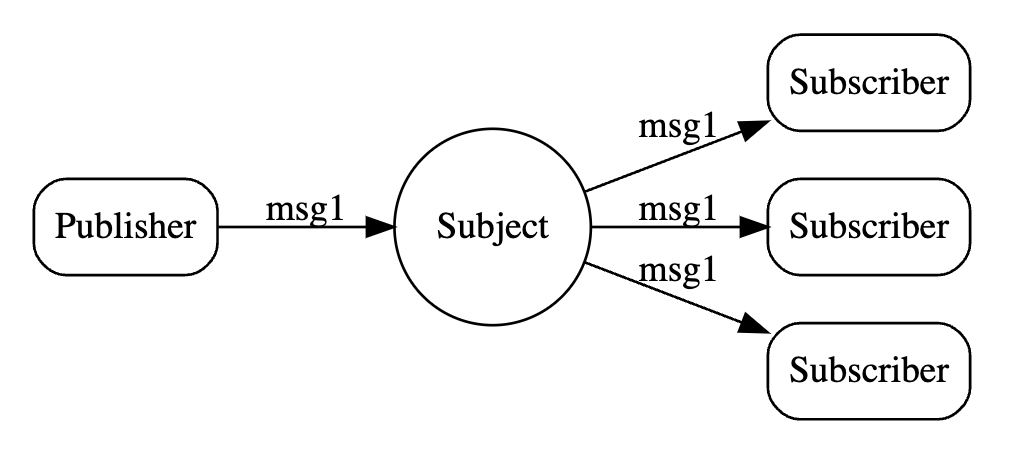

Publish-Subscribe

  • Single-Writer Principle
  • multiple consumers

Message Bus

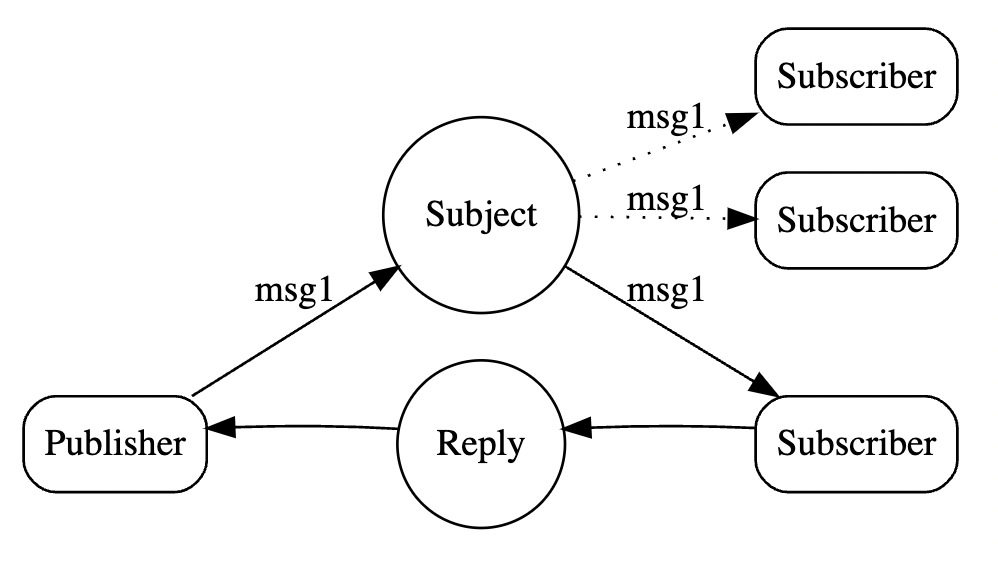

Request-Reply

  • receiver client (subscriber) listens to a subject
  • requestor client (publisher) makes a request
  • receiver consumes the request and sends reply

Message Bus

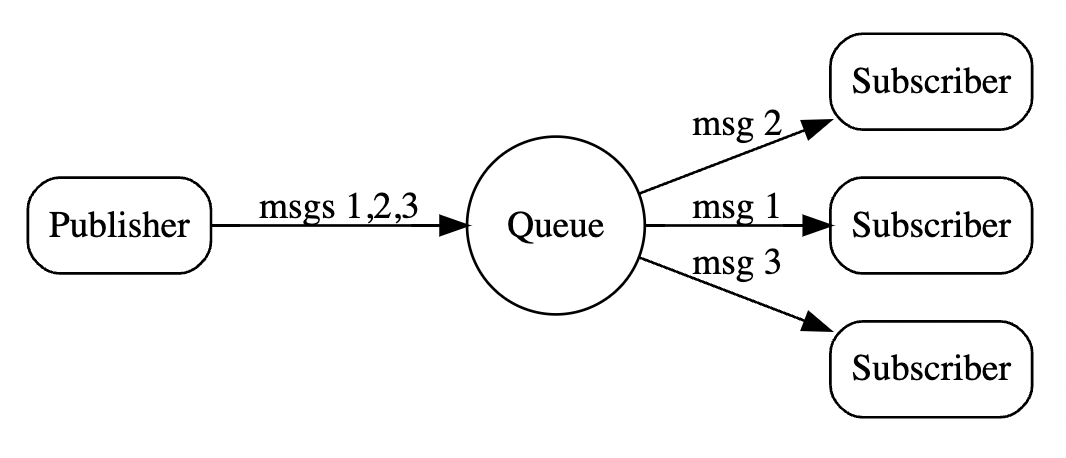

Queue Groups

  • implements load-balancing
  • enables scaling of consumer replicas

Message Bus

Streams I

  • Message Store
    • duration, size, and interest are limited
    • retention policy
  • successfully processed messages get ACKnowledged
  • re-delivery of failed messages
  • support for durable consumers
  • rate limiting for consumers

Message Bus

Streams II

  • on a Message Streaming Bus you can
    • start consuming from the very beginning
    • jump in at any point of time or sequence
    • continue after exit and restart
    • consume just new messages
  • possible scenarios
    • re-connection after failure
    • connection of a very new client
    • re-playing of messages having been consumed before

Message Bus

Delivery Modes /QoS

  • No-Guarantee
    • zero, one time, or multiple deliveries
  • At-Most-Once
    • zero or more message deliveries
  • At-Least-Once
    • one or more message deliveries
    • duplicates are possible
  • Exactly-Once
    • one and only one message delivery


Message Bus

Acknowledgement

  • Auto-ACK
  • Manual-ACK
  • timeout / waiting for ACK
  • Max-In-Flight
    • acts as Rate Limiter for message delivery
    • "1" ensures every message is processed in order
  • attention: never ACK message before it has successfully been processed

Message Format

Principles

  • specification of event schema via IDL
  • protoc compiles IDL spec files to target language
  • ProtoBuf is a binary format, but JSON is supported
  • support for evolutionary schema design
  • allows structuring of messages

Message Format

Structure of a Message

  • new types are defined via "messages"
  • inner (nested) messages are supported
  • import & re-use of existing message definitions
  • "oneof" syntax
  • "repeated" syntax
  • "reserved" and "deprecated" fields
  • byte order of message fields

Message Format

Best Practices

  • create a centralized Git repo to store event schema
    • run a protoc build per target language
    • auto-commit generated assets by CI/CD pipeline
  • separate event schema into
    • meta data
    • payload
  • think of
    • using envelope strategy for e.g. Dead-letters
    • merging of messages on binary level

Message Format

Design Patterns

Incremental Retry

  • Scenario
    • handler fails during consuming a message
  • Problem Statement
    • event has not been processed successfully
    • message should be processed by another instance
    • maybe, this issues will reoccur repeatedly
  • Proposed Solution
    • don't ACK message, it will get redelivered
    • increment time delay between redeliveries

Design Patterns

Dead Letter

  • Scenario
    • handler fails during consuming a message
    • processing already failed previously
  • Problem Statement
    • messages will be kept on the bus
    • retry-count will increase rapidly
  • Proposed Solution
    • re-publish failed events as dead letter message
    • use a wrapper for dead letter event
    • ACK the origin failed message on the bus





Design Patterns

Full Message Payload

  • Scenario
    • events have lots of data to share
  • Problem Statement
    • Microservices should be operated independently
    • message bus is able to act as data store
    • inter-service communications are too high
  • Proposed Solution
    • publisher sends full data payload along with message
    • meta data allows the receiver to filter relevant data





Design Patterns

Lightweight Msg Payload

  • Scenario
    • events have big binary data to share, e.g. media assets
  • Problem Statement
    • Microservices should be operated independently
    • message bus should not act as data store
    • inter-service communications can be high traffic
  • Proposed Solution
    • publisher sends RESTful resource link only
    • receiver uses resource link to fetch relevant data





Design Patterns

Asynchronous Data Sources

  • Scenario
    • data is provided by two or more external sources
  • Problem Statement
    • all sources are needed to complete the data import
  • Proposed Solution
    • implement a light-weight Merger Svc
    • wait for all data expected from all related sources
    • merge singular events and emit as new message





Design Patterns

Handle Traffic

  • Scenario
    • our system is composed by a large number of services
  • Problem Statement
    • too many events on the bus
    • some messages are to big for some consumers
  • Proposed Solution
    • implement a light-weight Splitter Svc that slices big message payloads into smaller messages
    • use a light-weight Router Svc that consumes messages and pushes them to more specific topics on the bus





Design Patterns

Updated Service Impl

  • Scenario
    • some Microservice has to be replaced by a new implementation or new version
  • Problem Statement
    • we need backwards compatibility
    • previous msg schema version needs to be supported
  • Proposed Solution
    • implement new container that consumes only messages starting from version X
    • keep deprecated container in cluster for version < X





Design Patterns

Chaos Engineering

  • Scenario
    • we would like to see how Microservices react to events
    • testing service resiliency with defect messages
  • Problem Statement
    • our system publishes correct messages only ;)
  • Proposed Solution
    • implement your own Randomized Event Generator to inject defect messages on the bus
    • use the same generator to produce correct messages for testing the behavior of a new service during dev





Design Patterns

Summary: How to build reactive Microservices

Reactive Microservices Architecture

Messaging

  • define a message schema via IDL
    • platform independency
    • evolutionary schema
    • meta data and data payload are separated
    • apply naming conventions
  • consider use of full message payloads
  • Single-Writer Principle
  • rethink: software components are driven by events

Reactive Microservices Architecture

Application Lifecycle

  • what happens during startup?
  • chores at shutdown?

Reactive Microservices Architecture

Health Checks

  • startup probes: cold start or warm-up needed?
  • readiness: ready to serve traffic?
  • liveness: alive or dead?

Instrumentation

  • Structured Logging
  • export of application metrics
    • request / event consumer counter
    • operational success / failure counter
    • latency / duration
  • Distributed Tracing
    • e.g. add correlation-id to message meta data

Reactive Microservices Architecture

Resiliency & Reliability

  • services are allowed and probable to fail
  • ability to re-join the running system
    • other instances will take over workloads
    • idempotency
    • services get back into correct and defined state
  • incremental retry and failure strategies such as publishing dead letter messages
  • redundant data storage

Reactive Microservices Architecture

Microservices Container

  • acts as a black box
  • is configurable via orchestration best-practices
    • k8s config maps
    • k8s secrets
    • volume mounts
    • ENV variables
  • behaves like a plugin to our system
  • follows at least the https://12factor.net guidelines
  • supports asynchronous operations
  • supports elasticity by running multiple instances

Reactive Microservices Architecture
