Numerical integration
of classical spin systems
Presentation by Klas Modin
UppASD Autumn School 2022
Motivation
Elastic pendulum, slightly damped
Which integrators preserve qualitative long-time behaviour?

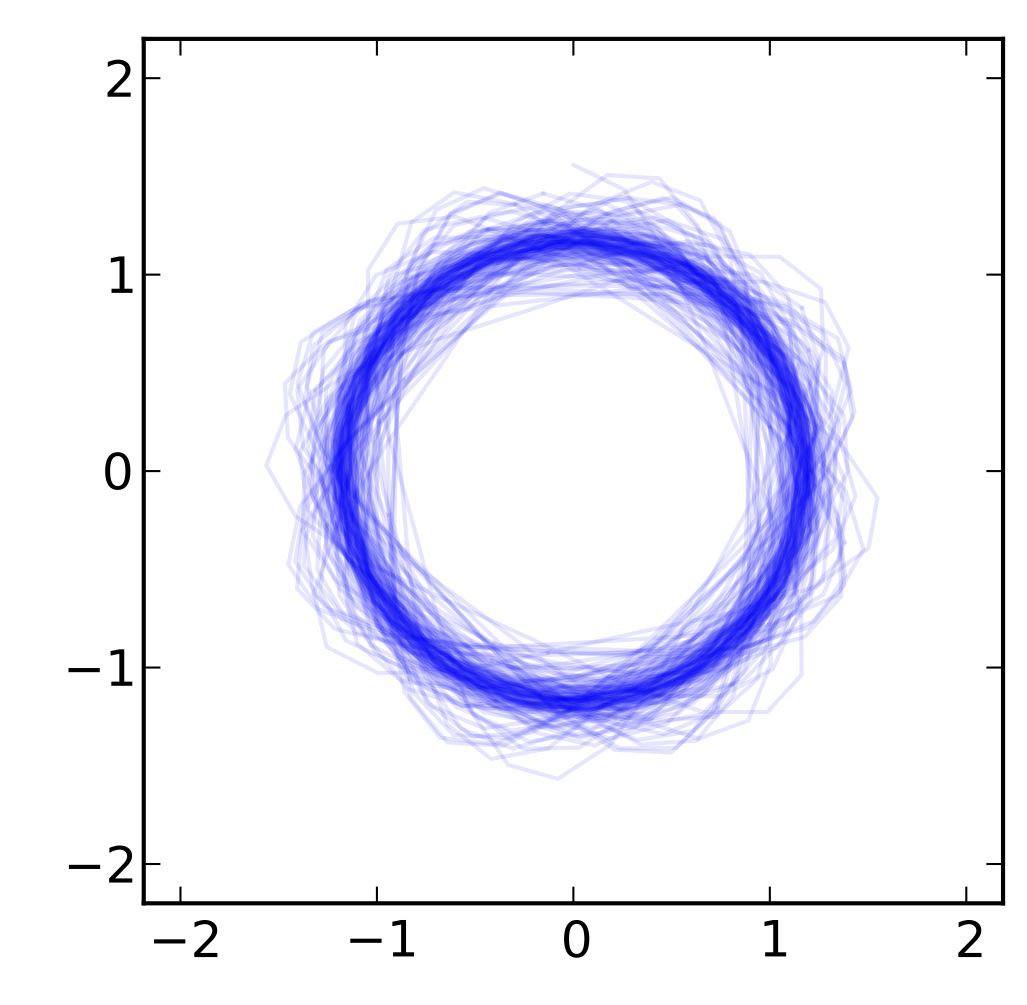

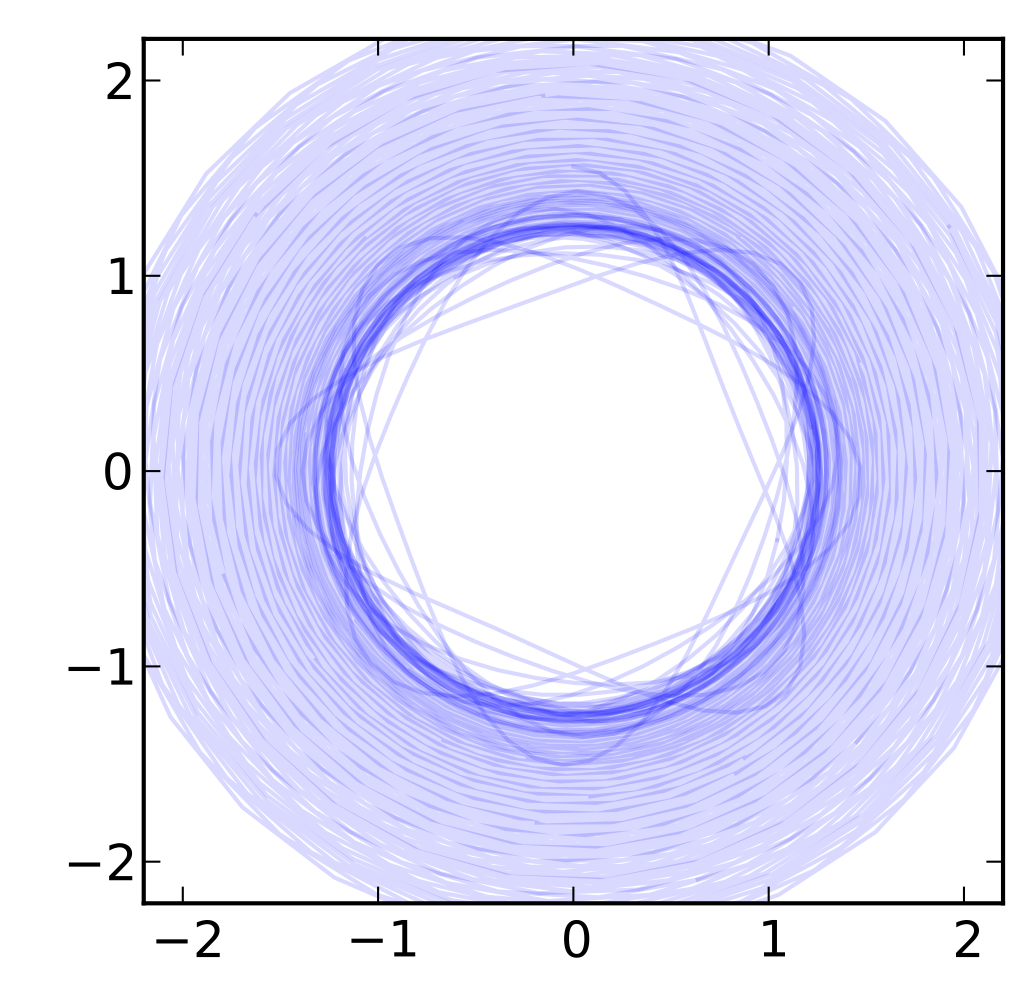

Heun's method
(2nd order accurate)
"Geometric" method
(2nd order accurate)
Why?

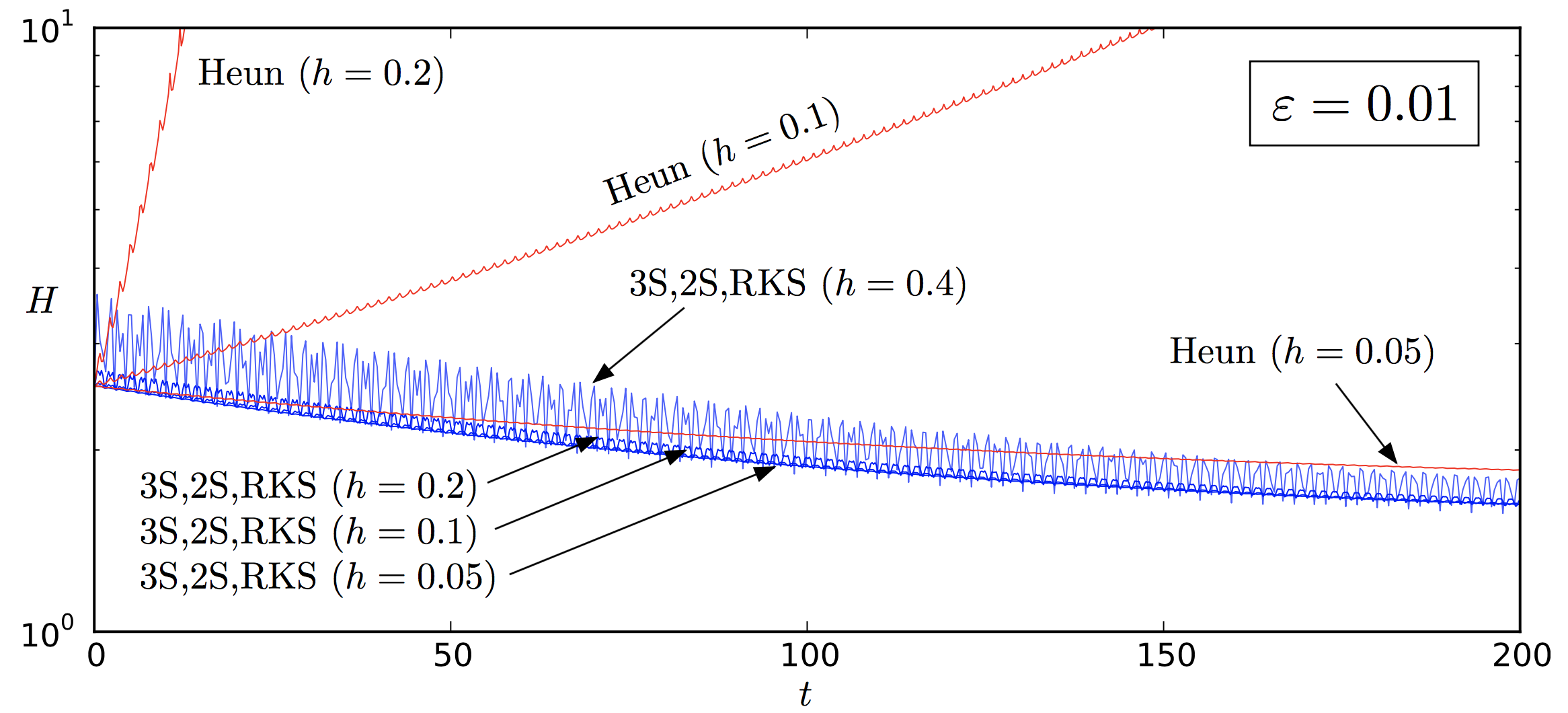

Total energy over time

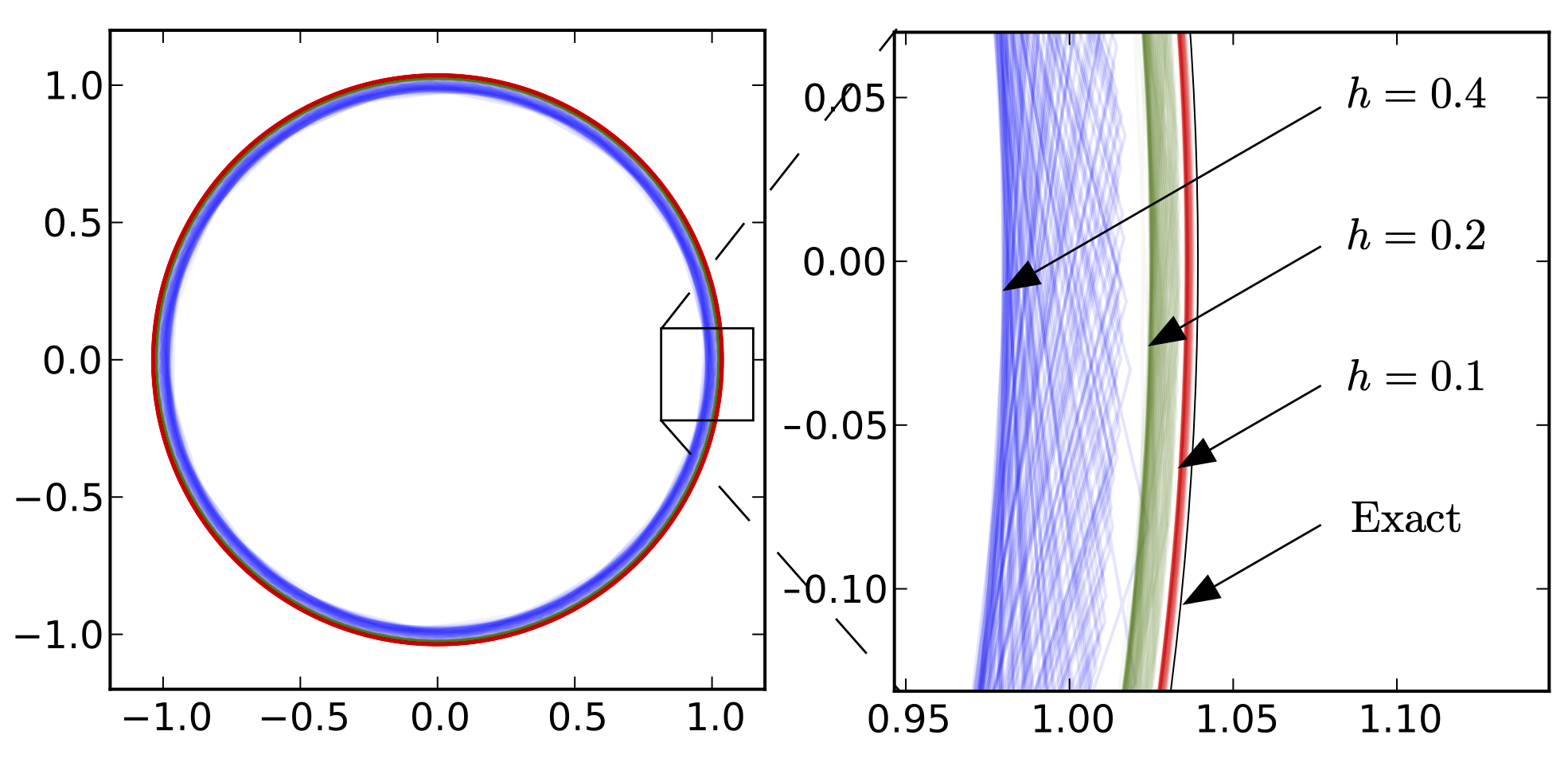

Long-time trajectories for geometric method
Motto: discretized system should retain geometric structure
Outline
- Classical spin systems
- Hamiltonian structure and symplecticness
- Review and comparison of numerical methods
Classical spin systems
\displaystyle \dot{\mathbf{s}}_i = \mathbf{s}_i\times \nabla_{\mathbf{s}_i} H(\mathbf{s}_1,\ldots,\mathbf{s}_n) +
f(\mathbf{s}_1,\ldots,\mathbf{s}_n, \dot{{W}})
Phase space \((S^2)^n\)
+\cdots +
\mathbf{s}_i = (s^x_i,s^y_i,s^z_i)\in S^2\subset \mathbb{R}^3
Hamiltonian
Non-conservative
Noise
Conservation laws
Spin lengths: \(\lVert \mathbf{s}_i \rVert = \) const
\displaystyle\frac{d}{dt} \lVert \mathbf{s}_i\rVert^2 = 2\, \mathbf{s}_i\cdot \dot{\mathbf{s}}_i =
2\, \mathbf{s}_i\cdot (\mathbf{s}_i\times \nabla_{\mathbf{s}_i}H) = 0
Total energy: \(H(\mathbf{s}_1,\ldots,\mathbf{s}_n) = \) const
\displaystyle\frac{d}{dt} H = \sum_{i=1}^n \nabla_{\mathbf{s}_i} H \cdot \dot{\mathbf{s}}_i =
\sum_{i=1}^n \nabla_{\mathbf{s}_i} H\cdot (\mathbf{s}_i\times \nabla_{\mathbf{s}_i}H) = 0
Single-spin system: rigid body
H(\mathbf s) = \mathbf s\cdot \mathbb{I}^{-1}\mathbf s
moments of inertia tensor
angular momentum
Single-spin system: rigid body

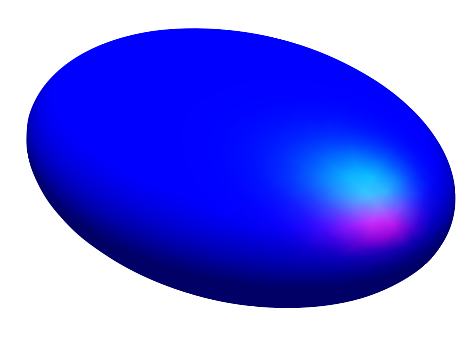

Conservation of energy: \(\mathbf{s}\cdot \mathbb{I}^{-1}\mathbf{s}\) = const

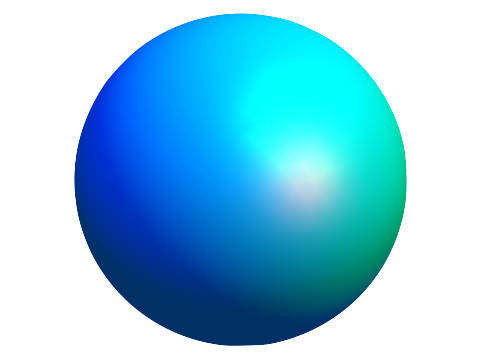

Conservation of total momentum: \(\lVert\mathbf{s}\rVert^2\) = const
Many-spin system: Heisenberg chain
H(\mathbf s_1,\ldots,\mathbf s_n) = J\sum_i \mathbf s_i\cdot \mathbf s_{i+1}
coupling constant
Are there other conservation laws?
Symplectic structure on \(S^2\) \[\Omega_\mathbf{s}(\mathbf u,\mathbf v)=\mathrm{det}(\mathbf s,\mathbf u,\mathbf v)\]
\mathbf s
\mathbf v
\mathbf u
Symplectic flow:
infinitesimal area preserved in time
A
\varphi^t(A)
Are there other conservation laws?
Symplectic structure on \((S^2)^n\) \[\Omega_{(\mathbf{s}_1,\ldots,\mathbf{s}_n)}(\mathbf u_1,\ldots,\mathbf u_1,,\mathbf v_1,\ldots,\mathbf v_n)=\sum_i\mathrm{det}(\mathbf s_i,\mathbf u_i,\mathbf v_i)\]
\mathbf s_1
\mathbf v_1
\mathbf u_1
\(+\cdots+\)
\mathbf s_n
\mathbf v_n
\mathbf u_n
What is a numerical integrator?
Exact flow:
(\mathbf s_1(t),\ldots,\mathbf s_n(t)) = \varphi^t(\mathbf s_1(0),\ldots,\mathbf s_n(0))
flow map
Numerical flow:
\Phi_h(\mathbf s_1,\ldots,\mathbf s_n) \approx \varphi^h(\mathbf s_1,\ldots,\mathbf s_n)
integrator map
Symplectic integrator
Symplectic integrator: \(\Phi_h\) preserves symplectic area form \(\Omega\)
A
\varphi^h(A)
\Phi_h(A)
But what does symplecticity entail?
Integrator \(\Phi_h\) symplectic \(\iff\) \(\Phi_h\) exact flow for modified Hamiltonian \(\tilde H_h\)
\(\Phi_h(\mathbf s_1,\ldots,\mathbf s_n) = \varphi_{\tilde H_h}^h(\mathbf s_1,\ldots,\mathbf s_n)\)
Consequences of symplecticness
This explains why symplectic integrators are superior!
- "Almost" conservation of tori for Hamiltonian perturbations of integrable systems (KAM theory)
- Convergence towards correct macroscopic equilibrium (e.g. temperature in MD)
Examples of integrators
Heun's method
\displaystyle {\mathbf s}_i^{k+1} = \mathbf s_i^{k} + \frac{h}{2}(\mathbf f_i + \tilde{\mathbf f}_i)
\mathbf f_i = \mathbf s_i^{k}\times \nabla_{\mathbf s_i} H( \mathbf s_1^{k},\ldots, \mathbf s_n^{k})
\tilde\mathbf f_i = (\mathbf s_i^{k}+h\mathbf f_i)\times \nabla_{\mathbf s_i} H( \mathbf s_1^{k}+h\mathbf f_1,\ldots, \mathbf s_n^{k}+h\mathbf f_n)
Spherical midpoint method
\displaystyle\frac{\mathbf s^{k+1}_i - \mathbf s^{k}_i}{h} = \frac{\mathbf s^{k+1}_i+\mathbf s^{k}_i}{|\mathbf s^{k+1}_i+\mathbf s^{k}_i|}\times
\nabla_{\mathbf s_i} H\left(\frac{\mathbf s^{k+1}_1+\mathbf s^{k}_1}{|\mathbf s^{k+1}_1+\mathbf s^{k}_1|},\ldots,
\frac{\mathbf s^{k+1}_n+\mathbf s^{k}_n}{|\mathbf s^{k+1}_n+\mathbf s^{k}_n|} \right)
Midpoint method
\displaystyle\frac{\mathbf s^{k+1}_i - \mathbf s^{k}_i}{h} = \frac{\mathbf s^{k+1}_i+\mathbf s^{k}_i}{2}\times
\nabla_{\mathbf s_i} H\left(\frac{\mathbf s^{k+1}_1+\mathbf s^{k}_1}{2},\ldots,
\frac{\mathbf s^{k+1}_n+\mathbf s^{k}_n}{2} \right)
Properties
| Heun | Midpoint | Spherical midpoint | |
|---|---|---|---|
| Explicit | yes | no | no |
| Spin lengths | no | yes | yes |
| Energy | no | if quadratic | modified |
| Symplectic | no | no | yes |

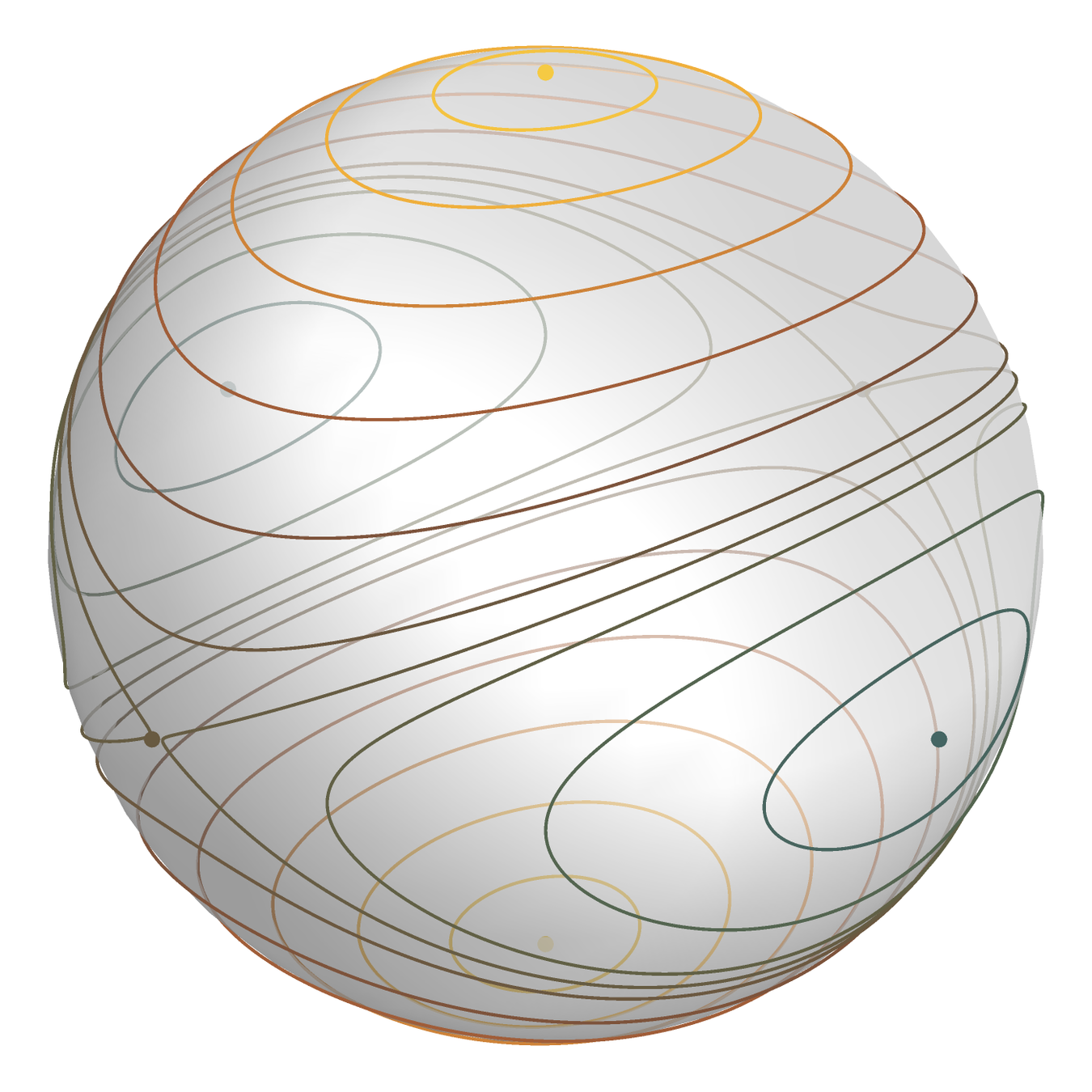

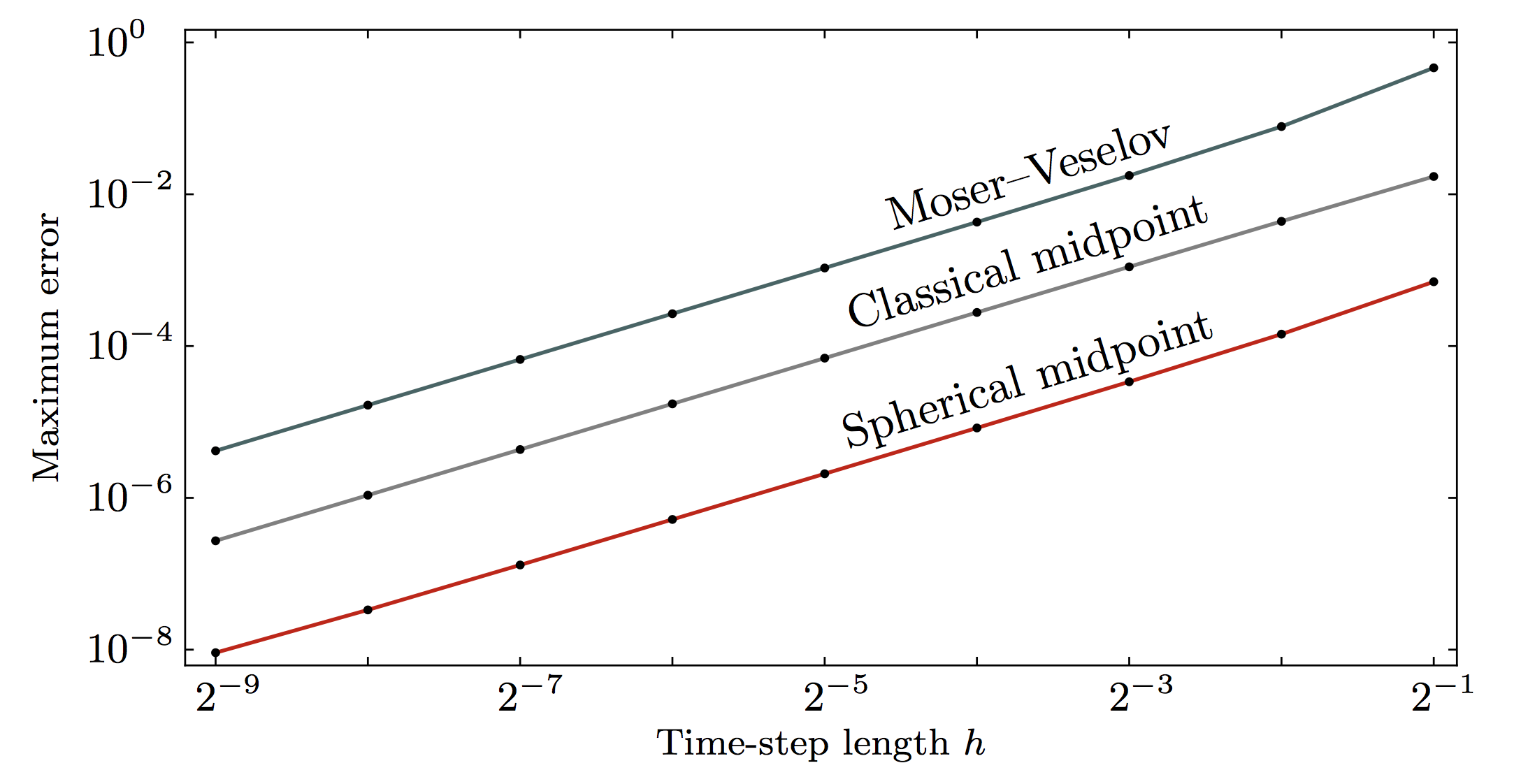

Example 1: rigid body
H(\mathbf s) = \mathbf s\cdot \mathbb{I}^{-1}\mathbf s

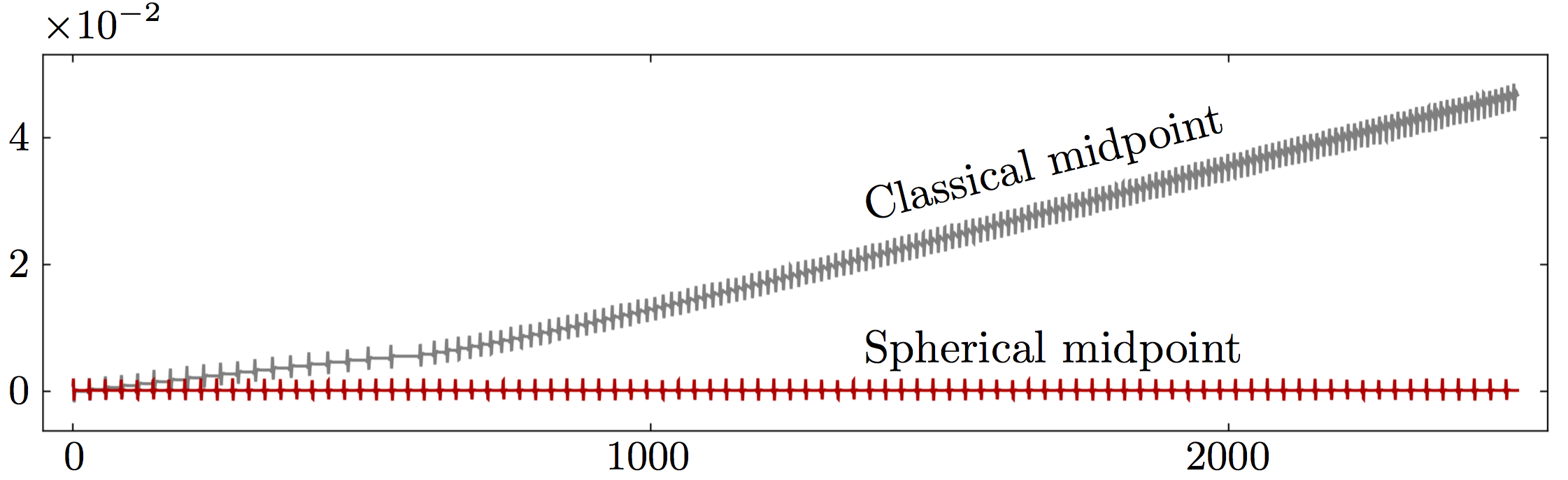

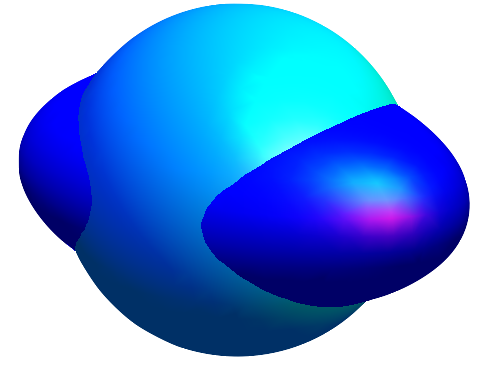

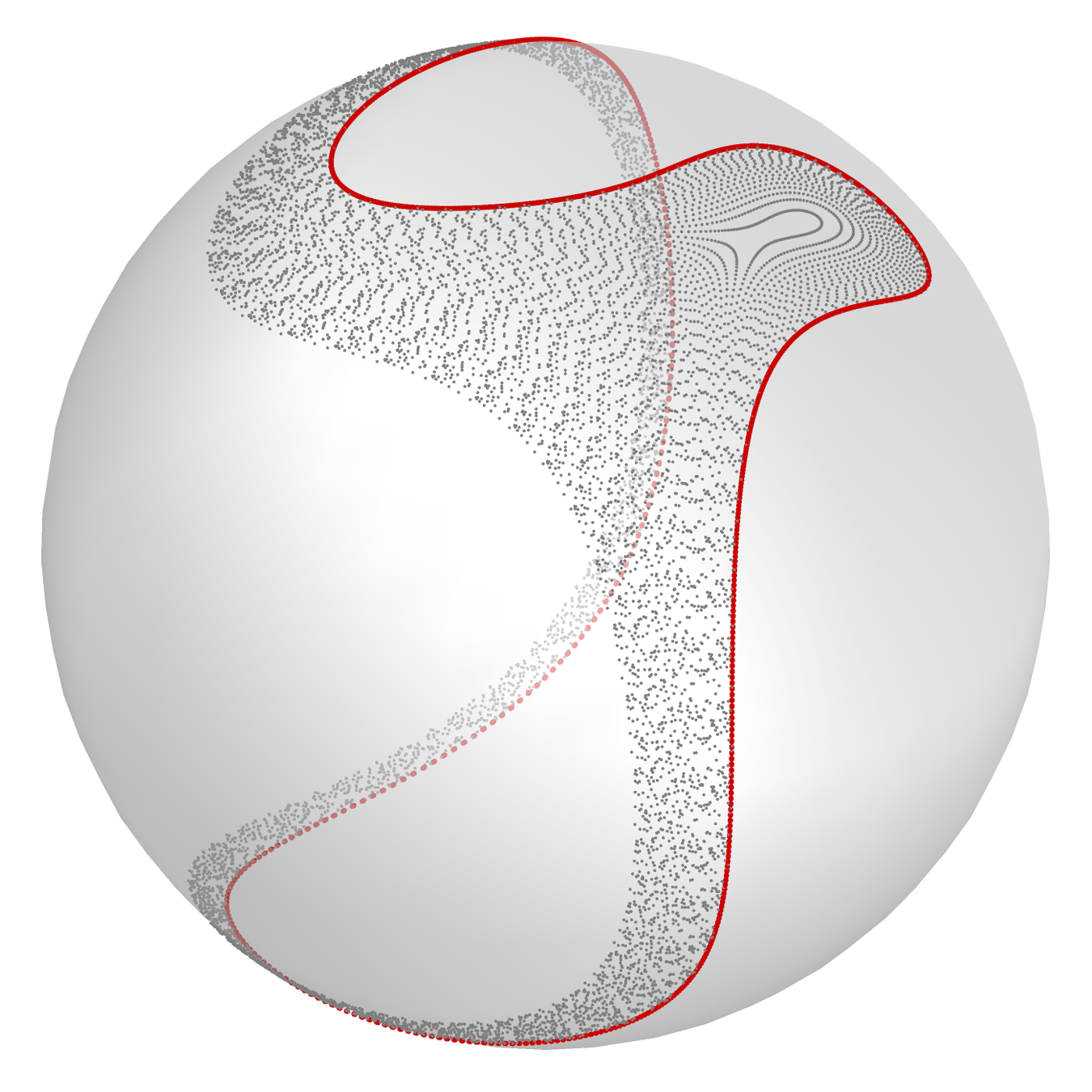

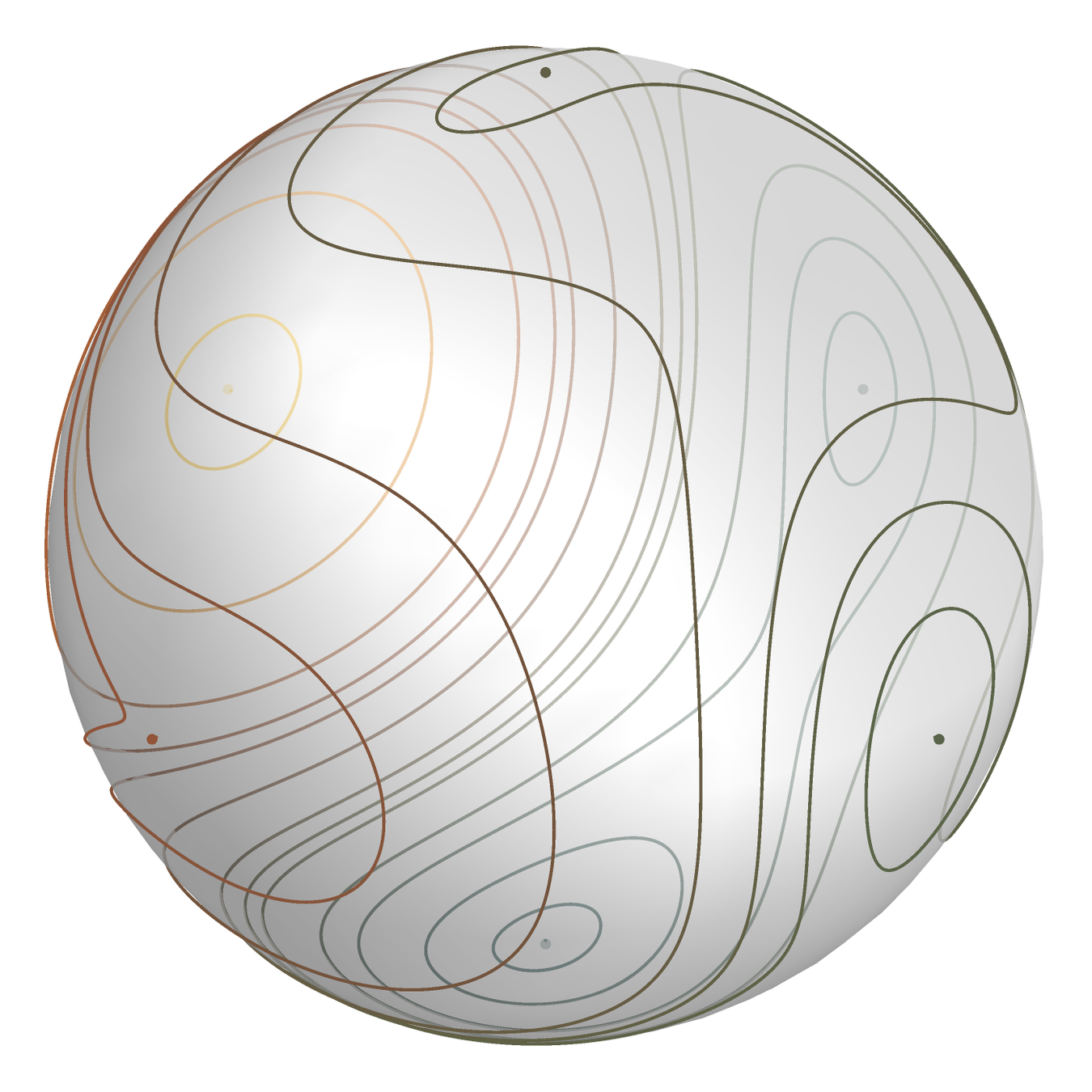

Example 2: complicated single spin
H(\mathbf s) = \mathbf s\cdot \mathbb{I}(\mathbf s)^{-1}\mathbf s
H(t)-H(0)
steps

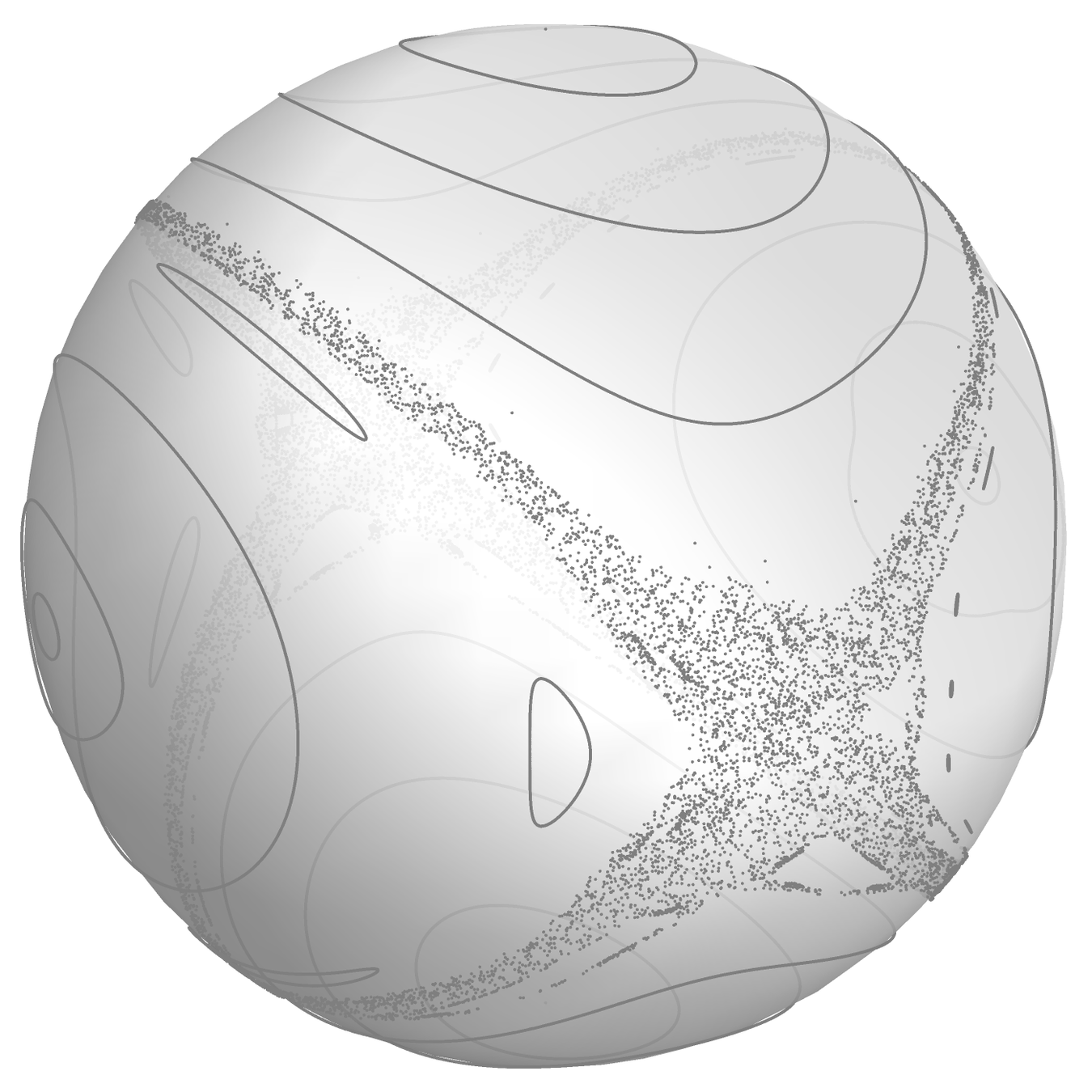

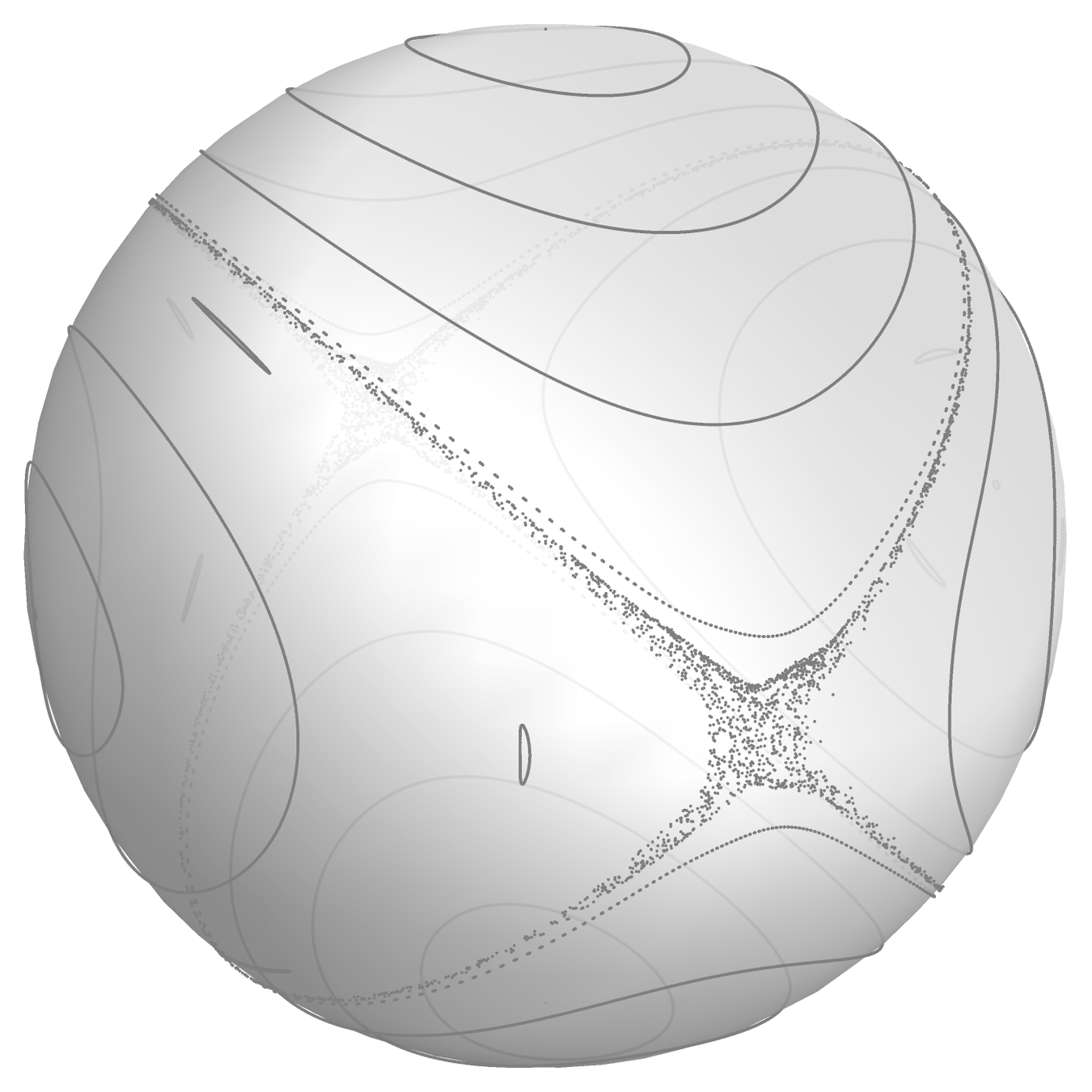

Example 3: development of chaos
H(\mathbf s)= \frac{1}{2} \mathbf s\cdot \mathbb{I}^{-1}\mathbf s + \varepsilon \sin(t)s^x
Problem with implicit methods
Fix-point iterations or Newton iterations needed \(\Rightarrow\) intractable for large systems (too expensive)
Semi-implicit midpoint method
\displaystyle\frac{\tilde{\mathbf s}^{k+1}_i - \mathbf s^{k}_i}{h} = \frac{\tilde{\mathbf s}^{k+1}_i+\mathbf s^{k}_i}{2}\times
\nabla_{\mathbf s_i} H\left(\mathbf s^{k+1}_1,\ldots,
\mathbf s^{k}_n\right)
[Mentink et al, 2010]
\displaystyle\frac{\mathbf s^{k+1}_i - \mathbf s^{k}_i}{h} = \frac{\mathbf s^{k+1}_i+\mathbf s^{k}_i}{2}\times
\nabla_{\mathbf s_i} H\left(\frac{\tilde{\mathbf s}^{k+1}_1+\mathbf s^{k}_1}{2},\ldots,
\frac{\tilde{\mathbf s}^{k+1}_n+\mathbf s^{k}_n}{2} \right)
Interpretation: two iterations for midpoint method
| Symplectic | no |
| Explicit | yes |
| Spin lengths | yes |
| Energy | no (mostly) |
Summary
- Don't use "off-the-shelf" methods (Heun, RK, ...)
- Correct phase space geometry affects qualitative long-time behavior more than local accuracy
(no need for high order methods)
- Qualitatively, symplectic methods always best
(also for slightly damped systems)
- Symplectic methods are implicit \(\Rightarrow\) problem for large systems
- Semi-implicit methods tuned for spin-systems can be good trade-off
Slides available at: slides.com/kmodin
