real issues...

the other background

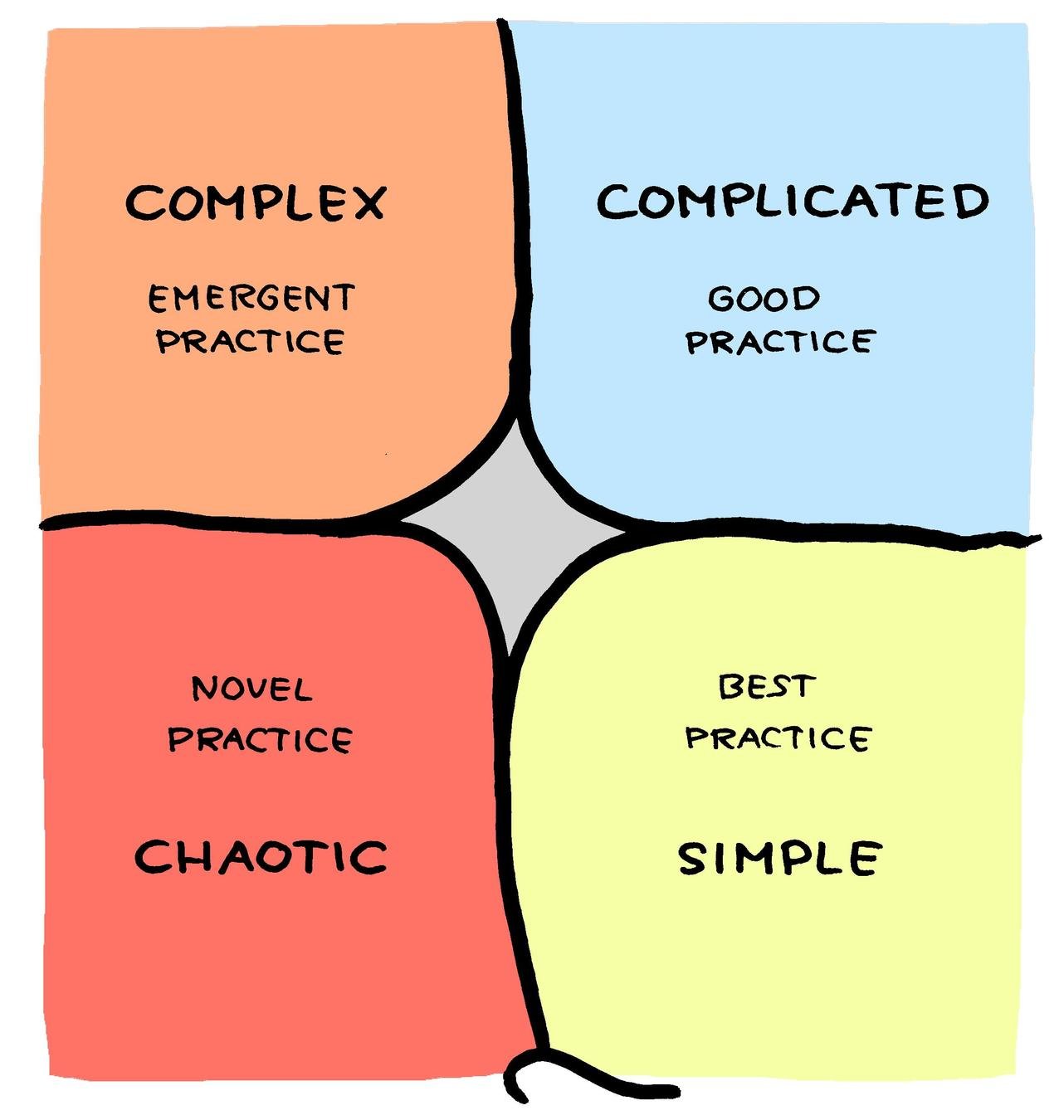

cynefin

conway's law

organisations which design systems...are constrained to produce designs which are copies of the communication structures of these organisations

ladder of abstraction



the future of computing is analog

https://onezero.medium.com/the-future-of-computing-is-analog-e758471fbfe1



dynamicland schools

http://worrydream.com/#!2/LadderOfAbstraction

https://dynamicland.org



teaching robots to dance

https://medium.com/vertical-learning/teaching-a-robot-how-to-dance-78ee07ebd4a8

analog?

In general, digital computing deals with integers, binary sequences, deterministic logic, and time that is idealized into discrete increments, whereas analog computing deals with real numbers, nondeterministic logic, and continuous functions, including time as it exists as a continuum in the real world.

Many systems operate across both analog and digital regimes. A tree integrates a wide range of inputs as continuous functions, but if you cut down that tree, you find that it has been counting the years digitally all along.

analog

play, modulate, be forgiving

digital

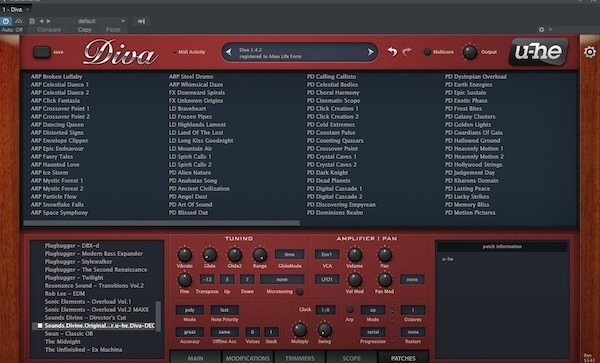

preset

alienating, intolerant of error

progress is a continuous function!

establishment

reference

events

establishment

reference

events

static

dynamic

can we do better?

A paradox is not a conflict within reality. It is a conflict between

reality and your feeling of what reality should be like.

     - Richard Feynman



You never change things by fighting the existing reality.
To change something, build a new model that makes the existing model obsolete.

R. Buckminster Fuller

data & infrastructure

constrain the possible...

what if we

embrace the chaos

one way in

one way out

publish()

any data

automatic linking

graphQl()

automatic schema generation

graphql primer

....

an API service for data

technology / storage agnostic

successor to REST

privacy & encryption as standard

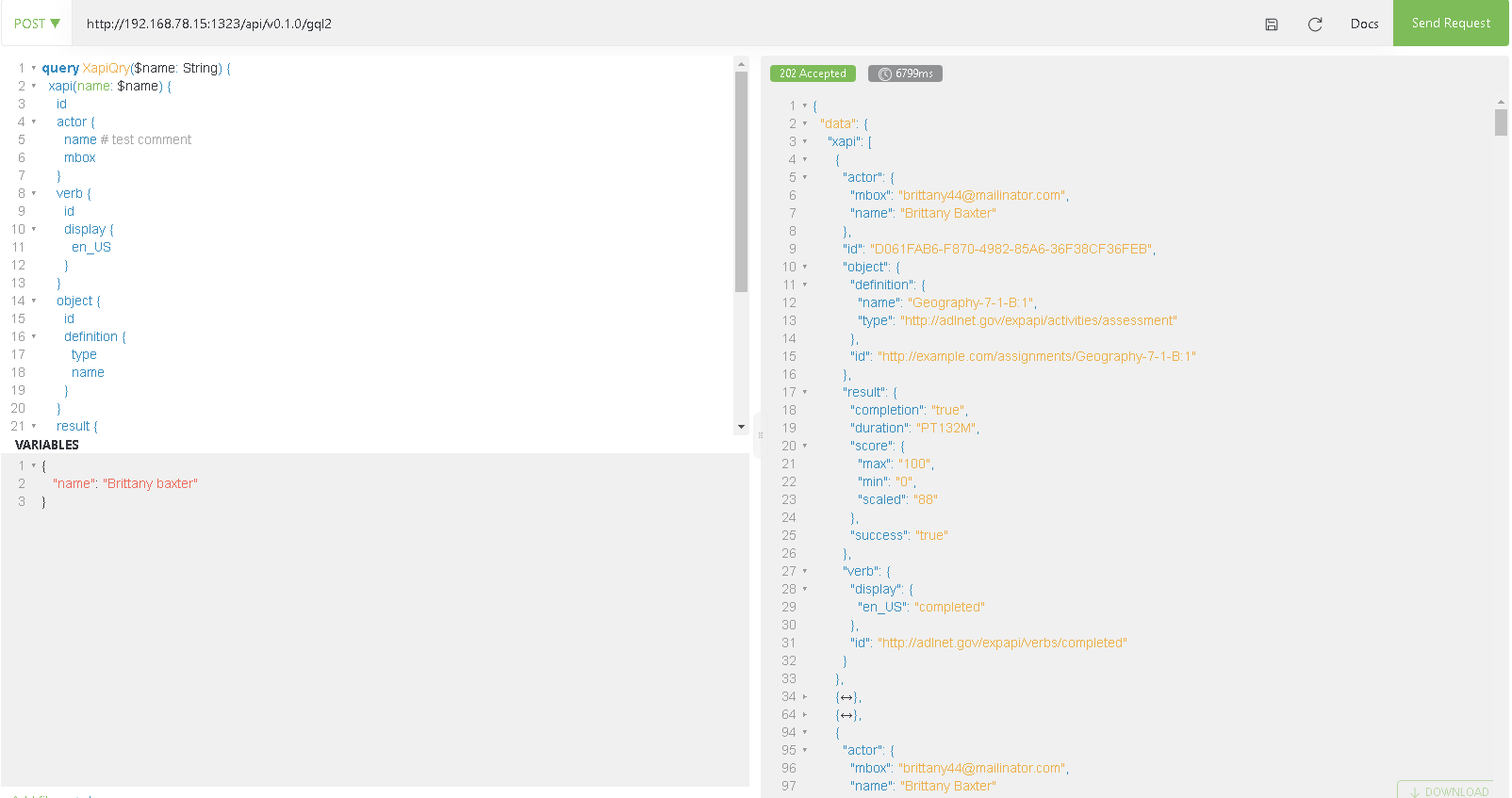

without privacy

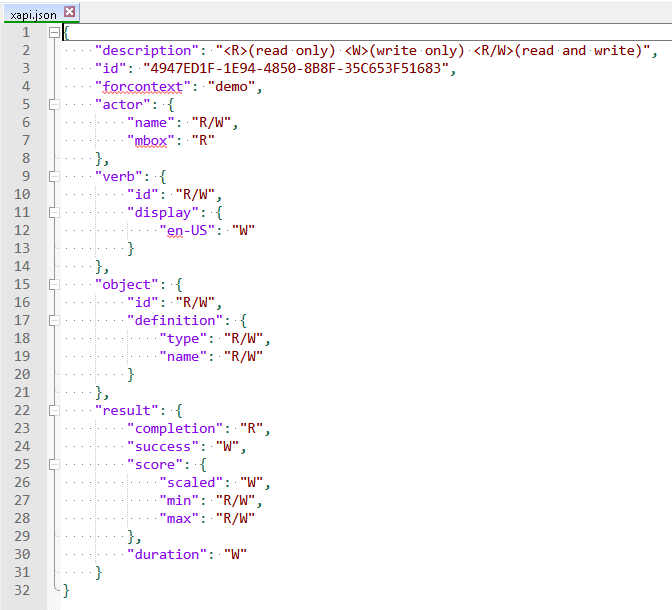

privacy policy as data

with privacy

demo

gql

input & data

services...

alignment/classifier

lesson planner, alignment

multi-model

day-book

traversal

data as signal - load from 0

accept the dynamic



wellbeing

tasks

syllabus

observations

assessments

progress



data as signal

ephemeral processing;

play & improvise



establishment

reference

events

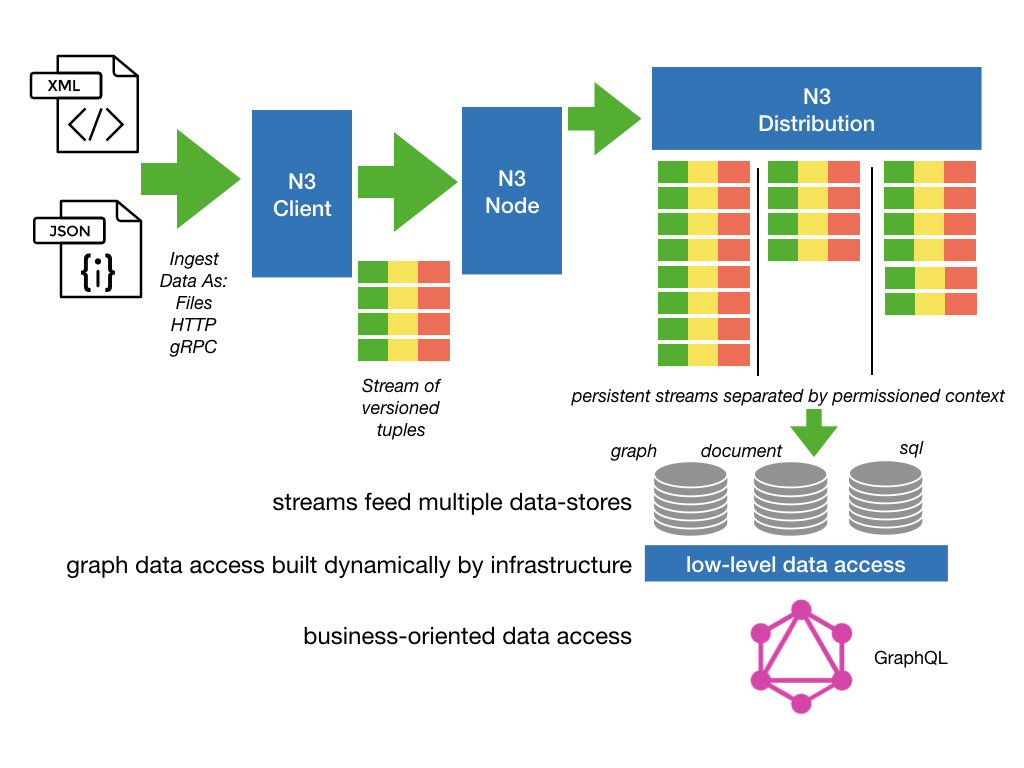

n3 deep dive

layout

individual

school

system

intra-system

N3 nodes can run as self-contained services on a single machine to allow inter-application interoperability

N3 nodes can be run at a school level to allow interoperability and aggregation of data for analytics

N3 nodes form a distributed network to allow sharing and interoperability across an enterprise

N3 systems can communicate across organisational boundaries to share student information between organisations and systems

n3 components

n3w

publish()

query()

contexts

crdt

streaming / syncing

data-store

n3 components



deep6

crdt

gql

context

streaming

privacy

web



all deployed in single n3w binary

deep6

publish()

file, http request, stream

query()

findById()
findByValue()
findByType()
findByPredicate()
traversalWithId()
traversalWithValue()

hexastore extended with

automated linking

https://people.csail.mit.edu/tdanford/6830papers/weiss-hexastore.pdf

Hexastore: Sextuple Indexing for Semantic Web Data Management

crdt manager

version-vector map-based

ensures causal consistency of

all updates across a distributed

network



http://nova-lincs.di.fct.unl.pt/system/publication_files/files/000/000/666/original/a12-van_der_linde.pdf?1483708753

https://arxiv.org/pdf/1011.5808.pdf

 ∆-CRDTs: Making δ-CRDTs Delta-Based

graphQL manager

Attaches to read stream of

crdt manager

creates gql-schema and

therefore data access to

data objects seen by the context.



Adds universal query info

object to access all

data through d6 methods.

context manager

Creates safe bounded areas for

data sharing.

Protected by symmetric keys and jwt tokens for access.

Applies privacy per context.

Passes data through

CRDT-layer and into

streaming engine.

Reads data from streaming layer, via CRDT into context data-store (deep6)

streaming

NATS 2.0

high-performance

clustering/syncing/scalability

distributed authn/authz





https://nats.io

privacy

Enforces POD/PPOD

data policy controls.

Data can be redacted/replaced

dynamically or

permanently



n3w web-server

the single user binary

that wraps the whole lot

together



createContext()

publish()

query()



15Mb

20Mb in use

high performance



implications

infrastructure for an analog future

rethink how we make software



benefit from well-managed standardised data, but accept the chaos of schools



progress is a signal not a state
