JWT in Spring

Agenda

• Briefly about OAuth2
• JWT tokens
• JWT tokens in Spring Security
• OAuth with Keycloak

Sources: https://www.digitalocean.com/community/tutorials/an-introduction-to-oauth-2
http://blah.winsmarts.com/2014-12-OAuth2_for_dummies.aspx


OAuth 2.0. in plain words

• Authorization framework that enables applications to obtain limited access to user accounts on an HTTP service

Huh?

OAuth 2.0. in plain words

• Authorizes third-party applications to access the user account.
• Delegates user authentication to the service that hosts the user account
• Provides different authorization flows for different use cases.

OAuth 2.0. glosary

• Resource owner: user who authorizes an application to access his account, with a scope
• Resource server: hosts resources which require authorization
• Authorization server: verifies user identity, issues access tokens
• Client: the application that wants to access user's resources.
• Authorization grant type: how the token is obtained

Basic protocol flow

Authorization code grant type

• Server-side applications (client secret not exposed)

• oauth/authorize?response_type=code&client_id=CLIENT_ID&redirect_uri=CALLBACK_URL&scope=read

• oauth/token?client_id=CLIENT_ID&client_secret=CLIENT_SECRET&grant_type=authorization_code&code=AUTHORIZATION_CODE&redirect_uri=CALLBACK_URL




Implicit grant type

• Mobile / web apps (client secret could be exposed)

• oauth/authorize?response_type=token&client_id=CLIENT_ID&redirect_uri=CALLBACK_URL&scope=read

• The app extracts the token from the redirect URL and saves it
• Does not use client secret, instead the redirect URI which was registered for the app serves this purpose

Resource Owner Password Credentials grant type

• Trusted applications (provide username and password)
• token?grant_type=password&username=USERNAME&password=PASSWORD&client_id=CLIENT_ID

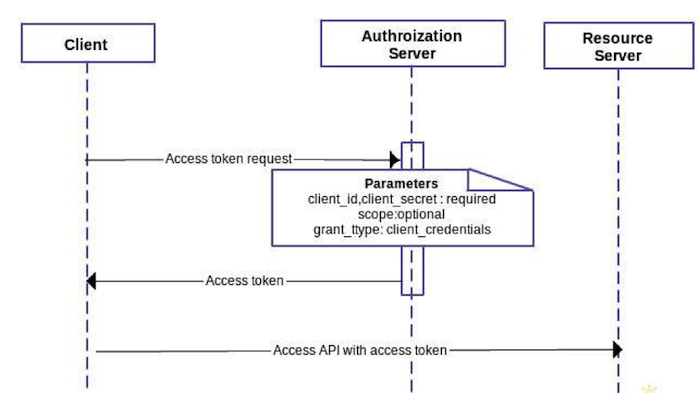

Client credentials grant type

• Application login
• token?grant_type=client_credentials&client_id=CLIENT_ID&client_secret=CLIENT_SECRET

Refresh token flow

• Not a real grant type
• If refresh tokens are enabled, you obtain a refresh token together with access token.
• When access token expires, you can use refresh token to get new one without going throug the whole grant type flow

What is JSON Web Token?

• Standardized in RFC 7519
• compact and self-contained way for securely transmitting information between parties as a JSON object
• In OAuth 2 terminology: an access token

• Signed and secured by a secret key, but readable by everyone!
• The secret key is there to check the token integrity


How does it look like?

Source: JWT.io

How can you use it?

• HTTP Header: Authorization: Bearer <token>

• There may be two different servers

JWT security concerns

• Who has the token acts like the logged user!
  • => HTTPS!
  • => Short expiration time + refresh tokens.
• Refresh token can be revoked.
• JWT can be read by anyone! => no sensitive data

• Created as an alternative to cookie based sessions, which cannot be securely accessed from SPAs

And now...

JWT with Spring Security

https://github.com/Wrent/jwt-demo-spring-oauth
