Before 2016 March

  • Spaghetti Classic ASP + VB6

  • Spaghetti javascript + jQuery Antipatterns

  • No Domain (entities duplication, no aggregates....)

  • Business rules distributed between presentation and database

How to develop a new business feature?

Problems to resolve



  • We can't increase the team ( In the working market there are a few Classic ASP and VB6 professional)

  • Development speed (We are getting slower, We don't know all the rules or where to look for them....)

  • Development problems (side effects, a lot of accidental complexity in new small features,...)

  • We can't implement some features because they affect the platform availability

New architecture Requirements and restrictions

  • Solve the problems

  • Business can't stop

  • Keep the same SEO on page and same semantic Urls

  • Keep the same Tag System

  • Increase performance

  • The current team has to be able to maintain it

  • There must are successfull implementations of this architecture in Spain

New Backend Arquitecture

  • .Net DDD (https://confluence.schibsted.io/display/HAB/Arquitectura+.Net+Habitaclia)

  • Monolith with sutures based on Service Libraries via Nuget (https://confluence.schibsted.io/pages/viewpage.action?pageId=45661615)

  • Presentation Layer: MVC with ViewModels and Javascript DTOs

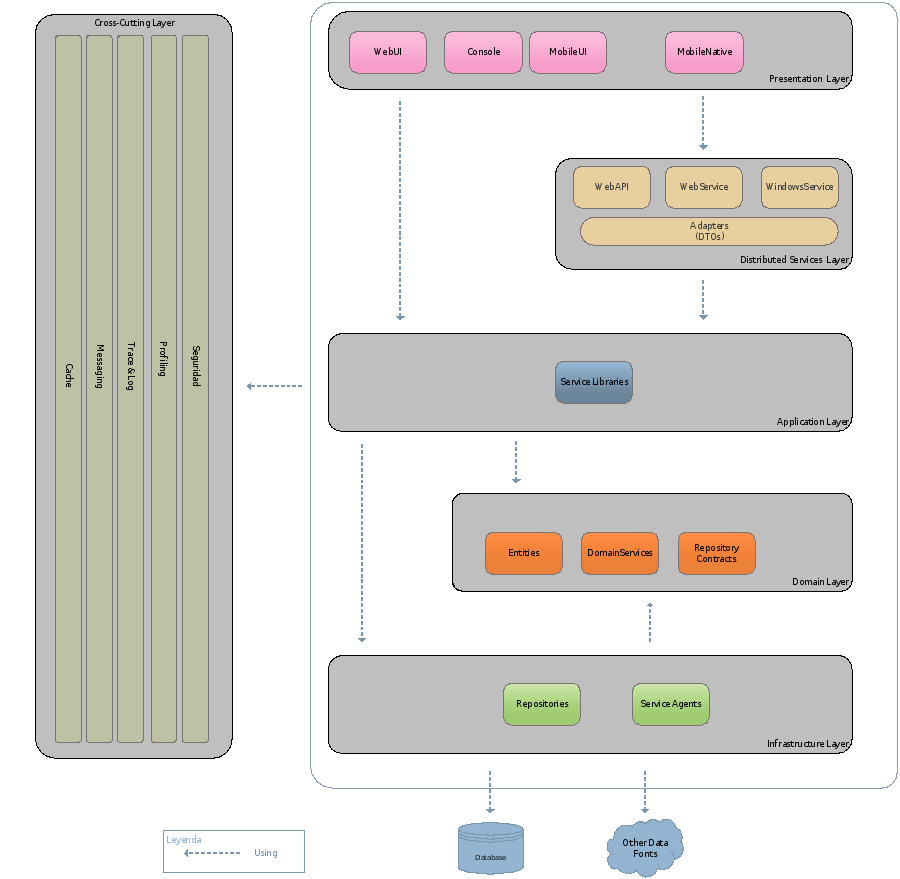

Monolith

Text

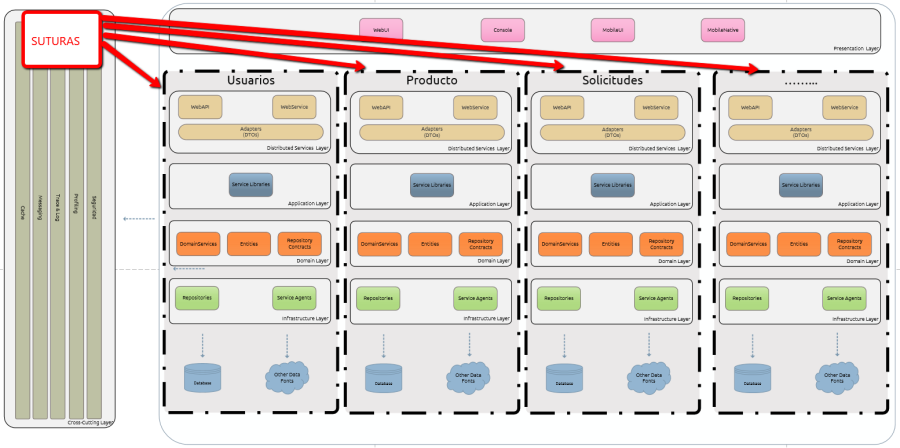

Monolith with sutures

Solved the problems and...

  • Performance improvements (50%-70%)

  • Development speed (from days to hours)

  • Simple maintenance (from days to hours)

  • Easy debugging of the entire system (the same as before)

  • Easy monitoring (improved the previous with Glimpse, .Net profiler, Log4Net ....)

  • Easy deployment (the same as before)

 Discontinuous development between business projects

  • 2016 - March:  Deploy on m.habitaclia.com

  • 2017 Jaunary: Deploy on "www" (ficha - cogemos el html de desktop y....")

  • 2017 May: Deploy on "www" new frontend architecture





NAFEN

project

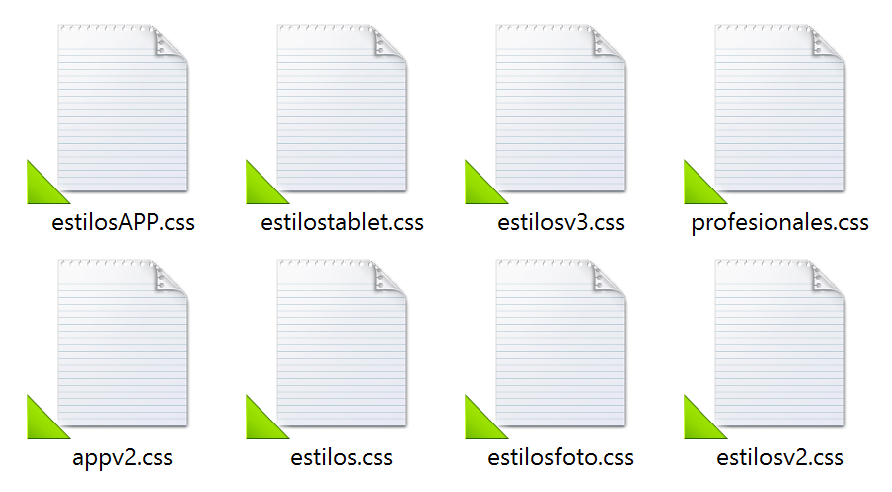

Too much files

why NAFEN?

Exhausting maintainability

why NAFEN?

.listainmuebles ul.on .publilistado .alertasObranueva {width:265px; height:170px; float:left; font-size:14px; -moz-border-radius:2px; -webkit-border-radius:2px; border-radius:2px;}
.listainmuebles ul.on .publilistado .alertasObranueva ul{overflow:hidden; line-height:20px; border-right:2px solid #f1f1f1;}
.listainmuebles ul.on .publilistado .alertasObranueva #alertaslistaheaderN{height:175px;}
.listainmuebles ul.on .publilistado .alertasObranueva #alertaslistaheaderN .text_alerta .tituloAlertaProm{font-size: 14px;display: block; color:#fff; font-weight:500; margin-left:16px;}
.listainmuebles ul.on .publilistado .alertasObranueva #alertaslistaheaderN .mensajeAlertas{height:115px; color:#fff!important;}
.listainmuebles ul.on .publilistado .alertasObranueva #alertaslistaheaderN .form_alerta input.inputfiltre{float:none; margin-left:6px;}
.listainmuebles ul.on .publilistado .alertasObranueva #alertaslistaheaderN .formAlerta .mailcheck {width:231px; font-size:10px; line-height:10px; padding:10px; margin:10px auto;}
.listainmuebles ul.on .publilistado .alertasObranueva .aviso_legal{width:80%; margin:5px auto; text-align:left;}
.listainmuebles ul.on .publilistado .alertasObranueva.loged #alertaslistaheaderN .form_alerta input.inputfiltre{float:none;}
.listainmuebles ul.on .publilistado .alertasObranueva.loged #alertaslistaheaderN .form_alerta input[type="checkbox"]{margin-left:8px;}
.listainmuebles ul.on .publilistado .alertasObranueva.loged #alertaslistaheaderN{padding-top:10px; height:165px;}
.listainmuebles ul.on .publilistado .alertasObranueva.loged #alertaslistaheaderN .text_alerta{color:#fff; font-size:11px; margin-left:16px;}
.listainmuebles ul.on .publilistado .alertasObranueva.loged #alertaslistaheaderN #id_guardar_FormAlerta{margin:0 auto;}
.listainmuebles ul.on .publilistado .alertasObranueva.loged .aviso_legal{width:80%; margin:5px auto; text-align:left;}
.listainmuebles ul.on .publilistado .alertasObranueva.loged .correcto{width:80%; height:100px!important;}
.listainmuebles ul.on .publilistado .alertasObranueva #alertaslistaheaderN .form_alerta label{font-size:12px; font-weight:normal!important; }
.listainmuebles ul.on .publilistado .alertasObranueva #alertaslistaheaderN .form_alerta input.boton{width:209px!important; display:block;}
.listainmuebles ul.on .alertasObranuevaExtend {width:980px; height:96px; float:left; font-size:12px; background:#e8e8e8; -moz-border-radius:3px; -webkit-border-radius:3px; border-radius:3px; margin-top:30px; margin-bottom:10px;}
.listainmuebles ul.on .alertasObranuevaExtend ul{ height:106px; background:#fff; overflow:hidden;  position:relative;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .text_alerta {float:left;display: inline; font-size: 12px; color:#555; margin-right:10px;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .text_alerta .tituloAlertaProm{font-size: 12px;display: inline; color:#000; font-weight:bold; float:left;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .text_alerta .comentarioalertas {display:none;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .msgAlert .mensajeAlertas{ margin: 4px auto 4px auto ; height:45px;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .msgAlert .mensajeAlertas h5{float:left; margin-right:8px;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .aviso_legal { font-size:10px; float:left; line-height:11px; margin:0!important ;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .creaalerta {width:350px;color:#fff;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .crear-alerta { padding:16px;color:#fff; }
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .crear-alerta .titulo { color:#fff; }
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .crear-alerta input.botonalerta{color:#fff!important; border:none; padding:10px; width:115px;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .crear-alerta input.normal{width:289px!important; border-radius:2px 0 0 2px; margin-left:0;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .crear-alerta .rightalerta {width:424px;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .crear-alerta .leftalerta {padding-right:0px!important;}
.listainmuebles ul.on .alertasObranuevaExtend #alertaslistaheaderN .mailcheck {width:350px;}
.listainmuebles ul.on .alertasObranuevaExtend.loged #alertaslistaheaderN .crear-alerta input.botonalerta{float:left; padding:12px; width:167px; }
.listainmuebles ul.on .alertasObranuevaExtend.loged #alertaslistaheaderN .aviso_legal { font-size:11px; float:left; line-height:11px; margin:5px 5px 0 0!important ;}
.listainmuebles ul.on .opciones .callto{float:right; width:150px; margin-right:10px;}
.listainmuebles ul.on .opciones .callto .boton {color: #fff;width: 100%;font-size: 14px;font-weight: normal; display:none;}
.listainmuebles ul.on .opciones .tipologias{float:left; width:280px;}
.listainmuebles ul.on .opciones .tipologias table{ width:100%;}
.listainmuebles ul.on .opciones .tipologias span{float:left; text-align:left;}
.listainmuebles ul.on .opciones .tipologias table td{white-space: nowrap; padding:3px;}
.listainmuebles ul.on div .img{ display:block; height:280px;}
.listainmuebles ul.on div .img img{height:290px;width:475px; border:none; box-shadow:none; }
.listainmuebles ul.on .foto{    margin-left: 0px;    width: 475px;    display: block;}
.listainmuebles ul.on li .datos{font-size: 12px;    width: 430px;

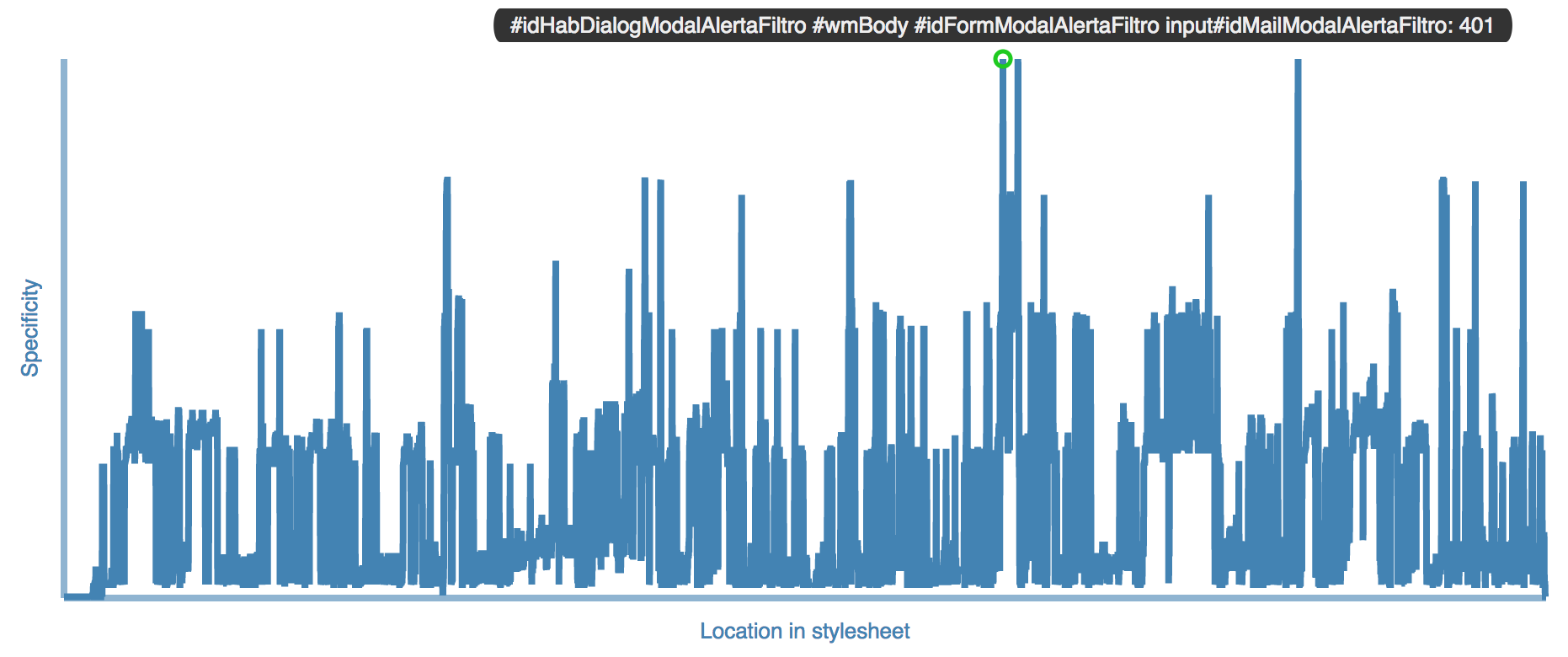

High speciphicity

why NAFEN?

!important

HTML disordered, poor semantic

why NAFEN?

<html>
    <head>...</head>
    <body>
        <div id="content">
            ...
        </div>
        <div id="ajaxContent">
            ...
            <div id="footer_nuevo"></div>
            <div id="header_n">
                <a href="#"></a>
            </div>
        </div>
        ...
    </body>
</html>

HTML5



HTML5



<div>

<div>

<div>

<div>

<div>

<div>

<div>

<div>

<nav>

<header>

<main>

<section>

<aside>

<footer>

<article>

HTML5



<a href="www.habitaclia.com"
target="_blank">Home</a>

<a href="#js-contact"
target="_self">Contactar</a>

<a href="#">Descartar</a>

<a href="javascript:void(0);">
    Compartir
</a>
<a href="www.habitaclia.com"
target="_blank">Home</a>

<a href="#js-contact" target="_self">
    Contactar
</a>

<button type="button">Descartar</button>

<button type="button">Compartir</button>

e.preventDefault();

HTML5



<html>
    <head>...</head>
    <body>
        <header>
            <nav>...</nav>
        </header>
        <main>
            <section class="summary">
                <h1>Title<h1>
                <article class="location">
                    <h4>Location description</h4>
                </article>
                <article id="js-feature-container">
                    <h4 class="hidden">Main features</h4>
                    <ul class="feature-container">
                        <li class="feature">
                            <strong>200</strong> m<sup>2</sup>
                        </li>
                    </ul>
                </article>
                <aside class="contact-top"></aside>
            </section>
            <section class="detail">
                <h2 class="hidden">Information detail</h2>
                <article>
                    <h3 id="js-detail-description-title">Detail description title</h3>
                    <p>...</p>
                </article>
            </section>
        </main>
        <footer>
            ...
        </footer>
    </body>
</html>

HTML5



https://validator.w3.org/#validate_by_input

W3C Markup Validator

https://developer.mozilla.org/en-US/docs/Web/HTML/Element

HTML elements description

ITCSS



ITCSS



SPECIFICITY

section
.summary
#js-summary
style="color:blue;"

ITCSS



by Harry Roberts    https://csswizardry.com/

ITCSS



by Harry Roberts    https://csswizardry.com/

font, colors definitions

mixins and functions

normalize styles, box-sizing

HTML elements (h1, a, span...)

​OOCSS

specific UI components

utilities and helper classes

ITCSS



// 1. Settings
@import '01_settings/colors';
@import '01_settings/globals';

// 2. Tools
@import '02_tools/mixins';
@import '02_tools/animations';

// 3. Generic
@import '03_generic/normalize';

// 4. Elements
@import '04_elements/base';
@import '04_elements/forms';

// 5. Objects
@import '05_objects/grid-responsive';
@import '05_objects/oocss';
@import '05_objects/fonts';

// 6. Components
@import '06_components/shared';
@import '06_components/buttons';
@import '06_components/forms';
@import '06_components/icon';
@import '06_components/header';
@import '06_components/detail';
@import '06_components/fleximages';
@import '06_components/home';
@import '06_components/similars';
@import '06_components/ads';
@import '06_components/live';
@import '06_components/footer';
@import '06_components/tooltipster';
@import '06_components/legacy';
@import '06_components/modallegacy';
@import '06_components/widemedia';
@import '06_components/elperiodico';

// 7.Utilities
@import '07_utilities/modifiers';
@import '07_utilities/print';
// 1. Settings
$hab-orange:  #f60;
$hab-orange-hover:  lighten($hab-orange, 10%);
$hab-orange-hover-dark:  darken($hab-orange, 5%);

$font-family: 'Ubuntu', sans-serif, Arial, Helvetica;
$font-family-2: 'Molengo', sans-serif, Arial, Helvetica;
// 2. Tools

@mixin truncate($truncation-boundary) {
    max-width: $truncation-boundary;
    white-space: nowrap;
    overflow: hidden;
    text-overflow: ellipsis;
}

@function z($name) {
    @if index($z-indexes, $name) {
        @return (length($z-indexes) - index($z-indexes, $name)) + 1;
    } @else {
        @warn 'There is no item "#{$name}" in this list; choose one of: #{$z-indexes}';
        @return null;
    }
}
// 3. Generic

body {
  margin: 0;
}

article, aside, details,
figcaption, figure, footer,
header, main, menu,
nav, section, summary {
  display: block;
}
// 4. Elements

h1{
    font-size: $font-size-extralarge;
    font-weight: $font-weight-light;
    line-height: 1em;
    margin: 1em 0 0.3em 0;
    @include media($tablet, max) {
        font-size: $font-size-large-s;
     }
}

h2{
    font-size: $font-size-large;
    font-weight: $font-weight-light;
    line-height: 1em;
    margin: 1em 0;
    @include media($tablet, max) {
         font-size: $font-size-medium;
     }
}
// 5. Objects

.bg-orange{
     background: $hab-orange;
}

.w-100{
     width: 100%;
}

.hidden{
    position:absolute;
    left:-10000px;
    top:auto;
    width:1px;
    height:1px;
    overflow:hidden;
}
// 6. Components

header {
    @extend .no-select;
    @include transition(transform 200ms ease-in-out);
    z-index: z('header');
    width: 100%;
    height: 56px;
    display: block;
    position: fixed;
    top: 0;
    will-change: transform;
    .max-1440{
        padding: 0 16px;
    }
}

.head-main {
    z-index: z('header-main');
    position: relative;
    height: 56px;
    display: inline-block;
    font-size: $font-size-normal-s;
}
// 7. Utilities

.hide-tablet{
	  @include media($tablet, max) {
         display: none!important;
     }
}

@media print {
    .head-main{
        display:none;
    }
    .head-second{
        display:none;
    }
}

ITCSS



ITCSS



https://developer.mozilla.org/en-US/docs/Web/CSS/Specificity

Specificity explanation

https://jonassebastianohlsson.com/specificity-graph/

Specificity Graph Generator

SASS

SASS

$hab-orange:  #f60;
$hab-orange-hover:  lighten($hab-orange, 10%);
$hab-orange-hover-dark:  darken($hab-orange, 5%);

.bg-orange{
    background: $hab-orange;
}
.bg-orange{
    color: #ff6600;
}

SASS

.button-underline{
    border-bottom: 3px solid transparent;
    border-radius: 0;

    &.active{
        border-bottom: 3px solid $hab-orange;
    }

    a{
        color:$white;
    }
}
.button-underline{
    border-bottom: 3px solid transparent;
    border-radius: 0;
}
.button-underline.active{
    border-bottom: 3px solid #ff6600;
}
.button-underline a{
     color: #fff;
}

SASS

@mixin media($width, $type: min) {
  @media only screen and (#{$type}-width: $width) {
    @content;
  }
}

.button-underline{
    border-bottom: 3px solid transparent;

    @include media($tablet,min){
        &:hover{
            border-bottom: 3px solid $hab-orange;
        }
    }
}
.button-underline{
    border-bottom: 3px solid transparent;
}

@media only screen and (min-width: 728px){
    .button-underline:hover{
        border-bottom: 3px solid $hab-orange;
    }
}

SASS

@function z($name) {
    @if index($z-indexes, $name) {
        @return (length($z-indexes) - index($z-indexes, $name)) + 1;
    } @else {
        @warn 'There is no item "#{$name}" in this list; choose one of: #{$z-indexes}';
        @return null;
    }
}
$z-indexes: ("modal","wide-share","wide-title","wide-over","wide-media","overlay","live","tooltip","nav-fixed","header-main","contact-top","header-second","header","menu","selectores","solicitud","favorite","main","cover");

.wide-media{
    z-index: z('wide-media');
}
.wide-media{
    z-index: 15;
}

SASS

what we won?

SASS

Less weight

SASS

Code simplification

SASS

Easy mantenance

SASS

Only 1 css

SASS

JavaScript

- Actualmente todos los scripts de www dentro de la carpeta Desktop

- Un bundle por página, además de Layout y Periodico

- Los bundles se definen en el gulpfile.js

JavaScript

gulpfile.js

JavaScript

Como incluir un bundle en la vista

JavaScript

Ejemplo módulo:    modulo-ejemplo.js

JavaScript

Ejemplo módulo:    EjemploVista.cshtml

La definición de este objeto se debe hacer antes de la inclusión del script del módulo

JavaScript

Guía completa de estilo y buenas prácticas de JS en:





https://confluence.schibsted.io/pages/viewpage.action?pageId=45660974



SVG sprite

SVG sprite

Scalable Vector Graphics (SVG) is an XML-based vector image format for two-dimensional graphics with support for interactivity and animation. The SVG specification is an open standard developed by the World Wide Web Consortium (W3C) since 1999.

SVG sprite advantage

  • Scalable (not lose quality)
  • Vectorial (less weight)
  • Make them animated
  • Content can be crawled and indexable by Google

SVG sprite

<main id="ficha" class="w-100 curve-top pointer-events-none gtmproductdetail"  data-gtmname="comprar-vivienda-barcelona" data-gtmid="9368002482117-premium" data-gtmbrand="9368-1-Norvet" data-gtmcategory="comprar-vivienda/apartamento/barcelona/barcelones/barcelona" data-gtmvariant="eixample-sagrada_familia" >
    <section id="js-fav" class="fav pointer-events-none">
        <div class="ellipse-container">
            <svg role="img" title="curve" class="ellipse" viewBox="0 0 640 28.9" preserveAspectRatio="none">
                <use xlink:href="//www.habitaclia.com/dotnet/content/icon/dist/src_504911268000000000.svg#ico-curve" />
            </svg>
        </div>
        <div class="fav-div w-100 bg-white">
            <div class="max-1440">
                <h2 class="hidden">Favorito y comentario</h2>
            </div>
        </div>
        <div class="fav-heart bg-white pointer-events-all">
            <a id="linkFavorito" class="fav-heart-link abs-center addfavimg jq-tooltip tooltipstered" href="https://www.habitaclia.com/hab_usuarios/ajax/favoritos.asp?Source=i&codEmp=9368&codOfi=1&codInm=2482117&lang=E&clave=B0E3WBSY&Action=addAlInm" rel="nofollow" title="Añadir favorito">
                <div class="abs-center ">
                    <svg class="ico abs-center ico-fav" role="presentation">
                        <use xlink:href="//www.habitaclia.com/dotnet/content/icon/dist/src_504911268000000000.svg#ico-heart-02" />
                    </svg>
                </div>
                Añadir a favoritos
            </a>
        </div>
    </section>

Results

Charge view complete

OLD vs NEW (first time)

Charge view complete

OLD vs NEW (second time)

Pagespeed Test

OLD vs NEW

Pagespeed Test

OLD vs NEW

...and Analytics?

A mite increase of leads paring Product Details View with Leads (+0,10%)

7/06/2017 - 12/06/2017

8/06/2016 - 13/06/2016

NAFEN

project

NAFEN Project

By Adrià Velardos

Made with Slides.com

NAFEN Project

  • 231

More from Adrià Velardos
