HTTPS, SSL/TLS, Certificados, PKI, SNI, Apache VHosts, K8s Ingress...

¿cómo encaja este puzzle?

By Álvaro Iradier

Lightning DTalks by DareCode

Security Tangram #1

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

What is security?

What is love?

What is the smell of clouds? ®

Let's focus on computer and information Security

Preventing unauthorized access, use, disclosure, disruption, modification, inspection, recording or destruction of information

ISO/IEC 27000:2009

Security Properties

Confidentiality
Information is not made available or disclosed to unauthorized individuals, entities, or processes

Availability

The computing systems used to store and process the information, the security controls used to protect it, and the communication channels used to access it must be functioning correctly

Integrity

Maintaining and assuring the accuracy and completeness of data over its entire lifecycle

Security Properties

Confidentiality
Information is not made available or disclosed to unauthorized individuals, entities, or processes

Availability

The computing systems used to store and process the information, the security controls used to protect it, and the communication channels used to access it must be functioning correctly

Integrity

Maintaining and assuring the accuracy and completeness of data over its entire lifecycle

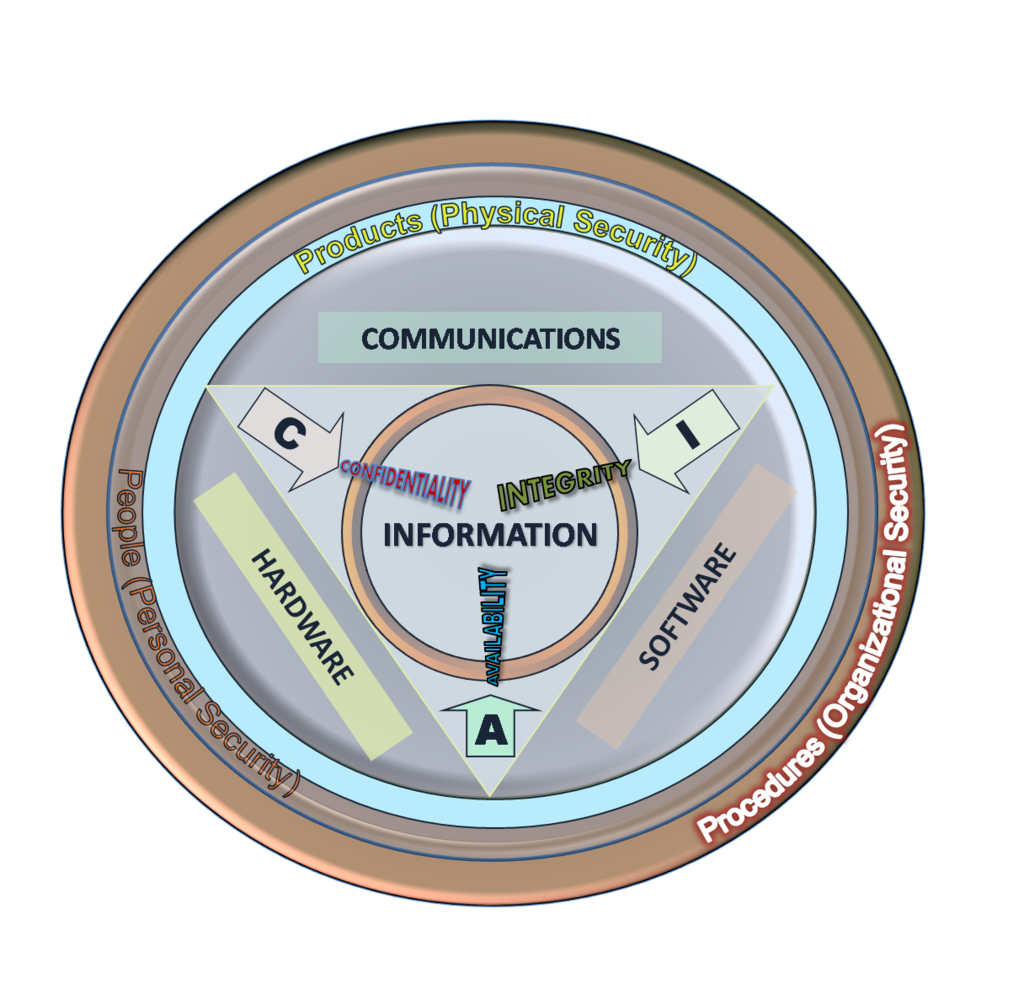

CIA triad, portions, and layers

Security properties

  • Non-repudiation
  • Authenticity
  • Accountability
  • Reliability
  • ...

Security Risks

Snooping / eavesdropping

Unauthorized access to another person's or company's data. Snooping can include casual observance of a screen, watching someone typing, ...

Phising

Fraudulent attempt to obtain sensitive information (user/pass, credit card) by disguising as a trustworthy entity in an electronic communication

Tampering

The act of deliberately modifying (destroying, manipulating or editing) data through unauthorized channels

Denial or reception / service

Preventing service from receiving request / legitimate users from accessing specific computer systems, devices, services or other IT resources.

How to "implement" it?

Public algorithm cryptography. The key is secret.

  • ​​Hash functions​: fast; one-way, collision-resistant ​​​
  • Symmetric: slow; medium key size; shared key
  • Asymmetric: slowest; big key size; public/private key (key pair)

Secret algorithms? Never. Security by obscurity.

Firewalls

  • Application level
  • Network level

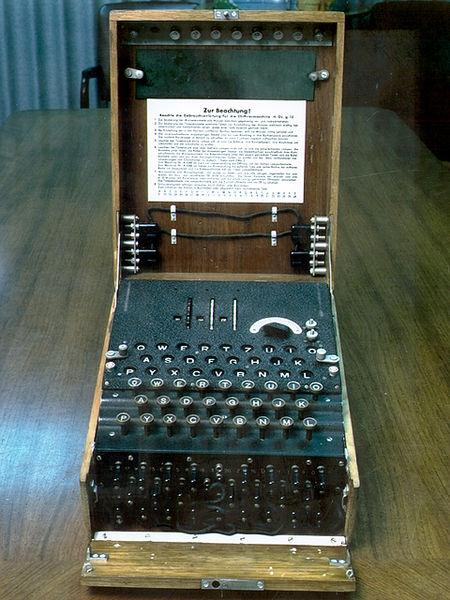

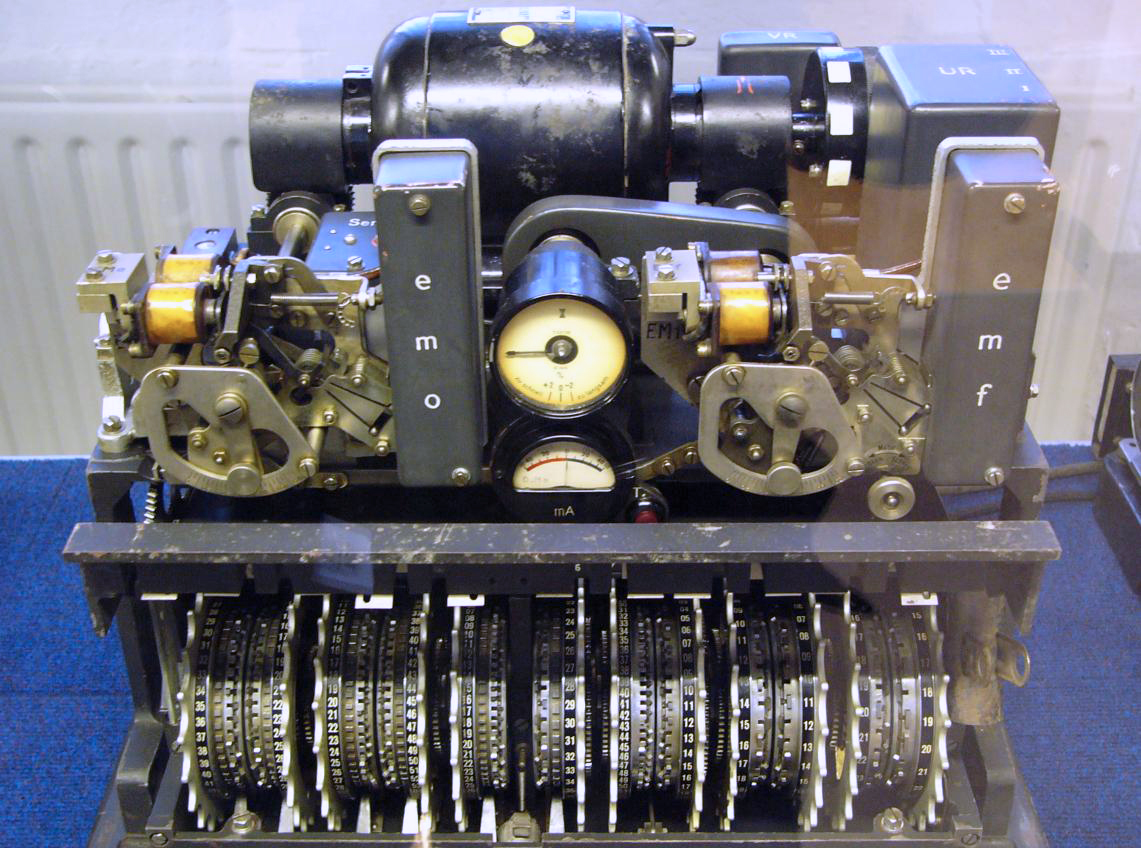

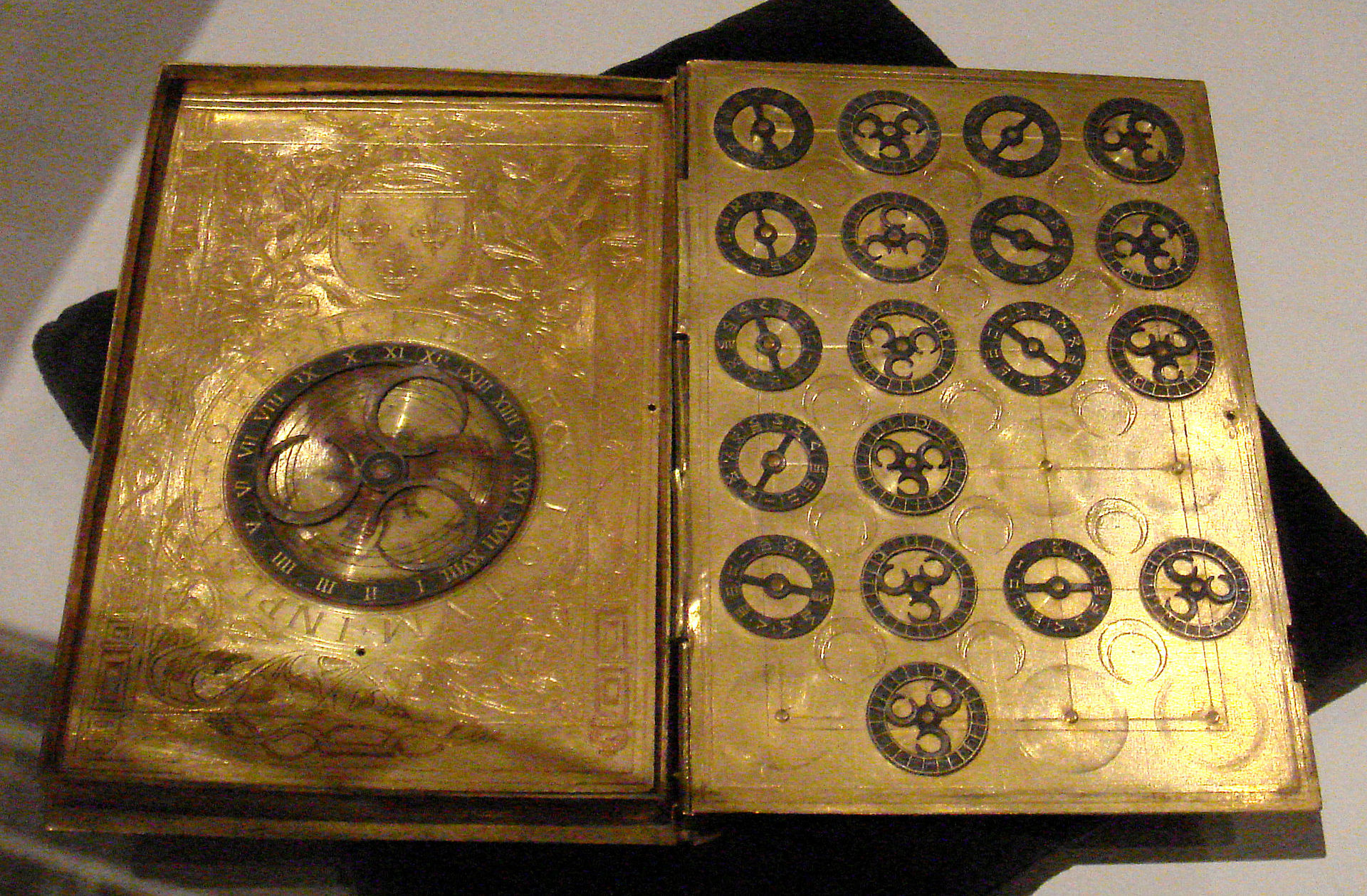

What is cryptography?

Cryptography or cryptology
(from Ancient Greek: κρυπτός, translit. kryptós "hidden, secret"; and γράφειν graphein, "to write", or -λογία -logia, "study", respectively) is the practice and study of techniques for secure communication in the presence of third parties called adversaries.

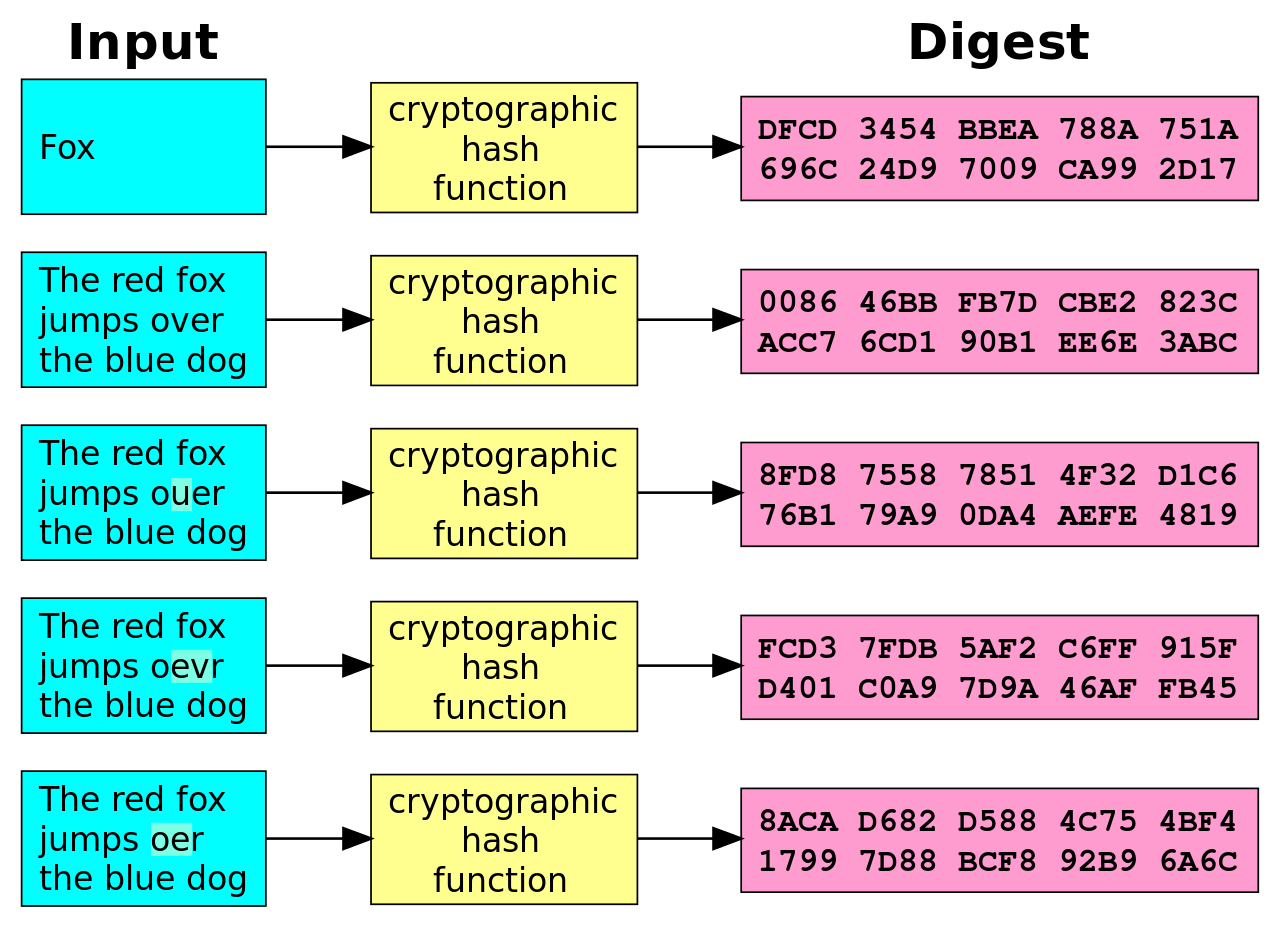

Cryptographic Hash Functions

Cryptographic Hash Functions

  • Fast: computed quickly for big inputs
  • One-way: impossible to find input from digest
  • Anti-collision: not computationally feasible to find a collision (2 inputs with same digest)
  • Example: SHA1 (!)
  • Others: MD5, SHA2/SHA-256, SHA-512, ...

Used for integrity

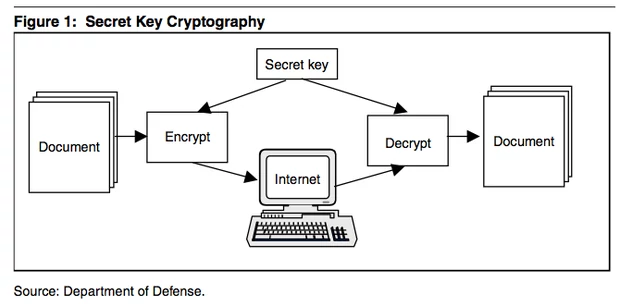

Symmetric Cryptography

How to distribute the Secret key?

Algorithms: DES, 3DES, AES (Rijndael), Blowfish, RC4, IDEA, Twofish...

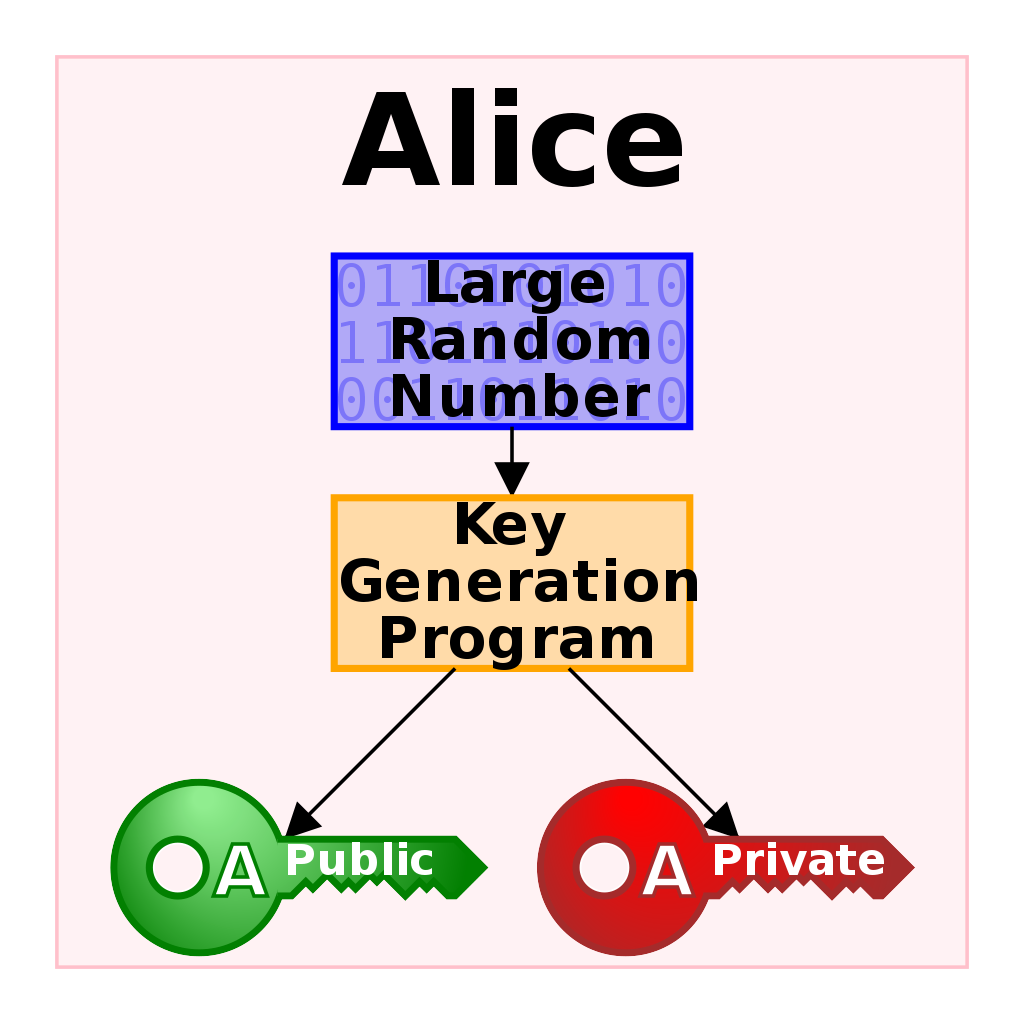

Asymmetric Cryptography

Public key

Can (and should) be distributed.

Private key

Must be kept secret.

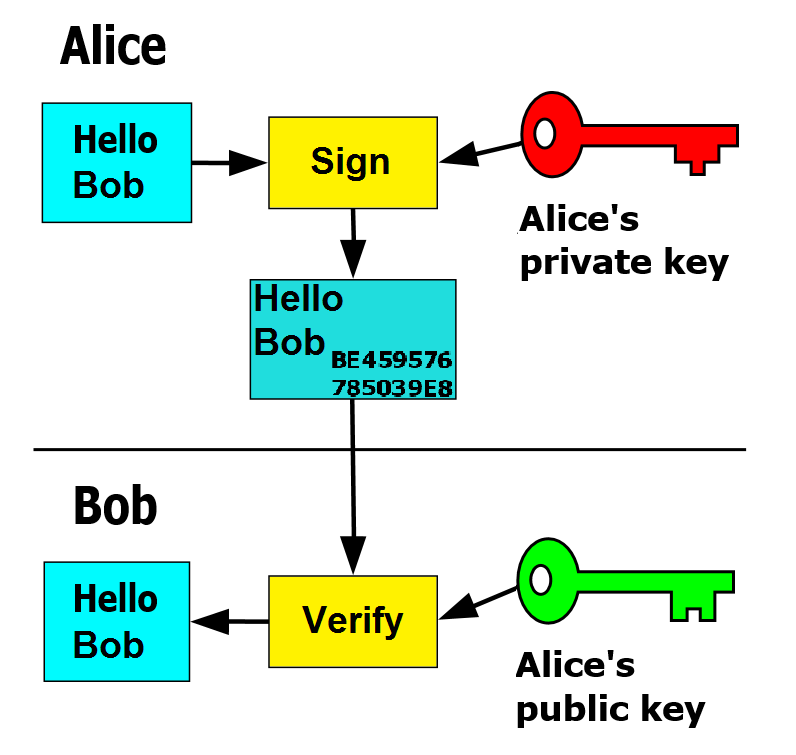

Asymmetric Cryptography

Asymmetric Cryptography

Asymmetric Cryptography

How to distribute the PUBLIC key?

What is PKI?

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

What is PKI?

Public Key Infrastructure

How to bind identities to Public Keys

Entities: people, organizations, servers. Have an identity

RA: Registration authority. Accepts requests, validates identity

CA: Certification authority

Issuance of certificates. Binding of identity - public key

VA: Validation authority

Verify the validity of the certificate (via CRLs)



What is PKI?

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

C.A. & Certificates

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

C.A. & Certificates

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

Let's make it simple. What is a digital certificate?

  • A stream of bytes with a specific format (usually X.509, ASN-1)
  • Encoding using some encoding (DER, PEM, ...)
  • Containing a set of attributes:
    • Identity:
      • CN (Common Name)
      • Organization, department, city, country, ...
    • Public Key
    • Expiration date
    • Issuer identity
    • ...
  • And, most important: digitally signed by issuer

C.A. & Certificates

C.A. & Certificates

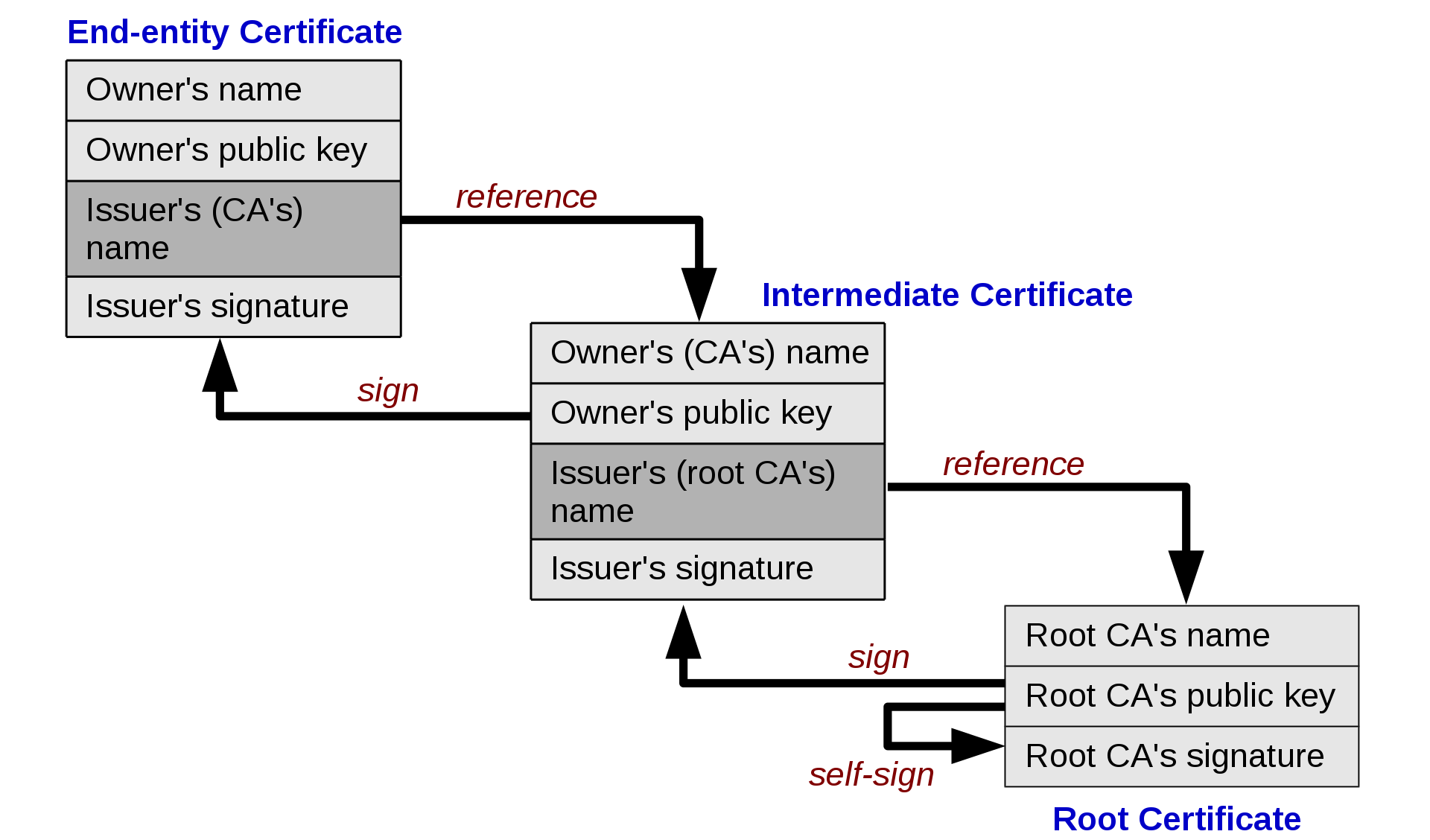

Chain of trust

and self-signed certificates

C.A. & Certificates

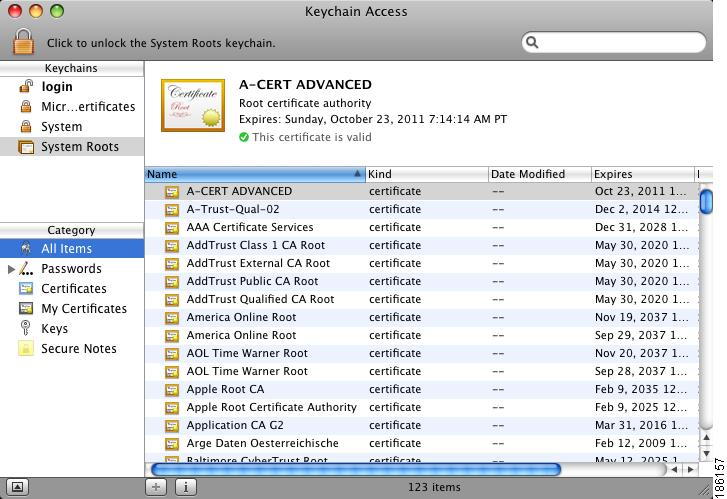

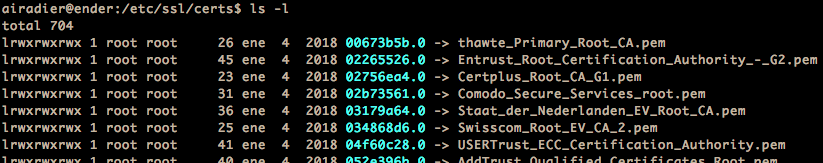

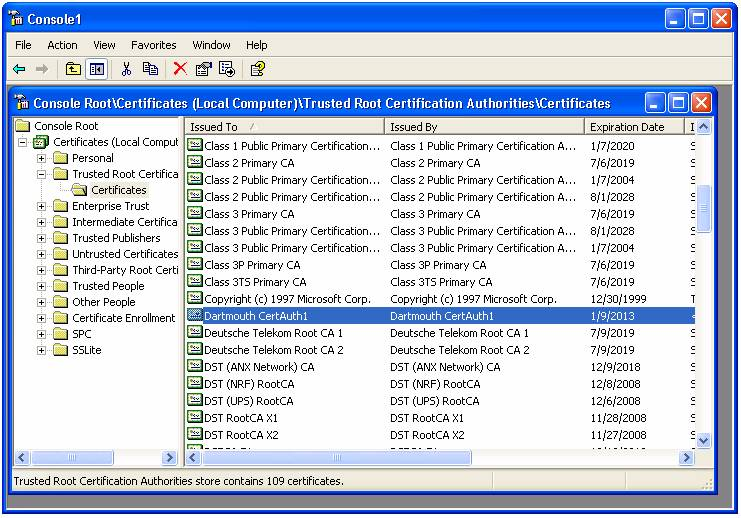

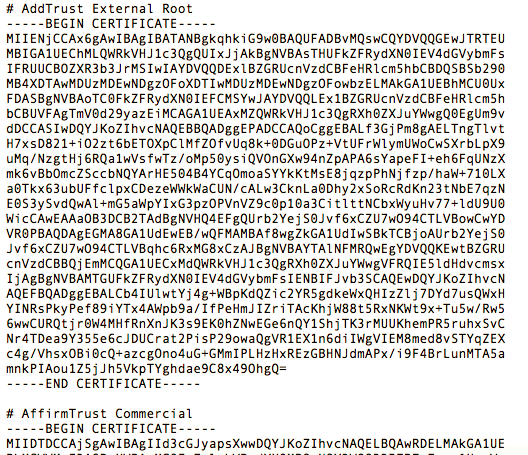

Root CA certificates are self-signed... trust?

C.A. & Certificates

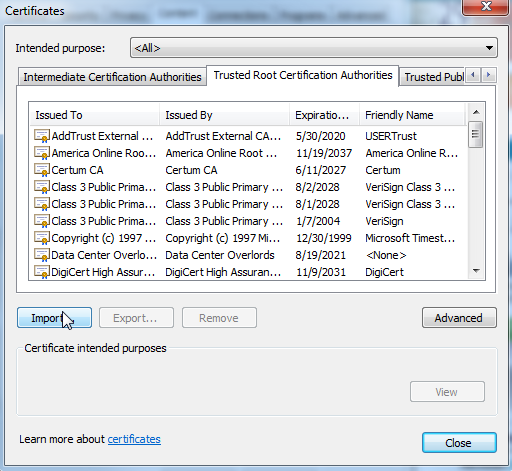

Root CA certificates are self-signed... trust?

C.A. & Certificates

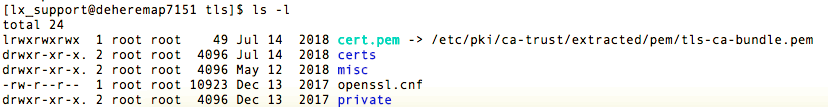

Root CA certificates are self-signed... trust?

C.A. & Certificates

Root CA certificates are self-signed... trust?

SSL / TLS

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

SSL / TLS

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

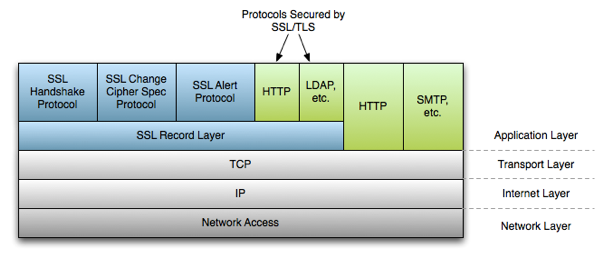

Transport Layer Security (TLS 1.3, 1.2, 1.1, 1.0), and its now-deprecated predecessor, Secure Sockets Layer (SSL 3.0, 2.0, 1.0), are cryptographic protocols designed to provide communications security over a computer network

SSL / TLS

  • Certificates are used for server, client or mutual authentication on the SSL Handshake (asymmetric cryptography)
  • Supported ciphers and algorithms are negotiated
  • Session key is generated and exchanged on handshake
  • Symmetric cryptography is used for communication

HTTPS

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

HTTPS

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

Vhosts

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

Vhosts

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

Virtual hosting is a method for hosting multiple domain names (with separate handling of each name) on a single server (or pool of servers)

Port based

IP based​

Name based

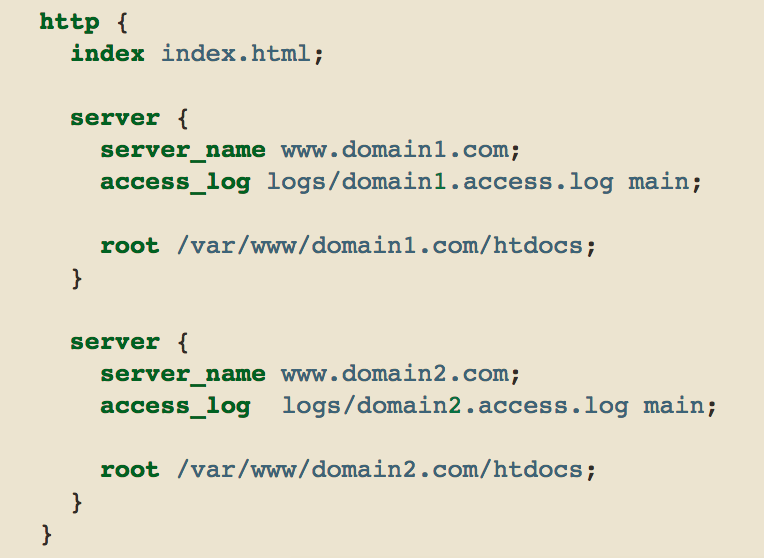

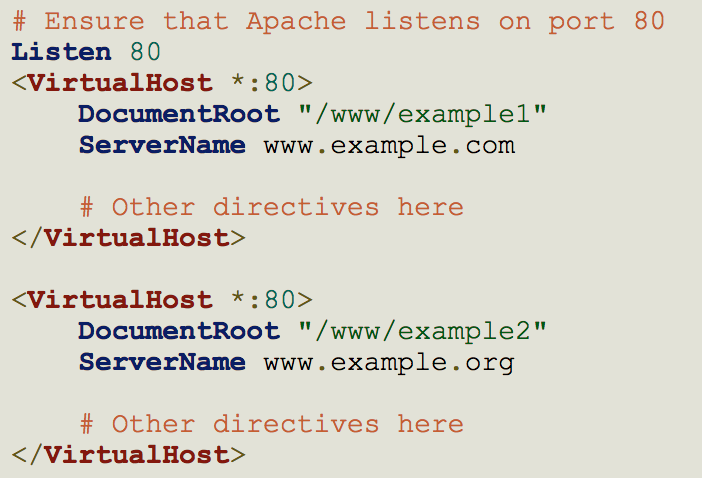

Name based Vhosts

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

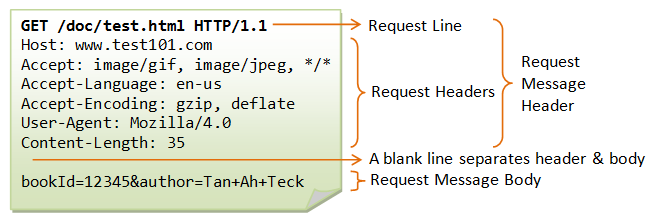

Use Host: header in HTTP request



Requires HTTP version 1.1 (not a problem)

Name based Vhosts

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

Name based Vhosts

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

HTTPS and VHosts

IP

TCP

TLS/SSL

HTTPS

Network connectivity

Socket connected

TCP Handshake

TSL Handshake

Certificates exchanged

HTTP Request
HTTP Response

HTTPS and VHosts

IP

TCP

TLS/SSL

HTTPS

Network connectivity

Socket connected

TCP Handshake

TSL Handshake

Certificates exchanged

HTTP Request
HTTP Response

But what vhost? Host: header is in HTTP Request

Welcome SNI!

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

Welcome SNI!

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

Server Name Indication (SNI) is an extension to the TLS computer networking protocol by which a client indicates which hostname it is attempting to connect to at the start of the handshaking process.[1] This allows a server to present multiple certificates on the same IP address and TCP port number and hence allows multiple secure (HTTPS) websites (or any other service over TLS) to be served by the same IP address without requiring all those sites to use the same certificate. It is the conceptual equivalent to HTTP/1.1 name-based virtual hosting, but for HTTPS. The desired hostname is not encrypted in original SNI extension, so an eavesdropper can see which site is being requested

https://en.wikipedia.org/wiki/Server_Name_Indication

Welcome SNI!

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

K8s Ingress

SNI

IP

TCP

TLS/SSL

HTTPS

Network connectivity

Socket connected

TCP Handshake

TSL Handshake

Host name via SNI

Certificates exchanged

HTTP Request
HTTP Response

K8s Ingress

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress

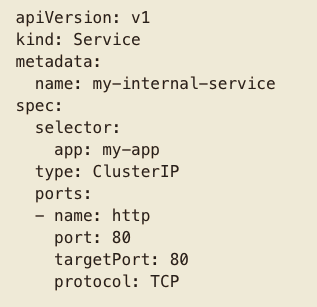

K8s Services - ClusterIP

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress

Exposes the service on a cluster-internal IP. Choosing this value makes the service only reachable from within the cluster.

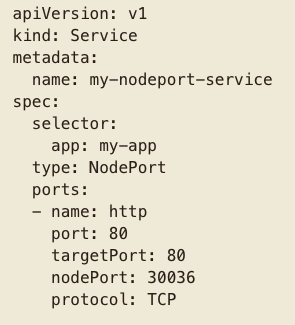

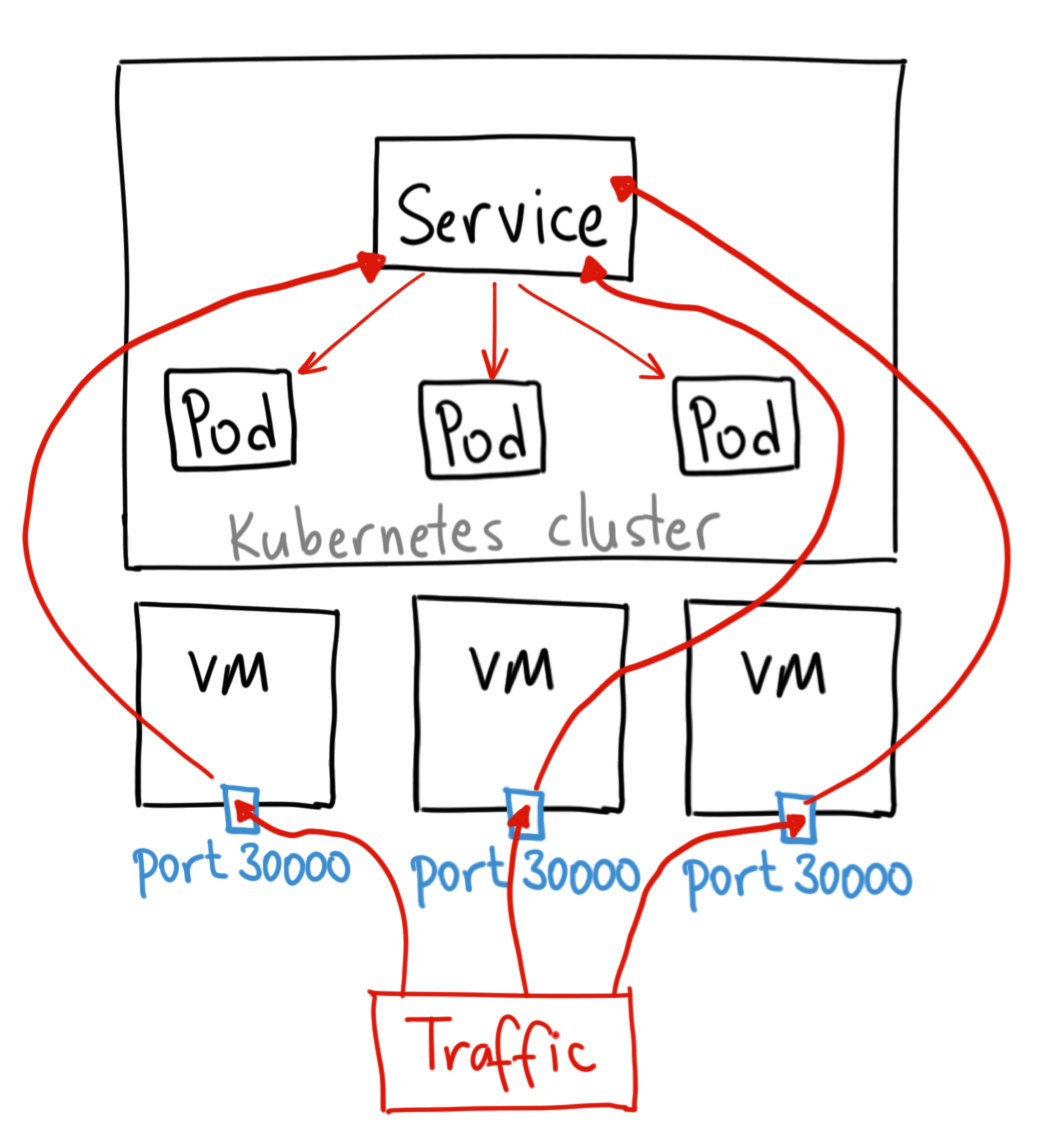

K8s Services - NodePort

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress

Exposes the service on each Node’s IP at a static port (the NodePort). A ClusterIP service, to which the NodePort service will route, is automatically created. You’ll be able to contact the NodePort service, from outside the cluster, by requesting <NodeIP>:<NodePort>

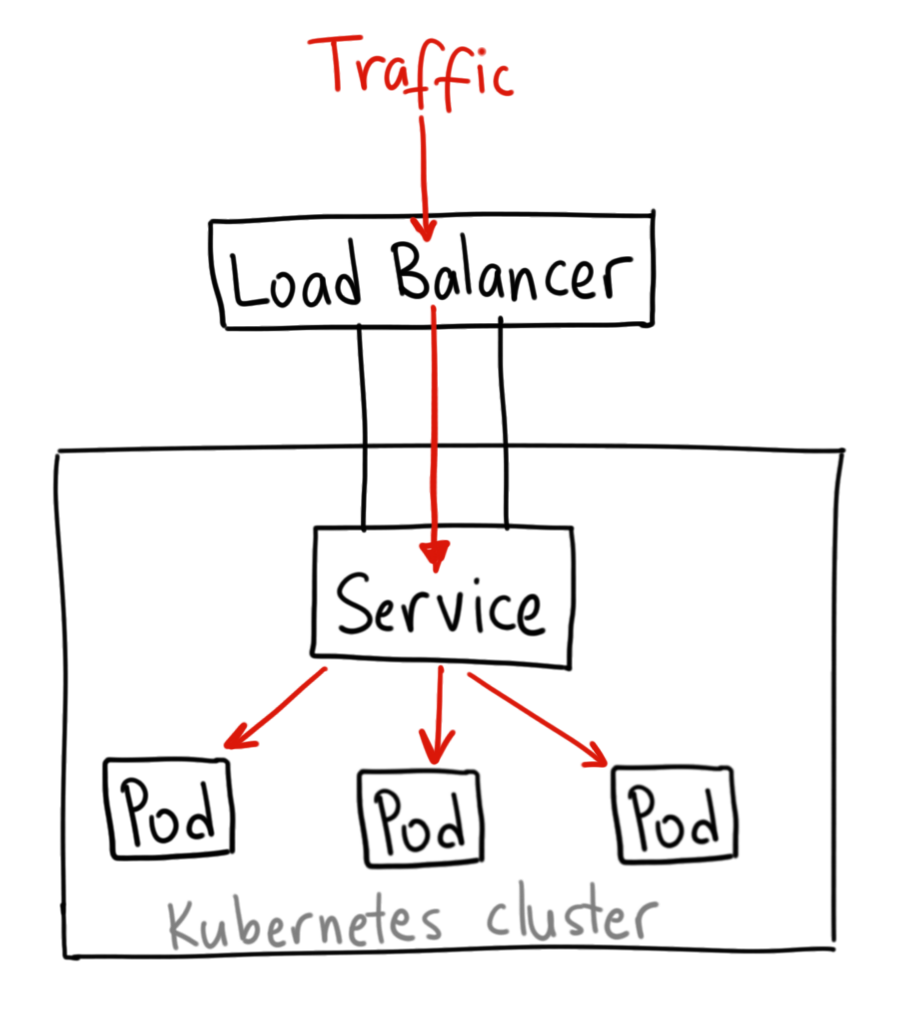

K8s Services - LoadBalancer

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress

Exposes the service externally using a cloud provider’s load balancer. NodePort and ClusterIP services, to which the external load balancer will route, are automatically created.

Warning

NOT INCLUDED in K8s. Load Balancer is a service from provider, i.e. AWS, GKE, F5 Load Balancer, etc.

K8s Ingress Controller

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress

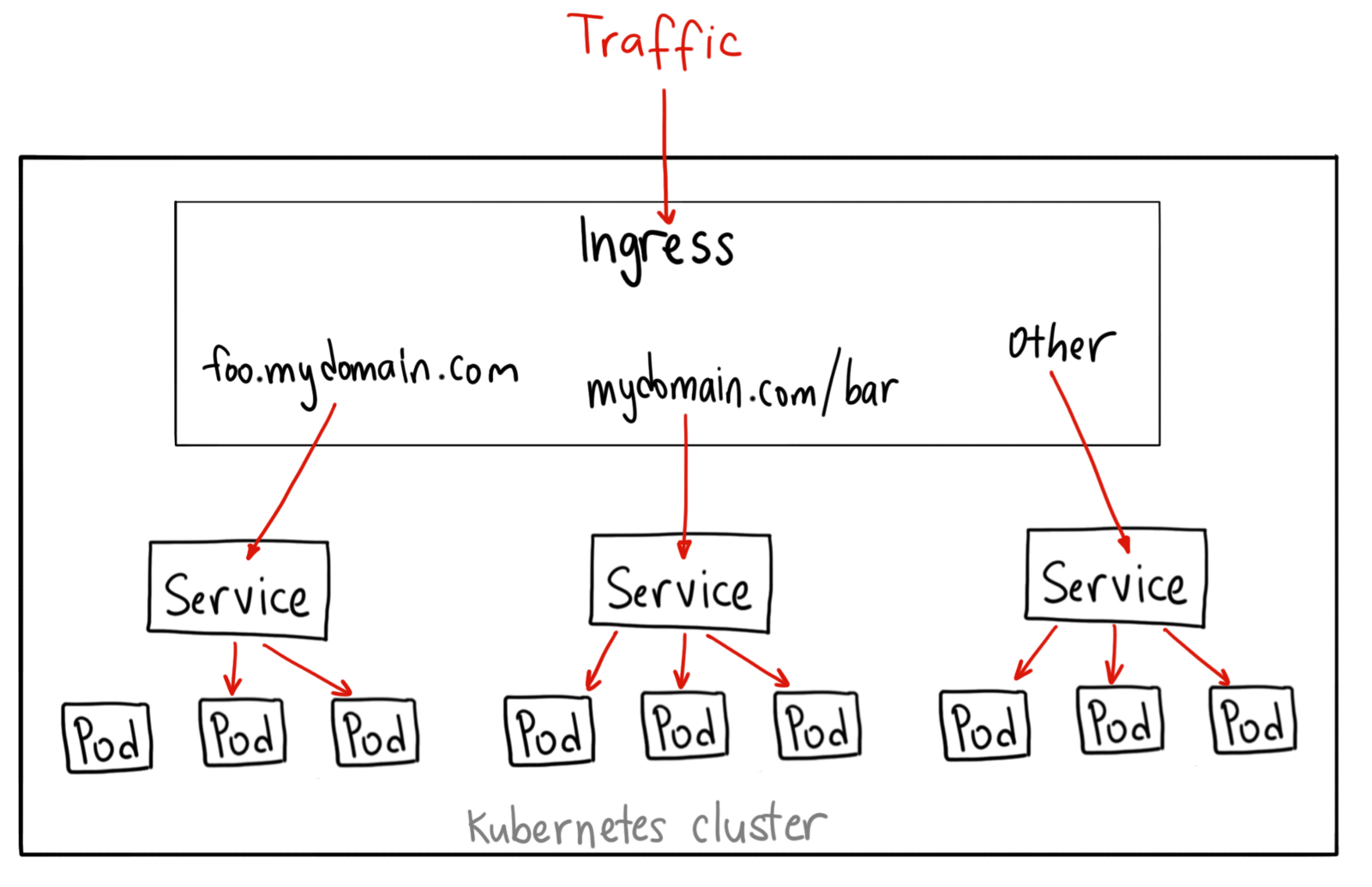

Ingress exposes HTTP and HTTPS routes from outside the cluster to services within the cluster. Traffic routing is controlled by rules defined on the ingress resource.

K8s Ingress Controller

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress

Kubernetes as a project currently supports and maintains GCE and nginx controllers

NO MAGIC!

K8s Ingress Controller

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress

https://kubernetes.github.io/ingress-nginx/how-it-works/

  • A simple nginx service on every node
  • Reconciliation Loop + K8s API
  • Whenever something changes in cluster, nginx.conf is updated and reloaded

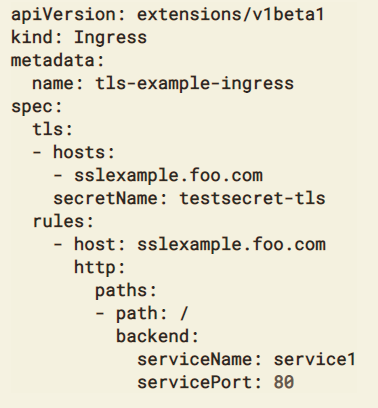

  • TLS certificates can be set on ingress configuration

K8s Ingress Controller

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress

Other Ingress Controllers

  • Ambassador: Open Source Kubernetes-Native API Gateway built on the Envoy Proxy

  • Contour is an Ingress controller for Kubernetes that works by deploying the Envoy proxy as a reverse proxy and load balancer. Unlike other Ingress controllers, Contour supports dynamic configuration updates out of the box while maintaining a lightweight profile.

  • Traefik: A reverse proxy / load balancer that's easy, dynamic, automatic, fast, full-featured, open source, production proven, provides metrics, and integrates with every major cluster technology... No wonder it's so popular!

PKI

CA & Certs

SSL/TLS

HTTPS

Vhost

SNI

K8s Ingress
