A look into AssemblyScript

Who am I?

@ajitsonlion

Ajit Singh

Software "Architect"

I delete node_modules for money

💶

WEB ASSEMBLY

Experts say that .....

for a stack-based virtual machine.

- webassembly.org

it is a

binary instruction format

WEB ASSEMBLY

In layman's terms..

...it is a

new,

low level code,

for the web.

WEB ASSEMBLY

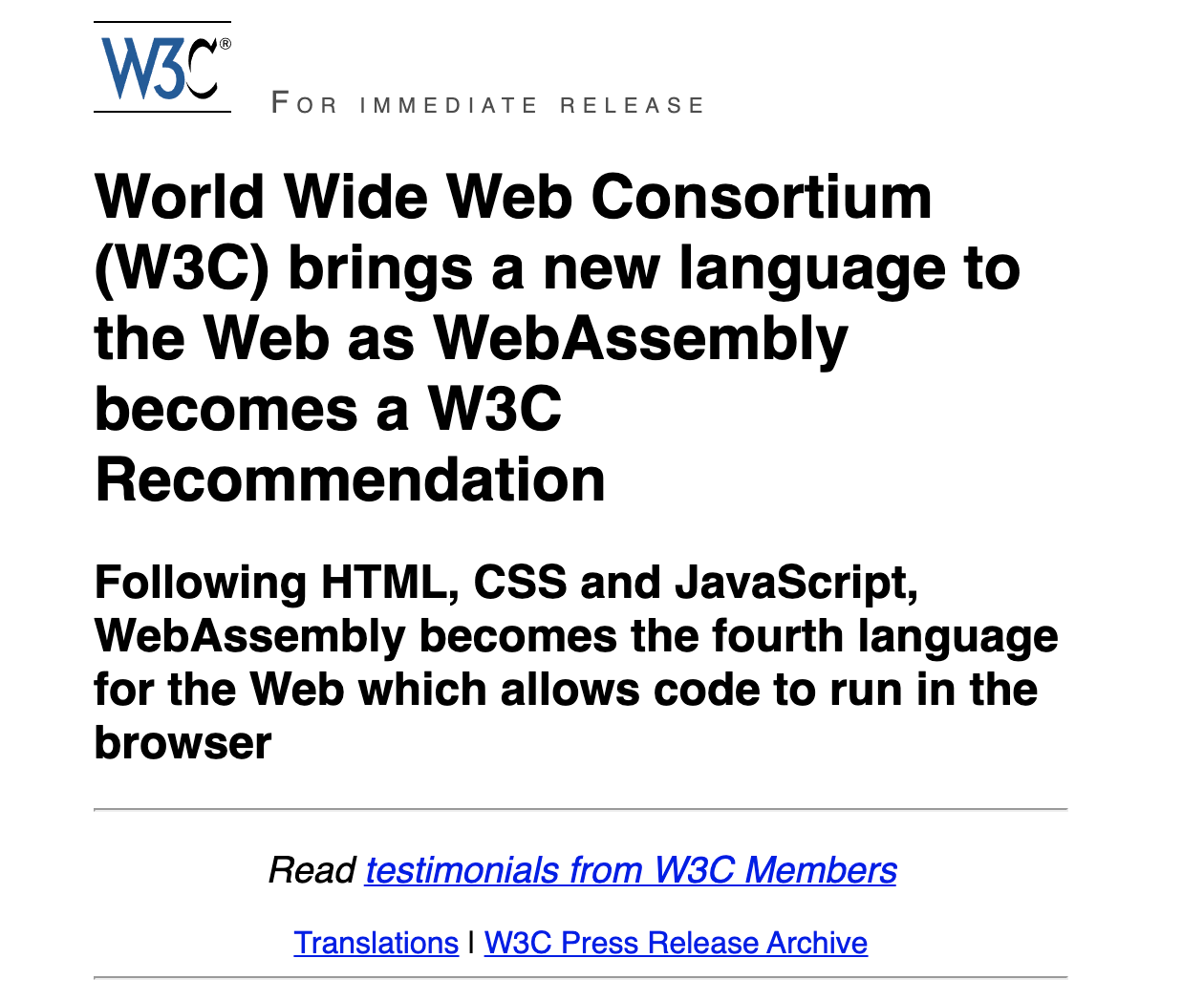

Brand new !

Source: https://www.w3.org/2019/12/pressrelease-wasm-rec.html.en

...it is a

new,

low level code,

for the web.

WEB ASSEMBLY

One level closer !

...it is a

new,

low level code,

for the web.

wasm-function[0]:
  sub rsp, 8                            ; 0x000000 48 83 ec 08
  mov edx, edi                          ; 0x000004 8b d7
  mov ecx, edx                          ; 0x000006 8b ca
  mov eax, edx                          ; 0x000008 8b c2
  imul ecx, eax                         ; 0x00000a 0f af c8
  mov eax, ecx                          ; 0x00000d 8b c1
  nop                                   ; 0x00000f 66 90
  add rsp, 8                            ; 0x000011 48 83 c4 08
  ret                                   ; 0x000015 c3

WEB ASSEMBLY

and beyond !

...it is a

new,

low level code,

for the web.

* The WebAssembly System Interface: https://wasi.dev

WEB ASSEMBLY

So, how do I code in WebAssembly

WEB ASSEMBLY

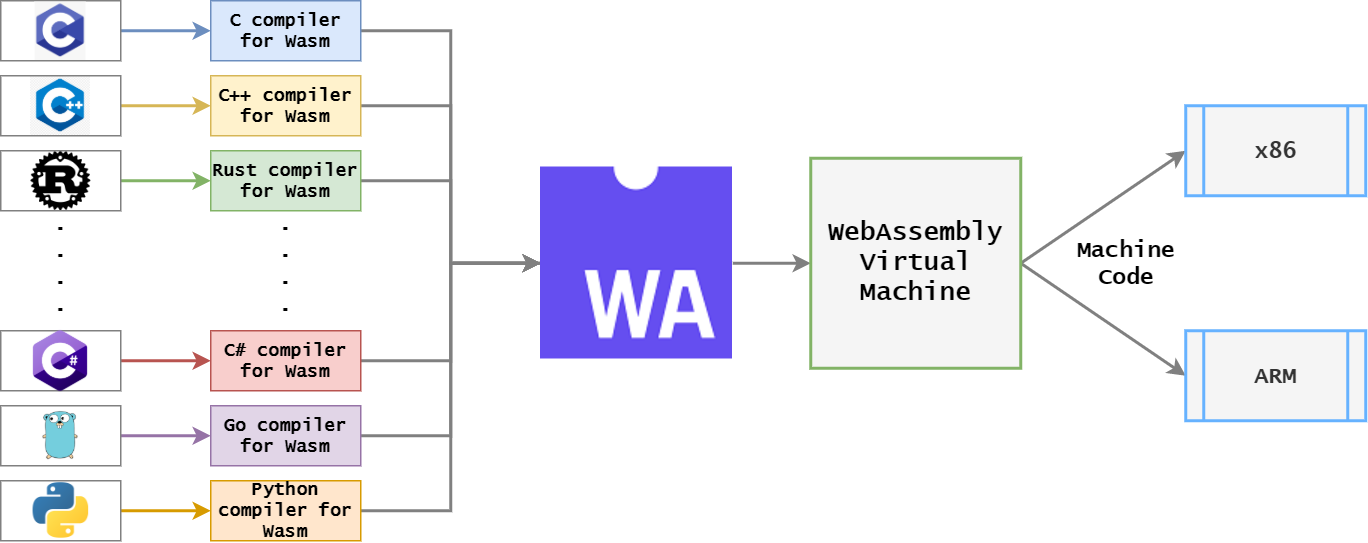

Your Code + compile to WASM = WASM

Source: https://arghya.xyz/articles/webassembly-wasm-wasi

https://github.com/appcypher/awesome-wasm-langs

WEB ASSEMBLY

"Human-Readable" format

(module
  (func $add (param $n0 i32) (param $n1 i32) (result i32)
    get_local $n0
    get_local $n1
    i32.add
  )

  (export "add" (func $add))
)

Web Assembly Text Format

WEB ASSEMBLY

Benefits

Can have much higher performance than JavaScript *
Portable & platform agnostic, independent of underlying hardware or OS
languages like C, C++, Rust in web browser.
Security Sandbox. runs with same privileges as JavaScript code, so has same security levels of current browser code

* https://surma.dev/things/js-to-asc/

https://takahirox.github.io/WebAssembly-benchmark/

WEB ASSEMBLY

Hold your 🐎🐎🐎🐎🐎🐎

Not complete, or “ready” yet.*
Supports only numbers as method parameters* do the pointers ping pong for strings, arrays.
As of now, cannot directly manipulate DOM
No garbage collector.

2 WebAssembly Interface Types

1 WebAssembly’s post-MVP future
https://webassembly.org/roadmap

ASSEMBLY SCRIPT

The Comfort of Familiarity!

ASSEMBLY SCRIPT

Typescript

AssemblyScript

export function add(a: number, b: number): number {

  return a + b;

}

The Comfort of Familiarity!

ASSEMBLY SCRIPT

Typescript

AssemblyScript

export function add(a: int32 , b: int32 ): int32  {

  return a + b;

}

Looks like a duck but .....

ASSEMBLY SCRIPT

AssemblyScript is NOT Typescript!
AssemblyScript files also use TypeScript’s `.ts`.
Has own compiler.

Getting started

ASSEMBLY SCRIPT

npm init

npm install --save @assemblyscript/loader

npm install --save-dev assemblyscript

npx asinit .

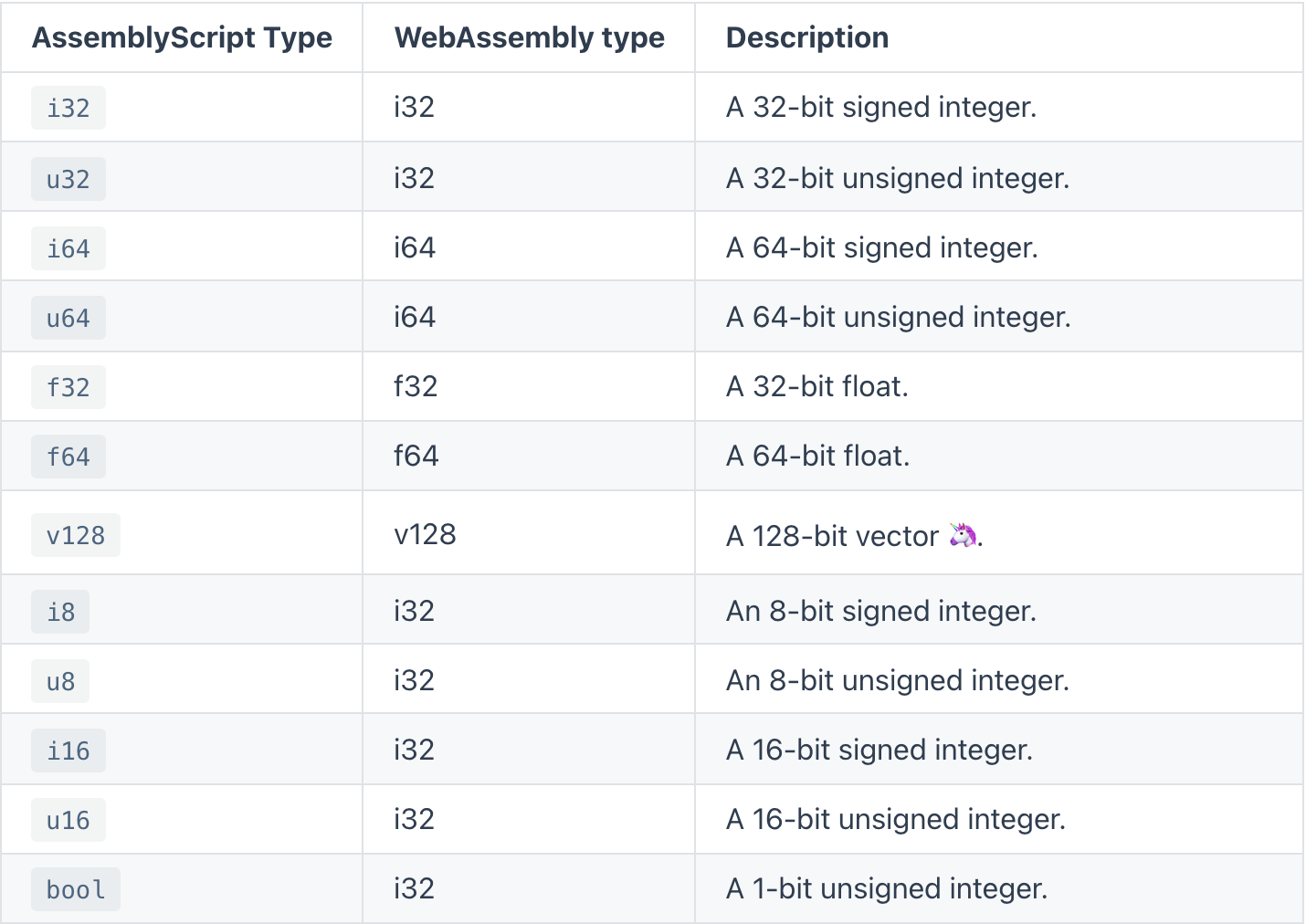

How many number type you want? Yes

ASSEMBLY SCRIPT

Types are stronger in this one !

ASSEMBLY SCRIPT

// 😢
function foo(a?) {
  return a + 1
}

// 😊
function foo(a: i32 = 0): i32 {
  return a + 1
}

No any or undefined

Types are stronger in this one !

ASSEMBLY SCRIPT

// 😢
function foo(a: i32 | string): void {
}

// 😊
function foo<T>(a: T): void {
}

No union types

Types are stronger in this one !

ASSEMBLY SCRIPT

function doSomething(something: string | null): void {
  if (something) {
    something.length // works
  }
}

Nullability check

Types are stronger in this one !

ASSEMBLY SCRIPT

// 😢
var a = {}
a.prop = "hello world"

// 😊
var a = new Map<string,string>()
a.set("prop", "hello world")

Strictly typed objects

Equal Equal Equal

ASSEMBLY SCRIPT

const a = "hello"
const b = a
const c = "h" + a.substring(1)

if (a === b) { /* true */ }
if (a === c) { /* false */ }
if (a == c) { /* true */ }

The === operator has been does identity comparison

Importing JS functions in WASM

ASSEMBLY SCRIPT

// In your assemblyscript code
export declare function log(n: i32): void;


// In your js/ts code
const module = await WebAssembly.instantiateStreaming(
    fetch("./build/optimized.wasm"),
   // without annotation is file name and function name
    index: {
      log: console.log,
    },
 );


@external("demo", "log")
export declare function log(n: i32): void;

const module = await WebAssembly.instantiateStreaming(
    fetch("./build/optimized.wasm"),
    demo: {
      log: console.log,
    },
 );

Pointers ping pong

ASSEMBLY SCRIPT

var { hello, memory,
  __new, __pin, __unpin } = wasm.exports;

var input = "Stonks";
var length = input.length;

// allocate memory (usize, String (id=1))
var pt = __new(length << 1, 1);

// load bytes into memory
var ibytes = new Uint16Array(memory.buffer);
for (let i = 0, p = pt >>> 1; i < length; ++i)
  ibytes[p + i] = input.charCodeAt(i);

// pin object
var pti = __pin(pt);

// call wasm
var pto = __pin(hello(pti));

// retrieve string size
var SIZE_OFFSET = -4;
var olength = new Uint32Array(memory.buffer)[pto + SIZE_OFFSET >>> 2];

// load string from memory
var obytes = new Uint8Array(memory.buffer, pto, olength);
var str = new TextDecoder('utf8').decode(obytes);

// unpin objects for GC
__unpin(pti);
__unpin(pto);

console.log(str);

ASSEMBLY SCRIPT

import loader from "@assemblyscript/loader";

const { __newString, __getString } = wasm.exports;

// Let loader take care of making pointer for the string
const stonkPointer = __newString("Stonks");

// Let loader take care of reading  value from pointer
const returnValuePointer = functionTakingString(stonkPointer);

const getStonksValue = __getString(returnValuePointer);

console.log(getStonksValue);

Syntactic

ASSEMBLY SCRIPT

import loader from "@assemblyscript/loader";

// in Assemblyscript
export const Int32Array_ID = idof<Int32Array>();

// In js/ts
const {multiply,Int32Array_ID,__newArray,__getArray} = wasm.exports;
const input = [1, 2, 3];
const ai = __newArray(Int32Array_ID, input);

// call wasm, output array
const ao = __getArray(multiply(ai, 2));

console.log(ao);

Syntactic

ASSEMBLY SCRIPT

export declare function log(n: i32): void;

const wasm = await loader.instantiate(fetch("./build/optimized.wasm"), {
    index: {
      log: console.log,
    },
});
