Build Your First

on

@AlanSemenov

@EnonicHQ

NATIVE VS WEB

The full Safari engine is inside of iPhone. And so, you can write amazing Web 2.0 and Ajax apps that look exactly and behave exactly like apps on the iPhone. You’ve got everything you need if you know how to write apps using the most modern web standards to write amazing apps for the iPhone today. So developers, we think we’ve got a very sweet story for you. You can begin building your iPhone apps today.

Steve Jobs, 2007

PWA

WTF  IS                ?

PROGRESSIVE WEB APPLICATIONS

SERVICE WORKER

SERVICE WORKER

NETWORK FIRST

CACHE FIRST

CACHE ONLY

APP SHELL (CACHE ONLY)

APP SHELL (CACHE ONLY)

WEB MANIFEST

...is what turns your SITE into an APP

WEB MANIFEST

{
  "name": "PWA Starter for Enonic XP",
  "short_name": "PWA Starter",
  "theme_color": "#FFF",
  "background_color": "#FFF",
  "display": "standalone",
  "start_url": ".?source=web_app_manifest",
  "icons": [
    {
      "src": "precache/icons/icon.png",
      "sizes": "512x512",
      "type": "image/png"
    }
  ]
}

https://developer.mozilla.org/en-US/docs/Web/Manifest

<head>
    <meta charset="utf-8"/>
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0"/>
    <title>My First PWA</title>

    <link rel="manifest" href="manifest.json">
</head>

WEB MANIFEST

SERVICE WORKER

?

WEB MANIFEST

+

PWA

=

SERVICE WORKER

if (containsDataUrl(e.request.url) || responseUpdate) {
    let url = responseUpdate ? e.request.url.replace("?update=true", "") : e.request.url;

    e.respondWith(
      caches.open(responseUpdate ? cacheName : dataCacheName).then(function(cache) {
          consoleLog("Fetching data url " + url);
          return fetch(e.request)
              .then(function (response) {
                  cache.put(url, response.clone());
                  return response;
              })
              .catch(function (ex) {
                  consoleLog('Network is down. Trying to serve from cache...');
                  return cache.match(e.request, {
                      ignoreVary: true
                  })
                  .then(function (response) {
                      consoleLog((response ? 'Serving from cache' : 'No cached response found') + ': ' + e.request.url);

                      return response || getFallbackPage(e.request.url);
                  });
              });
      })
    );
  }
  else {
      e.respondWith(
          caches.match(e.request, {
              ignoreVary: true
          })
          .then(function (response) {
              consoleLog((response ? 'Serving from cache' : 'Requesting from the server') + ': ' + e.request.url);

              return response || fetch(e.request);
          })
      );
  }

...IS COMPLICATED

REMEMBER TO CACHE YOUR ASSETS

const filesToCache = [
    offlineUrl,
    offlineCompactUrl,
    '{{siteUrl}}',
    '{{siteUrl}}/',
    '{{assetUrl}}/js/main.js',
    '{{assetUrl}}/js/image.js',
    '{{assetUrl}}/js/material.js',
    '{{assetUrl}}/js/dialog-polyfill.js',
    '{{assetUrl}}/css/main.css',
    '{{assetUrl}}/css/image.css',
    '{{assetUrl}}/css/material.css',
    '{{assetUrl}}/css/dialog-polyfill.css',
    '{{assetUrl}}/img/cancel.svg',
    '{{assetUrl}}/img/download_image.svg',
    '{{assetUrl}}/img/info.svg',
    '{{assetUrl}}/img/pencil.svg',
    '{{assetUrl}}/img/spinner.svg',
    '{{assetUrl}}/img/placeholder.png',
    '{{assetUrl}}/img/noisy-texture.png',
    '//fonts.googleapis.com/icon?family=Material+Icons',
    '//fonts.googleapis.com/css?family=Roboto:regular,bold,italic,thin,light,bolditalic,black,medium&amp;lang=en'
];


self.addEventListener('install', function(e) {
  consoleLog('Install');

  e.waitUntil(self.skipWaiting());

  e.waitUntil(
    caches.open(cacheName).then(function(cache) {
      consoleLog('Caching app shell');
      return cache.addAll(filesToCache);
    }).catch(function(err) {
        console.log(err);
    })
  );
});

ENONIC PWA STARTER

E    NONIC PWA STARTER

DOES ALL THE DIRTY JOB FOR YOU!

E    NONIC PWA STARTER

  • Generates and registers Service Worker

  • Implements Web Manifest

  • Bundles JS files and CSS stylesheets

  • Precaches all assets

  • Implements fallback page

  • Routes requests

  • Passes all audits on Lighthouse with 100 score

E    NONIC PWA STARTER

  • Integration with NPM, Gulp and Webpack
  • Automatic generation of Web Manifest
  • Automatic generation of Service Worker
  • Routing with configurable caching strategy
  • Run-time caching
  • Background synchronisation
  • ...and much more...

Easy Precaching

importScripts('/node_modules/workbox-sw/build/workbox-sw.vX.X.X.prod.js');

const workboxSW = new WorkboxSW();
workboxSW.precache([]);

Template for Service Worker:

{
    globDirectory: 'resources/assets',
    globPatterns: ['precache/**\/*'],
    globIgnores: ['*.svg'],
    swSrc: 'resources/js/sw-template.js',
    swDest: 'build/sw.js'
}

Config:

Easy Precaching

importScripts('/node_modules/workbox-sw/build/workbox-sw.vX.X.X.prod.js');

const workboxSW = new WorkboxSW();
workboxSW.precache([
  {
    url: '/precache/index.html',
    revision: 'bb121c',
  }, {
    url: '/precache/styles/main.css',
    revision: 'acd123',
  }, {
    url: '/precache/scripts/main.js',
    revision: 'a32caa',
  }
]);

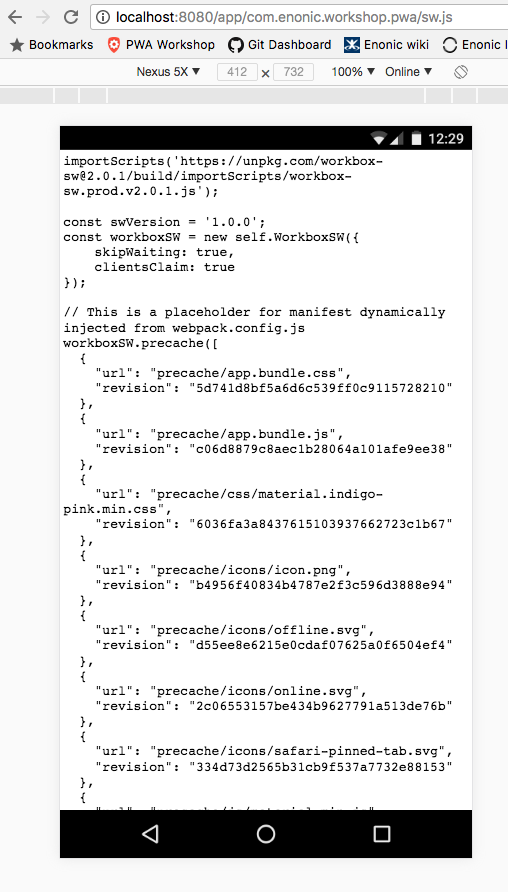

Built Service Worker:

Runtime Caching

importScripts('/node_modules/workbox-sw/build/workbox-sw.vX.X.X.prod.js');

const workboxSW = new WorkboxSW();

workboxSW.router.registerRoute('/schedule', workboxSW.strategies.networkFirst());

workboxSW.router.registerRoute('/news', workboxSW.strategies.cacheFirst());

workboxSW.router.registerRoute('/about', workboxSW.strategies.cacheOnly());

Simple routing with caching strategies:

E    NONIC PWA STARTER

https://market.enonic.com/vendors/enonic/pwa-starter

E    NONIC PWA STARTER

https://github.com/enonic/starter-pwa

CHECKLIST

  • Gradle

https://nodejs.org/en/

  • Terminal/CLI
  • Enonic XP

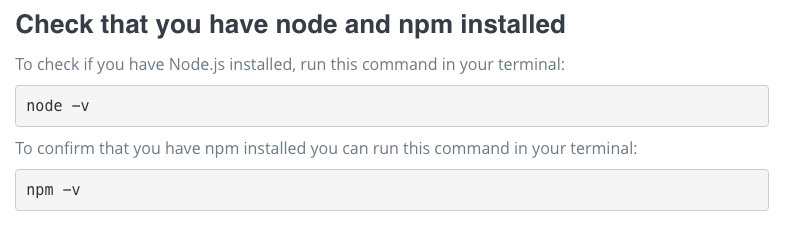

  • Node.js and NPM
  • IDE of your choice
  • Google Chrome

1. Make the App work

3. Implement Web Manifest

4. Implement Service Worker

2. Set up routing

6. Track offline status

7. Implement fallback page

5. Runtime caching

Agenda for today

If we still have time...

1. Make the App work

OSX/Linux

Make the App work

2. Create an empty folder and "cd ..."

3. Init the project from your new empty folder

4. Build the app

[XP Installation Folder]/toolbox/toolbox.sh init-project -n com.workshop.pwa -r workshop-pwa

Windows

[XP Installation Folder]/toolbox/toolbox.bat init-project -n com.workshop.pwa -r workshop-pwa

gradle build deploy

./gradlew build deploy

1. Make sure you have Enonic XP up and running

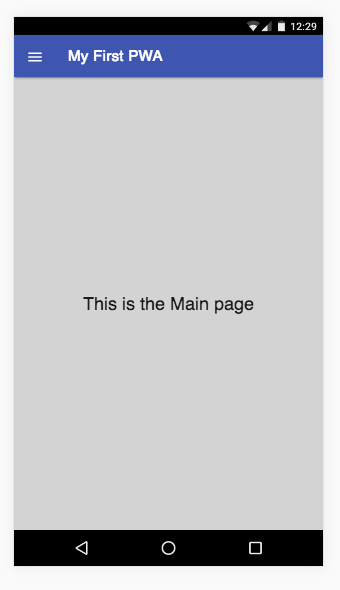

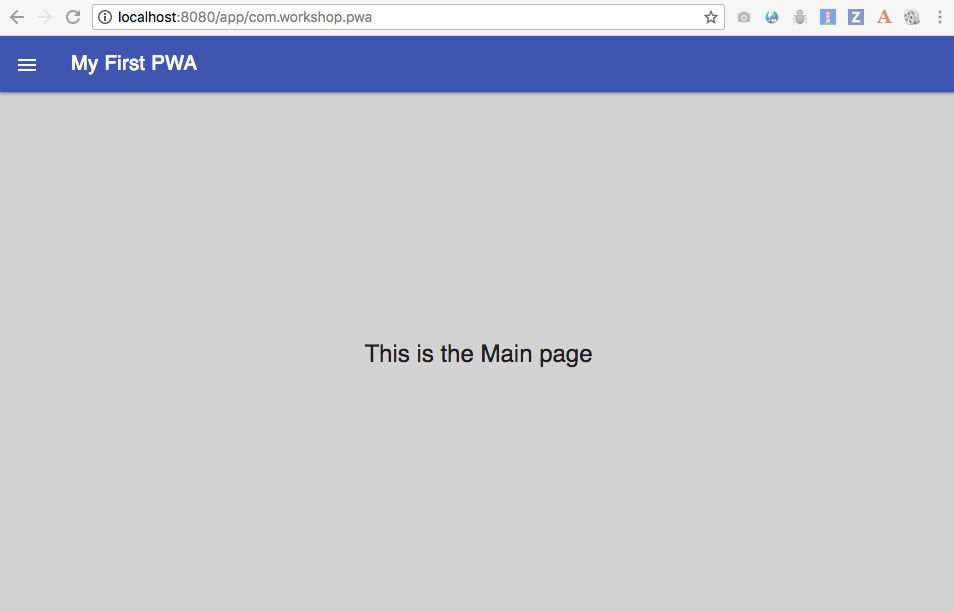

Open the app in your browser

http://localhost:8080/app/com.workshop.pwa

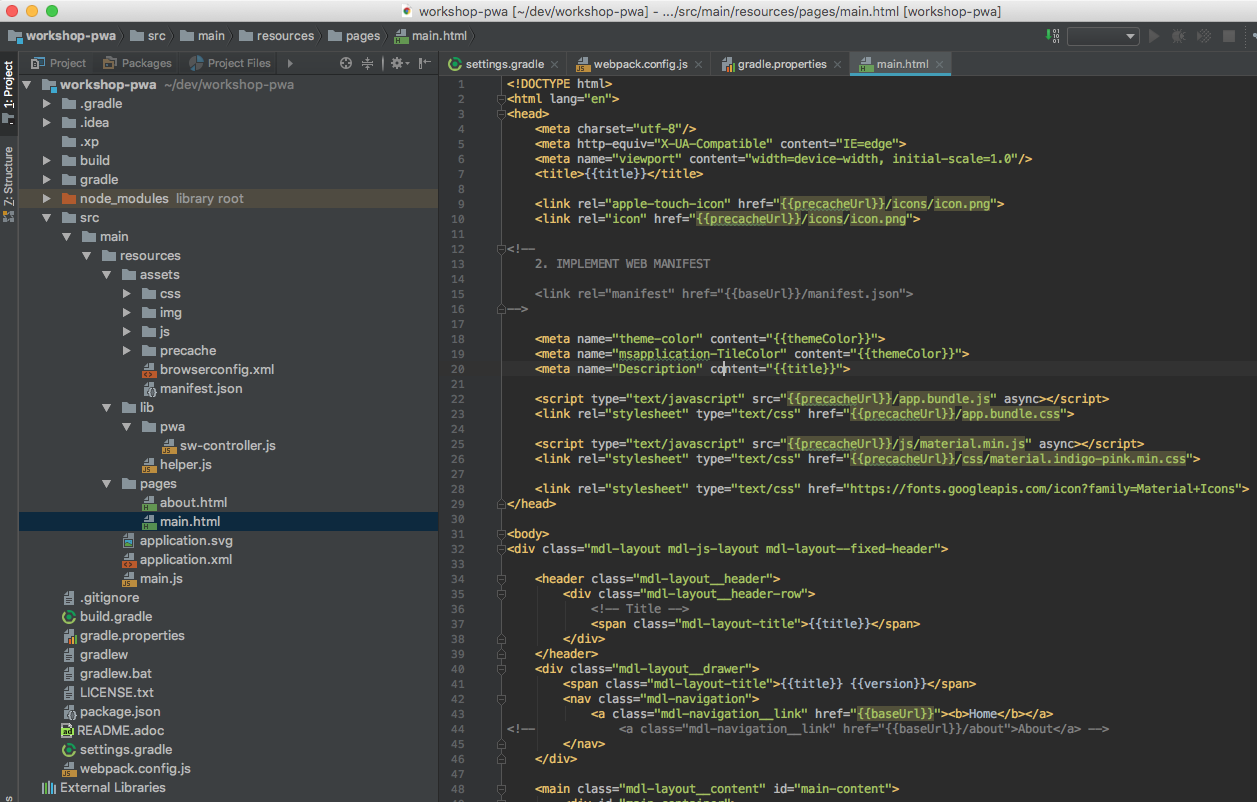

Open the app in your IDE

NB! We will always work in src/main/resources/

/webpack.config.js
const path = require('path');
const extractTextPlugin = require('extract-text-webpack-plugin');

const paths = {
    assets: 'src/main/resources/assets/',
    buildAssets: 'build/resources/main/assets/'
};

const assetsPath = path.join(__dirname, paths.assets);
const buildAssetsPath = path.join(__dirname, paths.buildAssets);

module.exports = {

    entry: path.join(assetsPath, 'js/main.js'),

    output: {
        path: buildAssetsPath,
        filename: 'precache/app.bundle.js'
    },

    resolve: {
        extensions: ['.js', '.less']
    },

    module: {
        rules: [
            {
                test: /.less$/,
                loader: extractTextPlugin.extract({
                    fallback: 'style-loader',
                    use: "css-loader!less-loader"
                })
            }
        ]
    },
    plugins: [
        new extractTextPlugin('precache/app.bundle.css')
    ]

};

2. Open /assets/js/main.js

1. Add a file called "new.js" to the "js" folder

console.log('Hello from new.js!");

3. Require 'new.js' from 'main.js'

require('../css/styles.less');

(function(){
    window.onload = function() {

        console.log('Hello from main.js!')

        require('./new.js');
    };
})();

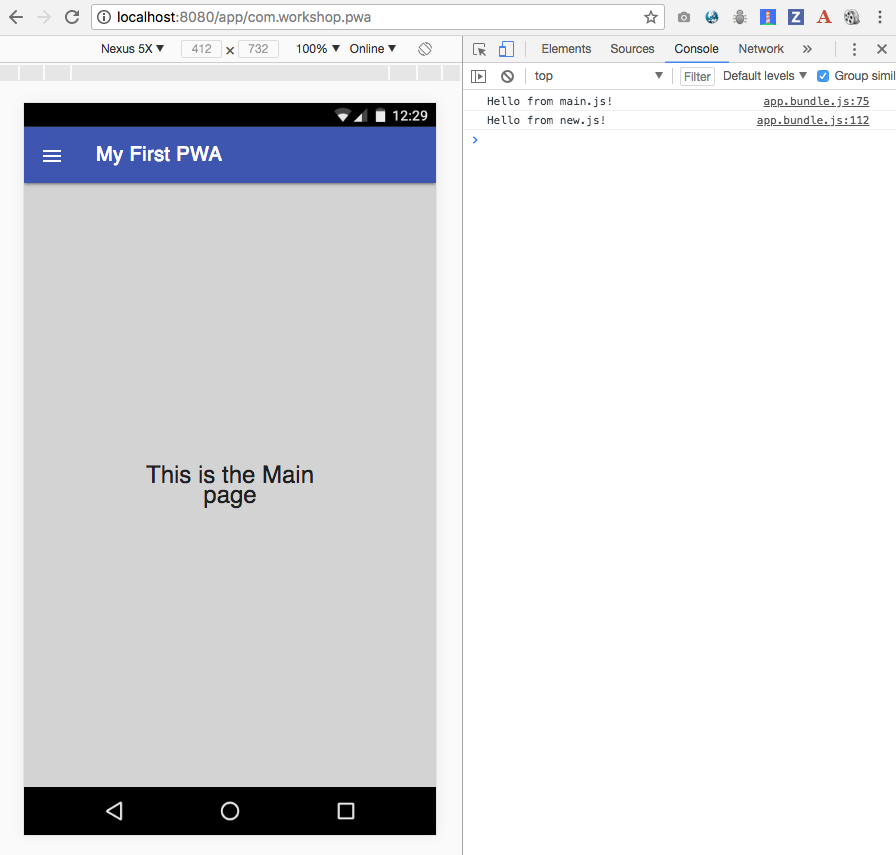

4.gradle deploy

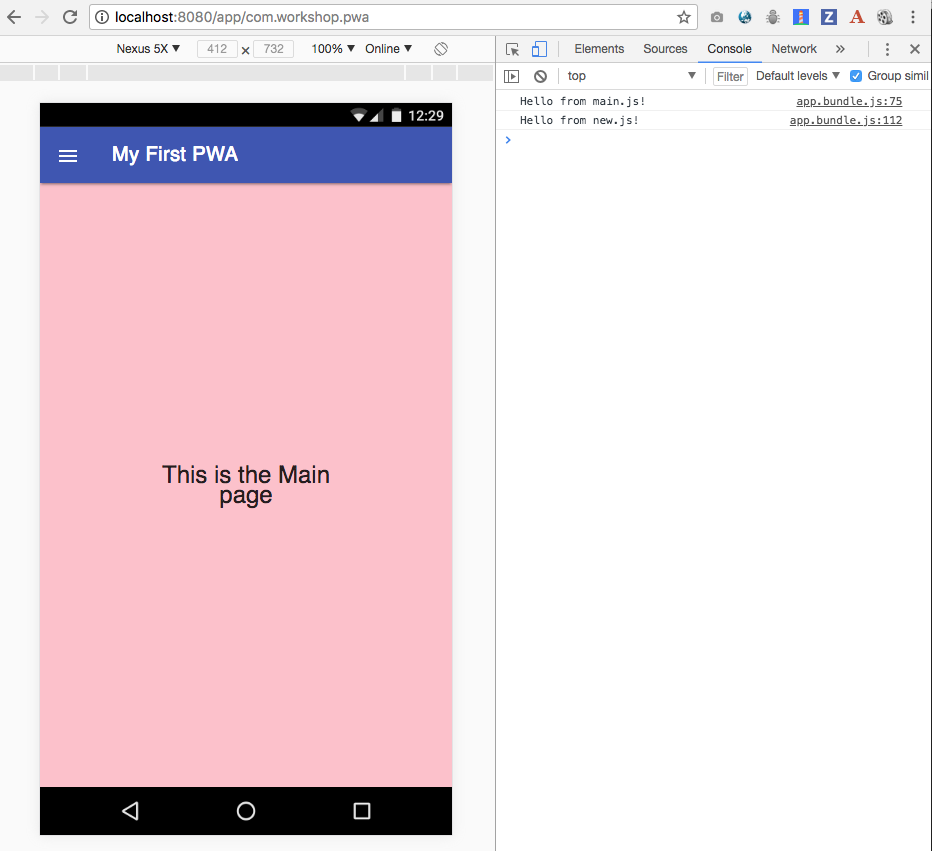

Refresh the page

2. Open /assets/css/styles.less

1. Add a file called "new.less" to the "css" folder

html body {
  background-color: pink;
}

3. Import 'new.less' from 'styles.less'

@import './new.less';

...

4. gradle deploy

Refresh the page

2. Routing

1. In "pages/main.html" uncomment the line below (line 40-ish):

Let's add the "About" page to our application (pages/about.html is already made for you)

        <nav class="mdl-navigation">
            <a class="mdl-navigation__link" href="{{baseUrl}}"><b>Home</b></a>
<!--            <a class="mdl-navigation__link" href="{{baseUrl}}/about">About</a> -->
        </nav>

2. Note that the "About" link still opens the main page, because of this get handler in main.js:

exports.get = function (req) {

    return {
        body: mustacheLib.render(resolve('pages/main.html'), {
            title: 'My First PWA',
            version: app.version,
            appUrl: helper.getAppUrl(),
            baseUrl: helper.getBaseUrl(),
            precacheUrl: helper.getBaseUrl() + '/precache',
            themeColor: '#FFF'
        })
    }
};

In main.js remove the GET handler at the bottom of the page:

exports.get = function (req) {

    return {
        body: mustacheLib.render(resolve('pages/main.html'), {
            title: 'My First PWA',
            version: app.version,
            appUrl: helper.getAppUrl(),
            baseUrl: helper.getBaseUrl(),
            precacheUrl: helper.getBaseUrl() + '/precache',
            themeColor: '#FFF'
        })
    }
};

And uncomment the block of the code above it, so that the entire code looks like this:

var mustacheLib = require('/lib/xp/mustache');
var helper = require('/js/helper');
var router = require('/lib/router')();
//var swController = require('/js/sw-controller');

var renderPage = function(pageName) {
    return function() {
        return {
            body: mustacheLib.render(resolve('pages/' + pageName), {
                title: siteTitle,
                version: app.version,
                baseUrl: helper.getBaseUrl(),
                appUrl: helper.getAppUrl(),
                precacheUrl: helper.getBaseUrl() + '/precache',
                themeColor: '#FFF'
            })
        };
    }
};

router.get('/', renderPage('main.html'));

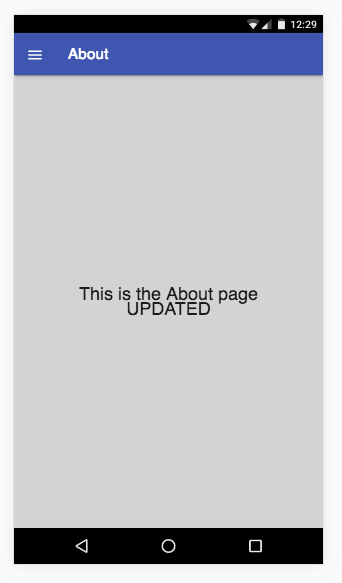

router.get('/about', renderPage('about.html'));

//router.get('/sw.js', swController.get);

exports.get = function (req) {
    return router.dispatch(req);
};

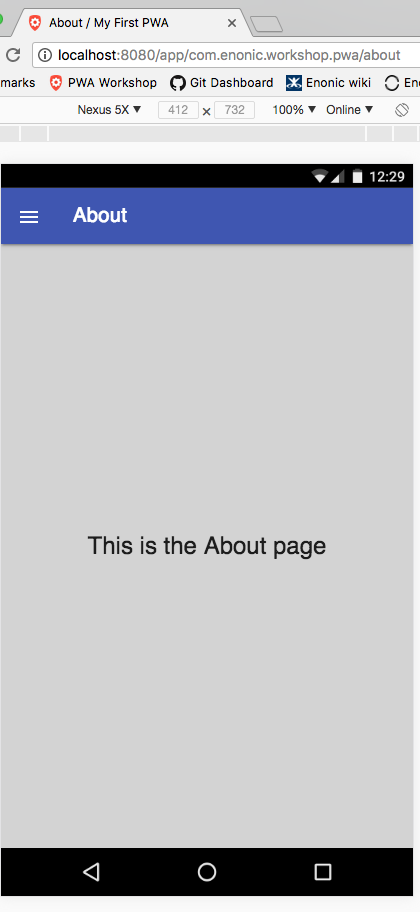

Test the page

3. Web Manifest

Web Manifest

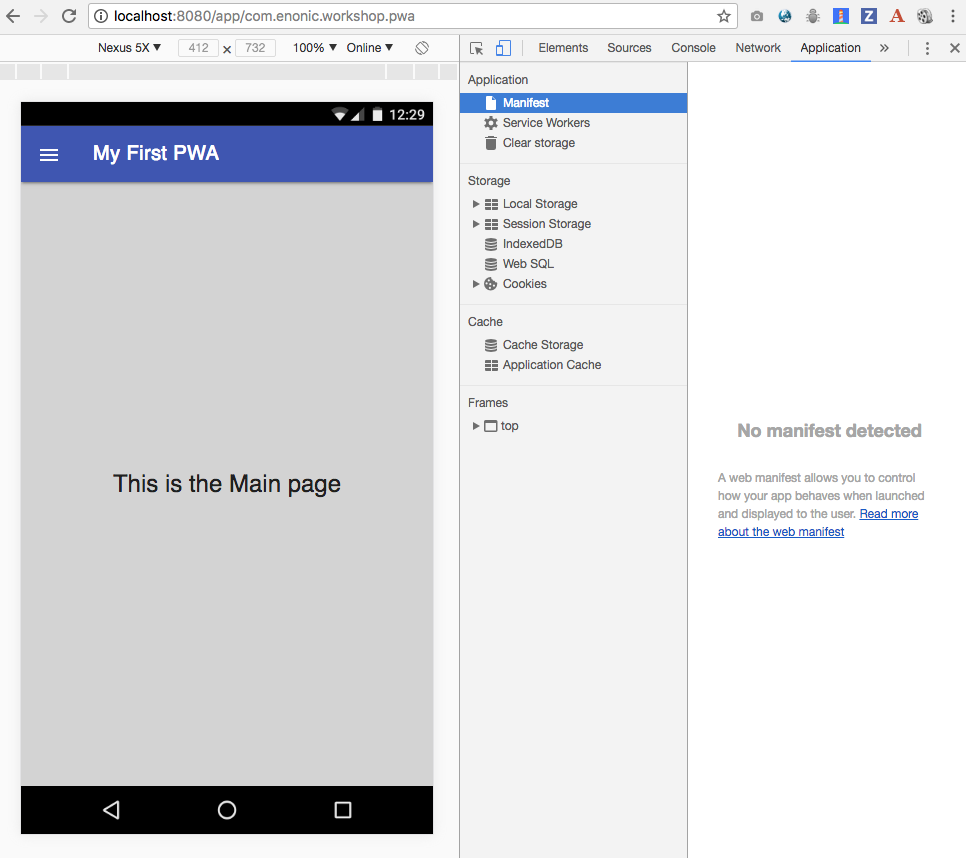

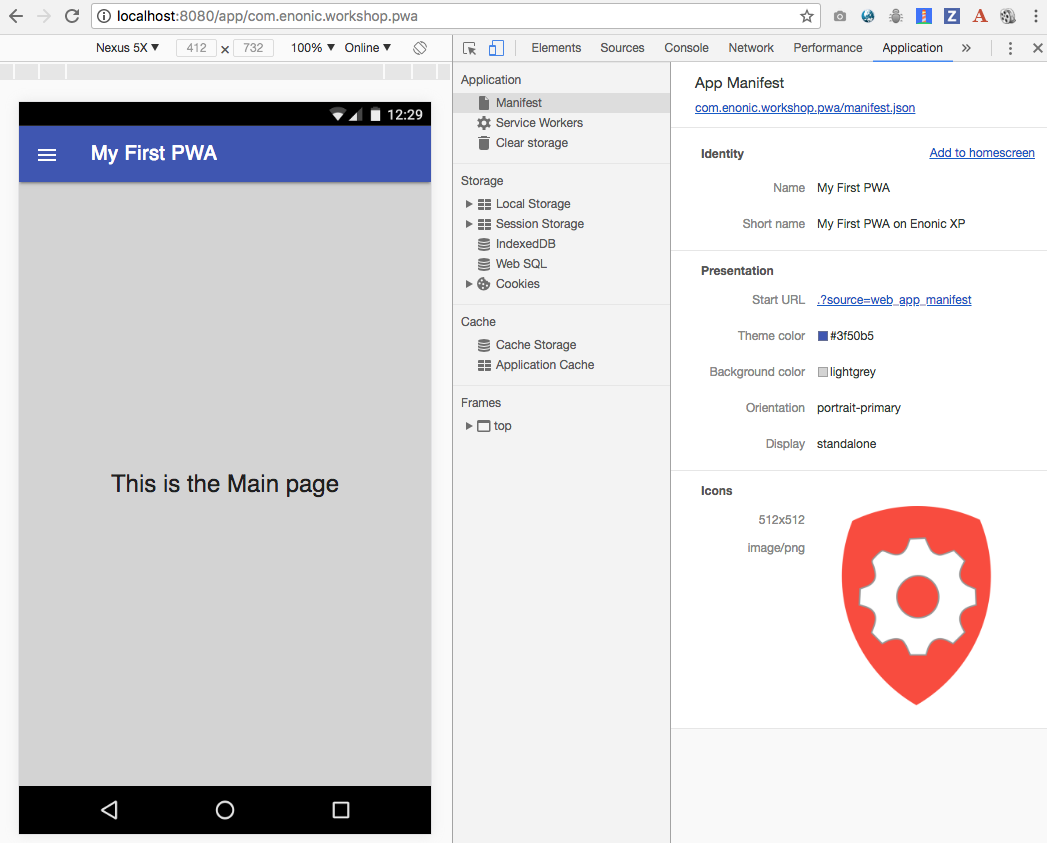

Open Dev Tools panel in your browser (Cmd-Alt-I)

Web Manifest

1. Open "manifest.json" file

2. Feel free to change app name, theme color and upload a different icon under precache/icons/

3. Now go to pages/main.html and uncomment code in <head>:

<head>
    <meta charset="utf-8"/>
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0"/>
    <title>{{title}}</title>

    <link rel="apple-touch-icon" href="{{precacheUrl}}/icons/icon.png">
    <link rel="icon" href="{{precacheUrl}}/icons/icon.png">

<!--
    2. IMPLEMENT WEB MANIFEST

    <link rel="manifest" href="{{baseUrl}}/manifest.json">
-->
...
4. gradle deploy

Web Manifest

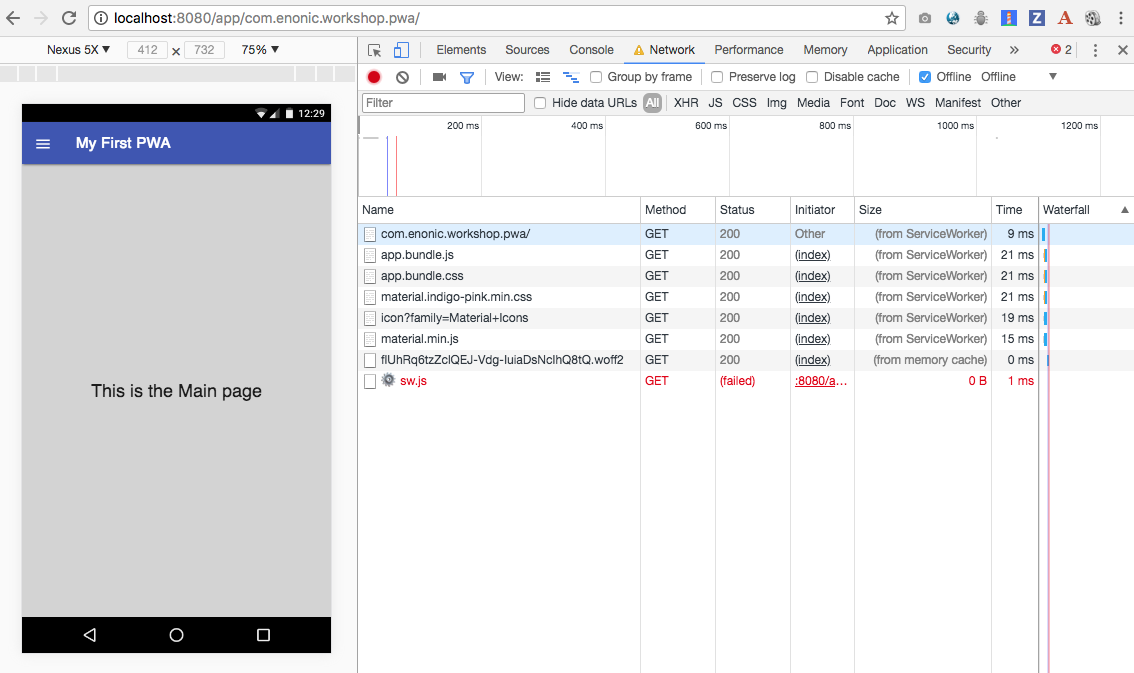

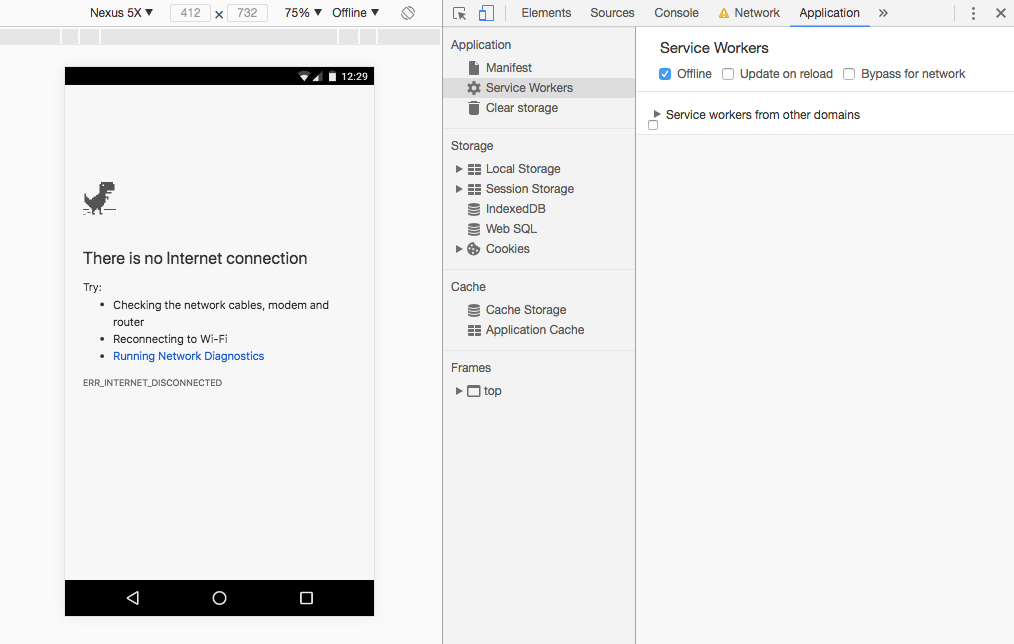

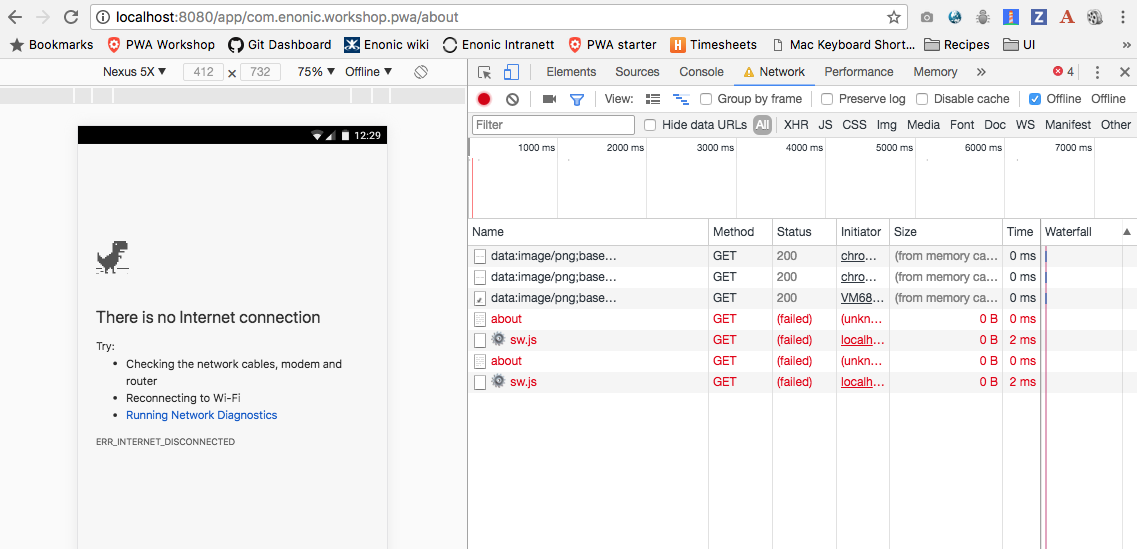

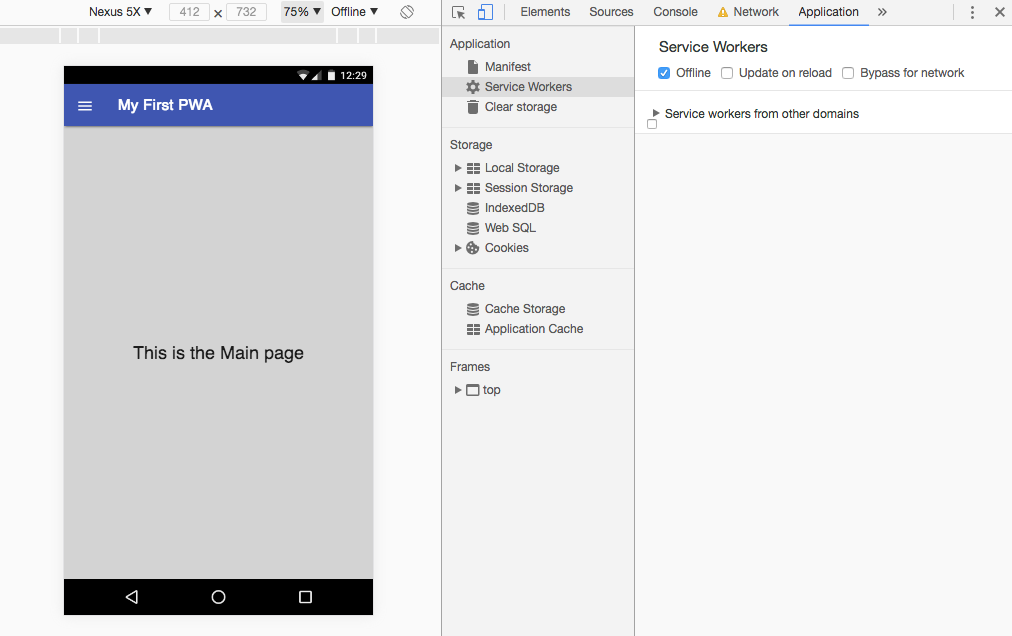

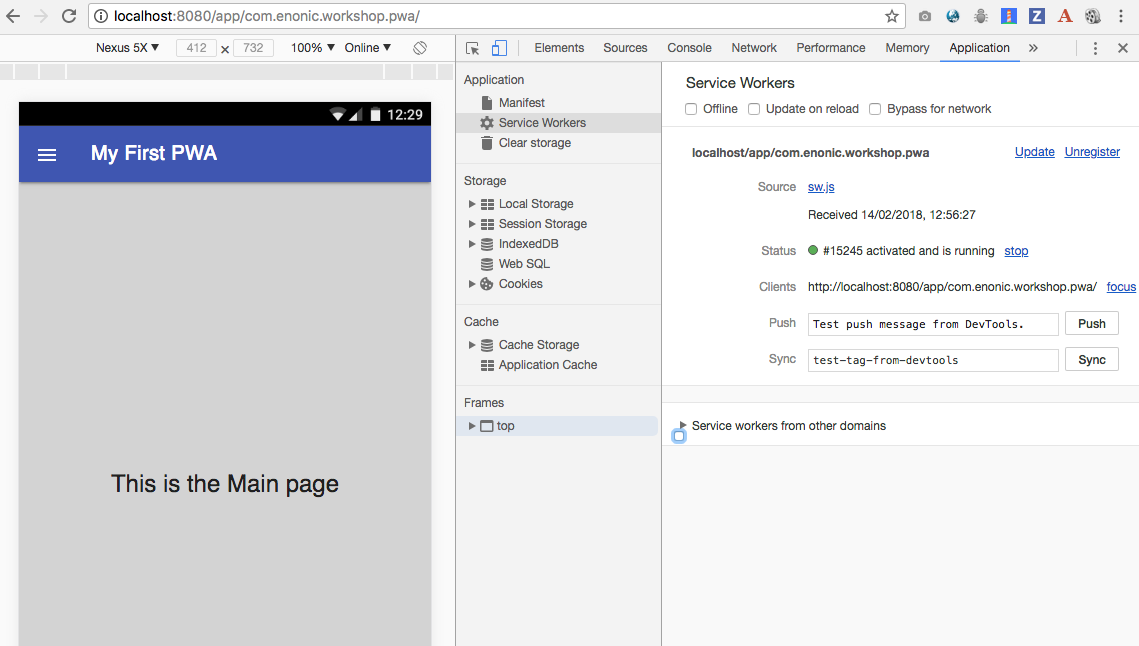

4. Offline Support

2. Note new entry in package.json

1. Install Workbox plugin

npm install workbox-webpack-plugin --save-dev

3. Open webpack.config.js and uncomment two blocks of code:

const path = require('path');
const extractTextPlugin = require('extract-text-webpack-plugin');

// 3. INSTALL WORKBOX
// const workboxPlugin = require('workbox-webpack-plugin');
...
plugins: [
        new extractTextPlugin('precache/app.bundle.css')/*,

        // 3. INSTALL WORKBOX

        new workboxPlugin({
            globDirectory: buildAssetsPath,
            globPatterns: ['precache/**\/*'],
            globIgnores: [],
            swSrc: path.join(assetsPath, 'js/sw-dev.js'),
            swDest: path.join(buildPwaLibPath, 'sw-template.js')
        })*/
    ]

Your webpack.config.js should now look like this:

const path = require('path');
const extractTextPlugin = require('extract-text-webpack-plugin');

const workboxPlugin = require('workbox-webpack-plugin');

const paths = {
    assets: 'src/main/resources/assets/',
    buildAssets: 'build/resources/main/assets/',
    buildServiceWorker: 'build/resources/main/js/'
};

const assetsPath = path.join(__dirname, paths.assets);
const buildAssetsPath = path.join(__dirname, paths.buildAssets);
const buildServiceWorkerPath = path.join(__dirname, paths.buildServiceWorker);

module.exports = {

    entry: path.join(assetsPath, 'js/main.js'),

    output: {
        path: buildAssetsPath,
        filename: 'precache/app.bundle.js'
    },

    resolve: {
        extensions: ['.js', '.less']
    },

    module: {
        rules: [
            {
                test: /.less$/,
                loader: extractTextPlugin.extract({
                    fallback: 'style-loader',
                    use: "css-loader!less-loader"
                })
            }
        ]
    },
    plugins: [
        new extractTextPlugin('precache/app.bundle.css'),

        new workboxPlugin({
            swSrc: path.join(assetsPath, 'js/sw-dev.js'),
            swDest: path.join(buildServiceWorkerPath, 'sw.js'),
            globDirectory: buildAssetsPath,
            globPatterns: ['precache/**\/*'],
            globIgnores: [],
        })
    ]

};

Open sw-dev.js:

importScripts('https://unpkg.com/workbox-sw@2.0.1/build/importScripts/workbox-sw.prod.v2.0.1.js');

const swVersion = '{{appVersion}}';
const workboxSW = new self.WorkboxSW({
    skipWaiting: true,
    clientsClaim: true
});

// This is a placeholder for manifest dynamically injected from webpack.config.js
workboxSW.precache([]);

// Here we precache urls that are generated dynamically in the main.js controller
workboxSW.precache([
    '{{{preCacheRoot}}}',
    '{{baseUrl}}/manifest.json',
    'https://fonts.googleapis.com/icon?family=Material+Icons'
]);

and note the empty precache([]) placeholder:

// This is a placeholder for manifest dynamically injected from webpack.config.js
workboxSW.precache([]);

Build the app and open "/build/resources/main/js/sw.js"

// This is a placeholder for manifest dynamically injected from webpack.config.js
workboxSW.precache([
  {
    "url": "precache/app.bundle.css",
    "revision": "5d741d8bf5a6d6c539ff0c9115728210"
  },
  {
    "url": "precache/app.bundle.js",
    "revision": "c06d8879c8aec1b28064a101afe9ee38"
  },
  {
    "url": "precache/css/material.indigo-pink.min.css",
    "revision": "6036fa3a8437615103937662723c1b67"
  },
  {
    "url": "precache/icons/icon.png",
    "revision": "b4956f40834b4787e2f3c596d3888e94"
  },
  {
    "url": "precache/icons/offline.svg",
    "revision": "d55ee8e6215e0cdaf07625a0f6504ef4"
  },
  {
    "url": "precache/icons/online.svg",
    "revision": "2c06553157be434b9627791a513de76b"
  },
  {
    "url": "precache/icons/safari-pinned-tab.svg",
    "revision": "334d73d2565b31cb9f537a7732e88153"
  },
  {
    "url": "precache/js/material.min.js",
    "revision": "713af0c6ce93dbbce2f00bf0a98d0541"
  }
]);

Service Worker

Set up routing to sw.js

Open main.js and uncomment the two commented lines:

//var swController = require('/js/sw-controller');

...

//router.get('/sw.js', swController.get);

Register Service Worker

Open pages/main.html and uncomment the big block of code at the bottom of the page:

<script type="text/javascript">
    if ('serviceWorker' in navigator) {
        navigator.serviceWorker
            .register('{{baseUrl}}/sw.js', {scope: '{{appUrl}}'})
            .then(function(reg) {
                reg.onupdatefound = function() {
                    notifyAboutNewVersion();
                };
                console.log('Service Worker registered with scope '  + reg.scope);
            }, function() {
                console.log('Service Worker registration failure.');
            });
    }

    ...
</script>

gradle build deploy

Service Worker is up!

Try the Offline mode

Try switching the page

5. Runtime Caching

2. Open sw-dev.js and uncomment the last two lines:

...

workboxSW.router.setDefaultHandler({
    handler: workboxSW.strategies.cacheFirst()
});

workboxSW.router.registerRoute(
    '{{baseUrl}}/about',
    workboxSW.strategies.networkFirst()
);

1. Go online and go back to the main page

gradle build deploy

1. Refresh the main page

2. Go offline

3. Try opening the "About" page.

4. Go online

5. Refresh the "About" page

6. Go offline

7. Test that both Home page and About page work offline

8. Go online

Difference between CacheFirst and NetworkFirst

1. Open main.html and change the text on the page

    <main class="mdl-layout__content" id="main-content">
        <div id="main-container">

            <div id="page-content">
                This is the Main page UPDATED
            </div>
        </div>
    </main>

2. Open about.html and do the same

    <main class="mdl-layout__content" id="main-content">
        <div id="main-container">
            <div id="page-content">
                This is the About page UPDATED
            </div>
        </div>
    </main>
gradle build deploy

CacheFirst

NetworkFirst

Difference between CacheFirst and NetworkFirst

That's all!

Enonic PWA Workshop

By Alan Semenov

Made with Slides.com

Enonic PWA Workshop

Enonic Meetup "Build Your First PWA"

  • 1,301

More from Alan Semenov
