Alan King

Senior Software Developer

iRODS Consortium

July 6, 2022

iRODS User Group Meeting 2022

KU Leuven, Belgium

iRODS Development and Testing Environment

iRODS Development and Testing Environment

Overview

  • Motivation
  • History
  • Limitations of the past
  • Development Environment
  • Testing Environment
  • Demo
  • Future Work



Motivation

Tests should be meaningful and consistent.



Running tests should be reliable and accessible.



Passing tests build confidence in the changes developers make to software, asserting the correctness of the changes and of the entire system.

History of Build-and-Test Systems at iRODS

  • v1 - July 2011: Python → Node.js → RabbitMQ → Celery → Eucalyptus
  • v2 - October 2012: Python → Node.js → ssh → OpenStack
  • v3 - January 2013: Hudson → Python → OpenStack
  • v4 - October 2013: Hudson → Python → vSphere long-running VMs
  • v5 - Spring 2015: Jenkins → Python → Ansible → zone_bundles → vSphere dynamic VMs
  • v6 - Spring 2017: Jenkins → Python → vSphere dynamic VMs → build/test hooks
  • v7 - Summer 2019: Docker → Jenkins → Python → Docker → build/test hooks

Limitations of the past

  • Vendor lock-in (Jenkins)
  • Difficult to manage test results and built package output
  • Docker image explosion
  • Opaque business logic

v8 - 2021/2022

iRODS Development Environment

https://github.com/irods/irods_development_environment

Set of Dockerized applications used to build, run, and debug packages for the iRODS server, iCommands, and plugins.



iRODS Testing Environment

https://github.com/irods/irods_testing_environment

Scripts built on python library which uses Docker Compose to stand up iRODS zones in various configurations and run tests.

Basic Build-and-Test Workflow

source code



packages



test results

irods_testing_environment

irods_development_environment

iRODS Development Environment

Features:

  • Package builders for iRODS, plugins, and externals
  • Debuggers

Advantages:

  • No cloning or copying repositories
  • Build cache allows for faster iteration
  • Consistent process for development and release

Basic Build-and-Test Workflow

source code



packages



test results

irods_testing_environment

irods_development_environment

iRODS Testing Environment

Features:

  • Parallel/remote test execution for iRODS and plugins
  • Multi-server and federated iRODS zones
  • Extensible python library for custom scripts
  • Stand up iRODS zone for any (recent-ish) released version

Advantages:

  • Precision controls for running tests in parallel
  • Convenient way to reproduce issues
  • Consistent process for bench and automated testing

iRODS Testing Environment

$ python run_core_tests.py --project-directory projects/ubuntu-20.04/ubuntu-20.04-postgres-10.12 \
                           --irods-package-directory ~/hdd/builds/irods_packages/4-3-stable/ubuntu-20.04 \
                           --concurrent-test-executor-count 4 -v
<snip>
2022-06-23 15:38:30,381 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_2]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_irm', '--xml_output']]
2022-06-23 15:39:12,397 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_4]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_ireg', '--xml_output']]
2022-06-23 15:39:17,437 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_4]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_irmtrash', '--xml_output']]
2022-06-23 15:40:43,075 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_4]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_iscan', '--xml_output']]
2022-06-23 15:41:27,853 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_4]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_itouch', '--xml_output']]
2022-06-23 15:42:17,991 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_4]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_iuserinfo', '--xml_output']]
2022-06-23 15:42:21,349 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_4]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_negotiation', '--xml_output']]
2022-06-23 15:42:49,652 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_4]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_quotas', '--xml_output']]
2022-06-23 15:44:15,902 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_3]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_resource_types.Test_Resource_CompoundWithMockarchive', '--xml_output']]
2022-06-23 15:45:35,288 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_1]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_all_rules', '--xml_output']]
2022-06-23 15:49:06,316 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_2]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_irsync', '--xml_output']]
2022-06-23 15:49:19,821 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_2]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_isysmeta', '--xml_output']]
2022-06-23 15:49:39,938 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_2]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_itrim', '--xml_output']]
2022-06-23 15:49:46,930 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_1]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_control_plane', '--xml_output']]
2022-06-23 15:49:52,223 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_2]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_load_balanced_suite', '--xml_output']]
2022-06-23 15:49:55,635 ERROR - [ubuntu-2004-postgres-1012_irods-catalog-provider_2]: cmd succeeded [['python3', '/var/lib/irods/scripts/run_tests.py', '--run_specific_test', 'test_prep_genquery_iterator', '--xml_output']]
<snip>
2022-06-23 18:19:10,572 ERROR - ==== begin test run results ====
-----
results for [ubuntu-2004-postgres-1012_irods-catalog-provider_1]
        passed tests:
                [[1697.3373]s]  [test_all_rules]
                [[ 251.6414]s]  [test_control_plane]
                [[  89.0497]s]  [test_ibun]
                [[3715.5025]s]  [test_icommands_file_operations]
                [[  14.8783]s]  [test_igroupadmin]
                [[  18.9958]s]  [test_ilsresc]
                [[  26.3037]s]  [test_imeta_interactive]
                [[  30.7978]s]  [test_ipasswd]
                [[   5.0171]s]  [test_ipwd]
                [[1463.7713]s]  [test_irepl]
                [[   9.3546]s]  [test_irodsctl]
                [[  58.6852]s]  [test_istream]
                [[  35.5464]s]  [test_itree]
                [[   7.3381]s]  [test_izonereport]
                [[ 261.9476]s]  [test_native_rule_engine_plugin]
                [[  14.3952]s]  [test_resource_configuration]
                [[ 837.4747]s]  [test_resource_types.Test_Resource_Deferred]
                [[ 960.3886]s]  [test_resource_types.Test_Resource_Random]
                [[1379.2288]s]  [test_resource_types.Test_Resource_ReplicationToTwoCompound]
                [[  27.3775]s]  [test_resource_types.Test_Resource_WeightedPassthru]
                [[   7.5812]s]  [test_special_collections]
        skipped tests:
        failed tests:
        return code:[0]
        time elapsed: [1.091e+04]seconds ([   3]hours [    1.877]minutes)
-----
-----
results for [ubuntu-2004-postgres-1012_irods-catalog-provider_2]
        passed tests:
                [[   3.2683]s]  [test_auth]
                [[ 385.5667]s]  [test_delay_queue]
                [[  13.5900]s]  [test_icd]
                [[ 178.9789]s]  [test_icp]
                [[   4.5107]s]  [test_ihelp]
                [[  27.5451]s]  [test_imeta_admin_mode]
                [[ 273.2416]s]  [test_imeta_set]
                [[ 362.5961]s]  [test_iphymv]
                [[   5.4457]s]  [test_iqmod]
                [[  17.6846]s]  [test_irm]
                [[ 635.9353]s]  [test_irsync]
                [[  13.5050]s]  [test_isysmeta]
                [[  20.1163]s]  [test_itrim]
                [[  12.2845]s]  [test_load_balanced_suite]
                [[   3.4121]s]  [test_prep_genquery_iterator]
                [[1037.5428]s]  [test_resource_types.Test_Resource_Compound]
                [[ 899.7080]s]  [test_resource_types.Test_Resource_MultiLayered]
                [[ 965.3594]s]  [test_resource_types.Test_Resource_RandomWithinRandom]
                [[1485.8112]s]  [test_resource_types.Test_Resource_ReplicationToTwoCompoundResourcesWithPreferArchive]
                [[  66.3305]s]  [test_rule_engine_plugin_framework]
                [[  23.2960]s]  [test_ssl]
        skipped tests:
        failed tests:
        return code:[0]
        time elapsed: [6.436e+03]seconds ([   1]hours [    47.26]minutes)
-----
-----
results for [ubuntu-2004-postgres-1012_irods-catalog-provider_3]
        passed tests:
                [[  22.8854]s]  [test_catalog]
                [[  18.0757]s]  [test_dynamic_peps]
                [[ 161.7720]s]  [test_ichksum]
				[[   3.4590]s]  [test_iexit]
                [[  13.3650]s]  [test_ilocate]
                [[  18.2060]s]  [test_imeta_error_handling]
                [[  18.8343]s]  [test_imkdir]
                [[  46.6802]s]  [test_iput]
                [[ 121.4816]s]  [test_iquest]
                [[  53.1015]s]  [test_irmdir]
                [[  14.9655]s]  [test_irule]
                [[ 136.8253]s]  [test_iticket]
                [[  30.0276]s]  [test_iunreg]
                [[  77.1380]s]  [test_misc]
                [[   3.0893]s]  [test_python_rule_engine_plugin]
                [[ 878.0375]s]  [test_resource_types.Test_Resource_CompoundWithMockarchive]
                [[ 723.4627]s]  [test_resource_types.Test_Resource_NonBlocking]
                [[1060.6564]s]  [test_resource_types.Test_Resource_RandomWithinReplication]
                [[1159.1791]s]  [test_resource_types.Test_Resource_ReplicationWithinReplication]
                [[   4.4386]s]  [test_rule_engine_plugin_passthrough]
                [[  14.9310]s]  [test_stacktrace]
        skipped tests:
        failed tests:
        return code:[0]
        time elapsed: [4.581e+03]seconds ([   1]hours [    16.34]minutes)
-----
-----
results for [ubuntu-2004-postgres-1012_irods-catalog-provider_4]
        passed tests:
                [[  30.1313]s]  [test_collection_mtime]
                [[ 860.5208]s]  [test_iadmin]
                [[  59.1282]s]  [test_ichmod]
                [[  13.1591]s]  [test_ifsck]
                [[  58.4915]s]  [test_ils]
                [[   9.2195]s]  [test_imeta_help]
                [[  34.9259]s]  [test_imv]
                [[  92.3246]s]  [test_iput_options]
                [[ 156.5395]s]  [test_ireg]
                [[   5.0398]s]  [test_irmtrash]
                [[  85.6373]s]  [test_iscan]
                [[  44.7783]s]  [test_itouch]
                [[  50.1372]s]  [test_iuserinfo]
                [[   3.3577]s]  [test_negotiation]
                [[  28.3033]s]  [test_quotas]
                [[1258.4760]s]  [test_resource_types.Test_Resource_CompoundWithUnivmss]
                [[ 777.6891]s]  [test_resource_types.Test_Resource_Passthru]
                [[2057.2540]s]  [test_resource_types.Test_Resource_Replication]
                [[ 874.8417]s]  [test_resource_types.Test_Resource_Unixfilesystem]
                [[ 924.4358]s]  [test_rulebase]
                [[  77.2080]s]  [test_symlink_operations]
        skipped tests:
        failed tests:
        return code:[0]
        time elapsed: [7.502e+03]seconds ([   2]hours [    5.027]minutes)
-----
All tests passed! :)
time elapsed: [10912.6214]seconds ([   3]hours [ 1.8770]minutes)
==== end of test run results ====

Future Work and Dreams

  • Web application
  • Automation/CI
  • Client build/test
  • Environment reproduction (zone report)
  • Execution environment agnosticism (Docker, podman, VMs)
  • Orchestration

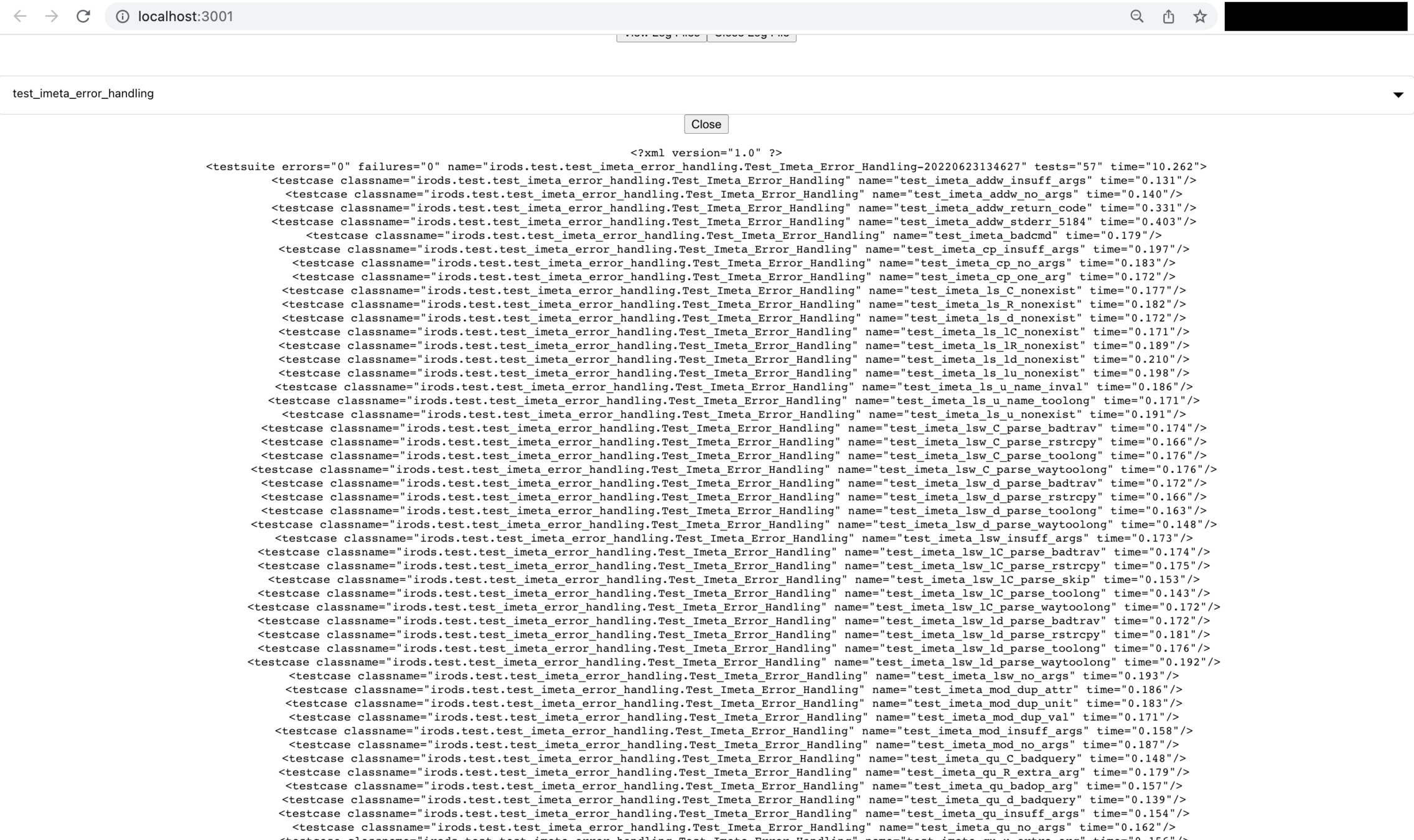

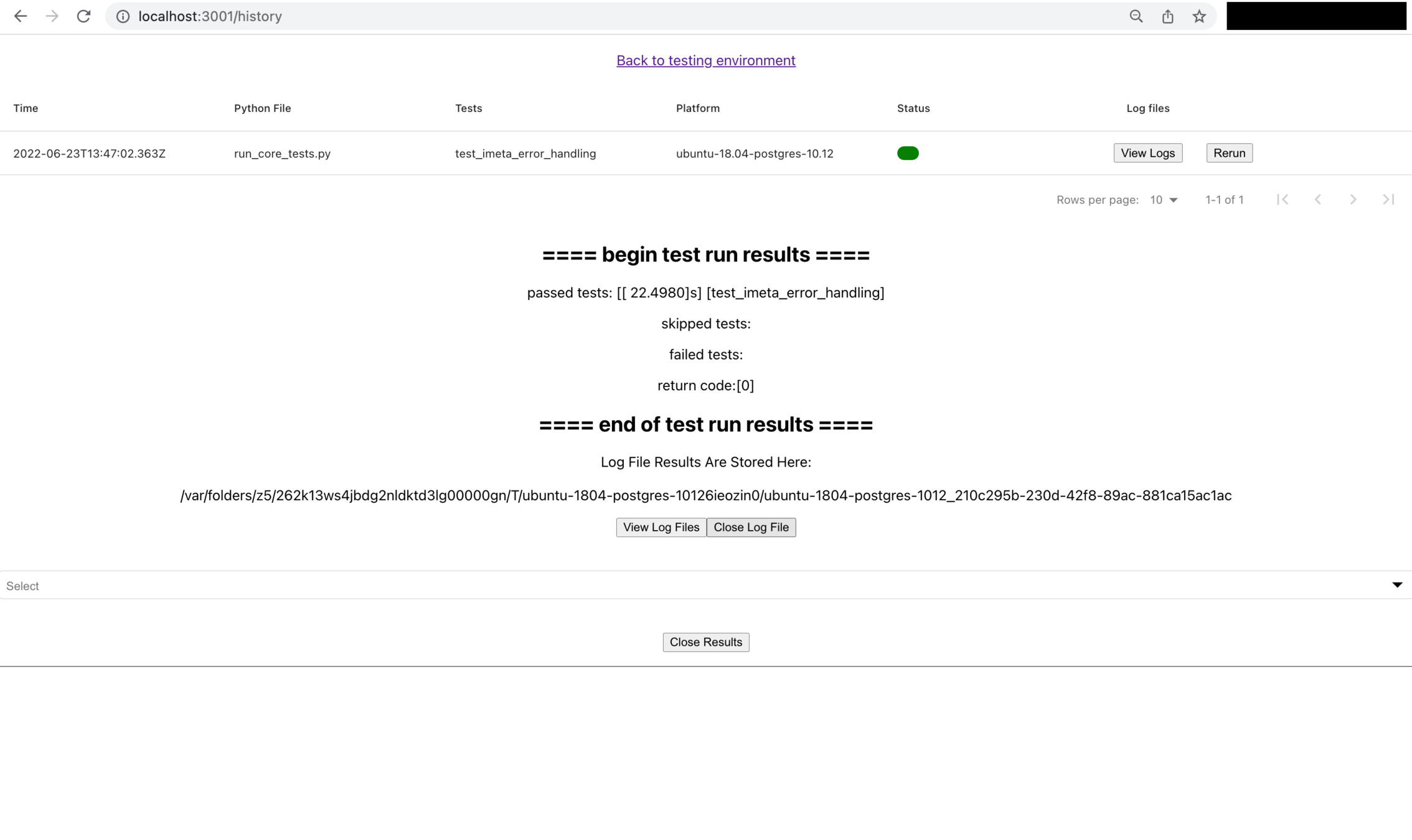

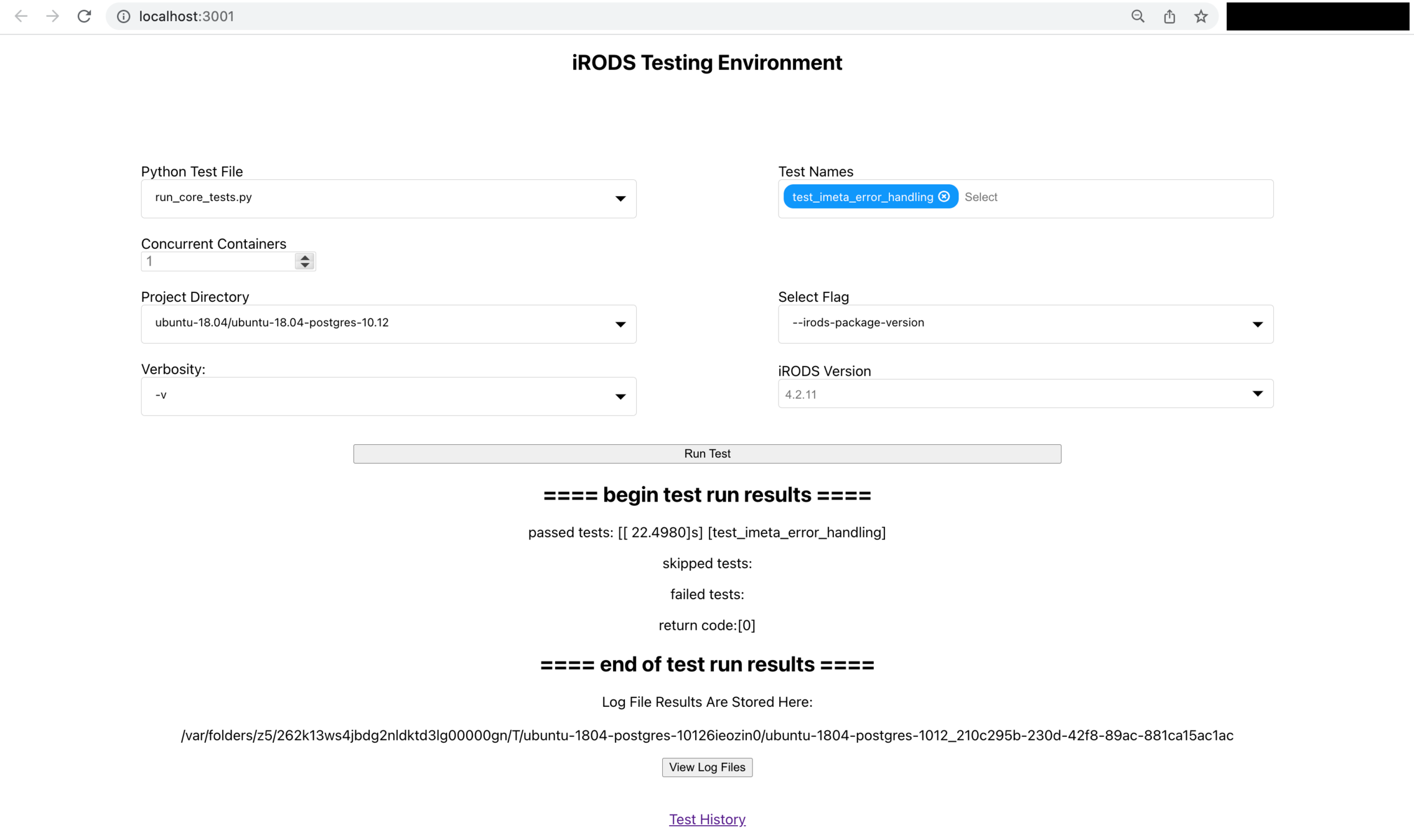

The Build-and-Test Monitor

The Build-and-Test Monitor

The Build-and-Test Monitor

Thanks for listening
