Mastering Swoole PHP

讀書會#13

07/01

19:30~21:00

@Google Meet

Websocket

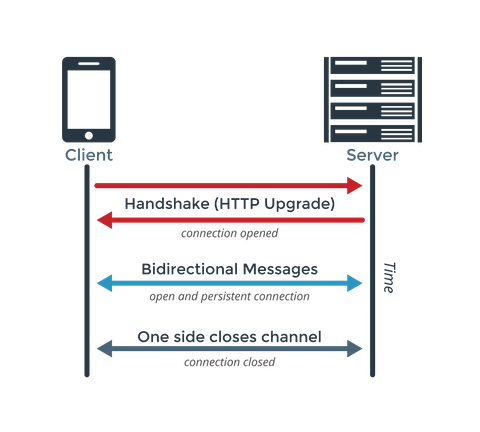

Websocket

Websocket

  • Stateful Protocol

  • Full Duplex

  • Bi-directional Messaging Pattern

  • Long-lived TCP Connection

  • Widely Supported by Modern Browsers

  • More Efficient Than HTTP Polling

Websocket

GET / HTTP/1.1
Host: www.cnn.com
Connection: keep-alive
Cache-Control: no-cache
Pragma: no-cache
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
User-Agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.17 (KHTML, like Gecko) Chrome/24.0.1312.68 Safari/537.17
Accept-Encoding: gzip,deflate,sdch
Accept-Language: en-US,en;q=0.8
Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.3
Cookie: [[[2428 byte of cookie data]]]
HTTP/1.1 200 OK
Server: nginx
Date: Wed, 13 Feb 2013 18:56:27 GMT
Content-Type: text/html
Transfer-Encoding: chunked
Connection: keep-alive
Set-Cookie: CG=US:TX:Arlington; path=/
Last-Modified: Wed, 13 Feb 2013 18:55:22 GMT
Vary: Accept-Encoding
Cache-Control: max-age=60, private
Expires: Wed, 13 Feb 2013 18:56:54 GMT
Content-Encoding: gzip
  • HTTP Header Payload

Websocket

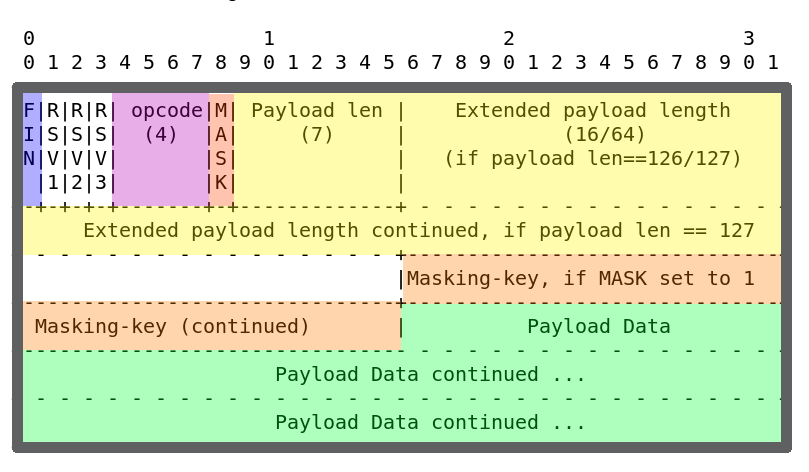

  • Websocket Payload

Websocket

  • Websocket Server

<?php

$server = new Swoole\WebSocket\Server('0.0.0.0', 9501);

$server->on('open', function ($server, $request) {
    echo "handshake succeeded with fd {$request->fd}\n";
});

$server->on('message', function ($server, $frame) {
    if ($frame->data === 'exit') {
        $server->disconnect($frame->fd);
        return;
    }

    echo "received from {$frame->fd}:{$frame->data}, opcode:{$frame->opcode}, fin:{$frame->finish}\n";
    $server->push($frame->fd, $frame->data);
});

$server->on('close', function ($server, $fd) {
    echo "client {$fd} closed\n";
});

echo "Server is starting...\n";
$server->start();

Websocket

When is HTTP better?

When is Websocket Better?

Websocket

  • When is HTTP better?

    • Retrieve Resource
    • Highly Cacheable Resource
    • Error Scenarios
    • Request-response Pattern

Websocket

  • When is Websocket better?

    • Fast Reaction Time
    • Real Time Data Updates
    • Ad-hoc Messaging
    • High-Frequency Messaging with Small Payloads

Websocket

Is Websocket Suitable

for Large Payload Transfer?

Websocket

  • Websocket Transfer Protocol

    • Protocol itself basically doesn't have a size limit. (2^63)
    • Websocket is a Frame based protocol.
    • Chunking in Application Layer is required for multiplexing.
    • A size limit is always defined in many implementations or SaaS platforms.
    • Large payload in websocket transfer in not efficient.

Websocket

How to Get Unreceived Messages

When Clients Are Disconnected?

Websocket

How to Get Unreceived Messages

When Clients Are Disconnected?

Websocket

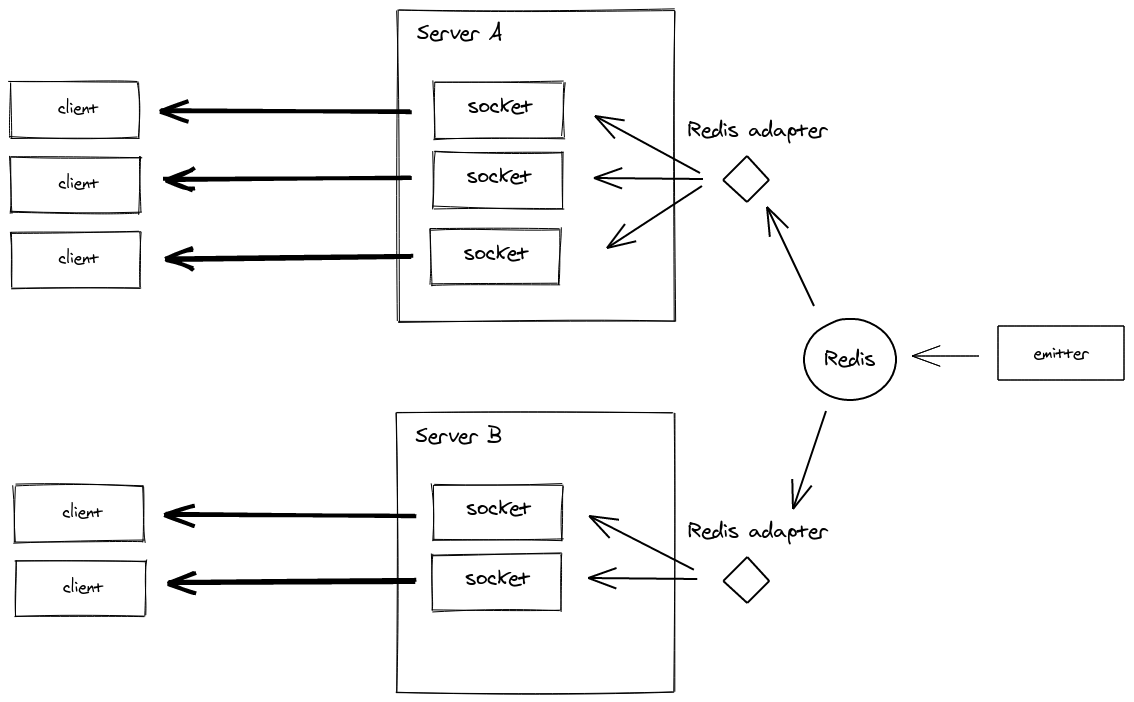

How to Scale Your Websocket Server?

Websocket

Discussion
