Sistema de control sobre Robot Diferencial

Alejandro Daniel José Gómez Flórez

Estudiante de Ingeniería de Control

Objetivo

La finalidad es implementar un sistema de control, que permita controlar las trayectorias sobre un robot móvil, cuya tracción está dada por la diferencia de velocidades de dos ruedas.

Trabajo Previo

En el semestre 2014-02 se realizó un estudio sobre el modelado de robots diferenciales, en un Proyecto Academico Especial dirigido por la profesora Eliana Arango y realizado por las estudiantes Verónica Londoño y Maria Clara Salazar.

Trabajo Previo

Se destaca el uso del modelado del sistema mecánico a partir de las ecuaciones de Euler-Lagrange:

\frac{\partial L}{\partial x_i}-\frac{{d}}{{d}t}(\frac{\partial L}{\partial \dot{x_i}}) = Q_i

\frac{​ \partial L ​ ​}{​ \partial x ​ i ​ ​ ​} - \frac{​ d ​ ​}{​ d t ​} (\frac{​ \partial L ​ ​}{​ \partial ​ x ​ i ​ ​ ​ ˙ ​ ​ ​}) = Q ​ i ​ ​

L = T-V

L = T - V

T :

V :

Energía cinética

Energía Potencial

L :

Lagrangiano

Q_i:

Q ​ i ​ ​ :

Fuerzas externas

Trabajo Previo

Variables de estado:

\frac{\partial L}{\partial x_i}-\frac{{d}}{{d}t}(\frac{\partial L}{\partial \dot{x_i}})=Q_i

\frac{​ \partial L ​ ​}{​ \partial x ​ i ​ ​ ​} - \frac{​ d ​ ​}{​ d t ​} (\frac{​ \partial L ​ ​}{​ \partial ​ x ​ i ​ ​ ​ ˙ ​ ​ ​}) = Q ​ i ​ ​

\dot{X} = AX+BU

​ X ​ ˙ ​ ​ = A X + B U

Y = CX

Y = C X

X = [\theta_1\,\,\dot{\theta_1}\,\,\theta_2\,\,\dot{\theta_2}]^T

X = [θ ​ 1 ​ ​ ​ θ ​ 1 ​ ​ ​ ˙ ​ ​ θ ​ 2 ​ ​ ​ θ ​ 2 ​ ​ ​ ˙ ​ ​] ​ T ​ ​

U = [\tau_1\,\,\tau_2]^T

U = [τ ​ 1 ​ ​ τ ​ 2 ​ ​] ​ T ​ ​

Modificaciones Trabajo Previo

X = [\theta_R\,\,\theta_L\,\,\dot{\theta_R}\,\,\dot{\theta_L}\,\,\theta\,\,S]^T

X = [θ ​ R ​ ​ θ ​ L ​ ​ ​ θ ​ R ​ ​ ​ ˙ ​ ​ ​ θ ​ L ​ ​ ​ ˙ ​ ​ θ S] ​ T ​ ​

U = [\tau_R\,\,\tau_L]^T

U = [τ ​ R ​ ​ τ ​ L ​ ​] ​ T ​ ​

Y = [\dot{\theta_R}\,\,\dot{\theta_L}\,\,\theta\,\,S]^T

Y = [​ θ ​ R ​ ​ ​ ˙ ​ ​ ​ θ ​ L ​ ​ ​ ˙ ​ ​ θ S] ​ T ​ ​

Modificaciones Trabajo Previo

\theta

θ

\omega

ω

v

\theta

θ

S

\dot{\theta_R}

​ θ ​ R ​ ​ ​ ˙ ​ ​

\dot{\theta_L}

​ θ ​ L ​ ​ ​ ˙ ​ ​

Modificaciones Trabajo Previo

\dot{\theta_R}

​ θ ​ R ​ ​ ​ ˙ ​ ​

\dot{\theta_L}

​ θ ​ L ​ ​ ​ ˙ ​ ​

\tau_R

τ ​ R ​ ​

\tau_L

τ ​ L ​ ​

\dot{\theta_R}

​ θ ​ R ​ ​ ​ ˙ ​ ​

\dot{\theta_L}

​ θ ​ L ​ ​ ​ ˙ ​ ​

\theta

θ

S

Modificaciones Trabajo Previo

la velocidad lineal y la velocidad angular de cuerpo del robot puede representarse como el promedio de la suma de las velocidades angulares

v = \frac{r}{2}(\dot{\theta_1}+\dot{\theta_2})

v = \frac{​ r ​ ​}{​ 2 ​} (​ θ ​ 1 ​ ​ ​ ˙ ​ ​ + ​ θ ​ 2 ​ ​ ​ ˙ ​ ​)

\omega = \frac{r}{2b}(\dot{\theta_1}+\dot{\theta_2})

ω = \frac{​ r ​ ​}{​ 2 b ​} (​ θ ​ 1 ​ ​ ​ ˙ ​ ​ + ​ θ ​ 2 ​ ​ ​ ˙ ​ ​)

Modificaciones Trabajo Previo

La señal de salida:

Y =[\phi\,\,S]^T

Y = [ϕ S] ​ T ​ ​

Controlador:

PID = (s^2+2\zeta\omega s+\omega^2)(s+\alpha)

P I D = (s ​ 2 ​ ​ + 2 ζ ω s + ω ​ 2 ​ ​) (s + α)

\alpha:

α :

Un polo más rápido para la solución de la ecuación de Diphantine.

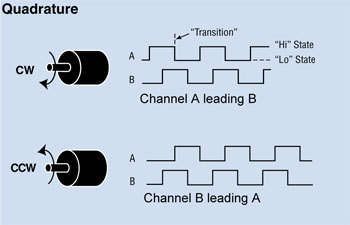

Electrónica: Sensores

#define encoder0PinA 2
#define encoder0PinB 3

int encoder0Pos = 0;
unsigned int tmp_Pos = 1;

boolean A_set;
boolean B_set;

boolean flag = true;

void setup() {

  pinMode(encoder0PinA, INPUT);
  pinMode(encoder0PinB, INPUT);
  pinMode(13, OUTPUT);

// encoder pin on interrupt 0 (pin 2)
  attachInterrupt(0, doEncoderA, CHANGE);
// encoder pin on interrupt 1 (pin 3)
  attachInterrupt(1, doEncoderB, CHANGE);
  Serial.begin (9600);
}


void loop(){
  digitalWrite(13, flag);
  Serial.print("Index:"); Serial.print(encoder0Pos, DEC); Serial.println();
  encoder0Pos = 0;
  flag = !flag;
  delay(100);
}


// Interrupt on A changing state
void doEncoderA(){

  // Low to High transition?
  if (digitalRead(encoder0PinA) == HIGH) {
    A_set = true;
    if (!B_set) {
      encoder0Pos = encoder0Pos + 1;
    }
  }

  // High-to-low transition?
  if (digitalRead(encoder0PinA) == LOW) {
    A_set = false;
  }

}

// Interrupt on B changing state
void doEncoderB(){

  // Low-to-high transition?
  if (digitalRead(encoder0PinB) == HIGH) {
    B_set = true;
    if (!A_set) {
      encoder0Pos = encoder0Pos - 1;
    }
  }

  // High-to-low transition?
  if (digitalRead(encoder0PinB) == LOW) {
    B_set = false;
  }
}

"The encoders provide a resolution of 1000 counts per three revolutions of the wheel."

\omega = \frac{6P\pi}{1000}

ω = \frac{​ 6 P π ​ ​}{​ 1 0 0 0 ​}

Electrónica: Sensores

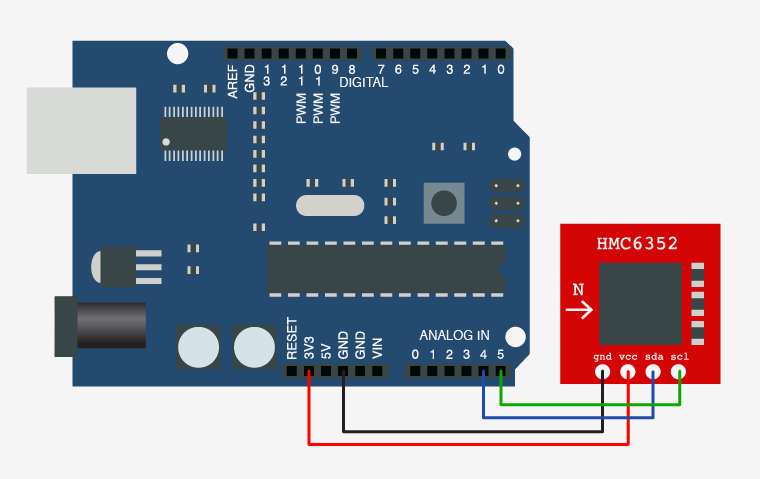

#include <Wire.h>

int compassAddress = 0x42 >> 1; // From datasheet compass address is 0x42
// shift the address 1 bit right, the Wire library only needs the 7
// most significant bits for the address
int reading = 0;

void setup()
{
  Wire.begin();       // join i2c bus (address optional for master)
  Serial.begin(9600); // start serial communication at 9600bps
}

void loop()
{
  // step 1: instruct sensor to read echoes
  Wire.beginTransmission(compassAddress);  // transmit to device
  // the address specified in the datasheet is 66 (0x42)
  // but i2c adressing uses the high 7 bits so it's 33
  Wire.write('A');        // command sensor to measure angle
  Wire.endTransmission(); // stop transmitting

  // step 2: wait for readings to happen
  delay(10); // datasheet suggests at least 6000 microseconds

  // step 3: request reading from sensor
  Wire.requestFrom(compassAddress, 2); // request 2 bytes from slave device #33

  // step 4: receive reading from sensor
  if (2 <= Wire.available()) // if two bytes were received
  {
    reading = Wire.read();  // receive high byte (overwrites previous reading)
    reading = reading << 8; // shift high byte to be high 8 bits
    reading += Wire.read(); // receive low byte as lower 8 bits
    reading /= 10;
    Serial.println(reading); // print the reading
  }

  delay(100); // wait for half a second
}
