Building an analytics database

on a dime


Antolínez: The Poor Painter, c 1670

Your Host Tonight


Lucía: Daddy, 2014


Alex Fernández

Chief Senior Data Scientist at MediaSmart Mobile

@pinchito

What we will cover


  • Our Mission

  • Back to SQL

  • Aggregation and Accumulation

  • Our Next Challenge

  • Analytical DBs are hard

What We Do


Serve Mobile Ads

Real Time Bidding (RTB)


Performance campaigns


85 K+ requests / second

10 M+ impressions / day

40+ servers

20+ countries

Guilty!

Image source: Stupid Zombies 2

We help pay for your entertainment

Taming Big Data


How big is "big data"?


Check Inventory

3+ MM bid offers per day

About 100 MM per month


Ask simple questions

On a budget!

We are a startup

our mission

Sassetta: Freeing the Poor from a Prison, c 1440

Previous Attempts


Sent over RabbitMQ

Gobbled our systems


Stored in CouchBase

Too slow to query


Stored in Redis

Too much information

Requirements


Visualize one month inventory


Run most queries in < 1 sec


Development: a few weeks


Budget: < 1% of income

~ $1K / month budget

We Paid Close Attention

At BSD'13



Well, most of the time

What We Explored


MetaMarkets


Hadoop

Cassandra

Amazon RedShift

Google BigQuery


Amazon Kinesis

Amazon Data Pipeline

Amazon RedShift


Columnar database

"Petabyte-scale"


Cheap! All you can eat!

160 GB SSD: $700 / month


PostgreSQL Interface

Redshift peculiarities


Full scans are not evil anymore!

but the usual way of access


Constant look-up times

1 second per 4 M values per node


Does not cache subqueries well

Back to SQL


Goya: Interior of a Prison, 1793

Our Data Structure


region

day

hour

ad size

language

country code

operating system

...

Raw data


3 MM events / day


Each event characterized by 24 fields


Each field can take 2~20 values


Can simply count events with fields

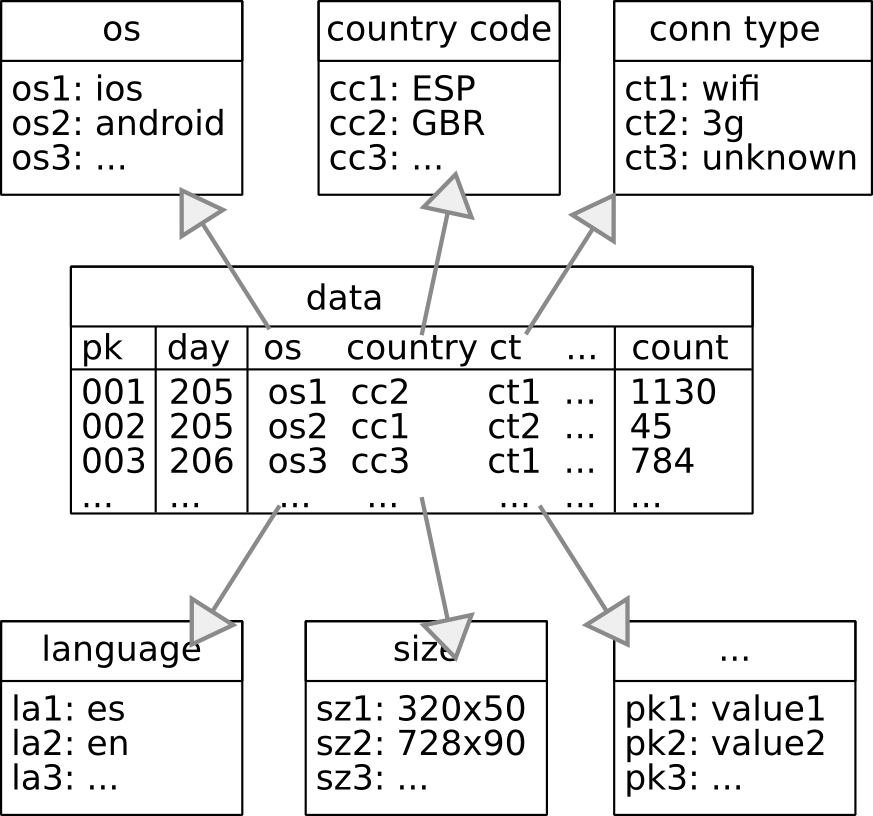

Table Design: Star

Recommended by Amazon

Type tables, main data with foreign keys

Data loading becomes very hard

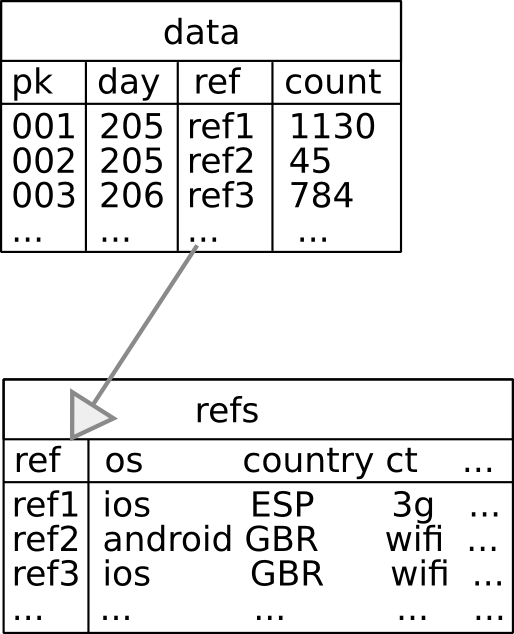

Table Design: Refs

Each combination of values is stored only once

Takes ~half the space, > 2x the querying time

Several refs: hits a bottleneck

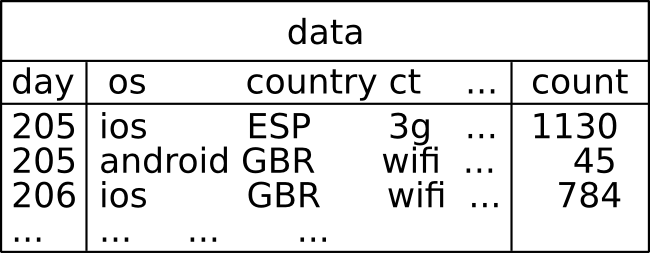

Table Design: Flat


Data lines are loaded as is

Very simple code

Easy loading, no foreign keys

Redshift behaves surprisingly well

Aggregation

and accumulation


Wright: An Experiment on a Bird in an Air Pump, 1678

Aggregation


Group events by fields


Pure exponential:

  • 2 values/field: 2 24 ~ 16 M refs

  • 3 values/field: 3 24 ~ 282 MM refs


Actual values:

Hourly: ~200M events ~2M refs

Daily: 3.5 MM events 8M refs

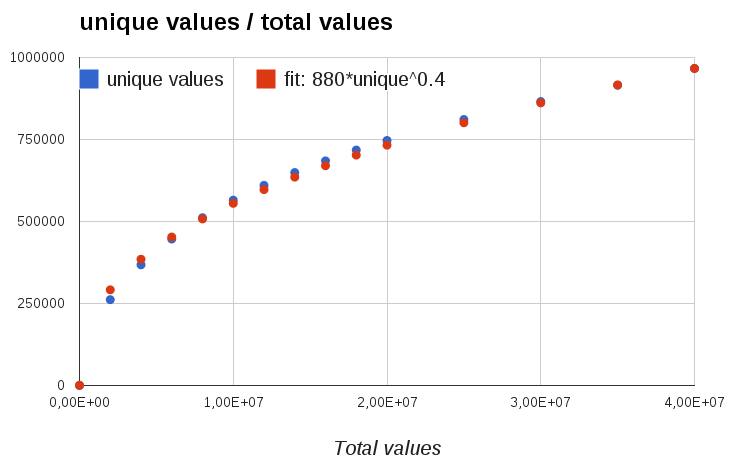

Unique / total


That is convenient!

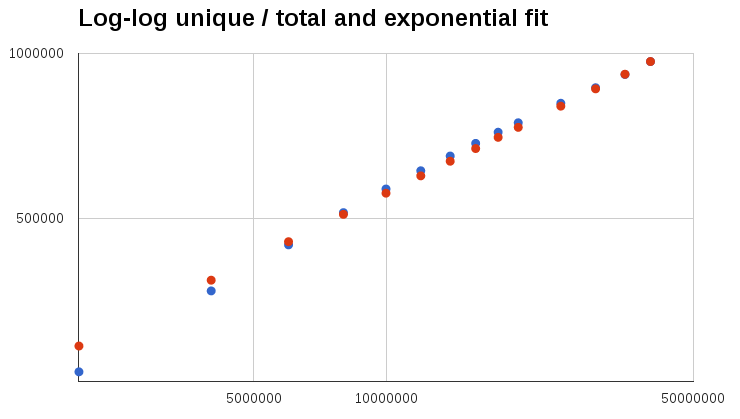

Exponential fit


Close, but no cigar

generalized coupon collector problem


Thanks to an answer on Cross Validated


There are many possible values

with different frequencies

Normal distribution?


Quite a few papers about it

None that clarify our case

Fast Path: six fields


Initially visible fields


Accumulated on their own


A whole day → 20K values!

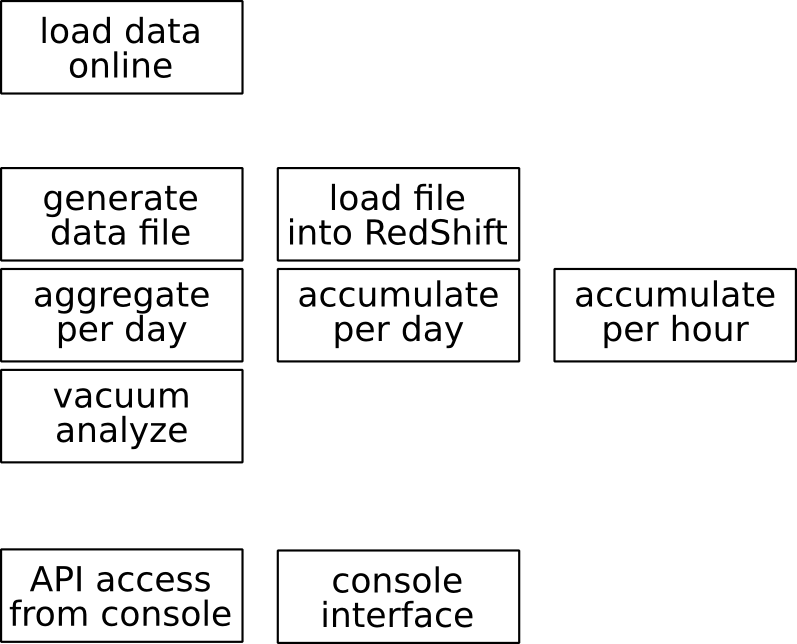

A new accumulation process

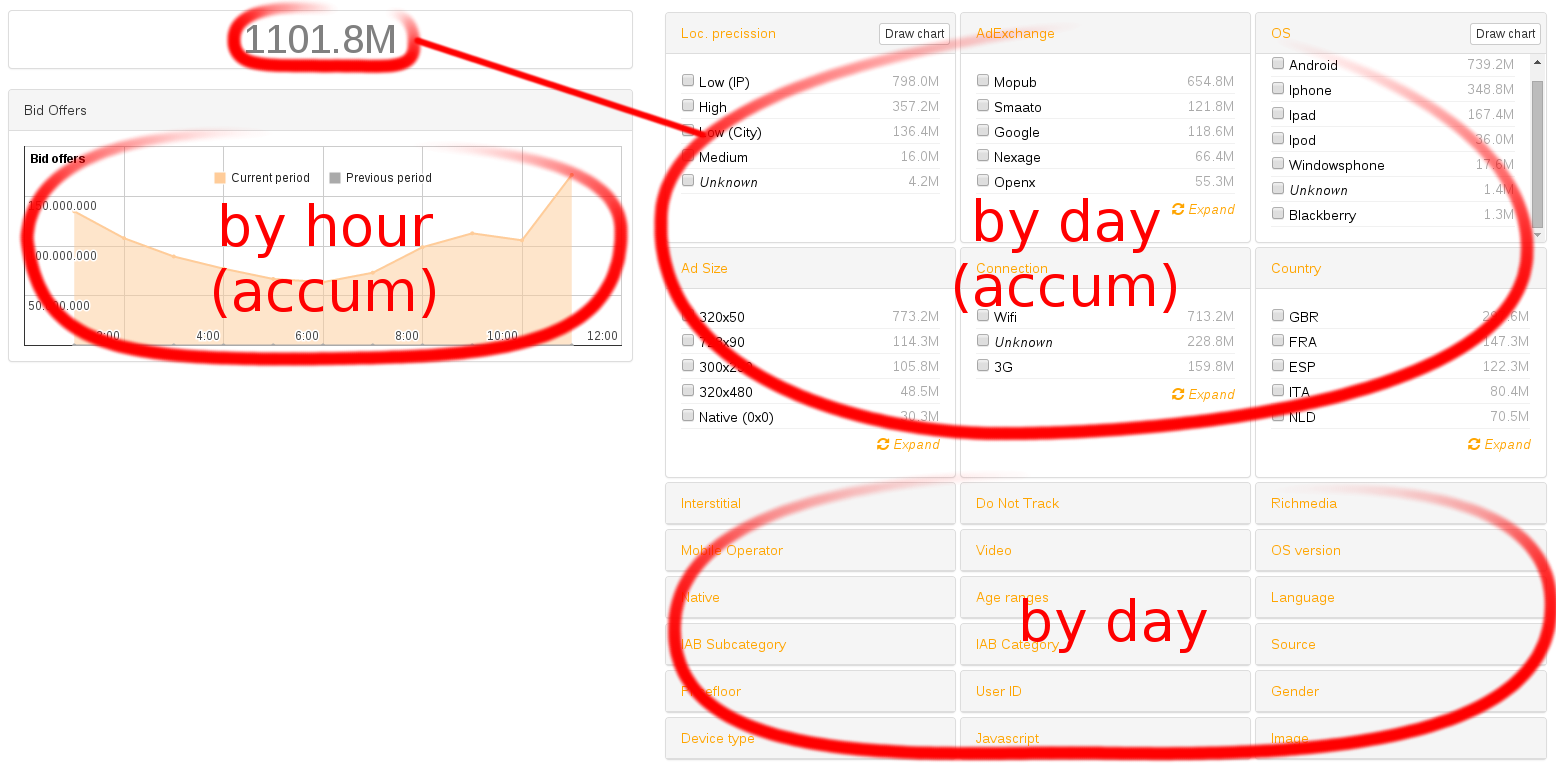

What It Looks Like


Three/four different tables per view

Demo



Bids in real time:

Real time



Inventory analysis:

Availability

Our Next Challenge


Bidding Data


Less events (10~60 M / day)


Additional fields (50% more)


Does not aggregate as nicely

Challenge Accepted


Leutze: Westward the Course of Empire Takes Its Way, 1861

Bidding Data Issues


24 + 12 fields


Many values to accumulate:

bids sent, bid price, bids won...


Actual aggregation values:

10 M → 2 M unique events

Analytical DBs: hard


Bosch: Garden of Earthly Delights, Hell, c 1480 (detail)

Gathering Requirements


We want MetaMarkets!


We want all possible fields,

just in case


All fields should go equally fast


Actual quotes from our users

Lots of Bits and Pieces



Amazon Data Pipeline: not so hot

Major Challenges


Big data is challenging


Near the operating limits of current tech


Performance should be key to user systems


Good engineering requires many iterations

Lessons Learned


Test everything


Aggregate everything


Build APIs to isolate systems


Deliver fast, iterate several times


Thanks!
