Panaya

L3V3L UP

#1

What's it all about

L3V3L UP

each of us

  • Terminology
  • Technology & Stack
  • Our "Solution"/Architecture

How ?

Frankly - Not sure yet :)

Let's start weekly 1->1.5 hours

  • brief overview of basics or concepts
  • some SERVER - mainly CLIENT
  • dive into technical stuff

You

Please ASK questions

Not sure I can answer on the spot - but we are a collective - some one will be able

Raise topics you wish to cover

Or which I explained poorly :)

Let me know if YOU want to give a talk

Who am I ?

Amir

Amiri

Dad

So Let's start

What we're gonna cover

EVERYTHING

EVETUALLY

MAYBE

TODAY

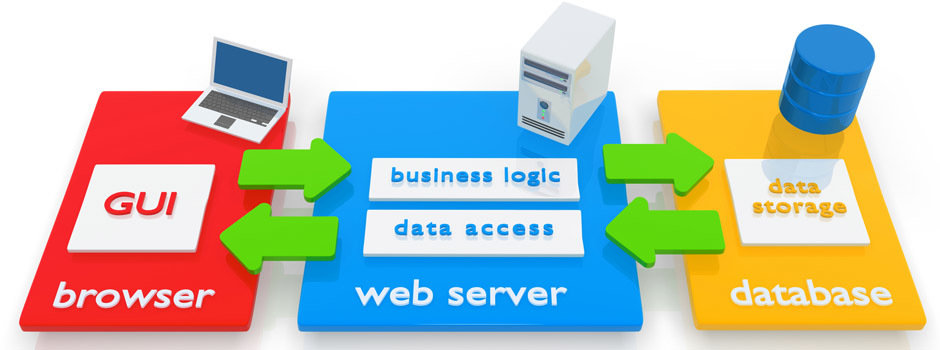

Our Client/Server Model

JavaScript Basics

Some Basic Terminology

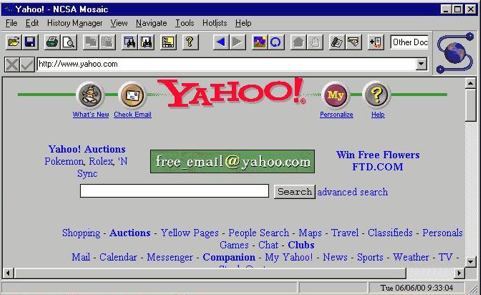

Brief History of Web Development

REST

One last note before we begin

I'm basing this on my knowledge, experience and way of "viewing" this wibbly wobbly webly devly...

stuff...

So - In Panaya

we develop a SAAS WEBAPP in the CLOUD

let's forget about the business domain for a sec

WEBAPP

A web application or web app is a client-server software application in which the client (or user interface) runs in a web browser.

SAAS

A software licensing and delivery model in which software is licensed on a subscription basis and is centrally hosted

BACK-END

A software not directly accessed by the user, which performs specialized function on behalf of a main processor

FRONT-END

practice of producing HTML, CSS and JavaScript for a website or web application so that a user can see and interact with them directly

SHOW SILLY EXAMPLE 1

FULLSTACK

developers who are comfortable working with both back-end and front-end technologies

Let's Focus

In Client's Eyes

Where "client" is a web-browser

The Server simply "serves" and accepts content

Http Request / Response

Content (response) delivered by Server can be roughly grouped into 2

Static

Dynamic

  • html
  • js
  • css
  • even jsp/asp/etc...
    • These are dynamically generated in server
    • for the browser this is still static
  • JSON
  • XML
  • TEXT FILES (any format)
  • or any other representation

Also known as XHR

XMLHttpResponse

The response data is evaluated by client-side scripting

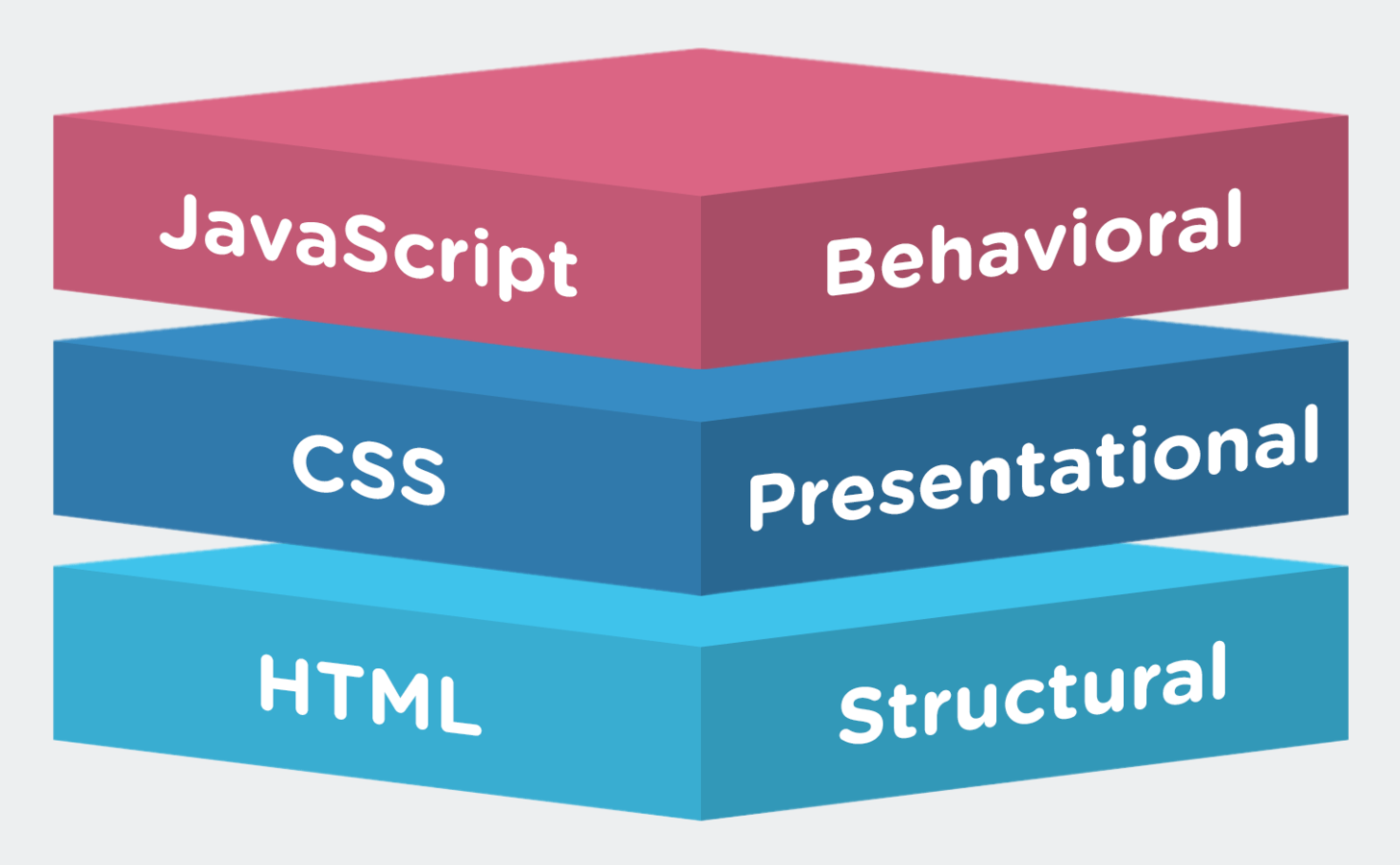

HTML vs. JS vs. CSS

<HTML>

note - modern browsers don't require all the wrapper tags we know and so care about <html>, <body> & more

But - in webapp dev - it brings bad mojo !

Plus - there's some really cool stuff you can't do without :)

bring structure (and semantics)

<div>
    <button type="button">Click Me!</button>
</div>

{CSS}

presentation (and beauty)

<div>
    <button class="wait-for-it" type="button">Click Me!</button>
</div>
wait-for-it {
    background-color: red;
}

{JAVASCRIPT}

gives behavior (and chaos)

// ThnX to Martin Kleppe
[][(![]+[])[+[]]+([![]]+[][[]])[+!+[]+[+[]]]+(![]+[])[!+[]+!+[]]+(!![]+[])[+[]]
+(!![]+[])[!+[]+!+[]+!+[]]+(!![]+[])[+!+[]]][([][(![]+[])[+[]]+([![]]+[][[]])[+
!+[]+[+[]]]+(![]+[])[!+[]+!+[]]+(!![]+[])[+[]]+(!![]+[])[!+[]+!+[]+!+[]]+(!![]+
[])[+!+[]]]+[])[!+[]+!+[]+!+[]]+(!![]+[][(![]+[])[+[]]+([![]]+[][[]])[+!+[]+[+[]]]+
(![]+[])[!+[]+!+[]]+(!![]+[])[+[]]+(!![]+[])[!+[]+!+[]+!+[]]+(!![]+[])[+!+[]]])[+
!+[]+[+[]]]+([][[]]+[])[+!+[]]+(![]+[])[!+[]+!+[]+!+[]]+(!![]+[])[+[]]+(!![]+[])[+
!+[]]+([][[]]+[])[+[]]+([][(![]+[])[+[]]+([![]]+[][[]])[+!+[]+[+[]]]+(![]+[])[!+[]+
!+[]]+(!![]+[])[+[]]+(!![]+[])[!+[]+!+[]+!+[]]+(!![]+[])[+!+[]]]+[])[!+[]+!+[]+!+
[]]+(!![]+[])[+[]]+(!![]+[][(![]+[])[+[]]+([![]]+[][[]])[+!+[]+[+[]]]+(![]+[])[!+
[]+!+[]]+(!![]+[])[+[]]+(!![]+[])[!+[]+!+[]+!+[]]+(!![]+[])[+!+[]]])[+!+[]+[+[]]]+
(!![]+[])[+!+[]]]((![]+[])[+!+[]]+(![]+[])[!+[]+!+[]]+(!![]+[])[!+[]+!+[]+!+[]]+
(!![]+[])[+!+[]]+(!![]+[])[+[]]+(![]+[][(![]+[])[+[]]+([![]]+[][[]])[+!+[]+[+[]]]+
(![]+[])[!+[]+!+[]]+(!![]+[])[+[]]+(!![]+[])[!+[]+!+[]+!+[]]+(!![]+[])[+!+[]]])[!+
[]+!+[]+[+[]]]+[+!+[]]+(!![]+[][(![]+[])[+[]]+([![]]+[][[]])[+!+[]+[+[]]]+(![]+
[])[!+[]+!+[]]+(!![]+[])[+[]]+(!![]+[])[!+[]+!+[]+!+[]]+(!![]+[])[+!+[]]])[!+[]+
!+[]+[+[]]])()

In reality ?

It's mixed up...

HTML can mix JS & CSS

JS can inject CSS or HTML

CSS can't do any of that - it's annoying but still bad-ass

·

Before we dive into F-E

Let's talk APP - SERVER

Specifically our Server

Simplest way I know

First - understand what it is

Second - analyze what happens when requests come in

Tomcat

is Web-Server & Servlet Container

Implements Java EE's

  • Servlet
  • JSP
  • WebSocket
  • and more...

as-web-site

  • WAR file
  • which is basically - a JAR distributed  to Web-Servers
  • Contains
    • JSP
    • Servlets
    • Java Classes
    • other resources (xml,js,etc...)

}

Constitutes as

"Web Application"

Web Filters / Configuration

Static

Dynamic

REST (Spring Servlet)

Controllers (Spring)

BL Facade

bl.xml / bl-tm.xml

web.xml

rest-services-config.xml

Business Logic

JS

CSS

html

other

This is an abstraction

Web Filters / Configuration

web.xml

Basically - Filters control to which "Servlet" the request will be mapped

In other words - which behavior to append to requests

based on rules and restrictions

<!-- Require Full-Login -->
<filter>
    <filter-name>Login Filter</filter-name>
    <filter-class>com.panaya.as.web.security.LoginFilter</filter-class>
</filter>
<!-- Map "Rest" services to filter -->
<filter-mapping>
    <filter-name>Login Filter</filter-name>
    <url-pattern>/rest/*</url-pattern>
</filter-mapping>

Define a "filter"

Define a mapping rule

Requests "adhering" to the rule will pass through "filter"

(or be thrown)

Web Filters / Configuration

web.xml

In this case - require "login"

Some filters may control whether a resource can be accessed without user being logged-in

Others control mapping of requests to certain Servlets

  • Spring REST
  • Player
  • and more...

Filters can be chained...

REST (Spring Servlet)

rest-services-config.xml

<mvc:interceptors>

    <bean class="com.panaya.as.web.rest.interceptors.SaveResponseInterceptor" />


    <bean class="com.panaya.as.web.rest.interceptors.ProjectAuthenticationInterceptor" />
</mvc:interceptors>
<!-- Setup Spring to expect annotation-based syntax like
    @controller, @RequestMapping, @ResponseBody -->
<mvc:annotation-driven/>
<!-- Have Spring "Scan" the "com.panaya.as.web.rest.controllers"
     package for components (Controller/Interceptors/etc. -->
<context:component-scan base-package="com.panaya.as.web.rest.controllers" />
<!-- Have Spring "Intercept" requests and run certain App-Logic on requests -->
    <!-- Example: Check that operations are performed on "project" defined in session -->

BL Facade

bl.xml / bl-tm.xml

"Facade" or "Service Connector" design pattern

- hiding the BL behind a common interface

Most Common Question

Let's say - we want to "create a new node in tree"

Expect to find - method named "createNewExecutionNode"

We will see in a momant

Exercise

Let's try to mix it up on Server-Side

First

Let's limit our users to "Chrome" browser only

Second

Add "Rest" API that returns the user's DB id

"as_security_user"."id"

Important note

This is definitely not the way to achieve this goal

Modern web Arch. is based on n-Tier modle

Web-Tier

App-Tier

2 Tiers interests us the most

http -> https

redirects

load-balance

login ?

Filter certain requests (DoS)

Services provided

JAVASCRIPT
