CAT-DAC

API GATEWAY

Andrzej Goławski @pansa

CAT-DAC API GATEWAY

Rest API

AMQP 1.0 API

Versioning

Authentication

Documentation

Versioning

Documentation

Queues & Events

CatDac Architecture

CAT-DAC Architecture

cat dac

sso

messaging

API

Ingress

LB

Integration for validation

Rest

?

Import so6

api ?

WOC

CAT

RNEST

?

REST API

Authentication

Documentation

Versioning

REST API

Authentication

oAuth offline token

eyJhbGciOiJIUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJiMzI5NTcxYS0
  TFmLTRiYTgtOWM1Zi03ZTI5YjY3OTMxNjUifQ
.eyJqdGkiOiIwNTZjZDJkMi0zMjVmLTRmYmEtODc3OS0wOWEwOTAxNGMyNDUiLC
  leHAiOjAsIm5iZiI6MCwiaWF0IjoxNTk1MzY3MzU2LCJpc3MiOiJodHRwczov
  3Nzby1kZXYuY2xvdWQucGFuc2EucGwvYXV0aC9yZWFsbXMvYXBpIiwiYXVkIj
  iaHR0cHM6Ly9zc28tZGV2LmNsb3VkLnBhbnNhLnBsL2F1dGgvcmVhbG1zL2Fw
  SIsInN1YiI6ImQzOTllMjE2LWJiYjYtNGQ4OC1iNTEwLWFkZDgxZDc1ODVmYS
  sInR5cCI6Ik9mZmxpbmUiLCJhenAiOiJhcGktZ2F0ZXdheSIsImF1dGhfdGlt
  SI6MCwic2Vzc2lvbl9zdGF0ZSI6IjQ0MDcwZjU5LTBkYjYtNDMwMS04YjNhLW
  iNzM5MWUyMGM0YyIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5l
  2FjY2VzcyIsInVtYV9hdXRob3JpemF0aW9uIl19LCJyZXNvdXJjZV9hY2Nlc3
  iOnsiYWNjb3VudCI6eyJyb2xlcyI6WyJtYW5hZ2UtYWNjb3VudCIsIm1hbmFn
  S1hY2NvdW50LWxpbmtzIiwidmlldy1wcm9maWxlIl19fSwic2NvcGUiOiJlbW
  pbCBvZmZsaW5lX2FjY2VzcyBwcm9maWxlIn0
.rK0TYGJm7a_ANkLiWAMSdakkU6NMDtpuMoz_7myos

REST API

Authentication

client

access token request

curl \
 -d "client_id=api-gateway" \
 -d "grant_type=refresh_token" \
 -d "refresh_token=$OFFLINE_TOKEN" \
 https://sso.dev.pansa.pl/auth/realms/api/protocol/openid-connect/token

access token

{
  "access_token": "eyJhbGciOiJSUzIwczooiY....",
  "expires_in": 300,
  "refresh_expires_in": 0,
  "refresh_token": "eyJhbGciOiJIUzI1.....",
  "token_type": "bearer",
  "not-before-policy": 0,
  "session_state": "44070f59-0db6-4301-8b3a-ab7391e20c4c",
  "scope": "offline_access"
}

sso

api gateway

dmas endpoint request

curl \
  -H "Accept: application/v1+json" \
  -H "Authorization: Bearer $ACCESS_TOKEN" \
  https://api.dev.pansa.pl/dac/dmas/AAA0000

response

{
 "id": "AAA0000",
 "designator": "DMA01",
 "actualUpperLimit": {"uinit": "F", "value": "300"},
 "actualLowerLimit": {"uinit": "F", "value": "100"},
 "actualStartTime": "2020-10-07T13:55:00Z",
 ....
}

REST API

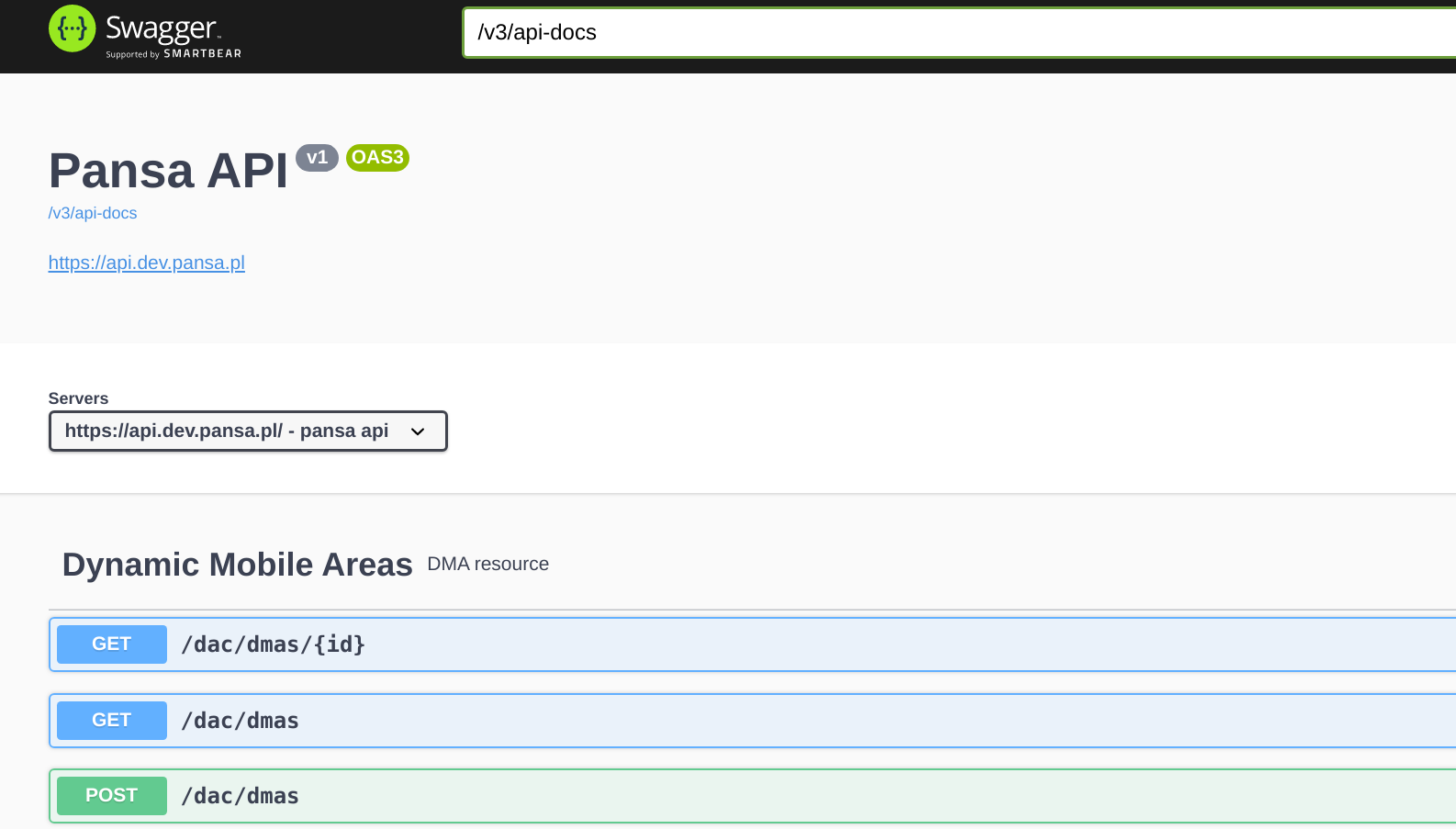

Documentation

https://api.dev.pansa.pl/swagger-ui/index.html?configUrl=/v3/api-docs/swagger-config

OpenAPI Specification - Version 3

REST API

Versioning

HTTP header

curl \
 -H "Accept: application/v1+json" \
 -H "Authorization: Bearer $ACCESS_TOKEN" \
 https://api.dev.pansa.pl/dac/dmas/AAA0000
​

Version 1

"Accept: application/v1+json"

Version 2

"Accept: application/v2+json"

AMQP API

Authentication

Queues & Events

AMQP API

Authentication

oAuth offline token

eyJhbGciOiJIUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJiMzI5NTcxYS00Y
 TFmLTRiYTgtOWM1Zi03ZTI5YjY3OTMxNjUifQ
.eyJqdGkiOiIwNTZjZDJkMi0zMjVmLTRmYmEtODc3OS0wOWEwOTAxNGMyNDUiLCJ
  leHAiOjAsIm5iZiI6MCwiaWF0IjoxNTk1MzY3MzU2LCJpc3MiOiJodHRwczovL
  3Nzby1kZXYuY2xvdWQucGFuc2EucGwvYXV0aC9yZWFsbXMvYXBpIiwiYXVkIjo
  iaHR0cHM6Ly9zc28tZGV2LmNsb3VkLnBhbnNhLnBsL2F1dGgvcmVhbG1zL2Fwa
  SIsInN1YiI6ImQzOTllMjE2LWJiYjYtNGQ4OC1iNTEwLWFkZDgxZDc1ODVmYSI
  sInR5cCI6Ik9mZmxpbmUiLCJhenAiOiJhcGktZ2F0ZXdheSIsImF1dGhfdGltZ
  SI6MCwic2Vzc2lvbl9zdGF0ZSI6IjQ0MDcwZjU5LTBkYjYtNDMwMS04YjNhLWF
  iNzM5MWUyMGM0YyIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX
  2FjY2VzcyIsInVtYV9hdXRob3JpemF0aW9uIl19LCJyZXNvdXJjZV9hY2Nlc3M
  iOnsiYWNjb3VudCI6eyJyb2xlcyI6WyJtYW5hZ2UtYWNjb3VudCIsIm1hbmFnZ
  S1hY2NvdW50LWxpbmtzIiwidmlldy1wcm9maWxlIl19fSwic2NvcGUiOiJlbWF
  pbCBvZmZsaW5lX2FjY2VzcyBwcm9maWxlIn0
.rK0TYGJm7a_ANkLiWAMSdakkU6NMDtpuMoz_7myosqo

AMQP API

Queues & Events

Queue

<version>.<client-id>.<domain>.<events-type>

v1.airbus.dac.atc-volume

Events

event-type: AtcVolumeAdded

properties

payload

{
 "id": "BBB0001",
 "designator": "ATC-VOLUME-01"
 "actualUpperLimit": {"uinit": "F", "value": "300"},
 "actualLowerLimit": {"uinit": "F", "value": "100"},
 "actualStartTime": "2020-10-07T13:55:00Z",
 ....
}

Questions

Thank you
