VLMs in the Stacks

— Andy Janco, RSE, Firestone Library

TOC

AI Librarians

Quick introduction to AI in libraries and information science.

1.

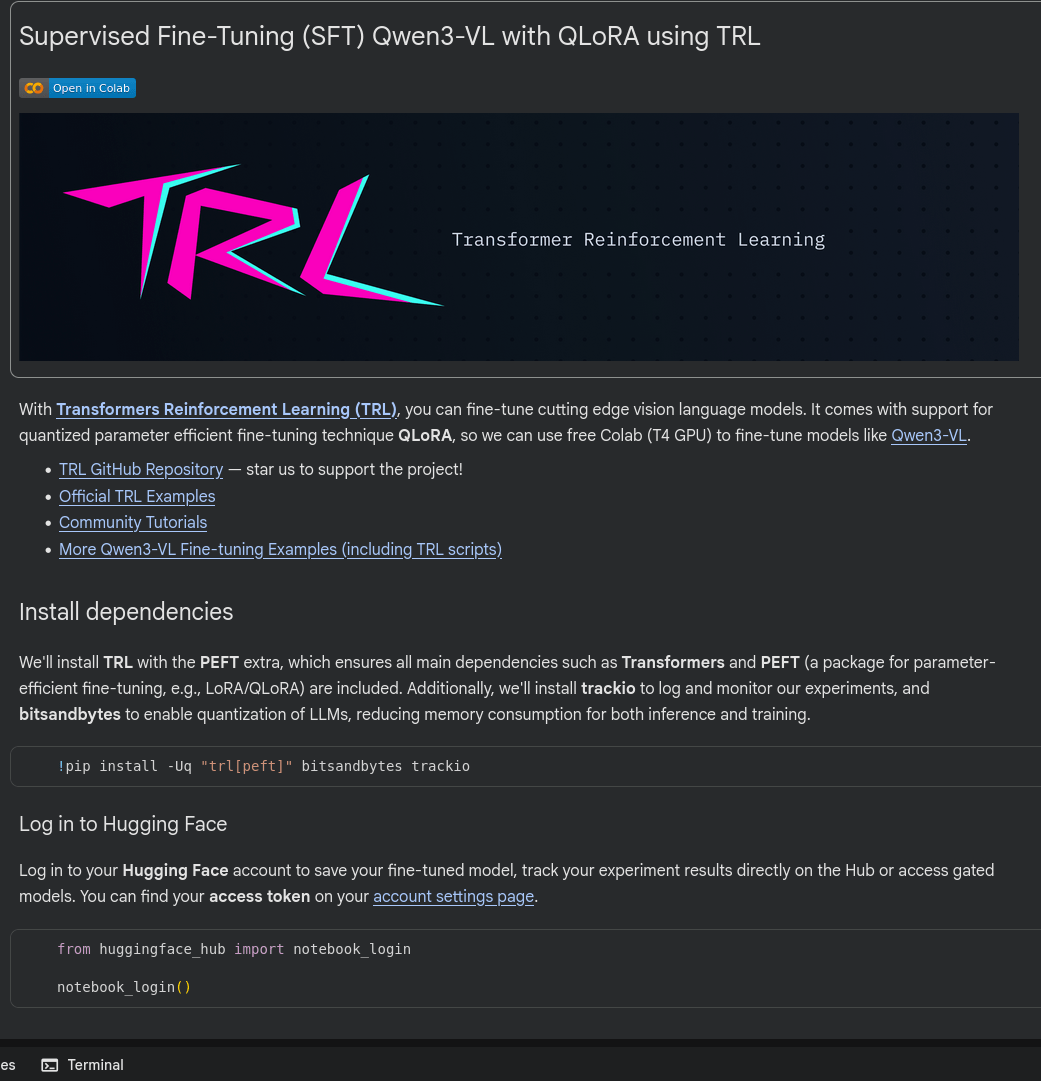

Fine-tuning

Example from archives in Colombia. Use of "small" VLMs for text extraction and document understanding.

2.

Inference

Lessons learned from processing all of Princeton's Senior theses and Dissertations.

3.

AI Librarians

Dan Cohen

Benjamin Kiessling

Daniel van Strien 🤗

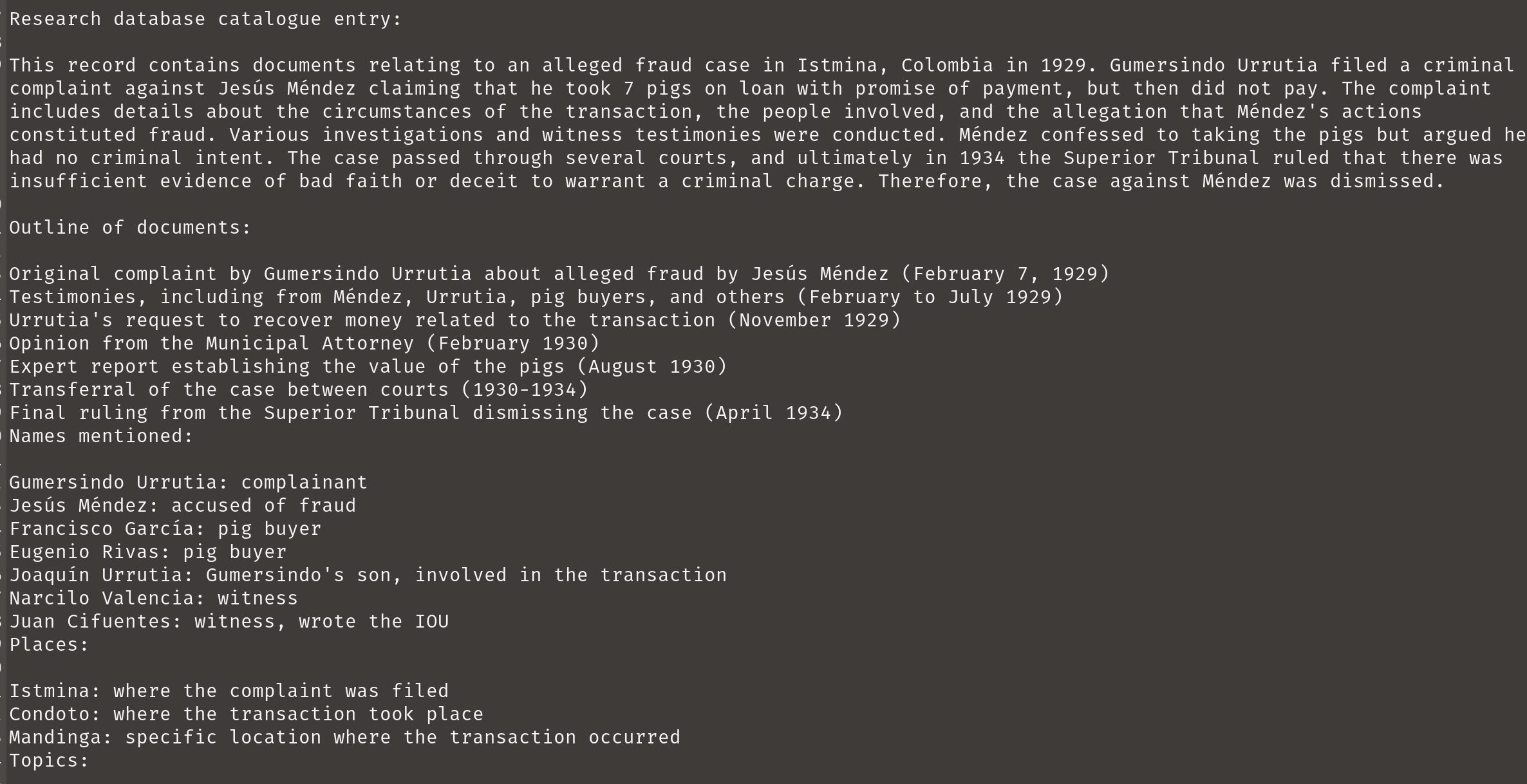

Circuit Court of Istmina, ChocĂł, Colombia


Fine-tuning "small" VLMs on line-level text-image pairs from eScriptorium

CNN

base

FT

VLM

FT

7B

FT

2B

base

7B

base

2B

 {
    "messages":[
      {
        "content":"<image>extract text",
        "role":"user"
      },
      {
        "content":"plotar dichas minas en la forma que lo",
        "role":"assistant"
      }
    ],
    "images":[
      "fmb_images/055e42a3-a5c9-40f8-9bf6-3cd5e82dcc1c.png"
    ]
  },

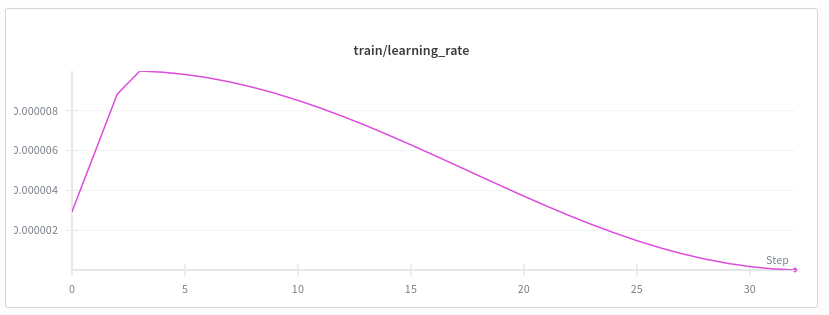

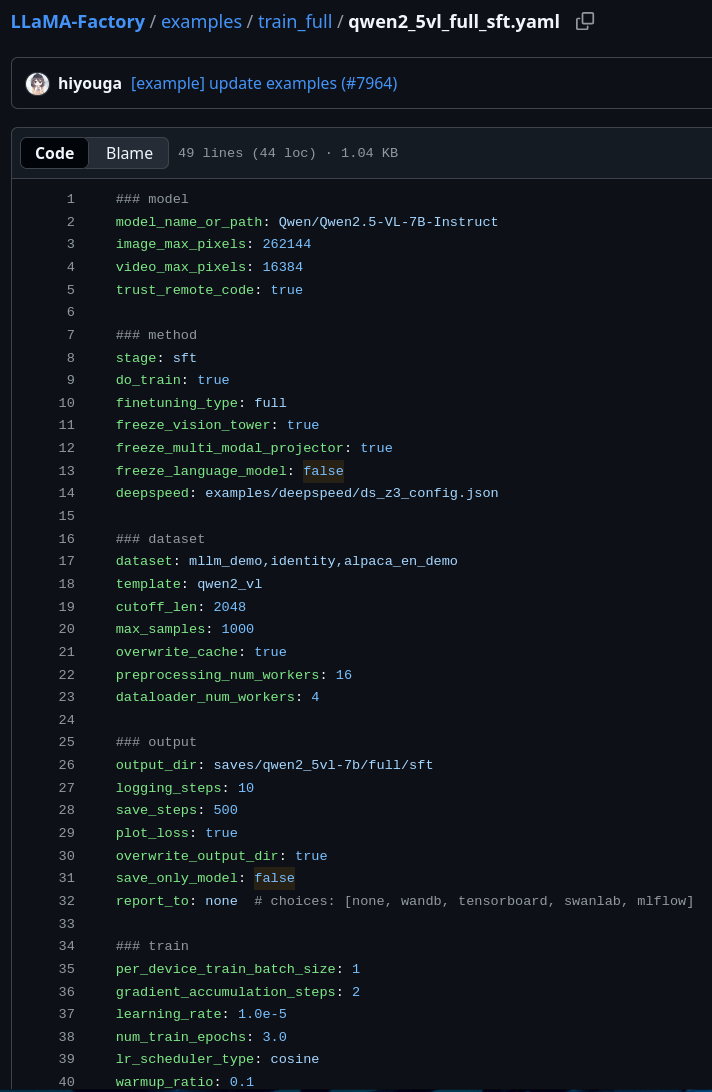

qwen2_vl-7b

4 x L40S

Visual Reasoning and Tool-calling

Metadata context



Identifier: EAP699/23/1
Title: Photographs
Place: Moldova, Europe

Zoom / select tool for

image search

multimodal-RAG

Frantuz Alexei  (b. 1964) with his relatives and friends from the commune Ciocîlteni, Moldova (1985-2000).

  • 18,608 Senior theses and PhD Dissertations, 2013-2025

  • Metadata from DataSpace

  • Markdown from nanonets/Nanonets-OCR-s (Qwen2.5-VL)

  • 4.4 GB, 1.1 billion tokens, 2 million pages

  • 31 days, 531 HPC jobs, 4x4hours at a time

  • Average CPU utilization 99.5%, GPU utilization 86%

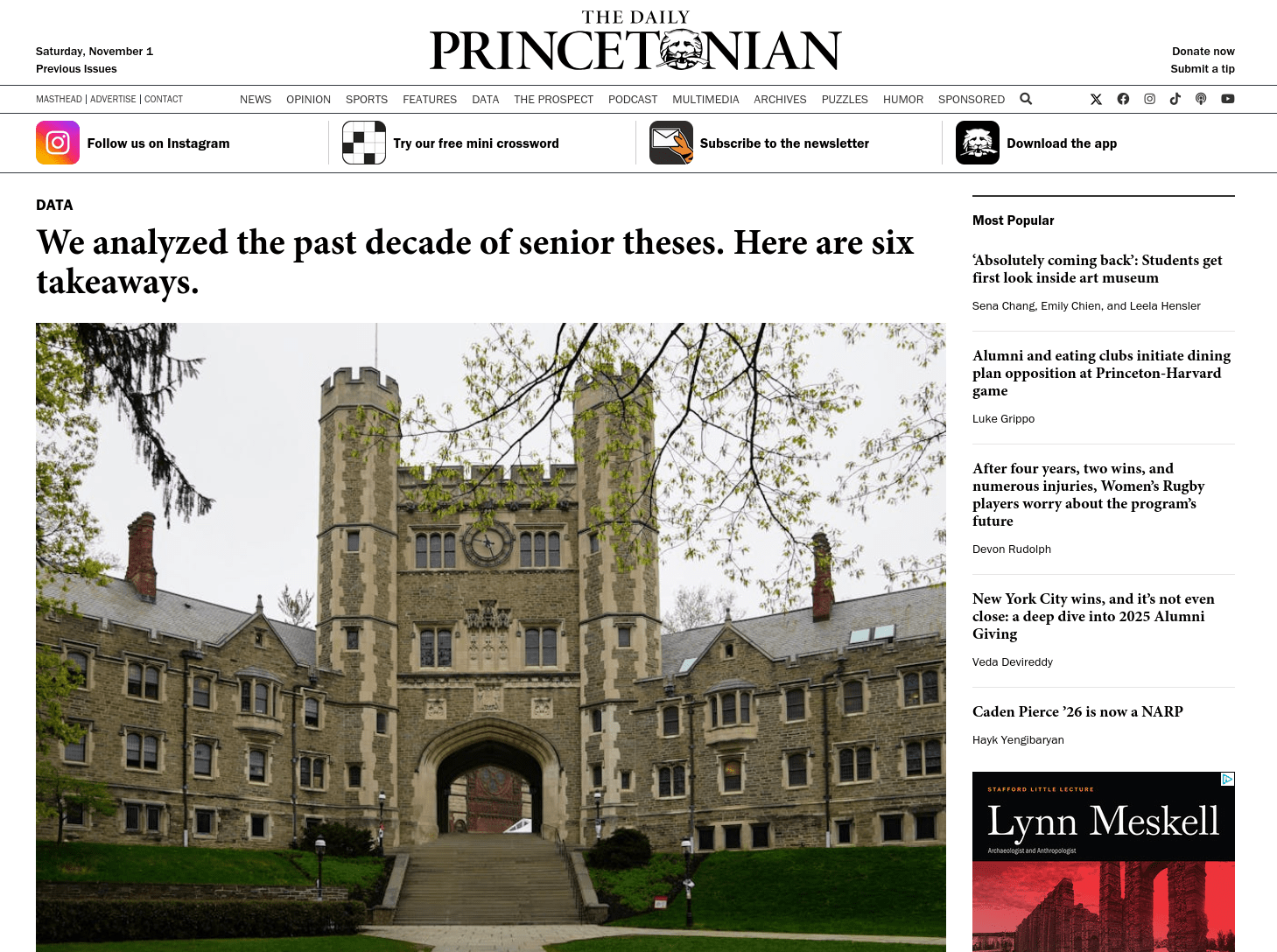

Princeton Thesis Dataset

  • vLLM, gpu_memory_utilization
  • efficent message batching
  • worked with page images in memory
  • 8B VLM runs on a single GPU, can scale with concurrent jobs.

What I did right

  • Use metadata to sort the dissertations by page length, and quantify the relationship between the number of pages and memory usage. 61 jobs were OUT_OF_MEMORY.
  • Work from the model's preference for HTML over md for tables. My prompt says MD, but the results are inconsistent.
  • Faster and fewer jobs with multi-node vLLM with Ray?

If I could do it again

Adapted from uv-scripts/ocr by davanstrien

        doc = pymupdf.open(pdf)
        for i, page in tqdm(enumerate(doc)):  # iterate through the pages
            pix = page.get_pixmap(dpi=100)
            img = pix.pil_image()
            pdf_images.append({
                "image": img,
                "page": i + 1,
            })
        pdf_text = """"""
        for batch in tqdm(image_batches, desc=f"Processing {pdf.stem}"):
            batch_messages = [make_ocr_message(page["image"]) for page in batch]

            # Process with vLLM
            outputs = llm.chat(batch_messages, sampling_params)

            # Extract markdown from outputs
            for output in outputs:
                markdown_text = output.outputs[0].text.strip()
                pdf_text += markdown_text + "\n\n"
        md_file.write_text(pdf_text, encoding='utf-8')



LLM Collective Nov 12, 2025, 4:00 pm – 5:00 pm, Commons Library Classroom



THANK YOU

@apjanco

.bsky.social

apjanco@

princeton.edu

slides.com/andrewjanco/vlms-in-stacks
